window LEXUS LX470 2007 Owner's Guide

190
3-2. Using the audio system
■When the battery is disconnected
All preset stations are erased.
■Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains, transmitters, etc.
●To maintain clear radio reception, do not attach metallic window tinting or other
metallic objects to the ante nna wire mounted inside the right-hand rear quarter
window. Ask your Lexus dealer for details.
■XM® satellite radio
The optional Lexus genuine satellite radio tuner and antenna allows you to receive
and play XM satellite radio broadcasts. (Subscription is required. Not available in
Hawaii and Alaska.)*
●XM® subscriptions
For detailed information about XM® satellite radio or to subscribe, visit XM®
on the web at www.xmradio.com or call (800) 967-2346.
●Radio ID
You will need the radio ID when activating XM
® service or reporting a prob-
lem. Select “CH000” using the , and the receiver's 8-character ID num-
ber will appear.
●Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompany-
ing Text Information of XM
® satellite radio.
*: Terms and services provided by XM
® Radio are subject to change without
notice.

245
3-5. Other interior features
3
Interior features
CAUTION
■While driving
Do not adjust the display.
Be sure to adjust the display only when the vehicle is stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate elec tric systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

256
3-5. Other interior features
■Speech recognition information
The Lexus Link speech recognition systems use speech technology that is designed
to understand a wide range of speakers of American English. However, the technol-
ogy may not work as well if a regional or ethnic accent is encountered. If the speech
recognition system does not work properly, refer to the following.
●The system does not recognize your command properly if noise is preset. Per-
form the following to improve voice command recognition.
• Turn down or off the air conditioning system.
• Slow down to reduce wind noise.
• Close the windows and the moon roof to block outside noise.
• Have all occupants be quiet so that the system does not recognize their con- versation as a command.
●When to speak
Say a command within 5 seconds after the system prompts you to speak.
●How to speak
• Speak forcefully and clearly.
• Speak calmly and naturally.
• The driver should speak while facing forward, and the passenger should speak facing the inside rear view mirror.
• Avoid speaking with a rising intonati on. Use a flat or falling intonation.
●Tips for one-word commands
• The system recognizes only one word at a time for personal calling. (There
are some exceptions, such as “Advanced services” and “My number”.)
• When inputting the security codes or voice-activated keypad number, you
must say them one digit at a time. When inputting a phone number, the
speech recognition system can recogniz e 7, 10, and 11-digit numbers as well
as the number 911.

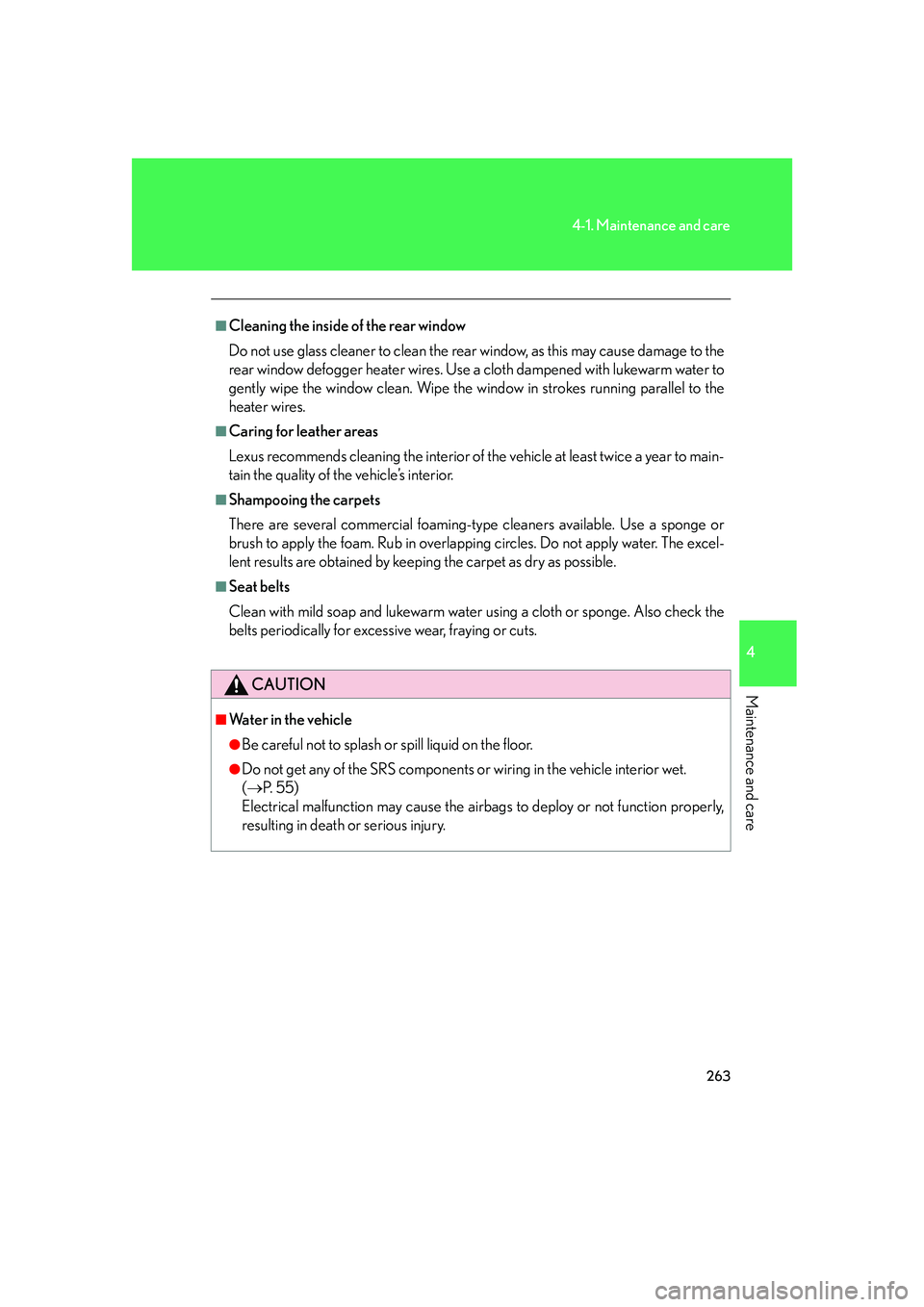

263
4-1. Maintenance and care
4
Maintenance and care
■Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires. Use a cloth dampened with lukewarm water to
gently wipe the window clean. Wipe the window in strokes running parallel to the
heater wires.
■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to main-
tain the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or
brush to apply the foam. Rub in overlappin g circles. Do not apply water. The excel-
lent results are obtained by keep ing the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the
belts periodically for excessive wear, fraying or cuts.
CAUTION
■Water in the vehicle
●Be careful not to splash or spill liquid on the floor.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
(  P. 5 5 )
Electrical malfunction may cause the airbags to deploy or not function properly,
resulting in death or serious injury.

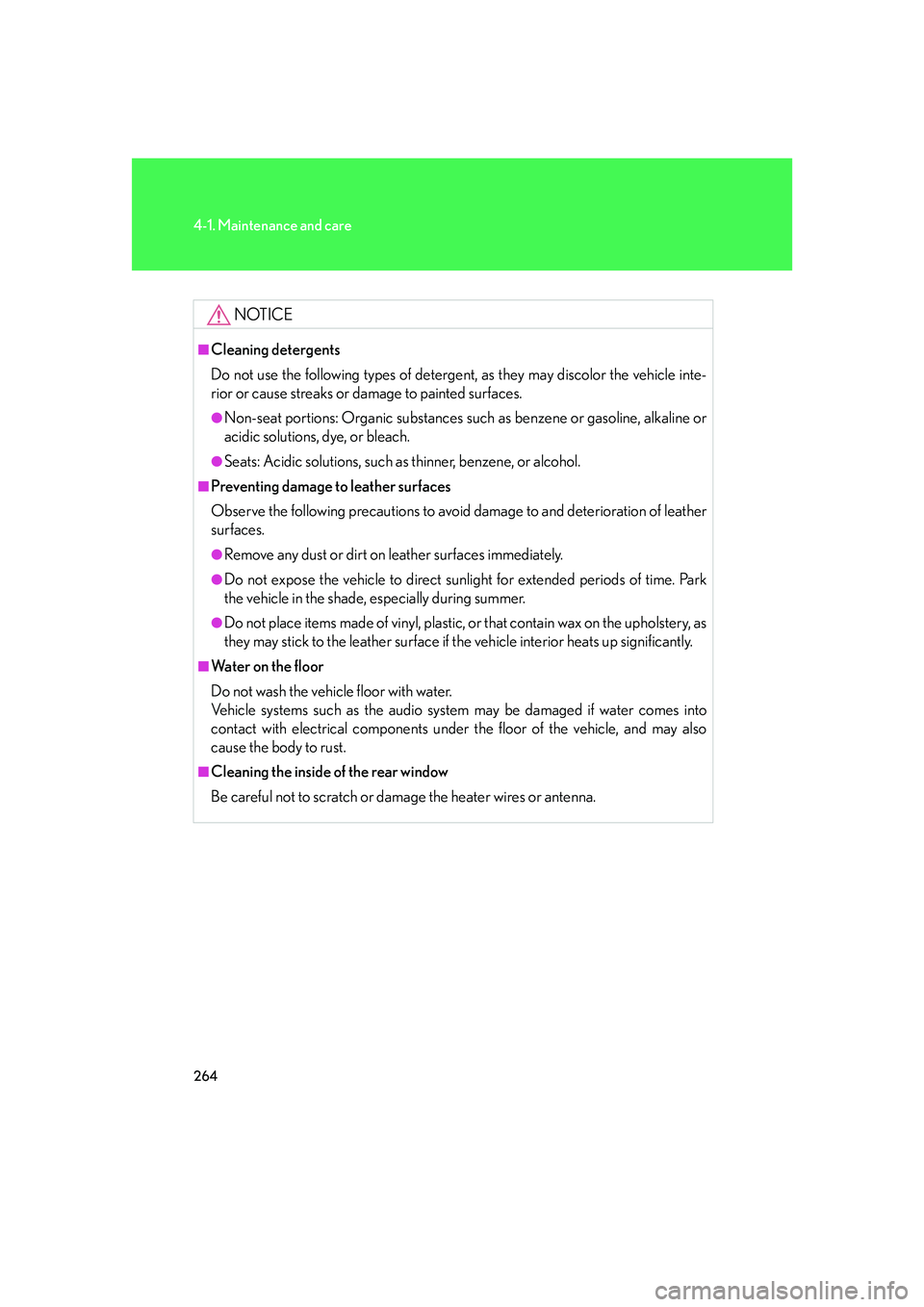

264
4-1. Maintenance and care
NOTICE
■Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces.
●Non-seat portions: Organic substances su ch as benzene or gasoline, alkaline or
acidic solutions, dye, or bleach.
●Seats: Acidic solutions, such as thinner, benzene, or alcohol.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended pe riods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio syst em may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■Cleaning the inside of the rear window
Be careful not to scratch or damage the heater wires or antenna.

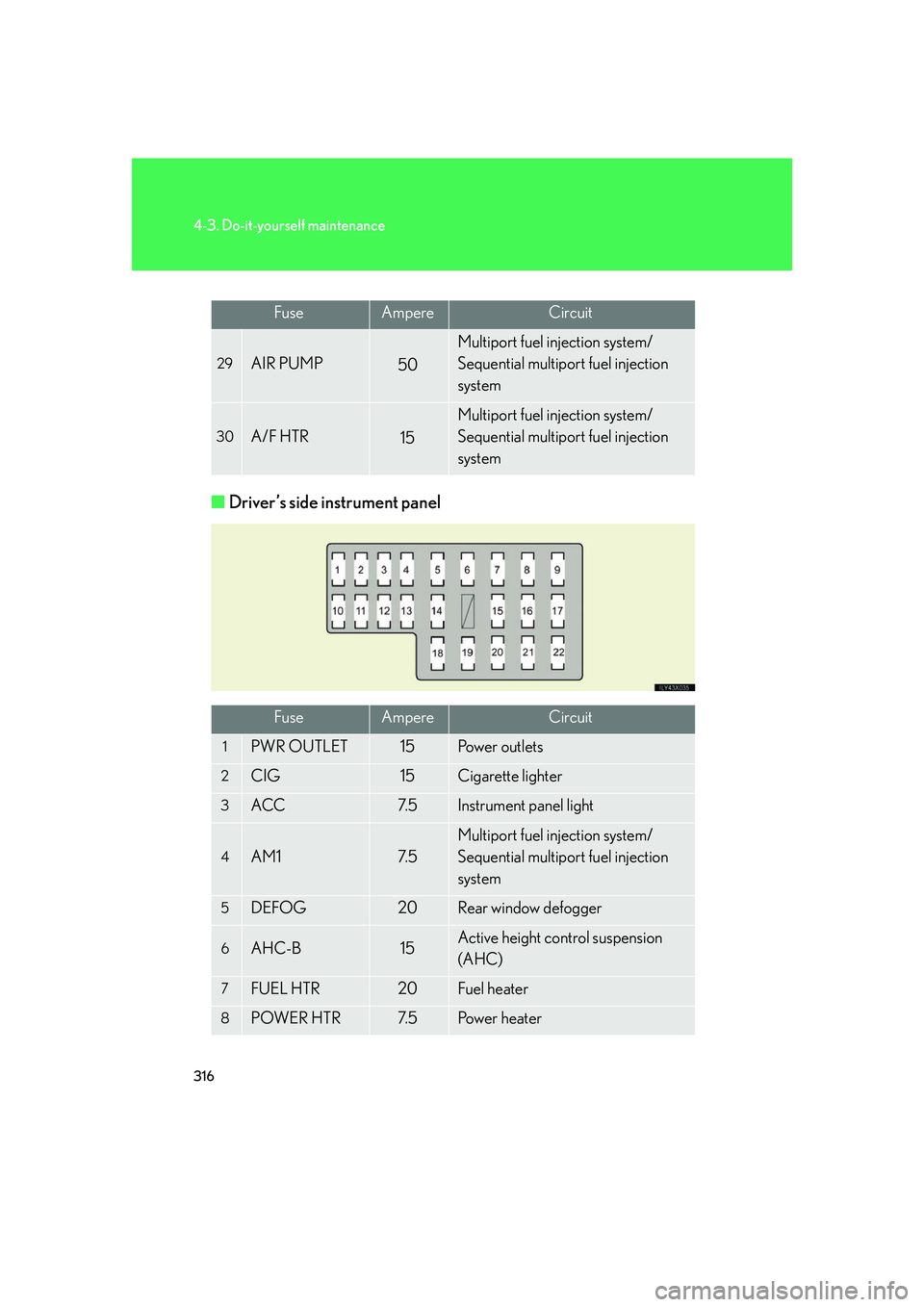

316
4-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
29AIR PUMP50
Multiport fuel injection system/
Sequential multiport fuel injection
system
30A/F HTR15
Multiport fuel injection system/
Sequential multiport fuel injection
system
FuseAmpereCircuit
1PWR OUTLET15Po w e r o u t l e t s
2CIG15Cigarette lighter
3ACC7. 5Instrument panel light
4AM17. 5
Multiport fuel injection system/
Sequential multiport fuel injection
system
5DEFOG20Rear window defogger
6AHC-B15Active height control suspension
(AHC)
7FUEL HTR20Fuel heater
8POWER HTR7. 5Po w e r h e a t e r

5
When trouble arises
343
5-2. Steps to take in an emergency
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch does not turn off the tire pressure warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks or tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light.
■If the tire pressure warning system is inoperative
The tire pressure warning system may become inoperative in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered.
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If the tire pressure warning select switch is set to a different tire setting.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used.
●If tire chains are used.
●If the spare tire is in a location subject to poor radio wave signal reception.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.
■If the tire pressure warning light blinks
If the tire pressure warning light blinks when the ignition key is turned to the “ON”
position, have it checked by your Lexus dealer.
■Changing the engine oil (U.S.A. only)
Make sure to reset oil change system

386
6-1. Specifications
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sure
Tire inflation pressure when the vehicle has been
parked for three hours or more, or has not been
driven more than 1 mile or 1.5 km under that condi-
tion
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipp ed, air conditioning and
additional weight optional engine
Maximum inflation pres-
sureThe maximum cold inflation pressure to which a tire
may be inflated, shown on the sidewall of the tire
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows

399
Alphabetical index
CareExterior ................................................... 260
Interior......................................................262
Seat belts ............................................... 263
Card holder .............................................. 215
Cargo capacity ........................................ 151
Cargo net hooks .................................. 235
CD player/changer .............................. 197
Chains.........................................................158
Child-protectors ...................................6,10
Child restraint system (CRS) Definition.................................................... 72
Installation..................................................75
Front passenger occupant classification system .........................67
Installing CRS with lower anchorages .......................................... 80
Installing CRS with seatbelts ...........76
Installing CRS with top straps ........ 82
Child safety Airbag precautions ............................... 61
Battery precautions ...............276, 362
Child-protectors.................................6,10
Child restraint system ......................... 72
How your child should wear the seatbelt ............................................ 27
Installing child restraints .....................75
Moon roof precautions ......................43
Power window lock switch ............. 38
Power window precautions............ 39
Removed wireless remote control battery precautions ........310
Seat belt extender precautions ......29
Seat belt precautions.......................... 28
Seat heater precautions ................. 230
Cigarette lighter .................................... 227 Cleaning
Exterior................................................... 260
Interior ..................................................... 262
Seat belts ................................................263
Clock ......................................................... 223
Coat hooks .............................................. 232
Compass .................................................. 242
Condenser ..............................................283
Console box ............................................ 216
Cooling system Engine overheating...........................363
Cruise control ......................................... 120
Cup holder ............................................... 218
Curtain shield airbags............................ 54
Customizable features ...................... 389
Daytime running light system .............113
Defogger Rear window ......................................... 182
Side mirror.............................................. 182
Dimension................................................368
Dinghy towing ......................................... 169
Display Trip information ..................................... 110
Do-it-yourself maintenance ...............271
Door courtesy lights Door courtesy lights ........................... 212
Wattage .................................................. 377
Door lock Back door .................................................... 9
Side door...................................................... 5
Wireless remote control ...................... 3
Doors Back door .................................................... 9
Side door...................................................... 5
Side mirrors ............................................. 32C
D

402
Alphabetical index
LightsDoor courtesy lights........................... 212
Fog light switch .......................................114
Headlights switch ..................................112
Interior light switch.............................. 213
Personal light switch .......................... 213
Replacing light bulbs........................ 320
Turn signal lever ...................................102
Vanity lights ...........................................222
Wattage...................................................377
Load capacity .......................................... 155
Maintenance Do-it-yourself maintenance ........... 271
General maintenance ..................... 267
Maintenance data..............................368
Maintenance requirements .......... 265
Meter Instrument panel light control ...... 105
Meters ...................................................... 104
Mirrors Inside rear view mirror......................... 31
Side mirror heater ...............................182
Side mirrors ..............................................32
Vanity mirrors.......................................222
Moon roof .................................................... 41
Odometer................................................. 104
Off-road precautions ........................... 146
Oil Engine oil ................................................277
Opener Fuel filler door......................................... 44
Hood........................................................ 275
Outside rear view mirrors Adjusting and folding ..........................32 Driving position memory ....................21
Outside temperature display .......... 224
Overhead console ................................. 217
Overheating, Engine .......................... 363
Parking brake.......................................... 103
Parking lights Switch .......................................................... 112
Wattage .................................................. 377
Personal lights Personal lights........................................212
Switch ........................................................ 213
Wattage .................................................. 377
Power outlet ........................................... 228
Power quarter windows ....................... 40
Power steering Fluid .......................................................... 286
Power windows ........................................ 37
Radiator .................................................... 283
Radio........................................................... 185
RDS (Radio date system) ................... 186
Rear seat audio system ...................... 209
Rear seats Adjustment .................................................14
Removing third seats............................ 19
Tumbling second seats ....................... 15
Tumbling third seats ..............................17
Rear side marker lights Wattage .................................................. 377
Rear turn signal lights Wattage .................................................. 377
Rear view monitor system ..................123
Rear window defogger ....................... 182
Rear window wiper................................. 118
M
O
P
R
