Page 3 of 426
1
2
3
4
5
6
7
iii
2-3. Operating the lights and windshield wipers ..................... 112
Headlight switch .............................. 112
Fog light switch ................................ 114
Windshield wipers and washer............................................... 115
Rear window wiper and washer.............................................. 118
Headlight cleaner switch ............. 119
2-4. Using other driving systems... 120 Cruise control ................................ 120
Rear view monitor system ......... 123
Lexus night view system ............. 126
AHC (Active Height Control Suspension) .................................. 130
AVS (Adaptive Variable Suspension) .................................. 138
Four-wheel drive system............ 139
Driving assist systems.................. 142
2-5. Driving information ................... 146 Off-road precautions .................. 146
Cargo and luggage ........................ 151
Vehicle load limits ......................... 155
Winter driving tips ........................ 156
Trailer towing .................................. 160
Dinghy towing ................................ 170 3-1. Using the air conditioning
system and defogger .............. 172
Automatic air conditioning system (without navigation
system)............................................. 172
Rear air conditioning controls........................................... 180
Rear window and outside rear view mirror defoggers ............. 182
3-2. Using the audio system............ 183 Audio system type (without navigation system) ..................... 183
Using the radio............................... 185
Using the cassette player .......... 194
Using the CD player.................... 197
Optimal use of the audio system ............................................ 204
Using the steering switches ..... 206
Rear seat audio system .............. 209
3-3. Using the interior lights ........... 212 Interior lights list............................. 212
3-4. Using the storage features..... 215 List of storage features ............... 215
3Interior features
Page 12 of 426
xii
Pictorial indexInstrument panel
For light switch P. 114
Turn signal lever P. 102
Headlight switch P. 112
Windshield wipers and washer switch
Rear window wiper and washer switch P. 115
P. 118
Ignition switch P. 95
Power outlet
P. 228
Cigarette lighter
P. 227
Gauges and meters P. 104
Glove box P. 215
Ashtray P. 225
Hood lock release lever P. 275
Fuel filler door opener P. 44
Cruise control switch P. 120
Page 16 of 426
xvi
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. How-
ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle sh own in the illustration may differ from
your vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regula tions. In addition, damage or perfor-
mance problems resulting from the modification may not be covered under war-
ranty.
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as the multiport fuel injection system/sequential multiport
fuel injection system, cruise control syst em, anti-lock brake system, active traction
control system, vehicle stabil ity control system, active height control system, adap-
tive variable suspension system, SRS airbag system and seat belt pretensioner sys-
tem, be sure to check with your Lexus dealer for precautionary measures or special
instructions regarding installation.
Unwanted noise may occur in the reception of the mobile two-way radio.
Page 105 of 426
When driving2
87
2-1. Driving procedures ................. 88Driving the vehicle ...................... 88
Starting the engine ...................... 95
Automatic transmission ............. 98
Turn signal lever .......................... 102
Parking brake ............................... 103
2-2. Instrument cluster................... 104 Gauges and meters .................. 104
Indicators and warning lights.............................................. 107
Trip information display............. 110
2-3. Operating the lights and windshield wipers .................. 112
Headlight switch ........................... 112
Fog light switch.............................. 114
Windshield wipers and washer............................................ 115
Rear window wiper and washer........................................... 118
Headlight cleaner switch .......... 119 2-4. Using other driving
systems .................................... 120
Cruise control ............................. 120
Rear view monitor system ...... 123
Lexus night view system ........... 126
AHC (Active Height Control Suspension) ............................... 130
AVS (Adaptive Variable Suspension) ............................... 138
Four-wheel drive system ......... 139
Driving assist systems................ 142
2-5. Driving information................ 146 Off-road precautions ............... 146
Cargo and luggage..................... 151
Vehicle load limits ...................... 155
Winter driving tips ..................... 156
Trailer towing................................ 160
Dinghy towing .............................. 170
Page 119 of 426
101
2-1. Driving procedures
2
When driving
■Downshifting restrictions
Keep the engine rpm from going into red zone. The maximum allowable speed is as
follows:
■When driving with the cruise control system
The engine brake will not operate when downshifting from “D” to “4”. (P. 1 2 0 )
■“2nd STRT” mode automatic deactivation
“2nd STRT” mode is automatically deactivate d if the engine is turned off after driv-
ing in “2nd STRT” mode.
■If the shift lever cannot be shifted from “P”
P. 3 5 8
Downshifting
Maximum speed mph (km/h)
Tr a n s f e r
“L”“H”
4 332 (51)80 (129)
3 221 (35)54 (88)
2 19 (14)22 (37)
Page 126 of 426
108
2-2. Instrument cluster
■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
Turn signal indicator
( P. 1 0 2 )Active height control indi-
cator ( P. 1 3 0 )
Headlight high beam indi-
cator (P. 112)Vehicle stability control
system OFF indicator
(P. 1 4 3 )
(U.S.A.)
Headlight indicator
( P. 112)Center differential lock
indicator ( P. 1 4 3 )
(Canada)
Tail light indicator
(P. 112)
(U.S.A.)
Active traction control
system indicator
(P. 1 4 3 )
Cruise control indicator
( P. 1 2 0 )
(Canada)
Active traction control
system indicator
( P. 1 4 3 )
Slip indicator ( P. 1 4 2 )“AIRBAG ON/OFF” indi-
cator( P. 6 7 )
Roll sensing of curtain
shield airbags off indica-
tor ( P. 6 5 )
Automatic transmission
indicator ( P. 99)
“PWR” mode indicator
( P. 1 0 0 )
Automatic transmission
second start indicator
(P. 1 0 0 )
*
*
*
**
*

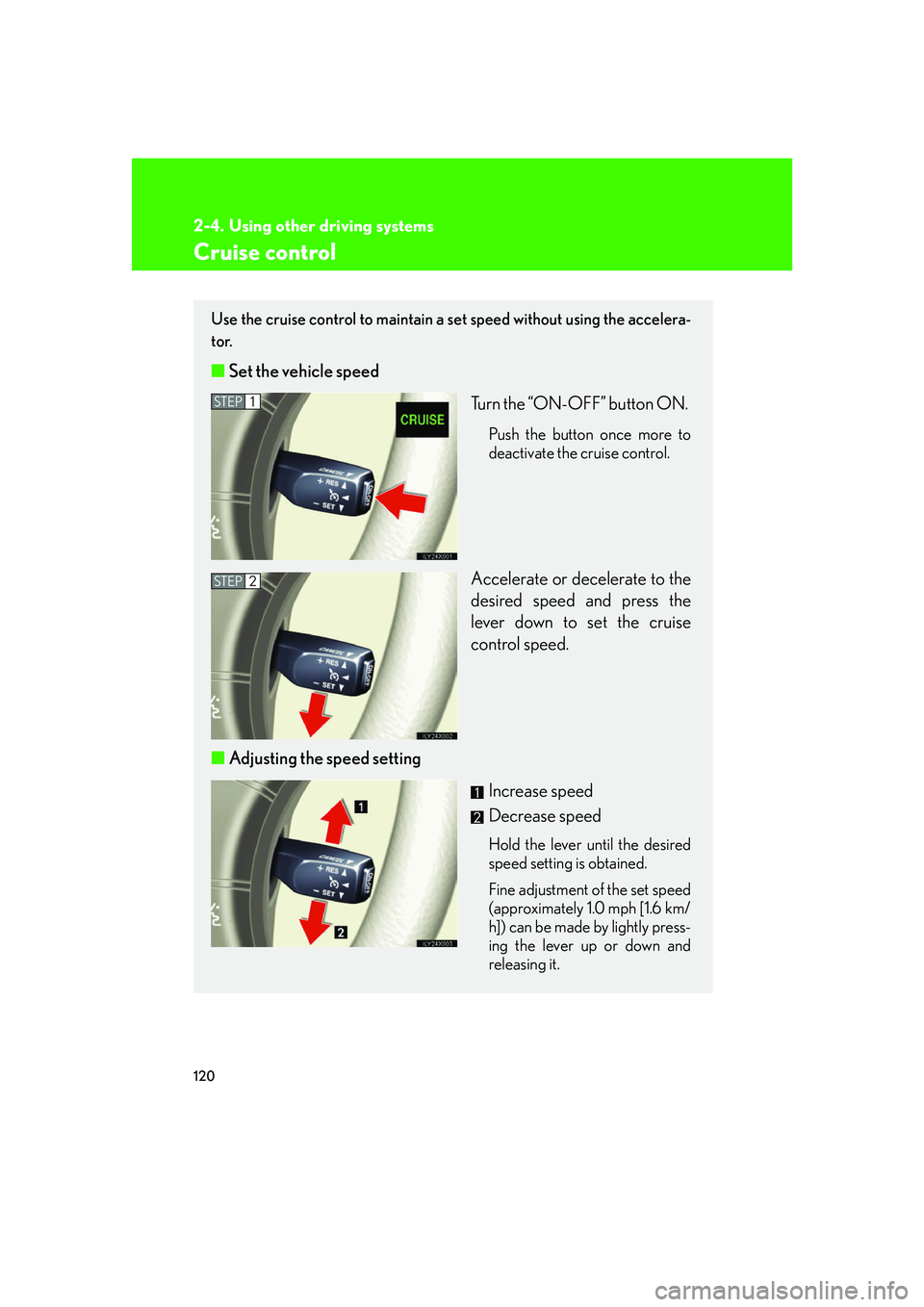

Page 138 of 426
120
2-4. Using other driving systems
Cruise control
Use the cruise control to maintain a set speed without using the accelera-
tor.
■ Set the vehicle speed
Turn the “ON-OFF” button ON.
Push the button once more to
deactivate the cruise control.
Accelerate or decelerate to the
desired speed and press the
lever down to set the cruise
control speed.
■ Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set speed
(approximately 1.0 mph [1.6 km/
h]) can be made by lightly press-
ing the lever up or down and
releasing it.
STEP1
STEP2
Page 139 of 426
121
2-4. Using other driving systems
2
When driving
■Cruise control can be set when
●The shift lever is in the “D” or “4”.
●Vehicle speed is between approximately 25 mph (40 km/h) and 125 mph
(200 km/h).
■Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
●Actual vehicle speed falls more than 10 mph (16 km/h) below the preset vehicle
speed
●Actual vehicle speed is below 25 mph (40 km/h)
●VSC is activated
■If the cruise control indicator light flashes
Turn the “ON-OFF” button off once, and then reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels immediately
after being activated, there may be a malfun ction in the cruise control system. Have
the vehicle inspected by your Lexus dealer.
■ Canceling and resuming regular acceleration
Cancel
Push the lever towards you to
cancel cruise control.
The setting is also canceled
when the brake pedal is
depressed.
Resume
To resume cruise control and
return to the set speed, push the
lever up.

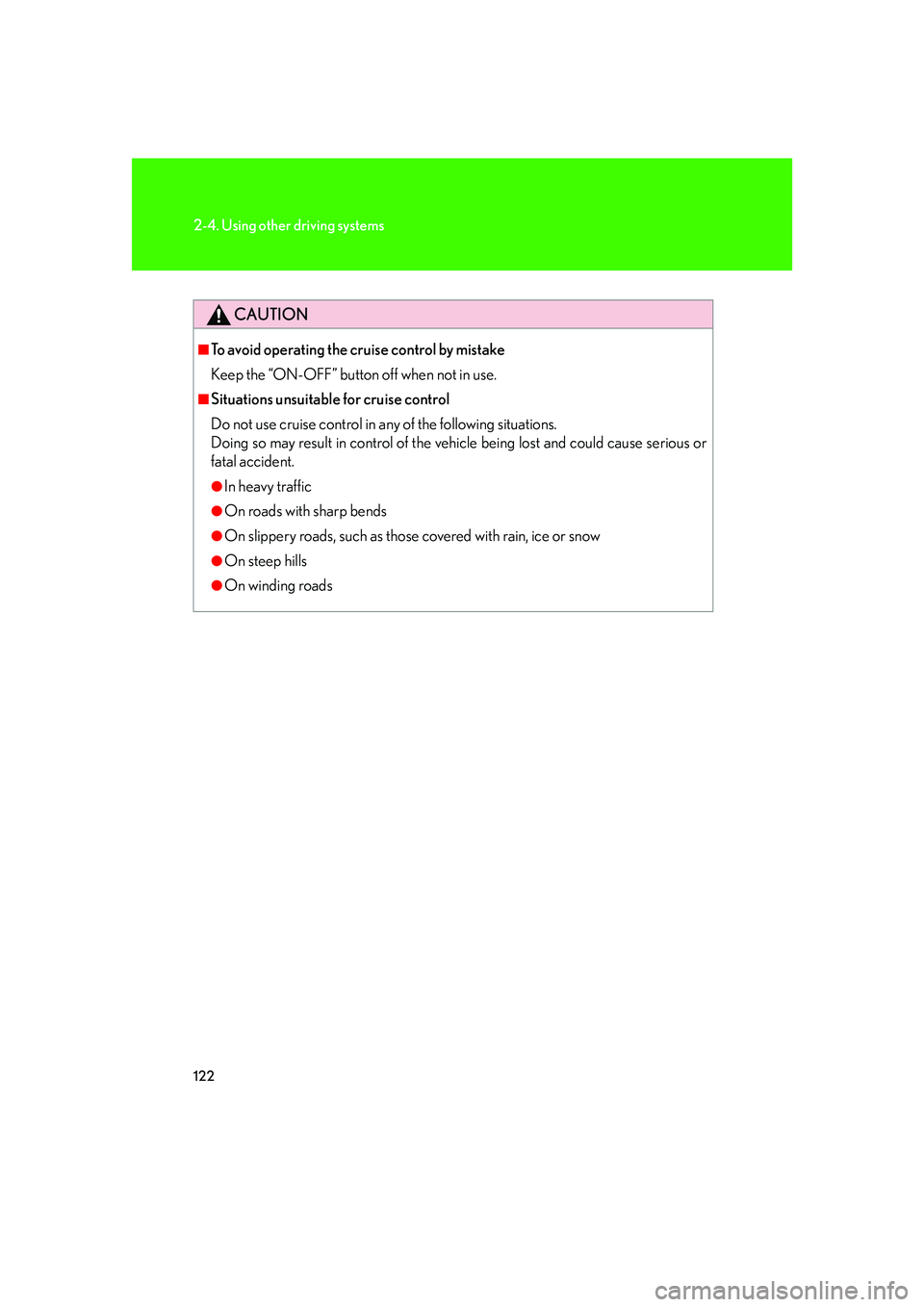

Page 140 of 426
122
2-4. Using other driving systems
CAUTION
■To avoid operating the cruise control by mistake
Keep the “ON-OFF” button off when not in use.
■Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in control of the vehicle being lost and could cause serious or
fatal accident.
●In heavy traffic
●On roads with sharp bends
●On slippery roads, such as those covered with rain, ice or snow
●On steep hills
●On winding roads
Page 158 of 426
140
2-4. Using other driving systems
■Advice for driving on slippery roads in “L” (low speed position)
●If you shift the four-wheel drive control lever to “L” and the shift lever to “2” while
driving in steep off-road areas, the output of the brake can be controlled effec-
tively by the active traction control system, which assists the driver to control the
driving power of 4 wheels.
●Use the “L” position of the shift lever for maximum power and traction when
your wheels get stuck or when you drive down a steep incline. In the following
cases, the output of the brake can be co ntrolled by the active traction control
system if the engine speed is un der 3,000 rpm (normally under 3,000 rpm
when the wheels get unstuck).
• The four-wheel drive control lever in the “L” position and the shift lever in the
“L” position or the shift lever in the “D”, “4”, “3” or “2” with the transmission
downshifting to first gear.
• The four-wheel drive control lever in the “L” position and the shift lever in the
“R” position.
■The center differential lock/unlock button can be operated when
●The ignition key is in the “ON” position, and
●The four-wheel drive control lever is in the “H” or “L” position.
■Locking /unlocking the center differential
●When the center differential is locked, VSC (vehicle stability control) is auto-
matically turned off. (Center differenti al lock and “VSC OFF” indicator light
come on.)
●When the operation is not completed, th e center differential lock indicator
blinks. If the indicator light does not go off when unlocking the center differen-
tial, drive straight ahead while accelerating or decelerating, or drive in reverse.
●The center differential lock system operation is not completed within 5 seconds
while the cruise control system is set, cancel the cruise control system.
