7954-3. Do-it-yourself maintenance
4
Maintenance and care

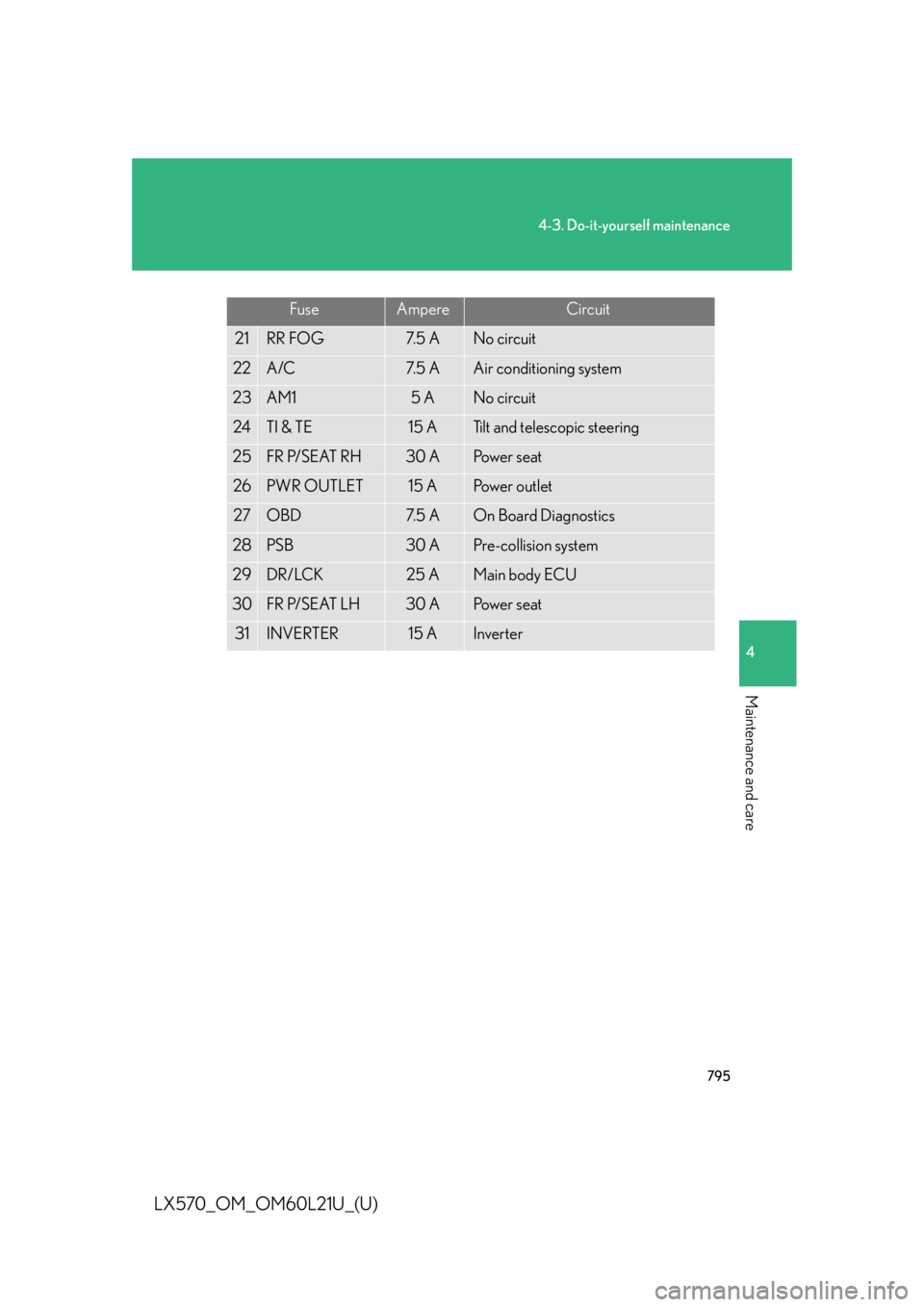

LX570_OM_OM60L21U_(U) 21 RR FOG 7. 5 A No circuit
22 A/C 7. 5 A Air conditioning system
23 AM1 5 A No circuit
24 TI & TE 15 A Tilt and telescopic steering
25 FR P/SEAT RH 30 A Po w e r s e a t
26 PWR OUTLET 15 A Po w e r o u t l e t
27 OBD 7. 5 A On Board Diagnostics
28 PSB 30 A Pre-collision system
29 DR/LCK 25 A Main body ECU
30 FR P/SEAT LH 30 A Po w e r s e a t
31 INVERTER 15 A InverterFuse Ampere Circuit

7964-3. Do-it-yourself maintenance

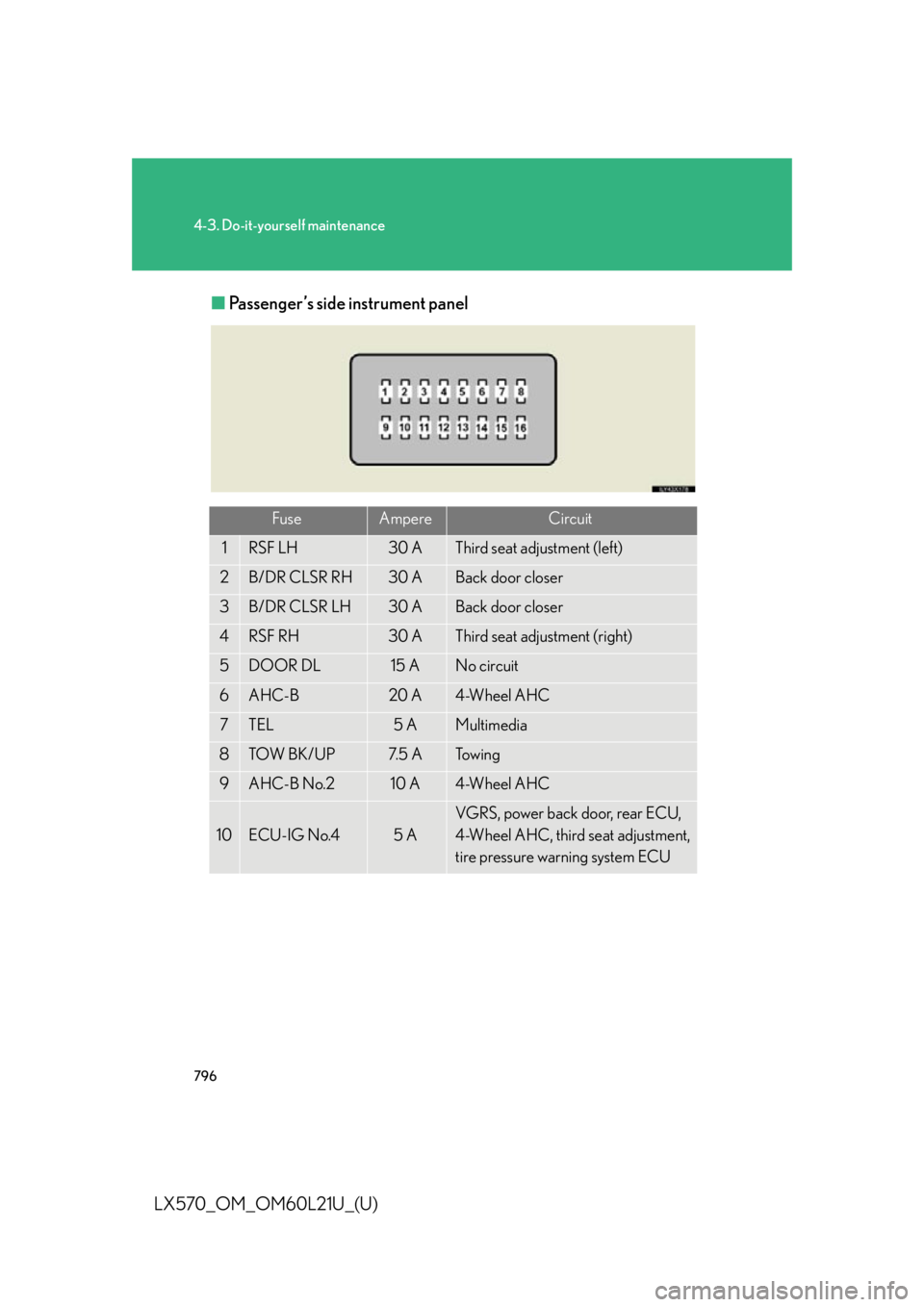

LX570_OM_OM60L21U_(U) ■ Passenger’s side instrument panel
Fuse Ampere Circuit
1 RSF LH 30 A Third seat adjustment (left)
2 B/DR CLSR RH 30 A Back door closer
3 B/DR CLSR LH 30 A Back door closer
4 RSF RH 30 A Third seat adjustment (right)
5 DOOR DL 15 A No circuit
6 AHC-B 20 A 4-Wheel AHC
7 TEL 5 A Multimedia
8 TOW B K / U P 7. 5 A To w i n g
9 AHC-B No.2 10 A 4-Wheel AHC
10 ECU-IG No.4 5 A VGRS, power back door, rear ECU,
4-Wheel AHC, third seat adjustment,
tire pressure warning system ECU

7974-3. Do-it-yourself maintenance
4
Maintenance and care
LX570_OM_OM60L21U_(U) Fuse Ampere Circuit
11 SEAT-A/C FAN 10 A Ventilators
12 SEAT-HTR 20 A Seat heaters
13 AFS 5 A Adaptive Front-lighting System
14 ECU-IG No.3 5 A Adaptive Front-lighting System,
dynamic radar cruise control system
15 STRG HTR 10 A Heated steering wheel
16 TV 10 A Multi-display assembly■
After a fuse is replaced ●
If the lights do not turn on even afte r the fuse has been replaced, a bulb may
need replacement. (  P. 7 9 9 )●
If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.■
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.

7984-3. Do-it-yourself maintenance
LX570_OM_OM60L21U_(U) CAUTION■
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or injury. ●
Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse. ●
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix. ●
Do not modify the fuse or the fuse box.
NOTICE■
Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.

5
When trouble arises
8635-2. Steps to take in an emergency
LX570_OM_OM60L21U_(U) If the engine will not start If the engine still does not start afte r following the correct starting proce-
dure (  P. 175) or releasing the steering lock (  P. 177), confirm the fol-
lowing points.
■ The engine will not start even when the starter motor operates
normally
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. (  P. 175)
● There may be a malfunction in the engine immobilizer system.
(  P. 117)
■ The starter motor turns over slow ly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume
One of the following may be the cause of the problem.
● The battery may be discharged. (  P. 870)
● The battery terminal connections may be loose or corroded.
■ The starter motor does not turn over
The engine starting system may be malfunctioning due to an electri-
cal problem such as an open ci rcuit or a blown fuse. However, an
interim measure is available to start the engine. (  P. 8 6 4 )

9176
Vehicle specifications

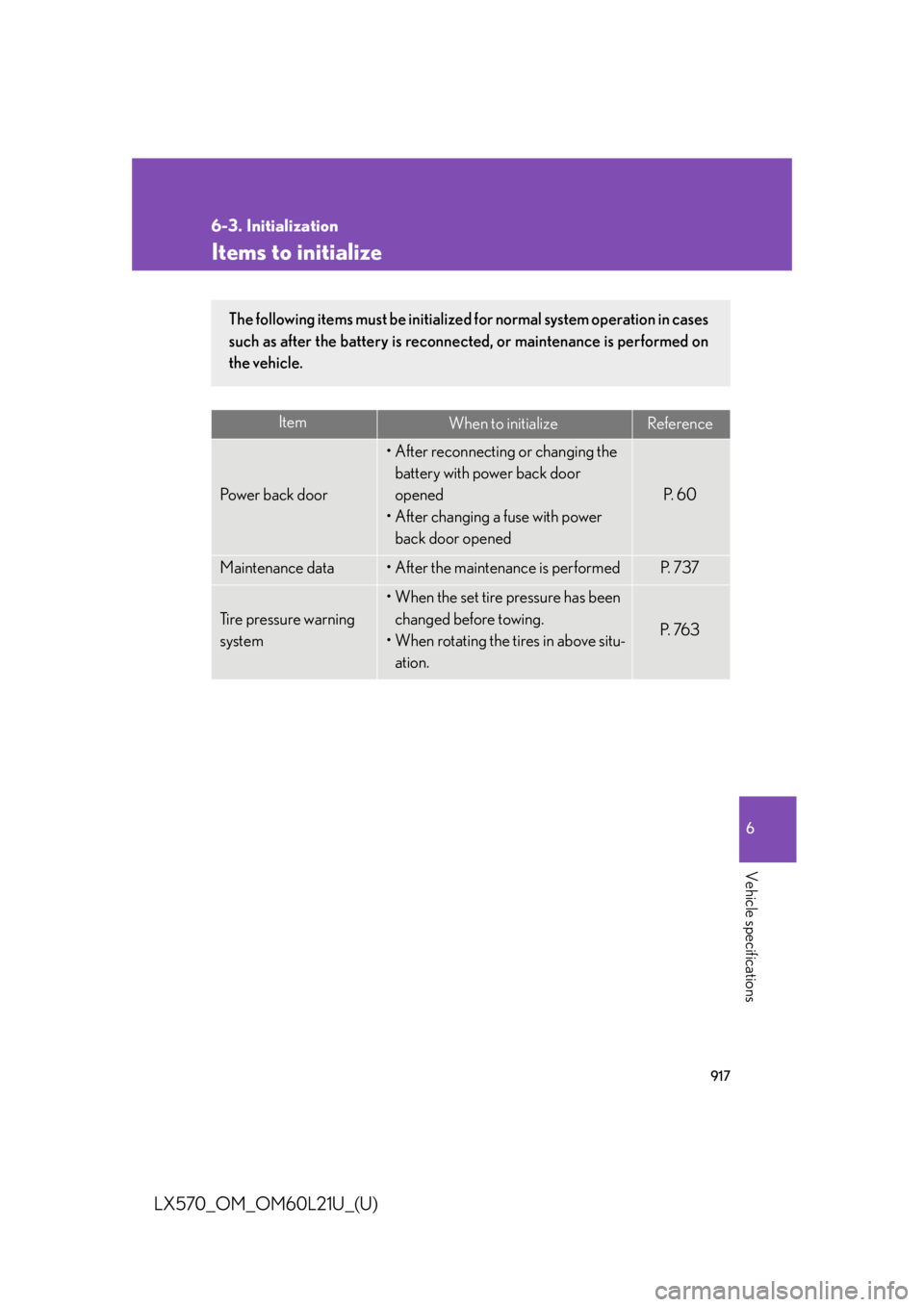

LX570_OM_OM60L21U_(U) 6-3. Initialization
