LEXUS LX570 2014 Owners Manual

7694-3. Do-it-yourself maintenance
4
Maintenance and care
LX570_OM_OM60L21U_(U) CAUTION■
Tire pressure warning system operation
The tire pressure warning system may not provide warning immediately if a tire
bursts or if sudden air leakage occurs. ■
When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause da mage to parts of the drive tr ain, as well as dangerous
handling characteristics, which may lead to an accident resulting in death or serious
injury. ●
Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear. ●
Do not use tire sizes other th an those recommended by Lexus.●
Do not mix differently constructed tires (radial, bias-belted or bias-ply tires). ●
Do not mix summer, all season and snow tires. ●
Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously. ■
When initializing the tire pressure warning system
Do not push the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.

7704-3. Do-it-yourself maintenance
LX570_OM_OM60L21U_(U) NOTICE■
Repairing or replacing tires, wheels, tire pressure warning valves and transmit-
ters and tire valve caps ●
When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and
transmitter may be damaged if not handled correctly. ●
Make sure to install the tire valve caps. If the tire valve caps are not installed,
water could enter the tire pressure warning valves and the tire pressure warning
valves could be bound. ●
When replacing tire valve caps, do not us e tire valve caps other than those speci-
fied. The cap may become stuck.■
To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid seal ants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact your Lexus
dealer or other qualified service shop as so on as possible. Make sure to replace the
tire pressure warning valve and transmitter when replacing the tire. (  P. 76 3 )■
Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the cushion-
ing ability of the tires. In addition driving on rough roads may cause damage to the
tires themselves, as well as the vehicle’s wheels and body.■
If tire inflation pressures become low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

7714-3. Do-it-yourself maintenance
4
Maintenance and care

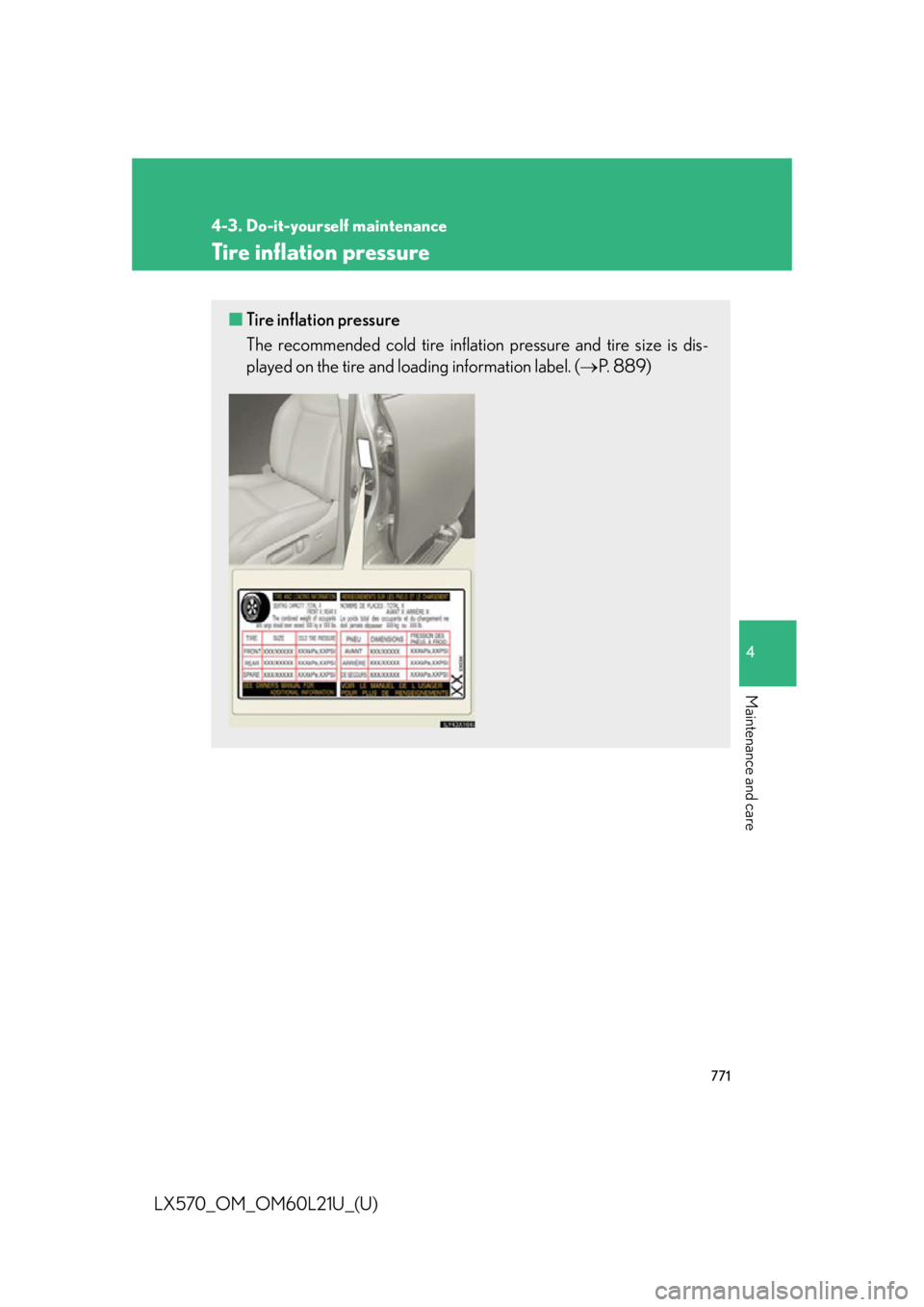

LX570_OM_OM60L21U_(U) Tire inflation pressure ■ Tire inflation pressure
The recommended cold tire inflation pressure and tire size is dis-
played on the tire and loading information label. (  P. 8 8 9 )

7724-3. Do-it-yourself maintenance
LX570_OM_OM60L21U_(U) ■ Inspection and adjustment procedure
Ti r e v a l v e
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the graduations of the gauge.
If the tire inflation pressure is not within the recommended lev-
els, adjust tire pressure.
If you add too much air, press the center of the valve to lower.
After completing the tire inflation pressure measurement and
adjustment, apply soapy water to the valve and check for leak-
age.
Reinstall the tire valve cap. STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

7734-3. Do-it-yourself maintenance
4
Maintenance and care
LX570_OM_OM60L21U_(U) ■
Tire inflation pressure check interval
You should check tire inflation pressure every 2 weeks, or at least once a month.
Do not forget to check the spare. ■
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following: ●
Reduced fuel efficiency ●
Reduced driving comfort and tire life ●
Reduced safety ●
Damage to the drive train
If a tire needs frequent refilling, have it checked by your Lexus dealer. ■
Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following: ●
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours and has not been driven for
more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure
reading. ●
Always use a tire pressure gauge.
The appearance of the tire can be misleadi ng. In addition, tire inflation pressures
that are even just a few pounds off can degrade ride and handling.●
Do not bleed or reduce tire inflation pressure after driving. It is normal for the
tire inflation pressure to be higher after driving. ●
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is bal-
anced.

7744-3. Do-it-yourself maintenance
LX570_OM_OM60L21U_(U) CAUTION■
Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the following conditions may occur
and result in an accident causing death or serious injury. ●
Excessive wear ●
Uneven wear ●
Poor handling ●
Possibility of blowouts resulting from overheated tires ●
Poor sealing of the tire bead ●
Wheel deformation and/or tire separation ●
A greater possibility of tire damage from road hazards
NOTICE■
When inspecting and adjusting tire inflation pressure
Be sure to reinstall the tire valve caps.
Without the valve caps, dirt or moisture co uld get into the valve and cause air leak-
age, which could result in an accident. If the caps have been lost, replace them as
soon as possible.

7754-3. Do-it-yourself maintenance
4
Maintenance and care
LX570_OM_OM60L21U_(U) Wheels If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause loss of handling
control.
■ Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capaci ty, diameter, rim
width, and inset
* .
Replacement wheels are available at your Lexus dealer.
* : Conventionally referred to as “offset”.
Lexus does not recommend using:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Aluminum wheel precautions
● Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changi ng your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

7764-3. Do-it-yourself maintenance
LX570_OM_OM60L21U_(U) ■
When replacing wheels
The wheels of your Lexus are equipped with tire pressure warning valves and trans-
mitters that allow the tire pressure warning system to provide advanced warning in
the event of a loss in tire inflation pres sure. Whenever wheels are replaced, the tire
pressure warning valves and transmitters must be installed. (  P. 76 3 )
CAUTION■
When replacing wheels ●
Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in loss of handling control.●
Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident , causing death or serious injury.■
Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an acci-
dent.
NOTICE■
Replacing tire pressure warning valves and transmitters ●
Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer or other
qualified service shop. In addition, make sure to purchase your tire pressure
warning valves and transmitters at your Lexus dealer. ●
Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.

7774-3. Do-it-yourself maintenance
4
Maintenance and care
LX570_OM_OM60L21U_(U) Air conditioning filter The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■ Removal method
Turn the “ENGINE START STOP” switch IGNITION ON
mode and switch to recircula ted air mode, then turn the
“ENGINE START STOP” switch OFF.
Open the glove box and remove the separate tray. (  P. 6 8 7 )
Remove the filter cover.
Remove the filter case.STEP 1
STEP 2
STEP 3
STEP 4

7784-3. Do-it-yourself maintenance
LX570_OM_OM60L21U_(U) ■ Cleaning method
If the filter is dirty, clean by blow-
ing compressed air through the
filter from the downward side. Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at 72
psi (500 kPa, 5.0 kgf/cm 2
or
bar).
If it is not available, have the filter
cleaned by your Lexus dealer.
■ Replacement method
Remove the air conditioning fil-
ter and replace it with a new
one. The “  UP” marks shown on the
filter should be pointing up.
