LEXUS LX570 2015 Owners Manual

2512-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) Intuitive parking assist 
 : If equippedThe distance from your vehicle to ne arby obstacles when parallel parking
or maneuvering into a garage is measured by the sensors and communi-
cated via the multi-information displa y, touch screen and a buzzer. Always
check the surrounding area when using this system.
■ Types of sensors
Front corner sensors
Rear corner sensors
Rear center sensors
■ Intuitive parking assist switch
Turns the Intuitive parking assist
on/off. When on, the indicator light
comes on and the buzzer
sounds to inform the driver that
the system is operational.
To turn the system off, press the
switch again.

2522-4. Using other driving systems
LX570_OM_OM60L96U_(U) Display
When the sensors detect an obstacle, a graphic is shown on the multi-
information display and touch screen depending on the position and dis-
tance to the obstacle.
■ Multi-information display
Front corner sensor detection
Rear corner sensor detection
Rear center sensor detection
■ Touch screen
When the rear view monitor,
Lexus parking as sist monitor or
the wide view front & side moni-
tor is not displayed A graphic is automatically dis-
played when an obstacle is
detected. The screen can be set so
that the graphic is not displayed.
( 
P. 257)
When the rear view monitor,
Lexus parking as sist monitor or
the wide view front & side moni-
tor is displayed (insert display) A simplified image is displayed on
the right upper corner of the touch
screen when an obstacle is
detected.

2532-4. Using other driving systems
2
When driving

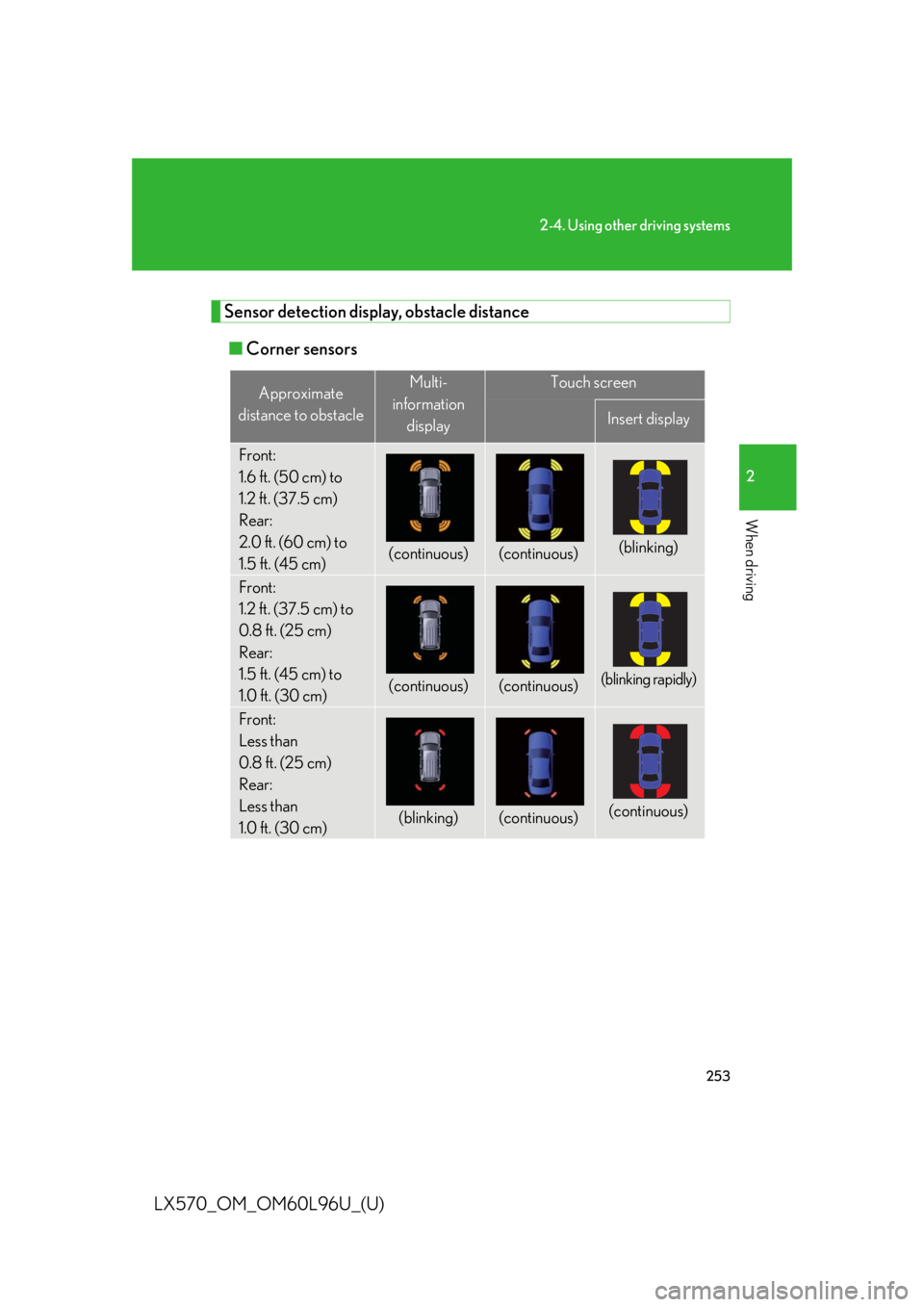

LX570_OM_OM60L96U_(U) Sensor detection display, obstacle distance
■ Corner sensors Approximate
distance to obstacle Multi-
information
display Touch screen
Insert display
Front:
1.6 ft. (50 cm) to
1.2 ft. (37.5 cm)
Rear:
2.0 ft. (60 cm) to
1.5 ft. (45 cm) (continuous) (continuous) (blinking)
Front:
1.2 ft. (37.5 cm) to
0.8 ft. (25 cm)
Rear:
1.5 ft. (45 cm) to
1.0 ft. (30 cm) (continuous) (continuous) (blinking rapidly)
Front:
Less than
0.8 ft. (25 cm)
Rear:
Less than
1.0 ft. (30 cm) (blinking) (continuous) (continuous)

2542-4. Using other driving systems

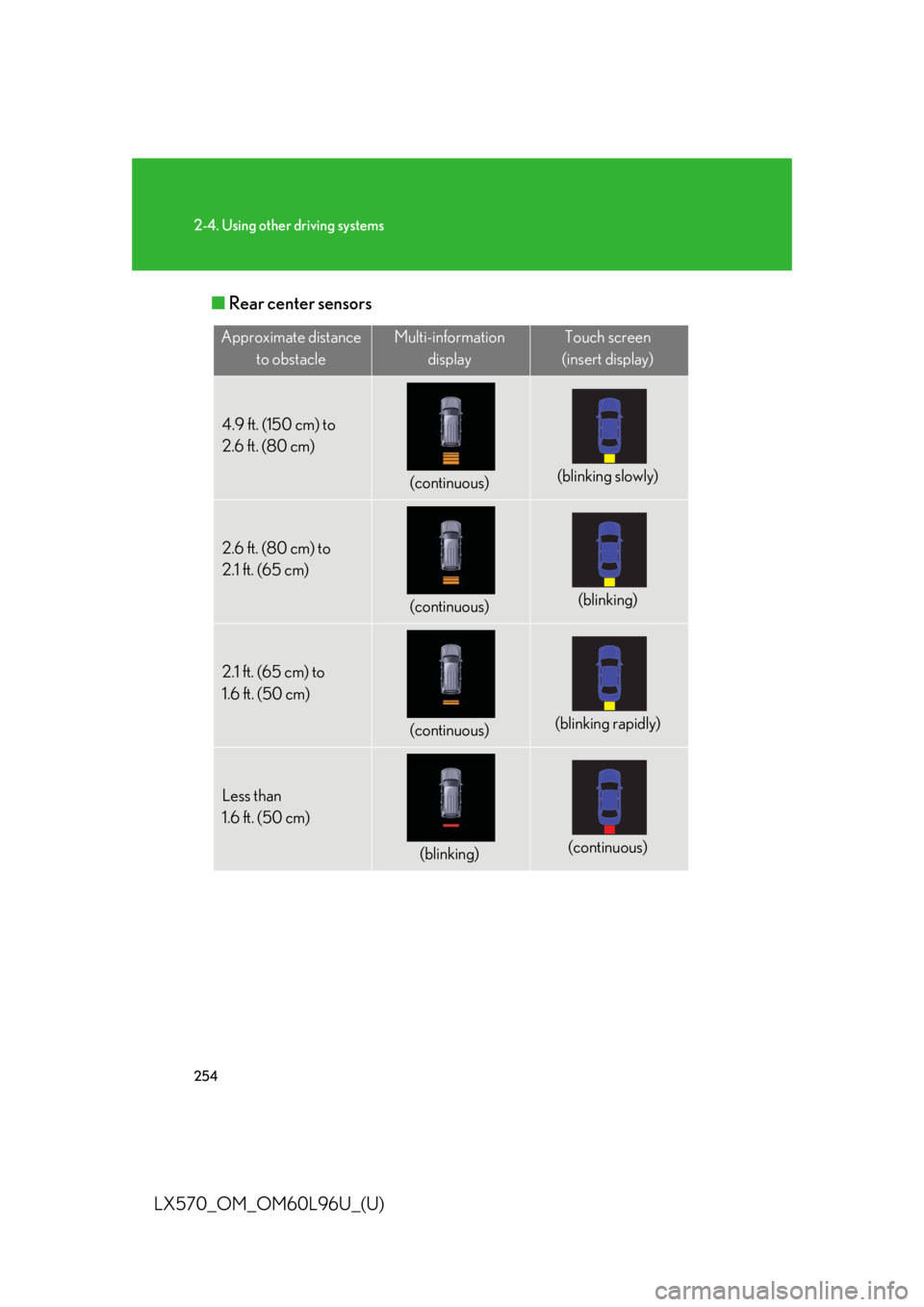

LX570_OM_OM60L96U_(U) ■ Rear center sensors Approximate distance
to obstacle Multi-information
display Touch screen
(insert display)
4.9 ft. (150 cm) to
2.6 ft. (80 cm)
(continuous) (blinking slowly)
2.6 ft. (80 cm) to
2.1 ft. (65 cm)
(continuous) (blinking)
2.1 ft. (65 cm) to
1.6 ft. (50 cm)
(continuous) (blinking rapidly)
Less than
1.6 ft. (50 cm)
(blinking) (continuous)

2552-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■ Buzzer operation and distance to an obstacle
A buzzer sounds when the corner sensors and rear center sensors are
operating.
● The buzzer beeps faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the obsta-
cle, the buzzer sounds continuously:
• Front corner sensors: Approximately 0.8 ft. (25 cm)
• Rear corner sensors: Approximately 1.0 ft. (30 cm)
• Rear center sensors: Approximately 1.6 ft. (50 cm)
● When 2 or more obstacles are d etected simultaneously, the buzzer
system responds to the nearest obst acle. If one or both come within
the above distances, the beep wi ll repeat a long tone, followed by
fast beeps.
● You can change the volume of the warning beeps. (  P. 257)

2562-4. Using other driving systems

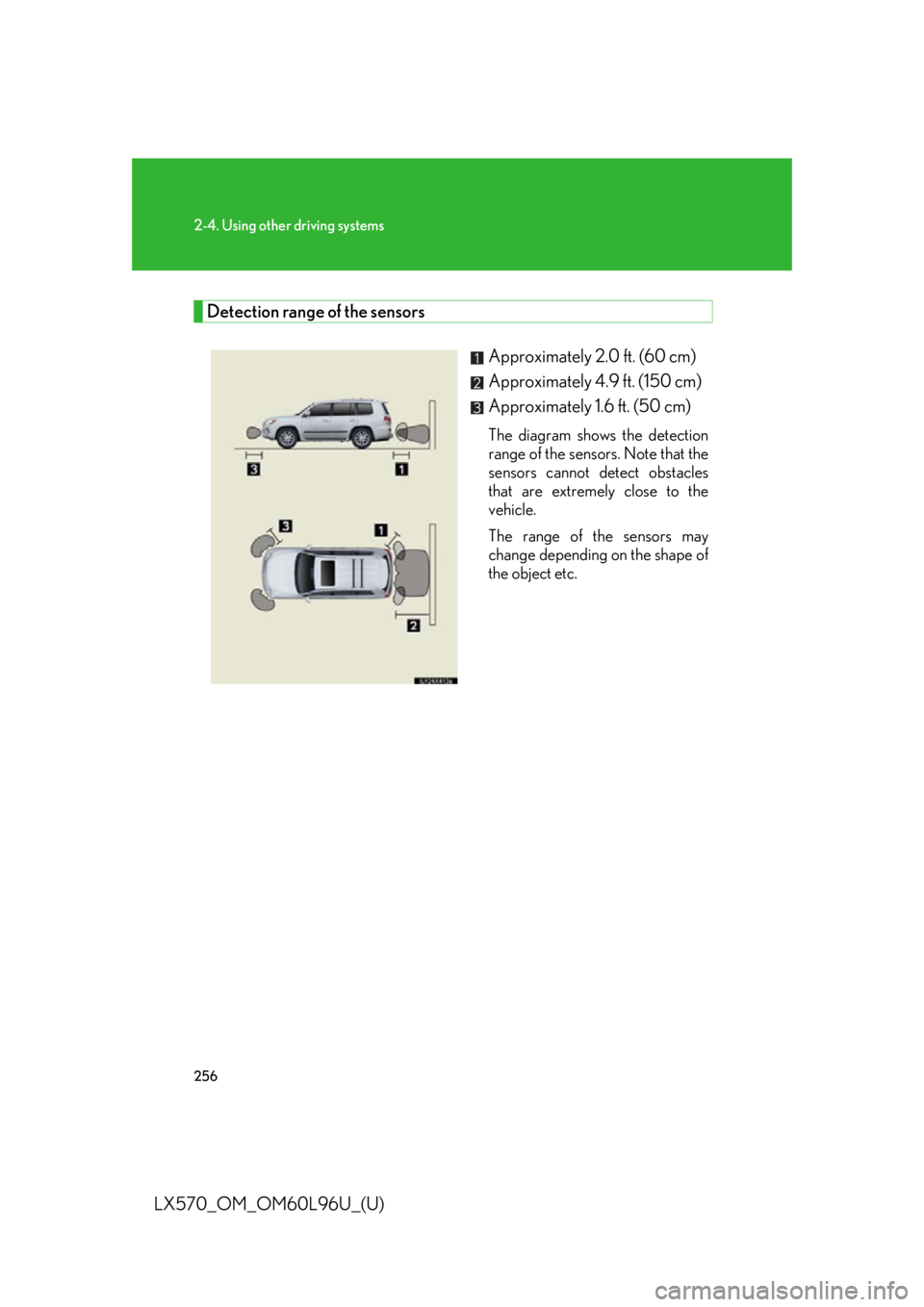

LX570_OM_OM60L96U_(U) Detection range of the sensors
Approximately 2.0 ft. (60 cm)
Approximately 4.9 ft. (150 cm)
Approximately 1.6 ft. (50 cm) The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.

2572-4. Using other driving systems
2
When driving

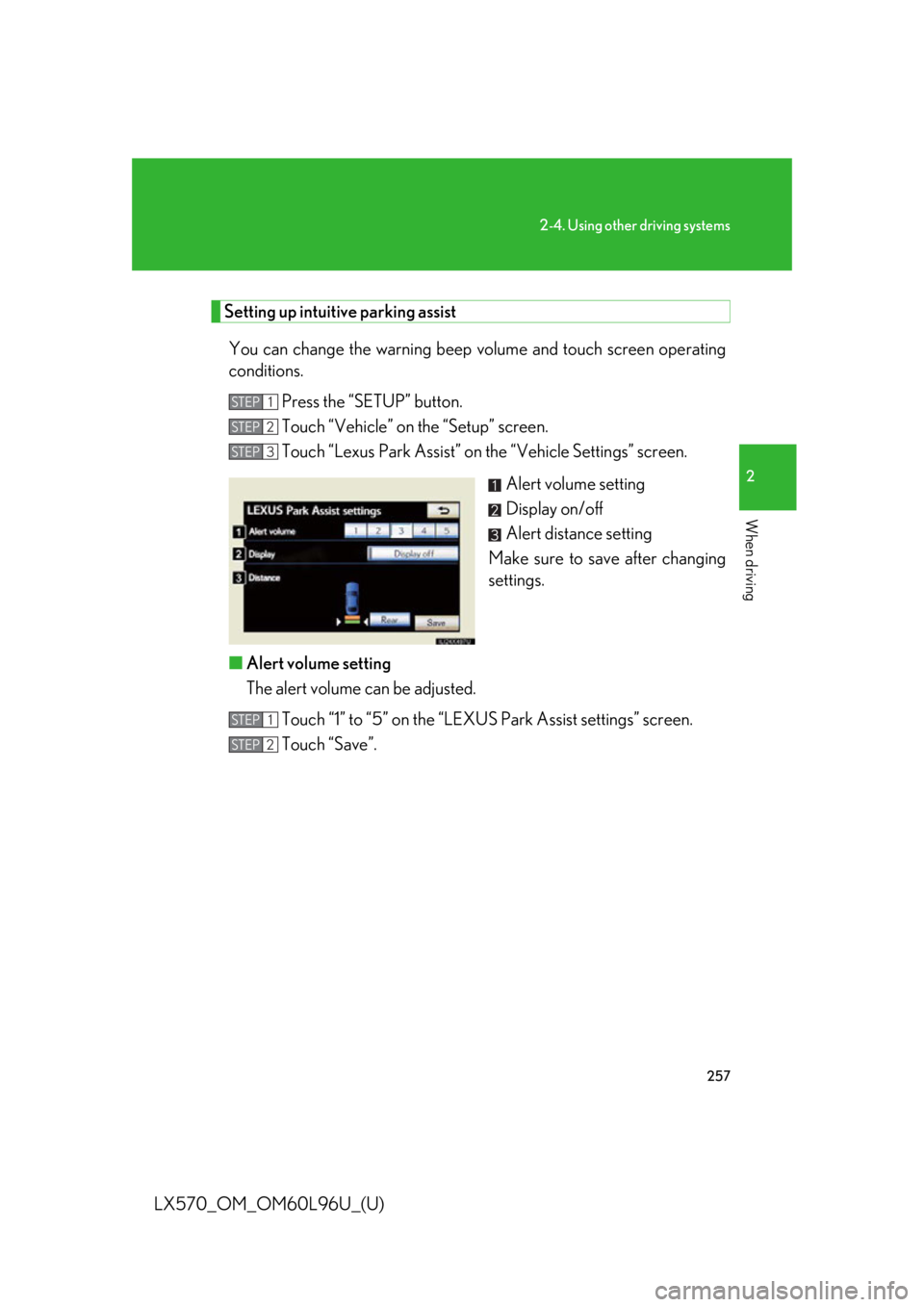

LX570_OM_OM60L96U_(U) Setting up intuitive parking assist
You can change the warning beep volume and touch screen operating
conditions.
Press the “SETUP” button.
Touch “Vehicle” on the “Setup” screen.
Touch “Lexus Park Assist” on the “Vehicle Settings” screen.
Alert volume setting
Display on/off
Alert distance setting
Make sure to save after changing
settings.
■ Alert volume setting
The alert volume can be adjusted.
Touch “1” to “5” on the “LEXUS Park Assist settings” screen.
Touch “Save”. STEP 1
STEP 2
STEP 3
STEP 1
STEP 2

2582-4. Using other driving systems
LX570_OM_OM60L96U_(U) ■ Display on/off setting
On or off can be selected for intuitive parking assist display.
Touch “Display Off”. When the “Display Off” indicator is turned on, the display of intuitive
parking assist will be off. Touch “Displ ay Off” again to turn the display of
intuitive parking assist on.
Touch “Save”.
■ Alert distance setting
Front or rear center sensors display and tone indication can be set.
Touch “Rear”. Long distance or short distance can be selected.
Touch “Save”.■
The intuitive parking assi st can be operated when●
Front corner sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in a position other than “P”.
• The vehicle speed is less than approximately 6 mph (10 km/h).●
Rear corner and rear center sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in “R”.■
Intuitive parking assist display
When an obstacle is detected while the rear view monitor system, Lexus parking
assist monitor or wide view front & side mo nitor is in use, the warning indicator will
appear in the top right of the screen even if the display setting has been set to off.STEP 1
STEP 2
STEP 1
STEP 2

2592-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■
Sensor detection information ●
The sensor’s detection areas are limited to the areas around the vehicle’s front
corner and rear bumpers. ●
Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
• There is dirt, snow or ice on the sens or. (Wiping the sensors will resolve this
problem.)
• The sensor is frozen. (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen the screen may show an
abnormal display, or obstacles may not be detected.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,
air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensor s in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing hook is installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather
• The area directly under the bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Lexus suspension (low ered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of their
shape, signs and other objects may be ju dged by the sensor to be closer than
they are.

2602-4. Using other driving systems
LX570_OM_OM60L96U_(U) ●
The shape of the obstacle may prevent the sensor from detecting it. Pay partic-
ular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materi als that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projec ting outwards in the direction of your
vehicle●
The following situations may occur during use.
• Depending on the shape of the obstacle and other factors, the detection dis-
tance may shorten, or detection may be impossible.
• Obstacles may not be detected if they are too close to the sensor
• There will be a short delay between obstacle detection and display. Even at
slow speeds, there is a possibility that the obstacle will come within the sen-
sor’s detection areas before the di splay is shown and the warning beep
sounds.
• Thin posts or objects lower than the se nsor may not be dete cted for collision
when approached, even if they have been detected once.
• It might be difficult to hear beeps due to the volume of audio system or air
flow noise of air conditioning system.■
If a message is displayed on the multi-information display
 P. 837■
Certification (Canada only)
This ISM device complies with Canadian ICES-001.
