6073-4. Using the rear se at entertainment system
3
Interior features
LX570_OM_OM60L96U_(U) ■ Parental lock
Select “Parental Lock”.
Enter the 4-digit personal code on the “Enter Key Code” screen. If you enter wrong nu mbers, select to delete the numbers.
Select a parental level (1 - 8). (  P. 532)
■ Setting sound dynamic range
The difference between the lowest vo lume and the highest volume can
be adjusted.
Select “Sound Dynamic Range”.
Select “MAX”, “STD” or “MIN”.
■ Entering a language code
If you select “Other” on the “Audio Language” screen, “Subtitle
Language” screen or “DVD Langu age” screen, you can select a
language by entering the 4-digit la nguage code if that language is
available.
Enter the 4-digit language code. (  P. 526)If you enter wrong nu mbers, select to delete the numbers.
Select “OK”. STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 1
STEP 2

6083-4. Using the rear seat entertainment system
LX570_OM_OM60L96U_(U) Setup operation from the front seat
This screen appears when a front passenger selects the setup menu.
Rear passengers can cancel this
setup operation by selecting
“Play”. The player will resume nor-
mal play.
Likewise, a fron t passenger can
cancel a rear passenger’s selec-
tion of the setup menu.■
Error messages
If “Region code error” is displayed, chec k if the region code printed on the DVD
matches the player’s region code.
If a different message is displayed:  P. 529

6263-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) When this screen is displayed,
operate the Bluetooth ®
device.On the Bluetooth ®
device screen,
select the system displayed on the
system screen, and register the
Bluetooth ®
device.
For details about operating the
Bluetooth ®
device, see the manual
that comes with it.
A passcode is not required for SSP
(Secure Simple Pairing) compati-
ble Bluetooth ®
phones. Depend-
ing on the type of Bluetooth ®
phone being connected, a mes-
sage confirming registration may
be displayed on the Bluetooth ®
phone’s screen. Respond and
operate the Bluetooth ®
phone
according to the confirmation mes-
sage.
If you want to cancel it, touch
“Cancel”.
If a completion message is
displayed, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.STEP 3

6403-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) ■
When calling by phone number ●
Say the phone number one digit at a time . For example, if the phone number is
2345678, say “two three fo ur five six seven eight”.●
The system can recognize the following types of phone numbers:
• 3 digit numbers (911, 411, 611)
• 7 digit numbers (Local phone numbers)
• 10 digit numbers (Area code + Local phone number)
• 11 digit phone numbers (1 + Area code + Local phone number) ●
As the system cannot recognize additional numbers, say the complete number
without stopping. ●
When the system recognizes multiple phone numbers, a phone number candi-
date list will be displayed on the screen. If the desired phone number is not dis-
played on the top of the screen, say the number of the desired phone number
from the candidate list (number 1 and numb er 2) to select a phone number from
the candidate list■
International calls
To dial a phone number that is not a 3, 7, 10 or 11 digit number, for example an inter-
national number, use “International Call”.
Press or on the steering wheel to display the “Shortcut
Menu” screen and saying “Mai n menu” or touch “Main Menu”.
Say “Use a phone”.
Say “International call”.
Up to 24 digits can be recognized when using the international call function. The
number can also be divided into multiple groups and recognized.
You may not be able to make international calls, depending on the cellular phone in
use. STEP 1
STEP 2
STEP 3

6443-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) ■ Inputting tones
When using phone services such as an answering service or a bank,
you can store phone numbers and code numbers in the phonebook.
Touch “0-9” on the “Call” screen.
Input the number. If repeated tone symbols
* are
stored in the phonebook, “Send”
and “Clear” are displayed on the
right side of the screen.
* : Repeated tone symbols are sym-
bols or numbers displayed as p
or w, that come after the phone
number.
(e.g. 056133w0123p#1 ✽ )
Confirm the number displayed on the screen, and touch “Send”. If you touch “Clear”, this function will end.
■ To transfer a call
Touch “Handset Mode” to change from hands-free call to cellular
phone call. Touch “Handsfree Mode” to change from cellular phone
call to hands-free call.
■ To hang up
Touch or press on the steering wheel. STEP 1
STEP 2
STEP 3

6773-5. Using the hands-free system (for cellular phone)
3
Interior features

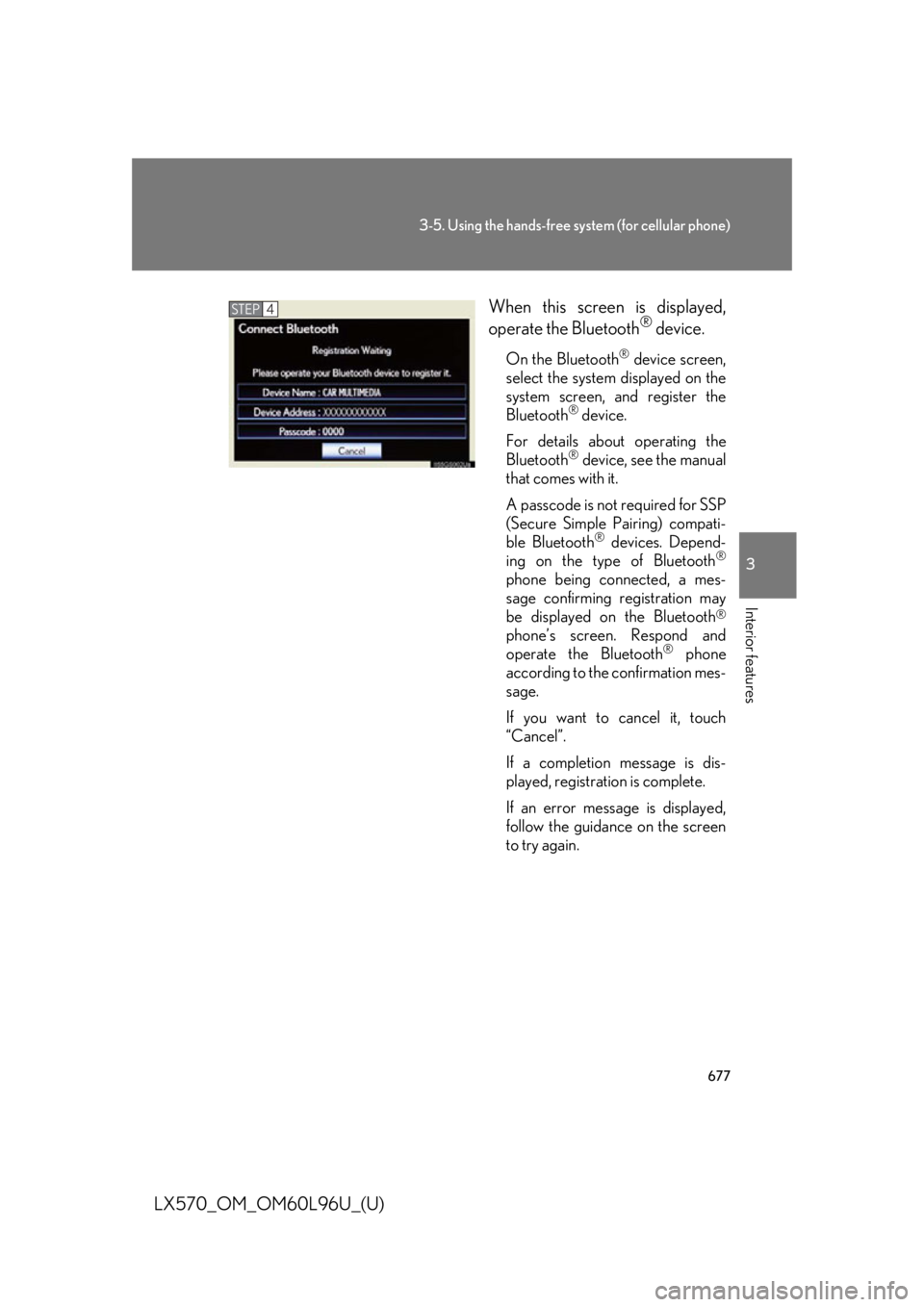

LX570_OM_OM60L96U_(U) When this screen is displayed,
operate the Bluetooth ®
device.On the Bluetooth ®
device screen,
select the system displayed on the
system screen, and register the
Bluetooth ®
device.
For details about operating the
Bluetooth ®
device, see the manual
that comes with it.
A passcode is not required for SSP
(Secure Simple Pairing) compati-
ble Bluetooth ®
devices. Depend-
ing on the type of Bluetooth ®
phone being connected, a mes-
sage confirming registration may
be displayed on the Bluetooth ®
phone’s screen. Respond and
operate the Bluetooth ®
phone
according to the confirmation mes-
sage.
If you want to cancel it, touch
“Cancel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.STEP 4

6843-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) Detailed Bluetooth ®
settings
You can confirm and change the Bluetooth ®
settings.
Page 1
Changing the device connec-
tion status
Changing the name of the con-
nected device.
Changing the passcode that
you registered your Bluetooth ®
device in the system
The address peculiar to the sys-
tem You cannot change this address. If
the same device name is displayed
on the screen of your device, refer
to it.
Page 2
The compatibility profile of the
Bluetooth ®
device
To display the screen above, follow the steps below.
Press the “SETUP” button, and touch “Bluetooth
* ” on the “Setup”
screen.
Touch “Detailed Bluetooth* S ettings” on the “Bluetooth
* ” screen.
* : Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.STEP 1
STEP 2

6863-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) ■ Editing the passcode
Display the “Detailed Bluetooth
* Settings” screen. ( 
P. 682)
Touch “Passcode” on the “Detailed Bluetooth
* Settings” screen.
Input a passcode, and touch “OK”.
Touch “Save” on the “Detailed Bluetooth
* Settings” screen.
* : Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.
■ Bluetooth ®
device connection status display settings
When “Bluetooth
* Power” is “On” and the “ENGINE START STOP”
switch is in ACCESSORY or IGNI TION ON mode, the Bluetooth ®
phone and portable player’s connection status can be displayed.
( 
P. 683)
Display the “Detailed Bluetooth
* Settings” screen. ( 
P. 682)
Touch “Display Phone Status” or “Display Portable Player Status”
on the “Detailed Bluetooth
* Settings” screen.
Touch “On”, and then touch
“Save”.
* : Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.STEP 1
STEP 2
STEP 3
STEP 4
STEP 1
STEP 2
STEP 3

7203-8. Other interior features
LX570_OM_OM60L96U_(U) Test the HomeLink ®
operation by
pressing the newly programmed
button. If a HomeLink ®
button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
remote control transmitter is of the
rolling code type. Press and hold
the programmed HomeLink ®
but-
ton. The remote control transmitter
is of the rolling code type if the
HomeLink ®
indicator light flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is of
the rolling code type, proceed to
the heading “Programming a roll-
ing code system”.
Repeat the steps above to program another device for each of
the remaining HomeLink ®
buttons.STEP 3
STEP 4

7213-8. Other interior features
3
Interior features
LX570_OM_OM60L96U_(U) ■ Programming a rolling code system
If your device is rolling code equipped, follow the steps under the
heading “Programming HomeLink ®
” before proceeding with the
steps listed below.
Locate the learn button on th e ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor. Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button. Following this step, you have 30 se conds in which to initiate step 3
below.
Press and hold the vehicle’s programmed HomeLink ®
button for
2 seconds and release it. Repeat this step once again. The garage
door may open. If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete th e programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink ®
signal and operate the garage door.
Repeat the steps above to prog ram another rolling code system
for any of the remaining HomeLink ®
buttons.STEP 1
STEP 2
STEP 3
STEP 4
