LX570_OM_OM60L96U_(U) 2-1. Driving procedures
Driving the vehicle ........................ 166
Engine (ignition) switch ............... 177
Automatic transmission............... 181
Turn signal lever ............................ 189
Parking brake ................................. 190
Horn...................................................... 191
2-2. Instrument cluster
Gauges and meters ..................... 192
Indicators and warning
lights................................................. 196
Multi-information display......... 200
2-3. Operating the lights and wipers
Headlight switch .......................... 208
Automatic High Beam ................ 213
Fog light switch ............................. 220
Windshield wipers
and washer................................... 222
Rear window wiper
and washer................................... 228
Headlight cleaner switch ........... 231 2-4. Using other driving systems
Cruise control ............................... 232
Dynamic radar cruise
control............................................ 236
Intuitive parking assist ................. 251
Rear view monitor system ........ 262
Lexus parking assist
monitor .......................................... 270
Wide view front &
side monitor................................ 303
4-Wheel AHC
(Active Height Control
Suspension) ................................. 320
AVS (Adaptive Variable
Suspension system)................... 331
Four-wheel drive system........... 332
Crawl Control (with Turn
Assist function)........................... 337
Multi-terrain Select ..................... 344
Driving assist systems................. 349
Pre-Collision System.................. 357
2-5. Driving information
Off-road precauti ons ................. 363
Cargo and luggage .................... 368
Vehicle load limits ........................ 375
Winter driving tips ....................... 376
Trailer towing .................................. 381
Dinghy towing ................................ 4012
When driving

13
LX570_OM_OM60L96U_(U) C Front seat heater/ventilator switch
 P. 709
Shift lever P. 181
Shift lock override button P. 870Crawl Control switch
Multi-terrain Select mode
select switch P. 337
P. 344
Height select/height
control OFF switches P. 320ECT switch P. 183
AVS switch P. 331
Ashtray
Cigarette lighter P. 703
P. 704
Parking brake lever P. 190AUX port/USB port
Power outlet P. 552, 562, 574
P. 705
Cup holders P. 694
Four-wheel drive control switch P. 332
 : If equipped

671
Before driving
LX570_OM_OM60L96U_(U) 1-3. Adjustable components (sea ts, mirrors, steering wheel)

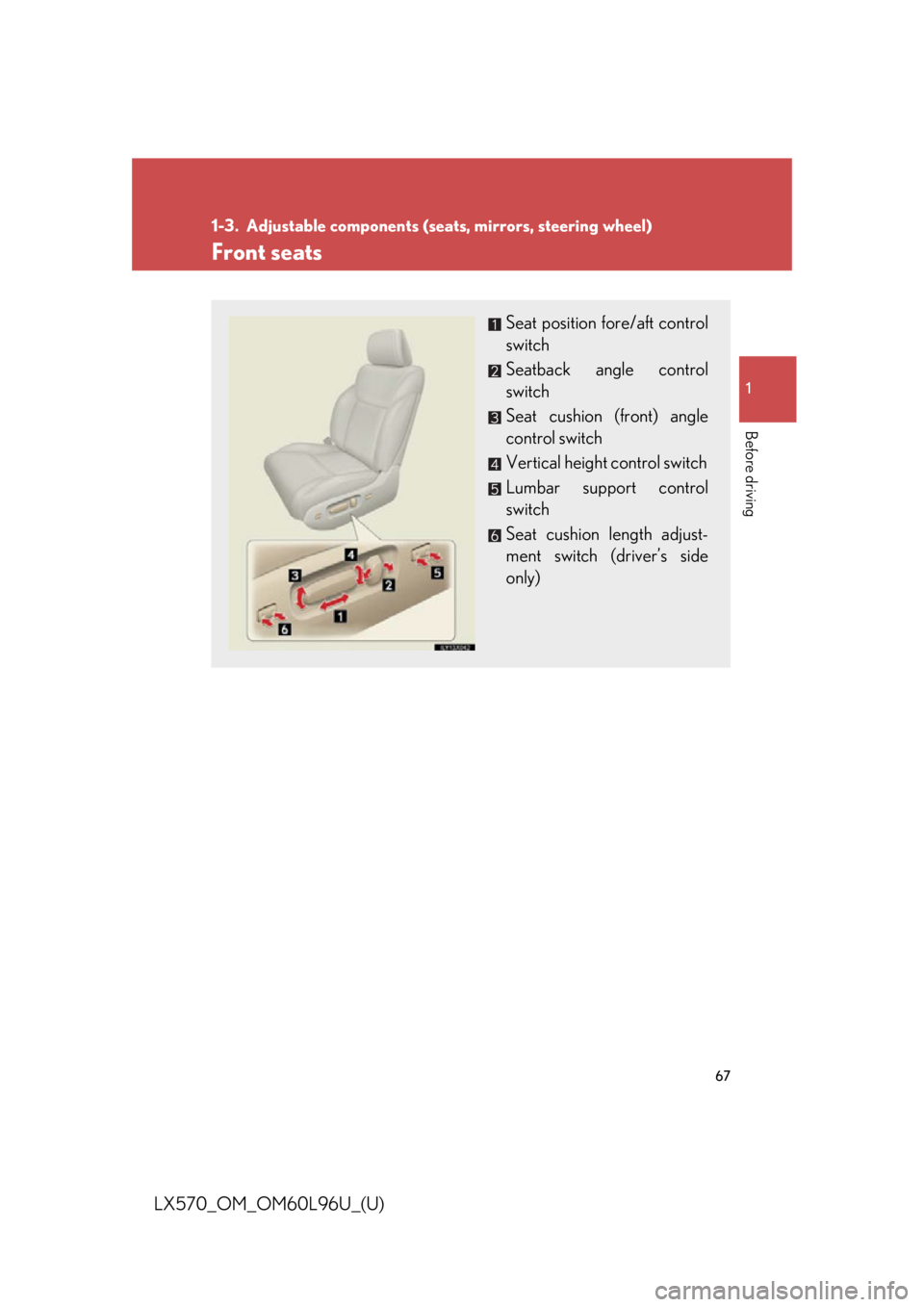

Front seats Seat position fore/aft control
switch
Seatback angle control
switch
Seat cushion (front) angle
control switch
Vertical height control switch
Lumbar support control
switch
Seat cushion length adjust-
ment switch (driver’s side
only)

881-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L96U_(U) ■
Adjusting the height of the head restraints
■
Adjusting the second center seat head restraint
Always raise the head restraint one leve l from the stowed po sition when using.Third outboard seats
To fold Pull the head restraint angle
lever to fold the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

941-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L96U_(U) Seat belt pretensioners (front and second outboard seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal col-
lision or a vehicle rollover. The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.
Pre-collision seat belts (front seats of vehicles with pre-collision system)
If the system determines that a collision is unavoidabl e, the front seat belts
will retract before the collision. (  P. 357)■ Adjusting the height of the belt (front and second outboard seats)
Down
Up Move the height adjuster up and
down as needed until you hear a
click.

1021-3. Adjustable components (seats, mirrors, steering wheel)
LX570_OM_OM60L96U_(U) Anti-glare inside rear view mirror Adjusting the height of the rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
Automatic anti-glare function
Changing automa tic anti-glare
function mode
ON
OFF When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will be set to ON
mode each time the “ENGINE
START STOP” switch is turned to
IGNITION ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)The rear view mirror’s position can be adjusted to enable sufficient confir-
mation of the rear view in accordan ce with the driver’s seating posture.

1481-7. Safety information
LX570_OM_OM60L96U_(U) ■
When installing the child restraint system on the front passenger seat
■
Selecting an appropriat e child restraint system●
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belts. ●
If a child is too large for a child restrain t system, sit the child on a rear seat and
use the vehicle’s seat belt. (  P. 91) When you have to use a child restraint sys-
tem on the front passenger seat, adjust the
following: ●
The seatback to the most upright position●
The seat cushion to the fully rearward and
highest position ●
The seat belt height to the lowest position

When driving
2
165

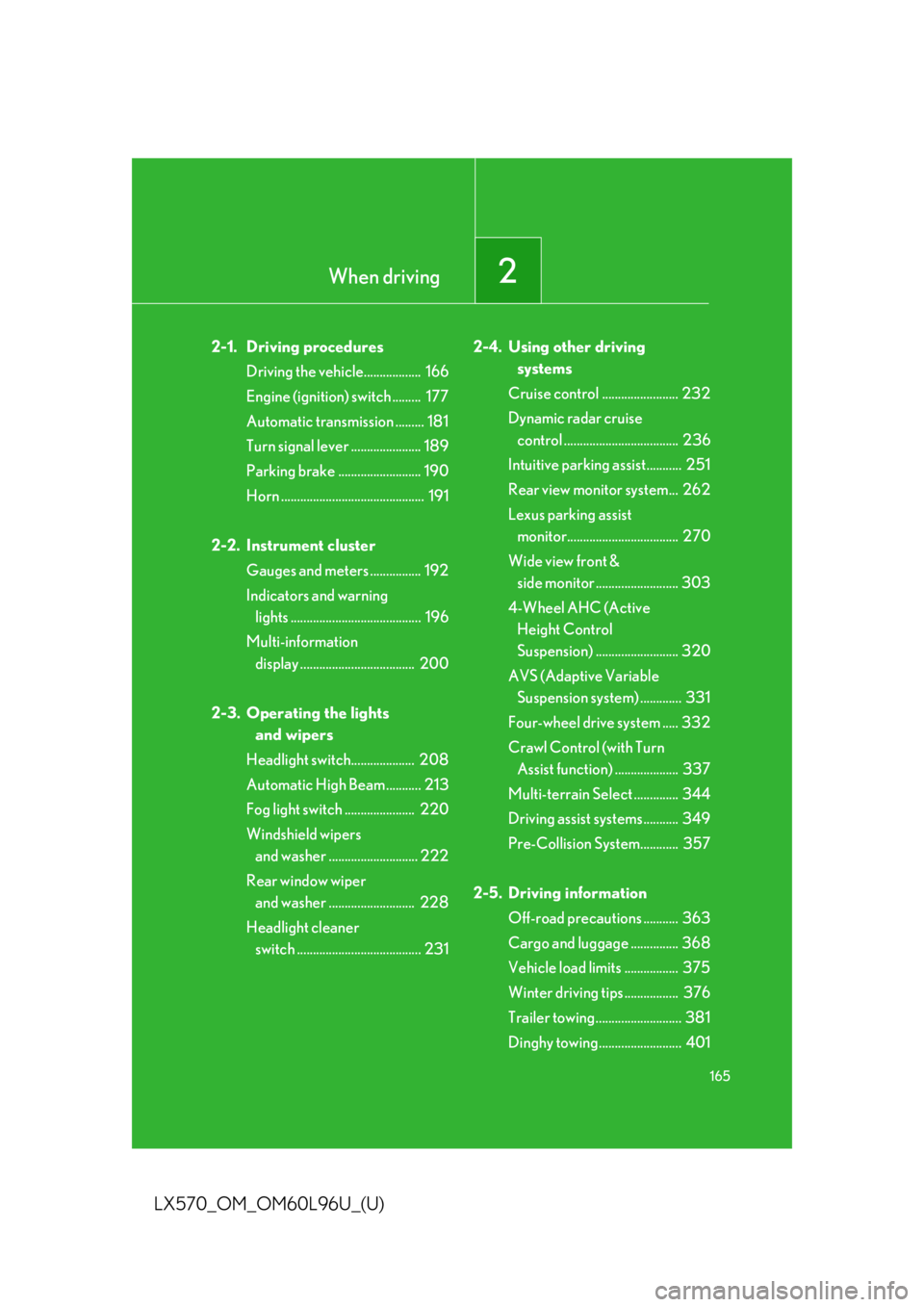

LX570_OM_OM60L96U_(U) 2-1. Driving procedures
Driving the vehicle.................. 166
Engine (ignition) switch ......... 177
Automatic transmission ......... 181
Turn signal lever ...................... 189
Parking brake .......................... 190
Horn ............................................. 191
2-2. Instrument cluster
Gauges and meters ................ 192
Indicators and warning
lights ......................................... 196
Multi-information
display .................................... 200
2-3. Operating the lights
and wipers
Headlight switch.................... 208
Automatic High Beam ........... 213
Fog light switch ...................... 220
Windshield wipers
and washer ............................ 222
Rear window wiper
and washer ........................... 228
Headlight cleaner
switch ....................................... 231 2-4. Using other driving
systems
Cruise control ........................ 232
Dynamic radar cruise
control .................................... 236
Intuitive parking assist........... 251
Rear view monitor system... 262
Lexus parking assist
monitor................................... 270
Wide view front &
side monitor .......................... 303
4-Wheel AHC (Active
Height Control
Suspension) .......................... 320
AVS (Adaptive Variable
Suspension system) ............. 331
Four-wheel drive system ..... 332
Crawl Control (with Turn
Assist function) .................... 337
Multi-terrain Select .............. 344
Driving assist systems........... 349
Pre-Collision System............ 357
2-5. Driving information
Off-road precautions ........... 363
Cargo and luggage ............... 368
Vehicle load limits ................. 375
Winter driving tips ................. 376
Trailer towing........................... 381
Dinghy towing.......................... 401

1712-1. Driving procedures
2
When driving
LX570_OM_OM60L96U_(U) CAUTION ●
When stopped on an inclined surface, use the brake pedal and parking brake to
prevent the vehicle from rolling backward or forward and causing an accident.●
Do not adjust the position of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents that may
result in death or serious injury. ●
Always check that all passengers’ arms, heads or other parts of their bodies are
not outside the vehicle, as this may result in death or serious injury. ●
Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do
not drive over 85 mph (140 km/h) unless your vehicle has high-speed capability
tires. Driving over 85 mph (140 km/h) may result in tire failure, loss of control
and possible injury. Be sure to consult a tire dealer to determine whether the tires
on your vehicle are high-speed capability tires or not before driving at such
speeds. ●
When crossing rivers, turn off height co ntrol after putting the vehicle height in
high mode, and drive at 18 mph (30 km/h) or less. Otherwise the vehicle height
may change due to the automatic leveling function, resulting in an accident.
(  P. 320)■
When driving on slippery road surfaces ●
Sudden braking, acceleration and steering may cause tire slippage and reduce
your ability to control the vehi cle, resulting in an accident.●
Sudden acceleration, engine braking due to shifting, or changes in engine speed
could cause the vehicle to skid, resulting in an accident. ●
After driving through a puddle, lightly de press the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes
from functioning properly. If the brakes on only one side are wet and not func-
tioning properly, steering control may be affected, resulting in an accident.

3202-4. Using other driving systems

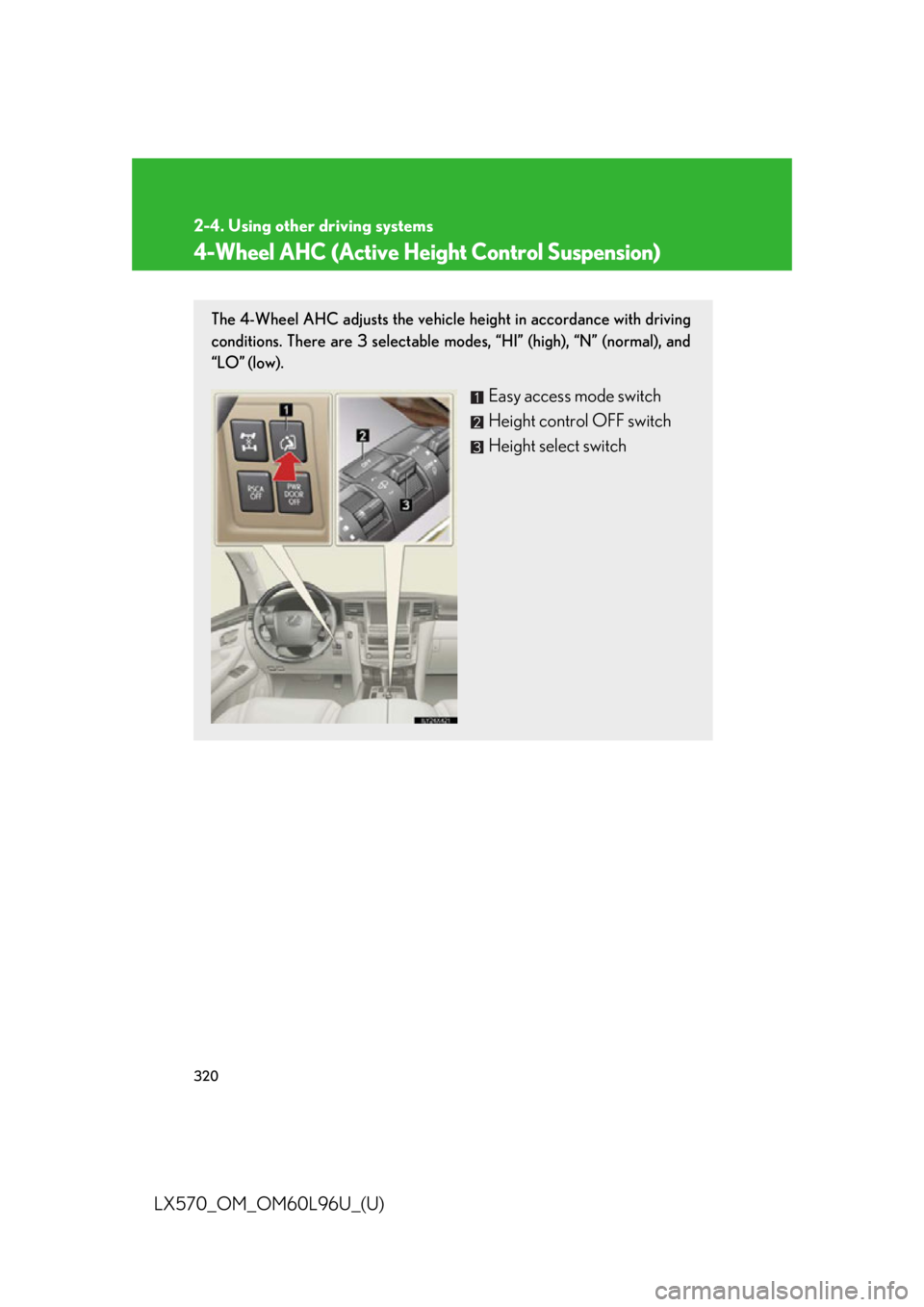

LX570_OM_OM60L96U_(U) 4-Wheel AHC (Active Height Control Suspension) The 4-Wheel AHC adjusts the vehicle height in accordance with driving
conditions. There are 3 selectable mo des, “HI” (high), “N” (normal), and
“LO” (low).
Easy access mode switch
Height control OFF switch
Height select switch
