width LEXUS LX570 2015 Owners Manual

2752-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) Perpendicular parking (estimated course line display mode)
■ Screen description
Vehicle width extension guide line The line indicates a guide path when the vehicle is being backed straight up.
The displayed width is wider than the actual vehicle width.
The line aligns with the estimated co urse lines when the steering wheel is
straight.
Estimated course lines The lines show an estimated course when the steering wheel is turned.
Distance guide line The line moves, together with the estimated course lines, in sync with the
steering wheel. The line shows points ap proximately 1.5 ft. (0.5 m) (red) and
approximately 3 ft. (1 m) (yellow) from the center of the edge of the bumper.
Distance guide line The line shows distance behind the vehi cle, a point approximately 1.5 ft. (0.5
m) (blue) from the edge of the bumper.

2772-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) When the rear position of the vehi-
cle has entered the parking space,
turn the steering wheel so that the
vehicle width ex tension guide lines
are within the left and right dividing
lines of the parking space.
Vehicle width extension guide
line
Once the vehicle width extensi on guide lines and the parking
space lines are paralle l, straighten the s teering wheel and back
up slowly until the vehicle ha s completely entered the parking
space.
Stop the vehicle in an appropriate place, and finish parking. STEP 3
STEP 4
STEP 5

2782-4. Using other driving systems
LX570_OM_OM60L96U_(U) Perpendicular parking (parking as sist guide line display mode)
■ Screen description
Vehicle width extension guide lines
These lines indicate a guide path when the vehicle is being backed
straight up. The displayed width is wider than the actual vehicle width.
Parking assist guide lines
These lines indicate the path of the smallest turn po ssible behind the
vehicle.
These lines also indicate the approximate position of the steering
wheel when parking.
Distance guide line
This line indicates po ints approximately 1.5 ft. (0.5 m) (red) behind the
rear bumper of your vehicle.

2922-4. Using other driving systems
LX570_OM_OM60L96U_(U) ■ Differences between the screen and the actual road
The distance guide lines and the vehicle width extension guide lines
may not actually be parallel with th e dividing lines of the parking space,
even when they appear to be so. Be sure to check visually.
The distances between the vehicle wi dth extension guide lines and the
left and right dividing lines of the parking space may not be equal, even
when they appear to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road surfaces. In
any of the following situations, th ere is a margin of error between the
guide lines on the screen and the ac tual distance /course on the road.
● When the ground behind the vehicle slopes up sharply
The distance guide lines will
appear to be closer to the vehicle
than the actual distance. Because
of this, objects will appear to be
farther away than they actually are.
In the same way, there will be a
margin of error between the
guidelines and the actual distance/
course on the road.

3002-4. Using other driving systems
LX570_OM_OM60L96U_(U) CAUTION ●
In low temperatures, the screen may darken or the image may become faint. The
image could distort when the vehicle is moving, or you may become unable to
see the image on the screen. Be sure to check direct visually and with the mirrors
all around the vehicl e before proceeding.●
If the tire sizes are changed, the position of the guide lines displayed on the
screen may change. ●
The camera uses a special lens. The di stances between objects and pedestrians
that appear in the image displayed on the screen will differ from the actual dis-
tances. (  P. 292)■
When using the perpendicu lar parking assist screen
Estimated course line display mode: If the steering wheel is straight and the vehicle
width extension guide lines and the estima ted course lines are not in alignment,
have the vehicle inspecte d by your Lexus dealer.

3082-4. Using other driving systems
LX570_OM_OM60L96U_(U) Using the side monitor
Simultaneous display
Individual display Front wheel contact point Shows the position of the vehicle’s
front tire.
Vehicle front edge line Shows the position of the vehicle’s
leading edge.
Vehicle width line (blue) Indicates the width of the vehicle
including the outside rear view mir-
ror.
Projected course line (yellow) Displays a rough guide of the vehi-
cle path that moves according to
the steering wheel position. Dis-
played along with the minimum
projected turning circle.
Minimum projected turning cir-
cle (blue) Displays the smallest turning circle
projected by the system if the
steering wheel is turned to full lock.
Displayed when the steering wheel
is turned to the right (further than
90  from straight ahead).
Rear wheel contact point Shows the position of the vehicle’s
rear tire.
When in individual display mode, the ri ght front view will be expanded and dis-
played.

3092-4. Using other driving systems
2
When driving

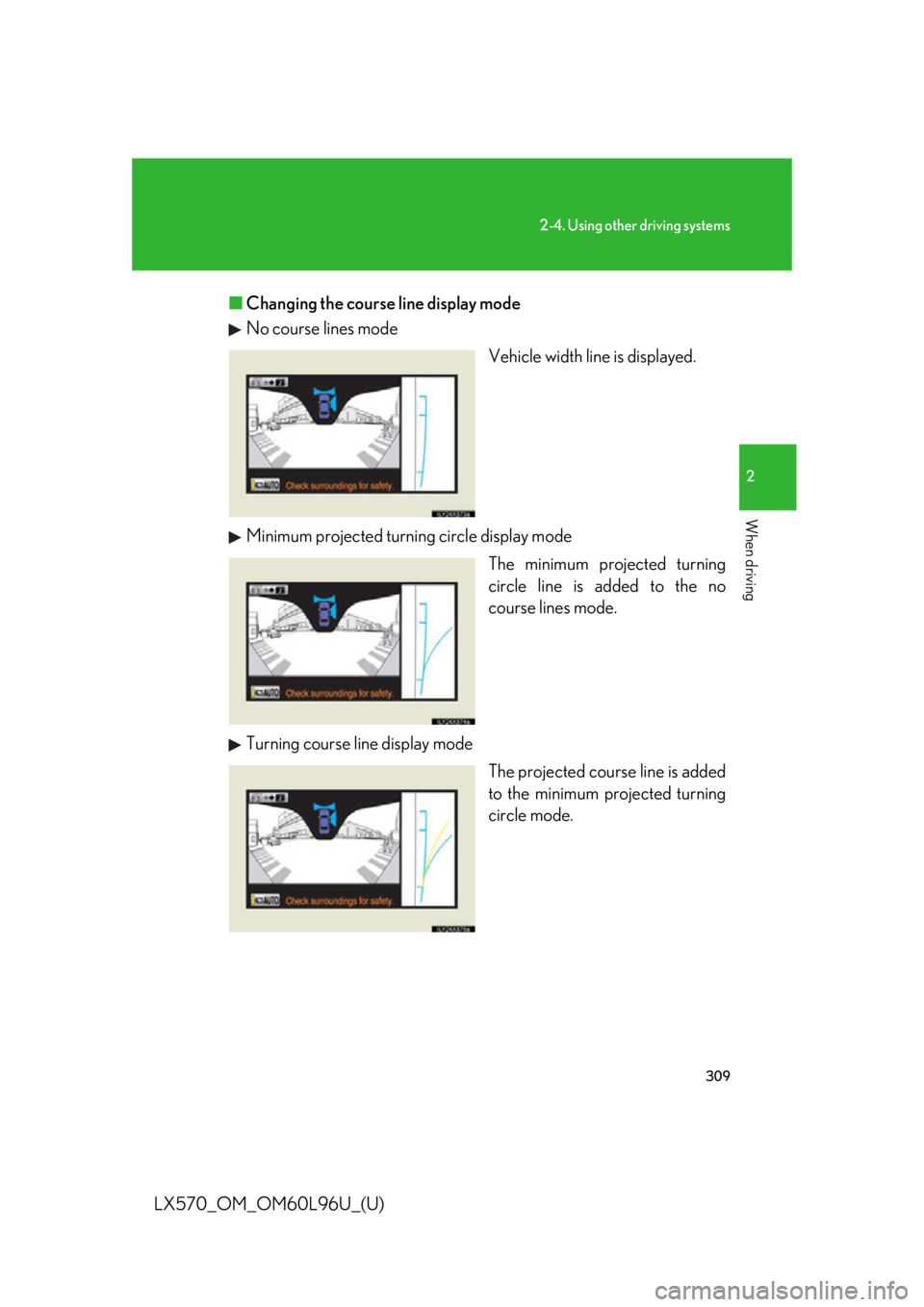

LX570_OM_OM60L96U_(U) ■ Changing the course line display mode
No course lines mode
Vehicle width line is displayed.
Minimum projected turning circle display mode
The minimum projected turning
circle line is added to the no
course lines mode.
Turning course line display mode
The projected course line is added
to the minimum projected turning
circle mode.

3112-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■ Using the vehicle width line & course line
Vehicle width line
Use the vehicle width line to check
the vehicle’s distance from objects
such as curbstones etc. As shown
in the illustration, be sure that the
vehicle width line does not overlap
the object. If you also move the
vehicle so that the vehicle width
line and the object are parallel, you
can park parallel to the object

3732-5. Driving information
2
When driving
LX570_OM_OM60L96U_(U) CAUTION■
Weight of the load ●
Do not exceed the maximum axle weight ra ting or the total vehicle weight rating.●
Even if the total load of occupant’s weight and the cargo load is less than the total
load capacity, do not apply the load unevenly. Improper loading may cause dete-
rioration of steering or br aking control which may cause death or serious injury.■
Roof luggage carrier pr ecautions (if equipped)
To use the roof rails as a roof luggage carr ier, you must fit the roof rails with two or
more genuine Lexus cross ra ils or their equivalent.
When you load cargo on the roof lu ggage carrier, observe the following:●
Place the cargo so that its weight is di stributed evenly between the front and rear
axles. ●
If loading long or wide cargo, never exc eed the vehicle overall length or width.
(  P. 886)●
Before driving, make sure the cargo is securely fastened on the roof luggage car-
rier. ●
Loading cargo on the roof luggage carrier will make the center of the vehicle
gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or
abrupt maneuvers, otherwise it may result in loss of control or vehicle rollover
due to failure to operate this vehicle correct ly and result in death or serious injury.●
If driving for a long distance, on rough ro ads, or at high speed s, stop the vehicle
now and then during the trip to make sure the cargo re mains in its place.●
Do not exceed 154 lb. (70 kg) cargo weight on the roof luggage carrier.

7794-3. Do-it-yourself maintenance
4
Maintenance and care
LX570_OM_OM60L96U_(U) Wheels If a wheel is bent, cracked or heavil y corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause loss of handling
control.
■ Wheel selection
When replacing wheels, care shoul d be taken to ensure that they
are equivalent to those removed in load capacity, diameter, rim
width, and inset
* .
Replacement wheels are available at your Lexus dealer.
* : Conventionally referr ed to as “offset”.
Lexus does not recommend using:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Aluminum wheel precautions
● Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or chan ging your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Lexus genuine balanc e weights or equivalent and a
plastic or rubber hammer when balancing your wheels.
