display LEXUS LX570 2016 Owner's Manual

LX570_OM_OM60N01U_(U) 1012. Instrument cluster
2
Instrument cluster Driving assist system status display area (if equipped) Select to display the operational status of the following systems:
• Dynamic radar cruise control (  P. 2 7 1 )
• LDA (Lane Departure Alert) (  P. 2 6 3 )
• Intuitive parking assist (  P. 2 8 9 )
Displayed content is the same as that disp layed on the multi-information display. For
details, refer to the explanations of each system.
HUD (Head-up display) switch (  P. 1 0 1 )
◆ Enabling/Disabling the head-up display
Press the HUD (head-up display)
switch.
◆ Changing settings of the head-up display
Select on the multi-information display (  P. 91), and then select “HUD”
to change the following settings: ■
Display brightness/location
Select to adjust the brightness and location of the head-up display. ■
Display content
Select to enable/disable the following items: • Route guidance to destination
• Driving assist system status
•Compass
• Audio system operation statusUsing the head-up display 5
6

102
LX570_OM_OM60N01U_(U) 2. Instrument cluster
Displays the following multi-in formation display linked icons:
: Master warning icon
Displayed when a warning message is displayed on the multi-information
display. (  P. 5 3 2 )
: Information icon
Displayed when a suggestion/advice po p-up display is displayed on the
multi-information display. (  P. 9 1 )
Displays the following items in the appropriate situation: ■
Warning/Message (if equipped)
Displays the following system warning/messages: • Pre-collision warning (pre-collision system)
• Notification message (Dynamic radar cruise control)■
Audio system operation status
Displayed when the audio system is operated. ■
Outside temperature
Displayed in the following situations: • When the engine switch is turned to IGNITION ON mode
• When the low outside temperature indicator is flashing
Displayed content is the same as that di splayed on the multi-information display.
(  P. 8 8 )
Displays the following items which are linked to the navigation system: ■
Route guidance to destination
Displayed when the navigation system is performing route guidance. When
approaching an intersection, an arrow will be displayed to indicate the sug-
gested direction of travel. ■
Compass
Displays the direction of travel.Warning and information icons
Message display area
Navigation system-linked display area (if equipped)

LX570_OM_OM60N01U_(U) 1032. Instrument cluster
2
Instrument cluster ■
Head-up display
The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.■
When the battery is disconnected
The customize settings of the head-up display will be reset.■
Display brightness ●
The brightness of the head-up display can be adjusted on of the multi-information
display. Also, it is automatically adjust ed according to the ambient brightness.●
When the vehicle is stopped, the display may dim temporarily. This is not a malfunction. ■
Enabling/disabling of the head-up display
If the head-up display is disabled, it will rema in disabled when the engine switch is turned
off then back to IGNITION ON mode.
WA R N I N G ■
Before using the head-up display ●
Check that the position and brightness of the head-up display image does not inter-
fere with safe driving. Incorrect adjustment of the image’s position or brightness may
obstruct the driver’s view and lead to an accident, resulting in death or serious injury. ●
Do not continuously look at the head-up di splay while driving as you may fail to see
pedestrians, objects on the road, etc. ahead of the vehicle. ■
Caution for changing settings of the head-up display
As the engine needs to be running while changing the settings of the head-up display,
ensure that the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases includin g harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to death or a serious health hazard.

104
LX570_OM_OM60N01U_(U) 2. Instrument cluster
NOTICE ■
To prevent damage to components
■
When changing the settings of the head-up display
To prevent battery discharge, ensure that th e engine is running while the changing the
settings of the head-up display. ●
Do not place any drinks near the head-up dis-
play projector. If the projector gets wet, elec-
trical malfunctions may result. ●
Do not place anything on or put stickers onto
the head-up display projector.
Doing so could interrupt head-up display
indications. ●
Do not touch the inside of the head-up display
projector or thrust sharp edges or the like into
the projector.
Doing so could cause mechanical malfunc-
tions.

105
LX570_OM_OM60N01U_(U) 2. Instrument cluster
2
Instrument cluster
Fuel consumption information Remote Touch screen
Remote Touch knob (  P. 3 9 4 )
“MENU” button
“ENTER” buttonFuel consumption information can be di splayed on the Remote Touch screen.
The fuel consumption information can be displayed and operated on the side
display. 1
2
3
4

106
LX570_OM_OM60N01U_(U) 2. Instrument cluster
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu”
screen, and then select “Fuel Consumption”. ■
Trip information
If the “Past Record” screen is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range (  P. 1 0 7 )Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the engine switch was last turned to IGNI-
TION ON mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.Fuel consumption 1
2
3
4
5
6

LX570_OM_OM60N01U_(U) 1072. Instrument cluster
2
Instrument cluster ■

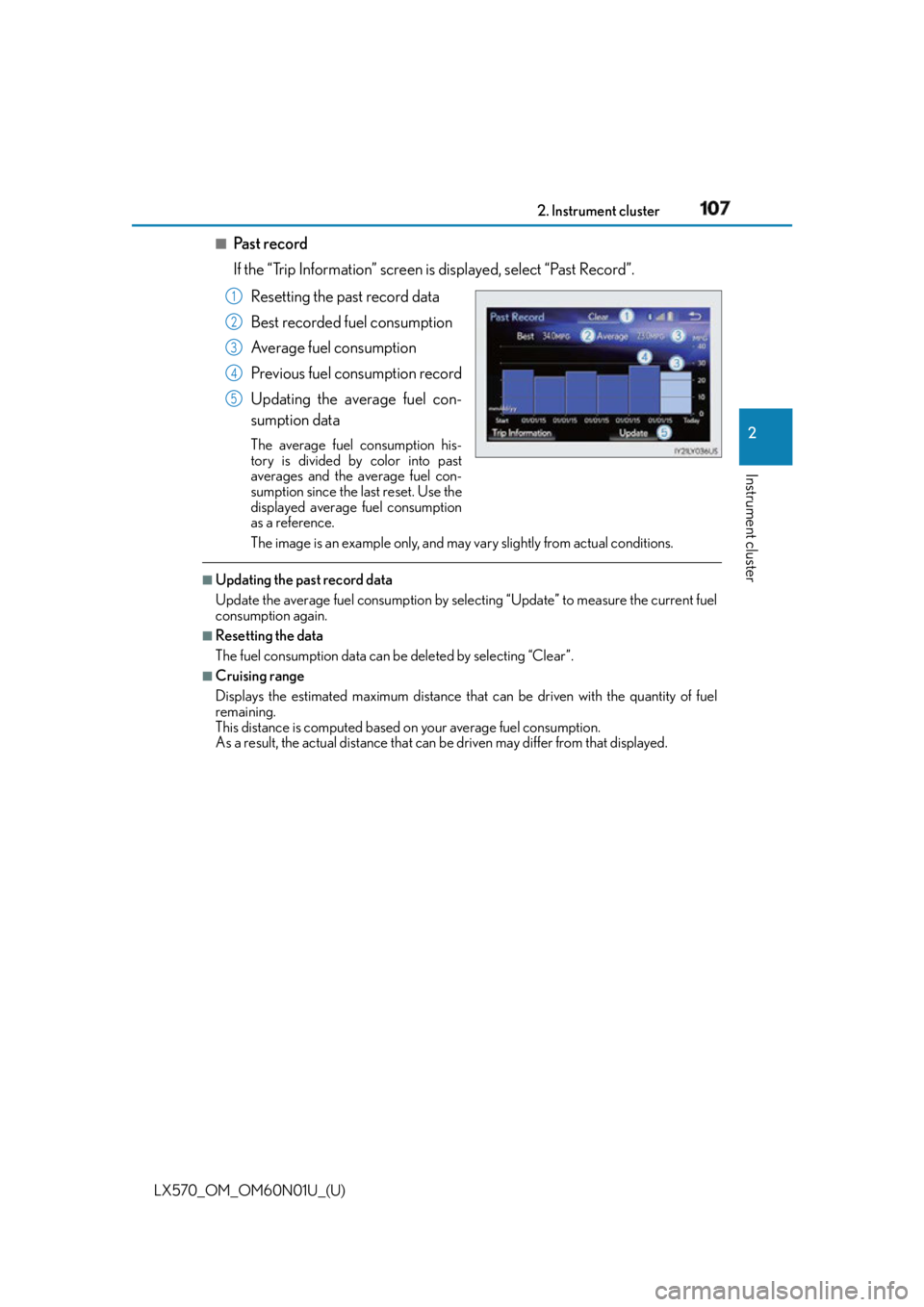

Past record
If the “Trip Information” screen is displayed, select “Past Record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last reset. Use the
displayed average fuel consumption
as a reference.
The image is an example only, and may vary slightly from actual conditions.■
Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again. ■
Resetting the data
The fuel consumption data can be deleted by selecting “Clear”. ■
Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.1
2
3
4
5

108
LX570_OM_OM60N01U_(U) 2. Instrument cluster

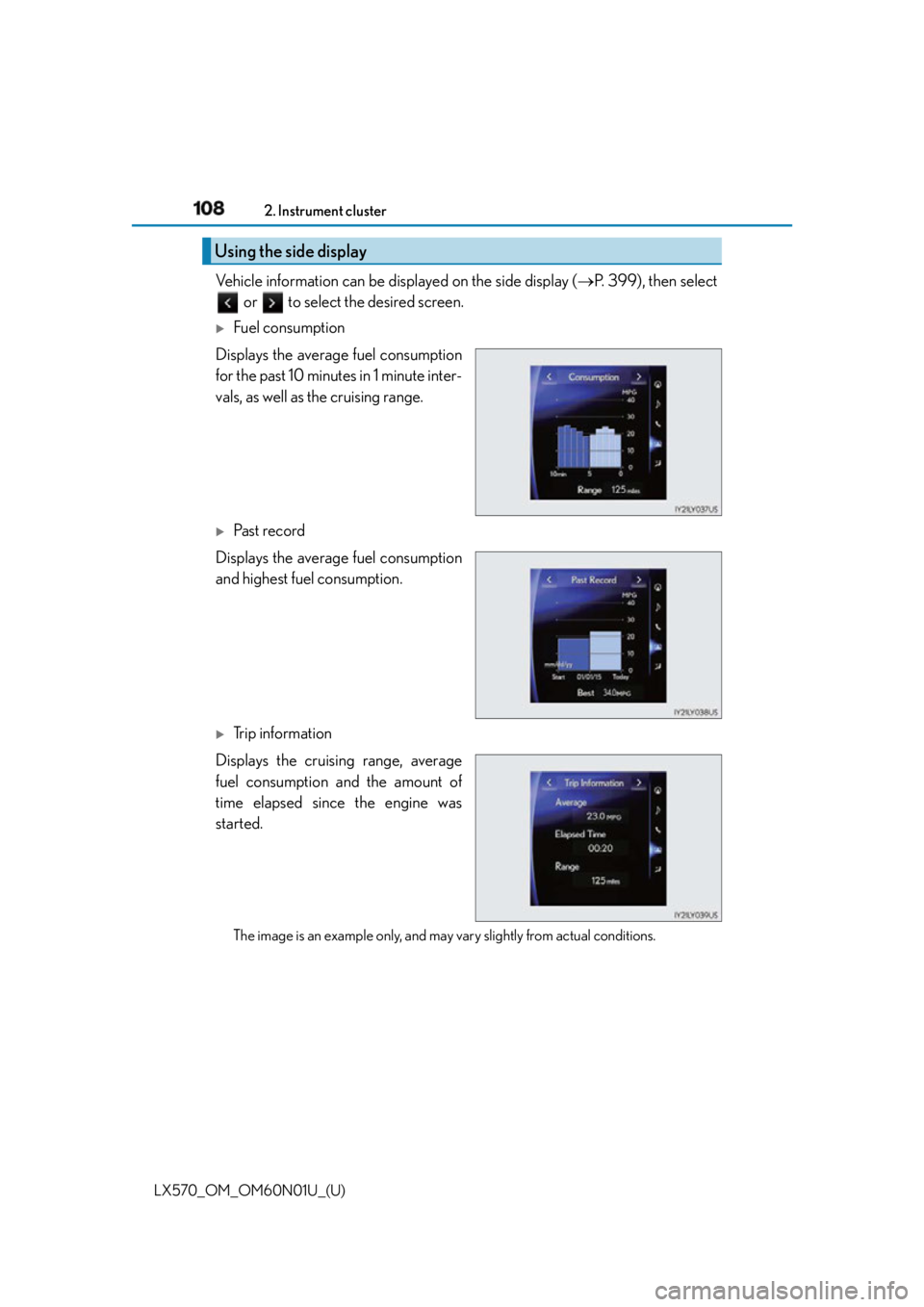

Vehicle information can be displayed on the side display (  P. 3 9 9 ) , t h e n s e l e c t
or to select the desired screen. 
Fuel consumption
Displays the average fuel consumption
for the past 10 minutes in 1 minute inter-
vals, as well as the cruising range. 
Past record
Displays the average fuel consumption
and highest fuel consumption. 
Trip information
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the engine was
started.
The image is an example only, and may vary slightly from actual conditions.Using the side display

120
LX570_OM_OM60N01U_(U) 3-2. Opening, closing and locking the doors■
Changing the door unlock function setting
It is possible to set which doors the entry fu nction unlocks using the wireless remote con-
trol.
Turn the engine switch off.
When the indicator light on the key surface is not on, press and hold for
approximately 5 seconds while pressing and holding .
The setting changes each time an operatio n is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds, and
repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been changed. (If
a door is not opened within 60 seconds af ter is pressed, the doors will be locked
again and the alarm will automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. (  P. 7 8 )1
2
2
Multi-information
display Unlocking function Beep
Holding the driver’s door handle
unlocks only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passenger’s door han-
dle unlocks all the doors.
Holding a door handle unlocks
all the doors. Exterior: Beeps twice
Interior: Pings once

LX570_OM_OM60N01U_(U) 1333-2. Opening, closing and locking the doors
3
Operation of each component ■

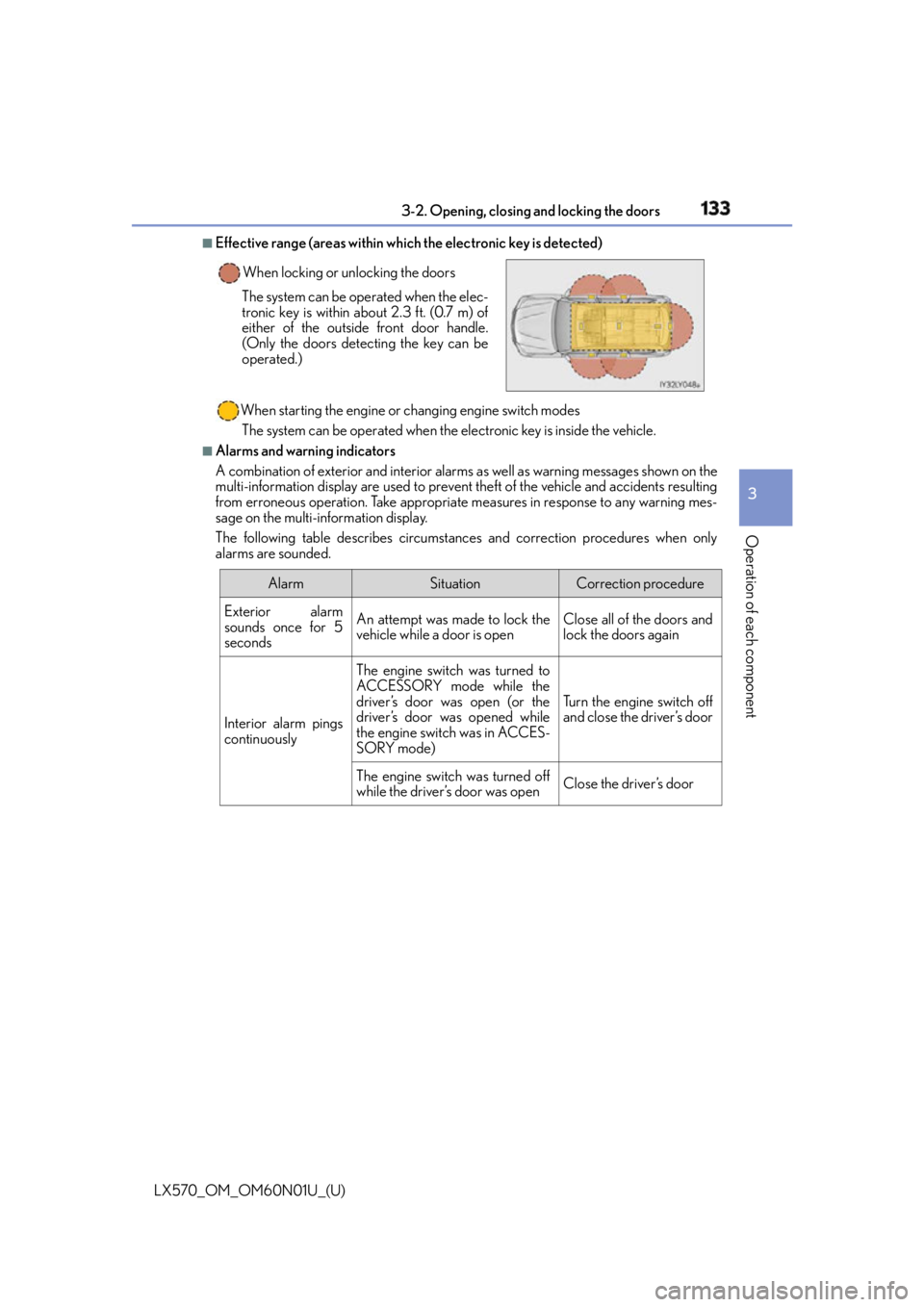

Effective range (areas within whic h the electronic key is detected)
When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehicle.■
Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages shown on the
multi-information display are used to prevent theft of the vehicle and accidents resulting
from erroneous operation. Take appropriate measures in response to any warning mes-
sage on the multi-information display.
The following table describes circumstance s and correction procedures when only
alarms are sounded. When locking or unlocking the doors
The system can be operated when the elec-
tronic key is within about 2.3 ft. (0.7 m) of
either of the outside front door handle.
(Only the doors detecting the key can be
operated.)
Alarm Situation Correction procedure
Exterior alarm
sounds once for 5
seconds An attempt was made to lock the
vehicle while a door is open Close all of the doors and
lock the doors again
Interior alarm pings
continuously The engine switch was turned to
ACCESSORY mode while the
driver’s door was open (or the
driver’s door was opened while
the engine switch was in ACCES-
SORY mode) Tu r n t h e e n g i n e s w i t c h o f f
and close the driver’s door
The engine switch was turned off
while the driver’s door was open Close the driver’s door
