TABLE OF CONTENTS
2
LX570_OM_OM60N01U_(U) For your information ................................... 8
Reading this manual................................... 12
How to search ..............................................13
Pictorial index ............................................... 14
1-1. For safe use
Before driving................................. 26
For safety drive............................... 28
Seat belts .......................................... 30
SRS airbags ..................................... 38
Front passenger occupant
classification system....................51
Safety information for
children ...........................................57
Child restraint systems ............... 58
Installing child restraints............. 63
Exhaust gas precautions .............75
1-2. Theft deterrent system
Engine immobilizer system........ 76
Alarm ................................................. 78
2. Instrument cluster
Warning and indicators
lights ................................................ 82
Gauges and meters .....................88
Multi-information display ............91
Head-up display .......................... 100
Fuel consumption
information ................................. 105 3-1. Key information
Keys .................................................... 110
3-2. Opening, closing and
locking the doors
Side doors........................................ 115
Back door ....................................... 122
Smart access system with
push-button start ......................132
3-3. Adjusting the seats
Front seats...................................... 140
Rear seats........................................ 142
Driving position memory........... 151
Head restraints .............................155
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................. 158
Inside rear view mirror ............. 160
Outside rear view mirrors........ 162
3-5. Opening, closing the windows
and moon roof
Power windows.............................165
Moon roof ...................................... 1681
For safety and security
2
Instrument cluster 3
Operation of each
component
Page 25 of 632
25
LX570_OM_OM60N01U_(U) For safety and security
1 1-1. For safe use
Before driving................................. 26
For safety drive............................... 28
Seat belts .......................................... 30
SRS airbags .....................................38
Front passenger occupant
classification system....................51
Safety information for
children .......................................... 57
Child restraint systems ...............58
Installing child restraints ............. 63
Exhaust gas precautions ............ 75
1-2. Theft deterrent system
Engine immobilizer system ........ 76
Alarm ................................................. 78
Page 78 of 632
78 1-2. Theft deterrent system
LX570_OM_OM60N01U_(U)Alarm The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set: ●
A locked door is unlocked or opened in any way other than using the entry
function or wireless remote control. (The doors will lock again automatically.)●
The hood is opened. ●
The battery is reconnected.
Close the doors and hood, and lock all
the doors using the entry function or
wireless remote control. The system will
be set automatically after 30 seconds. The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:●
Unlock the doors using the entry function or wireless remote control. ●
Turn the engine switch to ACCESSORY or IGNITION ON mode, or start
the engine. (The alarm will be deactivat ed or stopped after a few seconds.)The alarm
Setting the alarm system
Deactivating or stopping the alarm
Page 79 of 632
791-2. Theft deterrent system
LX570_OM_OM60N01U_(U) 1
For safety and security ■
System maintenance
The vehicle has a maintenance-free type alarm system. ■
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing. ●
Nobody is in the vehicle. ●
The windows and moon roof are closed before the alarm is set. ●
No valuables or other personal items are left in the vehicle. ■
Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.) ●
The doors are unlocked using the mechanical
key.
●

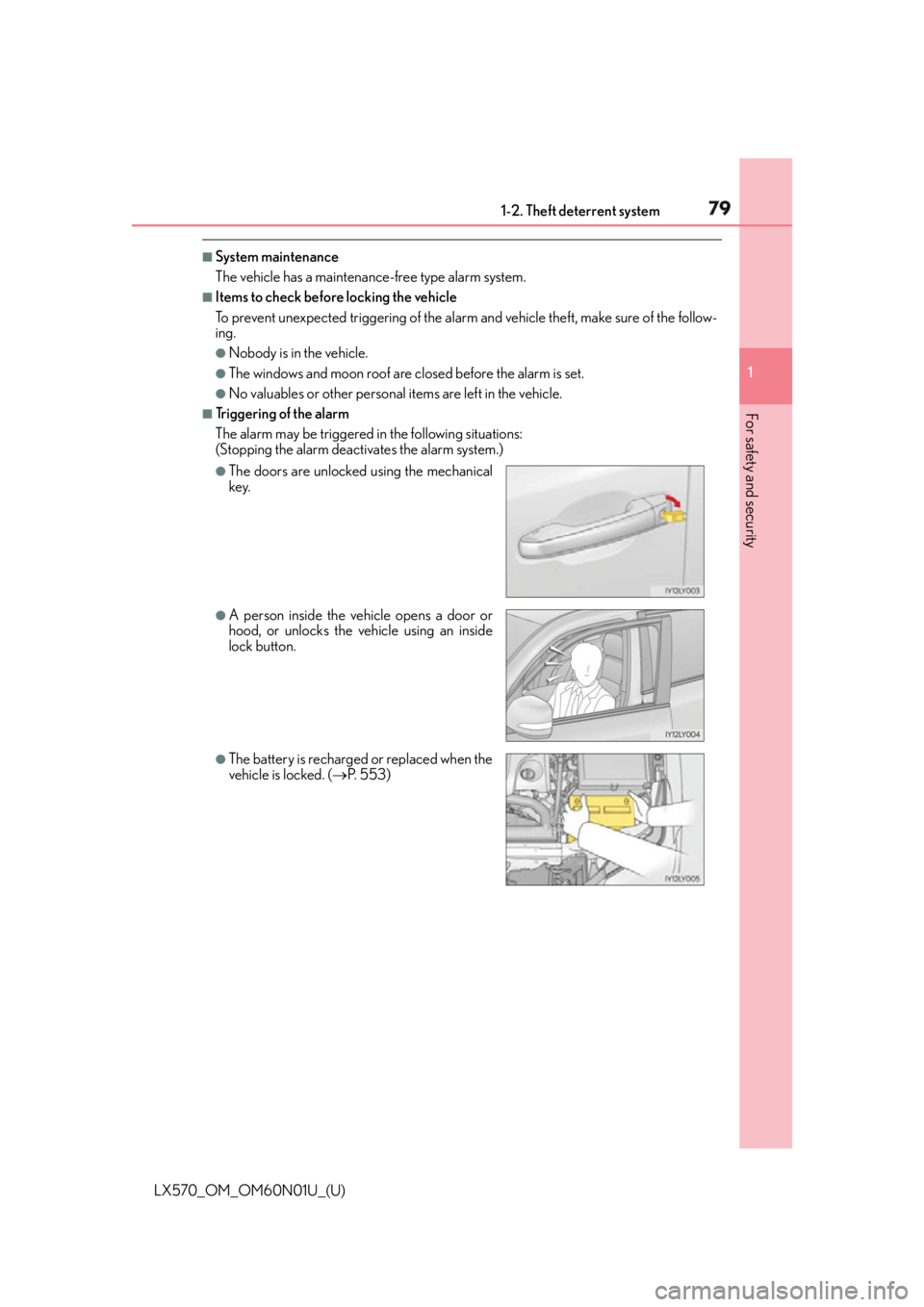

A person inside the vehicle opens a door or
hood, or unlocks the vehicle using an inside
lock button.
●
The battery is recharged or replaced when the
vehicle is locked. ( P. 5 5 3 )
Page 80 of 632
80 1-2. Theft deterrent system
LX570_OM_OM60N01U_(U) ■
Alarm-operated door lock
In the following cases, depending on the si tuation, the door may automatically lock to
prevent improper entry into the vehicle: ●
When a person remaining in the vehicle unlocks the door and the alarm is activated. ●
While the alarm is activated, a person re maining in the vehicle unlocks the door.●
When recharging or replacing the battery.
NOTICE ■
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
Page 110 of 632
110
LX570_OM_OM60N01U_(U) 3-1. Key information

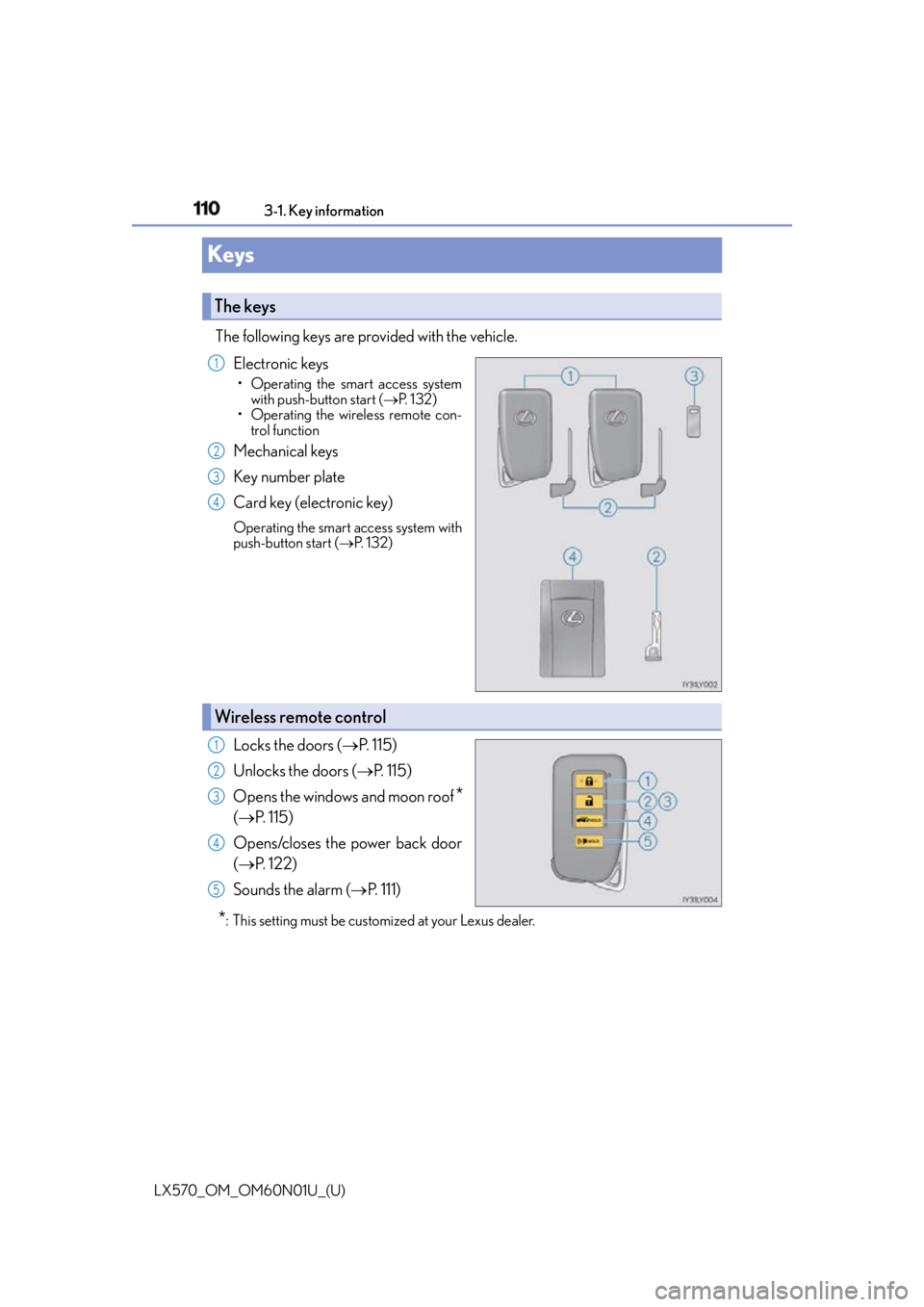

Keys The following keys are provided with the vehicle.
Electronic keys • Operating the smart access system
with push-button start ( P. 1 3 2 )
• Operating the wireless remote con-
trol function
Mechanical keys
Key number plate
Card key (electronic key) Operating the smart access system with
push-button start ( P. 1 3 2 )
Locks the doors ( P. 1 1 5 )
Unlocks the doors ( P. 115)
Opens the windows and moon roof
*( P. 1 1 5 )
Opens/closes the power back door
( P. 1 2 2 )
Sounds the alarm ( P. 111)
* : This setting must be customized at your Lexus dealer.The keys 1
2
3
4
Wireless remote control 1
2
3
4
5
Page 111 of 632
LX570_OM_OM60N01U_(U) 1113-1. Key information
3

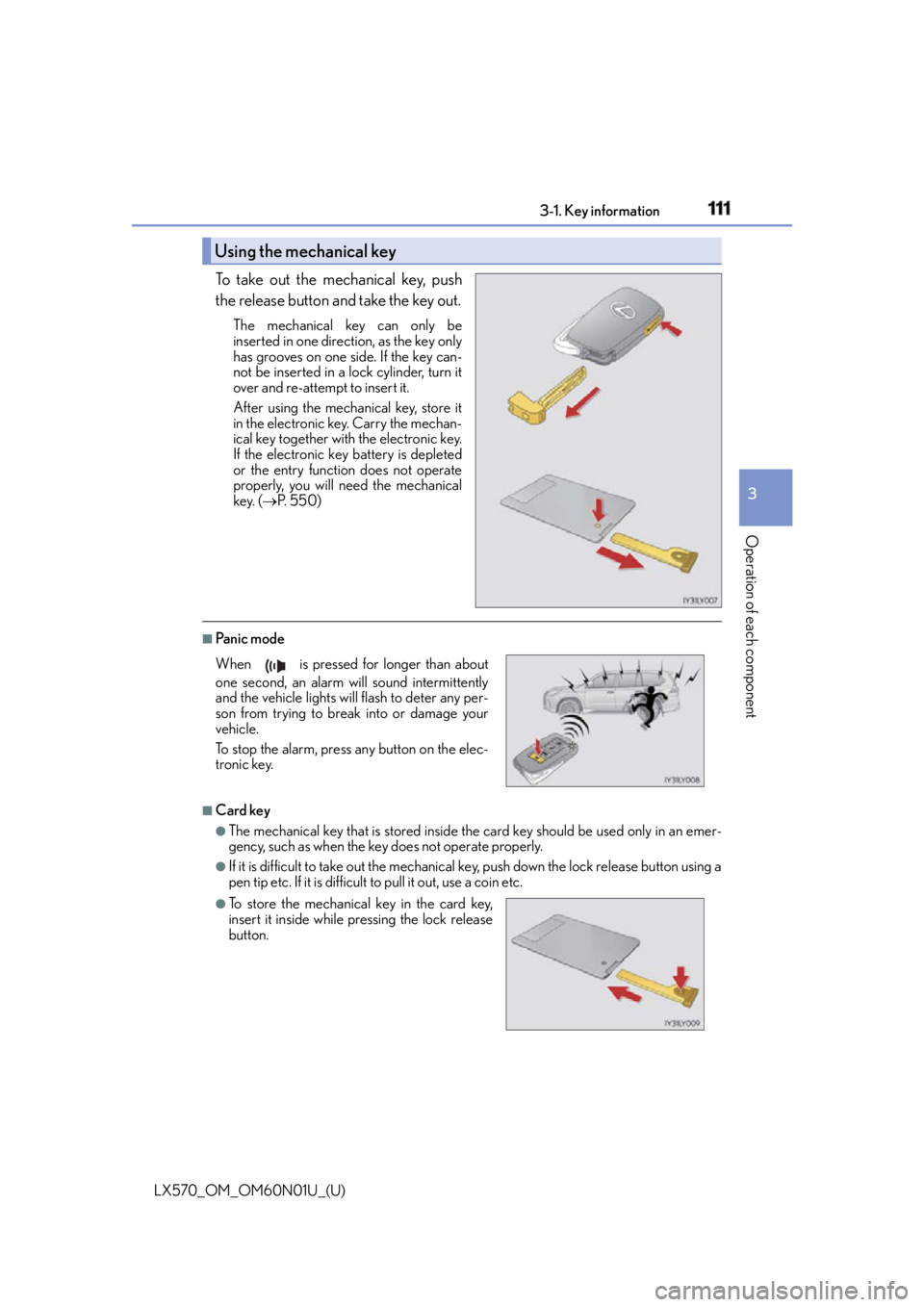

Operation of each component To take out the mechanical key, push
the release button and take the key out. The mechanical key can only be
inserted in one direction, as the key only
has grooves on one side. If the key can-
not be inserted in a lock cylinder, turn it
over and re-attempt to insert it.
After using the mechanical key, store it
in the electronic key. Carry the mechan-
ical key together with the electronic key.
If the electronic key battery is depleted
or the entry function does not operate
properly, you will need the mechanical
key. ( P. 5 5 0 )
■
Panic mode
■
Card key ●
The mechanical key that is stored inside the card key should be used only in an emer-
gency, such as when the key does not operate properly. ●
If it is difficult to take out the mechanical key, push down the lock release button using a
pen tip etc. If it is difficult to pull it out, use a coin etc.Using the mechanical key
When is pressed for longer than about
one second, an alarm will sound intermittently
and the vehicle lights will flash to deter any per-
son from trying to break into or damage your
vehicle.
To stop the alarm, press any button on the elec-
tronic key.
●

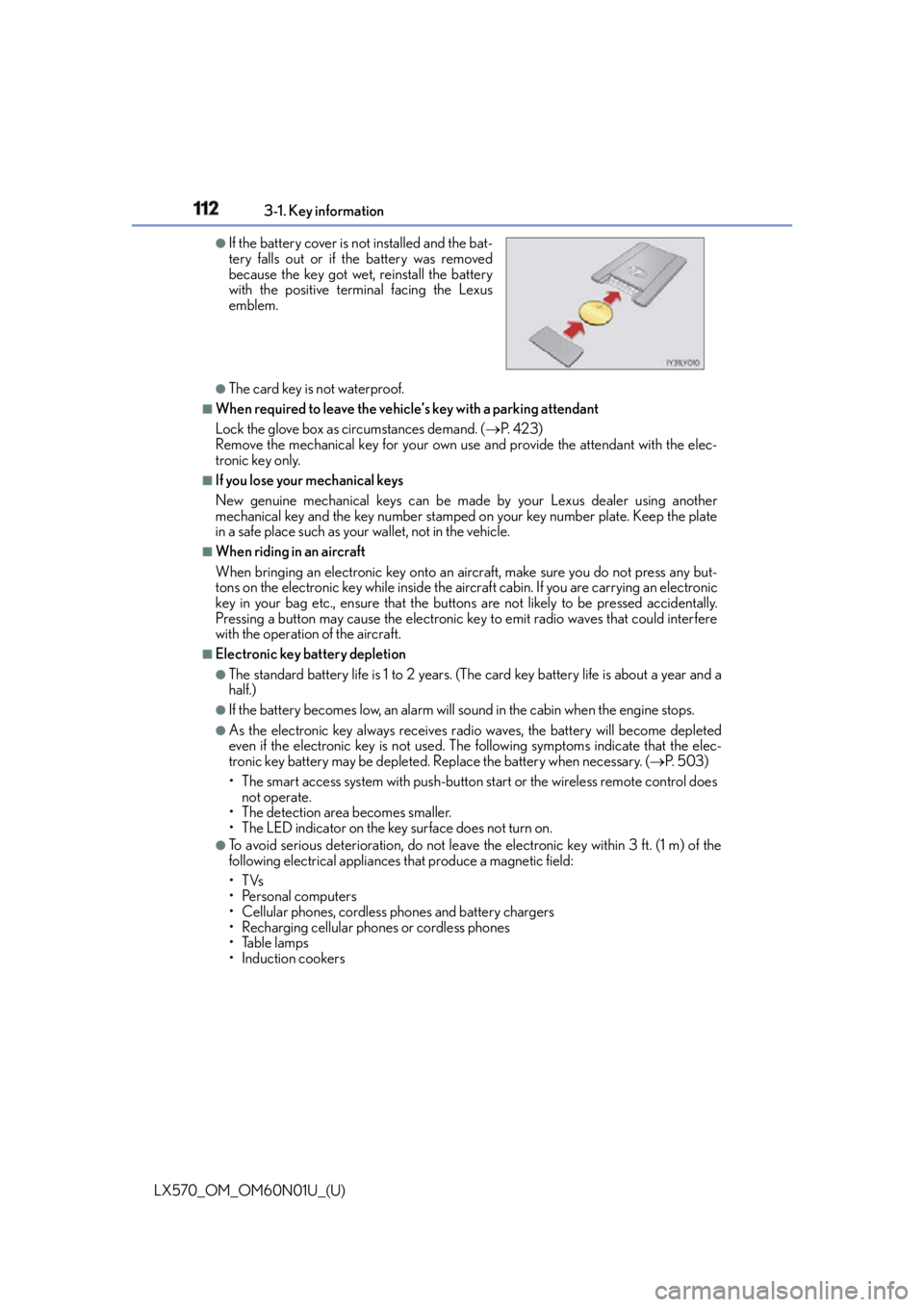

To store the mechanical key in the card key,
insert it inside while pr essing the lock release
button.
Page 112 of 632
112
LX570_OM_OM60N01U_(U) 3-1. Key information
●
The card key is not waterproof. ■
When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 4 2 3 )
Remove the mechanical key for your own use and provide the attendant with the elec-
tronic key only. ■
If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using another
mechanical key and the key number stamped on your key number plate. Keep the plate
in a safe place such as your wallet, not in the vehicle.■
When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any but-
tons on the electronic key while inside the airc raft cabin. If you are carrying an electronic
key in your bag etc., ensure that the buttons are not likely to be pressed accidentally.
Pressing a button may cause the electronic key to emit radio waves that could interfere
with the operation of the aircraft. ■
Electronic key battery depletion ●
The standard battery life is 1 to 2 years. (The card key battery life is about a year and a
half.) ●
If the battery becomes low, an alarm will sound in the cabin when the engine stops.●
As the electronic key always receives ra dio waves, the battery will become depleted
even if the electronic key is not used. The following symptoms indicate that the elec-
tronic key battery may be depleted. Replace the battery when necessary. ( P. 5 0 3 )
• The smart access system with push-button start or the wireless remote control does
not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on. ●
To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of the
following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers ●
If the battery cover is not installed and the bat-
tery falls out or if the battery was removed
because the key got wet, reinstall the battery
with the positive terminal facing the Lexus
emblem.
Page 116 of 632
116
LX570_OM_OM60N01U_(U) 3-2. Opening, closing and locking the doors■
Operation signals
Doors: A buzzer sounds and the emergency flas hers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
Windows and moon roof: A buzzer sounds to indicate that the windows and moon roof
are operating. ■
Security feature
If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the
security feature automatically locks the vehicle again. ■
When the door cannot be locked by the lock sensor on the upper part of the door han-
dle
■
Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer sounds
continuously. Fully close the door to stop the buzzer, and lock the vehicle once more.■
Setting the alarm
Using the wireless remote control to lock the door will set the alarm system. ( P. 7 8 )■
If the smart access system with push-butto n start or the wireless remote control does
not operate properly ●
Use the mechanical key to lock and unlock the doors. ( P. 5 5 0 )●
Replace the battery with a new one if it is depleted. ( P. 5 0 3 )If the door will not lock even when the topside

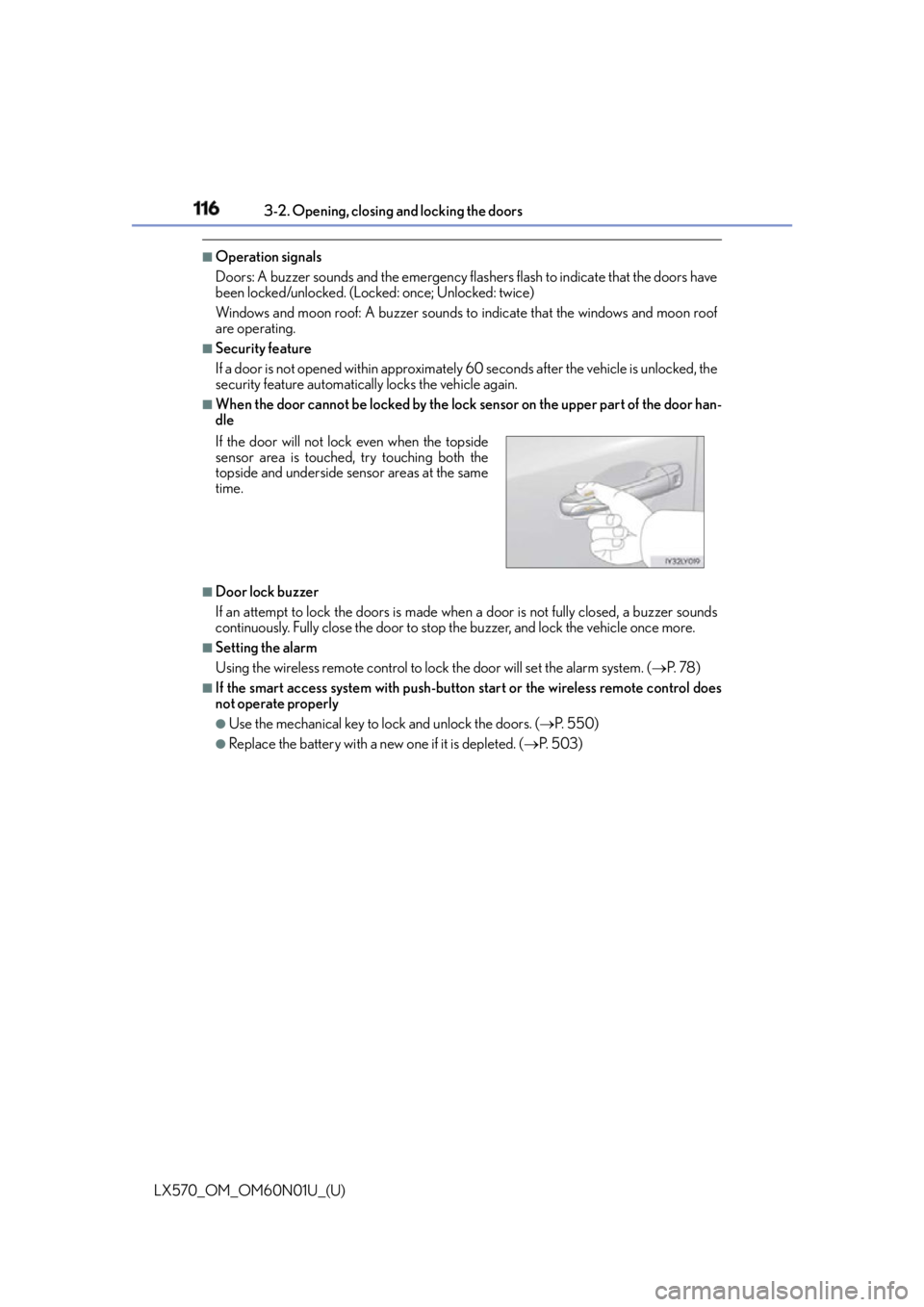

sensor area is touched, try touching both the
topside and underside sensor areas at the same
time.
Page 120 of 632
120
LX570_OM_OM60N01U_(U) 3-2. Opening, closing and locking the doors■
Changing the door unlock function setting
It is possible to set which doors the entry fu nction unlocks using the wireless remote con-
trol.
Turn the engine switch off.
When the indicator light on the key surface is not on, press and hold for
approximately 5 seconds while pressing and holding .

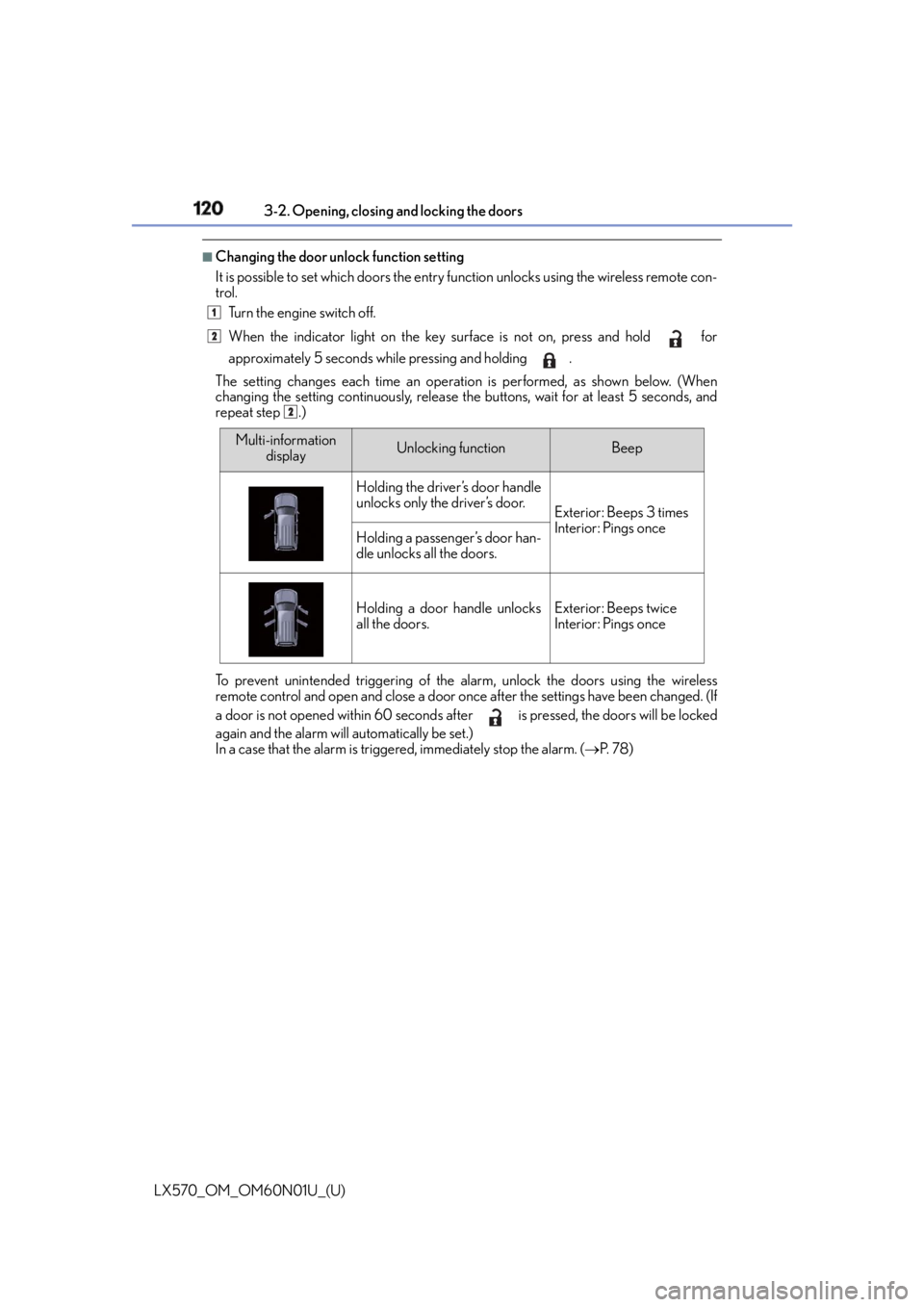

The setting changes each time an operatio n is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds, and
repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been changed. (If
a door is not opened within 60 seconds af ter is pressed, the doors will be locked
again and the alarm will automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. ( P. 7 8 )1
2
2
Multi-information
display Unlocking function Beep
Holding the driver’s door handle
unlocks only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passenger’s door han-
dle unlocks all the doors.
Holding a door handle unlocks
all the doors. Exterior: Beeps twice
Interior: Pings once
