LX570_OM_OM60N01U_(U) 96-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................ 458
Cleaning and protecting
the vehicle inte rior.................... 461
6-2. Maintenance
Maintenance
requirements ............................ 464
General maintenance.............. 466
Emission inspection and
maintenance (I/M)
programs .................................... 469
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions.................................470
Hood ................................................ 472
Engine compartment ................473
Tires.................................................. 486
Tire inflation pressure ............... 495
Wheels ........................................... 499
Air conditioning filter ................ 501
Electronic key battery.............. 503
Checking and replacing
fuses..............................................505
Light bulbs ....................................508 7-1. Essential information
Emergency flashers ....................514
If your vehicle has to be
stopped in an emergency......515
7-2. Steps to take in an emergency
If your vehicle needs
to be towed..................................516
If you think something is
wrong........................................... 522
Fuel pump shut off system ...... 523
If a warning light turns
on or a warning buzzer
sounds ..........................................524
If a warning message is
displayed .................................... 532
If you have a flat tire .................. 536
If the engine will not start .........547
If the shift lever cannot be
shifted from P ........................... 549
If the electronic key does
not operate properly ............. 550
If the vehicle battery is
discharged ................................. 553
If your vehicle overheats ......... 556
If the vehicle becomes
stuck ............................................. 5596
Maintenance and care 7
When trouble arises

15Pictorial index
LX570_OM_OM60N01U_(U) Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231 Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
To prevent freezing (windshield wiper de-icer) . . . . . . . . . . . . . . . . . . . . . . . . . .P. 407
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 459
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 239Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 239
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 564
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 569
Winter tires/tire chain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 3 84
Checking/rotation/tire pressure warning system . . . . . . . . . . . . . . . . . . . . . . . P. 486
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 536
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 472Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 472
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 564
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 556
Camera
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 31 8
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Parking lights/daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 216
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 220Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Back-up lights Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 21 0
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220 4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 508, Watts: P. 570)
* : If equipped9
10
11
12
13
14
15
16

751-1. For safe use
LX570_OM_OM60N01U_(U) 1
For safety and security
Exhaust gas precautions Harmful substance to the human body is included in exhaust gases if inhaled.WA R N I N G
Exhaust gases include harmful carbon monoxi de (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard. ■
Important points while driving ●
Keep the back door closed. ●
If you smell exhaust gases in the vehicle even when the back door is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible. ■
When parking ●
If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine. ●
Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior. ●
Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle wh ile the engine is ru nning, exhaust gases
may collect and enter the vehicle. ■
Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.

84
LX570_OM_OM60N01U_(U) 2. Instrument cluster
* 1
: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
* 2
: The light flashes to indicate a malfunction.
* 3
: This light illuminates on the center panel. * 2
(Canada)
Parking brake indicator
(  P. 5 2 6 )
* 1
Power steering system
warning light (  P. 5 2 6 )
* 1
Brake system warning light
(  P. 5 2 7 )

86
LX570_OM_OM60N01U_(U) 2. Instrument cluster
* 1
: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
* 2
: The light flashes to indicate that the system is operating.
* 3
: The light turns on when the system is turned off.
* 4
: In order to confirm operation, the BSM outs ide rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set
to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, th e BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicat ors do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
* 5
: This light illuminates on the outside rear view mirrors.
* 6
: This light illuminates on the center panel.
* 7
: When the outside temperature is approximately 37  F (3  C) or lower, the indicator
will flash for approximately 10 seconds, then stay on. (if equipped)
Intuitive parking assist
indicator (  P. 2 8 9 ) Turn Assist function
indicator (  P. 3 0 9 )
* 1, 3
(if equipped)
PCS warning light
(  P. 2 5 0 ) (U.S.A.)
Parking brake indicator
(  P. 2 1 7 )(if equipped)
BSM (Blind Spot Monitor)
indicator (  P. 3 6 5 ) (Canada)
Parking brake indicator
(  P. 2 1 7 )
* 4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators (  P. 3 6 5 ) TRAC OFF indicator
(  P. 3 8 0 )
(if equipped)
RCTA (Rear Cross Traffic
Alert) indicator (  P. 3 7 3 )
* 7
Low outside temperature
indicator (  P. 88)
* 6
“A I R B A G O N /
OFF” indicator
(  P. 5 1 )

90
LX570_OM_OM60N01U_(U) 2. Instrument cluster■
The meters and display illuminate when
The engine switch is in IGNITION ON mode. ■
The brightness of the instrument panel lights
When the tail lights are turned on, the meter’ s brightness will be reduced slightly unless
the meter brightness leve l adjustment is set to the brightest setting.
If the tail lights are turned on when the surroundings are dark, the meter’s brightness will
be reduced slightly. However, when the surroundings are bright, such as during the day-
time, the meter’s brightness will not be reduced even if the tail lights are turned on. ■
Customization
The meter display can be customized on the multi-information display. (  P. 585)
WA R N I N G ■
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cau se the driver to downshift again, causing
rapid and excessive engine braking and po ssibly an accident resulting in death or
injury.
NOTICE ■
To prevent damage to the engine and its components ●
Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed. ●
The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. (  P. 5 5 6 )■
Vo l t m e t e r
When the voltmeter indicates 19 V or higher or 9 V or lower while the engine is run-
ning, there may be a battery or charging system malfunction. Have the vehicle
inspected at your Lexus dealer. ■
Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is running,
stop the vehicle in a safe place immediat ely and check the amount of engine oil.
(  P. 4 7 5 )
When the oil pressure drops even though th e engine oil amount has not decreased, or
if the oil pressure does not increase when engine oil is added, contact your Lexus
dealer, as there may be a proble m with the lubrication system.

136
LX570_OM_OM60N01U_(U) 3-2. Opening, closing and locking the doors●
If the electronic key is insi de the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the mult i-information display and a buzzer will
sound outside the vehicle. To turn off the alarm, lock all the doors. ●
The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.
Clean the lock sensor and attempt to operate it again, or use the lock sensor on the
lower part of the door handle. ●
If there is another electronic key in the detection area, it may take slightly longer to
unlock the doors after the d oor handle is gripped or back door unlock switch is
pressed. ●
A sudden approach to the effective range or door handle may prevent the doors from
being unlocked. In this case, return the door handle to the original position and check
that the doors unlock before pulling the door handle again.■
When the vehicle is not driven for extended periods ●
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the
vehicle. ●
The smart access system with push-butto n start can be deactivated in advance.
(  P. 5 8 5 )■
To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when op erating the system from the outside of the
vehicle.
Depending on the position and holding condit ion of the electronic key, the key may not
be detected correctly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prev ention function may not operate.)■
If the smart access system with push-button start does not operate properly ●
Locking and unlocking the doors: Use the mechanical key. (  P. 5 5 0 )●
Starting the engine:  P. 551■
Customization
Settings (e. g. smart access system with push-button start) can be changed.
(Customizable features:  P. 585)

LX570_OM_OM60N01U_(U) 1493-3. Adjusting the seats
3
Operation of each component ■

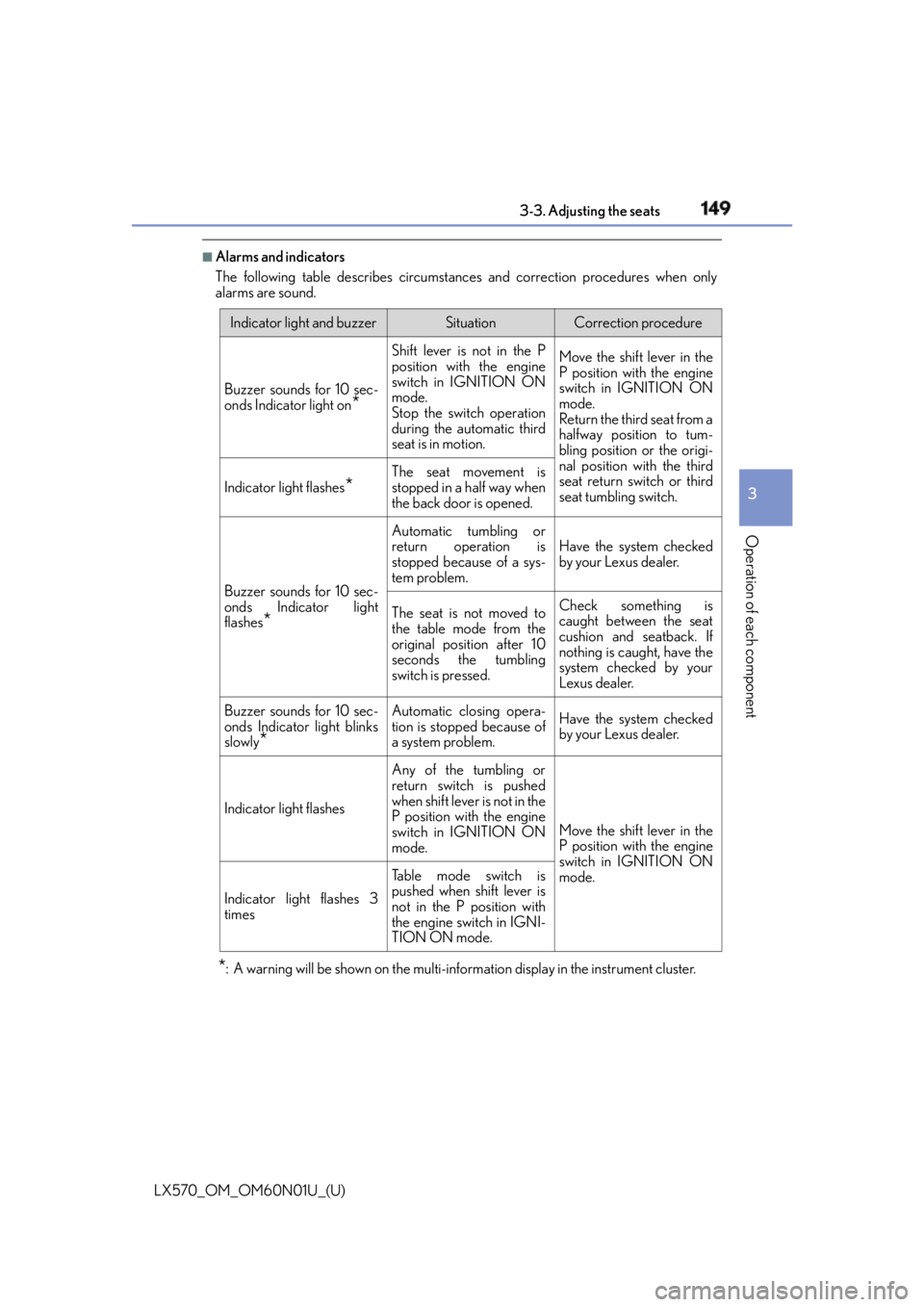

Alarms and indicators
The following table describes circumstance s and correction procedures when only
alarms are sound.
* : A warning will be shown on the multi-inform ation display in the instrument cluster. Indicator light and buzzer Situation Correction procedure
Buzzer sounds for 10 sec-
onds Indicator light on
* Shift lever is not in the P
position with the engine
switch in IGNITION ON
mode.
Stop the swit ch operation
during the automatic third
seat is in motion. Move the shift lever in the
P position with the engine
switch in IGNITION ON
mode.
Return the third seat from a
halfway position to tum-
bling position or the origi-
nal position with the third
seat return switch or third
seat tumbling switch. Indicator light flashes
* The seat movement is
stopped in a half way when
the back door is opened.
Buzzer sounds for 10 sec-
onds Indicator light
flashes
* Automatic tumbling or
return operation is
stopped because of a sys-
tem problem. Have the system checked
by your Lexus dealer.
The seat is not moved to
the table mode from the
original position after 10
seconds the tumbling
switch is pressed. Check something is
caught between the seat
cushion and seatback. If
nothing is caught, have the
system checked by your
Lexus dealer.
Buzzer sounds for 10 sec-
onds Indicator light blinks
slowly
* Automatic closing opera-
tion is stopped because of
a system problem. Have the system checked
by your Lexus dealer.
Indicator light flashes Any of the tumbling or
return switch is pushed
when shift lever is not in the
P position with the engine
switch in IGNITION ON
mode. Move the shift lever in the
P position with the engine
switch in IGNITION ON
mode.
Indicator light flashes 3
times Table mode switch is
pushed when shift lever is
not in the P position with
the engine switch in IGNI-
TION ON mode.

LX570_OM_OM60N01U_(U) 1693-5. Opening, closing the windows and moon roof
3
Operation of each component ■
The moon roof can be operated when
The engine switch is in IGNITION ON mode. ■
Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the engine switch is
turned to ACCESSORY mode or turned off. It cannot, however, be operated once either
front door is opened. ■
Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is clos-
ing or tilting down, travel is stoppe d and the moon roof opens slightly.■
Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened. ■
Door lock linked moon roof operation ●
The moon roof can be opened and closed using the mechanical key
* . (  P. 5 5 0 )●
The moon roof can be opened using the wireless remote control
* . (  P. 1 1 5 )
* : These settings must be cust omized at your Lexus dealer.■
If the moon roof cannot be closed automatically
Keep the switch depressed. ■
When the moon roof does not close normally
Perform the following procedure: ●
If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
* 1
The moon roof will close, re-open an d pause for approximately 10 seconds.
* 2
Then
it will close again, tilt up and pause for appr oximately 1 second. Finally, it will tilt down,
open and close.
Check to make sure that the moon roof is completely closed and then release the
switch. 1
2
3

170
LX570_OM_OM60N01U_(U) 3-5. Opening, closing the windows and moon roof●
If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch
* 1
until the moon roof moves into the tilt up position
and stops.
Release the “UP” switch once and then press and hold the “UP” switch again.
* 1
The moon roof will pause for approximatel y 10 seconds in the tilt up position.
* 2
Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then release the
switch.
* 1
: If the switch is released at the incorrec t time, the procedure will have to be per-
formed again from the beginning.
* 2
: If the switch is released after the above mentioned 10 second pause, automatic
operation will be disabled. In that case, press and hold the “CLOSE” or “UP” switch,
and the moon roof will tilt up and pause fo r approximately 1 second . Then it will tilt
down, open and close. Check to make sure that the moon roof is completely closed
and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor-
rectly, have the vehicle inspected by your Lexus dealer. ■
Moon roof open warning buzzer
The buzzer sounds and message is shown on the multi-information di splay in th e instru-
ment panel when the engine switch is turned off and the driver’s door is opened with the
moon roof open. ■
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features:  P. 585) 1
2
3
4
