washer fluid LEXUS LX570 2016 Owners Manual

17Pictorial index
LX570_OM_OM60N01U_(U) Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 91 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 91
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 532
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 217Applying/releasing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 217
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219, 532
Turn signal lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 216
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220 Headlights/parking lights/tail lights/daytime ru nning lights . . . . . . . . . . . . . .P. 220
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 229
Windshield wiper and washer switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Rear window wiper and washer switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231, 235
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 48 5
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 53 2
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 514
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 472
Tilt and telescopic steering control switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Front air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 407
Audio system
*Hands-free system
*
* : Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.4
5
6
7
8
9
10
11
12
13

234
LX570_OM_OM60N01U_(U) 4-3. Operating the lights and wipers■
Effects of vehicle speed on wiper operation
With the settings other than “AUTO” also, the time until drip prevention wiper sweep
occurs is changed depending on vehicle speed. 
Ty p e A
With selected, wiper operation will be switched from low sp eed to intermittent
wiper operation only when the vehicle is stat ionary. (However, when the sensor sensitiv-
ity is adjusted to the highest le vel, the mode cannot be switched.)
Ty p e B
With selected, wiper operation will be switched from low speed to intermittent
wiper operation only when the vehicle is stat ionary. (However, when the sensor sensitiv-
ity is adjusted to the highest le vel, the mode cannot be switched.)■
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield
washer fluid reservoir.
WA R N I N G ■
Caution regarding the use of wind shield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the wind-
shield is subject to vibration in “AUTO” mode . Take care that your fingers etc. anything
else does not become caught in the windshield wipers. ■
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm. The
fluid may freeze on the windshield and cause lo w visibility. This may lead to an accident,
resulting in death or serious injury.
NOTICE ■
When the windshield is dry
Do not use the wipers, as they may damage the windshield. ■
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat. ■
When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you and
held continually. ■
When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

LX570_OM_OM60N01U_(U) 2374-3. Operating the lights and wipers
4
Driving ■
The rear window wiper and washer can be operated when
The engine switch is in IGNITION ON mode. ■
If no washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the washer fluid
reservoir. ■
Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more time
after a short delay to prevent dripping. ■
Effect of vehicle and shift position on wiper operation 
Ty p e A ●
With selected, wiper operation will be switched from low speed to intermittent
wiper operation only the vehicle is stationary. ●
With or selected, the rear window wiper sweeps once when you shift the
shift lever to R while windshield wipers oper ating or with 17 seco nds from their deacti-
vation. 
Ty p e B ●
With selected, wiper operation will be switched from low speed to intermittent
wiper operation only the vehicle is stationary. ●
With or selected, the rear window wiper sweeps once when you shift the
shift lever to R while windshield wipers oper ating or with 17 seco nds from their deacti-
vation. ■
Customization
Settings (e.g. drip prevention function) can be changed.
(Customizable features  P. 585)
NOTICE ■
When the rear window is dry
Do not use the wiper, as it may damage the rear window. ■
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.

238
LX570_OM_OM60N01U_(U) 4-3. Operating the lights and wipers
Headlight cleaner switch 
Press the switch to clean the headlights. ■
The headlight cleaners can be operated when
The engine switch is in IGNITION ON mode and the headlight switch is turned on.
 : If equippedWasher fluid can be sprayed on the headlights.
NOTICE ■
When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.

384
LX570_OM_OM60N01U_(U) 4-6. Driving tips
Winter driving tips ●
Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine coolant
• Washer fluid ●
Have a service technician inspect the condition of the battery. ●
Have the vehicle fitted with four snow tires or purchase a set of tire chains for
the rear tires.
*Ensure that all tires are the same size and br and, and that chains match the size of the
tires.
* : Tire chains cannot be mounted on vehicles with 21-inch tires
Perform the following according to the driving conditions: ●
Do not try to forcibly open a window or move a wiper that is frozen. Pour
warm water over the frozen area to melt the ice. Wipe away the water imme-
diately to prevent it from freezing. ●
To ensure proper operation of the climate control system fan, remove any
snow that has accumulated on the air in let vents in front of the windshield.●
Check for and remove any excess ice or snow that may have accumulated on
the exterior lights, vehicle’s roof, chassis, around the tires or on the brakes. ●
Remove any snow or mud from the bottom of your shoes before getting in the
vehicle.Carry out the necessary preparations and inspections before driving the vehi-
cle in winter. Always drive the vehicle in a manner appropriate to the prevail-
ing weather conditions.
Pre-winter preparations
Before driving the vehicle

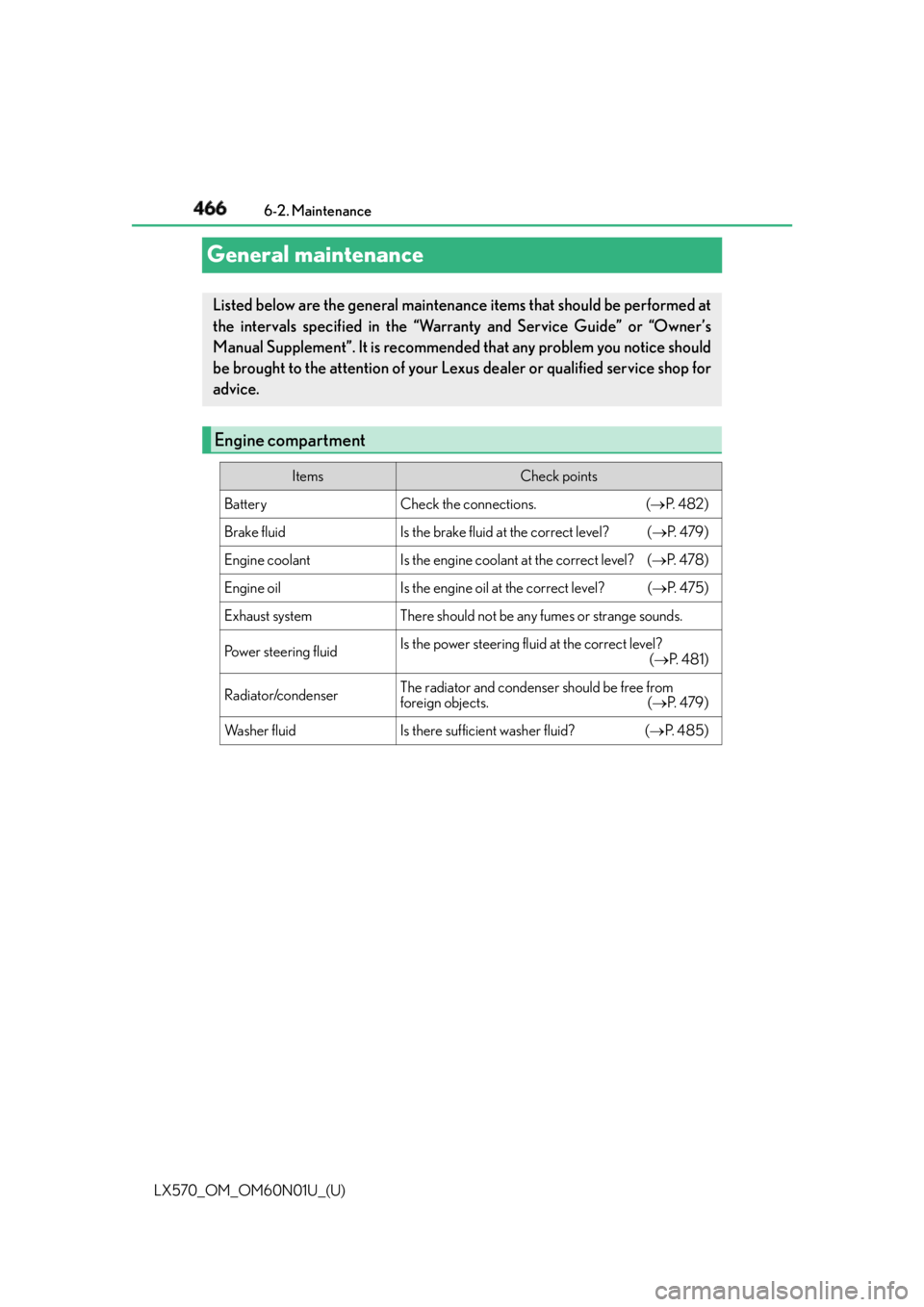

466
LX570_OM_OM60N01U_(U) 6-2. Maintenance
General maintenance Listed below are the general maintenance items that should be performed at
the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommende d that any problem you notice should
be brought to the attention of your Lexu s dealer or qualifie d service shop for
advice.
Engine compartment Items Check points
Battery Check the connections. (  P. 4 8 2 )
Brake fluid Is the brake fluid at the correct level? (  P. 4 7 9 )
Engine coolant Is the engine coolant at the correct level? (  P. 4 7 8 )
Engine oil Is the engine oil at the correct level? (  P. 4 7 5 )
Exhaust system There should not be any fumes or strange sounds.
Power steering fluid Is the power steering fluid at the correct level?
(  P. 4 8 1 )
Radiator/condenser The radiator and condenser should be free from
foreign objects. (  P. 4 7 9 )
Wa s h e r f l u i d Is there sufficient washer fluid? (  P. 4 8 5 )

470

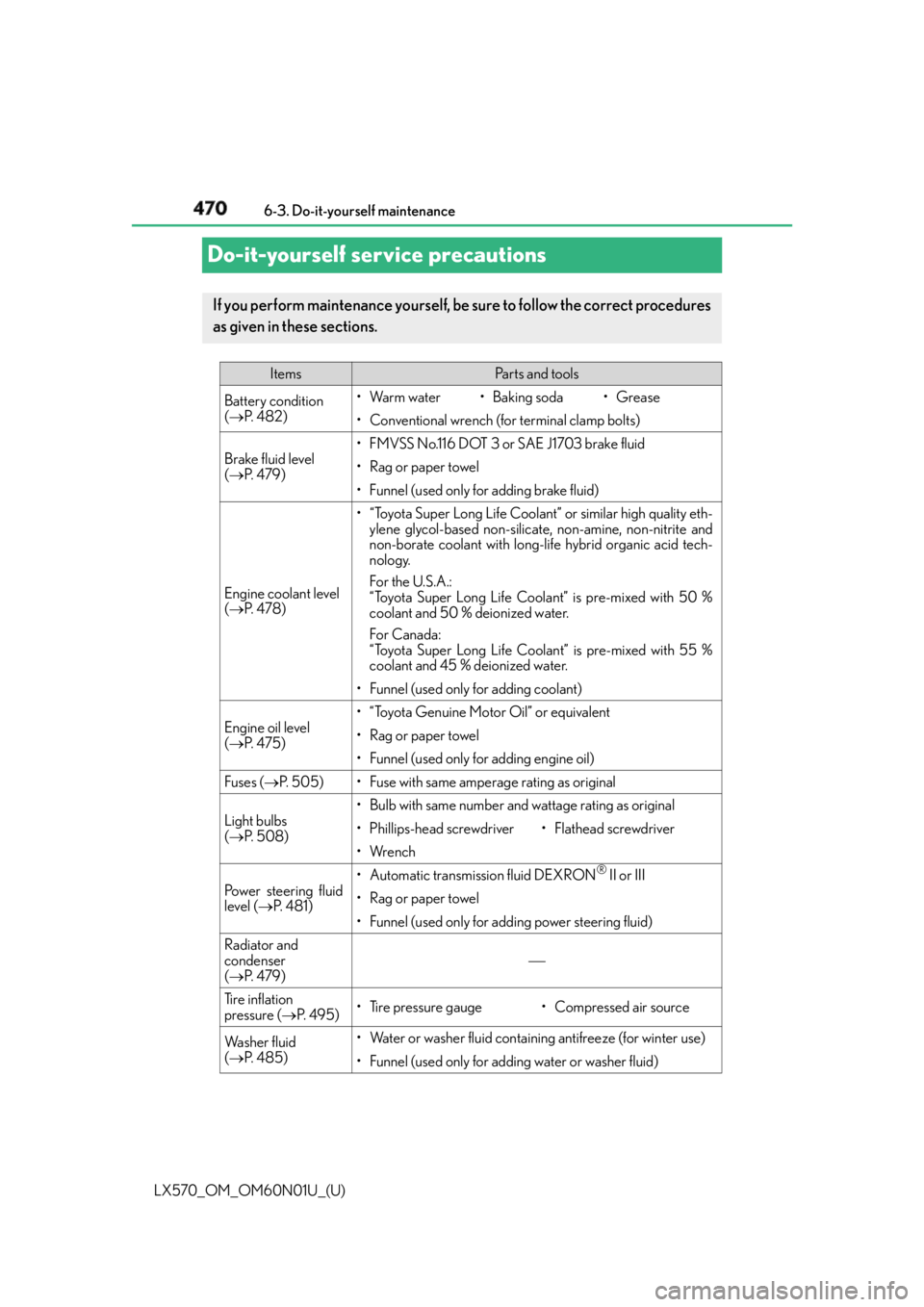

LX570_OM_OM60N01U_(U) 6-3. Do-it-yourself maintenance
Do-it-yourself service precautions If you perform maintenance yourself, be sure to follow the correct procedures
as given in these sections. Items Pa r t s a n d t o o l s
Battery condition
(  P. 4 8 2 ) •Warm water • Baking soda •Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
(  P. 4 7 9 ) • FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level
(  P. 4 7 8 ) • “Toyota Super Long Life Coolant” or similar high quality eth-
ylene glycol-based non-silicate, non-amine, non-nitrite and
non-borate coolant with long-life hybrid organic acid tech-
nology.
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with 50 %
coolant and 50 % deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with 55 %
coolant and 45 % deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(  P. 4 7 5 ) • “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (  P. 505) • Fuse with same amperage rating as original
Light bulbs
(  P. 5 0 8 ) • Bulb with same number and wattage rating as original
• Phillips-head screwdriver •Flathead screwdriver
•Wrench
Power steering fluid
level (  P. 4 8 1 ) • Automatic transmission fluid DEXRON ®
II or III
• Rag or paper towel
• Funnel (used only for adding power steering fluid)
Radiator and
condenser
(  P. 4 7 9 ) 
Tire inflation
pressure (  P. 4 9 5 ) • Tire pressure gauge • Compressed air source
Wa s h e r f l u i d
(  P. 4 8 5 ) • Water or washer fluid containi ng antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

LX570_OM_OM60N01U_(U) 4856-3. Do-it-yourself maintenance
6
Maintenance and care If any washer does not work or the
warning message appears on the multi-
information display, the washer tank
may be empty. Add washer fluid.Washer fluid
WA R N I N G ■
When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid contains
alcohol and may catch fire if spilled on the engine etc.
NOTICE ■
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.■
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.

621Alphabetical index
LX570_OM_OM60N01U_(U) Engine
Accessory mode............................... 206
Air cleaner ...............................................471
Compartment ...................................... 473
Engine switch ...................................... 205
Exhaust gas precautions ................... 75
Hood ........................................................ 472
How to start the engine ................. 205
Identification number ...................... 563
If the engine will not start................ 547
If your vehicle has to be
stopped in an emergency ........... 515
Ignition switch (engine
switch) ................................................. 205
Overheating ........................................ 556
Engine compartment cover ............. 474
Engine coolant....................................... 478
Capacity ................................................ 566
Checking................................................478
Preparing and checking
before winter ................................... 384
Engine coolant temperature
gauge ........................................................ 88
Engine immobilizer system ..................76
Engine oil ................................................. 475
Capacity ................................................ 564
Checking................................................475
Preparing and checking
before winter ................................... 384 Engine switch (ignition switch) ....... 205
Engine switch light
(ignition switch light)......................... 419
Event data recorder (EDR)................... 10
Exhaust gas precautions ....................... 75
First-aid kit holder ................................ 430
Flat tire ...................................................... 536
Floor mats....................................................26
Fluid
Automatic transmission .................. 567
Brake....................................................... 568
Steering ................................................. 568
Washer ...................................................485
Fog lights...................................................229
Replacing light bulbs ........................ 510
Switch ...................................................... 229
Footwell lights .......................................... 419
Four-wheel AHC (Active Height
Control Suspension) ........................ 297
Easy access mode ............................ 299
Disabling the height control ........ 300
Selecting vehicle height.................. 297
Four-wheel drive system
Center differential lock/unlock ..306
Four-wheel drive control
switch ...................................................305
Warning light ....................................... 526
Front automatic air conditioning
system ...................................................... 401
Front doors ................................................ 115 F
* : Refer to
the “NAVIGATION SYSTEM OWNER’S MANUAL”.
