engine LEXUS LX570 2016 Owners Manual

571
LX570_OM_OM60N01U_(U)8-1. Specifications
8
Vehicle specifications
Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by
the brand of gasoline you are
using. If driveability problems persist, try changing the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Eu rope and Japan have developed a specifi-
cation for fuel quality called the World-Wi de Fuel Charter (WWFC), which is expected
to be applied worldwide.
●The WWFC consists of four cat egories that are based on required emission levels. In
the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance.
■Recommendation of the use of gasoli ne containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.
●Lexus strongly recommends the use of Top Ti er Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as et hers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the fo rmulations allow for reduced vehicle emis-
sions.
You must only use unleaded gasoline.
Select octane rating 91 (Research Octane Number 96) or higher. Use of
unleaded gasoline with an octane rating lower than 91 may result in engine
knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A. .

572
LX570_OM_OM60N01U_(U)8-1. Specifications
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure th
at it has an octane rating no lower than 87.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains on octane enhancing additive called MMT (Methylcy clopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasolin e that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking fo r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
●Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol).DO NOT use gasoline con-
taining more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

LX570_OM_OM60N01U_(U)
5738-1. Specifications
8
Vehicle specifications
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters
causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level previ-
ously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-
tered after using a different type of fuel, discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

580
LX570_OM_OM60N01U_(U)8-1. Specifications

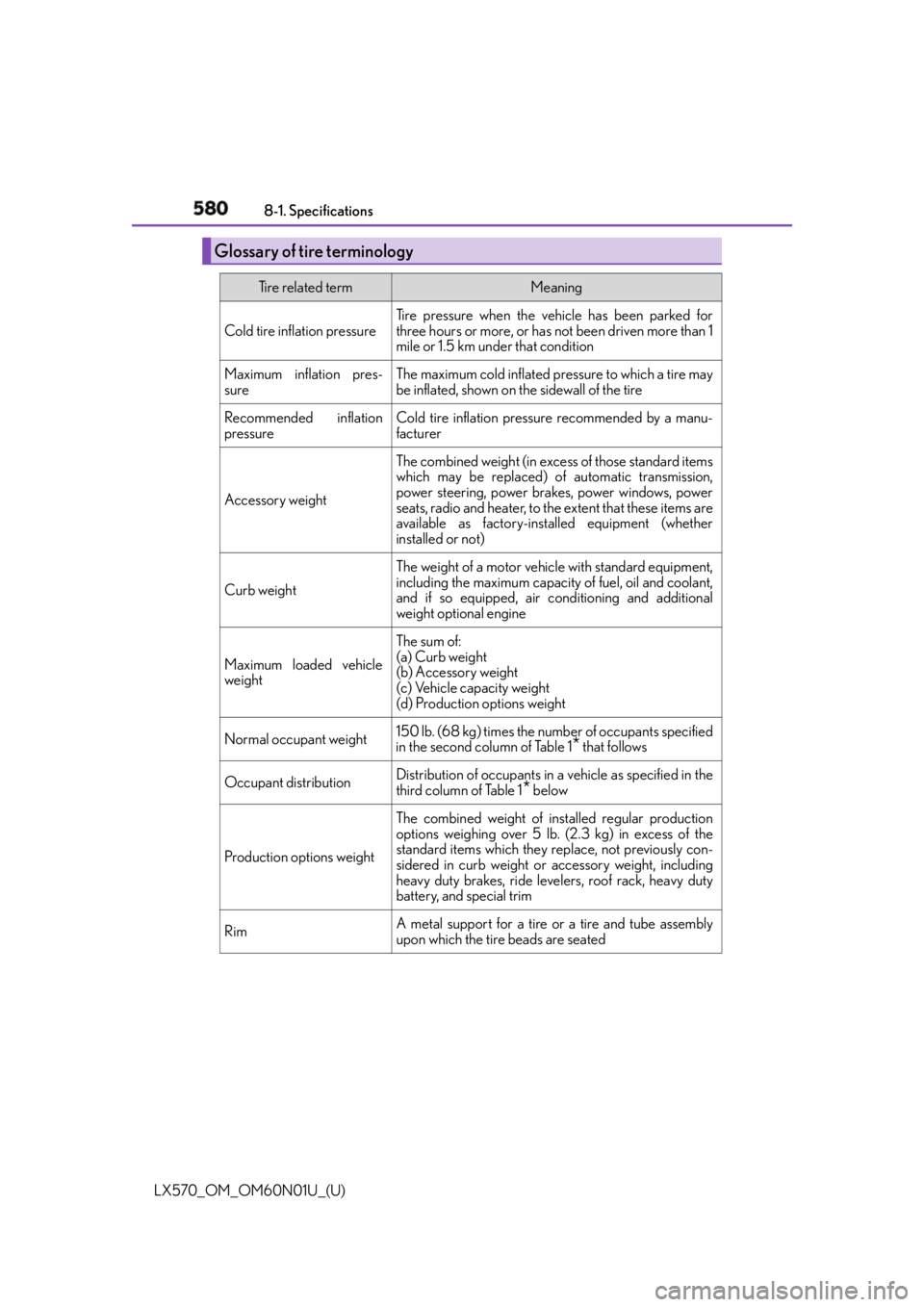

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km un
der that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air co nditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

590
LX570_OM_OM60N01U_(U)8-2. Customization

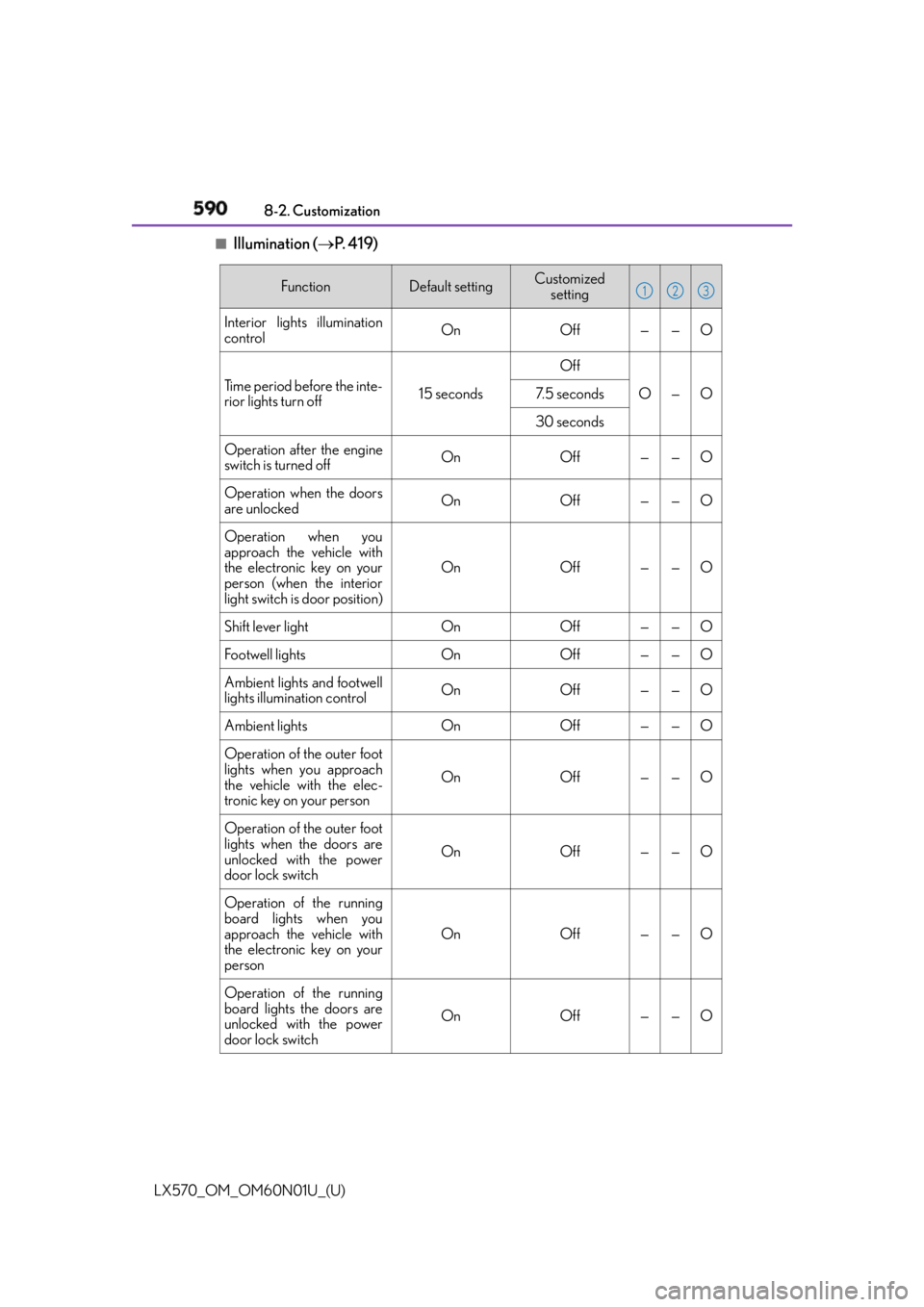

■Illumination (
P. 4 1 9 )
FunctionDefault settingCustomized
setting
Interior lights illumination
controlOnOff——O
Time period before the inte-
rior lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person (when the interior
light switch is door position)
OnOff——O
Shift lever lightOnOff——O
Footwell lightsOnOff——O
Ambient lights and footwell
lights illumination controlOnOff——O
Ambient lightsOnOff——O
Operation of the outer foot
lights when you approach
the vehicle with the elec-
tronic key on your person
OnOff——O
Operation of the outer foot
lights when the doors are
unlocked with the power
door lock switch
OnOff——O
Operation of the running
board lights when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Operation of the running
board lights the doors are
unlocked with the power
door lock switch
OnOff——O
123

592
LX570_OM_OM60N01U_(U)8-2. Customization

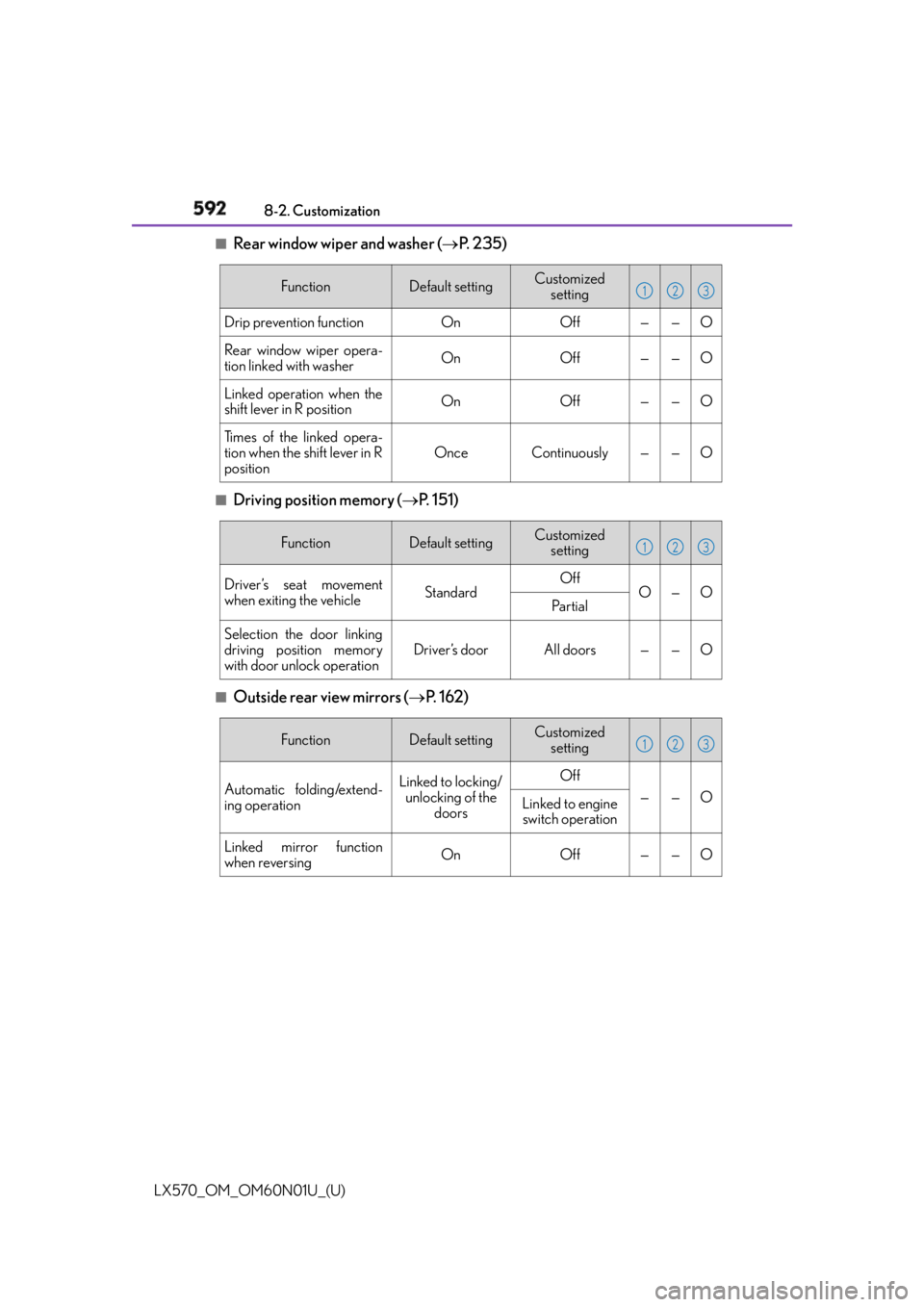

■Rear window wiper and washer (
P. 2 3 5 )
■Driving position memory ( P. 151)
■Outside rear view mirrors ( P. 1 6 2 )
FunctionDefault settingCustomized
setting
Drip prevention functionOnOff——O
Rear window wiper opera-
tion linked with washerOnOff——O
Linked operation when the
shift lever in R positionOnOff——O
Times of the linked opera-
tion when the shift lever in R
position
OnceContinuously——O
123
FunctionDefault settingCustomized setting
Driver’s seat movement
when exiting the vehicleStandardOffO—OPa r t i a l
Selection the door linking
driving position memory
with door unlock operation
Driver’s doorAll doors——O
123
FunctionDefault settingCustomized setting
Automatic folding/extend-
ing operationLinked to locking/unlocking of the doorsOff
——OLinked to engine switch operation
Linked mirror function
when reversingOnOff——O
123

LX570_OM_OM60N01U_(U)
5978-2. Customization
8
Vehicle specifications
■HUD (Head-up Display)* ( P. 100)
*:If equipped
■Vehicle customization
●When smart access system with push-button start is turned off, unlock door cannot be
selected.
●When doors are not opened after unlocking and are then automatically re-locked, a
signal will be given if “Operation signal (Emergency flashers)” or “Operation signal
(Buzzer)” are set to on.
■When setting using the multi-information display
When using the vehicle switches to set an item that can also be set using the touch
screen, the item displayed on the Remo te Touch will not change immediately.
If the engine switch is first turned to off, the screen display will change once the engine
switch is turned to IGNITION ON mode again.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engi ne running while customizing the features.
FunctionDefault
settingCustomized setting
Driving support display
(Navigation system
*)OnOff—O—
Driving support display
(Driving assist
*)OnOff—O—
Driving support display
(compass
*)OnOff—O—
Driving support display
(audio
*)OnOff—O—
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.
123

612What to do if... (Troubleshooting)
LX570_OM_OM60N01U_(U)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, ne w genuine mechanical keys can be made
by your Lexus dealer. ( P. 1 1 2 )
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact your Lexus dealer immediately. ( P. 1 1 4 )
●Is the electronic key battery weak or depleted? ( P. 5 0 3 )
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 2 0 6 )
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly du e to the condition of the radio wave.
( P. 1 3 4 )
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
( P. 1 1 8 )
If you have a problem, check the following before contacting your Lexus
dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

613What to do if... (Troubleshooting)
LX570_OM_OM60N01U_(U)
●Did you press the engine switch while firmly depressing the brake pedal?
(P. 2 0 5 )
●Is the shift lever in P? ( P. 2 0 5 )
●Is the electronic key anywhere detectable inside the vehicle? ( P. 1 3 3 )
●Is the steering wheel unlocked? ( P. 2 0 8 )
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. (P. 551)
●Is the battery discharged? ( P. 5 5 3 )
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode ( P. 5 4 9 )
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal

614What to do if... (Troubleshooting)
LX570_OM_OM60N01U_(U)
●It is locked automatically to prevent theft of the vehicle. ( P. 2 0 7 )
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 1 6 5 )
●The auto power off function will be oper ated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 2 0 7 )
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
( P. 5 2 6 )
●The parking brake indicator is on
Is the parking brake released? ( P. 2 1 7 )
Depending on the situation, other type s of warning buzzer may also sound.
( P. 5 2 4 , 5 3 2 )
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 7 8 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine. The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
