832. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 5 2 4 )*1Automatic headlight
leveling system warning
light ( P. 5 2 5 )
*1
(Canada)
Brake system warning light
( P. 5 2 4 )*2Low speed four-wheel
drive indicator light
( P. 5 2 6 )
*1Charging system warning
light ( P. 5 2 4 )*2Center differential lock
indicator light ( P. 5 2 6 )
*1
(U.S.A.)
Malfunction indicator lamp
( P. 5 2 4 ) Open door warning light
(
 P. 5 2 6 )
*1
(Canada)
Malfunction indicator lamp
( P. 5 2 4 ) Low fuel level warning light
(
 P. 5 2 6 )
*1SRS warning light
( P. 5 2 4 ) Driver’s seat belt reminder
light (
P. 5 2 6 )
*1
(U.S.A.)
ABS warning light
( P. 5 2 4 )*3Front passenger’s seat belt
reminder light ( P. 5 2 6 )
*1
(Canada)
ABS warning light
( P. 5 2 4 )*1Master warning light
( P. 5 2 6 )
*1, 2
(if equipped)
PCS warning light
( P. 5 2 5 )*1Tire pressure warning light
( P. 5 2 6 )
*1Slip indicator light
( P. 5 2 5 )*2
(U.S.A.)
Parking brake indicator
( P. 5 2 6 )

88
LX570_OM_OM60N01U_(U)2. Instrument cluster
Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Engine oil pressure gauge
Displays the engine oil pressure
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Vo l t m e t e r
Displays the charge state
Fuel gauge
Displays the quantity of fuel remaining in the tank
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of driving-related data P. 9 1 )
1
2
3
4
5
6
7

458
LX570_OM_OM60N01U_(U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle body, wheel
wells and underside of the vehicle to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly with
water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is cool.
■Automatic car washes
●Fold the mirrors back before washing the vehicle. Start washing from the front of the
vehicle. Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm your
vehicle’s paint.
●Rear spoiler may not be washable in some automatic car washes. There may also be an
increased risk of damage to vehicle.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the windows.
●Before using the car wash, check that the fuel
filler door on your vehicle is closed prop-
erly.
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard brushes or
abrasive cleaners. Do not use strong or harsh chemical cleaners. Use the same mild
detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving for
long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
Perform the following to protect the ve hicle and maintain it in prime condi-
tion:

LX570_OM_OM60N01U_(U)
4976-3. Do-it-yourself maintenance
6
Maintenance and care
■Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once a month. Do
not forget to check the spare.
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel economy
●Reduced driving comfort and poor handling
●Reduced tire life due to wear
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, ha ve it checked by your Lexus dealer.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours and has not been driven for more
than 1 mile or 1.5 km, you will get an accur ate cold tire inflation pressure reading.
●Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appearance.
●It is normal for the tire inflation pressure to be higher after driving as heat is generated
in the tire. Do not reduce tire inflation pressure after driving.
●Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is balanced.

5267-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
(Flashes)

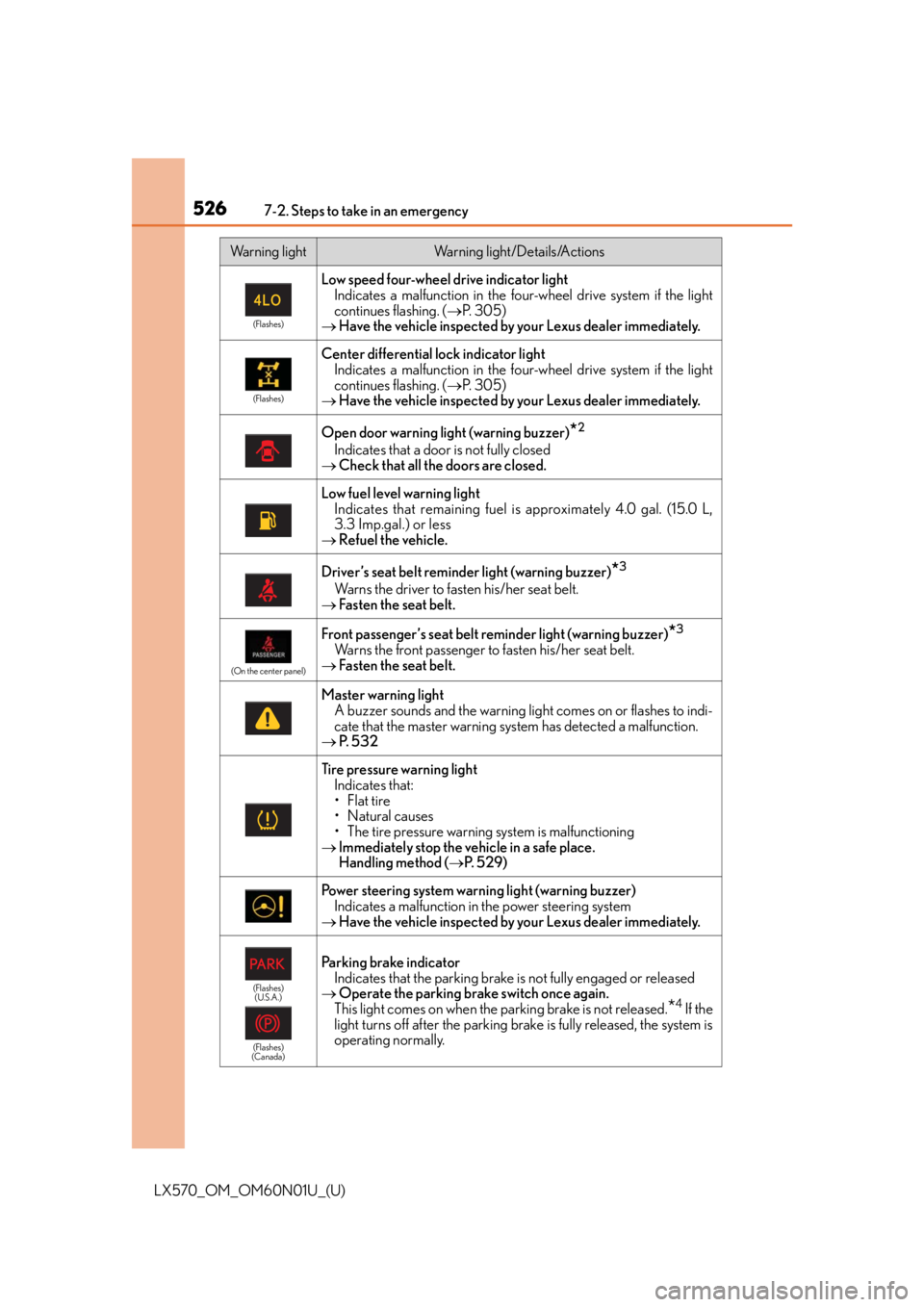

Low speed four-wheel drive indicator lightIndicates a malfunction in the four -wheel drive system if the light
continues flashing. ( P. 3 0 5 )
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
Center differential lock indicator light
Indicates a malfunction in the four -wheel drive system if the light
continues flashing. ( P. 3 0 5 )
 Have the vehicle inspected by your Lexus dealer immediately.
Open door warning light (warning buzzer)*2
Indicates that a door is not fully closed
 Check that all the doors are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 4.0 gal. (15.0 L,
3.3 Imp.gal.) or less
 Refuel the vehicle.
Driver’s seat belt reminder light (warning buzzer)*3
Warns the driver to fast en his/her seat belt.
 Fasten the seat belt.
(On the center panel)
Front passenger’s seat belt reminder light (warning buzzer)*3
Warns the front passenger to fasten his/her seat belt.
 Fasten the seat belt.
Master warning light
A buzzer sounds and the warning light comes on or flashes to indi-
cate that the master warning sy stem has detected a malfunction.
 P. 5 3 2
Tire pressure warning light
Indicates that:
•Flat tire
• Natural causes
• The tire pressure warning system is malfunctioning
 Immediately stop the vehicle in a safe place.
Handling method ( P. 5 2 9 )
Power steering system warning light (warning buzzer)
Indicates a malfunction in the power steering system
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
Parking brake indicator Indicates that the parking brake is not fully engaged or released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not released.
*4 If the
light turns off after the parking brake is fully released, the system is
operating normally.
Warning lightWarning light/Details/Actions

5317-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
7
When trouble arises
WA R N I N G
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure la bel (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and ma y affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is the driver’s resp onsibility to maintain correct tire pressure,
even if under-inflation has no t reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specificatio ns or makers, as the tire pressure warning
system may not operate properly.

580
LX570_OM_OM60N01U_(U)8-1. Specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km un
der that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air co nditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

631Alphabetical index
LX570_OM_OM60N01U_(U)
Warning lights ....................................... 524ABS ...........................................................524
Automatic headlight leveling system ................................................. 525
Brake system............................ 524, 527
Center differential lock....................526
Charging system................................524
Electric power steering...................526
Low fuel level .......................................526
Low speed four-wheel drive ......................................................526
Malfunction indicator lamp ...........524
Master warning light.........................526
Open door ............................................526
Parking brake.......................................526
PCS.......................................................... 525
Seat belt reminder light...................526
Slip indicator ........................................ 525
SRS ............................................................524
Tire pressure ........................................526 Warning messages.............................. 532
Warning reflector holder.................. 430
Washer ........................................... 231, 235
Checking ...............................................485
Preparing and checking before winter .................................... 384
Switch ............................................ 231, 235
Washing and waxing .......................... 458
Weights .................................................... 562
Wheels ..................................................... 499 Replacing wheels ..............................536
Size ...........................................................569
Window glasses...................................... 165
Window lock switch.............................. 165
Windows Power windows....................................165
Rear window defogger .................. 407
Washer ......................................... 231, 235
Windshield wiper de-icer ..................407
Windshield wipers ................................. 231
Winter driving tips ............................... 384
Wireless charger.................................. 436
Wireless remote control key.............. 110 Locking/Unlocking ............................. 110
Panic mode ............................................... 111
Replacing the battery ......................503
WMA disc
*
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
