instrument cluster LEXUS LX570 2016 Owners Manual

LX570_OM_OM60N01U_(U)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument clusterHow to read the gauges and meters, the variety of
warning lights and indicators, etc.
3Operation of
each componentOpening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice whic h are necessary for driving
5Interior featuresUsage of the interior features, etc.
6Maintenance
and careCaring for your vehicle and maintenance procedures
7When trouble
arisesWhat to do in case of malfunction or emergency
8Vehicle
specificationsVehicle specifications, customizable features, etc.
9For ownersReporting safety defects for U.S. owners, and seat belt
and SRS airbag instructions for Canadian owners
IndexSearch by symptom
Search alphabetically

TABLE OF CONTENTS2
LX570_OM_OM60N01U_(U)
For your information ................................... 8
Reading this manual................................... 12
How to search ..............................................13
Pictorial index ............................................... 14
1-1. For safe useBefore driving................................. 26
For safety drive............................... 28
Seat belts .......................................... 30
SRS airbags ..................................... 38
Front passenger occupant classification system....................51
Safety information for children ...........................................57
Child restraint systems ............... 58
Installing child restraints............. 63
Exhaust gas precautions .............75
1-2. Theft deterrent system Engine immobilizer system........ 76
Alarm ................................................. 78
2. Instrument cluster Warning and indicators lights ................................................ 82
Gauges and meters .....................88
Multi-information display ............91
Head-up display .......................... 100
Fuel consumption information ................................. 105 3-1. Key information
Keys .................................................... 110
3-2. Opening, closing and locking the doors
Side doors........................................ 115
Back door ....................................... 122
Smart access system with push-button start ......................132
3-3. Adjusting the seats Front seats...................................... 140
Rear seats........................................ 142
Driving position memory........... 151
Head restraints .............................155
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 158
Inside rear view mirror ............. 160
Outside rear view mirrors........ 162
3-5. Opening, closing the windows and moon roof
Power windows.............................165
Moon roof ...................................... 168
1For safety and security
2Instrument cluster
3Operation of each
component

81
LX570_OM_OM60N01U_(U)
Instrument cluster2
2. Instrument clusterWarning and indicators lights ................................................ 82
Gauges and meters .....................88
Multi-information display ........... 91
Head-up display .......................... 100
Fuel consumption information ................................. 105

82
LX570_OM_OM60N01U_(U)2. Instrument cluster
Warning and indicators lights
The units used on the speedometer and
some indicators may differ depending
on the target region.
The warning and indicators lights on th e instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration display all warning
lights and indicators illuminated.

LX570_OM_OM60N01U_(U)
832. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 5 2 4 )*1Automatic headlight
leveling system warning
light ( P. 5 2 5 )
*1
(Canada)
Brake system warning light
( P. 5 2 4 )*2Low speed four-wheel
drive indicator light
( P. 5 2 6 )
*1Charging system warning
light ( P. 5 2 4 )*2Center differential lock
indicator light ( P. 5 2 6 )
*1
(U.S.A.)
Malfunction indicator lamp
( P. 5 2 4 ) Open door warning light
(
 P. 5 2 6 )
*1
(Canada)
Malfunction indicator lamp
( P. 5 2 4 ) Low fuel level warning light
(
 P. 5 2 6 )
*1SRS warning light
( P. 5 2 4 ) Driver’s seat belt reminder
light (
P. 5 2 6 )
*1
(U.S.A.)
ABS warning light
( P. 5 2 4 )*3Front passenger’s seat belt
reminder light ( P. 5 2 6 )
*1
(Canada)
ABS warning light
( P. 5 2 4 )*1Master warning light
( P. 5 2 6 )
*1, 2
(if equipped)
PCS warning light
( P. 5 2 5 )*1Tire pressure warning light
( P. 5 2 6 )
*1Slip indicator light
( P. 5 2 5 )*2
(U.S.A.)
Parking brake indicator
( P. 5 2 6 )

84
LX570_OM_OM60N01U_(U)2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.
*2
(Canada)
Parking brake indicator
(  P. 5 2 6 )*1Power steering system
warning light ( P. 5 2 6 )
*1Brake system warning light
( P. 5 2 7 )

LX570_OM_OM60N01U_(U)
852. Instrument cluster
2
Instrument cluster

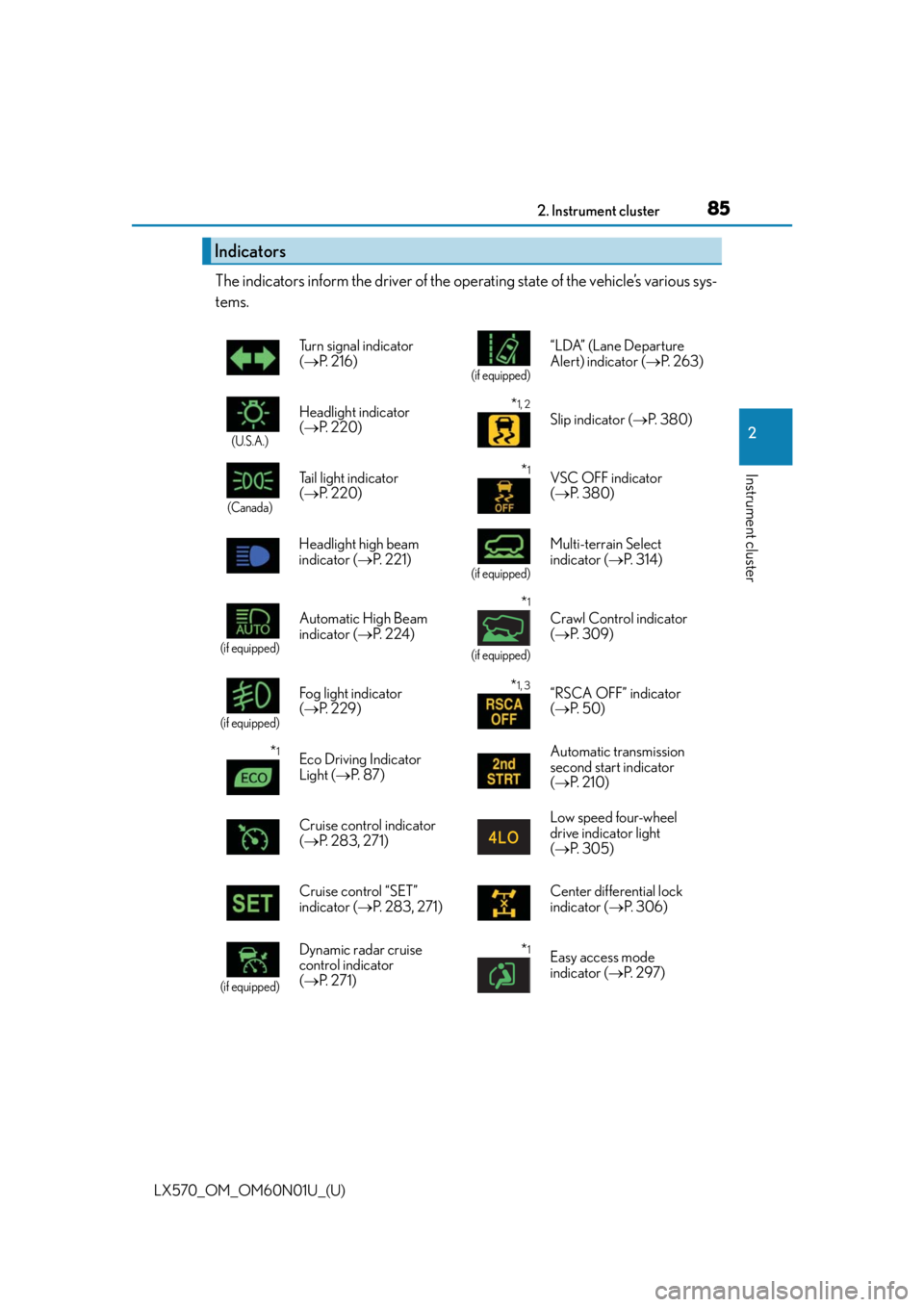

The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
( P. 2 1 6 )
(if equipped)
“LDA” (Lane Departure
Alert) indicator ( P. 2 6 3 )
(U.S.A.)
Headlight indicator
( P. 220)*1, 2
Slip indicator ( P. 3 8 0 )
(Canada)
Tail light indicator
( P. 220) *1VSC OFF indicator
( P. 3 8 0 )
Headlight high beam
indicator ( P. 221)
(if equipped)
Multi-terrain Select
indicator ( P. 3 1 4 )
(if equipped)
Automatic High Beam
indicator ( P. 2 2 4 )
*1
(if equipped)
Crawl Control indicator
( P. 3 0 9 )
(if equipped)
Fog light indicator
( P. 2 2 9 )*1, 3“RSCA OFF” indicator
( P. 5 0 )
*1Eco Driving Indicator
Light ( P. 8 7 ) Automatic transmission
second start indicator
(
 P. 2 1 0 )
Cruise control indicator
(  P. 2 8 3 , 2 7 1 ) Low speed four-wheel
drive indicator light
(
 P. 3 0 5 )
Cruise control “SET”
indicator ( P. 2 8 3 , 2 7 1 ) Center differential lock
indicator (
P. 3 0 6 )
(if equipped)
Dynamic radar cruise
control indicator
( P. 2 7 1 )*1Easy access mode
indicator ( P. 2 9 7 )

86
LX570_OM_OM60N01U_(U)2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: In order to confirm operation, the BSM outs ide rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicat ors do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37 F (3 C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
(if equipped)
Intuitive parking assist
indicator ( P. 2 8 9 ) Turn Assist function
indicator (
P. 3 0 9 )
*1, 3
(if equipped)
PCS warning light
( P. 2 5 0 )
(U.S.A.)
Parking brake indicator
( P. 2 1 7 )
(if equipped)
BSM (Blind Spot Monitor)
indicator ( P. 3 6 5 )
(Canada)
Parking brake indicator
( P. 2 1 7 )
*4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 3 6 5 ) TRAC OFF indicator
(
 P. 3 8 0 )
(if equipped)
RCTA (Rear Cross Traffic
Alert) indicator ( P. 3 7 3 )*7Low outside temperature
indicator ( P. 88)
*6“A I R B A G O N /
OFF” indicator
( P. 5 1 )

LX570_OM_OM60N01U_(U)
872. Instrument cluster
2
Instrument cluster
■Eco Driving Indicator Light
●The vehicle is set to second start mode. (P. 2 1 0 )
●The vehicle is set to sport mode or customized mode. ( P. 2 8 6 )
●The vehicle speed is approximately 81 mph (130 km/h) or higher.
●The Crawl Control is operating. ( P. 3 0 9 )
●The paddle shift switch (i f equipped) is operating.
During Eco-Friendly acceleration operation
(Eco driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds Zone
of Eco driving (
P. 98), or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Light will not operate in
the following conditions:
●The shift lever is in any position other than D.
WA R N I N G
■If a safety system warning light does not come on
Should a safety system light such as the Multi Terrain ABS and the SRS warning light
not come on when you start the engine, this could mean that these systems are not
available to help protect you in an accide nt, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

88
LX570_OM_OM60N01U_(U)2. Instrument cluster
Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Engine oil pressure gauge
Displays the engine oil pressure
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Vo l t m e t e r
Displays the charge state
Fuel gauge
Displays the quantity of fuel remaining in the tank
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of driving-related data P. 9 1 )
1
2
3
4
5
6
7
