528 7-2. Steps to take in an emergency
LX570_OM_OM60R07U_(U) ■
When the tire pressure warning light comes on
Inspect the tires to check if a tire is punctured.
If a tire is punctured:  P. 535
If none of the tires are punctured:
Turn the engine switch off then turn it to IGNITION ON mode. Check if the tire pressure
warning light comes on or flashes. 
If the tire pressure warning light comes on
After the temperature of the tires has lowere d sufficiently, check the inflation pressure
of each tire and adjust th em to the specified level.
If the warning light does not turn off even after several minutes have elapsed, check
that the inflation pressure of each tire is at the specified level an d perform initialization.
(  P. 489)
If the warning light does not turn off even after several minutes have elapsed, have the
vehicle inspected by your Lexus dealer immediately. 
If the tire pressure wa rning light flashes for 1 minute then stay on
There may be a malfunction in the tire pressure warnin g system. Have the vehicle
inspected by your Lexus dealer immediately. ■
The tire pressure warning light ma y turn on due to natural causes
The tire pressure warning light may turn on du e to natural causes such as natural air leaks
or tire inflation pressure changes caused by temperature. In this case, adjusting the tire
inflation pressure will turn off the warning light (after a few minutes).■
When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter. The
tire pressure warning light will tu rn on if the tire inflation pressu re of the spare tire is low. If
a tire goes flat, even though the flat tire is replaced with the spare tire, the tire pressure
warning light does not turn off. Replace the spare tire with the repaired tire and adjust the
proper tire inflation pressure. The tire pressu re warning light will tu rn off after a few min-
utes. ■
Conditions that the tire pressure wa rning system may not function properly
 P. 492 ■
Changing the engine oil
Make sure to reset oil change system ■
Warning buzzer
In some cases, the buzzer ma y not be heard due to being in a noisy location or audio
sound. 1
2

5337-2. Steps to take in an emergency
LX570_OM_OM60R07U_(U) 7
When trouble arises ■
If “See Owner’s Manual” is shown ●
If “Smart Access System Ma lfunction” is shown, this may be a malfunction.
Immediately have the vehicle inspected by your Lexus dealer. ●
If “Transmission Fluid Temp High” is shown, it indicates that the automatic transmission
fluid temperature is too high.
Immediately stop the vehicle in a safe place, shift the shift lever to P and wait until the
warning message and light go off. If the warning message and light go off, you may
start the vehicle again. If the warning message and light do not go off, contact your
Lexus dealer. ■
If “Shift to P Before Ex iting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the engine switch
to off with the shift lever in any position other than P.
Shift the shift lever to P. ■
If “Power Turned Off to Save Battery” is shown
Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed slig htly and maintain that
level for approximately 5 minu tes to recharge the battery.■
When a message that indicates the need for the shift lever operation is shown
To prevent the shift lever from being operat ed incorrectly or the vehicle from moving
unexpectedly, a message that re quires shifting the shift leve r may be shown on the multi-
information display. In that case, follow the instruction of the message and shift the shift
lever. ■
When “Headlight System Malfunction Visit Your Dealer” is displayed on the multi-
information display
The following systems may be malfunctioning. Have the vehicle inspected by your Lexus
dealer. ●
The LED headlight system ●
The automatic headlight leveling system ●
Automatic High Beam ■
If “Forward Camera System Unavailable” or “Forward Camera System Unavailable
Clean Windshield” is displayed (if equipped)
The following systems may be suspended until the problem shown in the message is
resolved. (  P. 266, 523)●
PCS (Pre-Collision System) ●
LDA (Lane Departure Alert) ●
Dynamic radar cruise control with full-speed range ●
Automatic High Beam ■
If “Engine Oil Level Low” is shown
Indicates that engine oil level is low.
Check the level of engine oil, and add if necessary.
This message may appe ar if the vehicle is stopped on a slope.
Move the vehicle to a level surface and check to see if the message disappears.

5537-2. Steps to take in an emergency
LX570_OM_OM60R07U_(U) 7
When trouble arises Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximatel y 5 minutes to recharge the battery of
your vehicle.
Open and close any of the doors with the engine switch off.
Maintain the engine speed of the second vehicle and turn the engine switch to
IGNITION ON mode, then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper cables in the exact
reverse order in which they were connected.
Once the engine starts, have the vehicl e checked at your Lexus dealer, as soon
as possible. ■
Starting the engine when the battery is discharged
The engine cannot be started by push-starting. ■
Avoiding a discharged battery ●
Turn off the headlights and the audio system while the engine is off. ●
Turn off any unnecessary electrical componen ts when the vehicle is running at a low
speed for an extended period, such as in heavy traffic, etc. ■
Charging the battery
The electricity stored in the battery will disc harge gradually even when the vehicle is not
in use, due to natural discharge and the draini ng effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.) ■
When the battery is removed or discharged
The power back door mu st be initialized. (  P. 132)4
5
6
7

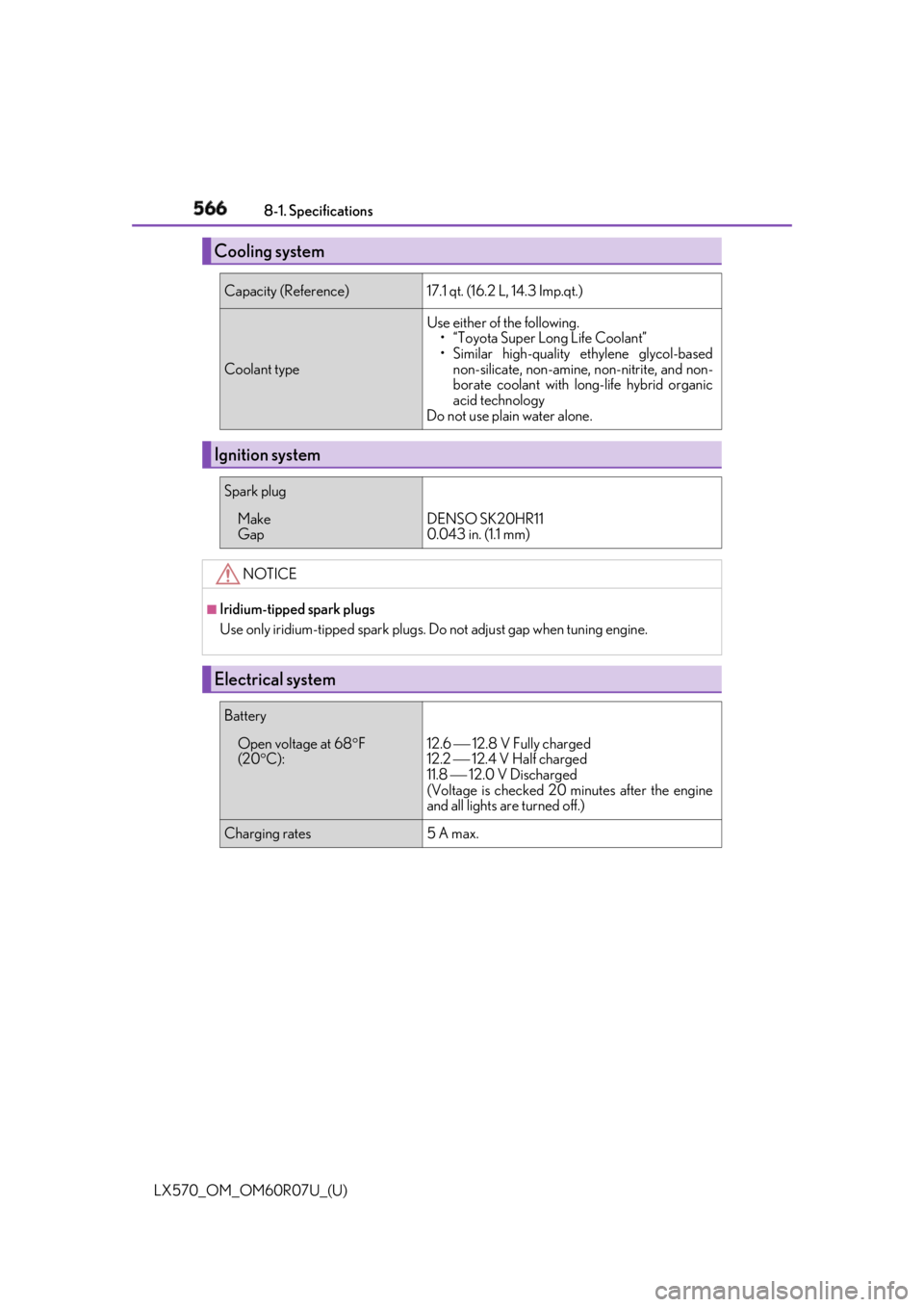

566
LX570_OM_OM60R07U_(U) 8-1. Specifications
Cooling system Capacity (Reference) 17.1 qt. (16.2 L, 14.3 Imp.qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system Spark plug
Make
Gap DENSO SK20HR11
0.043 in. (1.1 mm)
NOTICE ■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Electrical system Battery
Open voltage at 68  F
(20  C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates 5 A max.

619Alphabetical index
LX570_OM_OM60R07U_(U) Coolant..................................................... 566
Capacity ................................................ 566
Checking............................................... 480
Preparing and checking
before winter ................................... 388
Cooling system
Engine overheating.......................... 555
Crawl Control .........................................313
Cruise control
Cruise control......................................287
Dynamic radar cruise control
with full-speed range .................... 275
Cup holders ............................................ 429
Curtain shield airbags ........................... 38
Customizable features ....................... 584
Daytime running light system .......... 228
Defogger
Outside rear view mirrors ................ 411
Rear window ........................................... 411
Windshield ............................................... 411
Differential ............................................... 567
Dimension ............................................... 562
Dinghy towing......................................... 210 Display
Crawl Control....................................... 313
Drive information.................................. 99
Dynamic radar cruise control
with full-speed range ................... 275
Fuel consumption information ......... 111
Head-up display ................................. 105
Intuitive parking assist...................... 294
LDA (Lane Departure Alert)....... 270
Multi-information display.................. 96
Multi-terrain Monitor ....................... 322
Multi-terrain Select ............................ 318
Warning messages ............................531
Do-it-yourself maintenance.............. 472
Door courtesy lights
Location ................................................. 423
Doors
Automatic door locking and
unlocking system.............................. 125
Back door................................................128
Door glasses ............................................ 171
Door lock...................................................121
Open door warning buzzer ........ 525
Open door warning light .............. 525
Outside rear view mirrors ............. 168
Rear door child-protectors ............ 124
Side doors .................................................121D
* : Refer to
the “NAVIGATION SYSTEM OWNER’S MANUAL”.

621Alphabetical index
LX570_OM_OM60R07U_(U) Engine
Accessory mode.................................. 212
Air cleaner ............................................. 473
Compartment......................................475
Engine switch .......................................... 211
Exhaust gas precautions ................... 73
Hood ........................................................ 474
How to start the engine ..................... 211
Identification number ...................... 563
If the engine will not start................547
If your vehicle has to be
stopped in an emergency ........... 513
Ignition switch (engine
switch) ..................................................... 211
Overheating ........................................ 555
Engine compartment cover ............. 476
Engine coolant.......................................480
Capacity ................................................ 566
Checking............................................... 480
Preparing and checking
before winter ................................... 388
Engine coolant temperature
gauge ........................................................ 92
Engine immobilizer system ................. 80
Engine oil ..................................................477
Capacity ................................................ 564
Checking................................................ 477
Preparing and checking
before winter ................................... 388 Engine switch (ignition switch) ...........211
Engine switch light
(ignition switch light)........................ 423
Event data recorder (EDR)................... 10
Exhaust gas precautions ....................... 73
First-aid kit holder .................................434
Flat tire ...................................................... 535
Floor mats....................................................26
Fluid
Automatic transmission .................. 567
Brake....................................................... 568
Steering ................................................. 568
Washer ................................................... 487
Fog lights.................................................. 235
Replacing light bulbs ........................ 510
Switch ...................................................... 235
Footwell lights .........................................423
Four-wheel AHC (Active Height
Control Suspension) .........................301
Easy access mode ............................303
Disabling the height control .........304
Selecting vehicle height................... 301
Four-wheel drive system
Center differential
lock/unlock ........................................ 310
Four-wheel drive control
switch ...................................................309
Warning light ....................................... 525
Front automatic air conditioning
system .................................................... 405
Front doors .................................................121 F
* : Refer to
the “NAVIGATION SYSTEM OWNER’S MANUAL”.
