LEXUS LX570 2019 Owners Manual

LX570_OM_OM60R07U_(U) 3414-5. Using the driving support systems
4
Driving ■
Side views
The image from the both side cameras is displayed and assists the driver to
check conditions on the sides of the vehicle or to confirm the safety of narrow
roads. ●
Screen description
Side view (left front side)
Side view (right front side)
Display area
Vehicle width lines (blue) Indicate the estimated vehicle
width including the outside rear
view mirrors.
Front distance guide line (red) Indicates a distance approximately 1.6 ft. (0.5 m) from the front end of the vehi-
cle.
Front tire contact line (blue) Indicates the estimated front tire position on the image.
Automatic display mode selection switch  P. 327 1
2
3
4
5
6
7

342
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems●
Using the vehicle width lines
The relative distance of obstacles from the vehicle width lines can be con-
firmed.
Example 1: When there is an obstacle in front of the vehicle
Operate the steering wheel so that the vehicle width line and
the obstacle do not overlap.
Example 2: When parking on the shoulder
Approach the shoulder, but do not allow the vehicle width
line to overlap the curb or other obstacles.
After confirming the distance to the shoulder of the road,
maneuvering the vehicle so that the vehicle width line and
the curb or other obstacle are parallel allows the vehicle to
be parked evenly.

LX570_OM_OM60R07U_(U) 3434-5. Using the driving support systems
4
Driving ■
Side views ●
The screen can be displayed when the shift lever is in P, D or N.●
When the outside rear view mirrors are retr acted, the displayed area changes (the area
on the screen that is not masked in black). (  P. 350)
WARNING ■
Guide lines
The tire position indicator lines and vehicl e position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings.

344
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems■

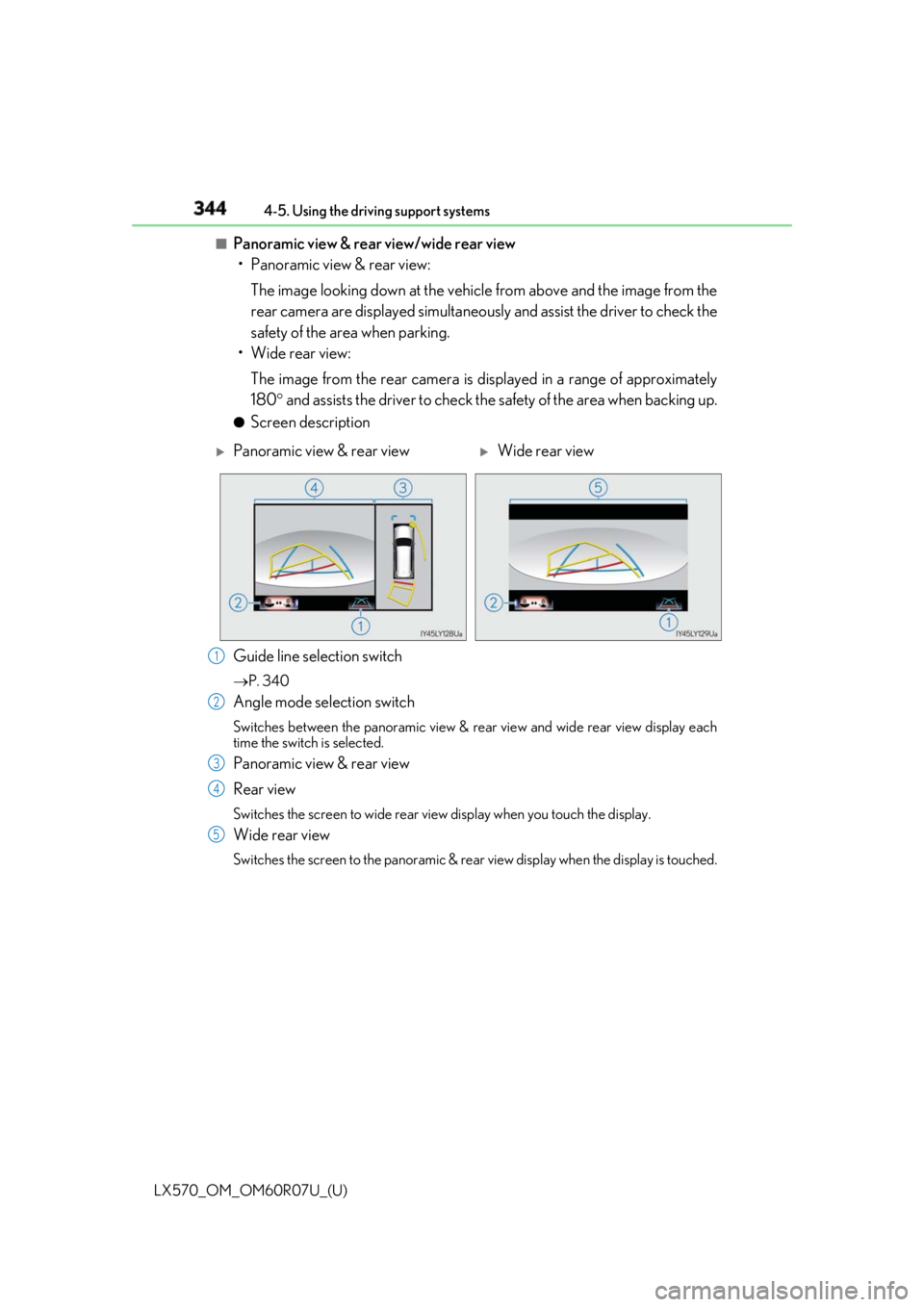

Panoramic view & rear view/wide rear view
• Panoramic view & rear view:
The image looking down at the vehicl e from above and the image from the
rear camera are displayed simultaneously and assist the driver to check the
safety of the area when parking.
• Wide rear view:
The image from the rear camera is displayed in a range of approximately
180  and assists the driver to check the safety of the area when backing up.●
Screen description
Guide line selection switch  P. 340
Angle mode selection switch Switches between the panoramic view & rear view and wide rear view display each
time the switch is selected.
Panoramic view & rear view
Rear view Switches the screen to wide rear view display when you touch the display.
Wide rear view Switches the screen to the panoramic & rear view display when the display is touched. 
Panoramic view & rear view 
Wide rear view
1
2
3
4
5

LX570_OM_OM60R07U_(U) 3454-5. Using the driving support systems
4
Driving ●

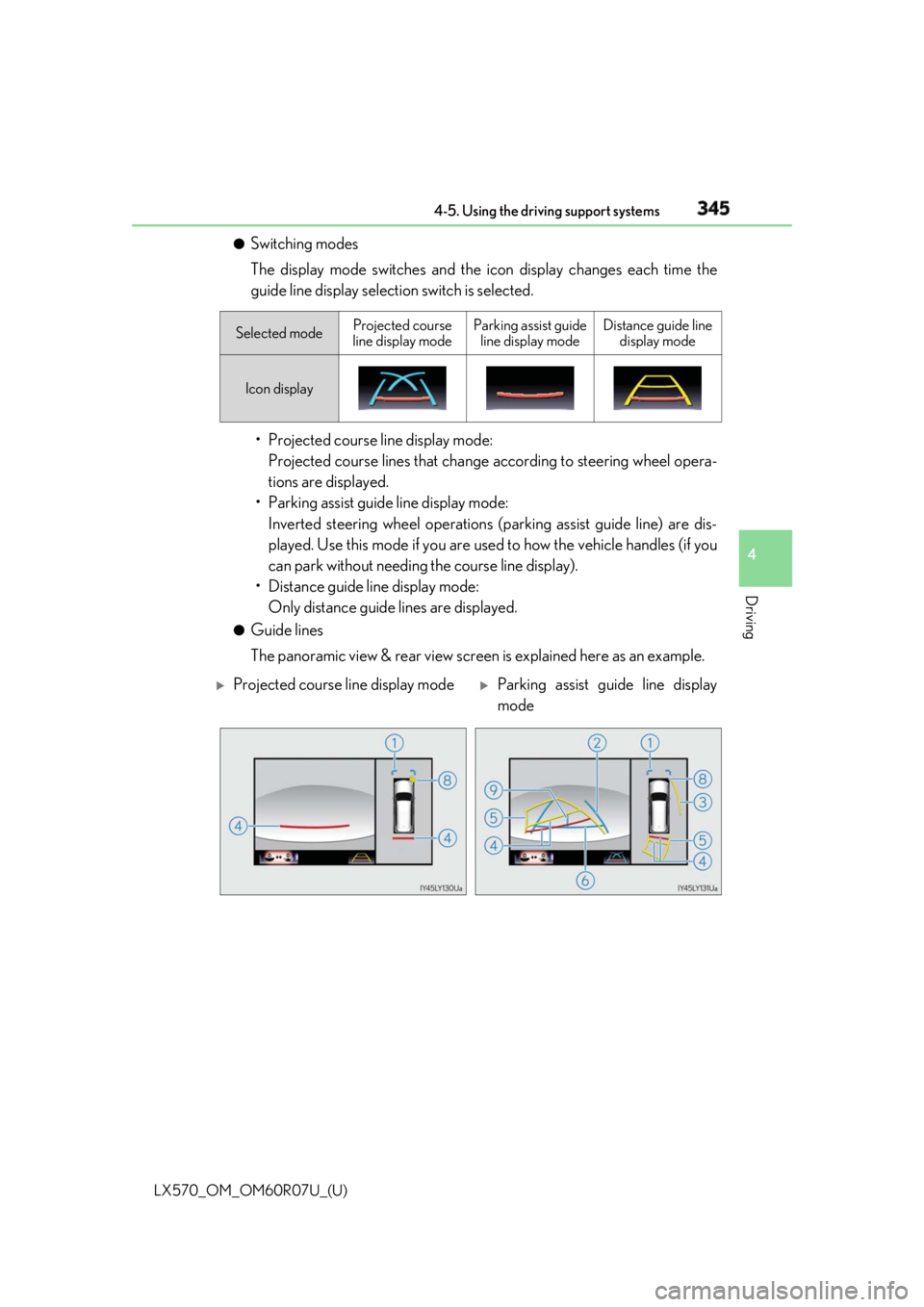

Switching modes
The display mode switches and the icon display changes each time the
guide line display selection switch is selected.
• Projected course line display mode:
Projected course lines that change according to steering wheel opera-
tions are displayed.
• Parking assist guide line display mode:
Inverted steering wheel operations (p arking assist guide line) are dis-
played. Use this mode if you are used to how the vehicle handles (if you
can park without needing the course line display).
• Distance guide line display mode:
Only distance guide lines are displayed. ●
Guide lines
The panoramic view & rear view screen is explained here as an example. Selected mode Projected course
line display mode Parking assist guide
line display mode Distance guide line
display mode
Icon display

Projected course line display mode 
Parking assist guide line display
mode

346
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems
Front distance guide line (blue) Indicates a distance approximately 3 ft. (1 m) from the front end of the vehicle.
Rear vehicle width extension guide lines Indicate the estimated course of the vehicle when backing up straight.
• The displayed width is wider than the actual vehicle width.
• In projected course line disp lay mode, this item overlaps the projected course lines
when going straight.
Side projected course line (yellow) Indicates the projected reverse course calcu lated by the angle of the steering wheel.
The projected reverse course line on the outside of the turn is displayed according to
the direction of the steering wheel.
Rear distance guide line Indicates the estimated distance from the end of the rear bumper (at the center). (Red
line: approximately 1.5 ft. [0.5 m] away. Ye llow line: approximately 3 ft. [1 m] away.)
In projected course line display mode, the re ar distance guide line changes according
to steering wheel operations.
Projected reverse course (yellow) Changes according to steering wheel operations and indicates the estimated course
of the vehicle.
Rear distance guide line (blue) Indicates a distance approximately 1.5 ft. (0.5 m) from the end of the rear bumper (at
the center).
Parking assist guide line (blue) Indicates the estimated tire course of the tightest possible turn in reverse.
Intuitive parking assist When the intuitive parking assist is on, an icon will be displaye d when an obstacle is
detected. (Refer to P. 293 for informat ion about the intuitive parking assist.)
Vehicle center line (blue) Indicates the estimated vehicle center on the ground. 
Distance guide line display mode
1
2
3
4
5
6
7
8
9

LX570_OM_OM60R07U_(U) 3474-5. Using the driving support systems
4
Driving ●
Parking operation (using the estimated curse line)
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.
Shift the shift lever to the R position.
Turn the steering wheel so that
the estimated course lines are
within the parking space, and
back up slowly.
Parking space
Estimated course lines
When the rear position of the
vehicle has entered the parking
space, turn the steering wheel so
that the vehicle width extension
guide lines are within the left and
right dividing lines of the parking
space.
Vehicle width extension guide
line 1
2
1
2
3
3

348
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems
Once the vehicle width extension gu ide lines and the parking space lines
are parallel, straighten the steering wh eel and back up slowly until the vehi-
cle has completely entered the parking space.
Stop the vehicle in an approp riate place, and finish parking.●
Parking operation (using the parking assist guide line)
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.
Shift the shift lever to the R position.
Back up until the parking assist
guide line meets the edge of the
left-hand dividing line of the park-
ing space.
Parking assist guide line
Parking space dividing line
Turn the steering wheel all the way to the right, and back up slowly.
Once the vehicle is parallel with the parking space, straighten the steering
wheel and back up slowly until the vehicle has completely entered the
parking space.
Stop the vehicle in an approp riate place, and finish parking.4
5
1
2
1
2
3
4
5

LX570_OM_OM60R07U_(U) 3494-5. Using the driving support systems
4
Driving ■
Panoramic view & rear view/wide rear view
The screen can be displayed wh en the shift lever is in R.■
Guide lines
If the back door is not closed, guide lines w ill not be displayed. If the guide lines do not
display even when the back door is closed, have the vehicle inspected at your Lexus
dealer.
WARNING ■
Guide lines
The tire position indicator lines and vehicl e position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings. ■
When using panoramic view & rear view or wide rear view ●
If the vehicle width extension guide lines and projected course lines are not aligned
with the steering wheel in the center position, drive straight on a road without as little
traffic and as few bends or curves as poss ible for approximately 5 minutes or more. If
the symptom is not resolved, have the vehicle inspected by your Lexus dealer. ●
Rear vehicle width extension guide lines are displayed wider than the actual vehicle
width. When backing up, always confirm th e safety of your surroundings and the area
to the rear of the vehicle.

350
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems■
Display when the outside rear view mirrors are retracted (side view and
side views)
When the outside rear view mirrors are retracted, one of the following
screens is displayed and assists the driv er to confirm the safety of the area
around the vehicle, or park alongside and close to another object. ●
Screen description
For information about other than the side view and side views display area, refer
to the page for the respective screen.
Front distance guide line (red) Indicates a distance approximately 1.5 ft. (0.5 m) from the front end of the vehicle.
Front tire contact line (blue) Indicates the estimated front tire position on the image.
Vehicle width lines (blue) Indicate the estimated vehicle width including the outside rear view mirrors.
Rear tire contact line (blue) Indicates the estimated rear tire position on the image. 
When the wide front view is dis-
played 
When the rear view is displayed
When the side views is displayed
1
2
3
4
