Page 5 of 632
5 1
8765432
LX570_OM_OM60R07U_(U) 95-5. Using the storage features
List of storage features ............ 426
• Glove box ................................427
• Console box ...........................427
• Overhead console .............. 428
• Cup holders ........................... 429
• Bottle holders ........................ 430
• Card holder ........................... 430
• Auxiliary boxes .......................431
Luggage compartment
features ....................................... 433
5-6. Using the other interior
features
Other interior features ............ 436
• Cool box.................................. 436
• Sun visors ................................ 437
• Vanity mirrors ....................... 437
• Clock ........................................ 438
• Power outlets ........................ 438
• Wireless charger ...................441
• Armrest.................................... 449
• Rear door sunshades ......... 450
• Coat hooks............................. 450
• Assist grips ...............................451
Garage door opener ............... 452 6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................ 460
Cleaning and protecting
the vehicle interior.................. 463
6-2. Maintenance
Maintenance
requirements ............................ 466
General maintenance.............. 468
Emission inspection and
maintenance (I/M)
programs...................................... 471
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ................................472
Hood ................................................474
Engine compartment ............... 475
Tires .................................................488
Tire inflation pressure .............. 497
Wheels ............................................ 501
Air conditio ning filter ............... 503
Electronic key battery..............505
Checking and replacing
fuses.............................................. 507
Light bulbs ..................................... 5106
Maintenance and care
Page 93 of 632
LX570_OM_OM60R07U_(U) 932. Instrument cluster
2
Instrument cluster Odometer and trip meter display Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
Shift position and shift range display Displays the selected shift posi tion or selected shift range ( P. 216)
4-Wheel AHC display Display the status of 4-Wheel AHC (Active Height Control Suspension). ( P. 301)
Outside temperature Displays the outside temperature within the range of -40 F (-40 C) to 122 F
(50 C). Low outside temperature indicator comes on when the ambient temperature
is 37 F (3 C) or lower.
Clock Time displayed is linked to the anal og clock on the instrument panel. ( P. 438)
Odometer/trip meter display change button Switches between odometer and trip meter displays
Instrument panel light control dial The brightness of the instrument panel light can be adjusted
Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.Changing the display 8
9
10
11
12
13
14
Page 102 of 632
102
LX570_OM_OM60R07U_(U) 2. Instrument cluster●
Meter settings
Select to set the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit for measure.
• Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light. (
P. 91)
• switch settings
You can register 1 screen as the to p screen. To register, press and hold
while the desired screen is displayed.
• Drive information 1 and 2
Select to select up to 2 items that will be displayed on a drive informa-
tion screen, up to 2 drive in formation screens can be set.
• Clock
Select to set the display mode of the clock.
•Pop-up display
Select to set the pop-up displays, which may appear in some situations,
on/off. ( P. 103)
• Accent color
Select to change the accent colors on the screen, such as the cursor
color.
• Initialization
Registered or changed meter settin gs will be deleted or returned to
their default setting.
* :If equipped
Page 397 of 632
397
LX570_OM_OM60R07U_(U) 5Interior features5-1. Remote Touch screen
Remote Touch/12.3-inch
display ......................................... 398
5-2. Lexus Climate Concierge
Lexus Climate Concierge ..... 404
5-3. Using the air conditioning
system and defogger
Front automatic air
conditioning system .............. 405
Rear air conditioning
system ........................................... 416
Heated steering wheel/seat
heaters/seat ve ntilators......... 419
5-4. Using the interior lights
Interior lights list..........................423
• Interior lights .......................... 424
• Personal lights .......................425 5-5. Using the storage features
List of storage features ............ 426
• Glove box ............................... 427
• Console box........................... 427
• Overhead console .............. 428
• Cup holders ........................... 429
• Bottle holders ........................430
• Card holder............................430
• Auxiliary boxes ...................... 431
Luggage compartment
features ....................................... 433
5-6. Using the other interior
features
Other interior features ............ 436
• Cool box.................................. 436
• Sun visors ................................ 437
• Vanity mirrors ....................... 437
• Clock ........................................438
• Power outlets.........................438
• Wireless charger ...................441
• Armrest .................................... 449
• Rear door sunshades .........450
• Coat hooks .............................450
• Assist grips............................... 451
Garage door op ener ............... 452
Page 438 of 632
438
LX570_OM_OM60R07U_(U) 5-6. Using the other interior features
The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion. For details, refer to “NAVIGA-
TION SYSTEM OWNER’S
MANUAL”.
The power outlet can be used for the following components:
12 V DC: Accessories that run on less than 10 A
120 V AC: Accessories that use less than 100 W ■
Center of console
Front (12 V DC)
Press the lid to open.Clock
Power outlets
Page 478 of 632
478
LX570_OM_OM60R07U_(U) 6-3. Do-it-yourself maintenance■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.■
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In th e following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals. ●
When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine ●
If low quality oil or oil of an inappropriate viscosity is used ●
When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently ●
When leaving the engine idling for a long time, or when drivin g frequently through
heavy traffic ■
After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:
Press or of the meter control switches, select .
Press or of the meter control swit ches, select “Oil Maintenance” and then
press .
Select the “Yes” and press .
A message is displayed on th e multi-information display.Engine oil selection P. 564
Oil quantity (Low Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel1
2
3
1
2
3
4
Page 483 of 632
LX570_OM_OM60R07U_(U) 4836-3. Do-it-yourself maintenance
6
Maintenance and care ■
Fluid level
The fluid level should be within the appropriate range.
Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
Hot: The vehicles has been driven around 50 mph (80 km/h) for 20 min-
utes, or slightly longer in frigid temperatures.
(Fluid temperature, 140 F - 175 F [60 C - 80 C]).
Cold: The engine has not been run for about 5 hours.
(Room temperature, 50 F - 85 F [10 C - 30 C]).■
Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turnin g it counterclockwise.
Wipe the dipstick clean.
Reinstall the cap and remove it again.
Check the fluid level.Power steering fluid 1
2
3
4
Fluid type Automatic transmission fluid DEXRON ®
II or III
Items Rag or paper, clean funnel (only for adding fluid)1
2
3
4
5
Page 545 of 632
5457-2. Steps to take in an emergency
LX570_OM_OM60R07U_(U) 7
When trouble arises Lay down the tire with the valve stem
facing up and install the spare wheel
cover.
Install the holding bracket, inserting
the claw into the wheel lug nut hole.
Turn the jack handle extension
clockwise to take up slack in the
chain. Then, check to ensure the claw is in the
wheel lug nut hole and the holding
bracket is centered in the wheel hub.
Holding bracket
Claw WARNING ■
Stowing the flat tire
Failure to follow steps listed under stowing the tire may result in damage to the spare
tire carrier and loss of the tire, which co uld result in death or serious injury.
Stowing the flat tire, jack and all tools 1
incorrect
correct2
1
2

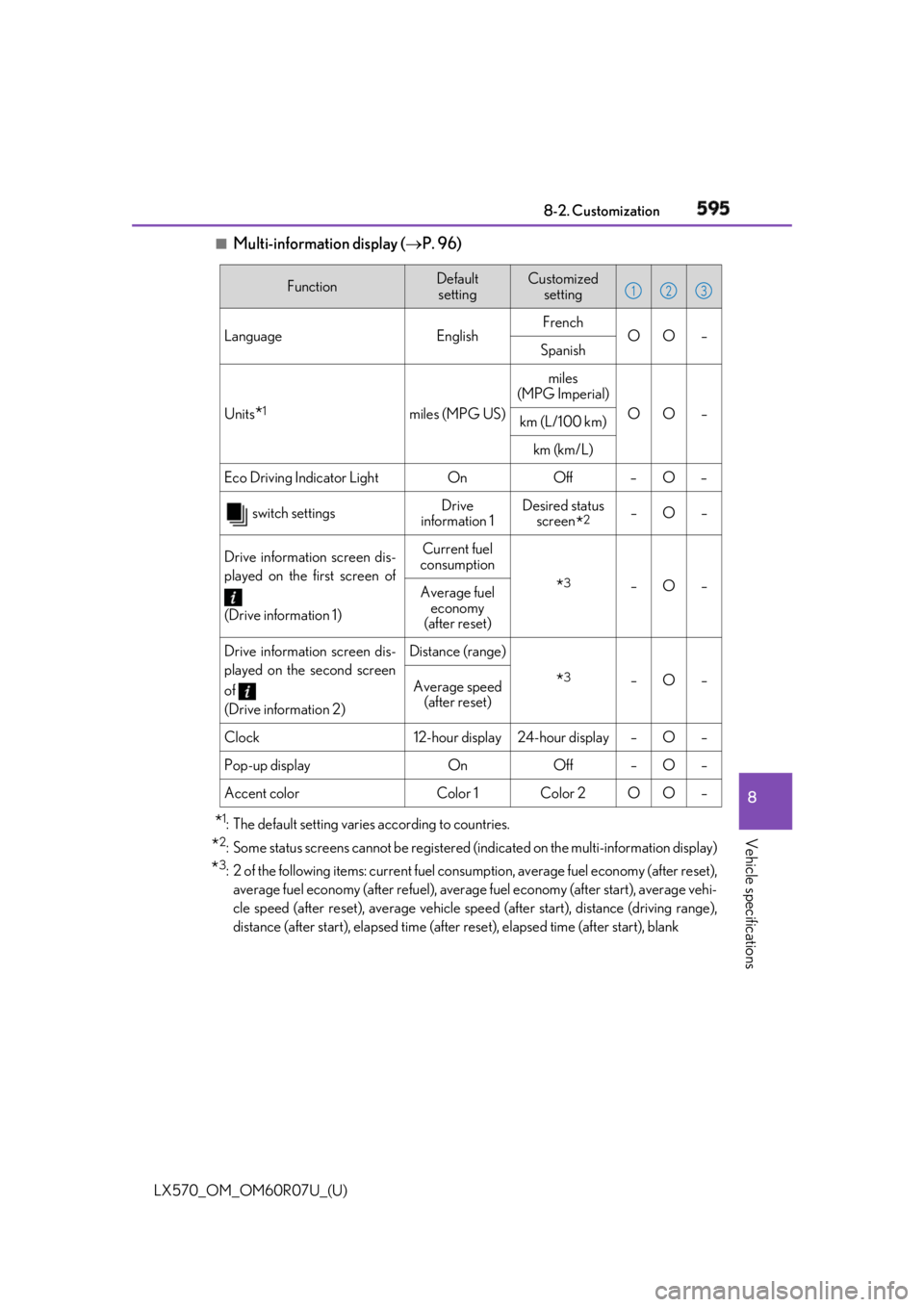

Page 595 of 632
LX570_OM_OM60R07U_(U) 5958-2. Customization
8
Vehicle specifications ■
Multi-information display ( P. 96)
* 1
: The default setting varies according to countries.
* 2
: Some status screens cannot be registered (i ndicated on the multi-information display)
* 3
: 2 of the following items: current fuel cons umption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle spee d (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blankFunction Default
setting Customized
setting
Language English French
O O –
Spanish
Units
* 1
miles (MPG US) miles
(MPG Imperial)
O O –
km (L/100 km)
km (km/ L)
Eco Driving Indicator Light On Off – O –
switch settings Drive
information 1 Desired status
screen
* 2
– O –
Drive information screen dis-
played on the first screen of
(Drive information 1) Current fuel
consumption
* 3
– O –
Average fuel
economy
(after reset)
Drive information screen dis-
played on the second screen
of
(Drive information 2) Distance (range)
* 3
– O –
Average speed
(after reset)
Clock 12-hour display 24-hour display – O –
Pop-up display On Off – O –
Accent color Color 1 Color 2 O O – 1 2 3
Page 618 of 632
618 Alphabetical index
LX570_OM_OM60R07U_(U) Care ............................................... 460, 463
Aluminum wheels ............................. 460
Exterior................................................... 460
Interior .....................................................463
Radar sensor ........................................ 372
Seat belts ................................................464
Cargo capacity........................................192
Cargo hooks .......................................... 433
Cargo net hooks ................................... 433
CD player
* Chains .......................................................389
Child restraint system............................ 56
Booster seat definition........................ 57
Booster seat installation.....................68
Convertible seat definition ............... 57
Convertible seat installation ............66
Front passenger occupant
classification system ......................... 49
Infant seat/convertible seat
definition................................................. 57
Infant seat/convertible seat
installation .............................................. 64
Installing CRS with
LATCH system .................................. 62
Installing CRS with seat belt ............ 64
Installing CRS with top tether
strap..........................................................69
LATCH system...................................... 62 Child safety ................................................ 55
Airbag precautions................................ 41
Back door precautions..................... 133
Battery precautions ............. 485, 554
Child-protectors .................................. 124
Child restraint system......................... 56
How your child should wear
the seat belt .......................................... 34
Installing child restraints ...................... 61
Moon roof precautions .................... 177
Power window lock switch............... 171
Power window precautions ........... 173
Rear door child-protectors ............ 124
Removed key battery
precautions ...................................... 506
Safety information................................. 55
Seat belt extender precautions ......37
Seat belt precautions .......................... 36
Seat heater precautions ...................419
Child-protectors .................................... 124
Cleaning ....................................... 460, 463
Aluminum wheels ..............................460
Exterior ...................................................460
Interior ..................................................... 463
Radar sensor.........................................372
Seat belts................................................ 464
Climate concierge switch................. 404
Clock......................................................... 438
Coat hooks ............................................. 450
Compass .....................................................96
Condenser................................................ 481
Cool box .................................................. 436C
