17Pictorial index
LX570_OM_OM60R07U_(U) Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 96 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 96
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 2 24Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 24
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 389
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 226, 531
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 22 3
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227 Headlights/parking lights/tail lights/daytime runnin g lights . . . . . . . . . . . . P. 227
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 237
Rear window wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 237, 241
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 48 7
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 53 1
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 512
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 246
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 474
Tilt and telescopic steering contro l switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Driving position memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 157
Front air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 411
Audio system
*Hands-free system
*
* : Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.4
5
6
7
8
9
10
11
12
13

21Pictorial index

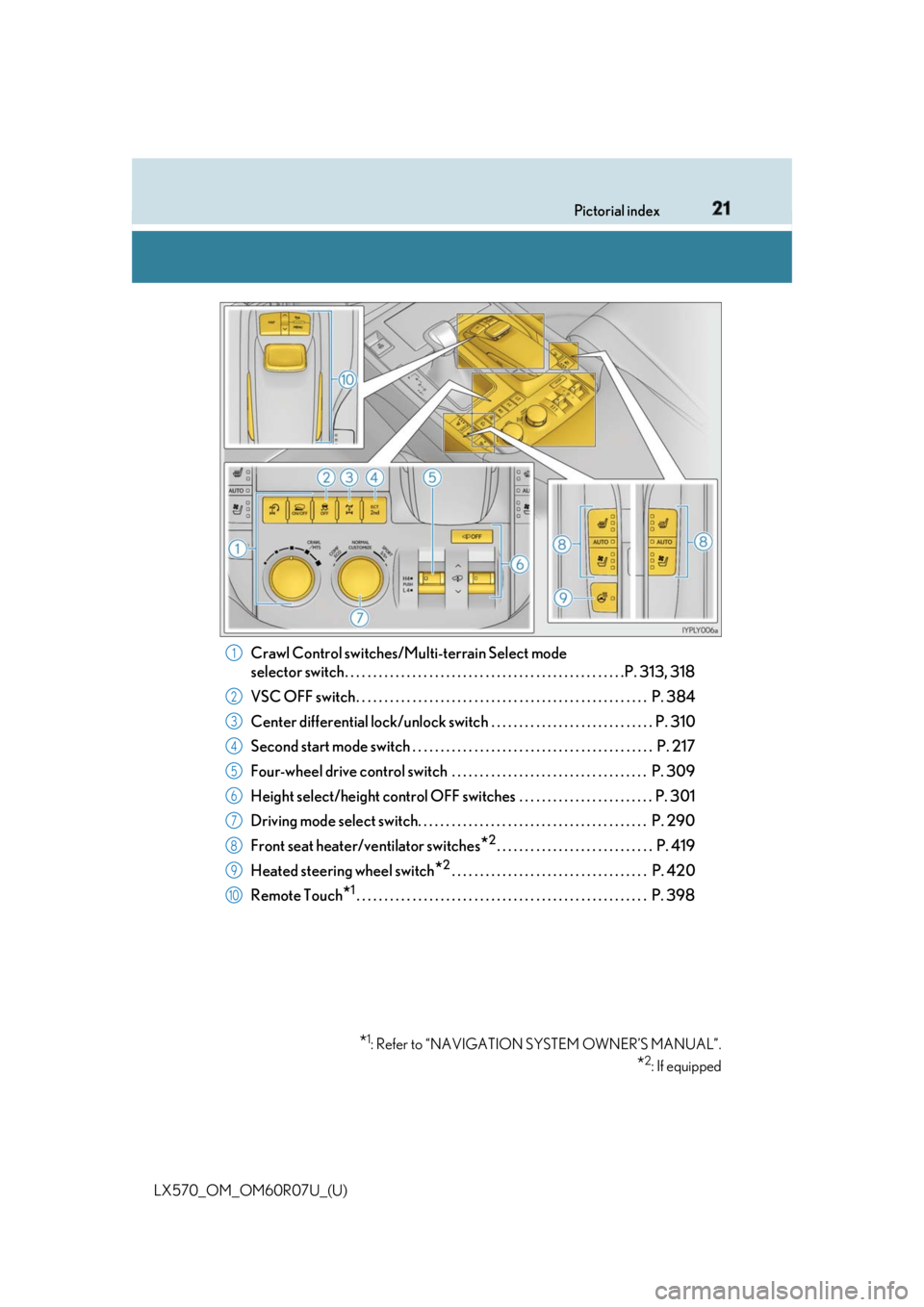

LX570_OM_OM60R07U_(U) Crawl Control switches/Multi-terrain Select mode
selector switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 313, 318
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
Center differential lock/unl ock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 310
Second start mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Four-wheel drive control switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 309
Height select/height control OFF switches . . . . . . . . . . . . . . . . . . . . . . . . P. 301
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Front seat heater/ventilator switches
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Heated steering wheel switch
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Remote Touch
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
* 1
: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
* 2
: If equipped1
2
3
4
5
6
7
8
9
10

23Pictorial index

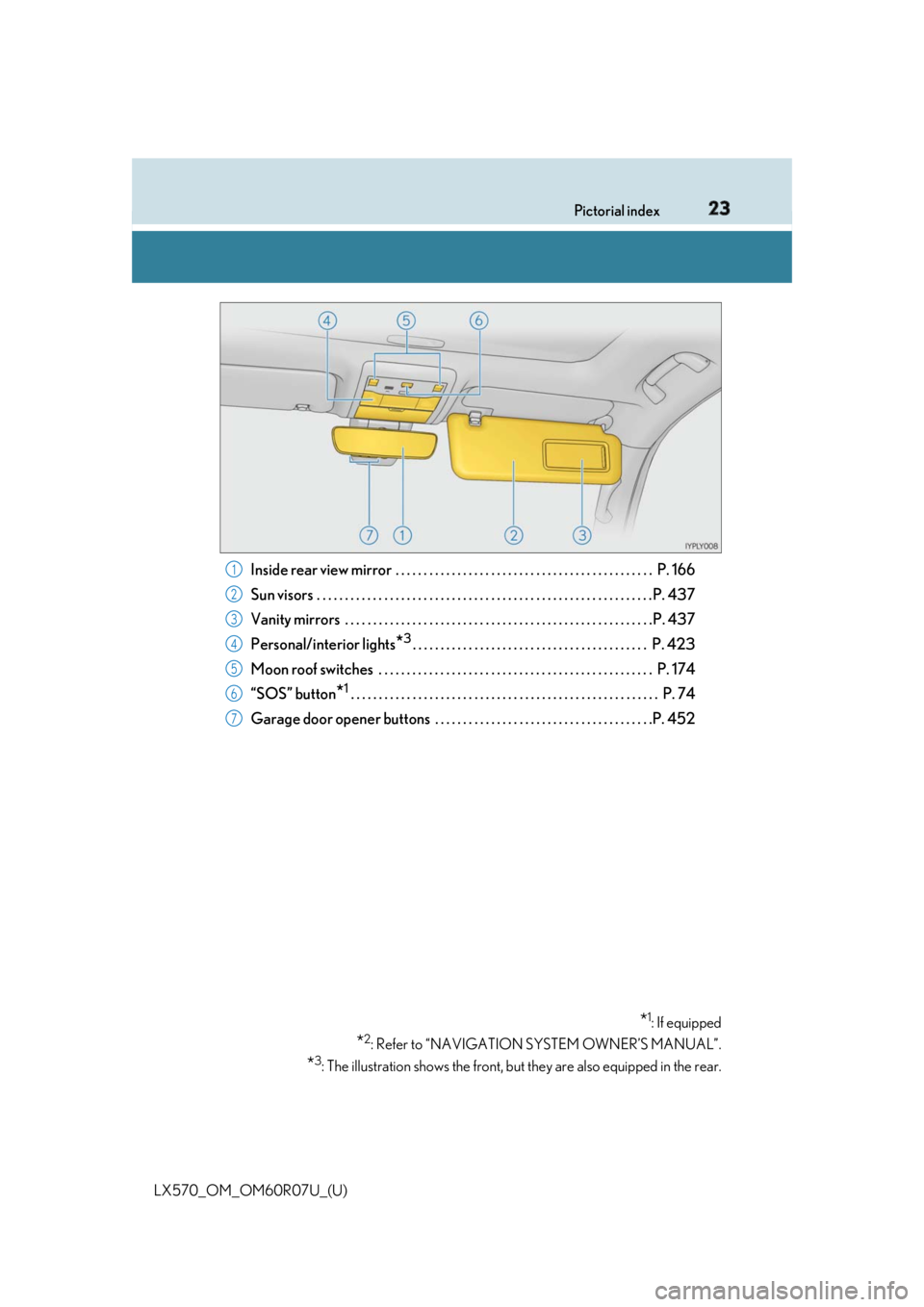

LX570_OM_OM60R07U_(U) Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Personal/interior lights
* 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 423
Moon roof switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
“SOS” button
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 74
Garage door opener buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 452
* 1
: If equipped
* 2
: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
* 3
: The illustration shows the front, but they are also equipped in the rear.1
2
3
4
5
6
7

96
LX570_OM_OM60R07U_(U) 2. Instrument cluster

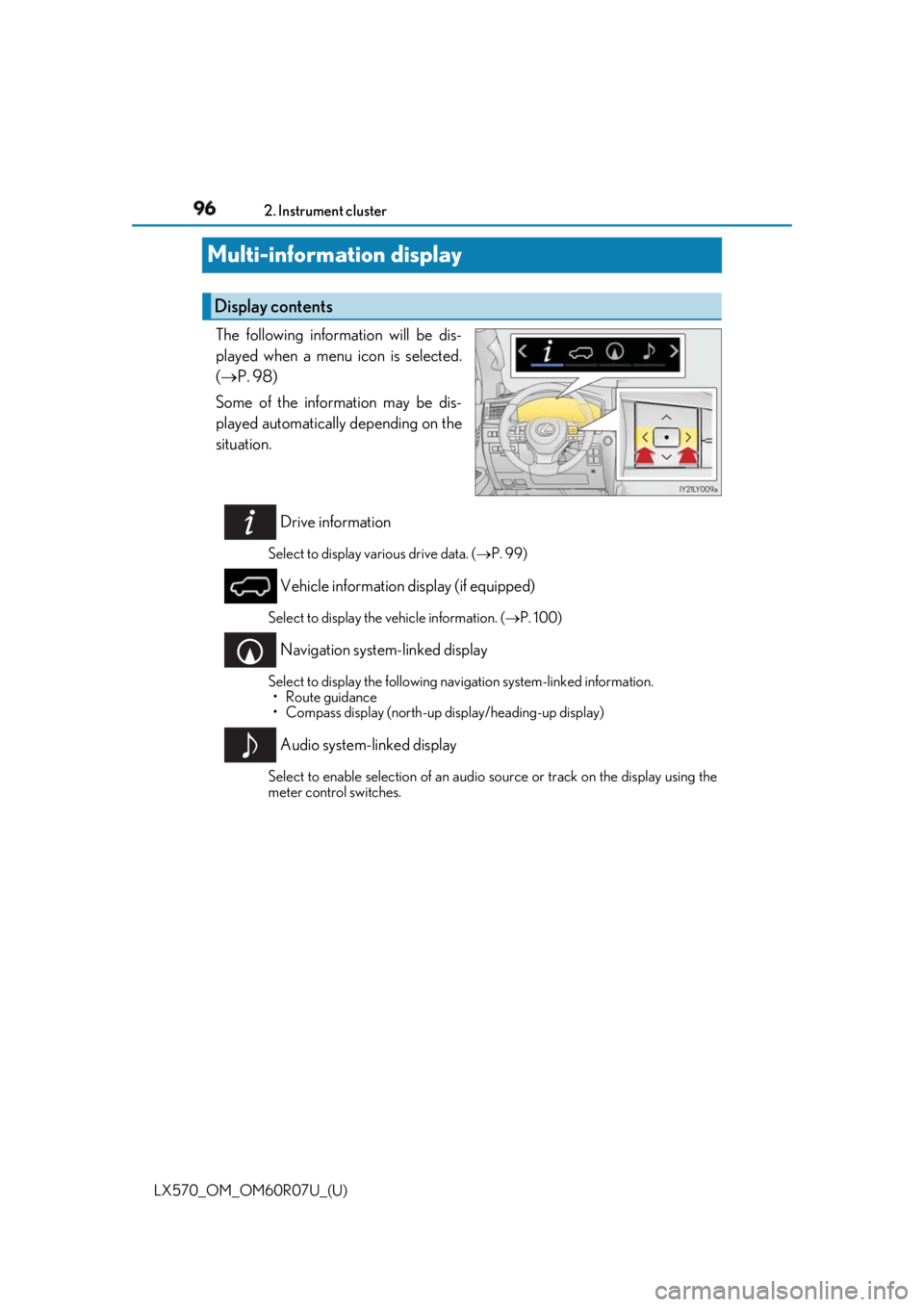

Multi-information display The following information will be dis-
played when a menu icon is selected.
(  P. 98)
Some of the information may be dis-
played automatically depending on the
situation.
Drive information Select to display various drive data. (  P. 99)
Vehicle information display (if equipped) Select to display the vehicle information. (  P. 100)
Navigation system-linked display Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display Select to enable selection of an audio source or track on the display using the
meter control switches.Display contents

LX570_OM_OM60R07U_(U) 1032. Instrument cluster
2
Instrument cluster ■
Eco Driving Indicator
■
When disconnecting and reco nnecting battery terminals
The drive information will be reset (only items that can be reset manually). ■
Pop-Up display
The pop-up display is displayed on the multi- information display according to the operat-
ing conditions of the following functions: ●
Route guidance display of the navigation system-linked system●
Incoming call display of the hands-free phone system (if equipped)
The pop-up display function can be disabled. (  P. 101)■
Tire inflation pressure ●
It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.●
“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions. ●
Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge. ■
When setting up the display
Stop the vehicle in a safe place, apply the pa rking brake, and shift the shift lever to P. ■
Suspension of the settings display
In the following situations, the settings disp lay using the meter control switches will be
suspended. ●
When a warning message appears on the multi-information display●
When the vehicle begins to move ■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.Eco Driving Indicator Light (  P. 91)

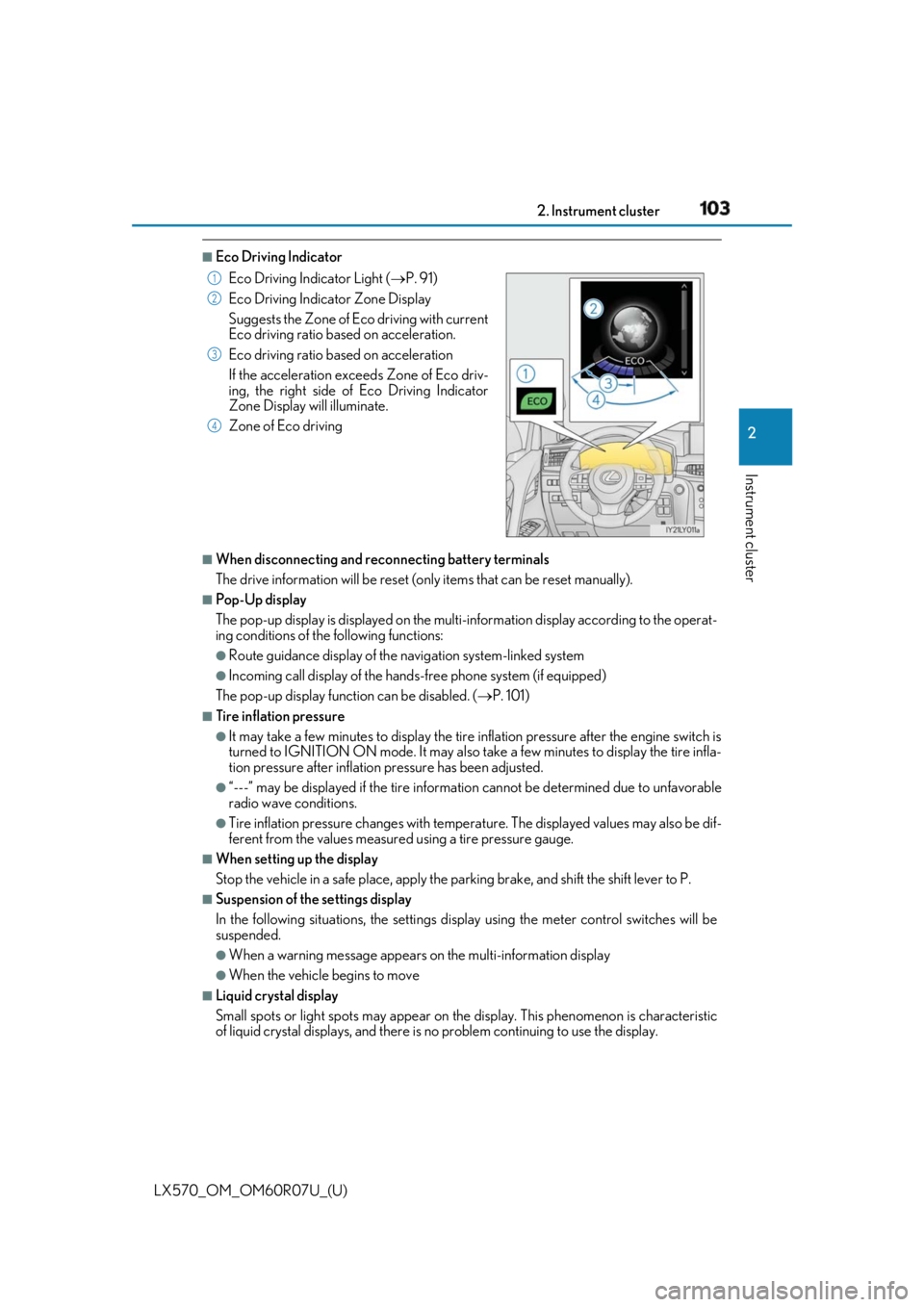

Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driv-
ing, the right side of Eco Driving Indicator
Zone Display will illuminate.
Zone of Eco driving 1
2
3
4

105
LX570_OM_OM60R07U_(U) 2. Instrument cluster
2
Instrument cluster

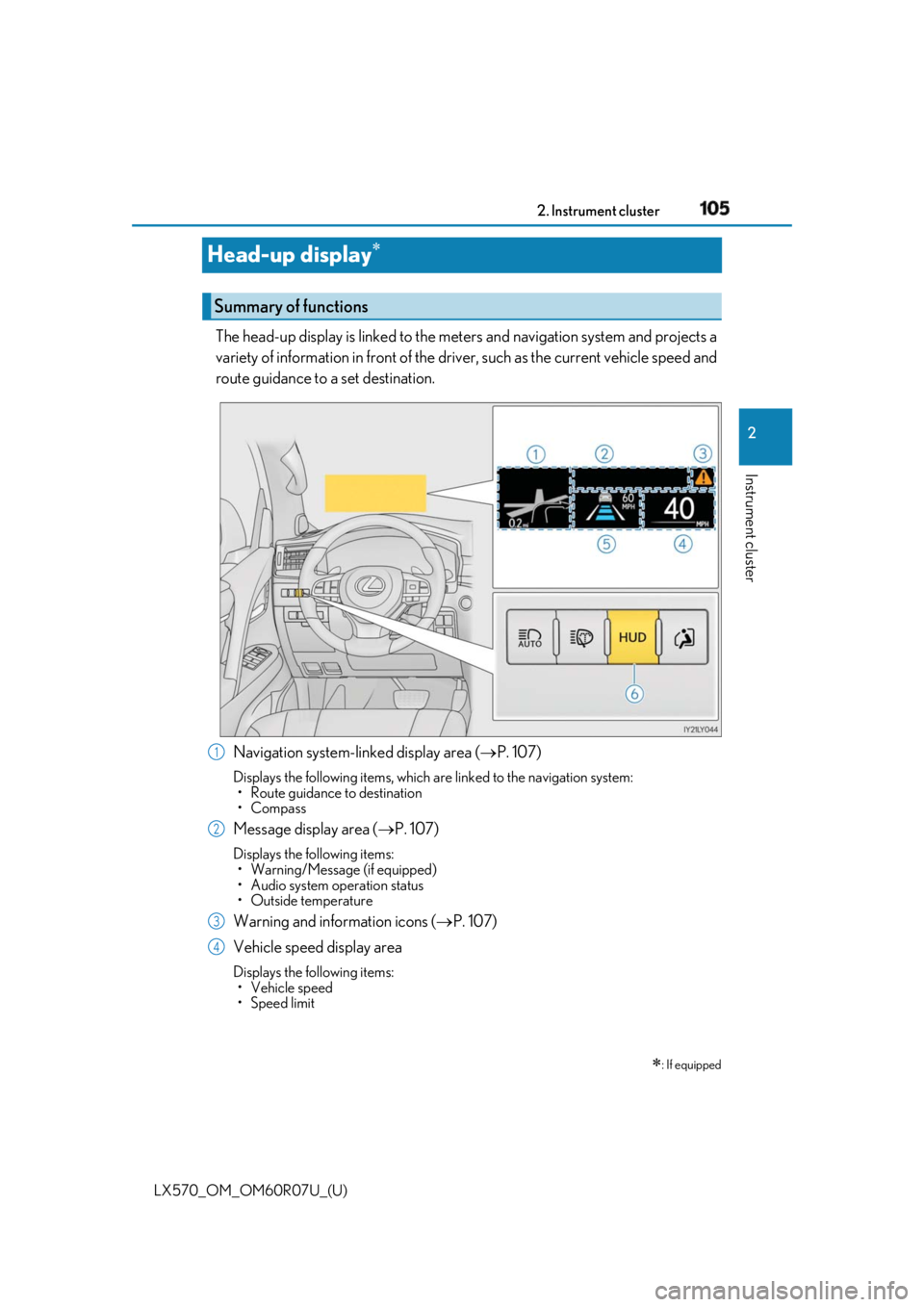

Head-up display The head-up display is linked to the meters and navigation system and projects a
variety of information in front of the driv er, such as the current vehicle speed and
route guidance to a set destination.
Navigation system-linked display area (  P. 107)Displays the following items, which are linked to the navigation system:
• Route guidance to destination
•Compass
Message display area (  P. 107)Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
Warning and information icons (  P. 107)
Vehicle speed display area Displays the following items:
• Vehicle speed
• Speed limit
 : If equippedSummary of functions
1
2
3
4

LX570_OM_OM60R07U_(U) 1072. Instrument cluster
2
Instrument cluster Displays the following multi-in formation display linked icons:
: Master warning icon
Displayed when a warning message is displayed on the multi-information
display. (  P. 531)
: Information icon
Displayed when a suggestion/advice po p-up display is displayed on the
multi-information display. (  P. 96)
Displays the following items in the appropriate situation: ■
Warning/Message (if equipped)
Displays the following system warning/messages: • Pre-collision warning (pre-collision system)
• Notification message (dyn amic radar cruise control with full-speed range)■
Audio system operation status
Displayed when the audio system is operated. ■
Outside temperature
Displayed in the following situations: • When the engine switch is turned to IGNITION ON mode
• When the low outside temperature indicator is flashing
Displayed content is the same as that di splayed on the multi-information display.
(  P. 92)
Displays the following items which ar e linked to the navigation system:■
Route guidance to destination
Displayed when the navigation system is performing route guidance. When
approaching an intersecti on, an arrow will be displayed to indicate the sug-
gested direction of travel. ■
Compass
Displays the direction of travel.Warning and information icons
Message display area
Navigation system-linked display area

326
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems
■

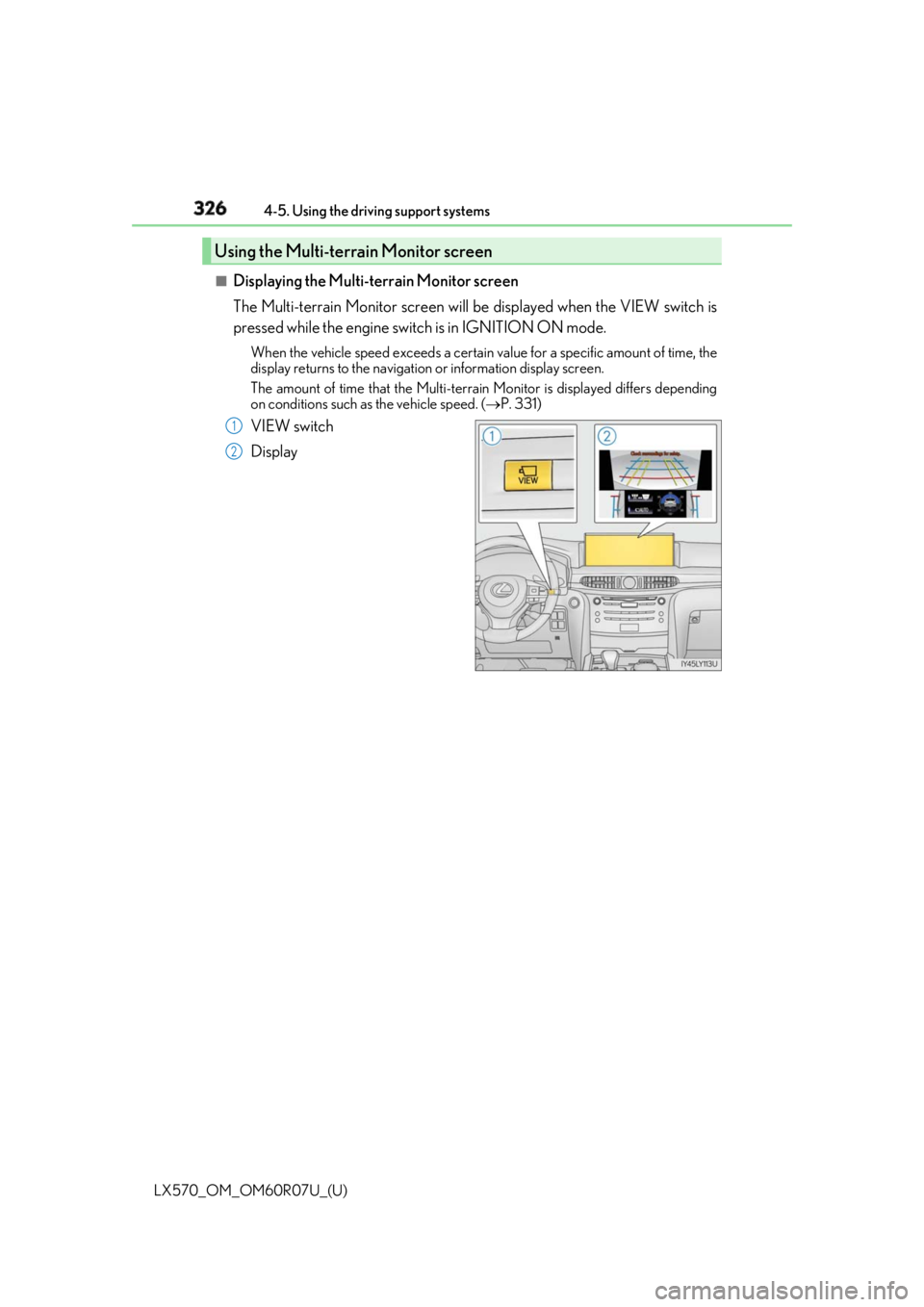

Displaying the Multi-terrain Monitor screen
The Multi-terrain Monitor screen will be displayed when the VIEW switch is
pressed while the engine switch is in IGNITION ON mode. When the vehicle speed exceeds a certain value for a specific amount of time, the
display returns to the navigation or information display screen.
The amount of time that the Multi-terrain Monitor is displayed differs depending
on conditions such as the vehicle speed. (  P. 331)
VIEW switch
DisplayUsing the Multi-terrain Monitor screen 1
2

330
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems■

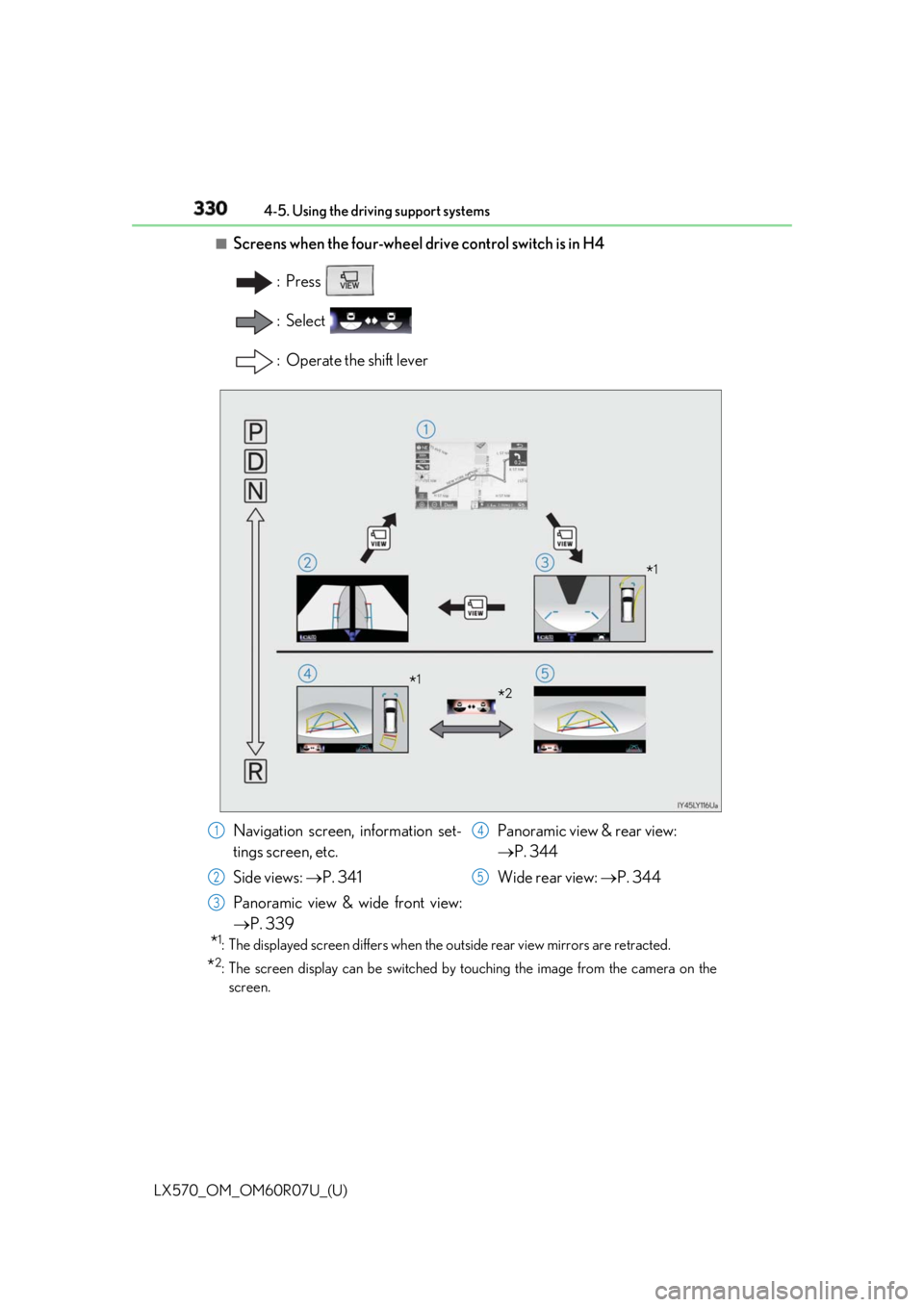

Screens when the four-wheel drive control switch is in H4
: Press
: Select
: Operate the shift lever
* 1
: The displayed screen differs when the outside rear view mirrors are retracted.
* 2
: The screen display can be switched by touching the image from the camera on the
screen. * 1
* 2
* 1
Navigation screen, information set-
tings screen, etc.
Side views:  P. 341
Panoramic view & wide front view:
 P. 339 Panoramic view & rear view:
 P. 344
Wide rear view:  P. 3441
2
3 4
5
