steering wheel adjustment LEXUS LX570 2020 Owners Manual

LX570_OM_OM60R61U_(U)
1473-3. Adjusting the seats
3
Operation of each component
■Power easy access system
The driver’s seat and steering wheel move in accordance with engine switch mode and
the driver’s seat belt condition. ( P. 157)
■Active head restraints
Even small forces applied to the seatback may cause the head restraint to move. Pushing
up a locked head restraint fo rcibly may appear the head re straint inner structure. These
do not indicate problems.
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are not
injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap be lt during a collision, do not recline the seat
more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces
directly to the abdomen, or your neck may contact the shou lder belt, increasing the risk
of death or serious injury in the event of an accident.
Adjustments should not be made while drivin g as the seat may unexpectedly move and
cause the driver to lose control of the vehicle.
Inner
structure During rear-end collision

LX570_OM_OM60R61U_(U)
1593-3. Adjusting the seats
3
Operation of each component
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
■Operating the driving position memory after turning the engine switch off
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
■If the battery is disconnected
The memorized positions must be reset becau se the computer’s memory is erased when
the battery is disconnected.
Each electronic key can be registered to recall your preferred driving position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing the
following:
Carry only the key you want to regist er, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded
properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
Memory recall function (driver’s side only)
1
2
3
4

160
LX570_OM_OM60R61U_(U)3-3. Adjusting the seats
■Recall procedure
Make sure that the doors are locked before recalling the driving position.
Carry the electronic key that has been registered to the driving position,
and then unlock and open the driver’s door using the smart access system
with push-button start or wireless remote control.
The driving position will move to the recorded position (not including the steering
wheel and HUD [head-up display] [if equipp ed]). However, the seat will move to a
position slightly behind the recorded positi on in order to make entering the vehicle
easier.
If the driving position is in a position th at has already been recorded, the seat and
outside rear view mirrors will not move.
Turn the engine switch to ACCESS ORY mode or IGNITION ON mode,
or fasten a seat belt.
The seat, steering wheel and HUD (head-up display) (if equipped) will move to the
recorded position.
■Cancelation procedure
Carry only the key you want to cance l and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, pr ess and hold the door lock switch
(either lock or unlock) un til the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be di fferent depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set.
■Customization
The unlock door settings of the memo ry recall function can be customized.
(Customizable features: P. 586)
WARNING
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
1
2
1
2

1643-4. Adjusting the steering wheel and mirrors
LX570_OM_OM60R61U_(U)
Steering wheel
Operating the switch moves the steer-
ing wheel in the following directions: Up
Down
Toward the driver
Away from the driver
To sound the horn, press on or close to
the mark.
Adjustment procedure
1
2
3
4
Horn

1653-4. Adjusting the steering wheel and mirrors
3
Operation of each component
LX570_OM_OM60R61U_(U)
■The steering wheel can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless ofengine switch mode.
■Automatic adjustment of the steering position
A desired steering position ca n be entered to memory and recalled automatically by the
driving position memory system. ( P. 157)
■Power easy access system
The steering wheel and driver’s seat move in accordance with engine switch mode and
the driver’s seat belt condition. ( P. 157)
WARNING
Do not adjust the steeri ng wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result-
ing in death or serious injury.

1683-4. Adjusting the steering wheel and mirrors
LX570_OM_OM60R61U_(U)
Outside rear view mirrors
To select a mirror to adjust, press the
switch. Left
Right
Pressing the same switch again will
put the switch in neutral.
To adjust the mirror, press the switch.Up
Right
Down
Left
■Using the switch
Press the switch to fold the mirrors.
Press it again to extend them to the
original position.
Adjustment procedure
1
1
2
2
1
2
3
4
Automatically folding and extending the mirrors

1693-4. Adjusting the steering wheel and mirrors
3
Operation of each component
LX570_OM_OM60R61U_(U)
■Setting automatic mode
Automatic mode allows the folding or extending of the mirrors to be linked to
locking/unlocking of the doors.
Press the “AUTO” switch to set auto-
matic mode.
The indicator will come on.
Pressing the switch once more will
return to manual mode.
When either “L” or “R” of the mirror select switch is selected, \
the outside rear
view mirrors will automatically angle down wards when the vehicle is reversing in
order to give a better view of the ground.
To disable this function, select neither “L” nor “R”.
■Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired position. The
adjusted angle will be memorized and the mirror will automatically tilt to the
memorized angle whenever the shift leve r is shifted to R from next time.
The memorized downward tilt position of th e mirror is linked to the normal position
(angle adjusted with the shif t lever in other than R). Ther efore, if the normal posi-
tion is changed after adjustment, the tilt position will also change.
When the normal position is chang ed, readjust the angle in reversing.
■Mirror angle can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
The outside rear view mirrors can be cleare d using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers. ( P. 413)
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically by the
driving position memory. ( P. 157)
■Auto anti-glare function
When the anti-glare inside re ar view mirror is set to automatic mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. ( P. 166)
Indicator
Linked mirror function when reversing

LX570_OM_OM60R61U_(U)

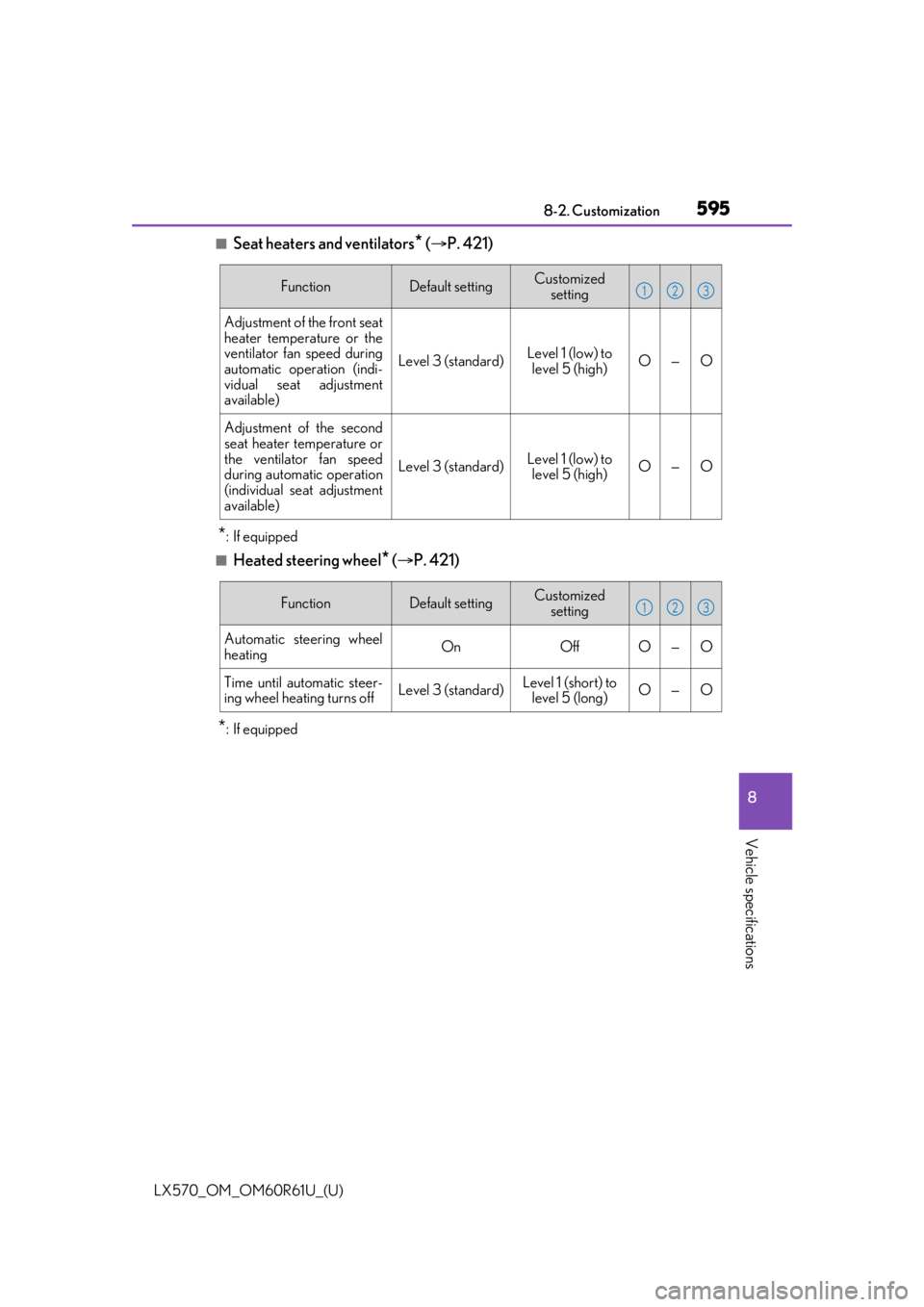

5958-2. Customization
8
Vehicle specifications
■Seat heaters and ventilators* ( P. 421)
*: If equipped
■Heated steering wheel* ( P. 421)
*: If equipped
FunctionDefault settingCustomized
setting
Adjustment of the front seat
heater temperature or the
ventilator fan speed during
automatic operation (indi-
vidual seat adjustment
available)
Level 3 (standard)Level 1 (low) to level 5 (high)O—O
Adjustment of the second
seat heater temperature or
the ventilator fan speed
during automatic operation
(individual seat adjustment
available)
Level 3 (standard)Level 1 (low) to level 5 (high)O—O
123
FunctionDefault settingCustomized
setting
Automatic steering wheel
heatingOnOffO—O
Time until automatic steer-
ing wheel heating turns offLevel 3 (standard)Level 1 (short) to level 5 (long)O—O
123

624Alphabetical index
LX570_OM_OM60R61U_(U)
Front passenger occupant classification system ............................ 49
Front passenger’s seat belt reminder light ..................................... 527
Front seats .................................................146 Adjustment ............................................. 146
Cleaning ................................................ 465
Correct driving posture .................... 28
Driving position memory ................ 157
Head restraints ....................................... 161
Power easy access system ............ 157
Seat heaters .......................................... 423
Seat ventilators .................................... 423
Front side marker lights ..................... 228 Light switch ...........................................228
Replacing light bulbs ......................... 512
Front turn signal lights ........................ 224 Turn signal lever ................................. 224
Replacing light bulbs ......................... 512
Fuel ............................................................. 572 Capacity ................................................ 566
Fuel gauge ................................................ 92
Fuel pump shut off system.............524
Gas station inform ation ................. 636
Information ............................................ 572
Refueling.................................................246
Type ......................................................... 566
Warning light ....................................... 527 Fuel consumption information........... 110
Fuel filler door.........................................246
Opener ................................................... 248
Refueling ................................................ 246
Fuel pump shut off system .................524
Fuses.......................................................... 509
Gas station information ..................... 636
Garage door opener.......................... 454
Gauges.........................................................92
Glove box ................................................429
Hands-free system (for cellular phone)
*
Head restraints......................................... 161
Headlight cleaner .................................245
Headlights ............................................... 228 Automatic headlight leveling ....... 230
Automatic High Beam system ..... 231
Light switch........................................... 228
Replacing light bulbs ......................... 512
Head-up display .....................................105
Heated steering wheel .......................422
Heaters Front automatic air conditioning system .................................................. 407
Outside rear view mirrors .............. 413
Seat heaters .......................................... 423
High mounted stoplight Replacing ................................................. 512
G
H

630Alphabetical index
LX570_OM_OM60R61U_(U)
Snow tires ................................................ 389
“SOS” button..............................................74
Spare tireInflation pressure ................................. 571
Storage location .................................537
Spark plug ............................................... 568
Specifications ......................................... 564
Speedometer ............................................ 92
SRS airbags................................................ 38
Steering Column lock release ..........................213
Fluid.......................................................... 570
Steering wheel .........................................164 Adjustment ............................................. 164
Audio switches
*
Meter control switches ......................98
Power easy access system ............ 157
Telephone switches
*
Stop/tail lightsReplacing light bulbs ......................... 512
Storage feature ..................................... 428
Stuck If the vehicle becomes stuck ....... 560
Sun visors ................................................. 439
Sunshade Roof............................................................ 175
Rear door...............................................452 Switch
Audio remote control switches
*
Automatic High Beam switch ..... 232
Center differential lock/unlock switch .......................................................311
Climate concierge switch .............406
Cruise control switch ..........276, 288
Door lock switch.................................. 123
Driving mode select switch ............ 291
Driving position memory switches ............................................... 158
Emergency flashers switch .............514
Engine switch ..........................................211
Fog light switch ................................... 236
Four-wheel drive control switch .................................................... 310
Garage door opener switches .............................................. 454
Headlight cleaner switch ............... 245
Interior light switch............................ 426
Intuitive parking assist...................... 294
Ignition switch..........................................211
LDA (Lane Departure Alert)....... 270
Light switches ...................................... 228
Meter control switches ...................... 98
Moon roof switches ........................... 174
Outside rear view mirror switches ............................................... 168
Paddle shift switches.......................... 219
Personal light switch .........................427
Power back door switch................. 130
Power door lock switch ................... 123
Power window switch ......................... 171
