LEXUS LX570 2021 Owners Manual

LX570_OM_OM60T33U_(U)
912. Instrument cluster
2
Instrument cluster
*8: This light is displayed on the multi-information display.

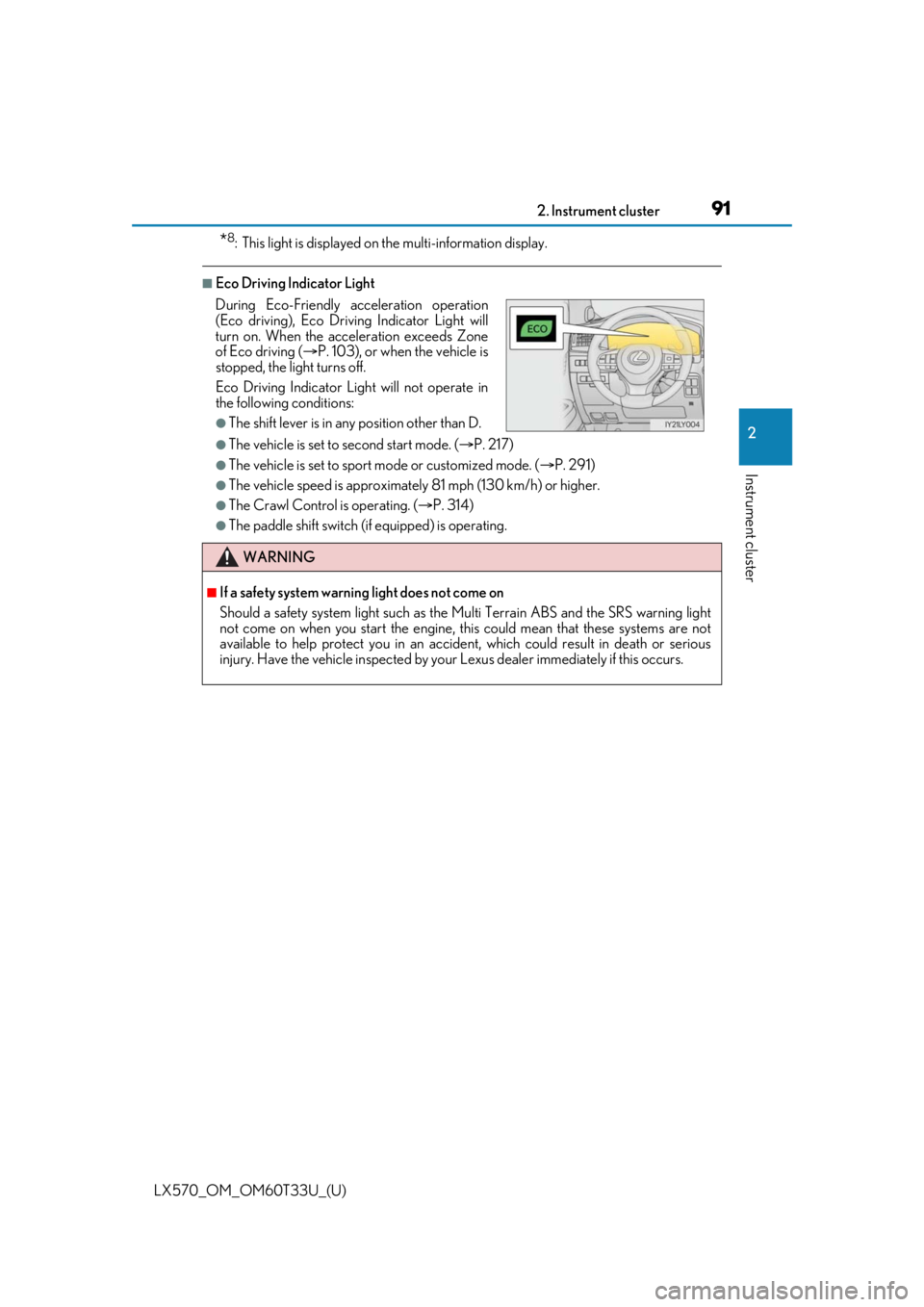

■Eco Driving Indicator Light
●The vehicle is set to second start mode. (P. 217)
●The vehicle is set to sport mode or customized mode. ( P. 291)
●The vehicle speed is approximately 81 mph (130 km/h) or higher.
●The Crawl Control is operating. ( P. 314)
●The paddle shift switch (if equipped) is operating.
During Eco-Friendly acceleration operation
(Eco driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds Zone
of Eco driving (
P. 103), or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Light will not operate in
the following conditions:
●The shift lever is in any position other than D.
WARNING
■If a safety system warnin g light does not come on
Should a safety system light such as the Multi Terrain ABS and the SRS warning light
not come on when you start the engine, th is could mean that these systems are not
available to help protect you in an accide nt, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

92
LX570_OM_OM60T33U_(U)2. Instrument cluster
Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Engine oil pressure gauge
Displays the engine oil pressure
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Voltmeter
Displays the charge state
Fuel gauge
Displays the quantity of fuel remaining in the tank
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of driving-related data P. 96)
1
2
3
4
5
6
7

LX570_OM_OM60T33U_(U)
932. Instrument cluster
2
Instrument cluster
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
Shift position and shift range display
Displays the selected shift position or selected shift range (P. 217)
4-Wheel AHC display
Display the status of 4-Wheel AHC (Active Height Control Suspension). ( P. 302)
Outside temperature
Displays the outside temperature within the range of -40F (-40 C) to 122 F
(50 C). Low outside temperature indicator comes on when the ambient temperature
is 37 F (3C) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (P. 440)
Odometer/trip meter display change button
Switches between odometer and trip meter displays
Instrument panel light control dial
The brightness of the instrument panel light can be adjusted
Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
Changing the display
8
9
10
11
12
13
14

94
LX570_OM_OM60T33U_(U)2. Instrument cluster
The brightness of the instrument
panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced slightly unless
the meter brightness leve l adjustment is set to the brightest setting.
If the tail lights are turned on when the surr oundings are dark, the meter’s brightness will
be reduced slightly. However, when the surro undings are bright, such as during the day-
time, the meter’s brightness will not be reduced even if th e tail lights are turned on.
■Customization
The meter display can be customized on the multi-information display. (P. 584)
Instrument panel light control
1
2
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.

LX570_OM_OM60T33U_(U)
952. Instrument cluster
2
Instrument cluster
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 556)
■Voltmeter
When the voltmeter indicates 19 V or higher or 9 V or lower while the engine is run-
ning, there may be a battery or charging system malfunction. Have the vehicle
inspected at your Lexus dealer.
■Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is running,
stop the vehicle in a safe place immediat ely and check the amount of engine oil.
(  P. 479)
When the oil pressure drops even though th e engine oil amount has not decreased, or
if the oil pressure does not increase when engine oil is added, contact your Lexus
dealer, as there may be a problem with the lubrication system.

96
LX570_OM_OM60T33U_(U)2. Instrument cluster
Multi-information display
The following information will be dis-
played when a menu icon is selected.
(
P. 98)
Some of the information may be dis-
played automatically depending on the
situation.
Drive information
Select to display various drive data. ( P. 99)
Vehicle information display (if equipped)
Select to display the vehicle information. ( P. 100)
Navigation system-linked display
Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display using the
meter control switches.
Display contents

LX570_OM_OM60T33U_(U)
972. Instrument cluster
2
Instrument cluster
Driving assist system information (if equipped)
Select to display the operational status of the following systems:• Dynamic radar cruise control with full-speed range ( P. 276)
When the vehicle is in constant speed control mode ( P. 284), the menu
icon will change to .
• LDA (Lane Departure Alert) ( P. 268)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected. ( P. 532)
Settings display
Select to change the meter display settings and the operation settings of some
vehicle functions. ( P. 101)

98
LX570_OM_OM60T33U_(U)2. Instrument cluster
The multi-information display is operated using the meter control switches.
:Switch menu
: Change displayed con-tent, scroll up/down the
screen and move the
cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Press: Displays the screen registered to
When no screen has been registered, th e drive information screen will be dis-
played.
Press and hold: Registers the currently displayed screen to
When the confirmation screen is displayed, select yes to register the screen. If the
selected screen cannot be registered, a registration failure me ssage will be shown.
Operating the meter control switches
1
2
3
4

LX570_OM_OM60T33U_(U)
992. Instrument cluster
2
Instrument cluster
■Drive information
4 of the following items can be registered and displayed as the drive informa-
tion 1 and the drive information 2 (2 items on each screen).
Refer to P. 101 for the registration method of the drive information 1 and the
drive information 2.
●Current fuel consumption (bar type/value type)
Displays the current rate of fuel consumption.
●Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively.
●Average vehicle speed (after reset*2/after start)
Displays the average vehicle speed si nce the function was reset and the
engine was started, respectively.
●Elapsed time (after reset*2/after start)
Displays the elapsed time since the function was reset and the engine was
started, respectively.
●Distance (driving range/after start)
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining. • This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
*1: Use the displayed average fuel consumption as a reference.
*2: The function can be reset by pressing for longer than 1 second when the item to
reset is displayed. If there is more than on e item that can be reset, the item selection
screen will appear.
Drive information

100
LX570_OM_OM60T33U_(U)2. Instrument cluster
■Eco Indicator (Eco Driving Indicator Zone Display)

P. 103
■Speed
Displays the vehicle speed.
■Outside temperature
Displays the outside temperature within the range of -40 F (-40 C) to 122 F
(50 C).
■Sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert) system. The display is
enabled when the operating conditions of the vehicle sway warning are met.
(  P. 268)
■Blank screen (display off)
Drive information is not displayed.
■Front tire angle (if equipped)
Displays the direction of the front tires.
The tire direction is displaye d in 3 stages for both left and right, in accordance with
the angle of the tire.
If a battery terminal is disconnected an d reconnected, the display may be disabled
temporarily. After driving the vehicle for a while, the display will be enabled.
■Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the spare tire will be displayed.
■Oil maintenance (if equipped)
Displays the remaining distance before the next maintenance is required.\
Vehicle information
