932. Instrument cluster
2
Instrument cluster
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
Shift position and shift range display
Displays the selected shift position or selected shift range (P. 217)
4-Wheel AHC display
Display the status of 4-Wheel AHC (Active Height Control Suspension). ( P. 302)
Outside temperature
Displays the outside temperature within the range of -40F (-40 C) to 122 F
(50 C). Low outside temperature indicator comes on when the ambient temperature
is 37 F (3C) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (P. 440)
Odometer/trip meter display change button
Switches between odometer and trip meter displays
Instrument panel light control dial
The brightness of the instrument panel light can be adjusted
Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
Changing the display
8
9
10
11
12
13
14

102
LX570_OM_OM60T33U_(U)2. Instrument cluster
●Meter settings
Select to set the following items.
• Language Select to change the language on the display.
•Units Select to change the unit for measure.
• Eco Driving Indicator Light Select to activate/deactivate the Eco Driving Indicator Light. (
P. 91)
• switch settings You can register 1 screen as the to p screen. To register, press and hold
while the desired screen is displayed.
• Drive information 1 and 2 Select to select up to 2 items that will be displayed on a drive informa-
tion screen, up to 2 drive in formation screens can be set.
• Clock Select to set the display mode of the clock.
•Pop-up display Select to set the pop-up displays, which may appear in some situations,
on/off. ( P. 103)
• Accent color Select to change the accent colors on the screen, such as the cursor
color.
• Initialization Registered or changed meter settin gs will be deleted or returned to
their default setting.
*:If equipped

480
LX570_OM_OM60T33U_(U)6-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as already in the engine.
Make sure to check the oil type and
prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
■After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:
Press or of the meter control switches, select .
Press or of the meter control swit ches, select “Oil Maintenance” and then
press .
Select the “Yes” and press .
A message is displayed on th e multi-information display.
Engine oil selectionP. 564
Oil quantity (Low  Full)1.6 qt. (1.5 L, 1.3 Imp.qt.)
ItemsClean funnel
1
2
3
1
2
3
4

LX570_OM_OM60T33U_(U)

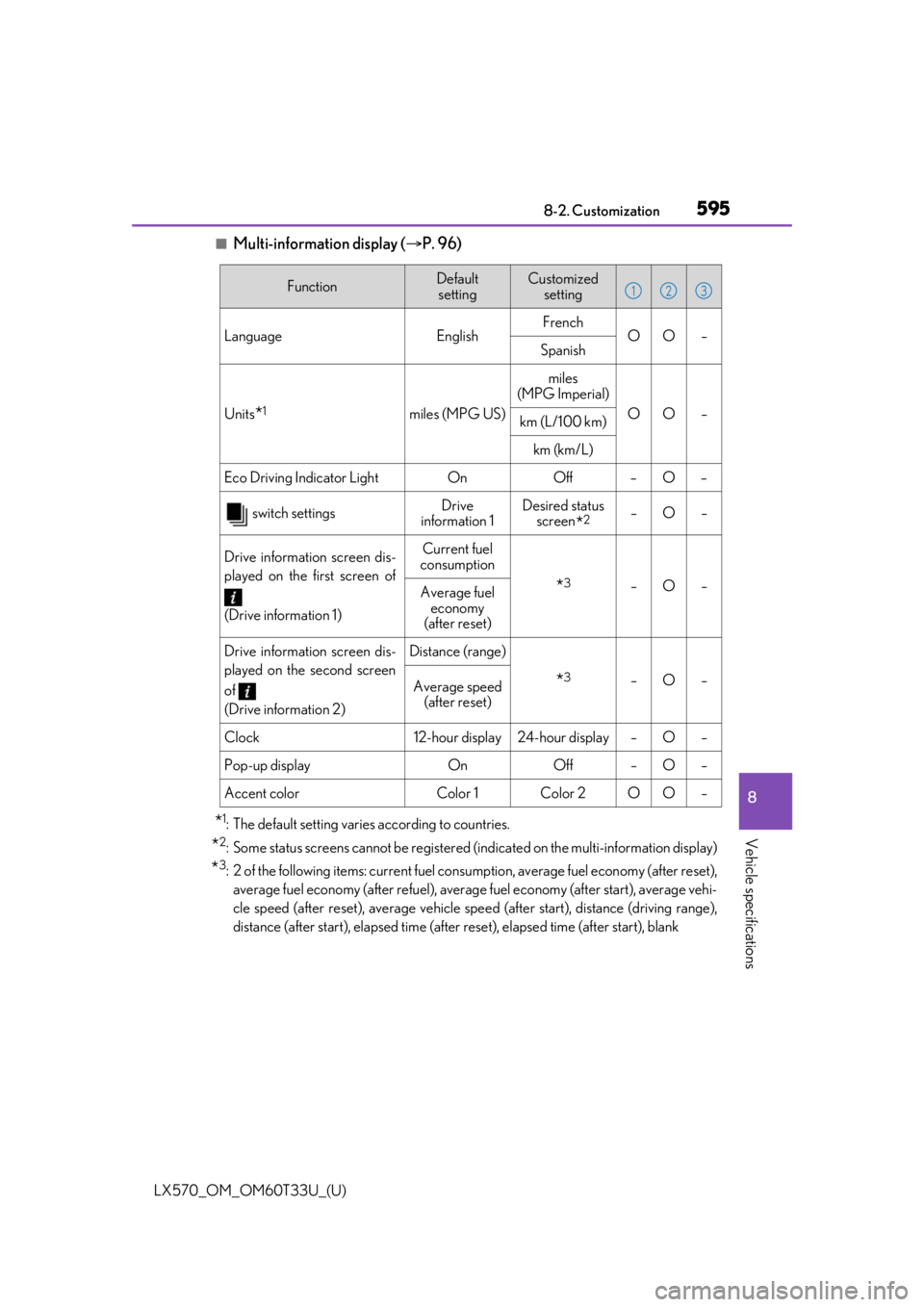

5958-2. Customization
8
Vehicle specifications
■Multi-information display (P. 96)
*1: The default setting varies according to countries.
*2: Some status screens cannot be registered (i ndicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle spee d (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
FunctionDefault
settingCustomized setting
LanguageEnglishFrenchOO–Spanish
Units*1miles (MPG US)
miles
(MPG Imperial)
OO–km (L/100 km)
km (km/L)
Eco Driving Indicator Light On Off – O –
switch settingsDrive
information 1Desired status screen
*2–O–
Drive information screen dis-
played on the first screen of

(Drive information 1)Current fuel
consumption
*3–O–Average fuel economy
(after reset)
Drive information screen dis-
played on the second screen
of
(Drive information 2)Distance (range)
*3–O–Average speed
(after reset)
Clock12-hour display24-hour display–O–
Pop-up displayOnOff–O–
Accent colorColor 1Color 2OO–
