■When installing a child restraint system to a passenger seat
For the safety of a child, install child restraint systems to a rear seats. When
installing child restraint system to a fron t passenger seat is unavoidable, adjust
the passenger seat as follows and install the child restraint system.
●Raise the seatback as much as
possible
●Move the seat to the rearmost
position
●Raise the seat to the upper most
position
●If the head restraint interferes
with the child restraint system
installation and the head restraint
can be removed, remove the
head restraint
When using a child restraint system on a passenger seat

621-1. For safe use
NX200t_OM_USA_OM78081U
WA R N I N G
■When installing a child restraint system
Observe the following when installing child restraint system to the front passenger seat
if it is unavoidable. The fr ont passenger SRS air bag inflates with considerable speed
and force that if not observed may lead to death or serious injury to the child.
●Never install a rear-facing ch ild restraint system on the front passenger seat even if
the “AIR BAG OFF” indicator lig ht is illuminated. In the event of an accident, the force
of the rapid inflation of the front passenger airbag can cause death or serious injury to
the child if the rear-facing child restraint system is installed on the front passenger
seat.
●A forward-facing child restraint system ma y be installed on the front passenger seat
only when it is unavoidable. A child restra int system that requires a top tether strap
should not be used in the front passenger seat since there is no top tether strap
anchor for the front passenger seat.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front pillars or roof side rails from which the SRS side air-
bags or SRS curtain shield ai rbags deploy even if the child is seated in the child
restraint system. It is dangerous if the SRS side and curtain shield airbags inflate, and
the impact could cause death or serious injury to the child.
●When a booster seat is installed, always en sure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the child’s shoulder.
●A forward-facing child restraint system may
be installed on the front passenger seat only
when it is unavoidable. When installing a for-
ward-facing child restraint system on the front
passenger seat, move the seat as far back as
possible, and raise the seat to the upper most
position, even if the “AIR BAG OFF” indicator
light is illuminated.
If the head restraint interferes with the child
restraint system inst allation and the head
restraint can be removed, remove the head
restraint.

631-1. For safe use
1
For safety and security
NX200t_OM_USA_OM78081U
When using a child restraint system on a rear seat
WA R N I N G
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Use child restraint system suitable to the age and size of the child and install it to the
rear seat.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, rear pillars or roof side rails from which the SRS curtain
shield airbag deploys even if the child is seated in the child restraint system. It is dan-
gerous if the SRS curtain sh ield airbag inflates, and the impact could cause death or
serious injury to the child.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Adjust the front passenger seat so that it does
not interfere with the child restraint system.

641-1. For safe use
NX200t_OM_USA_OM78081U
A child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
◆Installing child restraint system using a seat belt (child restraint lock func-
tion belt)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
■Rear-facing — Infant seat/convertible seat
Adjust the seatback
If there is a gap between the child se at and the seatback, adjust the seat-
back until good contact is achieved.
Place the child restraint system
on the rear seat facing the rear of
the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
Child restraint system fixed with a seat belt
1
2
3
4

651-1. For safe use
1
For safety and security
NX200t_OM_USA_OM78081U
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
■Forward-facing — Convertible seat
Adjust the seatback
If there is gap between the child seat and the seatback, adjust the seatback
until good contact is achieved.
If the head restraint interferes
with the child restraint system
installation and the head restraint
can be removed, remove the
head restraint. ( P. 1 5 0 )
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
5
6
1
2
3
4

661-1. For safe use
NX200t_OM_USA_OM78081U
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
If the child restraint has a top tether strap, follow the child restraint manu-
facturer’s operation manual regarding the installation, using the top tether
strap to latch onto the top tether strap anchor. ( P. 7 1 )
After installing the child restraint syst em, rock it back and forth to ensure
that it is installed securely.
■Booster seat
High back type: If the head
restraint interferes with your child
restraint system, and the head
restraint can be removed, remove
the head restraint. ( P. 1 5 0 )
5
6
7
8
1

671-1. For safe use
1
For safety and security
NX200t_OM_USA_OM78081U
Place the child restraint system on the seat facing the front of the vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. (P. 3 0 )
◆Removing a child restraint system installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system ma y spring up due to
the rebound of the seat cushion.
Release the buckle while holding
down the child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position.
2
Booster typeHigh back type
3

681-1. For safe use
NX200t_OM_USA_OM78081U
WA R N I N G
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to chokin g or other serious injuries that could result
in death.
If this occurs and the buckle cannot be unfa stened, scissors should be used to cut the
belt.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●When a booster seat is installed, always en sure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the child’s shoulder.
●Follow all installation instructions provided by the child restraint system manufacturer.
●When securing some types of child restraint systems in rear seats, it may not be possi-
ble to properly use the seat belts in positi ons next to the child restraint without inter-
fering with it or affecting se at belt effectiveness. Be sure your seat belt fits snugly
across your shoulder and low on your hips. If it does not, or if it interferes with the child
restraint, move to a different position. Failure to do so may result in death or serious
injury.
●When installing a child restraint system in the rear center seat, adjust both seatbacks
at the same angle. Otherwise, the child restraint system cannot be securely
restrained and this may cause death or seriou s injuries in the event of sudden braking,
sudden swerving or an accident.
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten on ly. This could cause injury or discomfort to
the child. ( P. 3 4 )
■Do not use a seat belt extender
If a seat belt extender is used when instal ling a child restraint system, the seat belt will
not securely hold the child restraint system, which could cause death or serious injury
to the child or other passengers in the event of sudden braking, sudden swerving or an
accident.

691-1. For safe use
1
For safety and security
NX200t_OM_USA_OM78081U
■Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
■Installation with LATCH system
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Adjust the seatback
If there is a gap between the child se at and the seatback, adjust the seat-
back until good contact is achieved.
If the head restraint interferes
with the child restraint system
installation and the head restraint
can be removed, remove the
head restraint. ( P. 1 5 0 )
Widen the gap between the seat cushion and seatback slightly.
Child restraint system fixed with a child restraint LATCH anchor
1
2
3

701-1. For safe use
NX200t_OM_USA_OM78081U

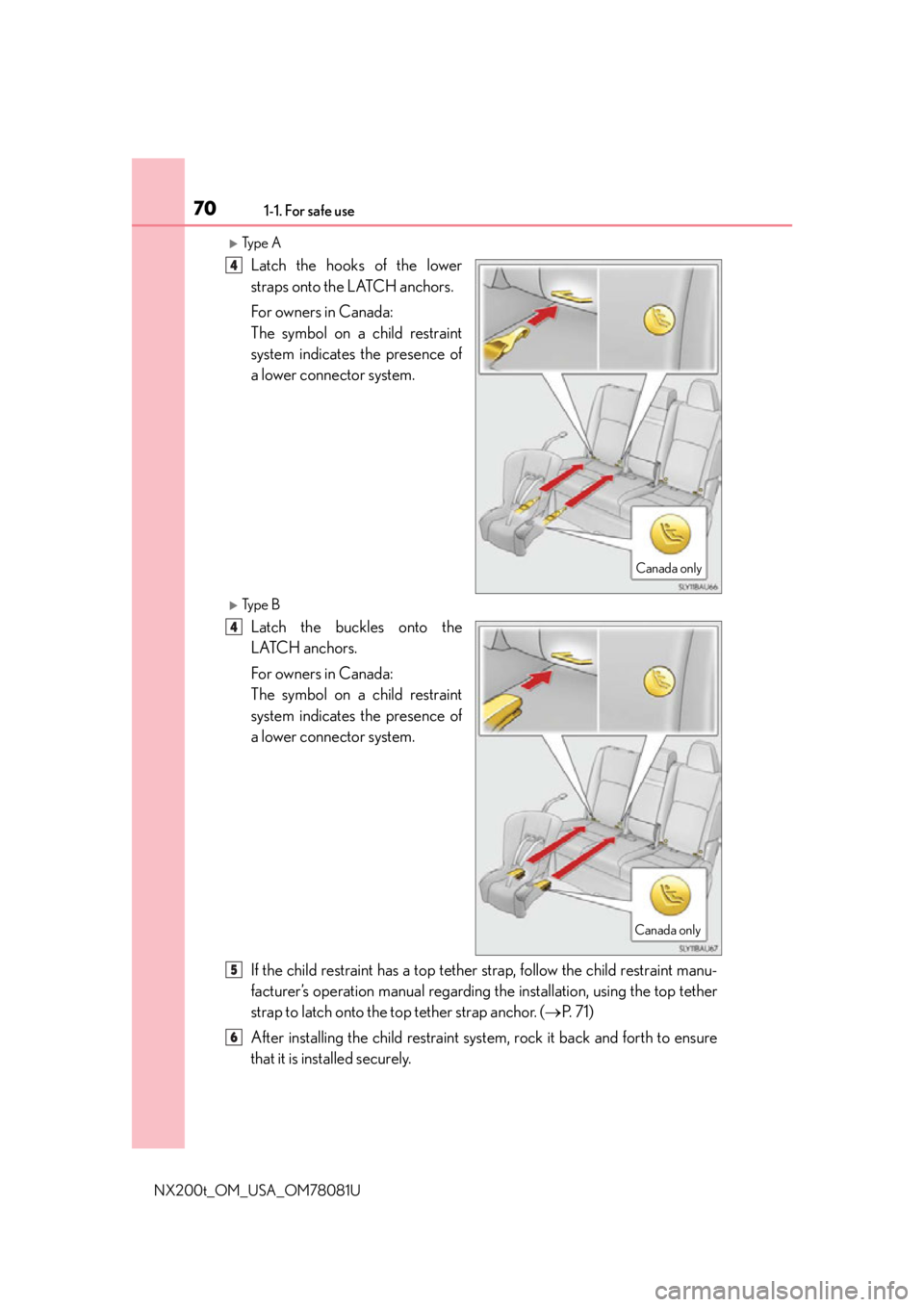

Ty p e A
Latch the hooks of the lower
straps onto the LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Ty p e B
Latch the buckles onto the
LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
If the child restraint has a top tether strap, follow the child restraint manu-
facturer’s operation manual regarding the installation, using the top tether
strap to latch onto the top tether strap anchor. ( P. 7 1 )
After installing the child restraint syst em, rock it back and forth to ensure
that it is installed securely.
Canada only
4
Canada only
4
5
6
