3997-2. Steps to take in an emergency
LEXUS NX300 Owners Manual_USA_M78389_en
7
When trouble arises
ACCESSORY mode.
3Firmly depress the brake pedal and
check that message shown on the
multi-information display.
4 Press the engine switch.
In the event that the engine still cannot be
operated, contact your Lexus dealer.
■Stopping the engine
Set the parking brake, shift the shift lever to
P and press the engine switch as you nor-
mally do when stopping the engine.
■Electronic key battery
As the above procedure is a temporary
measure, it is recomme nded that the elec-
tronic key battery be replaced immediately
when the battery is depleted.
■Alarm
Using the mechanical key to lock the doors
will not set the alarm system. If a door is
unlocked using the mechanical key when
the alarm system is set, the alarm may be
triggered.
■Changing engine switch modes
Release the brake pedal and press the engine switch in step
3 above.
The engine does not start and modes will be
changed each time the switch is pressed.
(  P.166)

4007-2. Steps to take in an emergency
LEXUS NX300 Owners Manual_USA_M78389_en
If you have a set of jumper (or booster)
cables and a second vehicle with a bat-
tery, you can jump start your vehicle by
following the steps below.
1Confirm that the electronic key is
being carried.
When connecting the jumper (or booster)
cables, depending on the situation, the
alarm may activate and the doors may lock.
( P.71)
2 Open the hood ( P.333)
If the vehicle battery is dis-
charged
The following procedures may be
used to start the engine if the vehi-
cle’s battery is discharged.
You can also call your Lexus dealer
or a qualified repair shop.
Restarting the engine

4027-2. Steps to take in an emergency
LEXUS NX300 Owners Manual_USA_M78389_en
■Starting the engine when the battery is
discharged
The engine cannot be started by push-start-
ing.
■To prevent battery discharge
●Turn off the headlights and the audio sys-
tem while the engine is off.
●Turn off any unnecessary electrical com-
ponents when the vehicle is running at a
low speed for an extended period, such
as in heavy traffic.
■Charging the battery
The electricity stored in the battery will dis-
charge gradually even when the vehicle is
not in use, due to natural discharge and the
draining effects of certain electrical appli-
ances. If the vehicle is left for a long time,
the battery may discharge, and the engine
may be unable to start. (The battery
recharges automatically during driving.)
■When the battery is removed or dis-
charged
●In some cases, it may not be possible to
unlock the doors using the smart access
system with push-button start when the
battery is discharged. Use the wireless
remote control or the mechanical key to
lock or unlock the doors.
●The engine may not start on the first
attempt after the battery has recharged
but will start normally after the second
attempt. This is not a malfunction.
●The engine switch mode is memorized by
the vehicle. When the battery is recon-
nected, the system will return to the
mode it was in before the battery was dis-
charged. Before di sconnecting the bat-
tery, turn the engine switch off.
If you are unsure what mode the engine
switch was in befo re the battery dis-
charged, be especially careful when
reconnecting the battery.
●Some systems may require initialization.
WARNING
■Avoiding battery fires or explosions
Observe the following precautions to
prevent accidentally igniting the flamma-
ble gas that may be emitted from the bat-
tery:
●Make sure each jumper cable is con-
nected to the correct terminal and that
it is not unintentiona lly in contact with
any other than the intended terminal.
●Do not allow the other end of the
jumper cable connected to the “+” ter-
minal to come into contact with any
other parts or metal surfaces in the
area, such as brackets or unpainted
metal.
●Do not allow the + and - clamps of the
jumper cables to come into contact
with each other.
●Do not smoke, use matches, cigarette
lighters or allow open flame near the
battery.
■Battery precautions
The battery contains poisonous and cor-
rosive acidic electrol yte, while related
parts contain lead and lead compounds.
Observe the following precautions when
handling the battery:
●When working with the battery, always
wear safety glasses and take care not
to allow any battery fluids (acid) to
come into contact with skin, clothing
or the vehicle body.
●Do not lean over the battery.
●In the event that battery fluid comes
into contact with the skin or eyes,
immediately wash the affected area
with water and seek medical attention.
Place a wet sponge or cloth over the
affected area until medical attention
can be received.

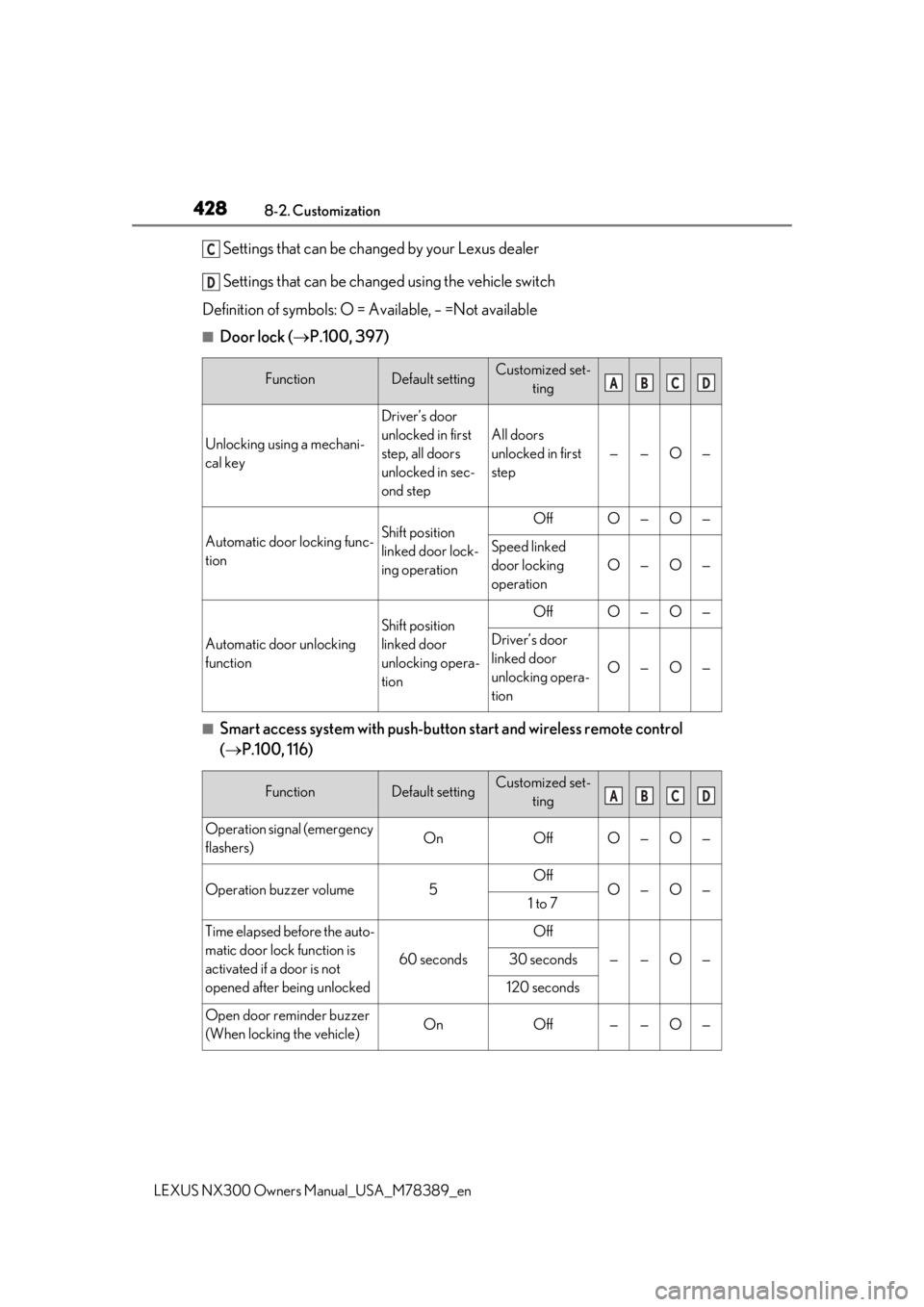

4288-2. Customization
LEXUS NX300 Owners Manual_USA_M78389_en
Settings that can be changed by your Lexus dealer
Settings that can be changed using the vehicle switch
Definition of symbols: O = Available, – =Not available
■Door lock ( P.100, 397)
■Smart access system with push-butto n start and wireless remote control
(  P.100, 116)
FunctionDefault settingCustomized set-
ting
Unlocking using a mechani-
cal key
Driver’s door
unlocked in first
step, all doors
unlocked in sec-
ond step
All doors
unlocked in first
step
——O—
Automatic door locking func-
tionShift position
linked door lock-
ing operationOffO—O—
Speed linked
door locking
operation
O—O—
Automatic door unlocking
function
Shift position
linked door
unlocking opera-
tionOffO—O—
Driver’s door
linked door
unlocking opera-
tion
O—O—
FunctionDefault settingCustomized set-ting
Operation signal (emergency
flashers)OnOffO—O—
Operation buzzer volume5OffO—O—1 to 7
Time elapsed before the auto-
matic door lock function is
activated if a door is not
opened after being unlocked
60 seconds
Off
——O—30 seconds
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff——O—
C
D
ABCD
ABCD

4308-2. Customization
LEXUS NX300 Owners Manual_USA_M78389_en
■Lights (P.178)
■Illumination ( P.289)
■Multi-information display ( P.79, 82)
FunctionDefault settingCustomized set-
ting
Daytime Running Lights
(Daytime running lights can
be disabled)
OnOffO—O—
FunctionDefault settingCustomized set-ting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O—O—7.5 seconds
30 seconds
Time elapsed before the exte-
rior lights turn off15 seconds
Off
O—O—7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O—
Operation when the doors
are unlockedOnOff——O—
Operation when you
approach the vehicle with the
electronic key on your person
OnOff——O—
Footwell lightingOnOff——O—
Fading out of the outer foot
lights when they turn offLongShort——O—
FunctionDefault settingCustomized set-ting
Eco Driving Indicator LightOnOff—O——
Language*1EnglishFrenchOO——Spanish
ABCD
ABCD
ABCD

4328-2. Customization
LEXUS NX300 Owners Manual_USA_M78389_en
■Head-up display* ( P.88)
*:If equipped
■Automatic air conditioning system ( P.279)
■Power windows ( P.138)
FunctionDefault settingCustomized set-
ting
Route guidance to destina-
tionOnOff———O
Driving assist system informa-
tionOnOff———O
Audio system operation sta-
tusOnOff———O
Lane displayOnOff———O
FunctionDefault settingCustomized set-ting
Switching between outside
air and recirculated air mode
linked to “AUTO” switch
operation
OnOffO—O—
A/C Auto switch operationOnOffO—O—
FunctionDefault settingCustomized set-ting
Mechanical key linked opera-
tionOffOn——O—
Wireless remote control
linked open operationOffOn——O—
ABCD
ABCD
ABCD

4338-2. Customization
LEXUS NX300 Owners Manual_USA_M78389_en
8
Vehicle specifications
■Moon roof*1 ( P.140)
*1: If equipped
*2: This function cannot be cust omized unless power window op erations, using the wireless
remote control or mechanical key, is enabled.
■Turn signal lever ( P.172)
■PKSA (Parking Support Alert)* ( P.235)
*:If equipped
■Intuitive parking assist* ( P.236)
*:If equipped
FunctionDefault settingCustomized set-
ting
Mechanical key linked opera-
tion
*2OffOn——O—
Wireless remote control
linked open or Tilt up opera-
tions
*2OffOn——O—
FunctionDefault settingCustomized set-ting
The number of times the turn
signal lights flash automati-
cally when the turn signal
lever is moved to the first
position during a lane change
3
4
——O—
5
6
7
Off
FunctionDefault settingCustomized set-ting
Buzzer volume21—OO—3
FunctionDefault settingCustomized set-ting
Display setting (When intui-
tive parking assist is operat-
ing)
OnOff—OO—
ABCD
ABCD
ABCD
ABCD

4368-2. Customization
LEXUS NX300 Owners Manual_USA_M78389_en
*:If equipped
■Power back door*1 ( P.104)
*1: If equipped
*2: Configured by operating the sw itch of the lower back door. (P.115)
*3: While carrying the electronic key on your person, press the back door opener switch.
*4: When the towing hitch is installed, the kick sensor does not work
Excess speed notification
methodDisplay only
No notification
—OO—Display and
buzzer
Others notification methodDisplay only
No notification
—OO—Display and buzzer
Excess speed notification
level1 mph (2 km/h)3 mph (5 km/h)—OO—5 mph (10 km/h)
FunctionDefault settingCustomized set- ting
Back door automatic open
and stop position5
Stop at the
desired position
(height)
*2O——O
1 to 5
Back door opener switch
operationsWhen the back
door is locked
*3When the back
door is unlocked——O—
Power back door operationsOnOff—O——
Operation buzzer volume31—O——2
Kick Sensor*1, 4OnOff—O——
FunctionDefault settingCustomized set- tingABCD
ABCD

452What to do if... (Troubleshooting)
LEXUS NX300 Owners Manual_USA_M78389_en
1-1.What to do if... (Troubleshooting)What to do if... (Troubleshooting)
If you lose your mechanical keys,
new genuine mechanical keys can
be made by your Lexus dealer.
( P.396)
 If you lose your electronic keys, the
risk of vehicle theft increases signifi-
cantly. Contact your Lexus dealer
immediately. ( P.396)
 Is the electronic key battery weak or
depleted? ( P.356)
 Is the engine switch in IGNITION
ON mode?
When locking the doors, turn the engine
switch off. ( P.166)
 Is the electronic key left inside the
vehicle?
When locking the doors, make sure that
you have the electronic key on your per-
son.
The function may not operate prop-
erly due to the condition of the radio
wave. ( P.118)
 Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set. Open the rear door from
outside and then unlock the child-
protector lock. ( P.103)
 Did you press the engine switch
while firmly depressing the brake
pedal? ( P.165)
 Is the shift lever in P? ( P.165)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.116)
 Is the steering wheel unlocked?
( P.165)
 Is the electronic key battery weak or
depleted?
In this case, the engine can be
started in a temporary way.
( P.398)
 Is the battery discharged?
( P.400)If you have a problem, check the
following before contacting your
Lexus dealer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The electronic key does not oper-
ate properly
The doors cannot be locked or
unlocked
The rear door cannot be opened
If you think something is wrong
The engine does not start

456Alphabetical Index
LEXUS NX300 Owners Manual_USA_M78389_en
Battery
If the battery is discharged ................... 400
Preparing and checking before winter......................................................................... 266
Warning light ............................................... 375
Blind Spot Monitor (BSM)....................... 250 Blind Spot Monitor function................. 252
Rear Cross Traffic Alert function....... 254
Bottle holders................................................ 293
Brake Brake Hold ..................................................... 175
Fluid ....................................................................413
Parking brake ................................................ 172
Warning light ............................................... 376
Brake assist .................................................... 260
Brake Hold ....................................................... 175
Break-in tips..................................................... 147
Brightness control Instrument panel light control ..................81
BSM (Blind Spot Monitor)....................... 250 Blind Spot Monitor function................. 252
Rear Cross Traffic Alert function....... 254
BSM (Blind Spot Monitor) main switch .......................................................................... 250
C
Card key ............................................................ 96
Care Aluminum wheels ...................................... 320
Exterior ........................................................... 320
Interior ............................................................. 323
Seat belts........................................................ 323
Cargo capacity.........................152, 154, 408
Cargo hooks ................................................. 295
Cargo net hooks .......................................... 295
Chains ...............................................................267 Child restraint system................................... 48
Booster seats installation ..........................55
Convertible seats installation .................. 53
Front passenger occupa nt classification
system................................................................ 41
Infant seats definition ................................... 53
Infant seats installation ................................50
Installing CRS with LATCH anchors . 57
Installing CRS with seat belts .................. 52
Installing CRS with top tether strap.....58
LATCH anchors ........................................... 57
Child safety ....................................................... 48 Airbag precautions ...................................... 37
Back door precautions ............................ 104
Battery precautions ....................... 341, 402
Child restraint system .................................48
How your child should wear the seat belt............................................................................. 27
Installing child restraints.............................48
Moon roof precautions.............................142
Power window lock switch .................... 139
Power window precautions .................. 139
Rear door child-protectors ................... 103
Removed key battery precautions....357
Seat belt extender precautions.............. 27
Seat belt precautions .................................. 26
Seat heater precautions..........................287
Child-protectors........................................... 103
Cleaning ...............................................320, 323 Aluminum wheels ......................................320
Exterior............................................................320
Interior ............................................................. 323
Seat belts ........................................................ 323
Clock ................................................................ 299
Compass ...........................................................315
Condenser ..................................................... 339
Console box .................................................. 293
