1383-5. Opening, closing the windows and moon roof
LEXUS NX300 Owners Manual_USA_M78389_en
3-5.Opening, closing the windows and moon roof

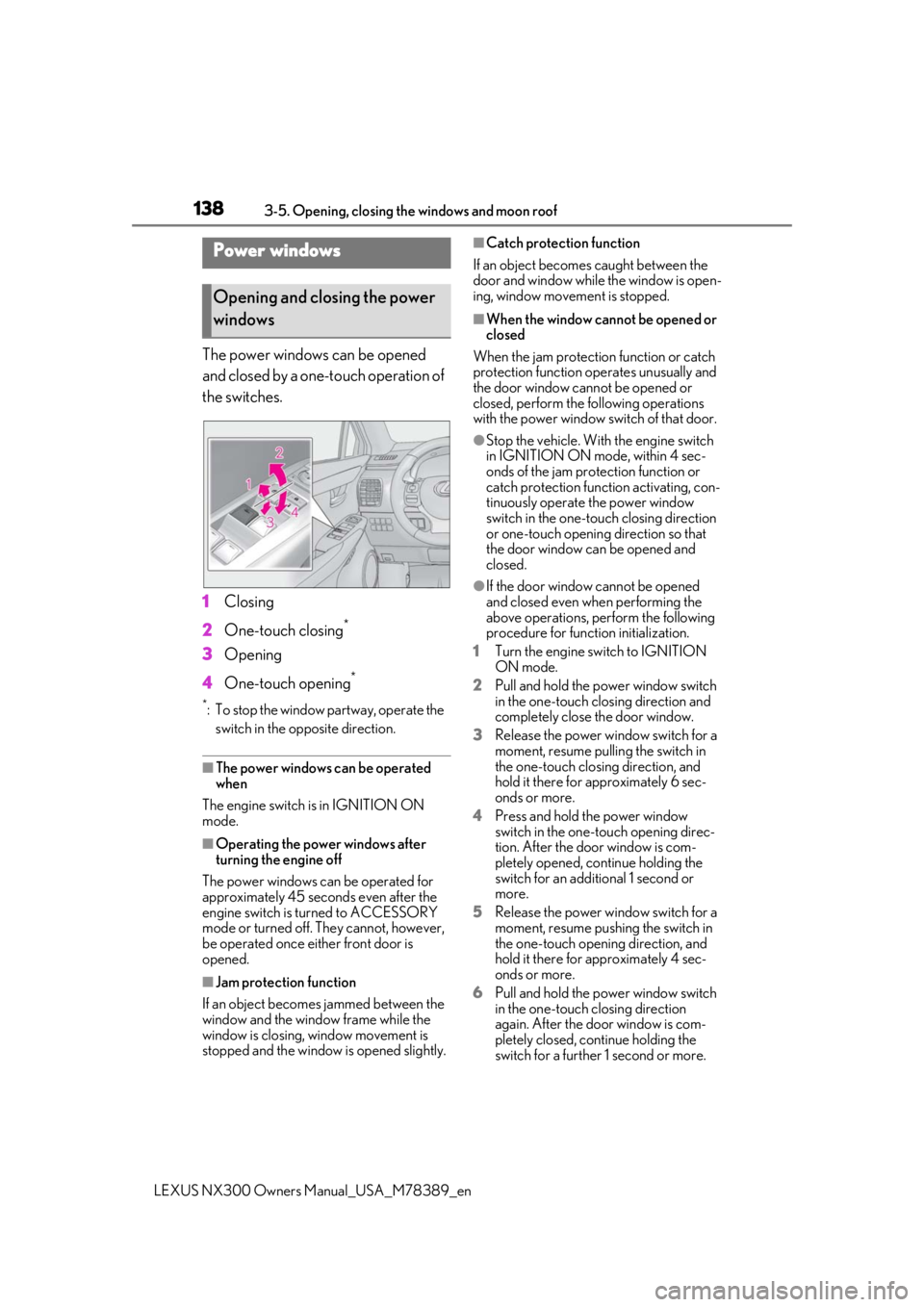

The power windows can be opened
and closed by a one-touch operation of
the switches.
1Closing
2 One-touch closing
*
3Opening
4 One-touch opening
*
*: To stop the window partway, operate the
switch in the op posite direction.
■The power windows can be operated
when
The engine switch is in IGNITION ON
mode.
■Operating the power windows after
turning the engine off
The power windows can be operated for
approximately 45 seconds even after the
engine switch is turned to ACCESSORY
mode or turned off. They cannot, however,
be operated once either front door is
opened.
■Jam protection function
If an object becomes jammed between the
window and the window frame while the
window is closing, window movement is
stopped and the window is opened slightly.
■Catch protection function
If an object becomes caught between the
door and window while the window is open-
ing, window movement is stopped.
■When the window cannot be opened or
closed
When the jam protection function or catch
protection function operates unusually and
the door window cannot be opened or
closed, perform the following operations
with the power window switch of that door.
●Stop the vehicle. With the engine switch
in IGNITION ON mode, within 4 sec-
onds of the jam protection function or
catch protection function activating, con-
tinuously operate the power window
switch in the one-touch closing direction
or one-touch opening direction so that
the door window can be opened and
closed.
●If the door window cannot be opened
and closed even when performing the
above operations, perform the following
procedure for function initialization.
1 Turn the engine switch to IGNITION
ON mode.
2 Pull and hold the power window switch
in the one-touch closing direction and
completely close the door window.
3 Release the power window switch for a
moment, resume pulling the switch in
the one-touch closing direction, and
hold it there for approximately 6 sec-
onds or more.
4 Press and hold the power window
switch in the one-touch opening direc-
tion. After the door window is com-
pletely opened, continue holding the
switch for an additional 1 second or
more.
5 Release the power window switch for a
moment, resume pushing the switch in
the one-touch opening direction, and
hold it there for approximately 4 sec-
onds or more.
6 Pull and hold the power window switch
in the one-touch closing direction
again. After the door window is com-
pletely closed, continue holding the
switch for a further 1 second or more.
Power windows
Opening and closing the power
windows

1403-5. Opening, closing the windows and moon roof
LEXUS NX300 Owners Manual_USA_M78389_en
*: If equipped
■Opening and closing
1
Open
Press and hold the “OPEN” switch. The
moon roof tilts up and then fully opens
automatically.
*
2Close
Press and hold the “CLOSE” switch. The
moon roof fully closes automatically.
*
*
: Lightly press either end of the moon roof open/close switch to stop the moon roof
while it is operating.

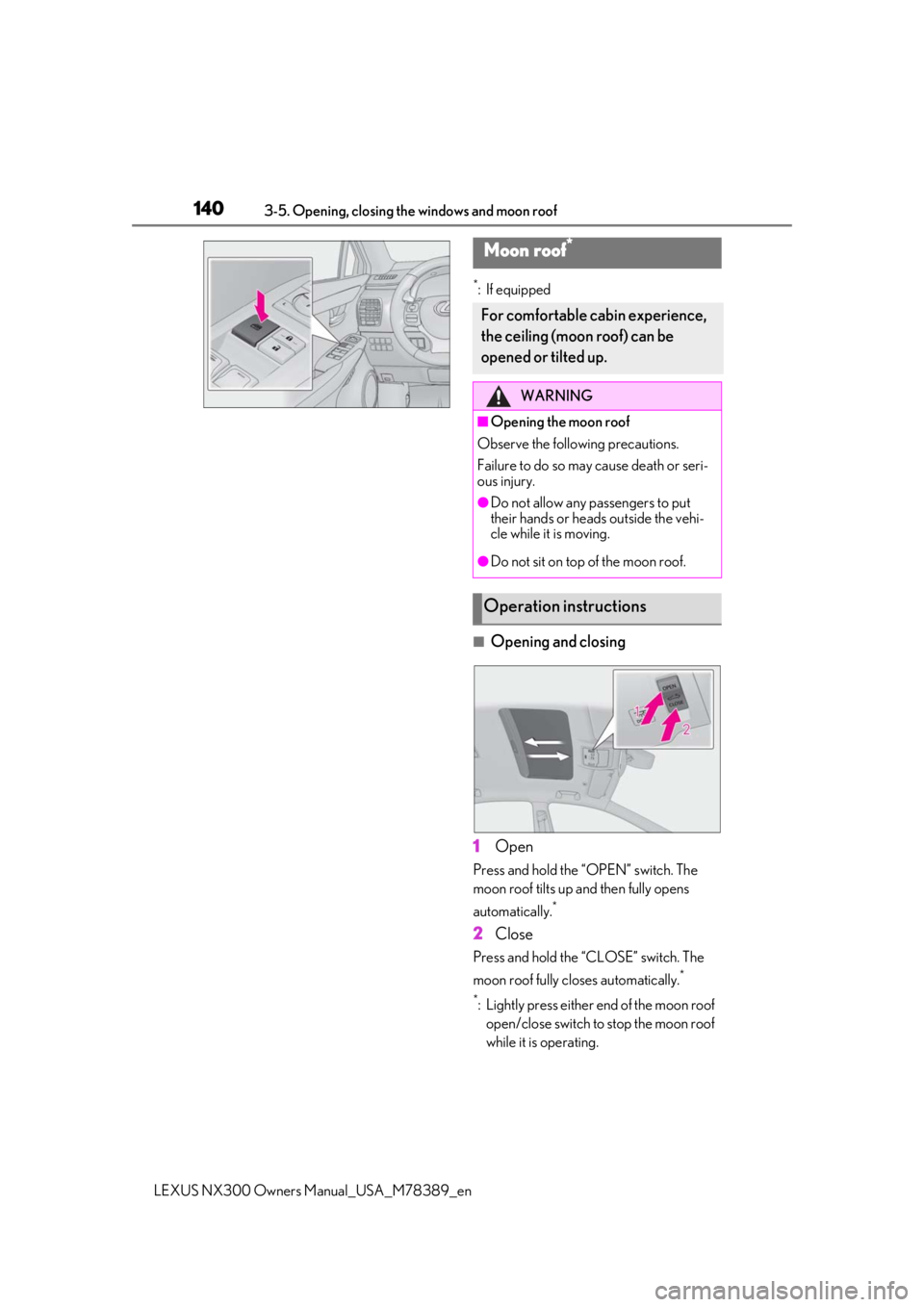

Moon roof*
For comfortable cabin experience,
the ceiling (moon roof) can be
opened or tilted up.
WARNING
■Opening the moon roof
Observe the following precautions.
Failure to do so may cause death or seri-
ous injury.
●Do not allow any passengers to put
their hands or heads outside the vehi-
cle while it is moving.
●Do not sit on top of the moon roof.
Operation instructions

1413-5. Opening, closing the windows and moon roof
LEXUS NX300 Owners Manual_USA_M78389_en
3
Before driving
■Tilting up and down
1 Tilt up
Press and hold the “UP” switch. It automat-
ically opens until the tilt up stop position.
*
2Tilt down
Press and hold the “DOWN” switch. The
moon roof full close automatically.
*
*
: Lightly press either end of the moon roof switch to stop the moon roof while it is
operating.
■The moon roof can be operated when
The engine switch is in IGNITION ON
mode.
■Jam protection function
If an object is detected between the moon
roof and the frame while the moon roof is
closing or tilting down, travel is stopped and
the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed
manually. However, the sunshade will open
automatically when the moon roof is
opened.
■When the moon roof does not close nor-
mally
Perform the following procedure:
●If the moon roof closes but then re-opens
slightly
1 Stop the vehicle.
2 Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen and pause
for approximately 10 seconds.*2 Then it will close again
and tilt down. Finally
it will stop.
3 Check to make sure that the moon roof
completely stops an d then release the
switch.
●If the moon roof tilts down but then tilts
back up
1 Stop the vehicle.
2 Press and hold the “DOWN” switch.
*1
The moon roof will close, reopen and pause
for approximately 10 seconds in the tilt up
position.
*2 Then it will close again. Finally it
will stop.
3 Check to make sure that the moon roof
has completely stopped and then
release the switch.
*1: If the switch is rele ased at the incorrect
time, the procedure will have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automatic
operation will be disabled. In that case,
perform the moon roof initialization by
referring to “When tilt up/down or moon
roof opening and closing can be done
but automatic full opening and closing
cannot be done” on P.141.
If the moon roof does not fully close even
after performing the above procedure cor-
rectly, have the vehicle inspected by your
Lexus dealer.
■When the moon roof does not move
normally
When the opening and closing operation or
automatic opening function of the moon
roof does not move normally, perform the
following initialization procedures.
1 Turn the engine switch to IGNITION
ON mode.
2 Operate the moon roof.
The initialization meth od changes depend-
ing on the contents that can be operated.
●If only the tilt up op erations can be done
when the moon roof is closed
3 Press and hold the “DOWN” or
“CLOSE” switch.

145
LEXUS NX300 Owners Manual_USA_M78389_en
4
4
Driving
Driving
4-1. Before driving
Driving the vehicle ..................... 146
Cargo and luggage ................... 152
Vehicle load limits ...................... 154
Trailer towing (vehicles with tow- ing package).............................. 155
Trailer towing (vehicles without towing package) ...................... 163
Dinghy towing ............................. 164
4-2. Driving procedures Engine (ignition) switch ........... 165
Automatic transmission........... 168
Turn signal lever.......................... 172
Parking brake .............................. 172
Brake Hold.................................... 175
ASC (Active Sound Control) 177
4-3. Operating the lights and wipers Headlight switch ......................... 178
Automatic High Beam .............. 181
Fog light switch ........................... 184
Windshield wipers and washer ......................................................... 184
Rear window wiper and washer ......................................................... 189
4-4. Refueling Opening the fuel tank cap....... 1914-5. Using the driving support sys-
tems
Lexus Safety System+ 2.0...... 193
PCS (Pre-Collision System) . 199
LTA (Lane Tracing Assist) .... 206
LDA (Lane Departure Alert with steering control) ...................... 215
RSA (Road Sign Assist).......... 223
Dynamic radar cruise control with full-speed range...................... 225
PKSA (Parking Support Alert) ....................................................... 235
Intuitive parking assist ............. 236
Parking Support Brake function (for static objects) .................... 241
BSM (Blind Spot Monitor) .... 250
Driving mode select switch .. 258
Driving assist systems.............. 260
All-wheel drive lock switch (AWD models)....................................... 264
4-6. Driving tips Winter driving tips .................... 266
Utility vehicle precautions..... 269
