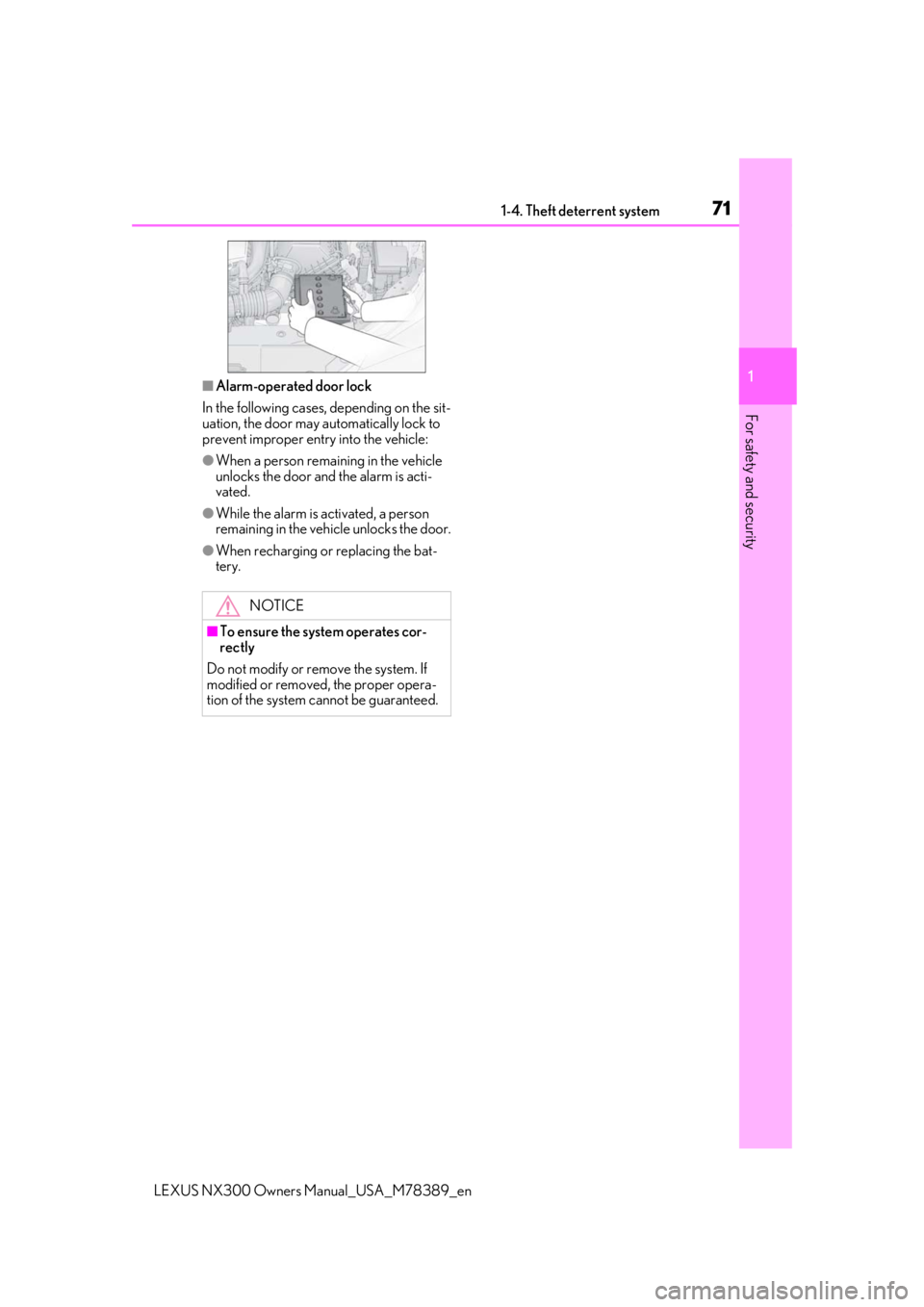

711-4. Theft deterrent system
LEXUS NX300 Owners Manual_USA_M78389_en
1
For safety and security
■Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.
●While the alarm is activated, a person
remaining in the vehicle unlocks the door.
●When recharging or replacing the bat-
tery.
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

721-4. Theft deterrent system
LEXUS NX300 Owners Manual_USA_M78389_en

73
LEXUS NX300 Owners Manual_USA_M78389_en
2
2
Vehicle status information and indicators
Vehicle status information
and indicators
2-1. Instrument cluster
Warning lights and indicators . 74
Gauges and meters .................... 79
Multi-information display.......... 82
Head-up display ........................... 88
Fuel consumption information 92

742-1. Instrument cluster
LEXUS NX300 Owners Manual_USA_M78389_en
2-1.Instrument cluster
For the purpose of explanatio n, the following illustration displays all warning lights
and indicators illuminated.
The units used on the meters and some indicators may differ depending on the target
region.
Warning lights and indicators
The warning lights and indicators inform th e driver of the status of the vehicle’s
various systems.
Instrument cluster

752-1. Instrument cluster
LEXUS NX300 Owners Manual_USA_M78389_en
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in any of the vehicle’s sys-
tems.
*1: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
Warning lights
(U.S.A.)
Brake system warning light*1
(  P.375)
(Red)
(Canada)
Brake system warning light*1
(  P.375)
Charging system warning
light
*2 (  P.375)
Low engine oil pressure warn-
ing light
*2 (  P.375)
High coolant temperature
warning light
*2 (  P.376)
(Yellow)
Brake system warning light*1
(  P.376)
(U.S.A.)
Malfunction indicator lamp*1
(  P.376)
(Canada)
Malfunction indicator lamp*1
(  P.376)
SRS warning light
*1 (  P.376)
(U.S.A.)
ABS warning light*1 ( P.377)
(Canada)
ABS warning light*1 ( P.377)
(Yellow)
Electric power steering sys-
tem warning light
*1 ( P.377)
(Red)
Electric power steering sys-
tem warning light
*1 ( P.377)
PCS warning light
*1 (  P.377)
(Orange)
LTA indicator*2 (if equipped)
(  P.378)
LDA indicator
*2 (if equipped)
(  P.378)
PKSB OFF indicator
*1, 3 (if
equipped) ( P.378)
Slip indicator light
*1 (  P.378)
Brake hold operated indica-
tor
*1, 3 (  P.379)
(U.S.A.)
Parking brake indicator*3
(  P.379)
(Canada)
Parking brake indicator*3
(  P.379)
Low fuel level warning light
(  P.379)
Driver’s and front passenger’s
seat belt reminder light
(  P.379)
Rear passengers’ seat belt
reminder light
*4 (  P.380)
Master warning light
*1
(  P.380)
Tire pressure warning light
*1
(  P.380)
Brake Override Sys-
tem/Drive-Start Control warn-
ing light
*2 (  P.381)

762-1. Instrument cluster
LEXUS NX300 Owners Manual_USA_M78389_en
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light illuminates on the multi-infor-
mation display.
*3: The light flashes to indicate a malfunc-tion.
*4: This light illuminates on the center panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS airbag warning light not
come on when you start the engine, this
could mean that these systems are not
available to help pr otect you in an acci-
dent, which could result in death or seri-
ous injury. Have the vehicle inspected by
your Lexus dealer immediately if this
occurs.
Indicators
Turn signal indicator ( P.172)
(U.S.A.)
Headlight indicator ( P.178)
(Canada)
Tail light indicator ( P.178)
Headlight high beam indicator
(  P.180)
Automatic High Beam indica-
tor ( P.181)
Fog light indicator ( P.184)
Eco Driving Indicator Light
*1
(  P.78)
“Eco” indicator
*2 (  P.258)
“Sport” indicator
*2 (  P.258)
“Sport S” indicator
*2 (if
equipped) ( P.258)
“Sport S+” indicator
*2 (if
equipped) ( P.258)
“Custom” indicator
*2 (if
equipped) ( P.258)
Dynamic radar cruise control
indicator
*2 (  P.225)
Cruise control “SET” indica-
tor
*2 (  P.225)
Cruise control indicator
*2
(  P.225)

772-1. Instrument cluster
LEXUS NX300 Owners Manual_USA_M78389_en
2
Vehicle status information and indicators*1: These lights turn on when the engine
switch is turned to the IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light illuminates on the multi-infor-mation display.
*3: The light flashes to indicate that the sys-tem is operating.
*4: The light comes on when the system is turned off.
*5: When the outside temperature is approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10
seconds, then stay on.
*6: In order to confirm operation, the BSM outside rear view mirror indicators illu-
minate in the following situations:
When the engine switch is turned to
IGNITION ON mode while the BSM
main switch is set to ON.
When the BSM main switch is set to
ON while the engine switch is in IGNI-
TION ON mode.
If the system is func tioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
(White)
LTA indicator*2 (if equipped)
(  P.211)
LDA indicator
*2 (if equipped)
(  P.220)
(Green)
LTA indicator*2 (if equipped)
(  P.211)
LDA indicator
*2 (if equipped)
(  P.220)
(Orange)
LTA indicator*2, 3 (if equipped)
(  P.211)
LDA indicator
*2, 3 (if
equipped) ( P.220)
Intuitive parking assist indica-
tor (if equipped) ( P.236)
PKSB OFF indicator
*1, 4 (if
equipped) ( P.242)
Slip indicator light
*1, 3
(  P.261)
VSC off indicator
*1, 4 (  P.261)
PCS warning light
*1, 4
(  P.201)
(AWD mod-
els only)
All-wheel drive lock indicator*1
(  P.264)
(U.S.A.)
Parking brake indicator
( P.172)
(Canada)
Parking brake indicator
( P.172)
Brake hold standby indicator
*1
(  P.175)
Brake hold operated indica-
tor
*1 (  P.175)
Low outside temperature indi-
cator
*2, 5 (  P.79)
BSM outside rear view mirror
indicators
*6, 7 (if equipped)
(  P.250)
Security indicator
*8 (  P.68,
70)
(U.S.A.)
“AIR BAG ON/OFF” indi-
cator
*8 (  P.41)
(Canada)
“AIR BAG ON/OFF” indi-
cator
*8 ( P.41)

782-1. Instrument cluster
LEXUS NX300 Owners Manual_USA_M78389_en
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn
off, there may be a malfunction in the
system.
If this occurs, have
the vehicle inspected
by your Lexus dealer.
*7: This light illuminates on the outside rear view mirrors.
*8: This light illuminates on the center panel.
■Eco Driving Indicator
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco
Driving Indicator Zone Display will illu- minate.
When this happens, the Eco Driving
Indicator Light will turn off.
Zone of Eco driving
Eco Driving Indicator will not operate
under the following conditions:
●The shift lever is in an y position other than
D.
●A paddle shift swit ch is operated.
●Neither Normal mode nor Eco mode is
selected. (P.258)
●The vehicle speed is approximately 80
mph (130 km/h) or higher.
Settings of the display and non-display of
the Eco Driving Indicator Light can be
changed. ( P.87)
A
B
C
D

792-1. Instrument cluster
LEXUS NX300 Owners Manual_USA_M78389_en
2
Vehicle status information and indicators
The units used on the meters and some indicators may differ depending on the target
region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolution per minute
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Background color of driving mode
Background color changes acco rding to the driving mode. (P.258)
•Sport mode: Red
•Eco mode: Blue
When in Normal mode/Custom mode , the background color is black.
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.299)
Multi-information display
Presents the driver with a variety of vehicle data ( P.82)
Gauges and meters
The meters display various drive information.
Meter display
A
B
C
D
E
F

802-1. Instrument cluster
LEXUS NX300 Owners Manual_USA_M78389_en
Displays warning messages in
case of a malfunction (P.384)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift posi tion or selected shift range (P.168)
Odometer, trip meter and maintena nce required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed.
• Displays the maintenance requir ed information when the engine switch is in IGNITION
ON mode.
• It can be reset on of the multi-information display. ( P.85)
■Operating condition
The engine switch is in IGNITION ON
mode.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change.
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●When “--” or “E” is displayed, the system
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Pop-up display
In some situations, a pop-up display will be
temporarily displayed on the multi-informa-
tion display or the odometer/trip
meter/maintenance re quired information
screen.
The pop-up display function can be set on/off. (
P.87)
■Liquid crystal display
Small spots or light sp ots may appear on the
display. This phenomen on is characteristic
of liquid crystal disp lays, and there is no
problem continuing to use the display.
■Customization
The meter display can be customized on
the multi-information display.
(Customizable features: P.427)
G
H
I
J
