display LEXUS NX300h 2015 Owners Manual

NX300h_U_OM78007U Pictorial index Search by illustration
1
For safety
and security Make sure to read through them
2
Instrument cluster How to read the gauges an d meters, the variety of
warning lights and indicators, etc.
3
Operation of
each component Opening and closing the doors and windows,
adjustment before driving, etc.
4
Driving Operations and advices which are necessary for
driving
5
Lexus Display
Audio system Operating the Lexus Display Audio system
6
Interior features Usage of the interior features, etc.
7
Maintenance
and care Caring for your vehicle and maintenance procedures
8
When trouble
arises What to do in case of malfunction or emergency
9
Vehicle
specifications Vehicle specifications, customizable features, etc.
10
For owners Reporting safety defects for US owners, and seat belt
and SRS airbag instructions for Canadian owners
Index Search by symptom
Search alphabetically

TABLE OF CONTENTS
2
NX300h_U_OM78007U For your information ................................... 8
Reading this manual................................... 14
How to search ..............................................15
Pictorial index ............................................... 16
1-1. For safe use
Before driving................................. 28
For safety drive............................... 30
Seat belts .......................................... 32
SRS airbags ..................................... 40
Front passenger occupant
classification system.................. 53
Safety information for
children .......................................... 59
Child restraint systems ............... 60
Exhaust gas precautions ............. 76
1-2. Hybrid system
Hybrid system features................ 77
Hybrid system precautions.........81
1-3. Theft deterrent system
Immobilizer system ...................... 86
Alarm .................................................88
Theft prevention labels
(for U.S.A.) .................................... 90 2. Instrument cluster
Warning lights and
indicators....................................... 92
Gauges and meters ......................97
Multi-information display ........ 102
Head-up display .......................... 106
Energy monitor/
consumption screen ...................111
3-1. Key information
Keys .................................................... 118
3-2. Opening, closing and locking
the doors
Side doors ....................................... 124
Back door ....................................... 129
Smart access system with
push-button start ..................... 140
3-3. Adjusting the seats
Front seats.......................................146
Rear seats........................................ 147
Driving position memory..........154
Head restraints ............................ 1581
For safety and security 2
Instrument cluster
3
Operation of each
component

TABLE OF CONTENTS
4
NX300h_U_OM78007U 5-1. Basic Operations
Lexus Display Audio
System ........................................ 336
Steering wheel audio
switches...................................... 342
Mobile Assistant........................ 343
USB/AUX ports ........................ 345
5-2. Setup
Setup menu ................................. 347
General settings ........................348
Voice settings................................351
Display settings .......................... 352
5-3. Using the audio system
Selecting the audio
source ......................................... 353
Optimal use of the audio
system ......................................... 354
Audio settings............................. 355
Audio menu screen
operation ................................... 358
5-4. Using the radio
Radio operation ........................... 361
5-5. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ................367 5-6. Using an external device
Listening to an iPod ................... 374
Using USB memory
device........................................... 377
Using the AUX port ................. 381
5-7. Connecting Bluetooth ®
Steps for using Bluetooth ®

devices........................................ 382
Registering a Bluetooth ®

device.......................................... 384
Selecting a Bluetooth ®

device..........................................385
Connecting a Bluetooth ®

audio player.............................. 386
Connecting a Bluetooth ®

phone .......................................... 387
Displaying a Bluetooth ®

device details ...........................388
Detailed Bluetooth ®

settings ....................................... 389
5-8. Bluetooth ®
Audio
Listening to Bluetooth ®

Audio .......................................... 3905
Lexus Display Audio system

7 1
9876432
105
NX300h_U_OM78007U 8-2. Steps to take in an emergency
If your vehicle needs to
be towed ..................................... 558
If you think something is
wrong........................................... 564
If a warning light turns on
or a warning buzzer
sounds ......................................... 565
If a warning message is
displayed .....................................572
If you have a flat tire ...................575
If the hybrid system will not
start ............................................... 589
If the shift lever cannot be
shifted from P ............................ 591
If the electronic key does not
operate properly ..................... 592
If the 12-volt battery is
discharged ................................. 595
If your vehicle overheats .........600
If the vehicle becomes
stuck ............................................. 604 9-1. Specifications
Maintenance data
(fuel, oil level, etc.) ..................608
Fuel information ...........................618
Tire information............................. 621
9-2. Customization
Customizable features ............ 633
9-3. Initialization
Items to initialize......................... 643
Reporting safety defects for
U.S. owners............................................ 646
Seat belt instructions for
Canadian owners (in French) .........647
SRS airbag instructions for
Canadian owners (in French) ........ 649
What to do if...
(Troubleshooting) ............................... 658
Alphabetical index ................................ 662 9
Vehicle specifications
10
For owners
Index
For vehicles with a navigation system, refer to the “NAVIGATION SYSTEM
OWNER’S MANUAL” for information rega rding the equipment listed below.
• Navigation system
• Lexus parking assist monitor • Audio/visual system
• Lexus Enform with Safety Con-
nect

19Pictorial index
NX300h_U_OM78007U Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 102 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 102
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 572
Turn signal lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 212Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Headlights/parking lights/tai l lights/license plate lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 19
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Windshield wiper and washer switch. . . . . . . . . . . . . . . . . . . . . . . . . . P. 228, 234 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228, 234
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 511
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 57 2
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 556
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Tilt and telescopic steering control switch . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 160Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
Driving position memory
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 435
Audio system
* 2
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 336
Hands-free system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 392
* 1
: If equipped
* 2
: For vehicles with a navigation system, refer to
“NAVIGATION SYSTEM OWNER’S MANUAL”.4
5
6
7
8
9
10
11

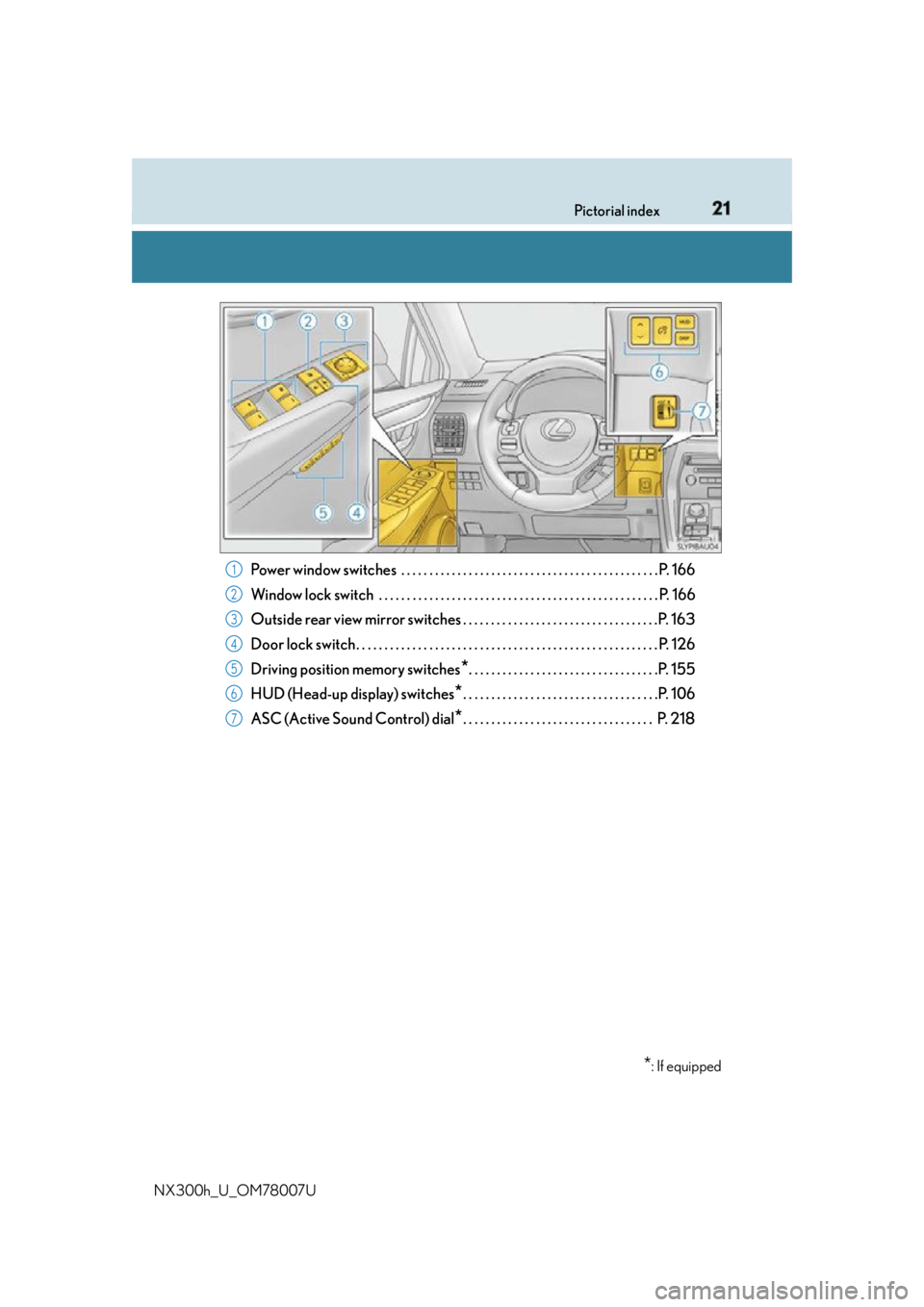

21Pictorial index
NX300h_U_OM78007U Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 163
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 26
Driving position memory switches
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 155
HUD (Head-up display) switches
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 106
ASC (Active Sound Control) dial
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
* : If equipped1
2
3
4
5
6
7

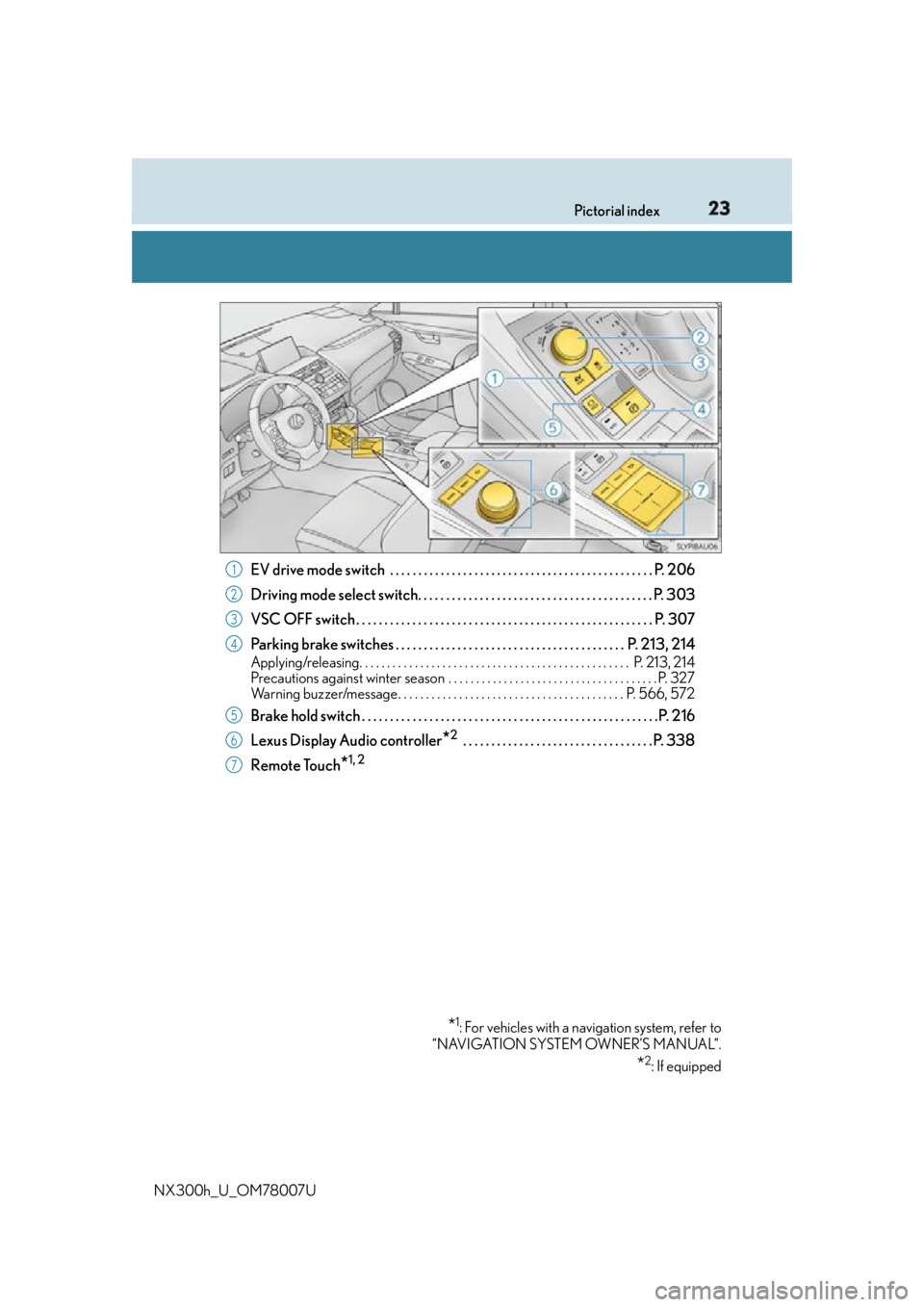

23Pictorial index
NX300h_U_OM78007U EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
Parking brake switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213, 214 Applying/releasing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213, 214
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 566, 572
Brake hold switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 21 6
Lexus Display Audio controller
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Remote Touch
* 1, 2
* 1
: For vehicles with a navigation system, refer to
“NAVIGATION SYSTEM OWNER’S MANUAL”.
* 2
: If equipped1
2
3
4
5
6
7

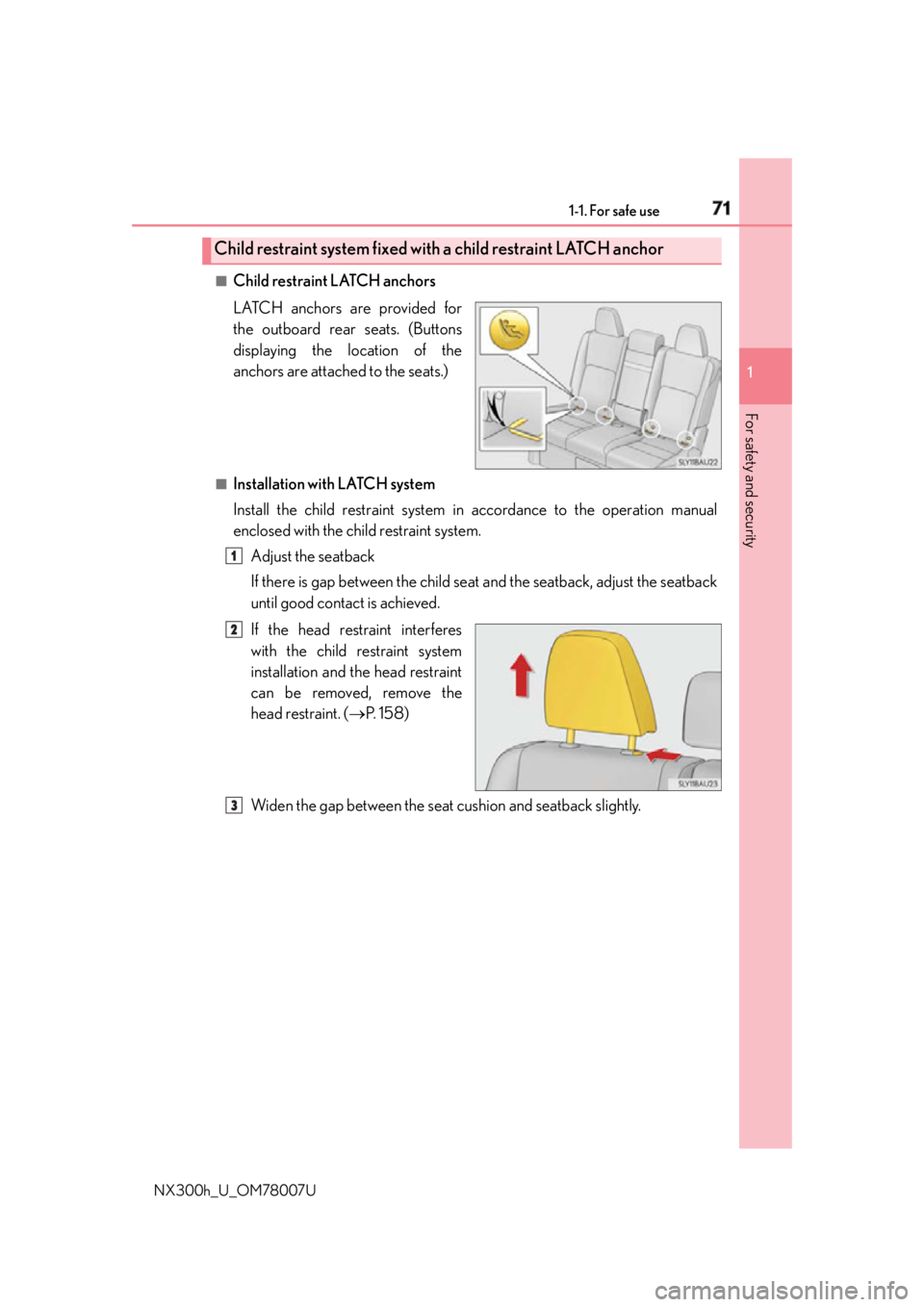

711-1. For safe use
1
For safety and security
NX300h_U_OM78007U ■
Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.) ■
Installation with LATCH system
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Adjust the seatback
If there is gap between the child seat and the seatback, adjust the seatback
until good contact is achieved.
If the head restraint interferes
with the child restraint system
installation and the head restraint
can be removed, remove the
head restraint. (  P. 1 5 8 )
Widen the gap between the seat cushion and seatback slightly.Child restraint system fixed with a child restraint LATCH anchor
1
2
3

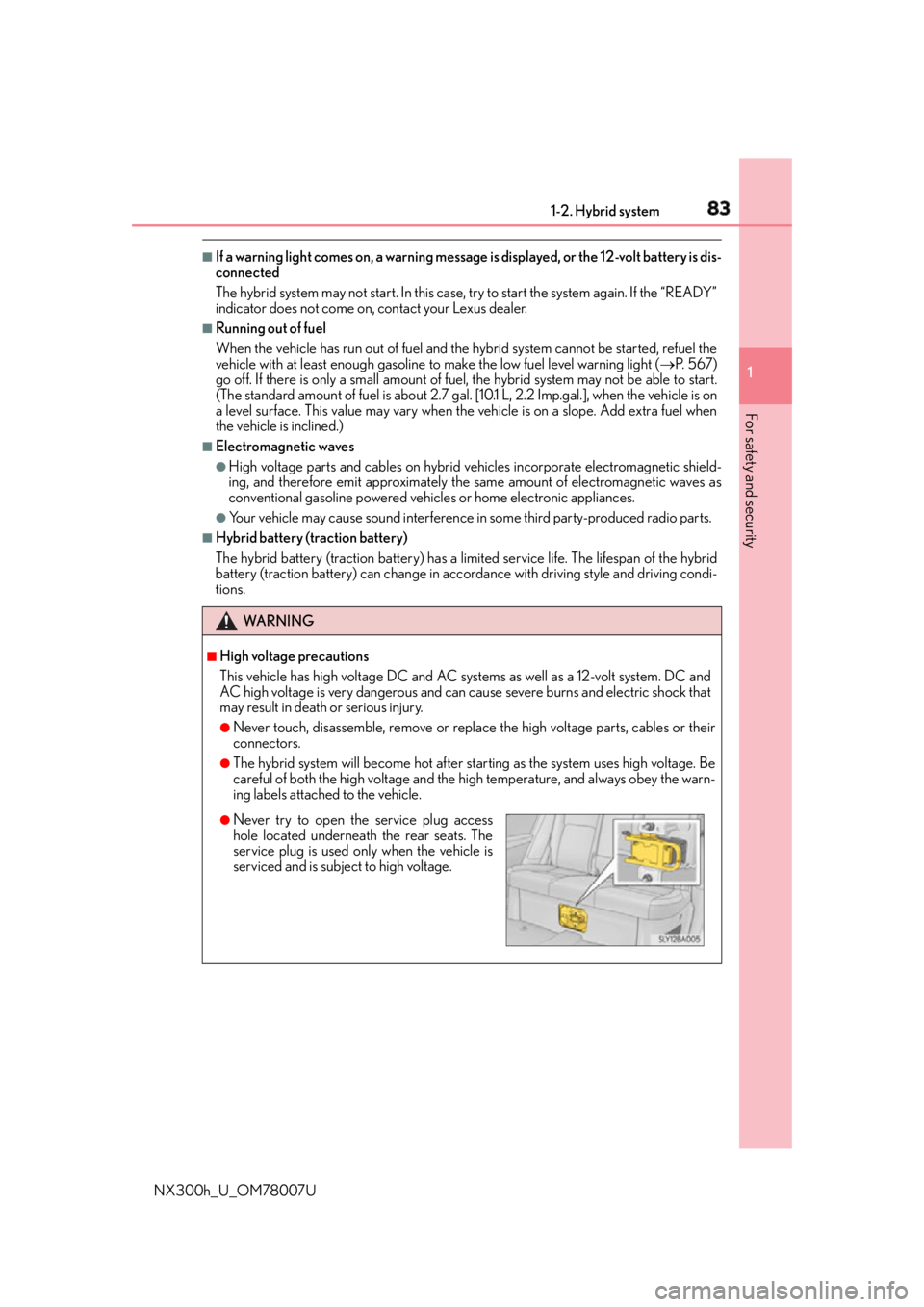

82 1-2. Hybrid system
NX300h_U_OM78007U The cooling air intake and discharge
vents for the hybrid battery (traction
battery) are located under the rear
seats and between the rear seats and
deck board, respectively. If the air
intake vents are blocked, it could lead
to a reduction in hybrid battery (trac-
tion battery) output. The hybrid battery (traction battery)
output will not be reduced, even if the
space between the upper part of the air
discharge vents on the back of the rear
seat and deck board is blocked with lug-
gage, etc.
When a certain level of impact is detected by the impact sensor, the emergency
shut off system blocks the high voltage current and stops the fuel pump to mini-
mize the risk of electrocution and fuel leakage. If the emergency shut off system
activates, your vehicle will not restart. To restart the hybrid system, contact your
Lexus dealer.
A message is automatically displayed when a malfunction occurs in the hybrid
system or an improper operation is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.Hybrid battery (traction battery) air intake and discharge vents Air intake vents
Air discharge vents
Emergency shut off system
Hybrid warning message

831-2. Hybrid system
1
For safety and security
NX300h_U_OM78007U ■
If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-
connected
The hybrid system may not start. In this case, try to start the system again. If the “READY”
indicator does not come on, contact your Lexus dealer. ■
Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light (  P. 5 6 7 )
go off. If there is only a small amount of fu el, the hybrid system may not be able to start.
(The standard amount of fuel is about 2.7 gal. [10.1 L, 2.2 Imp.gal.], when the vehicle is on
a level surface. This value may vary when the vehicle is on a slope. Add extra fuel when
the vehicle is inclined.) ■
Electromagnetic waves ●
High voltage parts and cables on hybrid ve hicles incorporate electromagnetic shield-
ing, and therefore emit approximately the same amount of electromagnetic waves as
conventional gasoline powered vehicl es or home electronic appliances.●
Your vehicle may cause sound interference in some third party-produced radio parts. ■
Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the hybrid
battery (traction battery) can change in accordance with driving style and driving condi-
tions.
WA R N I N G ■
High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and
AC high voltage is very dangerous and can cause severe burns and electric shock that
may result in death or serious injury. ●
Never touch, disassemble, remove or replace the high voltage parts, cables or their
connectors. ●
The hybrid system will become hot after star ting as the system uses high voltage. Be
careful of both the high voltage and the hi gh temperature, and always obey the warn-
ing labels attached to the vehicle. ●
Never try to open the service plug access
hole located underneath the rear seats. The
service plug is used only when the vehicle is
serviced and is subject to high voltage.
