3495-2. Setup
5
Lexus Display Audio system
NX300h_OM_USA_OM78082U
Go to “Customize Images”: “MENU” button  “Setup”  “General” 
“Customize Images”
Select “Set Images” and then select the desired image.
Set as startup image.
Set as screen off image.
Set as startup image and screen
off image.
■Adding an imageConnect a USB memory device. ( P. 3 4 5 )
Select “Copy from USB” on the “Customize Images” screen and then
select the desired image.
Move the controller to the left and then select “Copy”.
Up to 10 images can be downloaded.
■Deleting images
Select “Delete Images” on the “Customize Images” screen and then select the
desired images.
■USB memory
When saving the images to a USB memory device, name the folder that the images are
saved to “Image”.
●Compatible device formats
The following device format can be used: • USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class
The following types of files can be used:
• The image’s file format must be JPEG.
• The file name may only contain ASCII characters.
●JPEG file compatibility
Compatible image size: Maximum 5MB

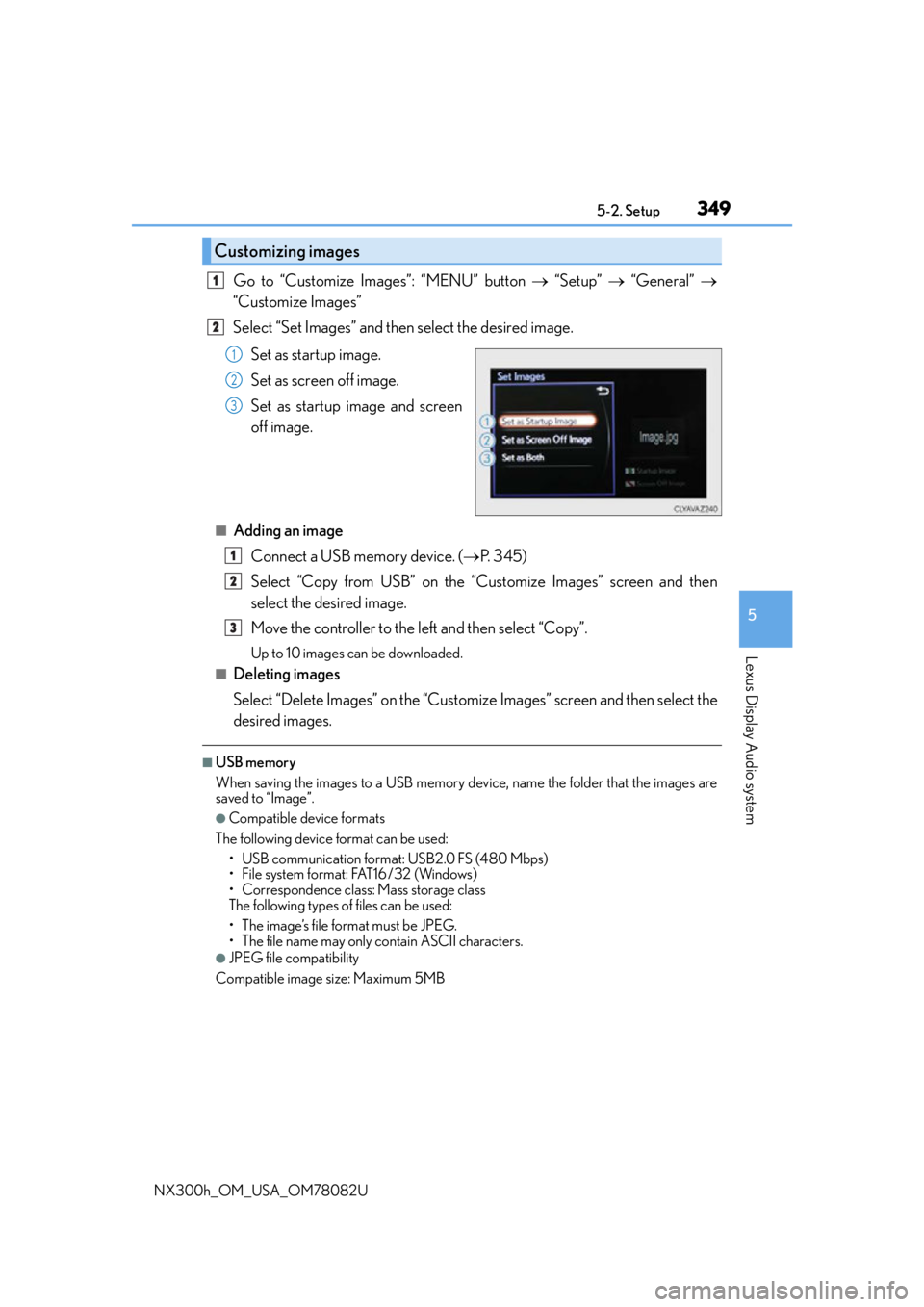

Customizing images
1
2
1
2
3
1
2
3

3515-2. Setup
5
Lexus Display Audio system
NX300h_OM_USA_OM78082U

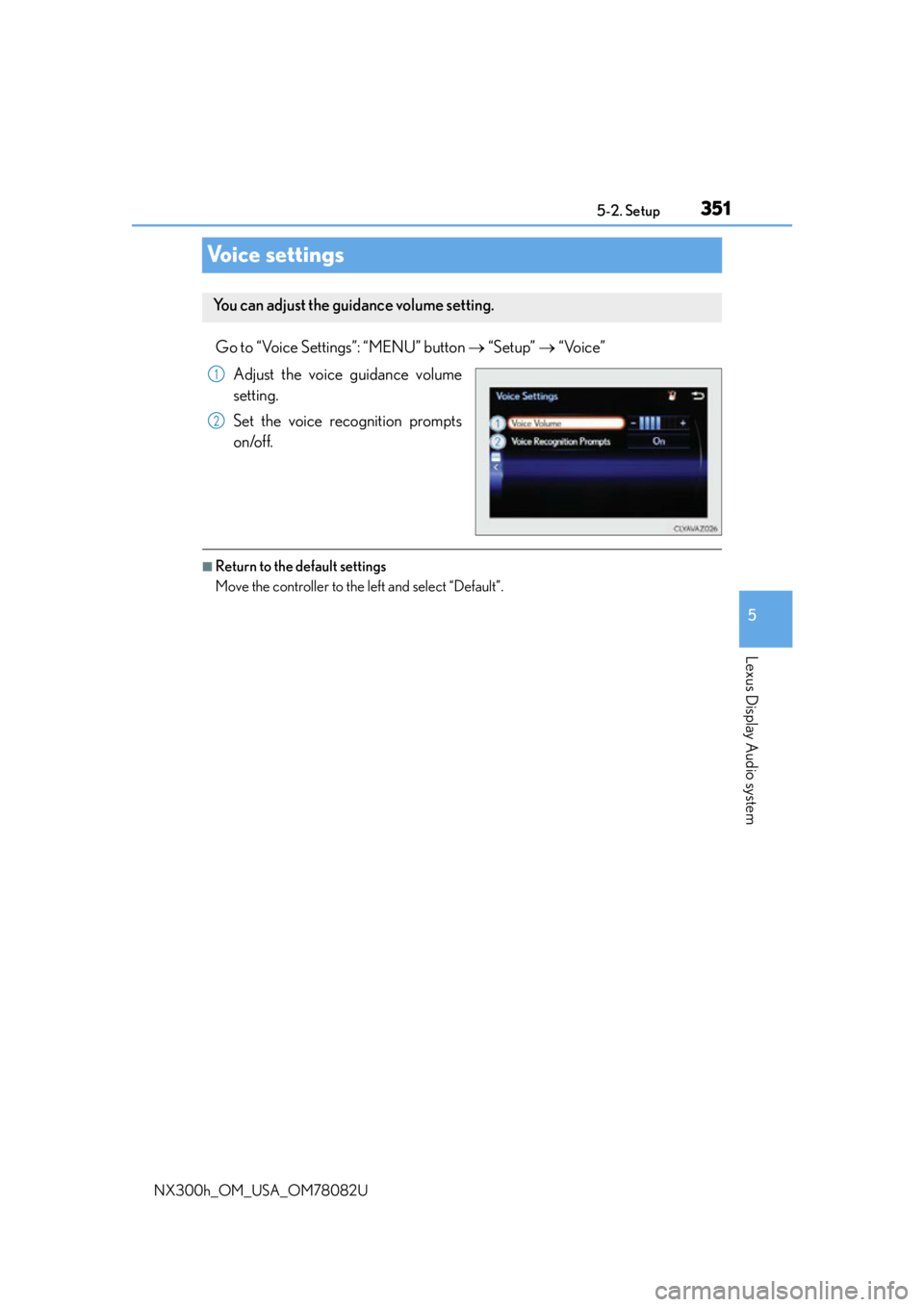

Voice settings
Go to “Voice Settings”: “MENU” button  “Setup”  “Voice”
Adjust the voice guidance volume
setting.
Set the voice recognition prompts
on/off.
■Return to the default settings
Move the controller to the left and select “Default”.
You can adjust the guidance volume setting.
1
2

3525-2. Setup
NX300h_OM_USA_OM78082U
Display settings
Go to “Display”: “MENU” button  “Display”
Turn off screen.
Adjust screen quality.
Adjust screen quality of the rear
view monitor camera.
Change to day mode.
This setting turns the screen off. To turn it on, press any button such as the
“AUDIO” button or “MENU” button.
If a screen off image has been set, the set image will be displayed.
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day Mode”.
The screen will stay in day mode when the headlights are turned on until “Day Mode”
is selected again.
Select “General” or “Camera” on the “Display” screen or select “Display” on
each audio menu screen. ( P. 3 5 8 )
Adjust the display as desired by turning the controller clockwise (+) or coun-
terclockwise (-).
To select “Contrast”, “Brightness”, “Color” or “Tone”, move the controller to the left.
(“Color” and “Tone” are available when “Display” on the audio settings screen for
each audio source is selected.)
■Changing the sample image (when “General” is selected)
Move the controller to the right and select the desired sample image.
Settings are available for adjusting the contrast and brightness of the screen.
The display can also be turned off.
Screen for display settings
1
2
3
4
Screen off
Day mode
Adjusting the screen quality
1
2

3535-3. Using the audio system
5
Lexus Display Audio system
NX300h_OM_USA_OM78082U
Selecting the audio source
Press the “AUDIO” button to display the “Source” screen.
If the “Source” screen is not displayed, press the button again.
Select the desired audio source.
The audio source can be selected by pressing the “RADIO” or “MEDIA” button.
Press the “MODE” switch when the audio system is turned on. The audio source
changes each time the “MODE” switch is pressed.
■Rearranging the list
The listing order of the sour ce list can be rearranged.
Move the controller to the left while on the “Source” screen.
Select “Audio Source Select”.
Select an item you wish to move and th en select where to move the item to.
Switching between audio sources, such as the radio and CD, is explained in
this section.
Changing audio source
Using the steering wheel switches to change audio sources
1
2
1
2
3

3555-3. Using the audio system
5
Lexus Display Audio system
NX300h_OM_USA_OM78082U

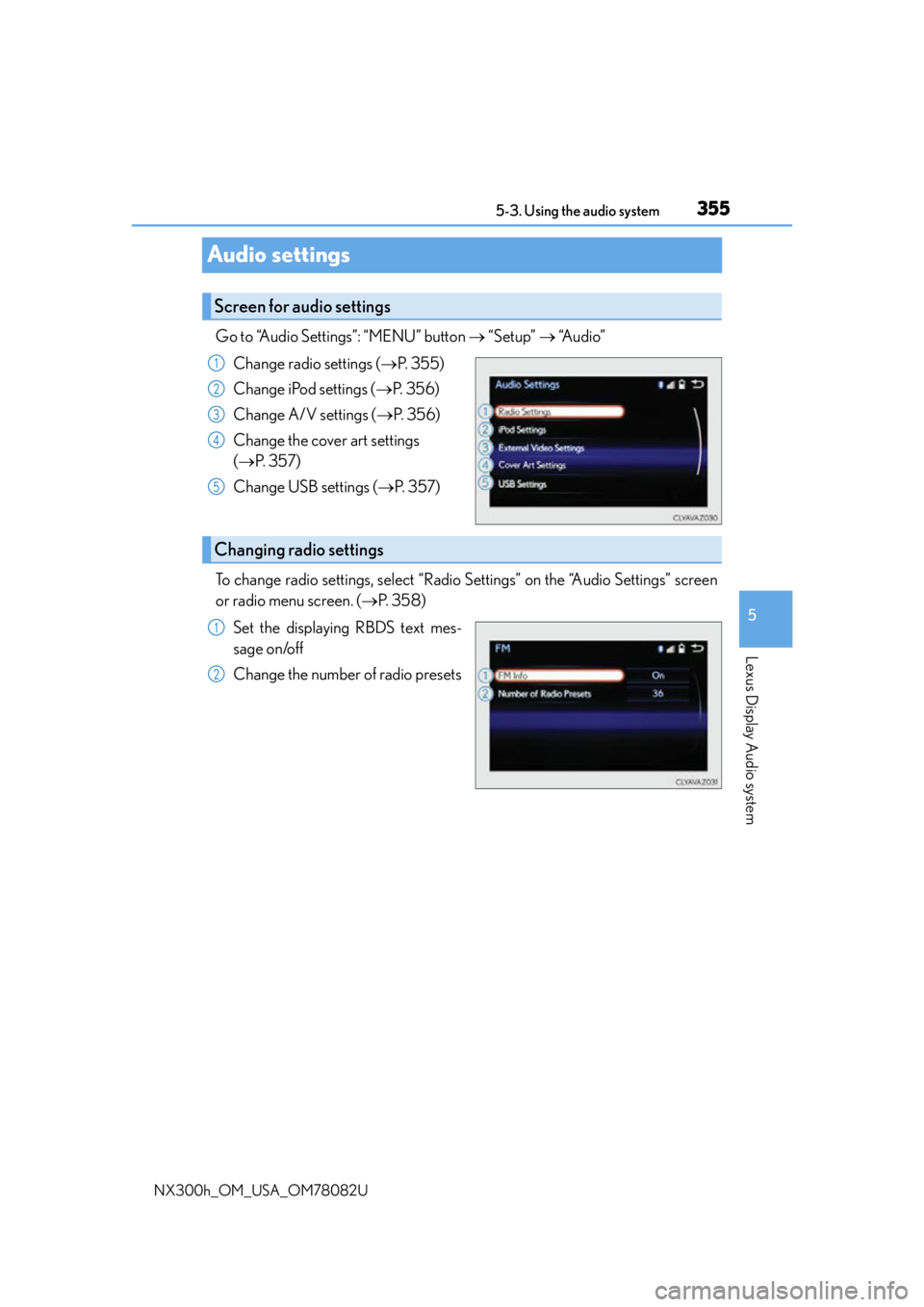

Audio settings
Go to “Audio Settings”: “MENU” button  “Setup”  “Audio”
Change radio settings ( P. 3 5 5 )
Change iPod settings ( P. 3 5 6 )
Change A/V settings ( P. 3 5 6 )
Change the cover art settings
( P. 3 5 7 )
Change USB settings ( P. 3 5 7 )
To change radio settings, select “Radio Settings” on the “Audio Settings” screen
or radio menu screen. ( P. 3 5 8 )
Set the displaying RBDS text mes-
sage on/off
Change the number of radio presets
Screen for audio settings
1
2
3
4
5
Changing radio settings
1
2

3575-3. Using the audio system
5
Lexus Display Audio system
NX300h_OM_USA_OM78082U
To change the cover art settings, select “Cover Art Settings” on the “Audio Set-
tings” screen, CD or MP3/WMA/AAC disc menu screen. (P. 3 5 8 )
Select to set the cover art display of
the DISC mode on/off.
Select to set the cover art display of
the USB mode on/off.
Change the priority of the
Gracenote database of the USB
mode.
Select to set the cover art display of
the iPod mode on/off.
Change the priority of the Gracenote database of the iPod mode.
To change USB settings, select “USB Settings” on the “Audio Settings” screen or
USB menu screen. ( P. 3 5 8 )
Change the cover art settings
( P. 3 5 7 )

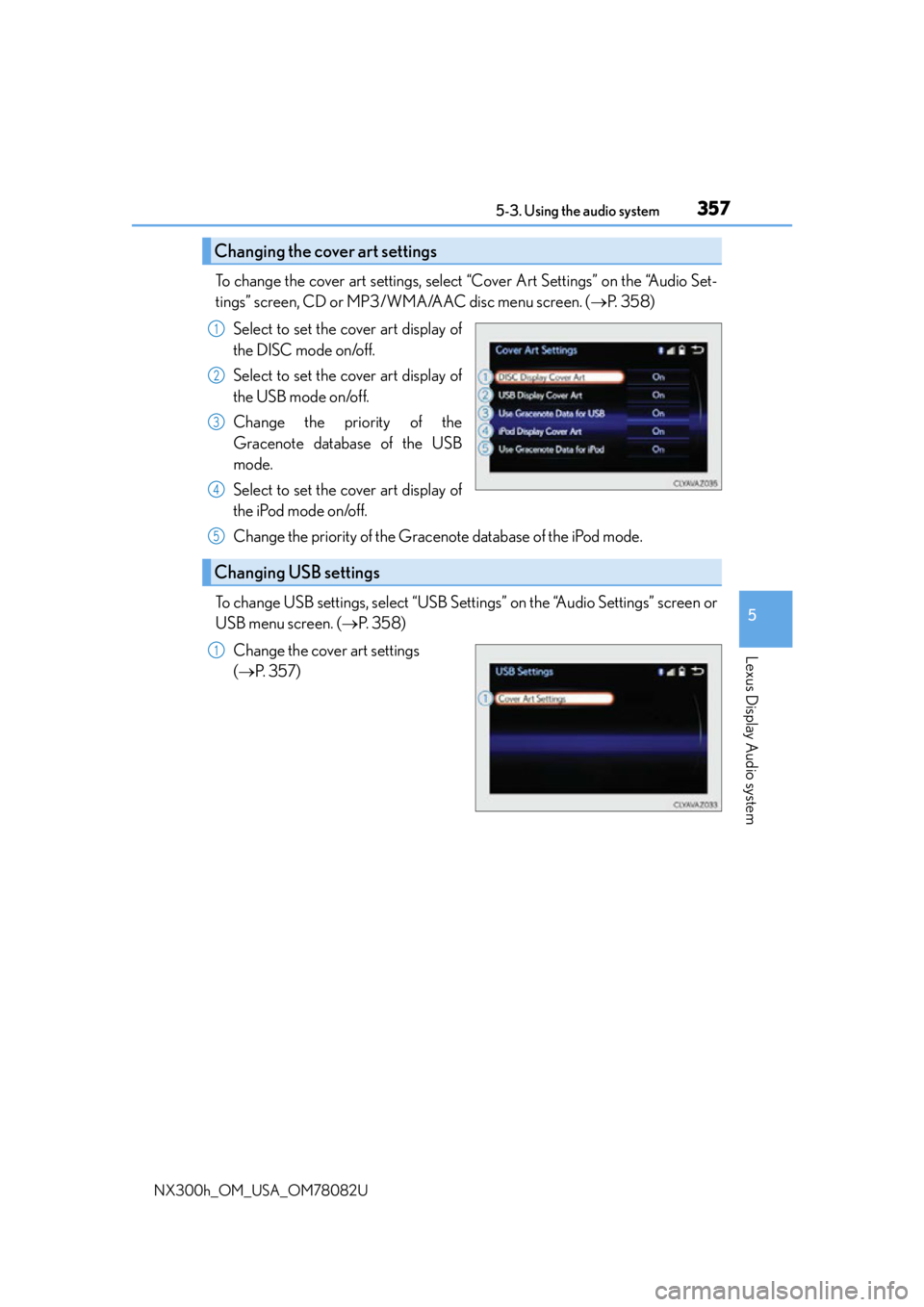

Changing the cover art settings
1
2
3
4
Changing USB settings
5
1

3585-3. Using the audio system
NX300h_OM_USA_OM78082U

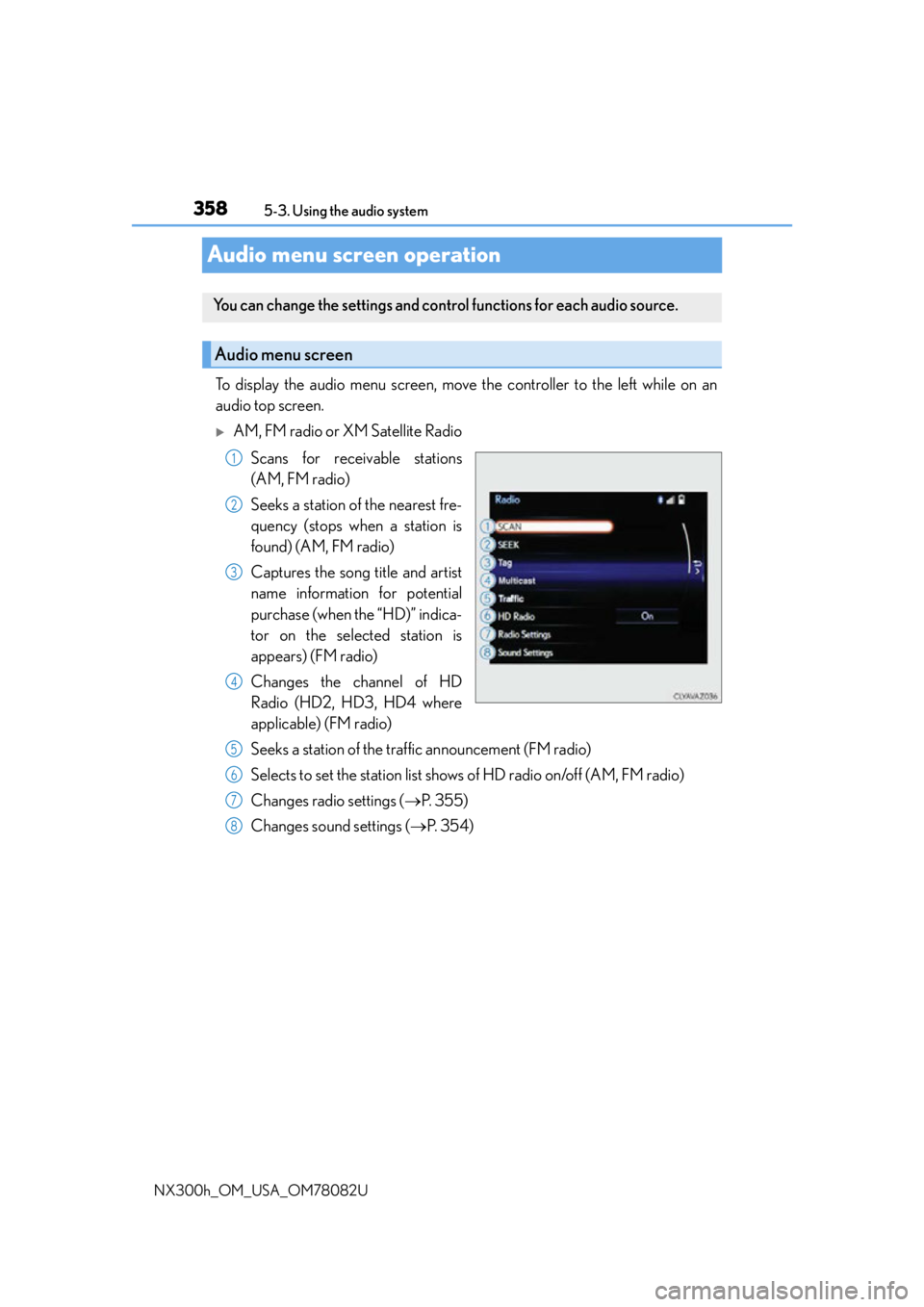

Audio menu screen operation
To display the audio menu screen, move the controller to the left while on an
audio top screen.
AM, FM radio or XM Satellite Radio Scans for receivable stations
(AM, FM radio)
Seeks a station of the nearest fre-
quency (stops when a station is
found) (AM, FM radio)
Captures the song title and artist
name information for potential
purchase (when the “HD)” indica-
tor on the selected station is
appears) (FM radio)
Changes the channel of HD
Radio (HD2, HD3, HD4 where
applicable) (FM radio)
Seeks a station of the traffic announcement (FM radio)
Selects to set the station list shows of HD radio on/off (AM, FM radio)
Changes radio settings ( P. 3 5 5 )
Changes sound settings ( P. 3 5 4 )
You can change the settings and contro l functions for each audio source.
Audio menu screen
1
2
3
4
5
6
7
8

3595-3. Using the audio system
5
Lexus Display Audio system
NX300h_OM_USA_OM78082U
CD, MP3/WMA/AAC disc, iPod, USB or Bluetooth®
Plays or pauses a track/file
Selects a track/file
Selects a folder/album (MP3/
WMA/AAC disc or USB)
Selects and hold: Fast-forward or
rewind a track/file
Selects a repeat mode.
(P. 3 6 0 )
Selects a random/shuffle play
mode. ( P. 3 6 0 )
Selects a full screen mode (iPod
video mode)
Changes iPod settings (iPod)
( P. 3 5 6 )
Changes USB settings (USB)
( P. 3 5 7 )
Connects a Bluetooth device (Bluetooth
®) ( P. 3 8 5 )
Changes the cover art settings (CD or MP3/WMA/AAC disc) ( P. 3 5 7 )
Changes sound settings ( P. 3 5 4 )
A/V
Selects full screen mode
Changes A/V settings
( P. 3 5 6 )
Changes sound settings
( P. 3 5 4 )
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3

3615-4. Using the radio
5
Lexus Display Audio system
NX300h_OM_USA_OM78082U
Radio operation
Pressing the “RADIO” button displays the radio top screen from any screen of
the selected source.
■Menu screen
P. 3 5 8
Tune in to the desired station us ing one of the following methods.
■Seek tuning
Press and hold then release “” or “ ” on the “PRST•TRACK” button.
Seek tuning can also be operated on the menu screen. ( P. 3 5 8 )
The radio will begin seeking up or down for a station of the nearest frequency
and will stop when a station is found.
■Manual tuning
Turn the “TUNE•SCROLL” knob.
■Preset stations
Select the desired preset station by pressing “ ” or “ ” on the “PRST•TRACK”
button or controller.
■Station list
Move the controller to the right and selecting “Station List”.
AM radio: Selecting a desired station.
FM radio: Selecting a desired type of station and selecting a desired sta-
tion.
To refreshing the station list, select “R efresh”. Select “Source” on the refresh
screen, can be change to the other audio source while refreshing.
Select “AM”, “FM” or “SAT” on the audio source selection screen to begin lis-
tening to the radio.
Radio top screen
Selecting a station (AM or FM radio)
1
2

3625-4. Using the radio
NX300h_OM_USA_OM78082U
When “HD Radio” is set to “On”, available stations with HD Radio channels are
marked with “HD)”. In AM or FM mode, select a station marked with “HD)”.
Turn the “TUNE•SCROLL” knob to select an HD Radio channel.
HD Radio channels can also be selected by selecting “Multicast” on the menu screen.
(  P. 3 5 8 )
Select in to the desired channel using one of the following methods.
■Tu r n i n g u p /d o w n t h e c h a n n e l
Press and hold “” or “ ” on the “PRST•TRACK” button or turn the
“TUNE•SCROLL” knob.
■Preset channels
Select the desired preset channel by pressing “ ” or “ ” on the
“PRST•TRACK” button or controller.
■Channel list
Move the controller to the right and selecting “Select a SAT Category”.
Selecting a desired category of chan nel and selecting a desired channel.
Search for desired stations or channel.
Select and hold one of the preset until you hear a beep.
■Display the song information
Move the controller to the right and selecting “Text”.
■Display the Additional information (AM, FM radio)
Move the controller to the right and selecting “Additional Information”.
Selecting an HD Radio channel
Selecting a channel (XM Satellite Radio)
Setting presets
Display the text message
1
2
1
2
1
2
