17Pictorial index
NX300h_OM_USA_OM78082U
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 326
To prevent freezing (windshield wiper de-icer) . . . . . . . . . . . . . . . . . . . . . . . . . .P. 436
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 236
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 236
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 608
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 516
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 613
Winter tires/tire chain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
Checking/rotation/tire pressure warning system . . . . . . . . . . . . . . . . . . . . . . . . P. 516
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 575
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Engine compartment cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 503
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 609
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 599
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 57 2
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
Parking lights/daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 212
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 21 9
Back-up light
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
4
5
6
7
Light bulbs of the exte rior lights for driving
(Replacing method: P. 538, Watts: P. 615)
*: If equipped
8
9
10
11
12
13
14
15

6099-1. Specifications
9
Vehicle specifications
NX300h_OM_USA_OM78082U
*: The engine oil capacity is a reference quantity to be used when changing the engineoil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity34 modules
Overall voltage244.8 V
Lubrication system
Oil capacity
(Drain and refill — reference
*)
With filter
Without filter4.6 qt. (4.4 L, 3.9 Imp.qt.)
4.2 qt. (4.0 L, 3.5 Imp.qt.)

6259-1. Specifications
9
Vehicle specifications
NX300h_OM_USA_OM78082U

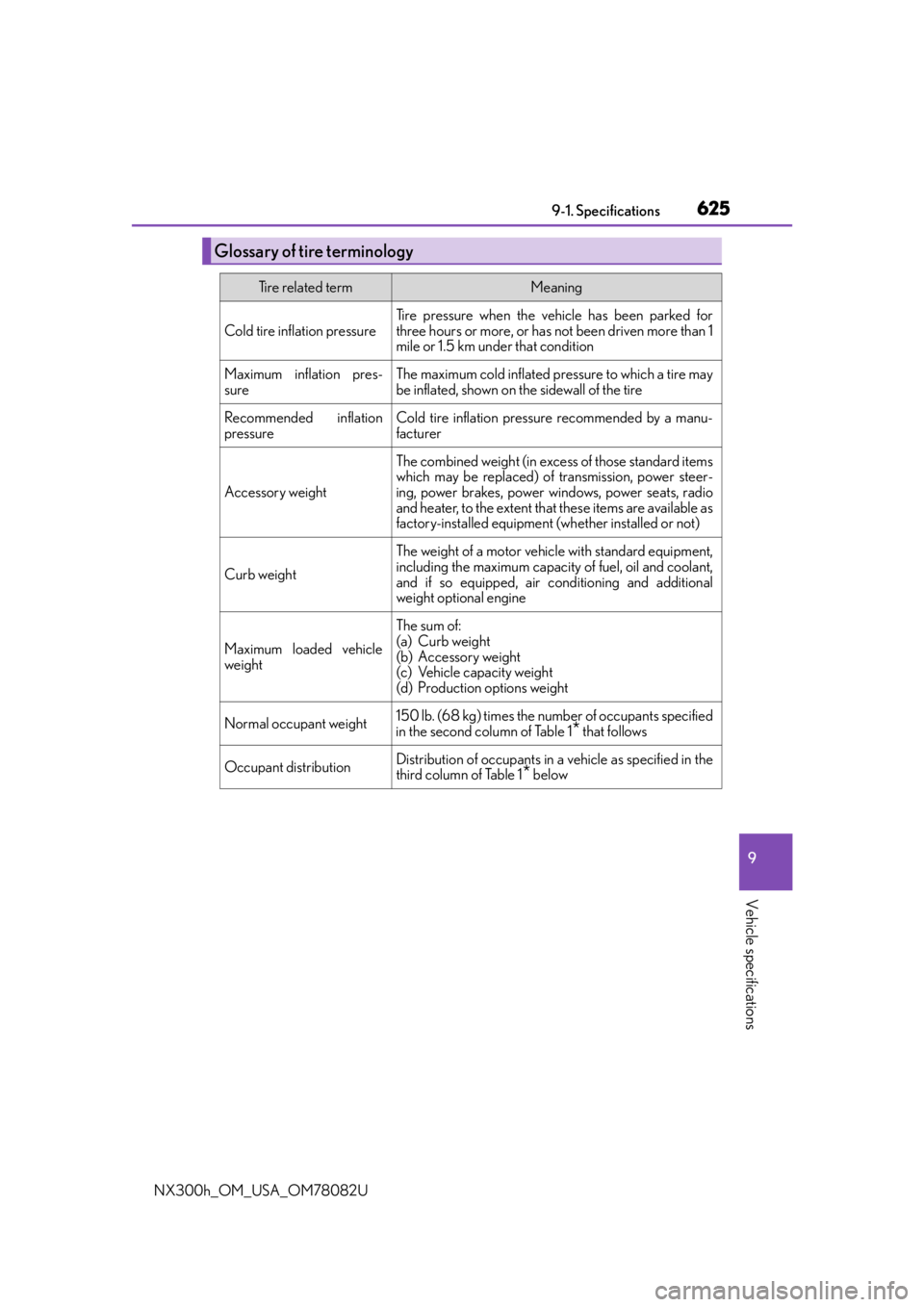

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of transmission, power steer-
ing, power brakes, power wi ndows, power seats, radio
and heater, to the extent that these items are available as
factory-installed equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air co nditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1* below

665Alphabetical index
NX300h_OM_USA_OM78082U
If you have a flat tire ..........................575
If you lose your keys ................ 120, 122
If you think something is wrong .................................................. 564
If your vehicle becomes stuck ..................................................... 603
If your vehicle has to be stopped in an
emergency.........................................557
If your vehicle needs to be towed................................................... 558
If your vehicle overheats ............... 599
Energy monitor ..........................................111
Engine Accessory mode................................202
Compartment ..................................... 502
Engine switch ........................................ 201
Hood ....................................................... 500
How to start the hybrid system ................................................... 201
Identification number ...................... 608
If your vehicle has to be stopped in an emergency ..........557
Ignition switch (power switch).................................. 201
Overheating ........................................ 599
Power switch......................................... 201 Engine compartment cover............. 503
Engine coolant
Capacity .................................................... 611
Checking .............................................. 508
Preparing and checking before winter .................................... 326
Warning light .......................................565
Engine coolant temperature gauge ......................................................... 97
Engine oil Capacity ................................................ 609
Checking ...............................................504
Warning light .......................................565
Engine oil maintenance data ........... 506
Engine switch ........................................... 201
EPS (Electronic Power Steering) Function ..................................................305
Warning light .......................................566
EV drive mode ...................................... 206
EV indicator ............................................... 79
Event data recorder (EDR).....................11

671Alphabetical index
NX300h_OM_USA_OM78082U
Odometer ...................................................97
OilEngine oil............................................... 609
Rear differential oil .............................. 612
Opener Back door ............................................... 130
Fuel filler door ......................................236
Hood ....................................................... 500
Outside rear view mirrors ..................163 Adjusting and folding........................ 163
Blind Spot Monitor (BSM)............. 316
Linked mirror function when reversing ................................. 164
Mirror position memory .................. 154
Outside rear view mirror defoggers ...........................................435
Outside temperature display ..............97
Overheating ........................................... 599 Panic mode ................................................ 119
Parking brake
Operation................................................ 213
Parking brake engaged warning buzzer/message ........... 215
Warning light .......................................566
Parking lights Light switch............................................. 219
Replacing light bulbs ....................... 552
PCS (Pre-Collision System) Function ................................................... 310
PCS switch ...............................................311
Warning light .......................................566
Warning message............................. 572
Personal lights ........................................443 Switch ...................................................... 444
Power back door opener and closer ....................................................... 129
Power control unit coolant Capacity .................................................... 611
Checking .............................................. 508
Preparing and checking before winter .................................... 326
Radiator ................................................. 509
OP
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

677Alphabetical index
NX300h_OM_USA_OM78082U
Warning buzzersApproach warning ............... 245, 259
Downshifting ......................................... 210
Intuitive parking assist ......................282
Light reminder .......................................221
Open door ............................................. 128
Seat belt reminder .............................567
Warning lights ABS .......................................................... 566
Brake hold operated indicator ............................................. 566
Brake Override System .................567
Brake system....................................... 565
Charging system............................... 565
Drive-Start Control...........................567
Electric power steering.................. 566
High coolant temperature............ 565
Low engine oil pressure ................ 565
Low fuel level .......................................567
Malfunction indicator lamp .......... 565
Master warning light.........................567
Parking brake indicator ................. 566
PCS warning light ............................ 566
Seat belt reminder light...................567
Slip indicator ........................................ 566
SRS ........................................................... 566
Tire pressure ........................................567 Warning messages...............................572
Washer
Checking .................................................. 511
Low washer fluid warning message.................. 511, 572
Preparing and checking before winter .................................... 326
Switch .......................................... 228, 234
Washing and waxing .......................... 484
Weights Cargo capacity........................ 182, 606
Load limits ..................................186, 606
Weights ................................................. 606
Wheels ..................................................... 528 Replacing wheels ..............................528
Size .............................................................613
Window glasses...................................... 166
Window lock switch.............................. 166
Windows Power windows....................................166
Rear window defogger .................. 435
Washer ....................................... 228, 234
Windshield wiper de-icer ................. 436
Windshield wipers Intermittent windshield wipers .... 228
Rain-sensing windshield wipers................................................... 230
Winter driving tips ................................326
Wireless charger.................................. 458
W

680
NX300h_OM_USA_OM78082UGAS STATION INFORMATION
*: Vehicles with a power back door
Auxiliary catch leverBack door opener switch*Fuel filler door
P. 5 0 0 P. 1 3 0 P. 2 3 7
Hood lock release leverTire inflation pressure
P. 5 0 0 P. 6 1 3
Fuel tank capacity
(Reference) 14.8 gal. (56 L, 12.3 Imp.gal.)
Fuel type
Unleaded gasoline only P. 608
Cold tire inflation
pressure P. 6 1 3
Engine oil capacity
(Drain and refill —
reference)With filter
Without filter 4.6 qt. (4.4 L, 3.9 Imp.qt.)
4.2 qt. (4.0 L, 3.5 Imp.qt.)
Engine oil type“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 6 1 0
