Page 20 of 460
20 Pictorial index
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■ Interior
SRS airbags................................................................................................................ P.32
Floor mats ....................................................................................................................P .24
Front seats .................................................................................................................P.1 28
Rear seats .................................................................................................................. P.1 29
Head restraints ........................................................................................................ P.137
Seat belts ..................................................................................................................... P.26
Console box............................................................................................................ P.282
Inside lock buttons ................................................................................................. P.108
Cup holders ............................................................................................................ P.282
Assist grips ............................................................................................................... P.29 7A
B
C
D
E
F
G
H
I
J
Page 55 of 460
551-1. For safe use
LEXUS NX300h Owners Manu-
al_USA_OM78212U 1
For safety and security
■
Child restraint LATCH anchors
LATCH anchors are provided for the
outboard rear seats. (Buttons display-
ing the location of the anchors are
attached to the seats.)
■
Installation with LATCH system
Install the child restraint system in
accordance to the operation manual WARNING■
When installing a child restraint sys-
tem
Observe the following precautions. Fail-
ure to do so may result in death or seri-
ous injury. ●
Do not allow children to play with the
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious inju-
ries that could result in death. If this
occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.●
Ensure that the belt and plate are
securely locked and the seat belt is not
twisted.●
Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.●
After securing a child restraint system,
never adjust the seat.●
When a booster seat is installed,
always ensure that th e shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
●
Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
●
When securing some types of child
restraint systems in rear seats, it may
not be possible to properly use the
seat belts in position s next to the child
restraint without inte rfering with it or
affecting seat belt effectiveness. Be
sure your seat belt fits snugly across
your shoulder and low on your hips. If it
does not, or if it interferes with the
child restraint, move to a different posi-
tion. Failure to do so may result in
death or serious injury. ●
When installing a child restraint system
in the rear center seat, adjust both
seatbacks at the same angle. Other-
wise, the child restraint system cannot
be securely restrained and this may
cause death or serious injuries in the
event of sudden braking, sudden
swerving or an accident. ■
When installing a booster seat
To prevent the belt from going into ALR
lock mode, do not fully extend the shoul-
der belt. ALR mode causes the belt to
tighten only. This could cause injury or
discomfort to the child. ( → P.28)■
Do not use a seat belt extender
If a seat belt extender is used when
installing a child restra int system, the seat
belt will not securely hold the child
restraint system, which could cause
death or serious injury to the child or
other passengers in the event of sudden
braking, sudden swerving or an accident.
Child restraint system fixed with
a child restraint LATCH anchor
Page 102 of 460
102 3-1. Key information
LEXUS NX300h Owners Manu-
al_USA_OM78212U 3-1.Key information
The following keys are provided with
the vehicle.
Electronic keys• Operating the smart access system with
push-button start ( →
P.122 )
• Operating the wireless remote control
function
Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)Operating the smart access system with
push-button start ( → P.122)
■
Card key (if equipped)
●
The mechanical key that is stored inside
the card key should be used only if a
problem arises, such as when the card
key does not operate properly. ●
If the battery cover is not installed and the
battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive terminal
facing the Lexus emblem.
●
The card key is not waterproof. ■
When riding in an aircraft
When bringing an electronic key onto an
aircraft, make sure you do not press any
buttons on the electronic key while inside
the aircraft cabin. If you are carrying an
electronic key in your bag, etc., ensure that
the buttons are not likely to be pressed acci-
dentally. Pressing a button may cause the
electronic key to em it radio waves that
could interfere with the operation of the air-
craft. ■
Electronic key battery depletion ●
The standard battery life is 1 to 2 years.
(The card key battery life is about a year
and a half.) ●
If the battery becomes low, an alarm will
sound in the cabin wh en the hybrid sys-
tem stops. ( → P.347)●
As the electronic key always receives
radio waves, the battery will become
depleted even if the electronic key is not
used. The following symptoms indicate
that the electronic key battery may be
depleted. Replace the battery when nec-
essary. ( → P.347)
• The smart access system with push-but-
ton start or the wireless remote control
does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface
does not turn on.
●
To avoid serious dete rioration, do not
leave the electronic key within 3 ft. (1 m)
of the following electrical appliances that
produce a magnetic field:Keys
Key types
A
B
C
D
Page 106 of 460
106 3-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_OM78212U 3-2.Opening, closing and locking the doors
■
Using the smart access system with
push-button start
Carry the electronic key to enable this
function.
1 Grip the driver’s door handle to
unlock the door. Grip any passen-
ger door handle to unlock all the
doors. *
Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked. *
: The door unlock settings can be
changed.
2 Touch the lock sensor (the indenta-
tion on the surface of the door han-
dle) to lock all the doors.Check that the door is securely locked. ■
Using the wireless remote control
1 Locks all the doors Check that the door is securely locked.
2 Unlocks all the doors Pressing the button unlocks the driver’s
door. Pressing the button again within 3
seconds unlocks the other doors.
Press and hold to open the windows and
moon roof *1, 2
*1
: If equipped *2
: This setting must be customized at your
Lexus dealer.
■
Switching the door unlock function
It is possible to set which doors the entry
function unlocks using the wireless remote
control.
1 Turn the power switch off.
2 When the indicator light on the key sur-
face is not on, press and hold ,
or for approximately 5
seconds while pre ssing and holding
.
The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step 2 .)Side doors The vehicle can be locked and
unlocked using the entry function,
wireless remote control or door
lock switch.
Unlocking and locking the doors
from the outside
Page 108 of 460
108 3-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
Door lock buzzer
If an attempt to lock the doors is made when
a door is not fully closed, a buzzer sounds
continuously for 5 seconds. Fully close the
door to stop the buzzer, and lock the vehi-
cle once more. ■
Setting the alarm
Locking the doors will set the alarm system.
( → P.71)■
Conditions affecting the operation of
the smart access system with push-but-
ton start or wireless remote control
→ P.123■
If the smart access system with push-
button start or the wireless remote con-
trol does not operate properly●
Use the mechanical key to lock and
unlock the doors. ( → P.387)●
Replace the key battery with a new one if
it is depleted. ( → P.347)■
Customization
Settings (e.g. unloc king function using a
key) can be changed. (Customizable fea-
tures: → P.419) ■
Using the door lock switch
1 Locks all the doors
2 Unlocks all the doorsWARNING■
To prevent an accident
Observe the following precautions while
driving the vehicle.
Failure to do so may result in a door
opening and an occupant falling out,
resulting in death or serious injury. ●
Ensure that all doors are properly
closed and locked.
●
Do not pull the inside handle of the
doors while driving.
Be especially care ful for the front
doors, as the door s may be opened
even if the inside lock buttons are in
locked position.
●
Set the rear door ch ild-protector locks
when children are seated in the rear
seats. ■
When opening or closing a door
Check the surroundings of the vehicle
such as whether the vehicle is on an
incline, whether there is enough space
for a door to open and whether a strong
wind is blowing. When opening or clos-
ing the door, hold the door handle tightly
to prepare for any unpredictable move-
ment. ■
When using the wire less remote con-
trol and operating the power windows
or moon roof (if equipped)
Operate the power window or moon
roof after checking to make sure that
there is no possibility of any passenger
having any of their body parts caught in
the window or moon roof. Also do not let
a child operate window by the mechani-
cal key. It is possible for children and
other passengers to get caught in the
power window or moon roof.
Unlocking and locking the doors
from the inside
Page 109 of 460
1093-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_OM78212U 3
Before driving ■
Using the inside lock buttons
1 Locks the door
2 Unlocks the door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position. ■
Rear door child-protector lock
The door cannot be opened from inside the
vehicle when the lock is set.
1 Unlock
2 Lock
These locks can be set to prevent children
from opening the rear doors. Push down on
each rear door switch to lock both rear
doors.
■
Automatic door locking and unlocking
systems
The following functions can be set or can-
celed:
For instructions on customizing, refer to
P.420. Function Operation
Speed linked door
locking function All doors are auto-
matically locked
when vehicle speed
is approximately 12
mph (20 km/h) or
higher.
Shift position linked
door locking func-
tion All doors are auto-
matically locked
when shifting the
shift lever out of P.
Shift position linked
door unlocking
function All doors are auto-
matically unlocked
when shifting the
shift lever to P.
Driver’s door linked
door unlocking
function All doors are auto-
matically unlocked
when driver’s door is
opened.
Page 123 of 460
1233-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_OM78212U 3
Before driving ■
When “Smart Access System Malfunc-
tion See Owner’s Manual” will be dis-
played on the multi-information display
The system may be ma lfunctioning. Have
the vehicle inspected by your Lexus dealer
immediately. ■
Battery-saving function
The battery-saving fu nction will be acti-
vated in order to prevent the electronic key
battery and the 12-volt battery from being
discharged while the vehicle is not in opera-
tion for a long time. ●
In the following situations, the smart
access system with pu sh-button start may
take some time to unlock the doors.
• The electronic key has been left in an
area of approximately 6 ft. (2 m) of the
outside of the vehicle for 10 minutes or
longer.
• The smart access system with push-but-
ton start has not been used for 5 days or
longer.
●
If the smart access system with push-but-
ton start has not been used for 14 days or
longer, the doors cannot be unlocked at
any doors except the driver’s door. In this
case, take hold of the driver’s door han-
dle, or use the wireless remote control or
the mechanical key, to unlock the doors.
■
Turning an electronic key to battery-
saving mode
When battery-saving mode is set, battery
depletion is minimized by stopping the elec- tronic key from receiving radio waves.
Press twice while pressing and
holding .
Confirm that the electronic key indicator
flashes 4 times. While the battery-saving
mode is set, the smart access system with
push-button start cannot be used. To cancel
the function, press any of the electronic key
buttons.
■
Conditions affecting operation
The smart access system with push-button
start, wireless remote control and immobi-
lizer system use weak radio waves. In the
following situations, the communication
between the electronic key and the vehicle
may be affected, preventing the smart
access system with push-button start, wire-
less remote control and immobilizer system
from operating properly. (Ways of coping:
→ P.387) ●
When the electronic key battery is
depleted ●
Near a TV tower, electric power plant,
gas station, radio stat ion, large display,
airport or other fac ility that generates
strong radio waves or electrical noise ●
When the electronic key is in contact
with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil
inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●
When other wireless keys (that emit radio
waves) are being used nearby
●
When carrying the electronic key
together with the following devices that Situation Correction proce-
dure
The power switch
was turned to
ACCESSORY
mode while the
driver’s door was
open (The driver’s
door was opened
when the power
switch was in
ACCESSORY
mode). Turn the power
switch off and close
the driver’s door.
Page 135 of 460
1353-3. Adjusting the seats
LEXUS NX300h Owners Manu-
al_USA_OM78212U 3
Before driving will be overwritten.
■
Seat positions that can be memorized
( → P.128)
The adjusted positions other than the posi-
tion adjusted by lumbar support switch can
be recorded. ■
In order to correctly use the driving
position memory function
If a seat position is already in the furthest
possible position and the seat is operated in
the same direction, the recorded position
may be slightly differen t when it is recalled.
1 Check that the shift lever is in P.
2 Turn the power switch to ON
mode. 3 Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
■
To stop the position recall operation
part-way through
Perform any of the following: ●
Press the “SET” button. ●
Press button “1”, “2” or “3”. ●
Operate any of the seat adjustment
switches (only cancels seat position
recall). ●
Operate the tilt and telescopic steering
control switch (onl y cancels steering
wheel position recall). ■
Operating the driving position memory
after turning the power switch off
Recorded seat positions can be activated
up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is
closed again.
■
Registering procedure
Record your driving position to button
“1”, “2” or “3” before performing the
following:
Carry only the key yo u want to register,
and then close the driver’s door.
If 2 or more keys are in the vehicle, the WARNING■
Seat adjustment caution
Take care during seat adjustment so that
the seat does not strike the rear passen-
ger or squeeze your body against the
steering wheel.
Recalling a driving position
Registering/canceling/recall a
driving position to an electronic
key (memory recall function)
Page 264 of 460
264 5-1. Remote Touch
LEXUS NX300h Owners Manu-
al_USA_OM78212U 5-1.Remote Touch
■
Switches
10.3-inch display model
“MAP” buttonPress this button to display the vehicle’s
current position.
8-inch display model
“HOME” buttonPress this button to display the “HOME”
screen.
“MENU” buttonPress this button to display the menu
screen.
Back buttonPress this button to display the previous
screen.
TouchpadSlide your finger on the touchpad and move the pointer to select a function, letter
and screen button.
Press the touchpad to enter the selected
function, letter or screen button. Certain
finger movements on the touchpad can
perform functions, su ch as changing map
scalings and scrolling list screens.
Sub function button When is displayed on the screen, a
function screen assigned to the screen can
be displayed. ■
Using the touchpad
1 Select: Touch the touchpad to
select the desired button on the
screen.
2 Enter: The buttons on the screen
can be selected by either depress-
ing or double tapping on the touch-
pad. Once a button has been
selected, the screen will change. ■
Touch operation
Operations are performed by touching
the touchpad with your finger.
Trace Trace the pad surface while maintaining
contact with the touch pad. Moving the

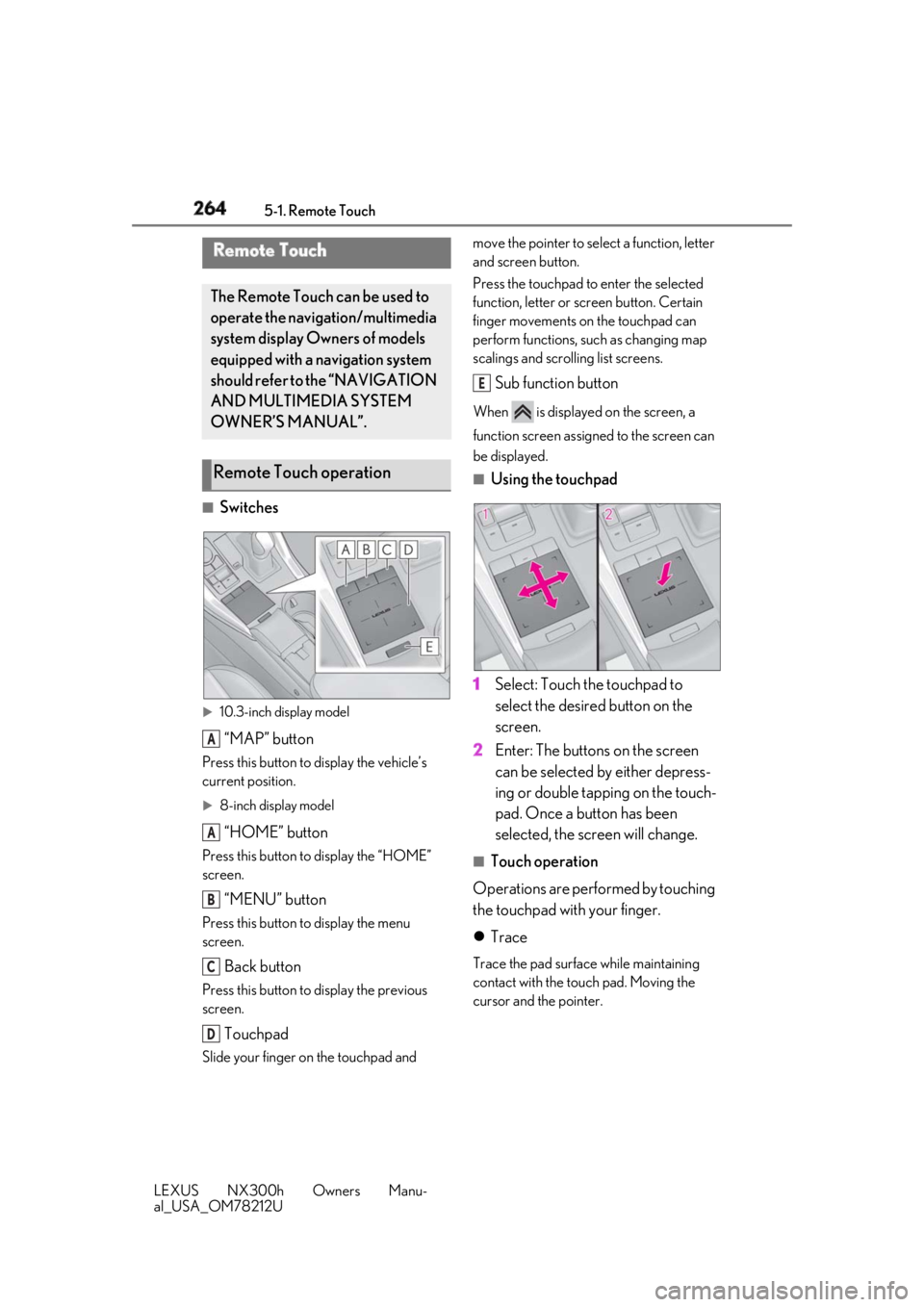

cursor and the pointer.Remote Touch The Remote Touch can be used to
operate the navigation/multimedia
system display Owners of models
equipped with a navigation system
should refer to the “NAVIGATION
AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Remote Touch operation
A
A
B
C
D E
Page 298 of 460

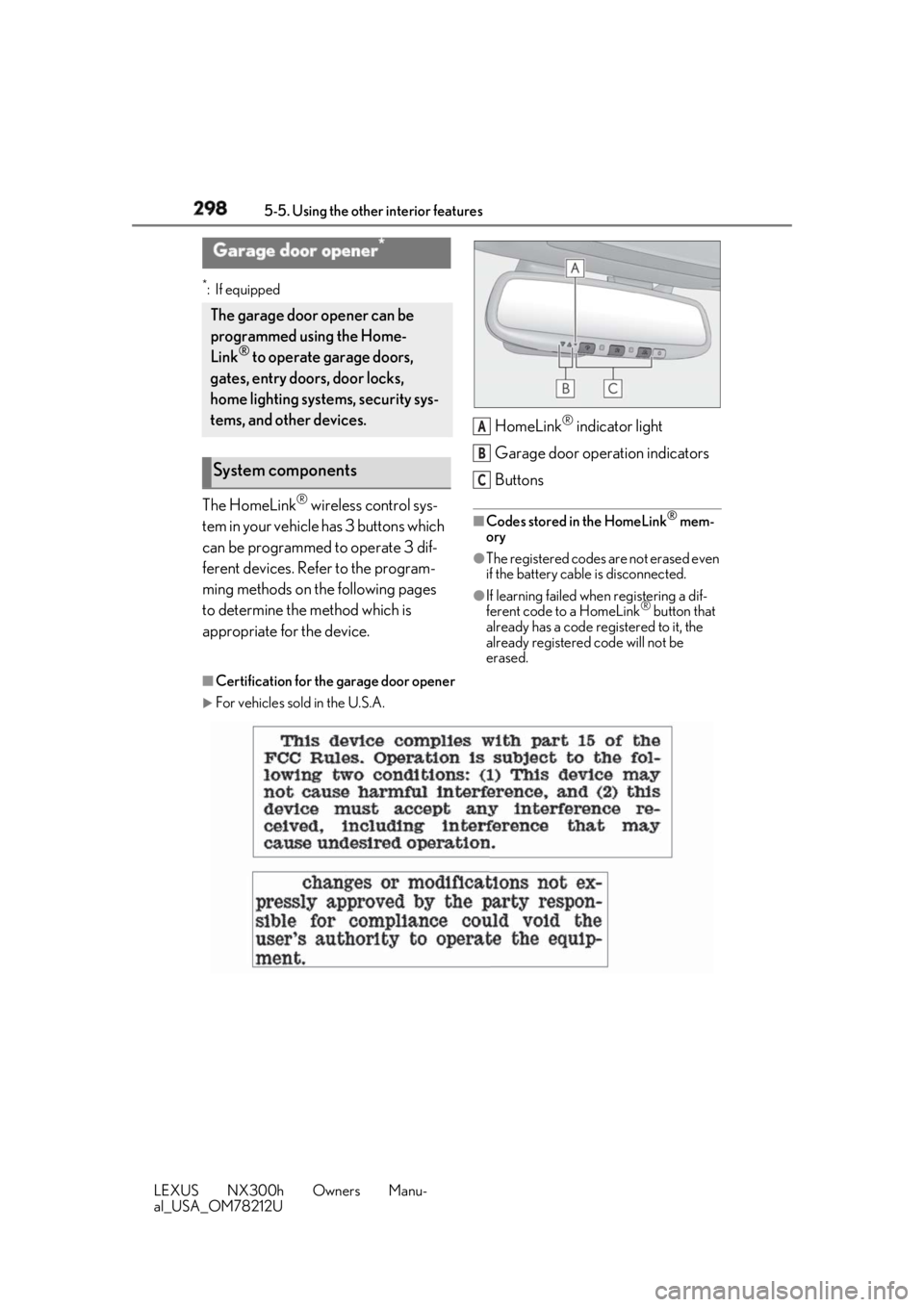

298 5-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U *
:If equipped
The HomeLink ®
wireless control sys-
tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device. HomeLink ®
indicator light
Garage door operation indicators
Buttons ■
Codes stored in the HomeLink ®
mem-
ory ●
The registered codes are not erased even
if the battery cable is disconnected.●
If learning failed when registering a dif-
ferent code to a HomeLink ®
button that
already has a code registered to it, the
already registered code will not be
erased.■
Certification for the garage door opener
For vehicles sold in the U.S.A.Garage door opener *
The garage door opener can be
programmed using the Home-
Link ®
to operate garage doors,
gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.
System components A
B
C
