rear view mirror LEXUS NX300h 2018 Owners Manual

2
LEXUS NX300h Owners Manu-
al_USA_OM78212U TABLE OF CONTENTS
For your information ...................................... 6
Reading this manual .................................... 10
How to search ................................................. 11
Pictorial index ................................................. 12
1-1. For safe use
Before driving .................................... 24
For safe driving.................................. 25
Seat belts ............................................. 26
SRS airbags ........................................ 32
Front passenger occupant classifi-
cation system ................................. 40
Safety information for children .. 46
Child restraint systems .................. 47
Exhaust gas precautions .............. 60
1-2. Hybrid system
Hybrid system features ................... 61
Hybrid system precautions ......... 64
1-3. Theft deterrent system
Immobilizer sy stem ........................ 69
Alarm...................................................... 71
2-1. Instrument cluster
Warning lights and indicators ..... 74
Gauges and meters ....................... 79
Multi-information display............. 85
Head-up display .............................. 90
Energy monitor/fuel consumption
screen ............................................... 94 3-1. Key information
Keys .................................................... 102
3-2. Opening, closing and locking the
doors
Side doors ........................................ 106
Back door.......................................... 110
Smart access system with push-but-
ton start ........................................... 122
3-3. Adjusting the seats
Front seats........................................ 128
Rear seats.......................................... 129
Driving position memory ............ 134
Head restraints ............................... 137
3-4. Adjusting the steering wheel and
mirrors
Steering wheel ............................... 139
Inside rear view mirror ............... 140
Outside rear view mirrors.......... 142
3-5. Opening, closing the windows and
moon roof
Power windows .............................. 144
Moon roof ........................................ 1461
For safety and security
2
Vehicle status information and
indicators 3
Before driving

12 Pictorial index
Pictorial index ■ Exterior
The shape of the headlights may differ depending on the grade, etc.
Side doors.................................................................................................................. P.1 06
Locking/unlocking ............................................................................................................ P. 106
Opening/closing the side windows ............................................................................P.144
Locking/unlocking by using th e mechanical key ................................................ P.387
Warning messages .......................................................................................................... P.374
Back door ................................................................................................................... P.1 10
Opening from inside the cabin *
..................................................................................... P.113
Opening from outside ................................................................................................ P.111, 113
Warning messages .......................................................................................................... P.374
Outside rear view mirrors.................................................................................... P.142
Adjusting the mirror angle ..............................................................................................P.142
Folding the mirrors ............................................................................................................ P.143
Driving position memory *
.............................................................................................. P.134
Defogging the mirrors .................................................................................................... P.269
Windshield wipers ..................................................................................................P.189 A
B
C
D

17Pictorial index
LEXUS NX300h Owners Manu-
al_USA_OM78212U Power window switches ........................................................................................ P.144
Window lock switch ............................................................................................... P.145
Outside rear view mirror switches .................................................................... P.142
Door lock switch..................................................................................................... P.108
Driving position memory switches *
................................................................... P.134
HUD (Head-up display) switches *
........................................................................ P.91
ASC (Active Sound Control) dial *
...................................................................... P.181*
:If equipped
Audio remote control switches *
Paddle shift switches .............................................................................................. P.175 A
B
C
D
E
F
G
A
B

21Pictorial index
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■ Ceiling
Inside rear view mirror ..........................................................................................P.140
Sun visors ................................................................................................................. P.28 8
Vanity mirrors ........................................................................................................ P.288
Interior light *2
.............................................................................................. P.278, 279
Personal lights......................................................................................................... P.279
Moon roof switches *1
............................................................................................. P.146
“SOS” button *1
........................................................................................................P.306
Garage door opener switches *1
....................................................................... P.298*1
: If equipped *2
: The illustration shows the front, but they are also equipped in the rear. A
B
C
D
E
F
G

26 1-1. For safe use
LEXUS NX300h Owners Manu-
al_USA_OM78212U the vehicle clearly, by adjusting the
inside and outside rear view mirrors
properly. ( → P.140, 142)
Seat belts Make sure that all occupants are
wearing their seat belts before driv-
ing the vehicle. WARNING
Observe the following precautions to
reduce the risk of in jury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or seri-
ous injury. ■
Wearing a seat belt ●
Ensure that all passengers wear a seat
belt. ●
Always wear a seat belt properly. ●
Each seat belt should be used by one
person only. Do not use a seat belt for
more than one person at once, includ-
ing children. ●
Lexus recommends that children be
seated in the rear seat and always use
a seat belt and/or an appropriate child
restraint system. ●
To achieve a proper seating position,
do not recline the seat more than nec-
essary. The seat belt is most effective
when the occupants are sitting up
straight and well ba ck in the seats.
●
Do not wear the shoulder belt under
your arm.
●
Always wear your seat belt low and
snug across your hips.

772-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2
Vehicle status information and indicators *1
: These lights turn on when the power
switch is turned to the ON mode to
indicate that a system check is being
performed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer. *2
: This light illuminates on the multi-infor-
mation display. *3
: The light flashes to indicate that the sys-
tem is operating. *4
: The light comes on when the system is
turned off. *5
: When the outside temperature is
approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10
seconds, then stay on. *6
: In order to confirm operation, the BSM
outside rear view mirror indicators illu-
minate in the following situations:
When the power switch is turned to
ON mode while the BSM main switch is
set to ON.
When the BSM main switch is set to
ON while the power switch is in ON
mode.
If the system is func tioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn
off, there may be a malfunction in the
system.
If this occurs, have the vehicle inspected (White)
LDA indicator *2
( → P.210)(Green)
LDA indicator *2
( → P.210)(Orange)
LDA indicator *2, 3
( → P.210)(if equipped)
Intuitive parking assist indica-
tor ( → P.227)(if equipped)
PKSB OFF indicator *1, 4

( → P.232)
Slip indicator light *1, 3
( → P.251)
VSC off indicator *1, 4
( → P.251)
PCS warning light *1, 4
( → P.205)
(U.S.A.)
Parking brake indicator
( → P.178)
(Canada)
Parking brake indicator
( → P.178)
Brake hold standby indicator *1

( → P.180)
Brake hold operated indica-
tor *1
( → P.180)
Low outside temperature
indicator *2, 5
( → P.79)
(if equipped)
BSM outside rear view mirror
indicators *6, 7
( → P.241)
Security indicator *8
( → P.69,
71) (U.S.A.)
“AIR BAG ON/OFF” indi-
cator *8
( → P.41)(Canada)
“AIR BAG ON/OFF” indi-
cator *7
( → P.41)

78 2-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U by your Lexus dealer. *7
: This light illuminates on the outside rear
view mirrors. *8
: This light illuminates on the center
panel.

101
LEXUS NX300h Owners Manu-
al_USA_OM78212U 3 3
Before driving Before driving3-1. Key information
Keys ................................................. 102
3-2. Opening, closing and locking the
doors
Side doors ..................................... 106
Back door ....................................... 110
Smart access system with push-
button start ................................. 122
3-3. Adjusting the seats
Front seats ..................................... 128
Rear seats ...................................... 129
Driving position memory ........ 134
Head restraints............................ 137
3-4. Adjusting the steering wheel and
mirrors
Steering wheel............................. 139
Inside rear view mirror............. 140
Outside rear view mirrors ...... 142
3-5. Opening, closing the windows
and moon roof
Power windows........................... 144
Moon roof ..................................... 146

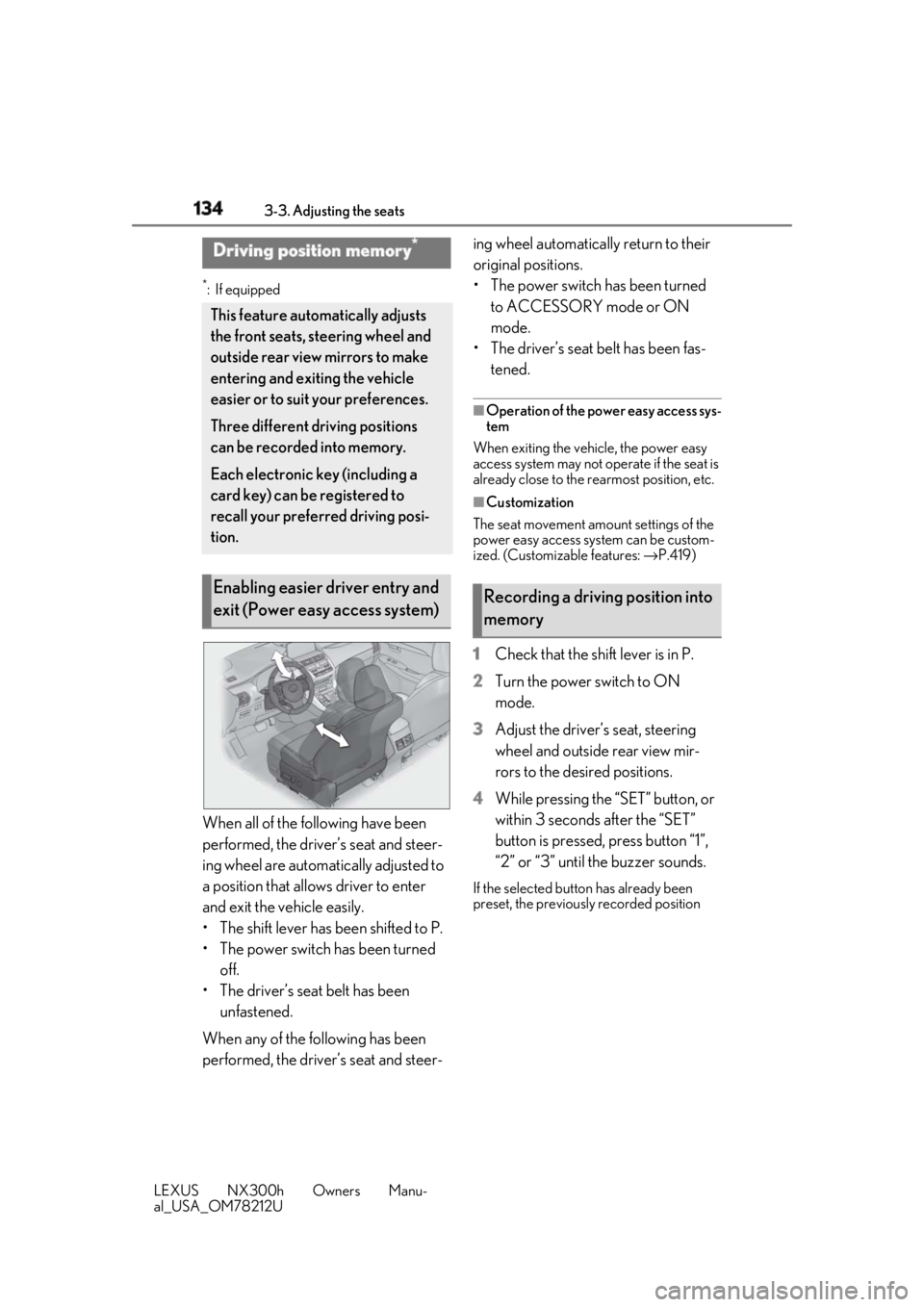

134 3-3. Adjusting the seats
LEXUS NX300h Owners Manu-
al_USA_OM78212U *
:If equipped
When all of the following have been
performed, the driver’s seat and steer-
ing wheel are automatically adjusted to
a position that allows driver to enter
and exit the vehicle easily.
• The shift lever has been shifted to P.
• The power switch has been turned
off.
• The driver’s seat belt has been
unfastened.
When any of the following has been
performed, the driver’s seat and steer- ing wheel automatically return to their
original positions.
• The power switch has been turned
to ACCESSORY mode or ON
mode.
• The driver’s seat belt has been fas-
tened. ■
Operation of the power easy access sys-
tem
When exiting the vehicle, the power easy
access system may not op erate if the seat is
already close to the rearmost position, etc. ■
Customization
The seat movement amou nt settings of the
power easy access system can be custom-
ized. (Customizable features: → P.419)
1 Check that the shift lever is in P.
2 Turn the power switch to ON
mode.
3 Adjust the driver’s seat, steering
wheel and outside rear view mir-
rors to the desired positions.
4 While pressing the “SET” button, or
within 3 seconds after the “SET”
button is pressed, press button “1”,
“2” or “3” until the buzzer sounds. If the selected button has already been
preset, the previously recorded position Driving position memory *
This feature auto matically adjusts
the front seats, steering wheel and
outside rear view mirrors to make
entering and exiting the vehicle
easier or to suit your preferences.
Three different driving positions
can be recorded into memory.
Each electronic key (including a
card key) can be registered to
recall your preferred driving posi-
tion.
Enabling easier driver entry and
exit (Power easy access system) Recording a driving position into
memory

136 3-3. Adjusting the seats
LEXUS NX300h Owners Manu-
al_USA_OM78212U driving position cannot be recorded
properly.
1 Check that the shift lever is in P.
2 Turn the power switch to ON
mode.
3 Recall the driving position that you
want to record.
4 While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds.If the button could not be registered, the
buzzer sounds continuously for approxi-
mately 3 seconds.
■
Cancelation procedure
1 Carry only the key you want to can-
cel and then close the driver’s door.
If 2 or more keys are in the vehicle,
the driving position cannot be can-
celed properly.
2 Turn the power switch to ON
mode.
3 While pressing the “SET” button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds twice.If it could not be canceled, the buzzer
sounds continuously for approximately 3
seconds. ■
Recall procedure
1 Make sure that the doors are
locked before recalling the driving
position. Carry the electronic key
that has been registered to the driv-
ing position, and then unlock and
open the driver’s door using the
smart access system with push-but-
ton start or wireless remote control. The driving position will move to the
recorded position (not including the steer-
ing wheel). However, th e seat will move to
a position slightly behind the recorded
position in order to make entering the vehi-
cle easier.
If the driving position is in a position that
has already been recorded, the seat and
outside rear view mirrors will not move.
2 Turn the power switch to ACCES-
SORY mode or ON mode, or fas-
ten a seat belt. The seat and steering wheel will move to
the recorded position.
■
Recalling the driving position using the
memory recall function ●
Different driving positions can be regis-
tered for each electronic key. Therefore,
the driving position that is recalled may
be different depending on the key being
carried. ●
If a door other than the driver’s door is
unlocked with the smart access system
with push-button start, the driving posi-
tion cannot be recalled. In this case, press
the driving position button which has
been set.
■
Customization
The unlock door sett ings of the memory
recall function can be customized. (Cus-
tomizable features: → P.419)
