wiper fluid LEXUS NX300h 2018 Owners Manual

15Pictorial index
LEXUS NX300h Owners Manu-
al_USA_OM78212U When the warning messages are displayed.......................................................... P.374
Turn signal lever ...................................................................................................... P.176
Headlight switch......................................................................................................P.183
Headlights/parking lights/tail lights/license plate lights/
daytime running lights
............................................................................................................................... .................... P.183
Fog lights ..................................................................................................................... .......... P.189
Windshield wiper and washer switch ...................................................... P.189, 194
Usage.......................................................................................................................... .. P.189, 194
Adding washer fluid ......................................................................................................... P.3 32
Warning messages .......................................................................................................... P.374
Emergency flasher switch .................................................................................. P.358
Hood lock release lever ...................................................................................... P.325
Tilt and telescopic steering control switch *1
................................................... P.139
Adjustment ..................................................................................................................... ...... P.139
Driving position memory *1
............................................................................................. P.134
Tilt and telescopic steeri ng lock release lever *1
............................................ P.139
Adjustment ..................................................................................................................... ...... P.139
Air conditioning system .......................................................................................P.268
Usage.......................................................................................................................... ........... P.268
Rear window defogger................................................................................................... P.269
Audio system *2
*1
: If equipped *2
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”. E
F
G
H
I
J
K
L

1934-3. Operating the lights and wipers
LEXUS NX300h Owners Manu-
al_USA_OM78212U 4
Driving strikes the windshield, or if bugs, etc. are
present on the windshield.
●
If the wiper switch is turned to the
“AUTO” position while the power switch
is in ON mode, the wipers will operate
once to show that AUTO mode is acti-
vated.●
If the temperature of the raindrop sensor
is 194°F (90°C) or higher, or 5°F (-15°C)
or lower, automatic operation may not
occur. In this case, operate the wipers in
any mode other than AUTO mode.■
If no windshield washer fluid sprays
Check that the washer nozzles are not
blocked, if there is washer fluid in the
washer fluid tank.
WARNING■
Caution regarding the use of wind-
shield wipers in AUTO mode (vehi-
cles with rain-sen sing windshield
wipers)
The windshield wipers may operate
unexpectedly if the sensor is touched or
the windshield is subject to vibration in
AUTO mode. Take care that your fingers,
etc. do not become caught in the wind-
shield wipers.
■
Caution regarding the use of washer
fluid
When it is cold, do not use the washer
fluid until the windshield becomes warm.
The fluid may freeze on the windshield
and cause low visibility. This may lead to
an accident, resulting in death or serious
injury. NOTICE■
When the windshield is dry
Do not use the wipers, as they may dam-
age the windshield. ■
When the washer fluid tank is empty
Do not operate the switch continually as
the washer fluid pump may overheat. ■
When a nozzle becomes blocked
In this case, contact your Lexus dealer.
Do not try to clear it with a pin or other
object. The nozzle will be damaged. ■
To prevent 12-volt battery discharge
Do not leave the wipers on longer than
necessary when the hy brid system is off.

1954-3. Operating the lights and wipers
LEXUS NX300h Owners Manu-
al_USA_OM78212U 4
Driving NOTICE■
When the rear window is dry
Do not use the wiper, as it may damage
the rear window. ■
When the washer fluid tank is empty
Do not operate the switch continually as
the washer fluid pump may overheat. ■
When a nozzle becomes blocked
In this case, contact your Lexus dealer.
Do not try to clear it with a pin or other
object. The nozzle will be damaged. ■
To prevent 12-volt battery discharge
Do not leave the wipers on longer than
necessary when the hy brid system is off.

2574-6. Driving tips
LEXUS NX300h Owners Manu-
al_USA_OM78212U 4
Driving  Use fluids that are appropriate to
the prevailing outside temperatures. •Engine oil
• Engine/power control unit coolant
•Washer fluid
 Have a service technician inspect
the condition of the 12-volt battery.
 Have the vehicle fitted with four
snow tires or purchase a set of tire
chains for the front tires *
.Ensure that all tires are the same size and
brand, and that chains match the size of the
tires. *
: Tire chains cannot be mounted on the
225/60R18 tires.
Perform the following according to the
driving conditions:
 Do not try to forcibly open a window
or move a wiper that is frozen. Pour
warm water over the frozen area to
melt the ice. Wipe away the water Winter driving tips Carry out the necessary prepara-
tions and inspections before driving
the vehicle in winter. Always drive
the vehicle in a manner appropriate
to the prevailing weather condi-
tions.
Preparation for winter
WARNING
■
Driving with snow tires
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in a loss of
vehicle control and cause death or seri-
ous injury.
●
Use tires of the specified size.
●
Maintain the recommended level of air
pressure. ●
Do not drive in excess of 75 mph (120
km/h), regardless of the type of snow
tires being used. ●
Use snow tires on all, not just some
wheels. ■
Driving with tire chains
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in the vehicle
being unable to be driven safely, and may
cause death or serious injury. ●
Do not drive in excess of the speed
limit specified for the tire chains being
used, or 30 mph (50 km/h), which-
ever is lower. ●
Avoid driving on bumpy road surfaces
or over potholes. ●
Avoid sudden acceleration, abrupt
steering, sudden br aking and shifting
operations that cause sudden engine
braking. ●
Slow down sufficiently before entering
a curve to ensure that vehicle control is
maintained.
NOTICE■
Repairing or replacing snow tires
Request repairs or replacement of snow
tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attach-
ment of snow tires affects the operation
of the tire pressure warning valves and
transmitters.
Before driving the vehicle

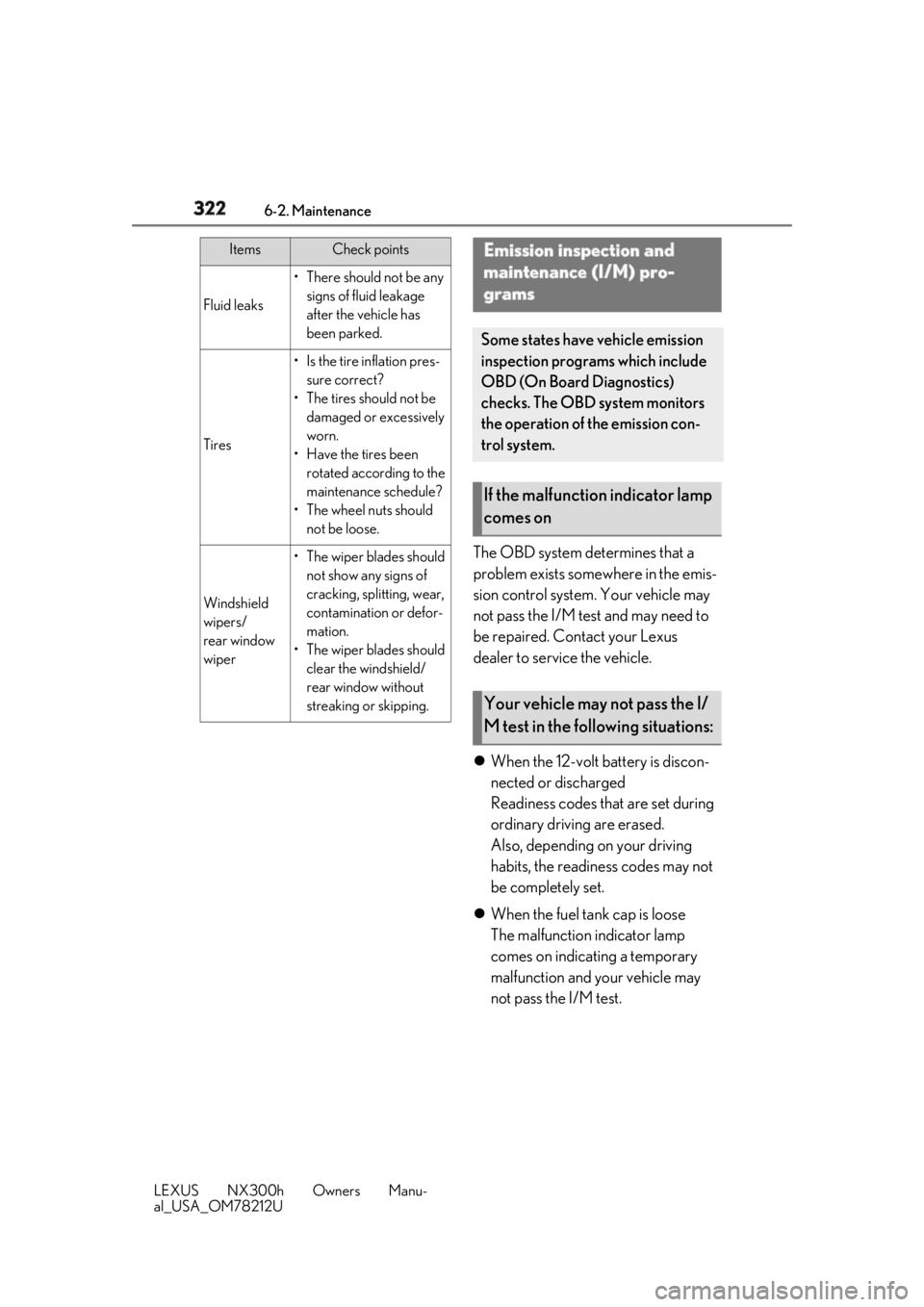

322 6-2. Maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.
 When the 12-volt battery is discon-
nected or discharged
Readiness codes that are set during
ordinary driving are erased.
Also, depending on your driving
habits, the readiness codes may not
be completely set.
 When the fuel tank cap is loose
The malfunction indicator lamp
comes on indicating a temporary
malfunction and your vehicle may
not pass the I/M test.Fluid leaks • There should not be any
signs of fluid leakage
after the vehicle has
been parked.
Tires • Is the tire inflation pres-
sure correct?
• The tires should not be
damaged or excessively
worn.
• Have the tires been
rotated according to the
maintenance schedule?
• The wheel nuts should
not be loose.
Windshield
wipers/
rear window
wiper •The wiper blades should
not show any signs of
cracking, splitting, wear,
contamination or defor-
mation.
•The wiper blades should
clear the windshield/
rear window without
streaking or skipping.Items Check points
Emission inspection and
maintenance (I/M) pro-
grams Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.
If the malfunction indicator lamp
comes on
Your vehicle may not pass the I/
M test in the following situations:
