3216-2. Maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
6
Maintenance and care

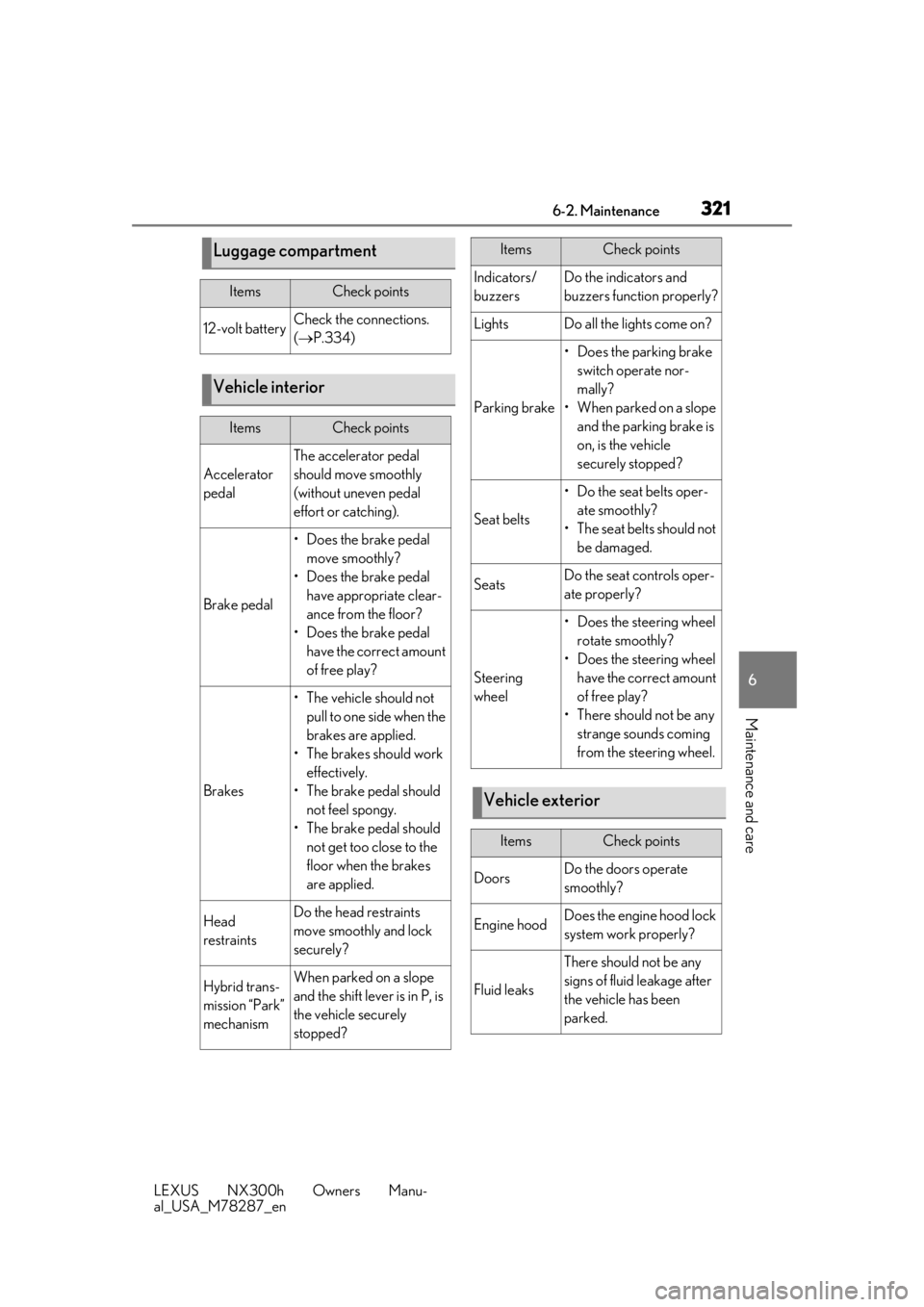

Luggage compartment
ItemsCheck points
12-volt batteryCheck the connections.
(  P.334)
Vehicle interior
ItemsCheck points
Accelerator
pedal
The accelerator pedal
should move smoothly
(without uneven pedal
effort or catching).
Brake pedal
• Does the brake pedal
move smoothly?
• Does the brake pedal have appropriate clear-
ance from the floor?
• Does the brake pedal have the correct amount
of free play?
Brakes
•The vehicle should not pull to one side when the
brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close to the
floor when the brakes
are applied.
Head
restraintsDo the head restraints
move smoothly and lock
securely?
Hybrid trans-
mission “Park”
mechanismWhen parked on a slope
and the shift lever is in P, is
the vehicle securely
stopped?
Indicators/
buzzersDo the indicators and
buzzers function properly?
LightsDo all the lights come on?
Parking brake
• Does the parking brake switch operate nor-
mally?
• When parked on a slope and the parking brake is
on, is the vehicle
securely stopped?
Seat belts
• Do the seat belts oper-ate smoothly?
• The seat belts should not be damaged.
SeatsDo the seat controls oper-
ate properly?
Steering
wheel
• Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct amount
of free play?
• There should not be any strange sounds coming
from the steering wheel.
Vehicle exterior
ItemsCheck points
DoorsDo the doors operate
smoothly?
Engine hoodDoes the engine hood lock
system work properly?
Fluid leaks
There should not be any
signs of fluid leakage after
the vehicle has been
parked.
ItemsCheck points

3336-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
6
Maintenance and care
■Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
■Adding fluid
Make sure to check the fluid type and
prepare the necessary item.
 Fluid type
FMVSS No.116 DOT 3 or SAE J1703;
FMVSS No.116 DOT 4 or SAE J1704
brake fluid
Items
Clean funnel
■Brake fluid can absorb moisture from
the air
Excess moisture in the brake fluid can cause a dangerous loss of braking efficiency. Use
only newly opened brake fluid.
If none of the washer do not work or
the “Windshield Washer Fluid Low” on
the multi-information display, the
washer tank may be empty. Add
washer fluid.
WARNING
■When the electric cooling fans are
operating
Do not touch the engine compartment.
With the power switch in ON mode, the
electric cooling fans may automatically
start to run if the air conditioning is on
and/or the coolant temperature is high.
Be sure the power switch is off when
working near the electric cooling fans or
radiator grille.
Checking and adding the brake
fluid
WARNING
■When filling the reservoir
Take care as brake fluid can harm your
hands and eyes and damage painted sur-
faces.
If fluid gets on your hands or in your eyes,
flush the affected area with clean water
immediately.
If you still experience discomfort, see a
doctor.
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go
down slightly as the brake pads wear out
or when the fluid leve l in the accumulator
is high.
If the reservoir need s frequent refilling,
there may be a serious problem.
Checking and adding the washer
fluid

3566-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
Before replacing, check the wattage of
the light bulb to be replaced.
( P.409)
■Front side marker lights (bulb type)
1 Turn the bulb base counterclock-
wise.
2 Remove the light bulb.
3 When installing, reverse the steps
listed.
■Front turn signal lights (bulb type)
1 Open the hood and remove the
cover for engine compartment
cover. ( P.326, 329)
2 Remove the cover.
Push the center of the clip and remove the clip and cover .
3
Turn the bulb base counterclock-
wise.
4 Remove the light bulb.
5 Replace the light bulb.
Replacing light bulbs
A
B

3576-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
6
Maintenance and care
6 Turn clockwise and set the bulb
base.
7 Attach the clip to the cover.
Push up on the center of the clip and attach
the clip .
Clip
8 Attach the cover.
Align the 2 tabs positions and close the
cover and fix the cover by pushing the
center of the clip .
9Install the engine compartment
cover. ( P.329)
A
A
A
B
WARNING
■Replacing light bulbs
●Be sure to stop the hybrid system and
turn off the lights. Do not attempt to
replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may
cause burns.
●Do not touch the glass portion of the
light bulb with bare hands. When it is
unavoidable to hold the glass portion,
use and hold with a clean dry cloth to
avoid getting moisture and oils on the
bulb.
Also, if the bulb is scratched or
dropped, it may blow out or crack.
●Fully install light bulbs and any parts
used to secure them. Failure to do so
may result in heat damage, fire, or
water entering the he adlight unit. This
may damage the headlights or cause
condensation to build up on the lens.
●Do not attempt to repair or disassem-
ble light bulbs, connectors, electric cir-
cuits or component parts.
Doing so may result in death or serious
injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and
locked.
●Check the wattage of the bulb before
installing to prevent heat damage.

3857-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_M78287_en
7
When trouble arises
4 Lower the vehicle.
5 Firmly tighten each wheel nut two
or three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
6Stow the flat tire, tire jack and all
tools.
■The compact spare tire
●The compact spare tire is identified by the
label “TEMPORARY USE ONLY” on
the tire sidewall.
Use the compact spare tire temporarily,
and only in an emergency.
●Make sure to check the tire inflation pres-
sure of the compact spare tire. ( P.408)
■After completing the tire change
The tire pressure warning system must be
reset. ( P.343)
■When using the compact spare tire
As the compact spare tire is not equipped
with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare
tire will not be indicated by the tire pressure warning system. Also, if you replace the
compact spare tire afte
r the tire pressure
warning light comes on, the light remains
on.
■When the compact spare tire is
equipped
The vehicle becomes lower when driving
with the compact spare tire compared to
when driving with standard tires.
■If you have a flat front tire on a road cov-
ered with snow or ice
Install the compact spare tire on one of the
rear wheels of the vehicle. Perform the fol-
lowing steps and fit tire chains to the front
tires:
1 Replace a rear tire with the compact
spare tire.
2 Replace the flat front tire with the tire
removed from the rear of the vehicle.
3 Fit tire chains to the front tires.
WARNING
■When using the compact spare tire
●Remember that the sp are tire provided
is specifically designed for use with
your vehicle. Do not use your spare
tire on another vehicle.
●Do not use more than one spare tire
simultaneously.
●Replace the spare tire with a standard
tire as soon as possible.
●Avoid sudden acceleration, abrupt
steering, sudden br aking and shifting
operations that cause sudden engine
braking.

450Alphabetical Index
LEXUS NX300h Owners Manu-
al_USA_M78287_en
Emergency, in case of If a warning buzzer sounds .................. 367
If a warning light turns on ...................... 367
If a warning message is displayed..... 376
If the 12-volt battery is discharged .... 392
If the electronic key does not operate properly.......................................................389
If the fuel filler door cannot be opened .........................................................................389
If the hybrid system will not start ........ 387
If you have a flat tire .................................. 379
If you lose your keys................................ 388
If you think something is wrong .........365
If your vehicle becomes stuck.............399
If your vehicle has to be stopped in an
emergency ................................................360
If your vehicle needs to be towed ..... 362
If your vehicle overheats ........................396
Energy monitor ............................................... 93
Engine Accessory mode .........................................170
Compartment ............................................. 328
Engine switch................................................ 168
Hood................................................................ 326
How to start the hybrid system ........... 168
Identification number ...............................403
If your vehicle has to be stopped in an
emergency ................................................360
Ignition switch (power switch) ............. 168
Overheating.................................................396
Power switch ................................................ 168
Engine compartment cover .................... 329
Engine coolant Capacity .........................................................405
Checking .........................................................331
Preparing and checking before winter......................................................................... 256
Warning light ...............................................368
Engine coolant temperature gauge ........79 Engine oil
Capacity ........................................................ 404
Checking .......................................................329
Warning light .............................................. 368
Engine switch ................................................. 168
EPS (Electronic Power Steering) Function .......................................................... 249
Warning light .............................................. 369
EV drive mode................................................. 171
EV indicator ...................................................... 62
Event data recorder (E DR) ............................7
F
Flat tire ............................................................. 379
Tire pressure warning system .............339
Floor mats .......................................................... 24
Fluid Brake ................................................................407
Transmission................................................ 406
Washer ...........................................................333
Fog lights Replacing light bulbs ............................... 355
Switch................................................................188
Front passenger occupant classification system ................................................................ 41
Front passenger’s seat belt reminder light ............................................................................ 371
Front seat heaters.........................................274
Front seats ........................................................126 Adjustment ......................................................126
Cleaning .......................................................... 315
Correct driving posture ............................ 25
Driving position memory .........................132
Head restraints............................................. 135
Power easy access system .....................132
Seat heaters .................................................. 274
Seat position memory ...............................132

454Alphabetical Index
LEXUS NX300h Owners Manu-
al_USA_M78287_en
O
Odometer ..........................................................79
Oil Engine oil .......................................................404
Rear differential oil .................................... 407
Opener Back door........................................................... 111
Fuel filler door............................................... 195
Hood................................................................ 326
Outside rear view mirrors ........................ 140 Adjusting and folding ............................... 140
Blind Spot Monitor (BSM) ..................... 241
Linked mirror functi on when reversing
.......................................................................... 140
Mirror position memory........................... 132
Outside rear view mirror defoggers 267
Outside temperature display .....................79
Overheating .................................................. 396
P
Paddle shift switches .................................... 175
Panic mode ......................................................102
Parking brake Operation........................................................ 177
Parking brake engaged warning buzzer/message ........................................................178
Warning light ................................................. 371
Parking lights Light switch .....................................................182
Replacing light bulb..................................355
Parking Support Brake function (for static objects) ......................................................... 232Indicator ....................................................75, 76
Warning light ............................................... 370
Warning messages .................................. 238 PCS (Pre-Collision System)
Function ..........................................................202
PCS switch....................................................204
Warning light .............................................. 369
Warning message ..................................... 376
Personal lights................................................276 Switch............................................................... 277
PKSA (Parking Support Alert) .............. 226
Power back door opener and closer .......111
Power control unit coolant Capacity ........................................................ 405
Checking ........................................................ 331
Preparing and checking before winter..........................................................................256
Radiator .......................................................... 332
Power easy access system ........................132
Power outlets ................................................ 287
Power steering (Electric Power Steering system) .......................................................... 249Warning light .............................................. 369
Power switch .................................................. 168
Power windows Door lock linked window operation ..143
Jam protection function ............................142
Operation ........................................................142
Window lock switch...................................143
Pre-Collision System (PCS) Function ..........................................................202
PCS switch....................................................204
Warning light .............................................. 369
Warning message ..................................... 376
