3TABLE OF CONTENTS
LEXUS NX300h Owners Manu-
al_USA_M78287_en
1
2
3
4
5
6
7
8
9
4-1. Before driving Driving the vehicle ........................ 150
Cargo and luggage ...................... 155
Vehicle load limits ......................... 158
Trailer towing (vehicles with towing package) ........................................ 159
Trailer towing (vehicles without towing package) ......................... 167
Dinghy towing ................................ 167
4-2. Driving procedures Power (ignition) switch ............... 168
EV drive mode ................................ 171
Hybrid transmission ..................... 173
Turn signal lever............................. 176
Parking brake ................................. 177
Brake Hold....................................... 179
ASC (Active Sound Control) ... 181
4-3. Operating the lights and wipers Headlight switch ............................ 182
Automatic High Beam ................ 185
Fog light switch .............................. 188
Windshield wipers and washer 188
Rear window wiper and washer ............................................................ 193
4-4. Refueling Opening the fuel tank cap......... 1954-5. Using the driving support systems
Lexus Safety System+ ................. 197
PCS (Pre-Collision System) ... 202
LDA (Lane Departure Alert with steering control) ........................ 209
Dynamic radar cruise control with full-speed range........................... 217
PKSA (Parking Support Alert) 226
Intuitive parking assist ................. 227
Parking Support Brake function (for static objects)............................... 232
BSM (Blind Spot Monitor) ......... 241
Driving mode select switch ..... 248
Driving assist systems ................ 249
4-6. Driving tips Hybrid vehicle driving tips ....... 254
Winter driving tips ....................... 256
Utility vehicle precautions........ 258
5-1. Remote Touch Remote Touch................................ 262
5-2. Using the air conditioning system and defogger
Automatic air conditioning system.......................................................... 266
Heated steering wheel/seat heat- ers/seat ventilators................... 273
5-3. Using the interior lights Interior lights list ........................... 276
5-4. Using the storage features List of storage features .............. 279
Luggage compartment features .......................................................... 282
4Driving
5Interior features
Page 4 of 460
4TABLE OF CONTENTS
LEXUS NX300h Owners Manu-
al_USA_M78287_en
5-5. Using the other interior featuresOther interior features .............. 286
Garage door opener.................. 296
Compass........................................... 301
Lexus Enform Safety Connect 304
Lexus Enform Remote ............... 309
Lexus Enform Service Connect ............................................................ 310
6-1. Maintenance and care Cleaning and protecting the vehi-cle exterior .................................... 312
Cleaning and protecting the vehi- cle interior ..................................... 315
6-2. Maintenance Maintenance requirements ...... 319
General maintenance ................ 320
Emission inspection and mainte- nance (I/M) programs ............ 322
6-3. Do-it-yourself maintenance Do-it-yourself service precautions........................................................... 324
Hood.................................................. 326
Positioning a floor jack............... 326
Engine compartment.................. 328
12-volt battery................................ 334
Tires ................................................... 337
Tire inflation pressure ................. 345
Wheels.............................................. 346
Air conditioning filter..................348
Electronic key battery ................ 349
Checking and replacing fuses . 351
Headlight aim................................. 353
Light bulbs ....................................... 3557-1. Essential information
Emergency flashers .................... 360
If your vehicle has to be stopped in an emergency ............................ 360
7-2. Steps to take in an emergency If your vehicle needs to be towed.......................................................... 362
If you think something is wrong .......................................................... 365
If a warning light turns on or a warn- ing buzzer sounds..................... 367
If a warning messa ge is displayed
.......................................................... 376
If you have a flat tire .................... 379
If the hybrid syst em will not start
.......................................................... 387
If you lose your keys.................... 388
If the fuel filler door cannot be opened .......................................... 389
If the electronic key does not oper- ate properly ................................. 389
If the 12-volt battery is discharged .......................................................... 392
If your vehicle overheats ........... 396
If the vehicle becomes stuck ... 399
8-1. Specifications Maintenance data (fuel, oil level, etc.) ................................................. 40
2
Fuel information............................. 410
Tire information .............................. 412
6Maintenance and care
7When trouble arises
8Vehicle specifications
Page 14 of 460
14Pictorial index
LEXUS NX300h Owners Manu-
al_USA_M78287_en
■ Instrument panel
Power switch ............................................................................................................ P.168
Starting the hybrid system/changing the mo des........................................ P.168, 170
Emergency stop of the hybrid system ......................................................................P.360
When the hybrid system will not start ...................................................................... P.387
Warning messages .......................................................................................................... P.376
Shift lever................................................................................................................... P .173
Changing the shift position .............................................................................................P.173
Precautions against towing........................................................................................... P.362
When the shift lever does not move ...........................................................................P.174
Meters ......................................................................................................................... .P.79
Reading the meters/adjusting the instrume nt panel light...........................P.79, 83
Warning lights/indicator lights ...................................................................................... P.74
When the warning lights come on ............................................................................. P.367
Multi-information display ...................................................................................... P.84
Display ........................................................................................................................ .............. P.84
Energy monitor ..................................................................................................................... P.93A
B
C
D
Page 30 of 460
301-1. For safe use
LEXUS NX300h Owners Manu-
al_USA_M78287_en
1To release the hooked buckle, push
the buckle release button .
2 Insert the mechanical key
(P.100) or plate B into the notch
of buckle and remove the belt.
Retract the belt slowly when releasing and
stowing the seat belt.
Mechanical key
Plate B
Buckle
3 Stow in the cover in the order of
plate B and then plate A.
In order to securely fix it, firmly insert it to the back.
Plate A
Plate B
4 Stow the seat belt buckle in the
pockets.
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sud-
den stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy
motion will allow the belt to extend so that
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is com-
pletely extended and then retracted even
slightly, the belt is lock ed in that position and
Releasing and stowing the seat
belt (for the rear center seat)
A
A
B
C
A
B
Page 37 of 460
371-1. For safe use
LEXUS NX300h Owners Manu-
al_USA_M78287_en
1
For safety and security
WARNING
■SRS airbag precautions
Observe the following precautions
regarding the SRS airbags.
Failure to do so may cause death or seri-
ous injury.
●The driver and all passengers in the
vehicle must wear their seat belts
properly.
The SRS airbags are supplemental
devices to be used with the seat belts.
●The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if the
driver is very close to the airbag. The
National Highway Traffic Safety
Administration (NHTSA) advises:
Since the risk zone for the driver’s air-
bag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250
mm) from your driver airbag provides
you with a clear margin of safety. This
distance is measured from the center
of the steering wheel to your breast-
bone. If you sit less than 10 in. (250
mm) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many
drivers can achieve the 10 in. (250
mm) distance, even with the driver seat
all the way forward, simply by reclining
the back of the seat somewhat. If
reclining the back of your seat makes it
hard to see the road, raise yourself by
using a firm, non-slippery cushion, or
raise the seat if your vehicle has that
feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag
toward your chest instead of your head
and neck.
The seat should be adjusted as recom-
mended by NHTSA above, while still
maintaining control of the foot pedals,
steering wheel, and your view of the
instrument panel controls.
Page 38 of 460
381-1. For safe use
LEXUS NX300h Owners Manu-
al_USA_M78287_en
WARNING
●If the seat belt extender has been con-
nected to the front seat belt buckles
but the seat belt extender has not also
been fastened to the latch plate of the
seat belt, the SRS front airbags will
judge that the driver and front passen-
ger are wearing the seat belt even
though the seat belt has not been con-
nected. In this case, the SRS front air-
bags may not activate correctly in a
collision, resulting in death or serious
injury in the event of a collision. Be
sure to wear the seat belt with the seat
belt extender.
●The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury
especially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the air-
bag as possible with the seatback
adjusted, so the front passenger sits
upright.
●Improperly seated and/or restrained
infants and children can be killed or
seriously injured by a deploying airbag.
An infant or child who is too small to
use a seat belt should be properly
secured using a child restraint system.
Lexus strongly recommends that all
infants and children be placed in the
rear seats of the vehicle and properly
restrained. The rear seats are safer for
infants and children than the front pas-
senger seat. ( P.47)
●Do not sit on the edge of the seat or
lean against the dashboard.
●Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
●Do not allow the front seat occupants
to hold items on their knees.
●Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
●Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehi-
cle.
Page 54 of 460
541-1. For safe use
LEXUS NX300h Owners Manu-
al_USA_M78287_en

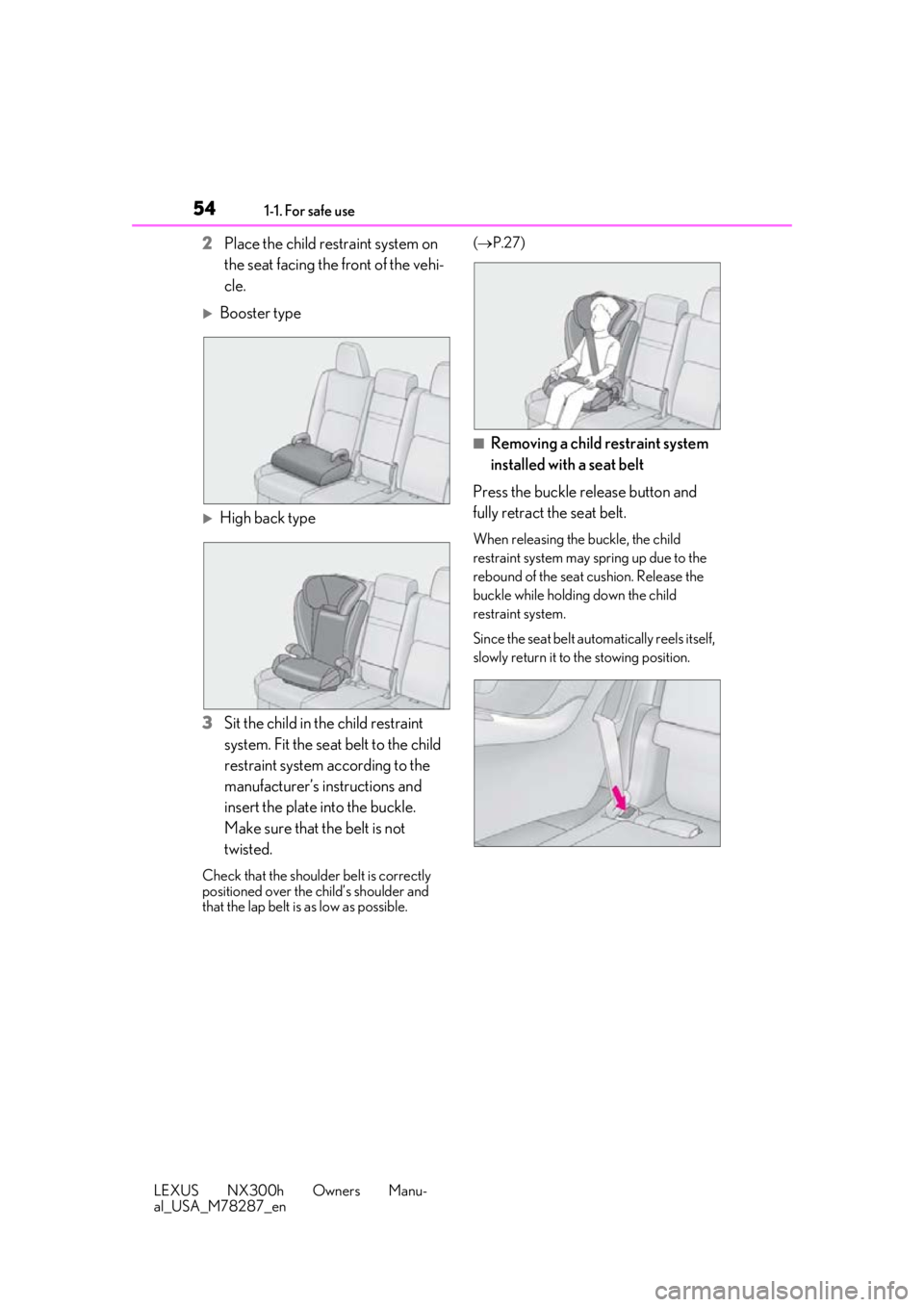

2Place the child restraint system on
the seat facing the front of the vehi-
cle.
Booster type
High back type
3 Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer’s in structions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is correctly
positioned over the child’s shoulder and
that the lap belt is as low as possible. (
P.27)
■Removing a child restraint system
installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may sp ring up due to the
rebound of the seat cushion. Release the
buckle while holding down the child
restraint system.
Since the seat belt auto matically reels itself,
slowly return it to the stowing position.
Page 66 of 460
661-2. Hybrid system
LEXUS NX300h Owners Manu-
al_USA_M78287_en
The cooling air intake and discharge
vents for the hybrid battery (traction
battery) are located under the rear
seats and between the rear seats and
deck board, respectively. If the air
intake vents are blocked, it could lead
to a reduction in hybrid battery (trac-
tion battery) output.
The hybrid battery (traction battery) out-
put will not be reduced, even if the space
between the upper part of the air dis-
charge vents on the back of the rear seat
and deck board is blocked with luggage,
etc.
WARNING
●If your vehicle needs to be towed, do
so with four wheels raised. If the
wheels connected to the electric
motor (traction motor) are on the
ground when towing, the motor may
continue to generate electricity. This
may cause a fire. ( P.362)
●Carefully inspect the ground under the
vehicle. If you find that liquid has
leaked onto the ground, the fuel sys-
tem may have been damaged. Leave
the vehicle as soon as possible.
■Hybrid battery (traction battery)
●Never resell, hand over or modify the
hybrid battery. To prevent accidents,
hybrid batteries that have been
removed from a disposed vehicle are
collected through Lexus dealers. Do
not dispose of the battery yourself.
Unless the battery is properly collected,
the following may occur, resulting in
death or serious injury:
• The hybrid battery may be illegally dis- posed of or dumped, and it is hazard-
ous to the environment or someone
may touch a high voltage part, result-
ing in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid vehi-
cle. If the hybrid battery is used outside
of your vehicle or modified in any way,
accidents such as electric shock, heat
generation, smoke generation, an
explosion and electrolyte leakage may
occur.
When reselling or handing over your
vehicle, the possibility of an accident is
extremely high because the person
receiving the vehicle may not be aware
of these dangers.
●If your vehicle is disposed of without
the hybrid battery having been
removed, there is a danger of serious
electric shock if hi gh voltage parts,
cables and their connectors are
touched. In the event that your vehicle
must be disposed of, the hybrid battery
must be disposed of by your Lexus
dealer or a qualified service shop. If
the hybrid battery is not disposed of
properly, it may cause electric shock
that can result in death or serious
injury.
NOTICE
■Hybrid battery (traction battery)
Do not carry large amounts of water
such as water cooler bottles in the vehi-
cle. If water spills onto the hybrid battery
(traction battery), the battery may be
damaged.
Have the vehicle inspected by your
Lexus dealer.
Hybrid battery (traction bat-
tery) air intake and discharge
vents
Page 114 of 460
1143-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_M78287_en
■Situations in which the kick sensor may
operate unintentionally (vehicles with
hands free power back door)
In the following situations, the kick sensor
may operate unintentionally.
To prevent unintentional operation, keep
the electronic key ou t of the operational
range or disable the kick sensor operation.
●When water is applied to the lower cen-
ter part of the rear bu mper, such as in the
rain or in a car wash
●When dirt is wiped off the lower center
part of the rear bumper
●When a metal object is brought near the
lower center part of the rear bumper
●When a vehicle cover is installed or
removed
●When pets or other moving things sud-
denly enter the area below the rear
bumper
●When attempting to remove an object
from below the lower center part of the
rear bumper
●When attempting to remove snow, etc.
from below the lower center part of the
rear bumper
■Situations in which the kick sensor does
not operate properly (vehicles with
hands free power back door)
If the kick sensor does not operate in the
following situations, use the back door
opener switch or powe r back door switch
or wireless remote control to open the
power back door. ( P.111)
●When the rear bumper is subjected to
strong impact
●When an external radio wave source
interferes with the communication
between the vehicle and electronic key
( P.121)
●When a large amount of water is kept
applying to the lower center part of the
rear bumper, such as in heavy rain
●When the vehicle is being washed and
water is kept applying to lower center
part of the rear bumper
●When the lower center part of the rear bumper is covered with mud, snow, ice,
etc.
●When a metal object, etc., such as a tow-
ing hitch is installed
near the lower center
part of the rear bumper
●When the vehicle has been parked for a
while near objects that may move and
contact the lower center part of the rear
bumper, such as grass or trees
●When the vehicle is parked at an area
where an electric field is generated, such
as a road with an electric snow melting
system or parking meters
■When reconnecting the 12-volt battery
To enable the power back door to operate
properly, close the back door manually.
■Jam protection function
Sensors are installed in the right and left
sides of the power back door. When the
door is automatically closing and the sen-
sors are pushed due to an object being
clamped, etc., the jam protection function
operates.
From that position the door automatically
moves a little in the opposite direction and
then the function stops.
■If the back door opener is inoperative
The back door can be unlocked from the
inside.
1 Remove the cover.
To protect the cover, place a rag between
the flathead screwdri ver and the cover as
shown in the illustration.
Page 121 of 460
1213-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_M78287_en
3
Before driving
■When “Smart Access System Malfunc-
tion See Owner’s Manual” will be dis-
played on the multi-information display
The system may be malfunctioning. Have
the vehicle inspected by your Lexus dealer
immediately.
■Battery-saving function
The battery-saving fu nction will be acti-
vated in order to prevent the electronic key
battery and the 12-volt battery from being
discharged while the vehicle is not in opera-
tion for a long time.
●In the following situations, the smart
access system with pu sh-button start may
take some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of the
outside of the vehicle for 10 minutes or
longer.
• The smart access system with push-but- ton start has not been used for 5 days or
longer.
●If the smart access system with push-but-
ton start has not been used for 14 days or
longer, the doors cannot be unlocked at
any doors except the driver’s door. In this
case, take hold of the driver’s door han-
dle, or use the wireless remote control or
the mechanical key, to unlock the doors.
■Turning an electronic key to battery-
saving mode
When battery-saving mode is set, battery
depletion is minimized by stopping the elec- tronic key from receiving radio waves.
Press twice while pressing and
holding .
Confirm that the electronic key indicator
flashes 4 times. While the battery-saving
mode is set, the smart access system with
push-button start cannot
be used. To cancel
the function, press any of the electronic key
buttons.
■Conditions affecting operation
The smart access system with push-button
start, wireless remote control and immobi-
lizer system use weak radio waves. In the
following situations, the communication
between the electronic key and the vehicle
may be affected, preventing the smart
access system with push-button start, wire-
less remote control and immobilizer system
from operating properly. (Ways of coping:
P.389)
●When the electronic key battery is
depleted
●Near a TV tower, electric power plant,
gas station, radio stat ion, large display,
airport or other fac ility that generates
strong radio waves or electrical noise
●When the electronic key is in contact
with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio
waves) are being used nearby
●When carrying the electronic key
together with the following devices that
SituationCorrection proce-
dure
The power switch was turned to
ACCESSORY mode while the
driver’s door was
open (The driver’s door was opened when the power switch was in
ACCESSORY mode).
Turn the power
switch off and close the driver’s door.
