NOTICE
●The vehicle will make abnormal
sounds or vibrations.
●The vehicle will lean abnormally.
Information on what to do in case of a flat
tire ( P.400)
■When encountering flooded roads
Do not drive on a road that has flooded
after heavy rain, etc. Doing so may cause
the following serious damage to the vehi-
cle:
●Engine stalling
●Short in electrical components
●Engine damage caused by water
immersion
In the event that you drive on a flooded
road and the vehicle is flooded, be sure
to have your Lexus dealer check the fol-
lowing:
●Brake function
●Changes in quantity and quality of oil
and fluid used for the engine, hybrid
transmission, etc.
●Lubricant condition for the bearings
and suspension joints (where possi-
ble), and the function of all joints, bear-
ings, etc.
■When parking the vehicle
Always set the parking brake, and shift
the shift lever to P. Failure to do so may
cause the vehicle to move or the vehicle
may accelerate sudden ly if the accelera-
tor pedal is accidentally depressed.
Cargo and luggage
Take notice of the following infor-
mation about storage precautions,
cargo capacity and load.
WARNING
■Things that must not be carried in the
luggage compartment
The following things may cause a fire if
loaded in the luggage compartment:
●Receptacles containing gasoline
●Aerosol cans
■Storage precautions
Observe the following precautions.
Failure to do so may prevent the pedals
from being depressed properly, may
block the driver’s vision, or may result in
items hitting the driver or passengers,
possibly causing an accident.
●Stow cargo and luggage in the lug-
gage compartment whenever possi-
ble.
●Do not stack cargo and luggage in the
luggage compartment higher than the
seatbacks.
●When you fold down the rear seats,
long items should not be placed
directly behind the front seats.
●Never allow anyone to ride in the lug-
gage compartment. It is not designed
for passengers. They should ride in
their seats with thei r seat belts prop-
erly fastened.
●Do not place cargo or luggage in or on
the following locations.
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
•On the luggage cover
• On the instrument panel
•On the dashboard

1624-1. Before driving
LEXUS NX300h Owners Manual_USA_M78530_en
Cargo capacity depends on the total
weight of the occupants.(Cargo capacity) = (Total load capac-
ity) — (Total weight of occupants)
Steps for Determining Correct Load
Limit

(1) Locate the statement “The com-
bined weight of occupants and cargo
should never exceed XXX kg or XXX
lbs.” on your vehicle’s placard.
(2) Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.
(3) Subtract the combined weight of
the driver and passengers from XXX
kg or XXX lbs.
(4) The resulting figure equals the
available amount of cargo and luggage
load capacity.
For example, if the “XXX” amount
equals 1400 lbs. and there will be five
150 lb passengers in your vehicle, the
amount of available cargo and luggage
load capacity is 650 lbs. (1400 − 750
(5 × 150) = 650 lbs.)
(5) Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not safely
exceed the available cargo and lug-
gage load capacity calculated in Step
4.
(6) If your vehicle will be towing a
trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and lug-
gage load capacity of your vehicle.
( P.164)
Vehicles without towing package:
Lexus does not recommend towing a
WARNING
●Secure all items in the occupant com-
partment.
■When using a roof luggage carrier
(vehicles with roof rails)
Observe the following precautions:
●Place the cargo so that its weight is dis-
tributed evenly between the front and
rear axles.
●If loading long or wide cargo, never
exceed the vehicle overall length or
width. ( P.422)
●Before driving, make sure the cargo is
securely fastened on the roof luggage
carrier.
●Loading cargo on the roof luggage
carrier will make the center of gravity
of the vehicle higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneuvers,
otherwise it may result in loss of con-
trol or vehicle rollover due to failure to
operate this vehicle correctly and
result in death or serious injury.
●If driving for a long distance, on rough
roads, or at high sp eeds, stop the vehi-
cle now and then during the trip to
make sure the cargo remains in its
place.
●Do not exceed 176.3 lb. (80 kg) cargo
weight on the roof luggage carrier.
NOTICE
■When loading cargo (vehicles with
moon roof)
Do not set luggage on the moon roof.
Failure to observe so may lead to cause
damage.
Capacity and distribution

1634-1. Before driving
LEXUS NX300h Owners Manual_USA_M78530_en
4
Driving
trailer with your vehicle. Your vehicle is
not designed for trailer towing. Cargo capacity
Total load capacity (vehicle capac-
ity weight) ( P.422)
When 2 people with the combined
weight of A lb. (kg) are riding in your
vehicle, which has a total load capacity
(vehicle capacity weight) of B lb. (kg),
the available amount of cargo and lug-
gage load capacity will be C lb. (kg) as
follows:
B
*2lb. (kg) − A*1 lb. (kg) = C*3 lb. (kg)
*1: A = Weight of people
*2: B = Total load capacity
*3: C = Available cargo and luggage load
In this condition, if 3 more passengers
with the combined weight of D lb. (kg)
get on, the available cargo and lug-
gage load will be reduced E lb. (kg) as
follows:
C lb. (kg) − D
*4 lb. (kg) = E*5 lb. (kg)
*4: D = Additional weight of people
*5: E = Available cargo and luggage load
As shown in the example above, if the
number of occupant s increases, the
cargo and luggage load will be
reduced by an amount that equals the
increased weight due to the additional
occupants. In other words, if an
increase in the number of occupants
causes an excess of the total load
capacity (combined weight of occu-
pants plus cargo and luggage load),
you must reduce the cargo and lug-
gage on your vehicle.
WARNING
■Capacity and distribution
●Do not exceed the maximum axle
weight rating or the total vehicle
weight rating.
●Even if the total load of occupant’s
weight and the cargo load is less than
the total load capacity, do not apply the
load unevenly. Improper loading may
cause deterioration of steering or
braking control which may cause
death or serious injury.

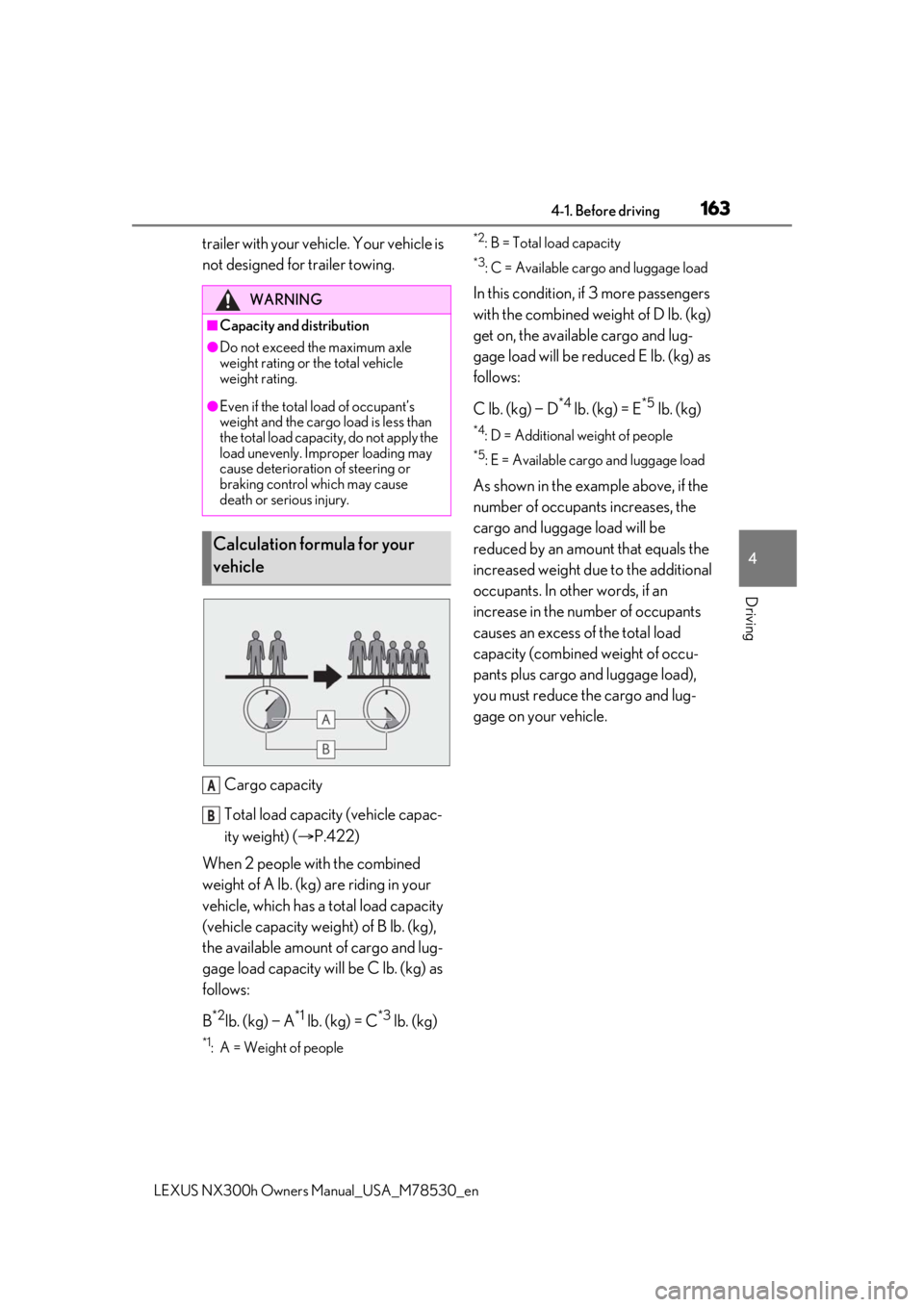

Calculation formula for your
vehicle
A
B

1644-1. Before driving
LEXUS NX300h Owners Manual_USA_M78530_en
■Total load capacity (vehicle capac-
ity weight):
P.422
Total load capacity means the com-
bined weight of occupants, cargo and
luggage.
■Seating capacity: 5 occupants
(Front 2, Rear 3)
Seating capacity means the maximum
number of occupants whose esti-
mated average weight is 150 lb. (68
kg) per person.
■TWR (Trailer Weight Rating) (vehi-
cles with towing package):
 P.169, 422
TWR means the maximum gross trailer
weight (trailer weight plus its cargo
weight) that your vehicle is able to tow.
■TWR (Trailer Weight Rating) (vehi-
cles without towing package)
Lexus does not recommend towing a
trailer with your vehicle.
■Cargo capacity
Cargo capacity may increase or
decrease depending on the weight and
the number of occupants.
■Total load capacity and seating capacity
These details are also described on the tire
and loading information label. ( P.363)Vehicle load limits
Vehicle load limits include total
load capacity, seating capacity,
towing capacity and cargo capac-
ity.
Description
WARNING
■Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tires,
but also degrade steering and braking
ability, resulting in an accident.

2734-5. Using the driving support systems
LEXUS NX300h Owners Manual_USA_M78530_en
4
Driving
WARNING
■The ABS does not operate effectively
when
●The limits of tire gripping performance
have been exceeded (such as exces-
sively worn tires on a snow covered
road).
●The vehicle hydroplanes while driving
at high speed on wet or slick roads.
■Stopping distance when the ABS is
operating may exceed that of normal
conditions
The ABS is not designed to shorten the
vehicle’s stopping di stance. Always main-
tain a safe distance from the vehicle in
front of you, especially in the following
situations:
●When driving on dirt, gravel or snow-
covered roads
●When driving with tire chains
●When driving over bumps in the road
●When driving over roads with potholes
or uneven surfaces
■TRAC/VSC may not operate effec-
tively when
Directional control and power may not
be achievable while driving on slippery
road surfaces, even if the TRAC/VSC
system is operating. Drive the vehicle
carefully in conditions where stability and
power may be lost.
■Active Cornering Assist does not
operate effectively when
●Do not overly rely on Active Corner-
ing Assist. Active Cornering Assist
may not operate effectively when
accelerating down slopes or driving on
slippery road surfaces.
●When Active Cornering Assist fre-
quently operates, Active Cornering
Assist may temporarily stop operating
to ensure proper operation of the
brakes, TRAC and VSC.
■Hill-start assist control does not oper-
ate effectively when
●Do not overly rely on hill-start assist
control. Hill-start assist control may
not operate effectively on steep
inclines and roads covered with ice.
●Unlike the parking brake, hill-start
assist control is not intended to hold
the vehicle stationary for an extended
period of time. Do not attempt to use
hill-start assist control to hold the vehi-
cle on an incline, as doing so may lead
to an accident.
■When the TRAC/ABS/VSC/Trailer
Sway Control is activated
The slip indicator light flashes. Always
drive carefully. Reckless driving may
cause an accident. Exercise particular
care when the indicator light flashes.
■When the TRAC/VSC/Trailer Sway
Control systems are turned off
Be especially careful and drive at a speed
appropriate to the road conditions. As
these are the systems to help ensure
vehicle stability and driving force, do not
turn the TRAC/VSC/Trailer Sway Con-
trol systems off unless necessary. Trailer
Sway Control is part of the VSC system
and will not operate if VSC is turned off
or experiences a malfunction.
■Replacing tires
Make sure that all ti res are of the speci-
fied size, brand, tread pattern and total
load capacity. In addition, make sure that
the tires are inflated to the recom-
mended tire inflation pressure level. The
ABS, TRAC, Trailer Sway Control and
VSC systems will not function correctly if
different tires are installed on the vehicle.
Contact your Lexus dealer for further
information when replacing tires or
wheels.
■Handling of tires and the suspension
Using tires with any kind of problem or
modifying the suspensi on will affect the
driving assist systems, and may cause a
system to malfunction.

3566-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78530_enroads or icy roads, the use of snow tires is
recommended. When installing snow
tires, be sure to replace all four tires.
●All season tires
All season tires are designed to provide
better traction in snow and to be ade-
quate for driving in most winter condi-
tions as well as for use year-round. All
season tires, however, do not have ade-
quate traction performance compared
with snow tires in heavy or loose snow.
Also, all season tires fall short in accelera-
tion and handling performance com-
pared with summer tires in highway
driving.
●Snow tires
For driving on snow-covered roads or icy
roads, we recommend using snow tires. If
you need snow tires,
select tires of the
same size, construction and load capacity
as the originally insta lled tires. Since your
vehicle has radial tires as original equip-
ment, make sure your snow tires also
have radial construction. Do not install
studded tires without first checking local
regulations for possible restrictions.
Snow tires should be installed on all
wheels. ( P.277)
■If the tread on snow tires wears down
below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is
lost.
Rotate the tires in the order shown.
To equalize tire wear and extend tire life,
Lexus recommends that tire rotation is car-
ried out at the same in terval as tire inspec-
tion.
Do not fail to initialize the tire pressure
warning system after tire rotation.
WARNING
■When inspecting or replacing tires
Observe the following precautions to
prevent accidents.
Failure to do so may cause damage to
parts of the drive train as well as danger-
ous handling characteristics, which may
lead to an accident resulting in death or
serious injury.
●Do not mix tires of different makes,
models or tread patterns.
Also, do not mix tires of remarkably
different treadwear.
●Do not use tire sizes other than those
recommended by Lexus.
●Do not mix differently constructed
tires (radial, bias-belted or bias-ply
tires).
●Do not mix summer, all season and
snow tires.
●Do not use tires that have been used
on another vehicle.
Do not use tires if you do not know
how they were used previously.
●Do not tow if your vehicle has a com-
pact spare tire installed.
NOTICE
■Driving on rough roads
Take particular care when driving on
roads with loose surfaces or potholes.
These conditions may cause losses in tire
inflation pressure, reducing the cushion-
ing ability of the tires. In addition, driving
on rough roads may cause damage to
the tires themselves, as well as the vehi-
cle’s wheels and body.
■If tire inflation pressure of each tire
becomes low while driving
Do not continue driving, or your tires
and/or wheels may be ruined.
Tire rotation

4258-1. Specifications
LEXUS NX300h Owners Manual_USA_M78530_en
8
Vehicle specifications
as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 20 in 0W-20 indicates the vis- cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions. How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.
*: The coolant capacity is the quantity of reference.
If replacement is necessary, contact your Lexus dealer.
Cooling system
Capacity*
Gasoline
engine
Vehicles with towing package
7.7 qt. (7.3 L, 6.4 Imp.qt.)
Vehicles without towing package
7.1 qt. (6.7 L, 5.9 Imp.qt.)
Power con-
trol unit3.3 qt. (3.1 L, 2.7 Imp.qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethy lene glycol-based non-
silicate, non-amine, non-nitrite, and nonborate
coolant with long-life hy brid organic acid tech-
nology
Do not use plain water alone.

4368-1. Specifications
LEXUS NX300h Owners Manual_USA_M78530_ennation, can cause heat buildup and
possible tire failure.
Glossary of tire terminology
Tire related
termMeaning
Cold tire
inflation
pressure
Tire pressure when the vehi-
cle has been parked for
three hours or more, or has
not been driven more than 1
mile or 1.5 km under that
condition
Maximum
inflation
pressureThe maximum cold inflated
pressure to which a tire may
be inflated, shown on the
sidewall of the tire
Recom-
mended
inflation
pressureCold tire inflation pressure
recommended by a manu-
facturer
Accessory
weight
The combined weight (in
excess of those standard
items which may be
replaced) of transmission,
power steering, power
brakes, power windows,
power seats, radio and
heater, to the extent that
these items are available as
factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehi-
cle with standard equip-
ment, including the
maximum capacity of fuel,
oil and coolant, and if so
equipped, air conditioning
and additional weight
optional engine
Maximum
loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options
weight
Normal
occupant
weight150 lb. (68 kg) times the
number of occupants speci-
fied in the second column of
Table 1
* that follows
Occupant
distribution
Distribution of occupants in
a vehicle as specified in the
third column of Table 1
*
below
Production
options
weight
The combined weight of
installed regular production
options weighing over 5 lb.
(2.3 kg) in excess of the
standard items which they
replace, not previously con-
sidered in curb weight or
accessory weight, including
heavy duty brakes, ride lev-
elers, roof rack, heavy duty
12-volt battery, and special
trim
Rim
A metal support for a tire or
a tire and tube assembly
upon which the tire beads
are seated
Rim diame-
ter
(Wheel
diameter)
Nominal diameter of the
bead seat
Rim size des-
ignationRim diameter and width
Tire related termMeaning

4378-1. Specifications
LEXUS NX300h Owners Manual_USA_M78530_en
8
Vehicle specifications
Rim type
designationThe industry manufac-
turer’s designation for a rim
by style or code
Rim widthNominal distance between
rim flanges
Vehicle
capacity
weight
(Total load
capacity)The rated cargo and lug-
gage load plus 150 lb. (68
kg) times the vehicle’s des-
ignated seating capacity
Vehicle max-
imum load
on the tire
The load on an individual
tire that is determined by
distributing to each axle its
share of the maximum
loaded vehicle weight, and
dividing by two
Vehicle nor-
mal load on
the tire
The load on an individual
tire that is determined by
distributing to each axle its
share of curb weight, acces-
sory weight, and normal
occupant weight (distrib-
uted in accordance with
Table 1
* below), and dividing
by two
Weather
sideThe surface area of the rim
not covered by the inflated
tire
Bead
The part of the tire that is
made of steel wires,
wrapped or reinforced by
ply cords and that is shaped
to fit the rim
Bead sepa-
rationA breakdown of the bond
between components in the
bead
Tire related termMeaning
Bias ply tire
A pneumatic tire in which
the ply cords that extend to
the beads are laid at alter-
nate angles substantially
less than 90 degrees to the
centerline of the tread
Carcass
The tire structure, except
tread and sidewall rubber
which, when inflated, bears
the load
Chunking
The breaking away of
pieces of the tread or side-
wall
CordThe strands forming the
plies in the tire
Cord sepa-
rationThe parting of cords from
adjacent rubber com-
pounds
Cracking
Any parting within the
tread, sidewall, or innerliner
of the tire extending to cord
material
CT
A pneumatic tire with an
inverted flange tire and rim
system in which the rim is
designed with rim flanges
pointed radially inward and
the tire is designed to fit on
the underside of the rim in a
manner that encloses the
rim flanges inside the air
cavity of the tire
Extra load
tire
A tire designed to operate
at higher loads and at
higher inflation pressures
than the corresponding
standard tire
Tire related termMeaning

LEXUS NX300h Owners Manual_USA_M78530_en
Alphabetical Index481
T
Tachometer....................................................... 84
Tail lightsLight switch .................................................... 189
Replacing light bulbs................................ 374
Theft deterrent system Alarm ................................................................... 77
Immobilizer system...................................... 75
Tire inflation pressure Maintenance data...................................... 428
Warning light ............................................... 392
Tire information ............................................ 432 Glossary......................................................... 436
Size.................................................................... 434
Tire identification number ..................... 433
Uniform Tire Quality Grading............ 435
Tire pressure warning system Function .......................................................... 357
Initializing .........................................................361
Installing tire pressure warning valves and transmitters ......................................360
Registering ID codes ............................... 362
Warning light ............................................... 392
Tires................................................................... 355 Chains ............................................................. 278
Checking .......................................................355
Glossary......................................................... 436
If you have a flat tire ................................. 400
Inflation pressure............................363, 428
Replacing ...................................................... 400
Rotating tires ................................................356
Size.................................................................... 428
Snow tires .......................................................277
Spare tire........................................... 400, 428
Tire identification number ..................... 433
Tire pressure warning system ............. 357
Uniform Tire Quality Grading............ 435
Warning light ............................................... 392 Tools..................................................................400
Top tether strap............................................... 57
Total load capacity ...................................... 422
Towing
Dinghy towing ...............................................173
Emergency towing..................................... 381
Towing eyelet.............................................. 383
Trailer Sway Control................................270
Trailer towing ...................................... 165, 173
TRAC (Traction Control) ........................ 270
Traction battery (Hybrid battery) ............ 70 Hybrid battery (traction battery) air intake and discharge vents ................... 72
Location ............................................................. 70
Specification ................................................. 423
Warning messages...................................... 73
Traction motor (electric motor) ................67
Trailer Sway Control.................................. 270
Trailer towing ........................................ 165, 173
Transmission Hybrid transmission....................................179
Selecting a driving mode .......................269
Trip meters ........................................................ 84
Turn signal lights Replacing light bulbs .................... 374, 375
Turn signal lever .......................................... 182
Wattage .......................................................... 429
V
Vanity lightsVanity lights ................................................... 310
Wattage .......................................................... 429
Vanity mirrors ................................................ 310 Vanity lights ................................................... 310
Vehicle data recordings ..................................7
Vehicle identification number ................ 422
Vehicle Stability Control (VSC) ........... 270
VSC (Vehicle Stability Control) ........... 270
