engine LEXUS NX300h 2021 Workshop Manual

3536-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
6
Maintenance and care
■Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
■Adding fluid
Make sure to check the fluid type and
prepare the necessary item.
 Fluid type
FMVSS No.116 DOT 3 or SAE J1703;
FMVSS No.116 DOT 4 or SAE J1704
brake fluid
Items
Clean funnel
■Brake fluid can absorb moisture from
the air
Excess moisture in the brake fluid can cause a dangerous loss of braking efficiency. Use
only newly opened brake fluid.
If none of the washer do not work or
the “Windshield Washer Fluid Low” on
the multi-information display, the
washer tank may be empty. Add
washer fluid.
WARNING
■When the electric cooling fans are
operating
Do not touch the engine compartment.
With the power switch in ON mode, the
electric cooling fans may automatically
start to run if the air conditioning is on
and/or the coolant temperature is high.
Be sure the power switch is off when
working near the electric cooling fans or
radiator grille.
Checking and adding the brake
fluid
WARNING
■When filling the reservoir
Take care as brake fluid can harm your
hands and eyes and damage painted sur-
faces.
If fluid gets on your hands or in your eyes,
flush the affected area with clean water
immediately.
If you still experience discomfort, see a
doctor.
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go
down slightly as the brake pads wear out
or when the fluid leve l in the accumulator
is high.
If the reservoir needs frequent refilling,
there may be a serious problem.
Checking and adding the washer
fluid

3546-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
The 12-volt battery is located in the left-
hand side of luggage compartment.
■Before recharging
When recharging, the 12-volt battery pro-
duces hydrogen gas which is flammable
and explosive. Therefore, observe the fol-
lowing precautions before recharging:
●If recharging with the 12-volt battery
installed on the vehicle, be sure to discon-
nect the ground cable.
●Make sure the power switch on the char-
ger is off when connecting and discon-
necting the charger cables to the 12-volt
battery.
■After recharging/reconnecting the 12-
volt battery
●The hybrid system may not start. Follow
the procedure below to initialize the sys-
tem.
1 Shift the shift lever to P.
2 Open and close any of the doors.
3 Restart the hybrid system.
●Unlocking the doors using the smart
access system with pu sh-button start may
not be possible immediately after recon-
necting the 12-volt battery. If this hap-
pens, use the wireless remote control or
the mechanical key to lock/unlock the
doors.
●Start the hybrid system with the power
switch in ACCESSORY mode. The
WARNING
■When adding washer fluid
Do not add washer fluid when the hybrid
system is hot or operating as washer fluid
contains alcohol and may catch fire if
spilled on the engine etc.
NOTICE
■Do not use any fluid other than
washer fluid
Do not use soapy water or engine anti-
freeze instead of washer fluid.
Doing so may cause streaking on the
vehicle’s painted surfaces, as well as
damaging the pump leading to problems
of the washer fluid not spraying.
■Diluting washer fluid
Dilute washer fluid with water as neces-
sary.
Refer to the freezing temperatures listed
on the label of the washer fluid bottle.
12-volt battery
Location

3716-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
6
Maintenance and care
1Turn the power switch off.
2 Open the fuse box cover.
Engine compartment: type A fuse
box
Push the tab in and lift the lid off.
Engine compartment: type B fuse
box
Push the tab in and lift the lid off.
Left side instrument panel
Remove the lid.
Luggage compartment
3 Remove the fuse.
Only type A fuse can be removed using the
pullout tool.
4Check if the fuse is blown.
Replace the blown fuse with a new fuse of
an appropriate amperage rating. The
amperage rating can be found on the fuse
box lid.
Checking and replacing
fuses
If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.
Checking and replacing fuses

3756-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
6
Maintenance and care
P.349
Front side marker light (bulb type)
Front turn signal light (bulb type)
■Bulbs that need to be replaced by
the Lexus dealer
 Headlights
 Front turn signal lights (LED type)
 Parking lights and Daytime running
lights
 Front fog lights
 Front side marker lights (LED type)
 Side turn signal lights
 Stop/tail lights
 Rear side marker lights
 Back-up light
 Rear turn signal light
 High mounted stoplight
 License plate lights
 Outer foot lights
■LED lights
The lights other than the front side marker
lights (bulb type) and front turn signal lights
(bulb type) each consist of a number of
LEDs. If any of the LEDs burn out, take your
vehicle to your Lexus dealer to have the
light replaced.
■Condensation build-up on the inside of
the lens
Temporary condensation build-up on the
inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus
dealer for more information in the following
situations:
●Large drops of water have built up on the
inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
 P.372
Light bulbs
You may replace the following bulbs
by yourself.
The difficulty level of replacement
varies depending on the bulb. If
necessary bulb replacement seems
difficult to perform, contact your
Lexus dealer.
For more information about replac-
ing other light bulbs, contact your
Lexus dealer.
Removing the engine compart-
ment cover
Bulb locations
A
B

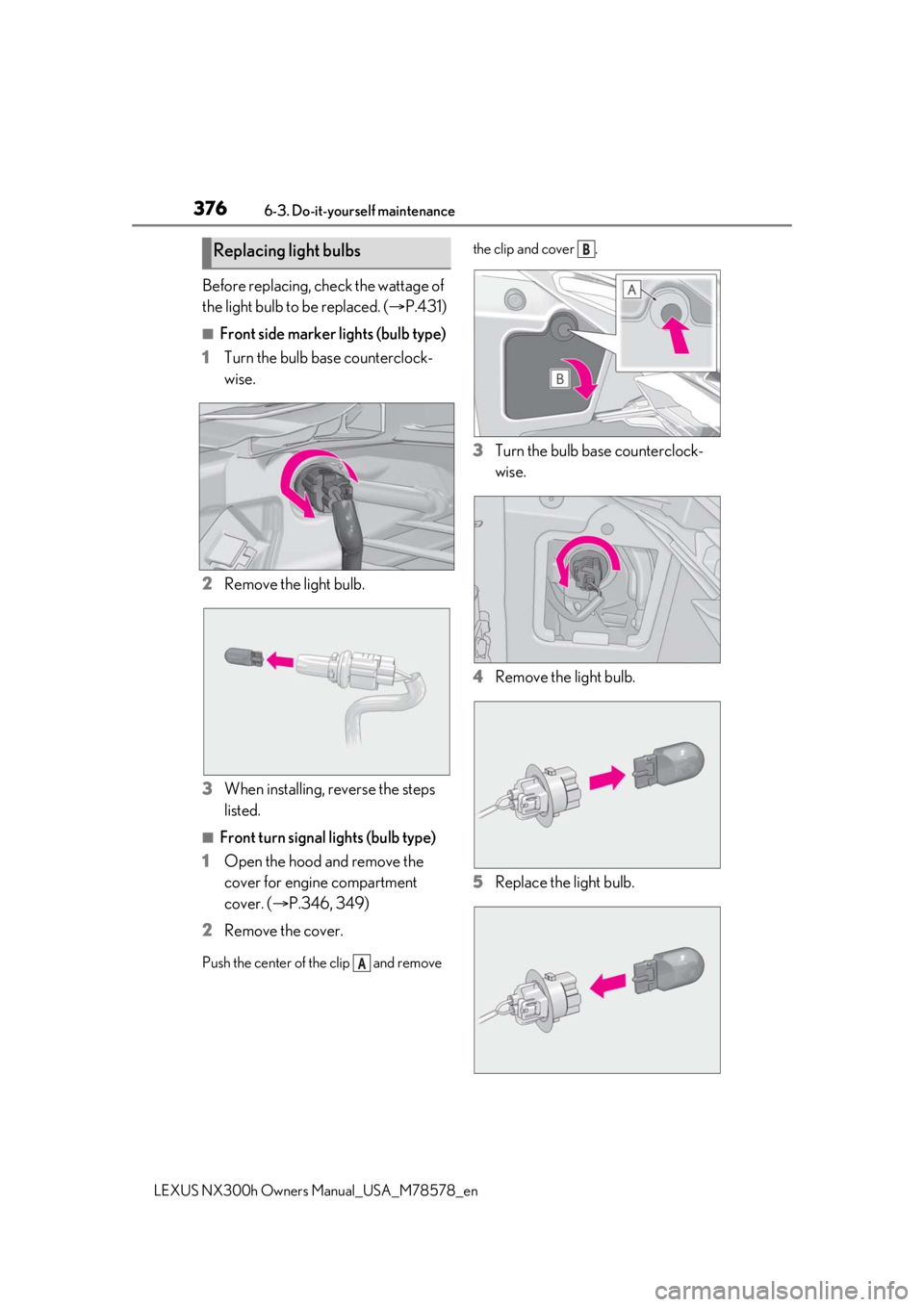

3766-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
Before replacing, check the wattage of
the light bulb to be replaced. ( P.431)
■Front side marker lights (bulb type)
1 Turn the bulb base counterclock-
wise.
2 Remove the light bulb.
3 When installing, reverse the steps
listed.
■Front turn signal lights (bulb type)
1 Open the hood and remove the
cover for engine compartment
cover. ( P.346, 349)
2 Remove the cover.
Push the center of the clip and remove the clip and cover .
3
Turn the bulb base counterclock-
wise.
4 Remove the light bulb.
5 Replace the light bulb.
Replacing light bulbs
A
B

3776-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
6
Maintenance and care
6Turn clockwise and set the bulb
base.
7 Attach the clip to the cover.
Push up on the center of the clip and attach
the clip .
8 Attach the cover.
Align the 2 tabs positions and close the
cover and fix the cover by pushing the
center of the clip .
9Install the engine compartment
cover. ( P.349)
A
A
B
WARNING
■Replacing light bulbs
●Be sure to stop the hybrid system and
turn off the lights. Do not attempt to
replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may
cause burns.
●Do not touch the glass portion of the
light bulb with bare hands. When it is
unavoidable to hold the glass portion,
use and hold with a clean dry cloth to
avoid getting moisture and oils on the
bulb.
Also, if the bulb is scratched or
dropped, it may blow out or crack.
●Fully install light bulbs and any parts
used to secure them. Failure to do so
may result in heat damage, fire, or
water entering the he adlight unit. This
may damage the headlights or cause
condensation to build up on the lens.
●Do not attempt to repair or disassem-
ble light bulbs, connectors, electric cir-
cuits or component parts.
Doing so may result in death or serious
injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and
locked.
●Check the wattage of the bulb before
installing to prevent heat damage.

3867-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78578_en
4Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.
5 Securely attach cables or chains to
the towing eyelet.
Take care not to damage the vehicle body.
6Enter the vehicle being towed and
start the hybrid system.
If the hybrid system does not start, turn the
power switch to ON mode.
7Shift the shift lever to N and release
the parking brake.
Turn automatic mode off. ( P.184)
When the shift lever cannot be shifted:
 P.181
■While towing
If the hybrid system is off, the power assist
for the brakes and steering will not function,
making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in luggage
compartment. ( P.402)
 Fluid leaks under the vehicle
(Water dripping from the air condi-
tioning after use is normal.)
 Flat-looking tires or uneven tire
wear
 Engine coolant temperature gauge
needle continually points higher
than normal
 Changes in exhaust sound
 Excessive tire squeal when corner-
ing
 Strange noises related to the sus-
pension system
 Pinging or other noises related to
the hybrid system
 Engine misfire or misses, stumbling
or running roughly
 Appreciable loss of power
 Vehicle pulls heavily to one side
when braking
If you think something is
wrong
If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.
Visible symptoms
Audible symptoms
Operational symptoms

3897-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78578_en
7
When trouble arises
■Low engine oil pressure warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
■High coolant temperature warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
■Brake system warning light
■Malfunction indicator lamp
Warning lightDetails/Actions
Indicates that the engine oil pressure is too low
Immediately stop the vehicl e in a safe place and con-
tact your Lexus dealer. Continuing to drive the vehicle
may be dangerous.
Warning lightDetails/Actions
Indicates that the engine is overheating
 Immediately stop the vehicle in a safe place. Continu-
ing to drive the vehicle may be dangerous.
Handling method ( P.418)
Warning lightDetails/Actions
(Yellow)
Indicates a malfunction in:
The regenerative braking system;
 The electronically controlled brake system; or
 The electric parking brake
 Have the vehicle inspected by your Lexus dealer
immediately.
Warning lightDetails/Actions
(U.S.A.)
(Canada)
Indicates a malfunction in:
 The hybrid system;
 The electronic engine control system;
 The electronic throttle control system; or
 The emission control system
 Have the vehicle inspected by your Lexus dealer
immediately.

3937-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78578_en
7
When trouble arises
■Low fuel level warning light
■Driver’s and front passenger’s seat belt reminder light (warning buzzer*)
*: Driver’s seat belt warning buzzer:
The driver’s seat belt warning buzzer sounds to alert the driver that hi s or her seat belt is
not fastened. Once the engine switch is turned to IGNITION ON mode, the buzzer
sounds. If the seat belt is still unfastened, the buzzer sounds intermittently for a certain
period of time after the ve hicle reaches a certain speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front passenger that
his or her seat belt is not fastened. If the seat belt is unfastened, the buzzer sounds inter-
mittently for a certain peri od of time after the vehicle reaches a certain speed.
■Rear passengers’ seat belt reminder light*1 (warning buzzer*2)
*1: This light illuminates on the center panel. Re gardless of whether or not a rear passenger
is present, if the power switch is turned to ON mode with the rear seat belts unfastened,
this light will also illuminate for a certain period of time.
*2: Rear passengers’ seat belt warning buzzer: The rear passengers’ seat belt warning buzzer sounds to alert the rear passenger that
his or her seat belt is not fastened. If the seat belt is unfastened, the buzzer sounds inter-
mittently for a certain period of time, after th e seat belt is fastened and unfastened and
the vehicle reaches a certain speed.
Warning lightDetails/Actions
Indicates that remain ing fuel is approximately 2.2 gal. (8.4
L, 1.8 Imp.gal.) or less
 Refuel the vehicle.
Warning lightDetails/Actions
Warns the driver and/or front pa ssenger to fasten their seat
belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front pas-
senger’s seat belt also need s to be fastened to make
the warning light (warning buzzer) turn off.
Warning lightDetails/Actions
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.

4007-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78578_en
pedal has been depressed and the shift
lever is in N. Release the accelerator pedal
and shift the shift lever to D, S or R.
■If “Depress Brake When Vehicle Is
Stopped Hybrid Syst
em May Overheat”
is shown
Message is displayed when the accelerator
pedal is depressed to maintain the vehicle
position when stopped on a upward slope,
etc.
If this continues, th e hybrid system may
overheat.
Release the accelerator pedal and depress
the brake pedal.
■If a message that indicates the malfunc-
tion of front camera is displayed
The following systems may be suspended
until the problem shown in the message is
resolved. ( P.209, 391)
●PCS (Pre-Collision System)
●LTA (Lane Tracing Assist) (if equipped)
●LDA (Lane Departure Alert with steering
control) (if equipped)
●Automatic High Beam
●RSA (Road Sign Assist) (if equipped)
●Dynamic radar cruise control with full-
speed range
■If “RSA malfunction Visit Your Dealer” is
shown
The system may be malfunctioning. Have
the vehicle inspected by your Lexus dealer.
■If “Radar Cruise Control Unavailable
See Owner’s Manual” is shown
The dynamic radar cruise control with full-
speed range system is suspended tempo-
rarily or until the problem shown in the mes-
sage is resolved. (causes and coping
methods: P.209)
■If “Radar Cruise Control Unavailable” is
shown
The dynamic radar cruise control with full-
speed range system cannot be used tempo-
rarily. Use the system when it becomes
available again.
■If “Oil Maintenance Required Soon” is
shown
Indicates that the engine oil is scheduled to
be changed. (The indicator will not work
properly unless the oil maintenance data
has been reset.)
Check the engine oil, and change if neces-
sary. After changing th e engine oil, the oil
change system should be reset. ( P.350)
■If “Oil Maintenance Required” is shown
Indicates that the engine oil should be
changed. (After the engine oil is changed
and the oil maintenance data has been
reset.)
Check and change the en gine oil, and oil fil-
ter by your Lexus dealer. After changing the
engine oil, the oil change system should be
reset. ( P.350)
■If “See Owner’s Manual” is shown
●If the following messages are shown, fol-
lowing the instruct ions, accordingly.
• “Engine Coolant Temp High” ( P.418)
●If the following messages are shown,
there may be a malfunction.
Immediately have the vehicle inspected
by your Lexus dealer.
• “Hybrid System Malfunction”
•“Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Braking Power Low”
• “Smart Access System Malfunction”
●If “Aux Battery Low” is shown
• When the display goes off after several
seconds
*
Maintain the hybrid system operation for
more than 15 minutes and charge the 12-
volt battery.
• When the display does not go off Start up the hybrid system using the pro-
cedures for “If the 12-volt battery is dis-
charged” ( P.414).
*: Displays for about 6 seconds
●If “Maintenance required for Traction bat-
tery cooling parts” is shown, the filters
may be clogged, the air intake vents may
be blocked, or there may be a gap in the
duct. Therefore, perform the following
correction procedure.
• If the air intake vents of the hybrid battery
