4147-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78578_en
■Changing power switch modes
Release the brake pedal and press the
power switch in step 3 above.
The hybrid system does not start and modes
will be changed each time the switch is
pressed. ( P.177)
If you have a set of jumper (or booster)
cables and a second vehicle with a 12-
volt battery, you can jump start your
vehicle by following the steps below.
1 Confirm that the electronic key is
being carried.
When connecting the jumper (or booster)
cables, depending on the situation, the
alarm may activate and the doors may lock.
( P.78)
If the 12-volt battery is dis-
charged
The following procedures may be
used to start the hybrid system if the
vehicle’s 12-volt battery is dis-
charged.
You can also call your Lexus dealer
or a qualified repair shop.
Restarting the hybrid system

4167-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78578_en
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the exclusive jump starting
terminal and any mo ving parts as shown in the illustration
6 Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery of your
vehicle.
7 Open and close any of the doors of
your vehicle with the power switch
off.
8 Maintain the engine speed of the
second vehicle and start the hybrid
system of your vehicle by turning
the power switch to ON mode.
9 Make sure the “READY” indicator
comes on. If the indicator light does
not come on, contact your Lexus
dealer.
10 Once the hybrid system has
started, remove the jumper cables
in the exact reverse order from
which they were connected.
11 Close the exclusive jump starting
terminal cover, and reinstall the fuse
box cover to its original position.
Once the hybrid system starts, have
the vehicle inspected at your Lexus
dealer as soon as possible.
■Starting the hybrid system when the 12-
volt battery is discharged
The hybrid system cannot be started by
push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio sys-
tem while the hybrid system is off.
●Turn off any unnecessary electrical com-
ponents when the vehicle is running at a
low speed for an extended period, such
as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt battery
will discharge gradually even when the
vehicle is not in use, due to natural dis-
charge and the draining effects of certain
electrical appliances. If the vehicle is left for
a long time, the 12-volt battery may dis-
charge, and the hybrid system may be
unable to start. (The 12-volt battery
recharges automatically while the hybrid
system is operating.)
■When the 12-volt batte ry is removed or
discharged
●In some cases, it may not be possible to
unlock the doors using the smart access
system with push-button start when the
12-volt battery is discharged. Use the
wireless remote control or the mechani-
cal key to lock or unlock the doors.
●The hybrid system may not start on the
first attempt after the 12-volt battery has
recharged but will start normally after the
second attempt. This is not a malfunction.
●The power switch mode is memorized by
the vehicle. When the 12-volt battery is
reconnected, the system will return to the
mode it was in before the 12-volt battery
was discharged. Before disconnecting
the 12-volt battery, turn the power switch
off.
If you are unsure what mode the power
switch was in before the 12-volt battery
discharged, be especially careful when
reconnecting the 12-volt battery.
●Some systems may requ ire initialization.
B
C
D

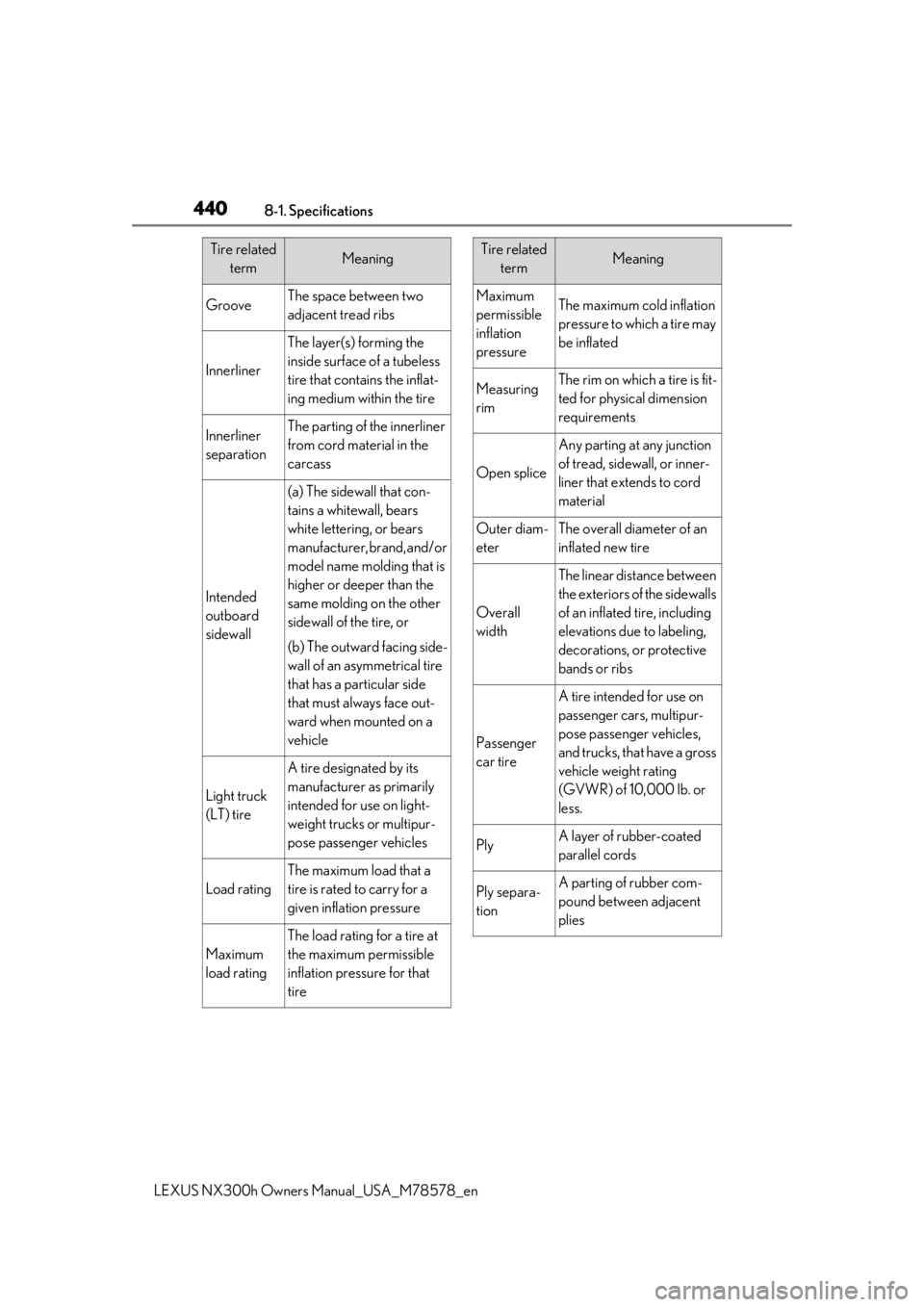

4408-1. Specifications
LEXUS NX300h Owners Manual_USA_M78578_en
GrooveThe space between two
adjacent tread ribs
Innerliner
The layer(s) forming the
inside surface of a tubeless
tire that contains the inflat-
ing medium within the tire
Innerliner
separationThe parting of the innerliner
from cord material in the
carcass
Intended
outboard
sidewall
(a) The sidewall that con-
tains a whitewall, bears
white lettering, or bears
manufacturer, brand, and/or
model name molding that is
higher or deeper than the
same molding on the other
sidewall of the tire, or
(b) The outward facing side-
wall of an asymmetrical tire
that has a particular side
that must always face out-
ward when mounted on a
vehicle
Light truck
(LT) tire
A tire designated by its
manufacturer as primarily
intended for use on light-
weight trucks or multipur-
pose passenger vehicles
Load rating
The maximum load that a
tire is rated to carry for a
given inflation pressure
Maximum
load rating
The load rating for a tire at
the maximum permissible
inflation pressure for that
tire
Tire related
termMeaning
Maximum
permissible
inflation
pressureThe maximum cold inflation
pressure to which a tire may
be inflated
Measuring
rimThe rim on which a tire is fit-
ted for physical dimension
requirements
Open splice
Any parting at any junction
of tread, sidewall, or inner-
liner that extends to cord
material
Outer diam-
eterThe overall diameter of an
inflated new tire
Overall
width
The linear distance between
the exteriors of the sidewalls
of an inflated tire, including
elevations due to labeling,
decorations, or protective
bands or ribs
Passenger
car tire
A tire intended for use on
passenger cars, multipur-
pose passenger vehicles,
and trucks, that have a gross
vehicle weight rating
(GVWR) of 10,000 lb. or
less.
PlyA layer of rubber-coated
parallel cords
Ply separa-
tionA parting of rubber com-
pound between adjacent
plies
Tire related termMeaning

4468-2. Customization
LEXUS NX300h Owners Manual_USA_M78578_en
■Lights (P.190)
■Illumination ( P.302)
■Multi-information display ( P.84, 89)
FunctionDefault settingCustomized set-
ting
Daytime Running Lights
(Daytime running lights can
be disabled)
OnOffO—O—
FunctionDefault settingCustomized set-ting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O—O—7.5 seconds
30 seconds
Time elapsed before the exte-
rior lights turn off15 seconds
Off
O—O—7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff——O—
Operation when the doors
are unlockedOnOff——O—
Operation when you
approach the vehicle with the
electronic key on your person
OnOff——O—
Footwell lightingOnOff——O—
Fading out of the outer foot
lights when they turn offLongShort——O—
FunctionDefault settingCustomized set-ting
Changeover to tachometer
when Sport mode is selectedAuto
Hybrid system
indicator (always)
—O——Tachometer (always)
EV indicatorOnOff—O——
ABCD
ABCD
ABCD

4488-2. Customization
LEXUS NX300h Owners Manual_USA_M78578_en
■Head-up display* ( P.95)
*:If equipped
■Automatic air conditioning system ( P.291)
■Eco mode ( P.270)
■Power windows ( P.148)
FunctionDefault settingCustomized set-
ting
Route guidance to destina-
tionOnOff———O
Driving assist system informa-
tionOnOff———O
Audio system operation sta-
tusOnOff———O
Lane displayOnOff———O
FunctionDefault settingCustomized set-ting
Switching between outside
air and recirculated air mode
linked to “AUTO” switch
operation
OnOffO—O—
A/C Auto switch operationOnOffO—O—
FunctionDefault settingCustomized set-ting
Heating/coolin g operation
minimized in Eco modeOnOff——O—
FunctionDefault settingCustomized set- ting
Mechanical key linked opera-
tionOffOn——O—
Wireless remote control
linked open operationOffOn——O—
ABCD
ABCD
ABCD
ABCD

4538-2. Customization
LEXUS NX300h Owners Manual_USA_M78578_en
8
Vehicle specifications
■Driving mode select switch ( P.270)
■Vehicle customization
●When the speed linked door locking function and shift po sition linked door locking func-
tion are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be locked.
• If the vehicle is started with all the doors locked, the speed linked door locking function
would not operate.
• If the vehicle is started with any door unlock ed, the speed linked door locking function will
operate.
●When the smart access system with push-button start is off, smart door unlocking cannot
be customized.
●When the doors remain closed after unlock ing the doors and the automatic door lock
function is activat ed, the signals will be generated in accordance with the Operation sig-
nal (buzzer) and the Operation sign al (emergency flashers) settings.
■In the following situations, customize mode in which the settings can be changed
through the multi-information display will automatically be turned off.
●A warning message appears after the cu stomize mode screen is displayed.
●The power switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.
FunctionDefault settingCustomized set-
ting
Powertrain control in custom
modeNormalPowerO———Eco
Chassis control in custom
modeNormalSportO———
Air conditioning operation in
custom modeNormalEcoO———
ABCD

LEXUS NX300h Owners Manual_USA_M78578_en
Alphabetical Index473
rideau ...........................................................460
Précautions générales avec les coussins gonflables ...................................................460
Cruise control Dynamic radar cruise control with full-speed range .............................................. 237
Cup holders ................................................... 306
Curtain shield airbags .................................. 32
Customizable features .............................. 443
D
Daytime running light system .................... 191
Deck board .................................................... 309
Deck under tray ........................................... 309
Defogger Outside rear view mirrors .................... 292
Rear window ................................................ 292
Windshield .................................................... 292
Differential ...................................................... 429
Dimension ...................................................... 424
Dinghy towing................................................. 173
Display BSM (Blind Spot Monitor) ................... 262
Drive information .......................................... 90
Dynamic radar cruise control with full-speed range .............................................. 237
Energy monitor.............................................. 99
Head-up display ........................................... 95
Intuitive parking assist.............................. 248
LDA (Lane Departure Alert with steering control) .........................................................227
LTA (Lane Tracing Assist)......................218
Multi-information display .......................... 89
Warning messages ..................................398
Do-it-yourself maintenance .................... 344
Door lock Back door......................................................... 115
Side doors ........................................................ 110
Smart access system with push-button start .................................................................. 126
Wireless remote control..........................107 Doors
Automatic door lock ing and unlocking
system.............................................................. 113
Back door ......................................................... 114
Door glasses ................................................. 148
Door lock .......................................................... 110
Outside rear view mirrors...................... 146
Rear door child-protectors ..................... 113
Side doors ........................................................ 110
Drive information ........................................... 90
Drive-start control ............................. 157, 180
Driver’s seat belt remi nder light ............ 393
Driver’s seat position memory ................ 138
Driving Break-in tips ...................................................157
Correct posture............................................. 25
Driving mode select switch .................. 270
Hybrid vehicle driving tips .................... 277
Procedures .................................................... 156
Winter drive tips ......................................... 279
Driving position memory........................... 138 Memory recall function............................ 139
Dynamic radar cruise control with full- speed rangeFunction .......................................................... 237
E
E-Four .............................................................. 273
ECB (Electronically Controlled Brake Sys-
tem) .................................................................272
Eco mode........................................................ 270
EDR (Event data recorder) ........................... 8
Electric motor Location ............................................................. 67
Specification ................................................. 426
Electric Power Steering (EPS) Function .......................................................... 272
Warning light .............................................. 390
Electronic key Battery-saving function............................. 127
If the electronic key does not operate properly .........................................................412

474Alphabetical Index
LEXUS NX300h Owners Manual_USA_M78578_en
Replacing the battery...............................369
Electronically Controlled Brake System (ECB) .............................................................272
Emergency flashers ....................................380
Emergency, in case of If a warning buzzer sounds ................. 388
If a warning light turns on ..................... 388
If a warning message is displayed.....398
If the 12-volt battery is discharged ...... 414
If the electronic key does not operate properly......................................................... 412
If the fuel filler door cannot be opened .............................................................................411
If the hybrid system will not start ........409
If the vehicle is trapped in rising water .......................................................................... 381
If you have a flat tire .................................. 402
If you lose your keys.....................................411
If you think something is wrong .........386
If your vehicle becomes stuck............... 421
If your vehicle has to be stopped in an
emergency ............................................... 380
If your vehicle needs to be towed .....383
If your vehicle overheats ......................... 418
Energy monitor ............................................... 99
Engine .............................................................. 425 Accessory mode ......................................... 177
Compartment .............................................348
Engine switch................................................. 174
Hood................................................................ 346
How to start the hybrid system ............ 174
Identification number ............................... 425
If your vehicle has to be stopped in an
emergency ............................................... 380
Ignition switch (power switch) .............. 174
Overheating.................................................. 418
Power switch ................................................. 174
Engine compartment cover .................... 349
Engine coolant Capacity ......................................................... 427
Checking .........................................................351
Preparing and checking before winter .......................................................................... 279
Warning light .............................................. 389
Engine coolant temperature gauge ....... 84
Engine oil Capacity ......................................................... 426
Checking .......................................................349
Warning light .............................................. 389
Engine switch .................................................. 174
EPS (Electronic Power Steering) Function .......................................................... 272
Warning light .............................................. 390
EV drive mode................................................178
EV indicator ...................................................... 68
Event data recorder (E DR) ........................... 8
F
Flat tire ............................................................. 402
Tire pressure warning system ............ 359
Floor mats .......................................................... 24
Fluid Brake ................................................................ 429
Transmission.................................................428
Washer ...........................................................353
Fog lights Replacing light bulbs ................................375
Switch................................................................ 196
Front passenger occupant classification system ................................................................ 41
Front passenger’s seat belt reminder light .......................................................................... 393
Front seat heaters........................................300
Front seats ........................................................132 Adjustment ......................................................132
Cleaning .........................................................335
Correct driving posture ............................ 25
Driving position memory ........................ 138
Head restraints............................................... 141
Power easy access system .................... 138
Seat heaters ................................................. 300
Seat position memory .............................. 138
Front side marker lights Light switch .................................................... 190

LEXUS NX300h Owners Manual_USA_M78578_en
Alphabetical Index479
How to wear your seat belt ......................27
How your child should wear the seat belt
.............................................................................27
Pregnant women, proper seat belt use ............................................................................ 26
Reminder light and buzzer ................... 393
Seat belt extender .........................................27
Seat belt instructions for Canadian own- ers...................................................................456
Seat belt pretensioners .............................. 30
SRS warning light ......................................390
Seat heaters ................................................... 299
Seat position memory................................. 138
Seat ventilators .............................................. 301
Seating capacity................................. 164, 424
Seats Adjustment............................................132, 133
Adjustment precautions .................132, 134
Child seats/child restraint system installa-tion .....................................................................47
Cleaning......................................................... 335
Driving position memory........................ 138
Folding down the rear seatbacks........134
Front seat heaters ..................................... 300
Head restraint..................................................141
Power easy access system .................... 138
Properly sitting in the seat ........................ 25
Rear seat heaters ...................................... 300
Seat position memory .............................. 138
Seat ventilators............................................. 301
Sécurité de l’enfant Précautions avec les coussins gonflables.........................................................................460
Sensor Automatic High Beam system..............193
BSM (Blind Spot Monitor) ................... 265
Inside rear view mirror..............................145
Intuitive parking assist.............................. 248
Kick sensor....................................................... 118
Radar sensor................................................205
Rain-sensing windshield wipers.........200
Service plug ...................................................... 70 Service reminder message ..................... 339
Shift lever ......................................................... 180
Shift lock system.............................................. 181
Side airbags ...................................................... 32
Side doors.......................................................... 110
Side marker lights
Light switch .................................................... 190
Replacing light bulbs ....................375, 376
Wattage ............................................................431
Side mirrors .....................................................146 Adjusting and folding................................ 146
Blind Spot Monitor (BSM).................... 262
Heaters............................................................ 292
Side turn signal lights Replacing light bulbs ................................375
Turn signal lever .......................................... 183
Smart access system with push-button start...................................................................126Antenna location ..........................................126
Entry functions ....................................... 110, 115
Starting the hybrid system .......................174
Warning message .................................... 398
Snow tires ....................................................... 279
Spare tire Inflation pressure ....................................... 430
Storage location .........................................402
Spark plug ...................................................... 428
Specifications ................................................ 424
Speedometer ................................................... 84
Sport mode .................................................... 270
Steering wheel Adjustment ......................................................143
Heated steering wheel ............................299
Power easy access system .................... 138
Stop lights Replacing light bulbs ................................375
Storage feature ............................................305
Storage precautions...................................305
Stuck If the vehicle becomes stuck ..................421
Sun visors ..........................................................312

LEXUS NX300h Owners Manual_USA_M78578_en
Alphabetical Index481
Towing
Dinghy towing ............................................... 173
Emergency towing ...................................383
Towing eyelet ............................................. 385
Trailer Sway Control ............................... 273
Trailer towing ...................................... 165, 173
TRAC (Traction Control) ........................ 273
Traction battery (Hybrid battery) ............ 70 Hybrid battery (traction battery) air intake and discharge vents....................72
Location............................................................. 70
Specification ................................................. 426
Warning messages ......................................73
Traction motor (electric motor) ................67
Trailer Sway Control.................................. 273
Trailer towing ........................................ 165, 173
Transmission Hybrid transmission .................................. 180
Selecting a driving mode....................... 270
Trip meters ........................................................ 84
Turn signal lights Replacing light bulbs.................... 375, 376
Turn signal lever .......................................... 183
Wattage............................................................ 431
V
Vanity lightsVanity lights .................................................... 312
Wattage............................................................ 431
Vanity mirrors .................................................312 Vanity lights .................................................... 312
Vehicle data recordings ..................................7
Vehicle identification number ................ 424
Vehicle Stability Control (VSC) ............272
VSC (Vehicle Stabilit y Control) ............272
W
Warning buzzers
Approach warning.................................... 243
Downshifting ................................................. 183
Intuitive parking assist.............................. 252 Light reminder ................................................ 191
Open door ......................................................... 111
Seat belt reminder .....................................393
Vehicle sway warning ................... 222, 231
Warning lights ABS .................................................................. 390
Brake hold operated indicator ...........392
Brake Override System ........................ 395
Brake system............................................... 388
Charging system....................................... 388
Drive-Start Control.................................. 395
Electric power steering.......................... 390
High coolant temperature.................... 389
Hybrid system............................................. 388
LDA indicator ............................................... 391
Low engine oil pressure........................ 389
Low fuel level ...............................................393
LTA indicator ................................................ 391
Malfunction indicator lamp .................. 389
Master warning light.................................394
Parking brake indicator ..........................392
PCS warning light ...................................... 391
PKSB OFF indicator ................................392
Seat belt reminder light...........................393
Slip indicator .................................................392
SRS ................................................................... 390
Tire pressure ................................................394
Warning messages ..................................... 398
Washer Checking .......................................................353
Low washer fluid warning message353, 398
Preparing and checking before winter .......................................................................... 279
Switch......................................................196, 201
Washing and waxing.................................. 332
Weights Cargo capacity ........................161, 164, 424
Load limits ...........................................164, 424
Weights .......................................................... 424
Wheels ............................................................. 367 Replacing wheels ....................................... 367
