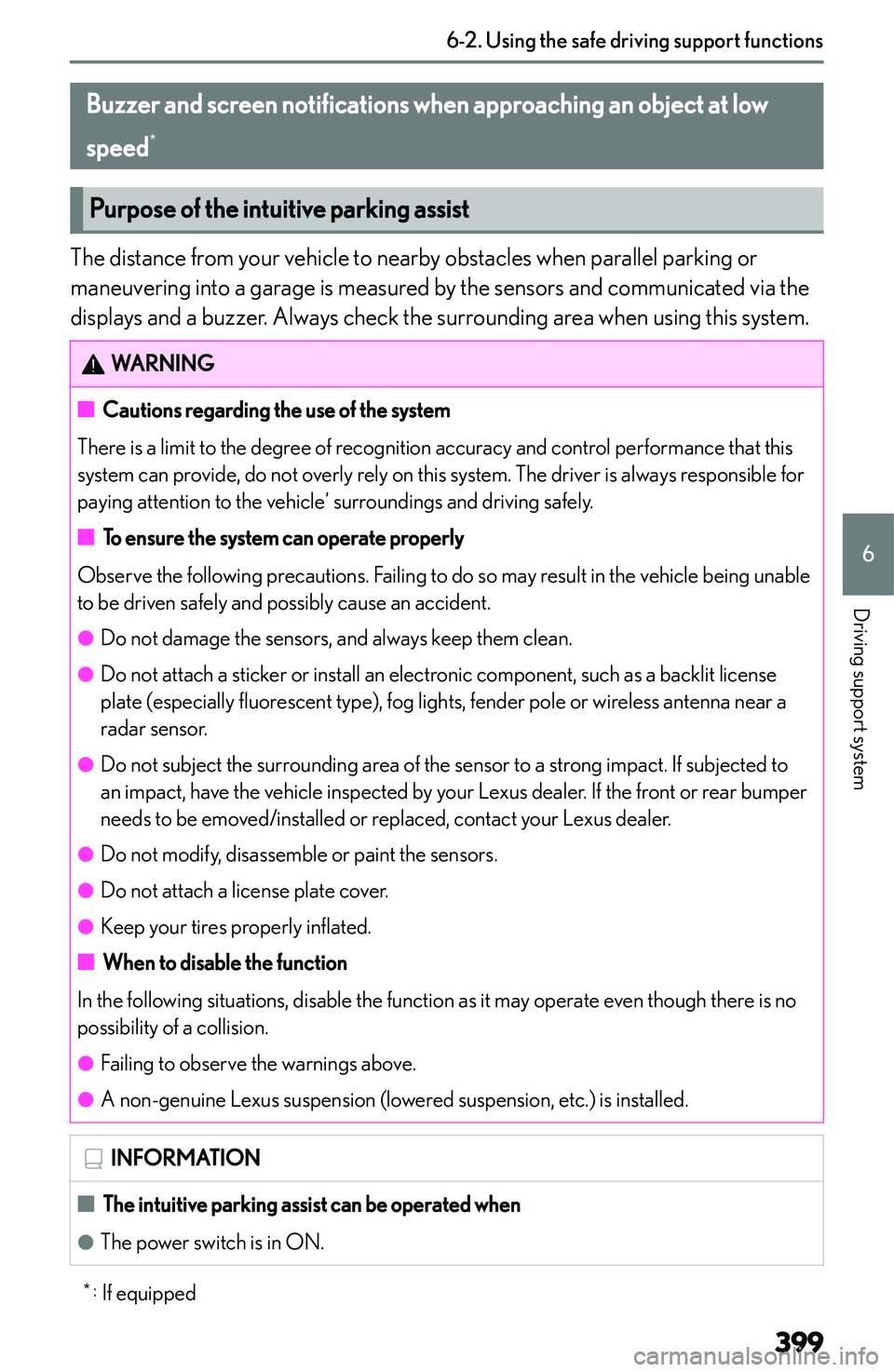

Buzzerandscreennotificationswhenapproachinganobjectatlowspeed *
Purposeoftheintuitiveparkingassist
The distance from your vehicle to nearby obstacles when parallel parking or
maneuvering into a garage is measured by the sensors and communicated via the
displays and a buzzer. Always check the surrounding area when using this system.
WARNING

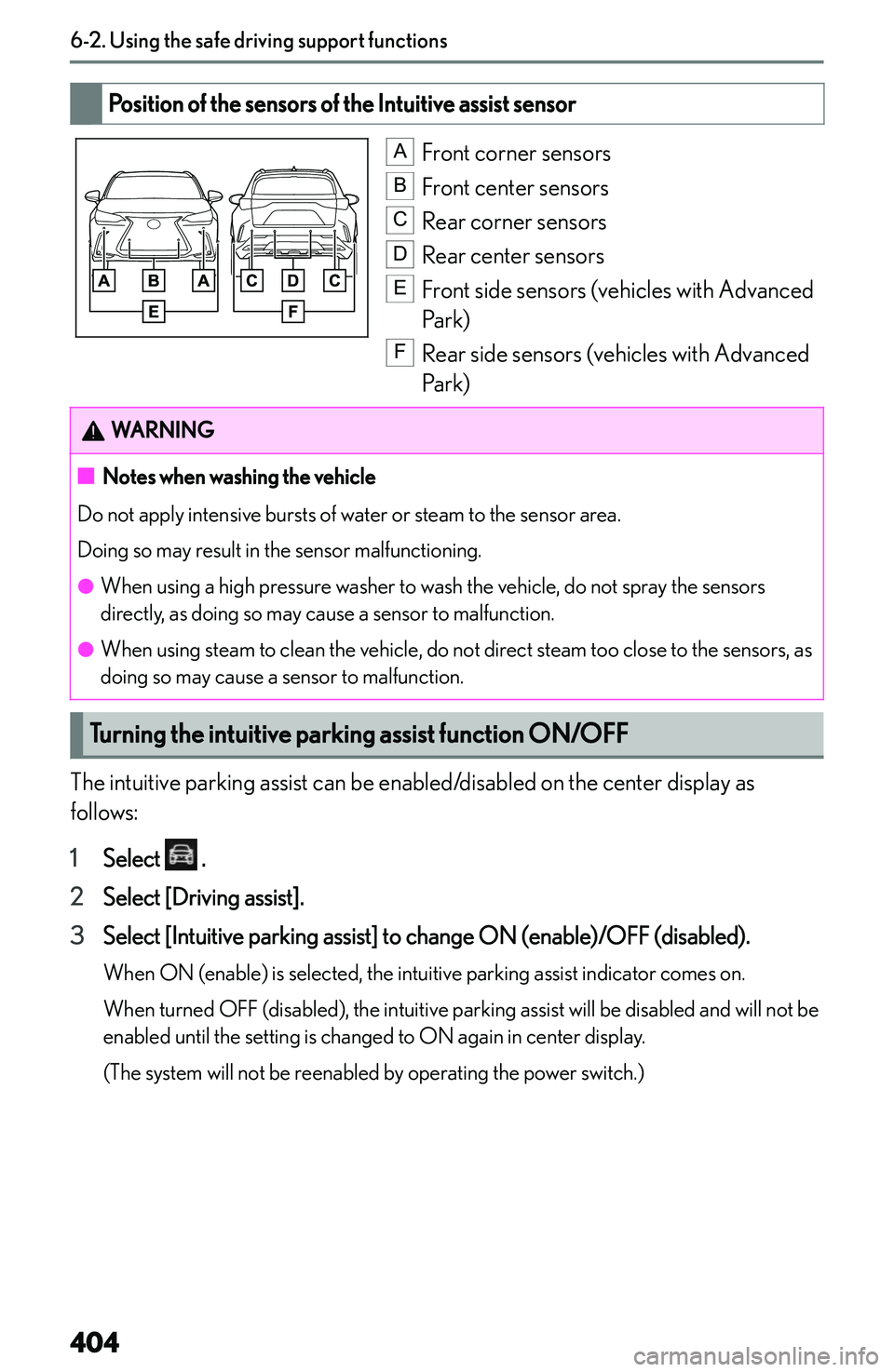

PositionofthesensorsoftheIntuitiveassistsensor
A
Front corner sensors
B
Front center sensors
C
Rear corner sensors
D
Rear center sensors
E
Front side sensors (vehicles with AdvancedPark)
F
Rear side sensors (vehicles with Advanced
Park)
WARNING

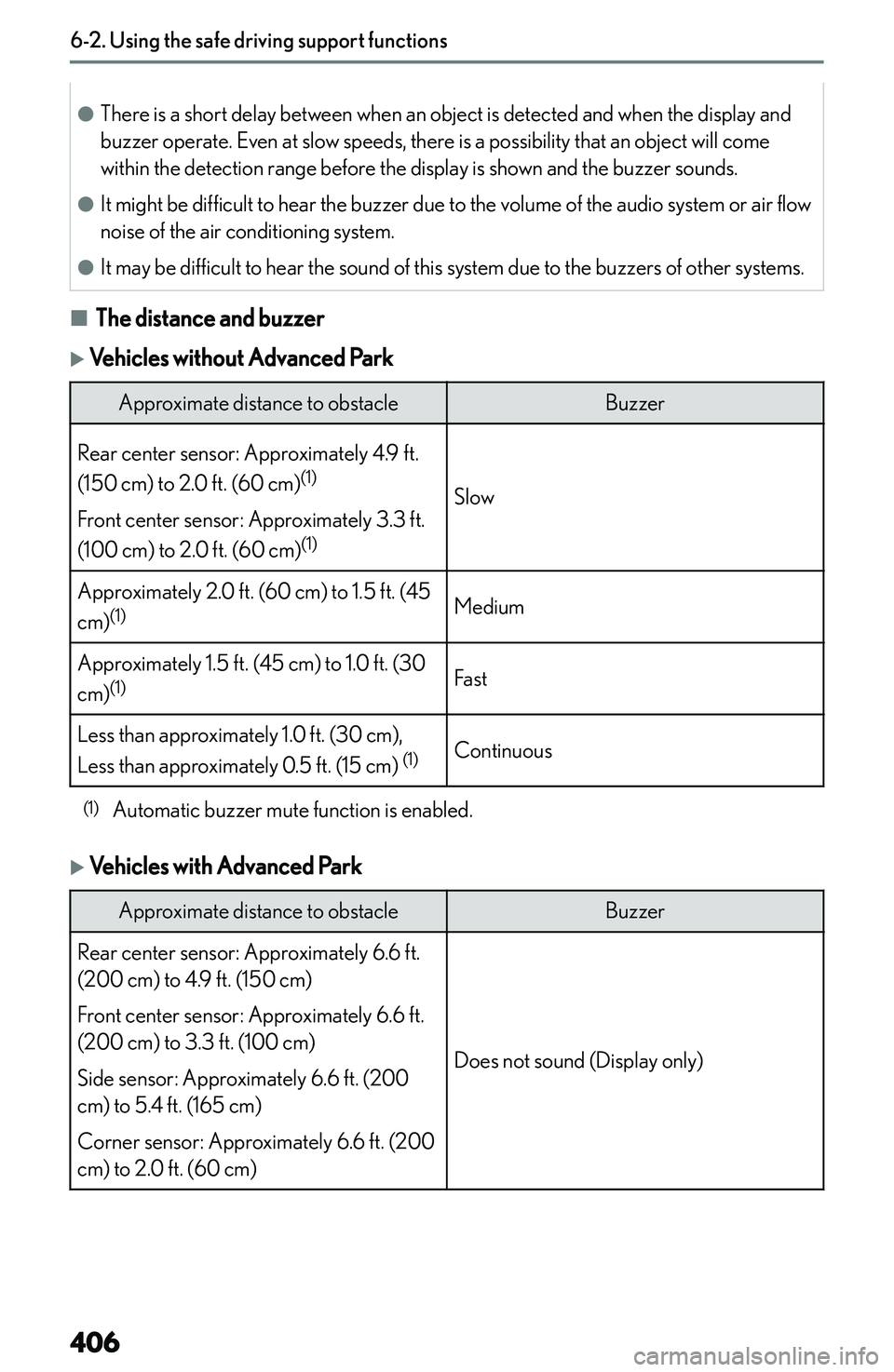

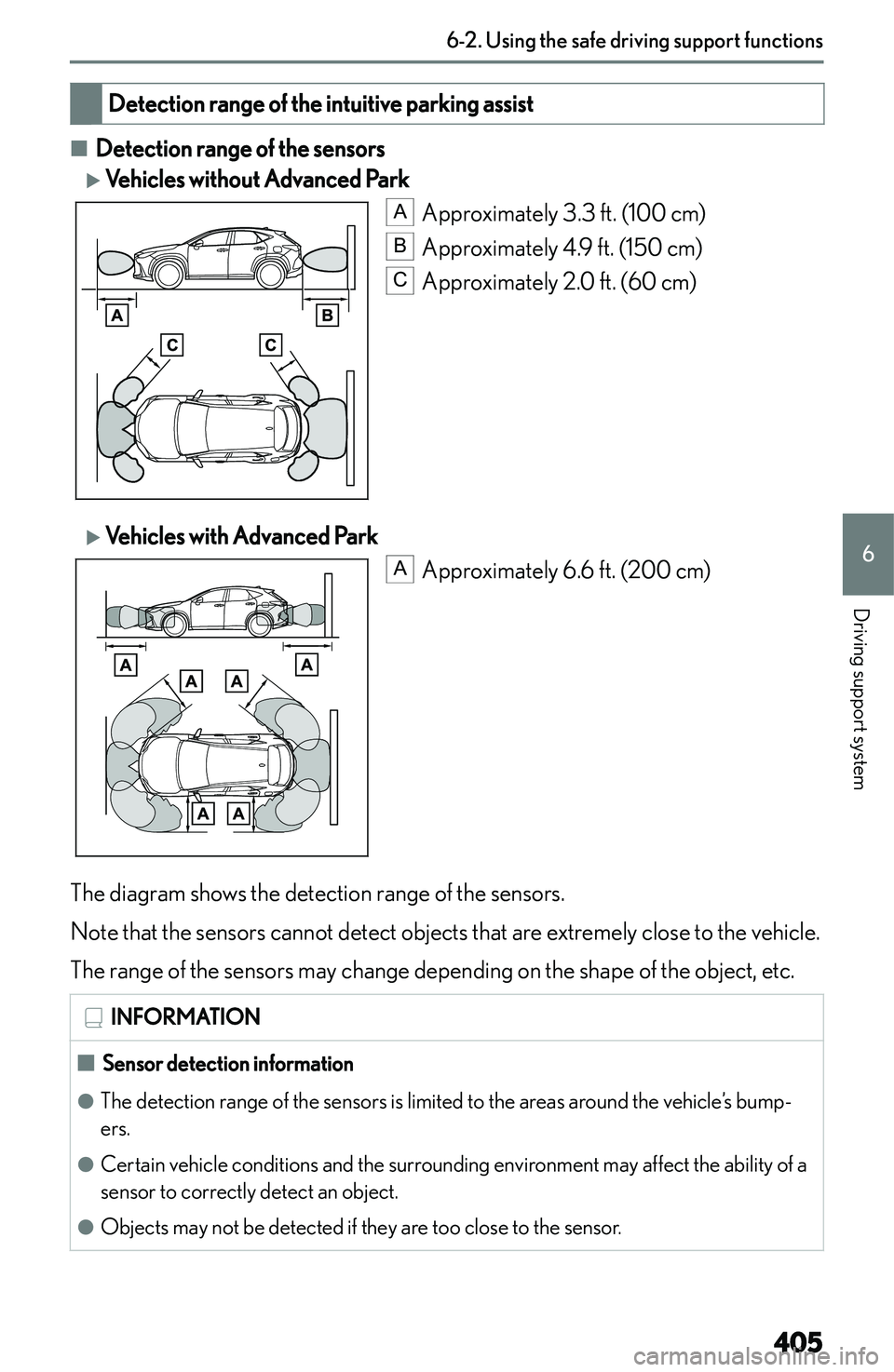

Detectionrangeoftheintuitiveparkingassist

Approximate distance to obstacleBuzzerRear center sensor: Approximately 4.9 ft.(150 cm) to 2.0 ft. (60 cm) (1)
Front center sensor: Approximately 3.3 ft. (100 cm) to 2.0 ft. (60 cm) (1)
Side sensor: Approximately 5.4 ft. (165 cm)
to 2.0 ft. (60 cm) (1)
Slow
Approximately 2.0 ft. (60 cm) to 1.5 ft. (45
cm) (1)
Side sensor: Approximately 2.0 ft. (60 cm)
to 1.3 ft. (40 cm) (1)
Medium
Approximately 1.5 ft. (45 cm) to 1.0 ft. (30
cm) (1)
Side sensor: Approximately 1.3 ft. (40 cm)
to 1.0 ft. (30 cm) (1)
Fast
Less than approximately 1.0 ft. (30 cm),
Less than approximately 0.5 ft. (15 cm) (1)Continuous
(1)
Automatic buzzer mute function is enabled.

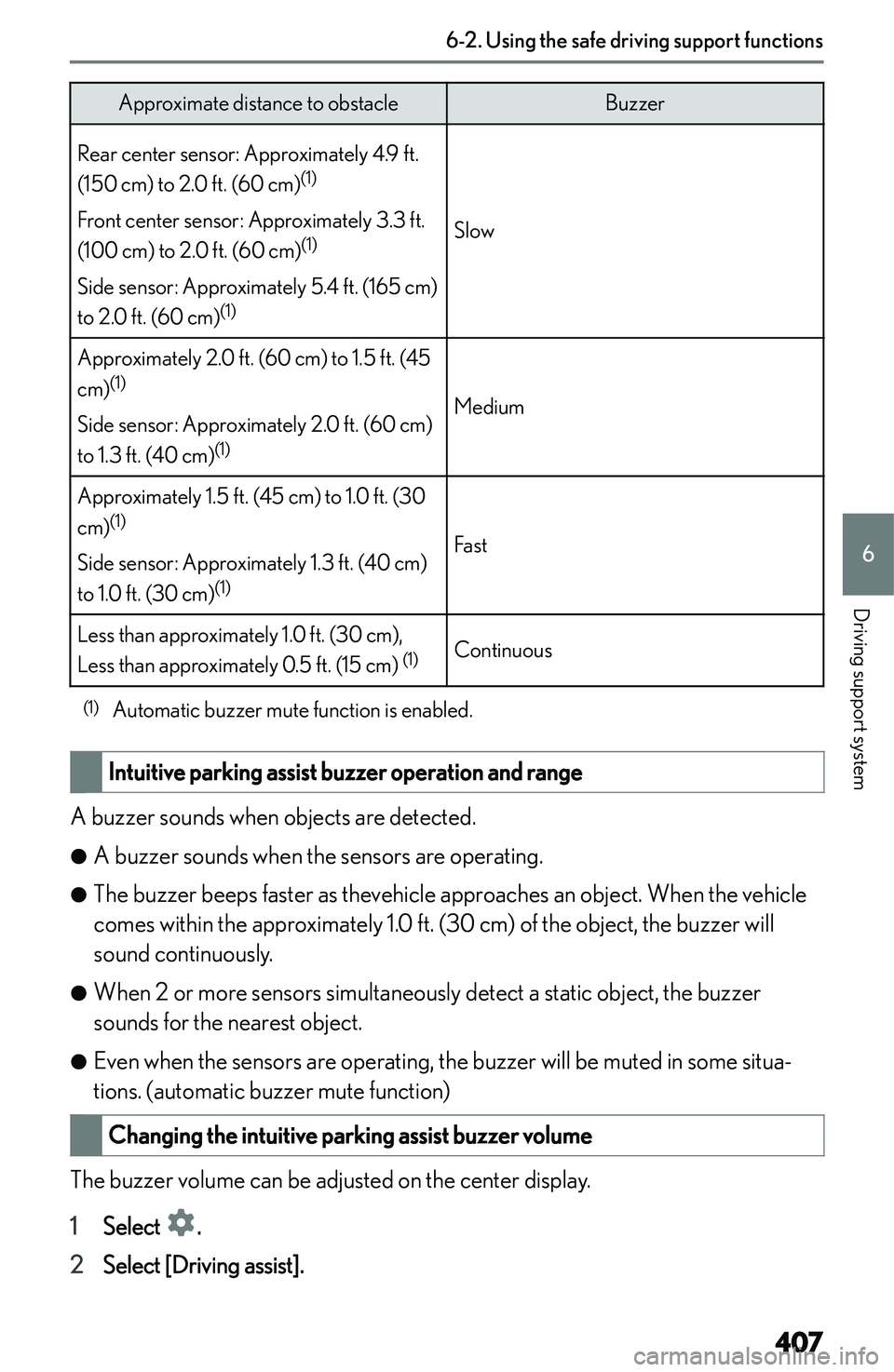

Intuitiveparkingassistbuzzeroperationandrange
A buzzer sounds when objects are detected.

3Select [Collision mitigation@.
4 Select [Parking assist volume@.

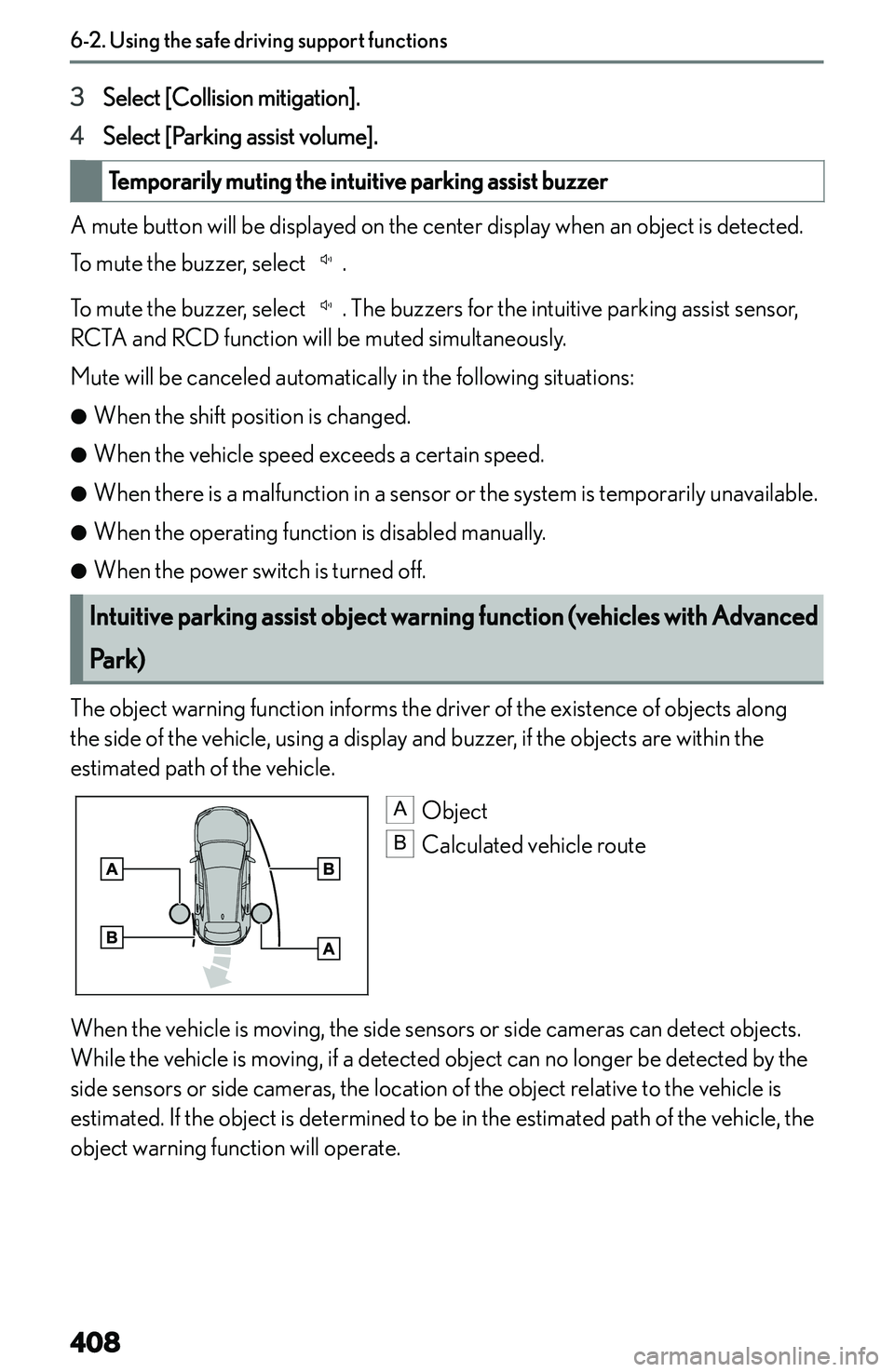

Temporarilymutingtheintuitiveparkingassistbuzzer
A mute button will be displayed on the center display when an object is detected.To mute the buzzer, select
.
To mute the buzzer, select
. The buzzers for the intuitive parking assist sensor,
RCTA and RCD function will be muted simultaneously.
Mute will be canceled automatically in the following situations:
