LEXUS NX300h 2022 Owners Manual

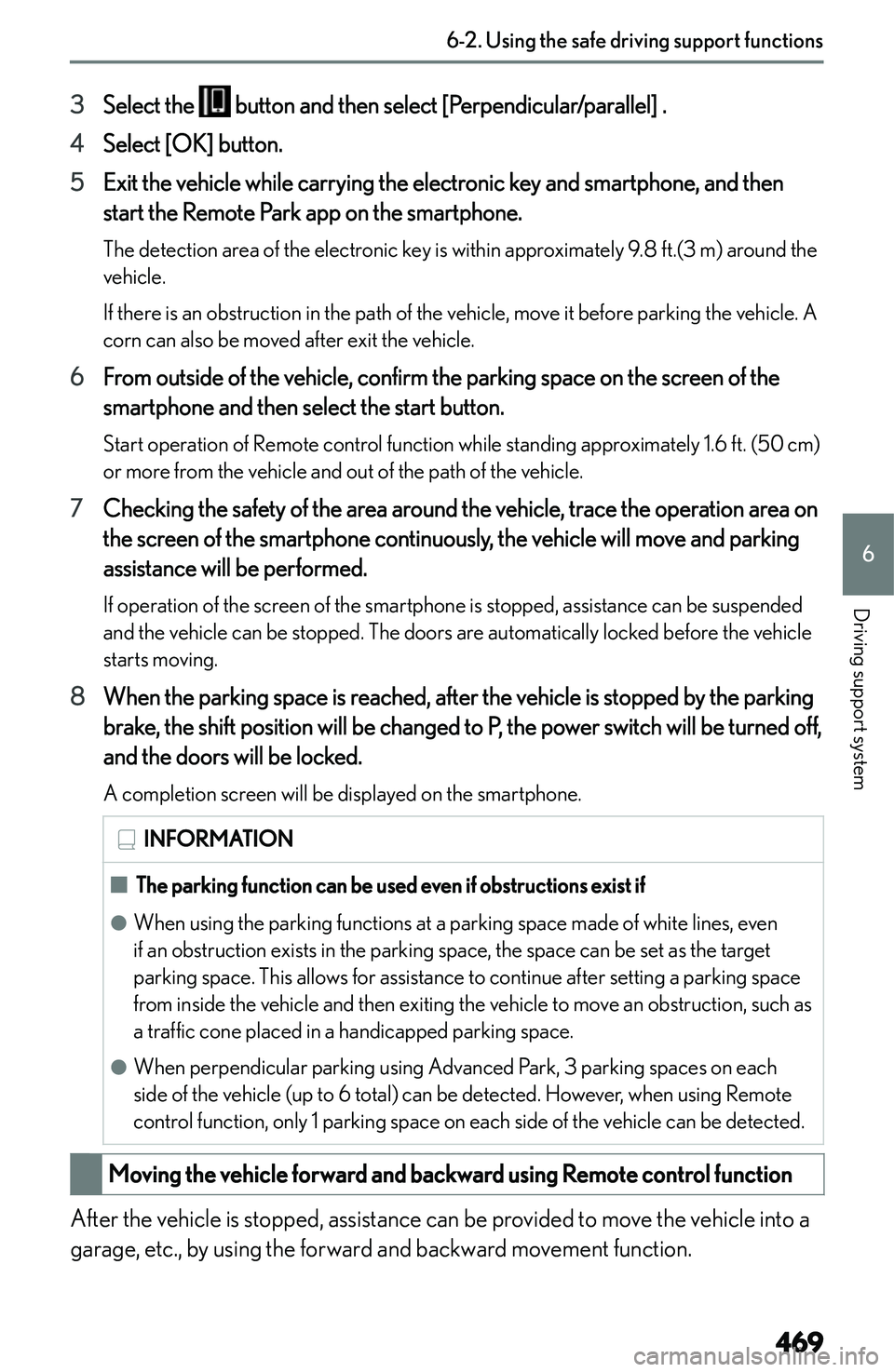

3Select the button and then select [Perpendicular/parallel@ .
4 Select [OK@ button.
5 Exit the vehicle while carrying the electronic key and smartphone, and then
start the Remote Park app on the smartphone.
The detection area of the electronic key is within approximately 9.8 ft.(3 m) around the vehicle.
If there is an obstruction in the path of the vehicle, move it before parking the vehicle. A
corn can also be moved after exit the vehicle.
6 From outside of the vehicle, confirm the parking space on the screen of the
smartphone and then select the start button.
Start operation of Remote control function while standing approximately 1.6 ft. (50 cm)or more from the vehicle and out of the path of the vehicle.
7 Checking the safety of the area around the vehicle, trace the operation area on
the screen of the smartphone continuously, the vehicle will move and parking
assistance will be performed.
If operation of the screen of the smartphone is stopped, assistance can be suspended
and the vehicle can be stopped. The doors are automatically locked before the vehicle
starts moving.
8 When the parking space is reached, after the vehicle is stopped by the parking
brake, the shift position will be changed to P, the power switch will be turned off,
and the doors will be locked.
A completion screen will be displayed on the smartphone.INFORMATION

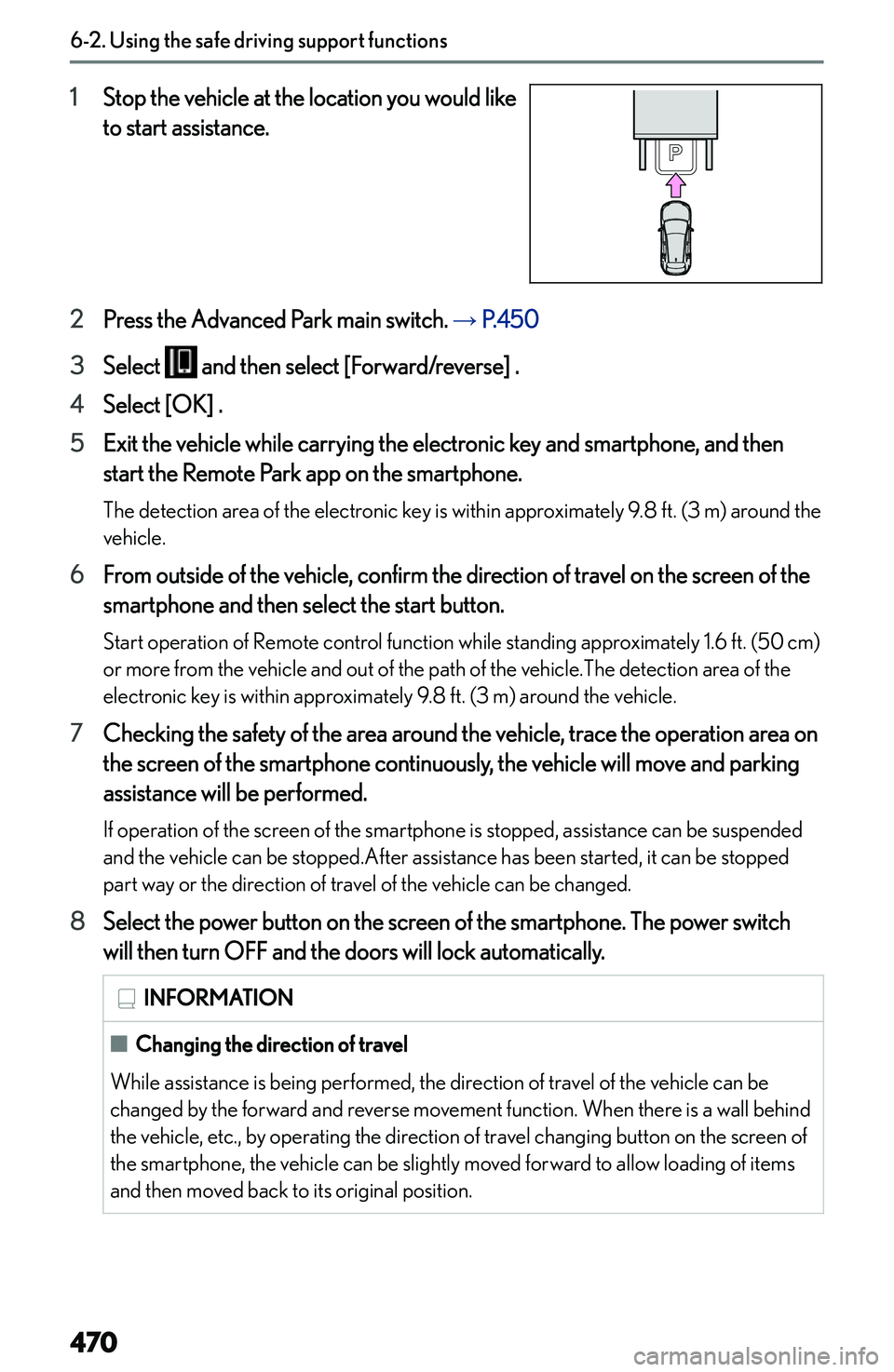

1Stop the vehicle at the location you would like
to start assistance.
2 Press the Advanced Park main switch.
: P.450
3 Select
and then select [Forward/reverse@ .
4 Select [OK@ .
5 Exit the vehicle while carrying the electronic key and smartphone, and then
start the Remote Park app on the smartphone.
The detection area of the electronic key is within approximately 9.8 ft. (3 m) around the vehicle.
6 From outside of the vehicle, confirm the direction of travel on the screen of the
smartphone and then select the start button.
Start operation of Remote control function while standing approximately 1.6 ft. (50 cm)or more from the vehicle and out of the path of the vehicle.The detection area of the
electronic key is within approximately 9.8 ft. (3 m) around the vehicle.
7 Checking the safety of the area around the vehicle, trace the operation area on
the screen of the smartphone continuously, the vehicle will move and parking
assistance will be performed.
If operation of the screen of the smartphone is stopped, assistance can be suspended
and the vehicle can be stopped.After assistance has been started, it can be stopped
part way or the direction of travel of the vehicle can be changed.
8 Select the power button on the screen of the smartphone. The power switch
will then turn OFF and the doors will lock automatically.
INFORMATION

ExitingusingRemotecontrolfunction
Assistance can be provided to exit from a perpendicular or parallel parking space
when the power switch OFF. When forward and backward movement is selected,
the maximum distance the vehicle can move is 23.0 ft. (7 m) from the starting point
and possible to change the direction of travel.
1 While near the parked vehicle, unlock the
doors using the electronic key, and then start
the Remote Park app on the smartphone.
If the smartphone cannot connect to the vehicle,
using the electronic key, unlock the doors again.
2 Select the start button on the screen of the smartphone.
The power switch will change to ON.
3 Check that a possible exit direction is displayed, select the exit direction.
4 Checking the safety of the area around the vehicle, trace the operation area on
the screen of the smartphone continuously, the vehicle will move and parking
assistance will be performed.
If operation of the screen of the smartphone is stopped, assistance can be suspended
and the vehicle can be stopped. After assistance has been started, it can be stopped
part way or the direction of travel of the vehicle can be changed.
5 Move the vehicle to the position where assistance ends and enter the vehicle
while carrying the electronic key.
To stop assistance part way, stop operating the smartphone or enter the vehicle.
INFORMATION

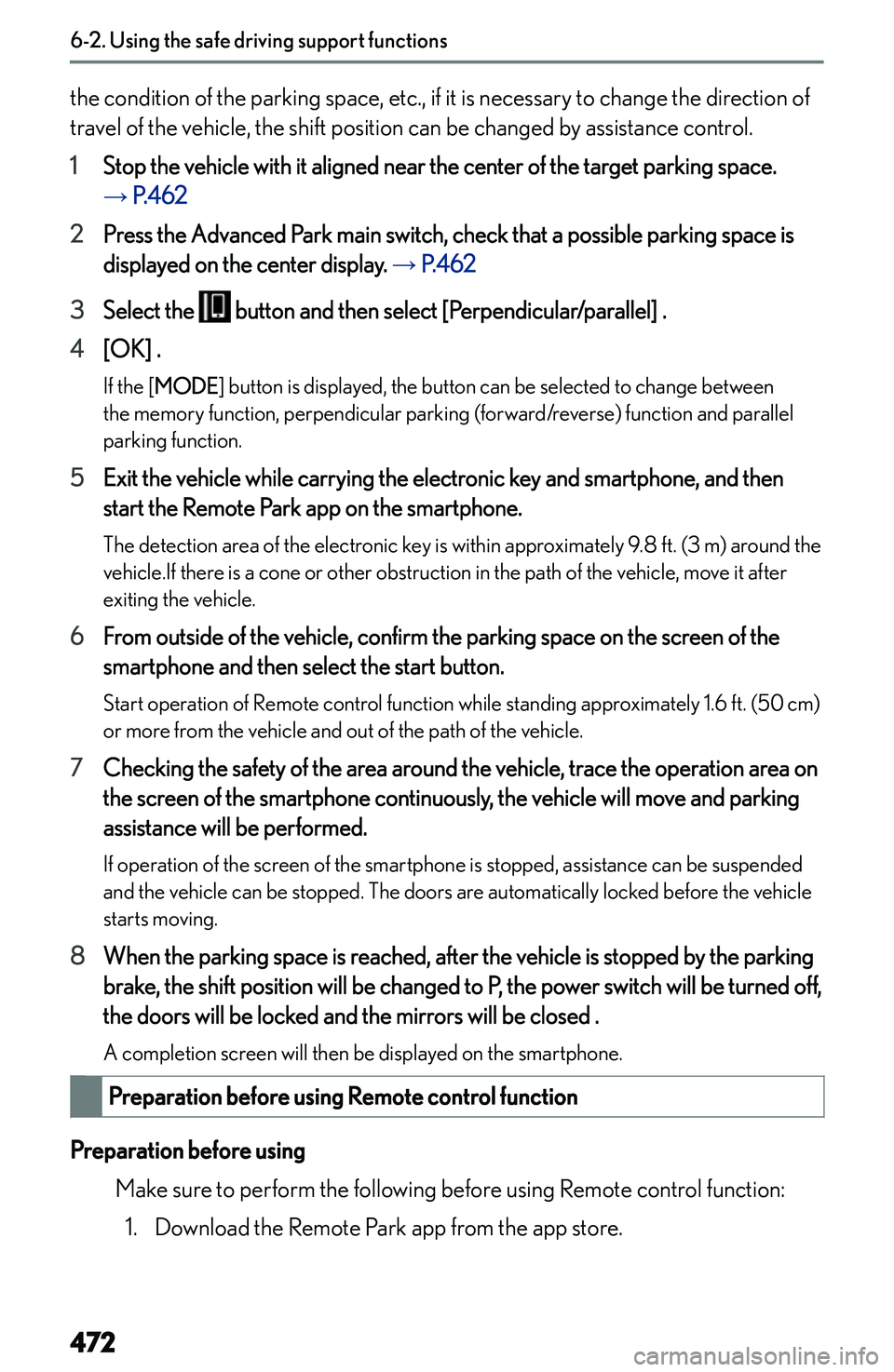

the condition of the parking space, etc., if it is necessary to change the direction oftravel of the vehicle, the shift position can be changed by assistance control.
1 Stop the vehicle with it aligned near the center of the target parking space.

: P.462
2 Press the Advanced Park main switch, check that a possible parking space is
displayed on the center display.
: P.462
3 Select the
button and then select [Perpendicular/parallel@ .
4 [OK@ .
If the [ MODE @ button is displayed, the button can be selected to change between
the memory function, perpendicular parking (forward/reverse) function and parallel
parking function.
5 Exit the vehicle while carrying the electronic key and smartphone, and then
start the Remote Park app on the smartphone.
The detection area of the electronic key is within approximately 9.8 ft. (3 m) around the vehicle.If there is a cone or other obstruction in the path of the vehicle, move it afterexiting the vehicle.
6 From outside of the vehicle, confirm the parking space on the screen of the
smartphone and then select the start button.
Start operation of Remote control function while standing approximately 1.6 ft. (50 cm)or more from the vehicle and out of the path of the vehicle.
7 Checking the safety of the area around the vehicle, trace the operation area on
the screen of the smartphone continuously, the vehicle will move and parking
assistance will be performed.
If operation of the screen of the smartphone is stopped, assistance can be suspended
and the vehicle can be stopped. The doors are automatically locked before the vehicle
starts moving.
8 When the parking space is reached, after the vehicle is stopped by the parking
brake, the shift position will be changed to P, the power switch will be turned off,
the doors will be locked and the mirrors will be closed .
A completion screen will then be displayed on the smartphone.
PreparationbeforeusingRemotecontrolfunction
Preparationbeforeusing Make sure to perform the following before using Remote control function:
1. Download the Remote Park app from the app store.
6-2.Usingthesafedrivingsupportfunctions472

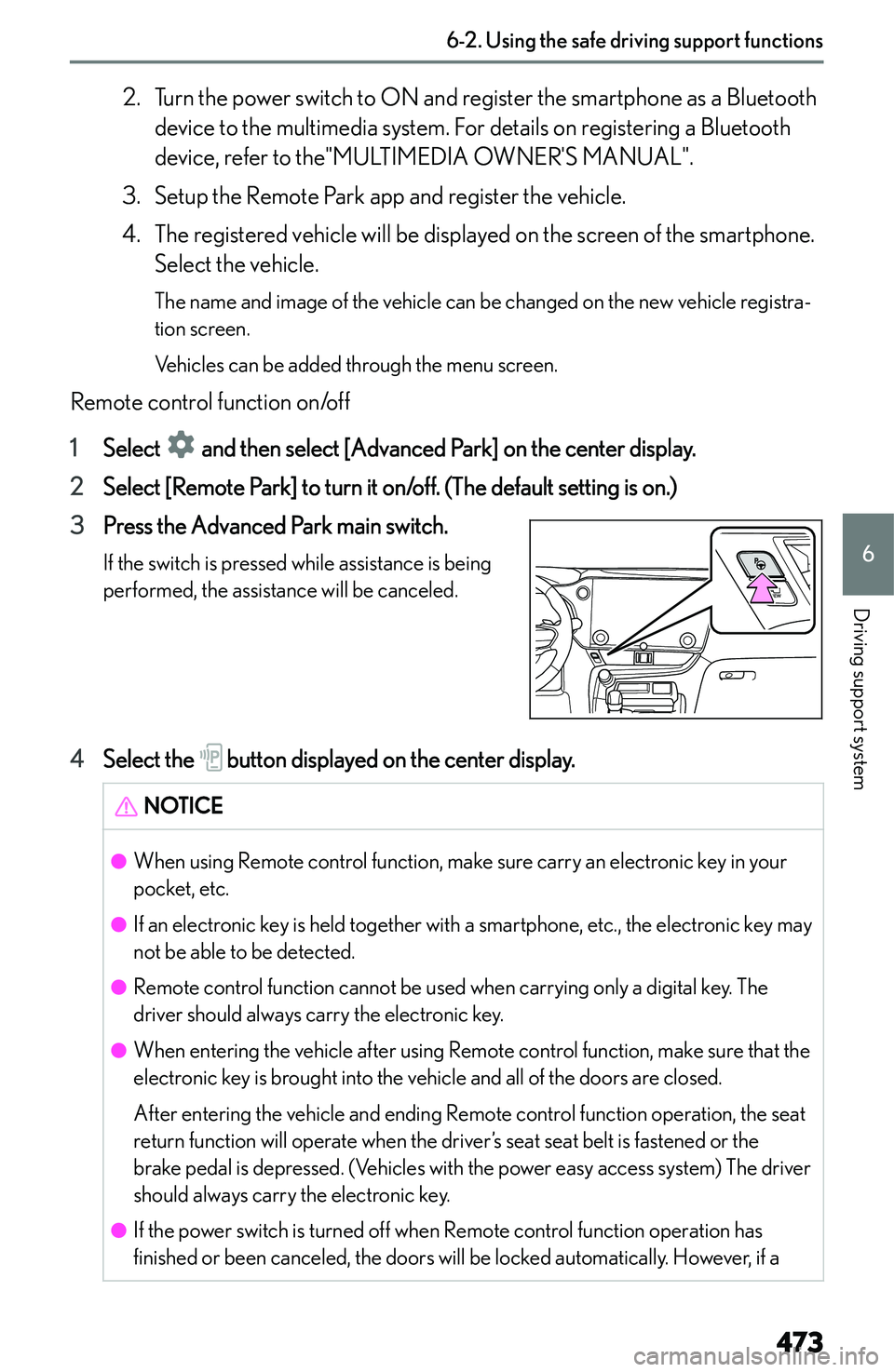

2. Turn the power switch to ON and register the smartphone as a Bluetoothdevice to the multimedia system. For details on registering a Bluetooth
device, refer to the"MULTIMEDIA OWNERjS MANUAL".
3. Setup the Remote Park app and register the vehicle. 4. The registered vehicle will be displayed on the screen of the smartphone. Select the vehicle.
The name and image of the vehicle can be changed on the new vehicle registra-
tion screen.
Vehicles can be added through the menu screen.
Remote control function on/off
1 Select
and then select [Advanced Park@ on the center display.
2 Select [Remote Park@ to turn it on/off. (The default setting is on.)
3 Press the Advanced Park main switch.
If the switch is pressed while assistance is being
performed, the assistance will be canceled.
4 Select the
button displayed on the center display.
NOTICE

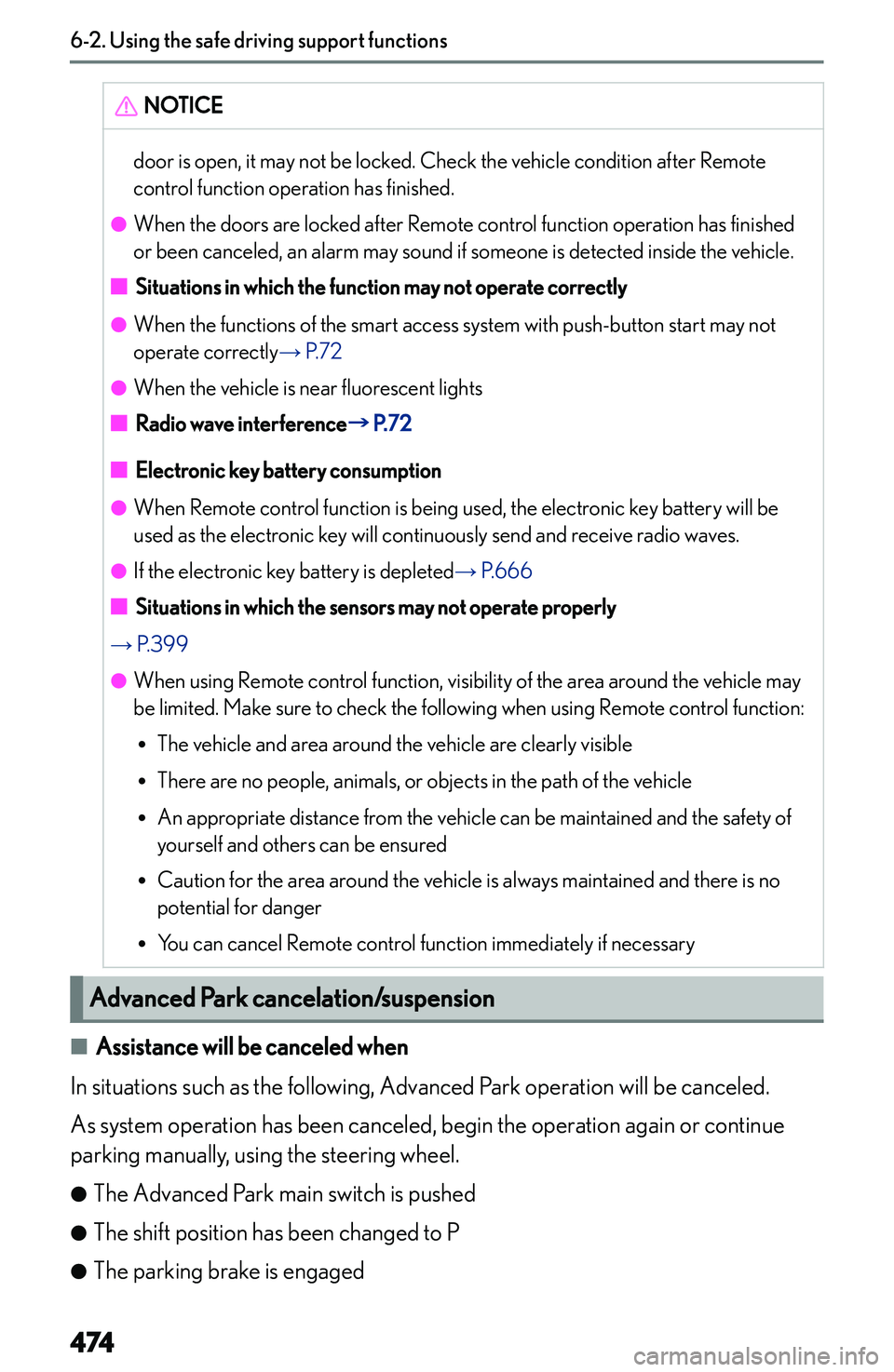

NOTICEdoor is open, it may not be locked. Check the vehicle condition after Remotecontrol function operation has finished.
