engine coolant LEXUS RC F 2016 Owner's Manual

6108-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)
The coolant level is satisfactory if it is between the full (“FULL” or “F”) and low
(“LOW” or “L”) lines on the reservoir.
Reservoir
“FULL” or “F”
“LOW” or “L”4
1
2
3
Engine (RC350/RC300)Engine (RC200t)
Engine (RC F)Intercooler (RC200t)

6118-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)
Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are oper ating by checking the fan sound and air flow.
If it is difficult to check th ese, turn the air conditioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
5
Engine (RC350/RC300)Engine (RC200t)
Engine (RC F)Intercooler (RC200t)
6
7

6128-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)
WA R N I N G
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
●RC350/RC300: While the engine and radi-
ator are hot, do not loosen or remove the
coolant reservoir cap or radiator cap. (The
radiator cap is located under the engine
cover.)
High temperature steam or coolant could
spray out.
●RC200t: While the engine and radiators are
hot, do not loosen or remove the coolant res-
ervoir cap, radiator cap, or intercooler cool-
ant reservoir cap.
High temperature steam or coolant could
spray out.
●RC F: While the engine and radiator are hot,
do not loosen or remove the coolant reser-
voir cap.
High temperature steam or coolant could
spray out.

6138-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)

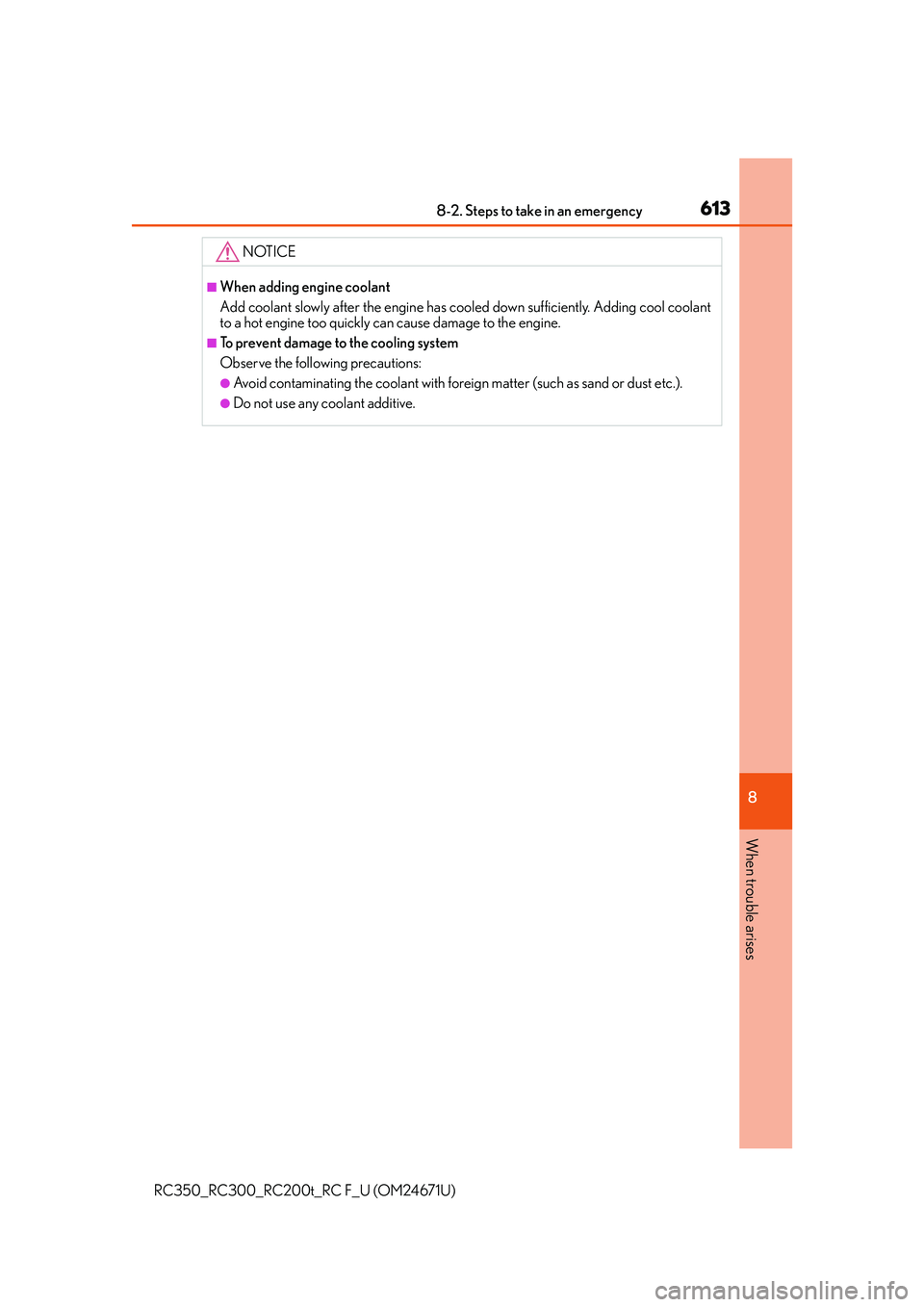

NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.

6269-1. Specifications
RC350_RC300_RC200t_RC F_U (OM24671U)
■Spark plug
Cooling system
Capacity
RC350/
RC30010.1 qt. (9.6 L, 8.4 Imp. qt.)
RC200t
Gasoline engine
8.5 qt. (8.0 L, 7.0 Imp. qt.)
Intercooler
3.3 qt. (3.1 L, 2.7 Imp. qt.)
RC F12.3 qt. (11.6 L, 10.2 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili- cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
RC350/RC300RC200tRC F
MakeDENSO
FK20HBR11NGK DILFR7K9GDENSO
FK20HBR-J8
Gap0.043 in. (1.1 mm)0.035 in. (0.9 mm)0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Open voltage at 68F
(20 C):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11.8
 12.0 V Discharged
(Check the voltage 20 minutes after the engine and all
lights are turned off.)
Charging rates5 A max.

6469-1. Specifications
RC350_RC300_RC200t_RC F_U (OM24671U)
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km un der that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air co nditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

686Alphabetical index
RC350_RC300_RC200t_RC F_U (OM24671U)
Engine .........................................................621ACCESSORY mode..................... 200
Compartment ..................................... 485
Engine switch ........................................ 199
Hood ......................................................... 481
How to start the engine ................... 199
Identification number ...................... 620
If the engine will not start................597
Ignition switch (engine switch)..... 199
Overheating ........................................ 608
Engine coolant....................................... 493 Capacity .................................................626
Checking................................................493
Preparing and checking before winter ................................... 320
Engine coolant temperature gauge ................................................92, 98
Engine immobilizer system ..................76
Engine oil .................................................488 Capacity ................................................. 622
Checking............................................... 488
Preparing and checking before winter ................................... 320
Engine oil maintenance data .............491
Engine oil temperature gauge ........... 98
Engine switch ...........................................199
Enhanced VSC ..................................... 287
EPS (Electric Power Steering) .......288 Warning light .......................................544
Event data recorder (EDR) ...................10
Expert mode .............................................291 First-aid kit storage belt..................... 438
Flat tire
Vehicles with a spare tire .............. 570
Vehicles with emergency tire puncture repair kit .........................584
Floor mats................................................... 30
Fluid Automatic transmission .................. 627
Brake........................................................ 629
Washer .................................................. 500
Fog lights...................................................222 Replacing light bulbs ....................... 529
Switch .......................................................222
Footwell light ...........................................432 Wattage .................................................635
Front fog lights........................................222 Replacing light bulbs ....................... 529
Switch .......................................................222
Front passenger occupant classification system ........................... 50
Front seats ................................................. 155 Adjustment............................................. 155
Cleaning................................................. 469
Correct driving posture .....................32
Driving position memory................ 160
Head restraints .....................................164
Jam protection function....................156
Seat heaters ..........................................430
Seat position memory ...................... 160
Seat ventilators...................................... 431F

688Alphabetical index
RC350_RC300_RC200t_RC F_U (OM24671U)
I/M test ..................................................... 478
IdentificationEngine ..................................................... 620
Vehicle ..................................................... 619
Ignition switch (engine switch)..........199
Illuminated entry system .................... 434
Immobilizer system ..................................76
Indicators .................................................... 87
Initialization Maintenance.............................. 473, 491
Meter................................................. 110, 122
Moon roof ...............................................179
Multi-information display ........ 110, 122
Power windows ................................... 175
Tire pressure warning system............................... 502
Initiators (tire pressure warning system).................................508
Inside rear view mirror .........................169
Instrument panel light control............................................. 96, 103
Intercooler............................................... 495
Intercooler coolant .............................. 493 Capacity .................................................626
Checking................................................493
Preparing and checking before winter ................................... 320
Interior lights........................................... 433
Intuitive parking assist......................... 259 Jack
Positioning a floor jack.................... 482
Vehicle-equipped jack ...... 570, 584
Jack handle ..................................570, 584
Jam protection function Front seats ...............................................156
Moon roof ............................................... 179
Power windows.................................... 175
Keyless entry Smart access system with push-button start..........137, 143
Wireless remote control........137, 143
Keys ............................................................. 132 Battery-saving function ................... 150
Electronic key ........................................ 132
Engine switch ........................................199
If the electronic key does not operate properly ....... 600
Key number plate ................................ 132
Keyless entry .......................................... 132
Mechanical key..................................... 133
Replacing the battery ........................ 517
Warning buzzer.................................. 138
Wireless remote control.................. 132
Knee airbags ............................................. 40
IJ
K
