5818-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)

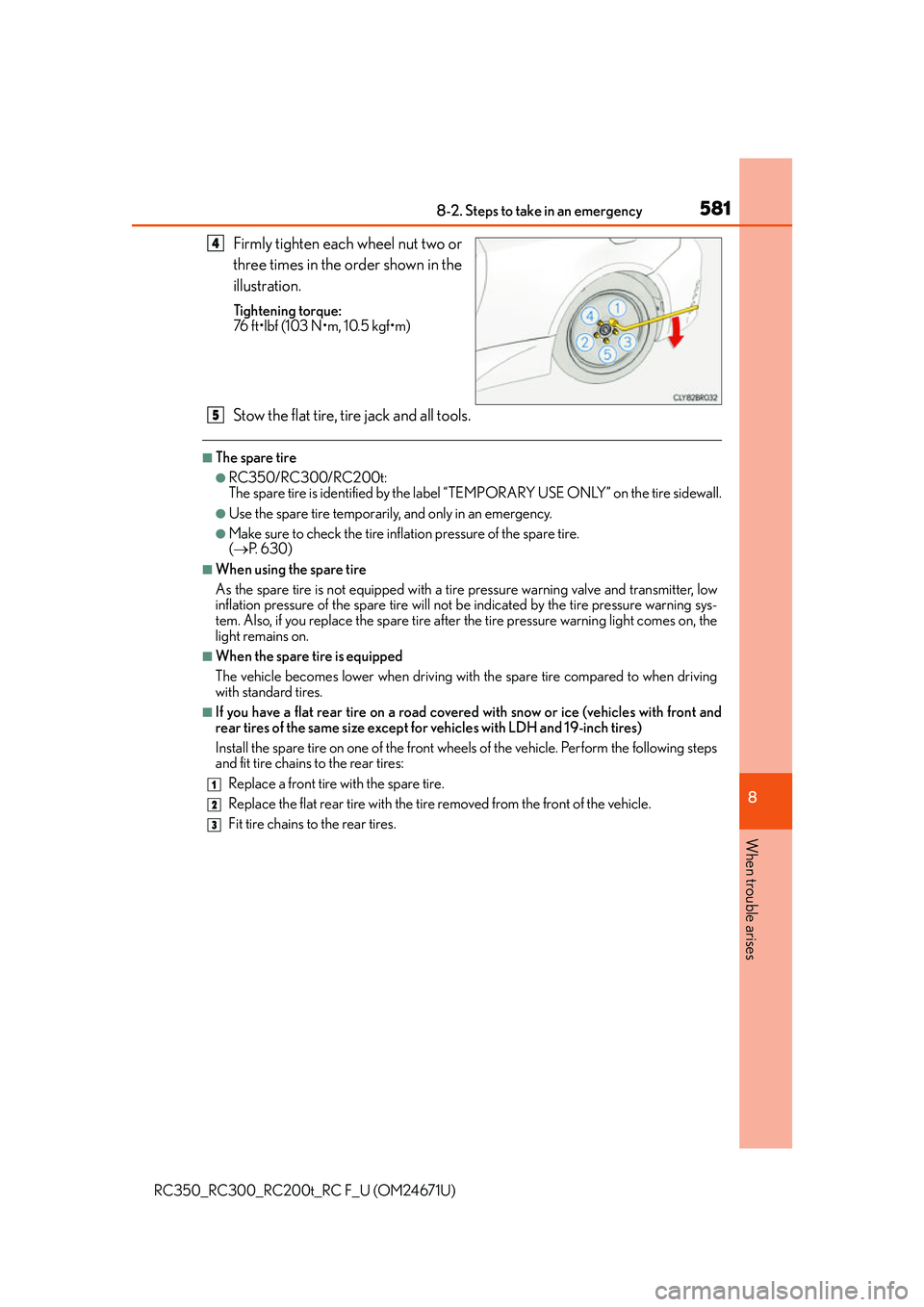

Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
■The spare tire
●RC350/RC300/RC200t:
The spare tire is identified by the label “TEMPORARY USE ONLY” on the tire sidewall.
●Use the spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the spare tire.
( P. 6 3 0 )
■When using the spare tire
As the spare tire is not equipped with a tire pressure warning valve and transmitter, low
inflation pressure of the spare tire will not be indicated by the tire pressure warning sys-
tem. Also, if you replace the spare tire after the tire pressure warning light comes on, the
light remains on.
■When the spare tire is equipped
The vehicle becomes lower when driving with the spare tire compared to when driving
with standard tires.
■If you have a flat rear tire on a road covered with snow or ice (vehicles with front and
rear tires of the same size except fo r vehicles with LDH and 19-inch tires)
Install the spare tire on one of the front wheels of the vehicle. Perform the following steps
and fit tire chains to the rear tires: Replace a front tire with the spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.
4
5
1
2
3

5828-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)
WA R N I N G
■When using the spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi-
cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tires simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
Also, not only can the following system not be utilized fully, but it may even negatively
affect the drive-train components:
• AWD system (if equipped)
■Speed limit when using the spare tire
Do not drive at speeds in excess of 50 mp h (80 km/h) when a spare tire is installed on
the vehicle.
The spare tire is not designed for driving at high speeds. Failure to observe this precau-
tion may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
• ABS & Brake assist
•VSC
•TRAC
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)
• PCS (if equipped)
•EPS
• Adaptive Variable Suspension System (if equipped)
• LDA (Lane Departure Alert) (if equipped) • VGRS (if equipped)
• LDH (Lexus Dynamic Handling sys-
tem) (if equipped)
• DRS (Dynamic Rear Steering) (if equipped)
• VDIM (Vehicle Dy namics Integrated
Management)
• Tire pressure warning system
• Lexus parking assist monitor
• Intuitive parking assist (if equipped)
• Navigation system (if equipped)

5838-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)

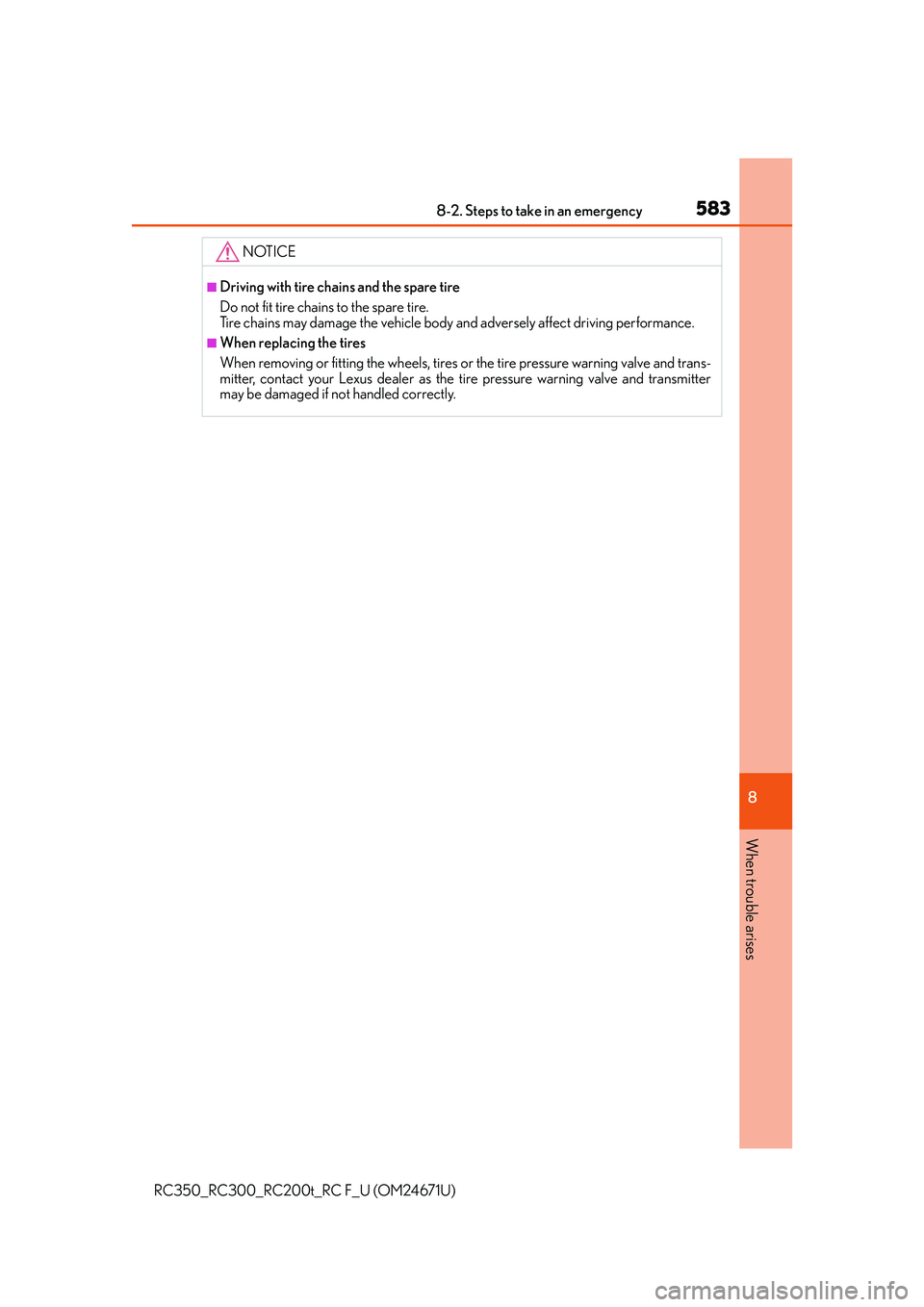

NOTICE
■Driving with tire chains and the spare tire
Do not fit tire chains to the spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and trans-
mitter, contact your Lexus dealer as the tire pressure warning valve and transmitter
may be damaged if not handled correctly.

5848-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (P. 5 3 2 )
If you have a flat tire (vehicles with an emergency
tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can be
repaired temporarily with the emer gency tire puncture repair kit.
WA R N I N G
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat ti re can damage the tire and the wheel beyond
repair. Driving with a flat tire may cause a circumferential groove on the side wall. In
such a case, the tire may explode when using the emergency tire puncture repair kit,
resulting in death or serious injury.
Before repairing the vehicle

5858-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)
*: Use of the jack (P. 5 7 8 )

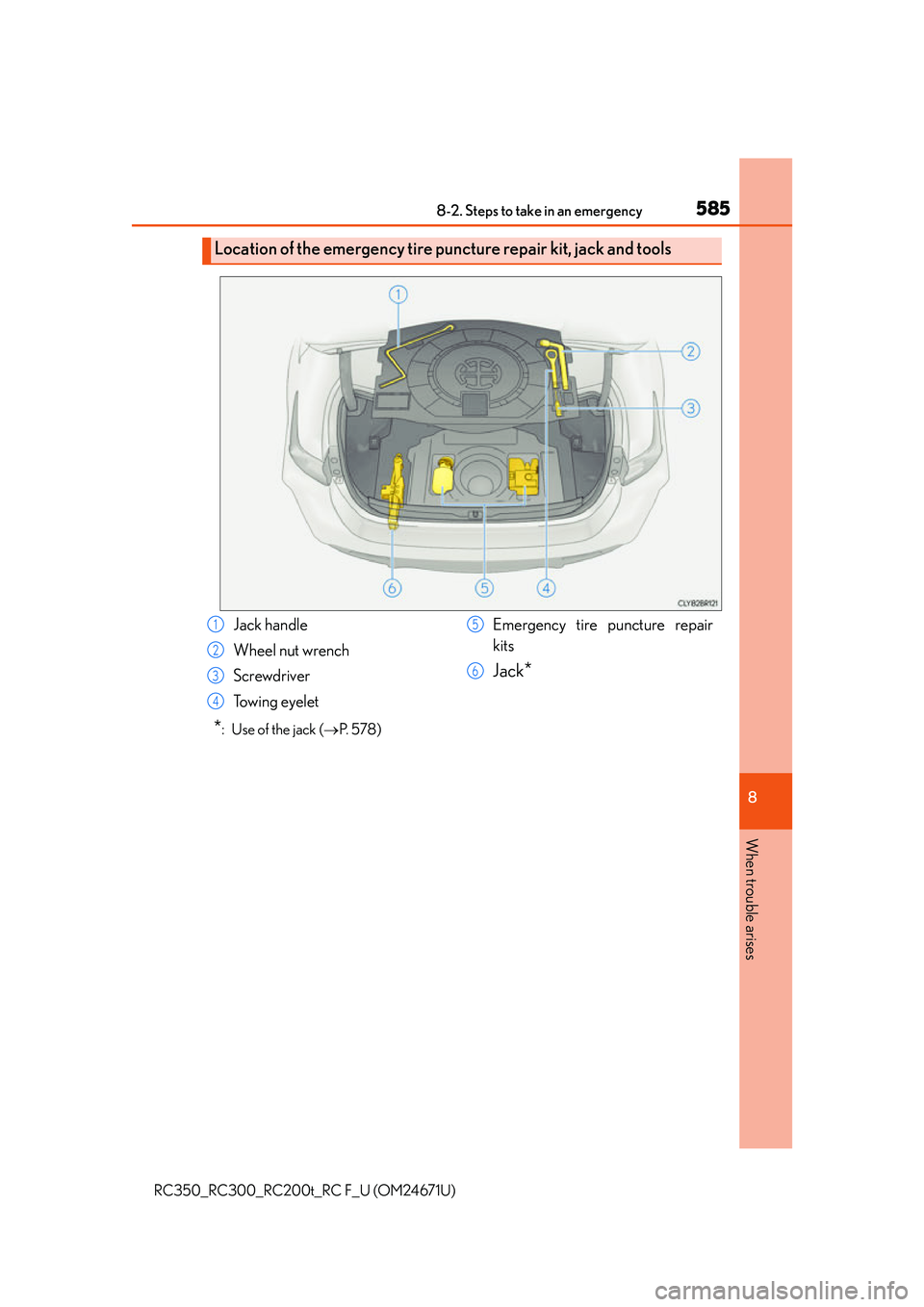

Location of the emergency tire puncture repair kit, jack and tools
Jack handle
Wheel nut wrench
Screwdriver
Towing eyelet Emergency tire puncture repair
kits
Jack*
1
2
3
4
5
6

5868-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)

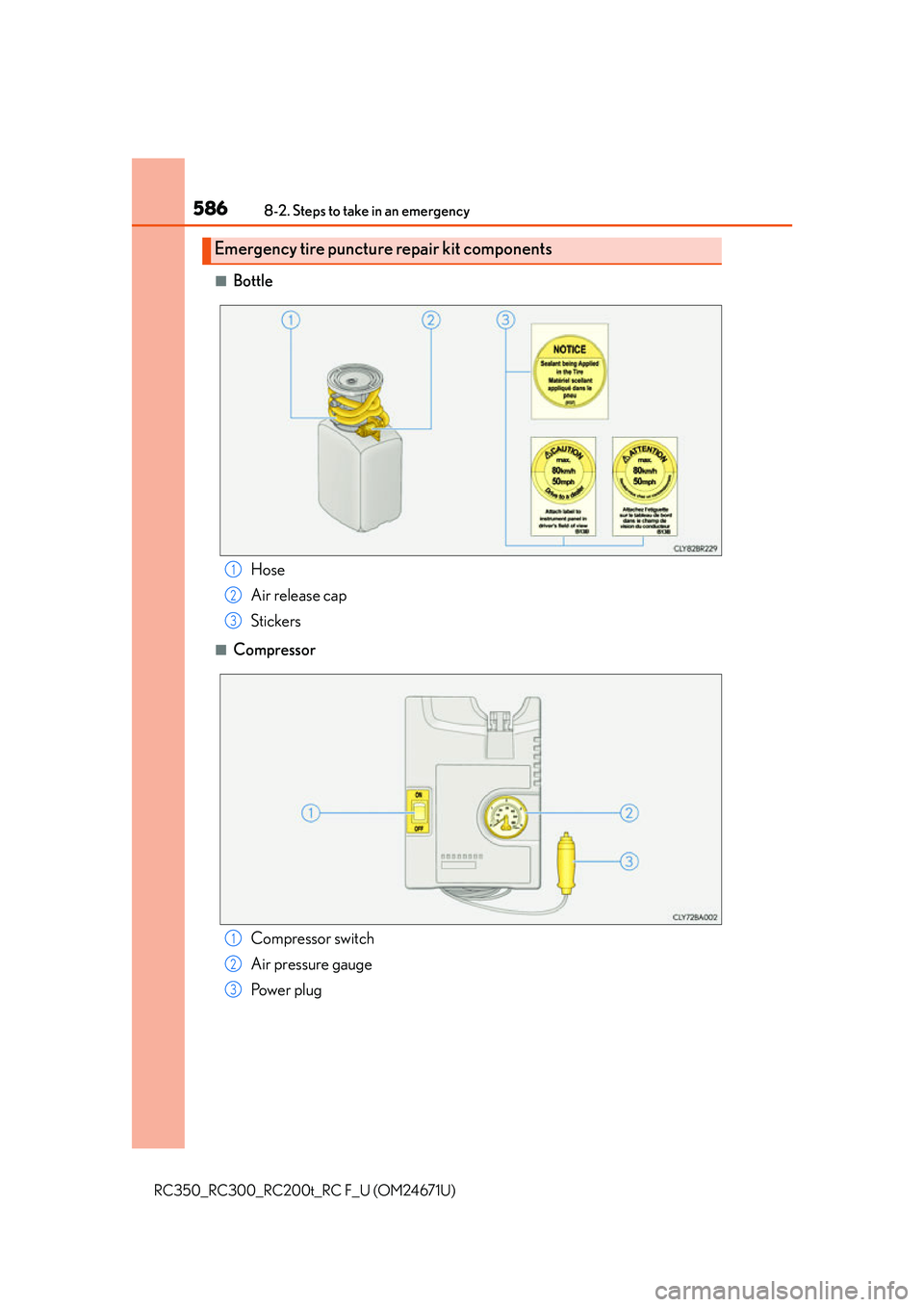

■Bottle
■Compressor
Emergency tire puncture repair kit components
Hose
Air release cap
Stickers1
2
3
Compressor switch
Air pressure gauge
Po w e r p l u g1
2
3

5878-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)

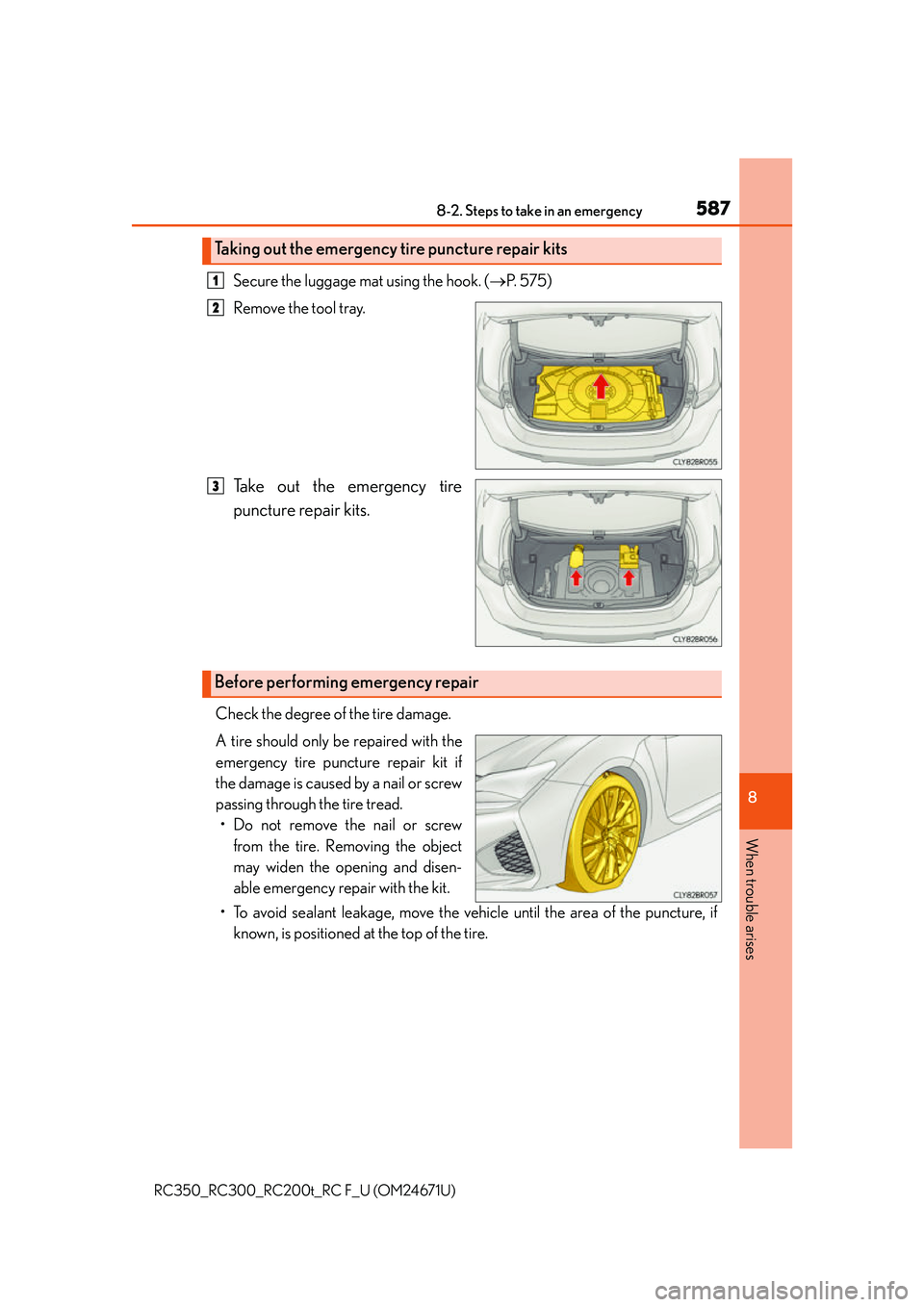

Secure the luggage mat using the hook. (P. 5 7 5 )
Remove the tool tray.
Take out the emergency tire
puncture repair kits.
Check the degree of the tire damage.
A tire should only be repaired with the
emergency tire puncture repair kit if
the damage is caused by a nail or screw
passing through the tire tread. • Do not remove the nail or screw from the tire. Removing the object
may widen the opening and disen-
able emergency repair with the kit.
• To avoid sealant leakage, move the vehicle until the area of the puncture, if known, is positioned at the top of the tire.
Taking out the emergency tire puncture repair kits
1
2
3
Before performing emergency repair

5888-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)

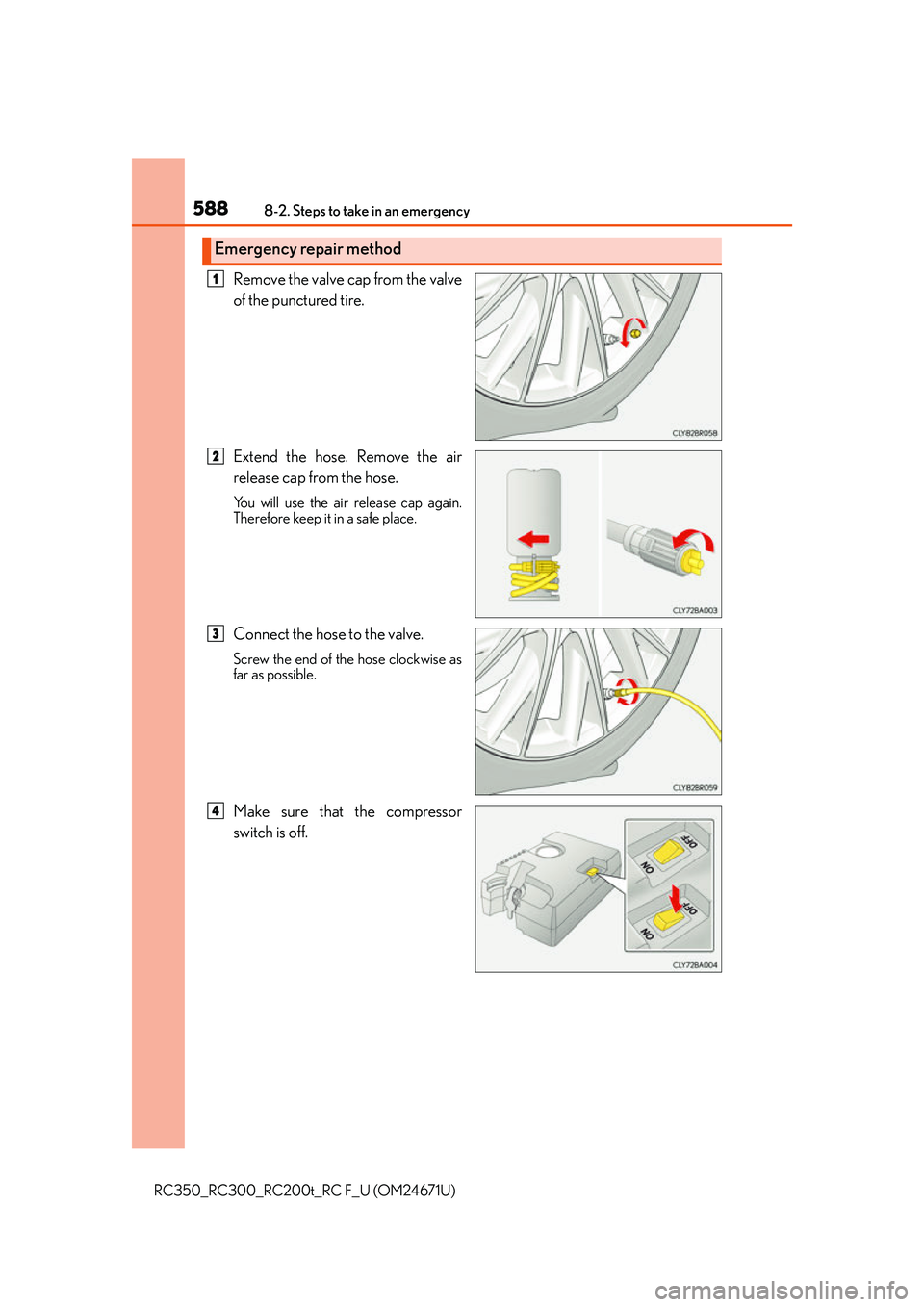

Remove the valve cap from the valve
of the punctured tire.
Extend the hose. Remove the air
release cap from the hose.
You will use the air release cap again.
Therefore keep it in a safe place.
Connect the hose to the valve.
Screw the end of the hose clockwise as
far as possible.
Make sure that the compressor
switch is off.
Emergency repair method
1
2
3
4

5898-2. Steps to take in an emergency
8
When trouble arises
RC350_RC300_RC200t_RC F_U (OM24671U)

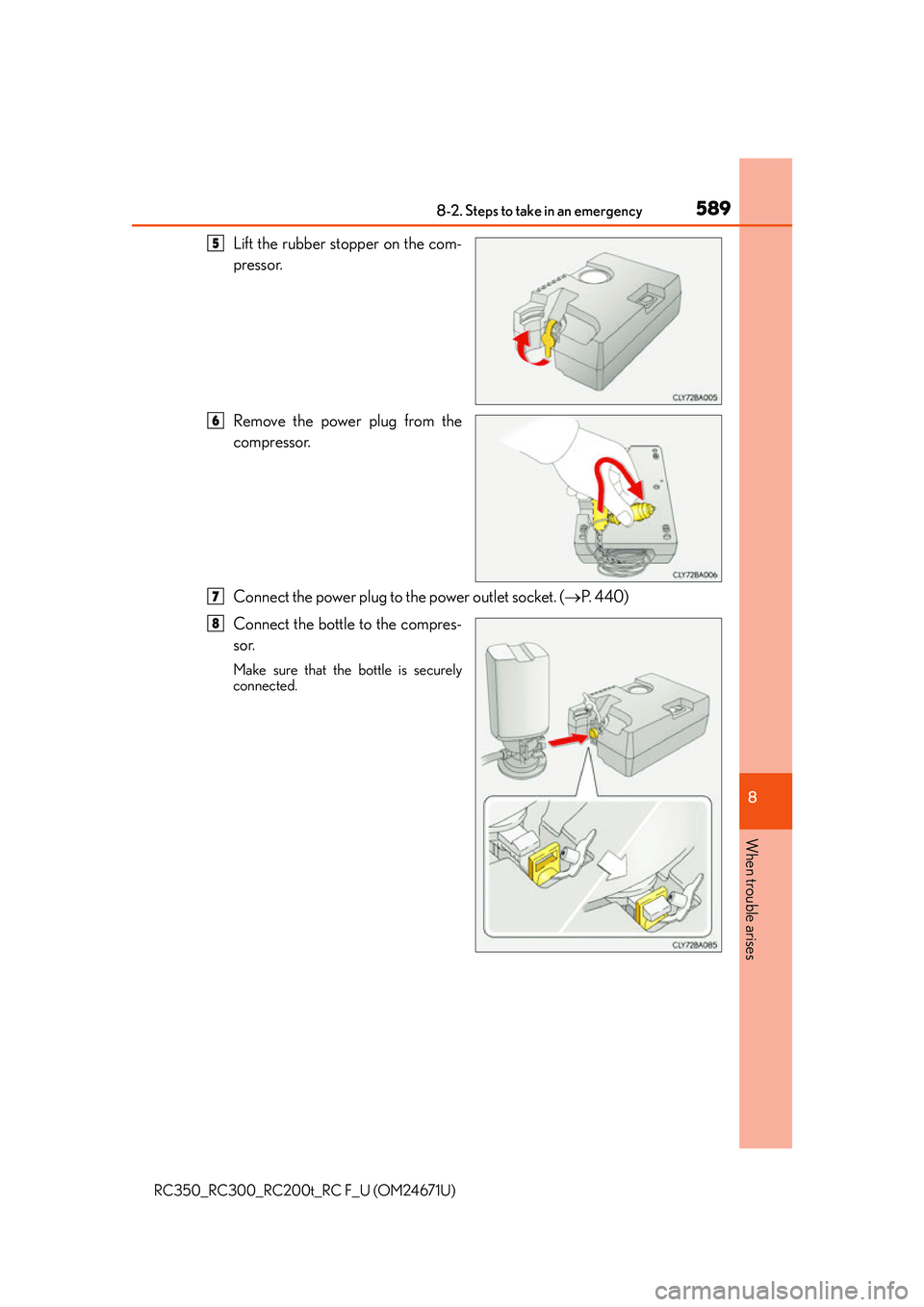

Lift the rubber stopper on the com-
pressor.
Remove the power plug from the
compressor.
Connect the power plug to the power outlet socket. (P. 4 4 0 )
Connect the bottle to the compres-
sor.
Make sure that the bottle is securely
connected.
5
6
7
8

5908-2. Steps to take in an emergency
RC350_RC300_RC200t_RC F_U (OM24671U)

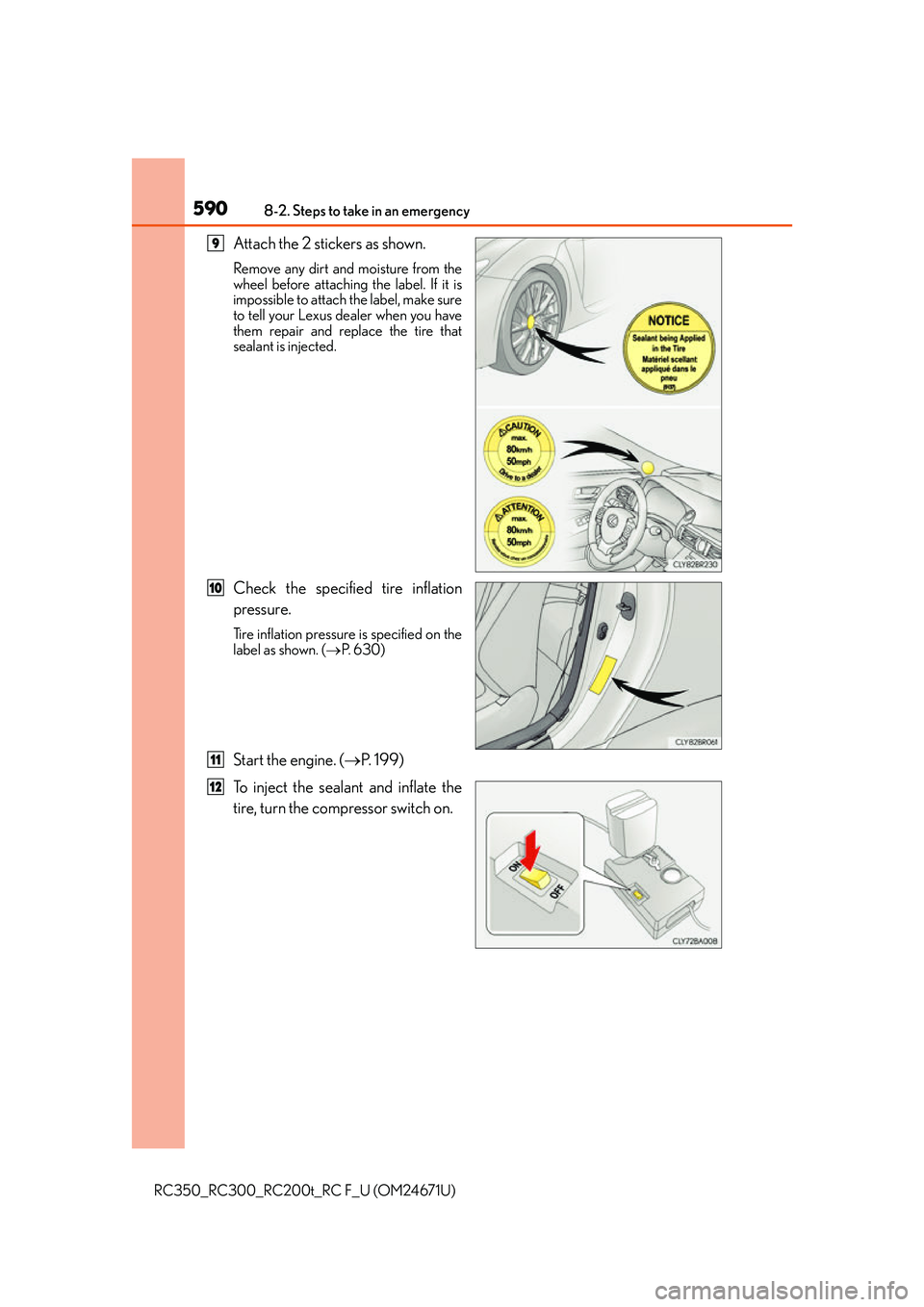

Attach the 2 stickers as shown.
Remove any dirt and moisture from the
wheel before attaching the label. If it is
impossible to attach the label, make sure
to tell your Lexus dealer when you have
them repair and replace the tire that
sealant is injected.
Check the specified tire inflation
pressure.
Tire inflation pressure is specified on the
label as shown. (P. 6 3 0 )
Start the engine. (P. 199)
To inject the sealant and inflate the
tire, turn the compressor switch on.
9
10
11
12
