2394-5. Using the driving support systems
4
Driving
RC350_RC300_RC200t_RC F_U (OM24671U)
Without accelerator pedal operation by the driver, in vehicle-to-vehicle distance
control mode, the vehicle automatically accelerates and decelerates in accor-
dance to the changes in speed of the preceding vehicle. In constant speed con-
trol mode, the vehicle runs at a fixed speed.
Use the dynamic radar cruise control on freeways and highways.
●Vehicle-to-vehicle distance control mode ( P. 2 4 0 )
●Constant speed control mode ( P. 2 4 5 )
Vehicle-to-vehicle distance button
Display
Set speed
Indicators
Cruise control switch
Dynamic radar cruise control

: If equipped
Summary of functions
1
2
3
4
5

2414-5. Using the driving support systems
4
Driving
RC350_RC300_RC200t_RC F_U (OM24671U)
Press the “ON/OFF” button to acti-
vate the cruise control.
Radar cruise control indicator will come
on and a message will be displayed on
the multi-information display.
Press the button again to deactivate the
cruise control.
Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (above
approximately 30 mph [50 km/h])
and push the lever down to set the
speed.
Cruise control “SET” indicator and set
speed will be displayed.
The vehicle speed at the moment the
lever is released becomes the set speed.

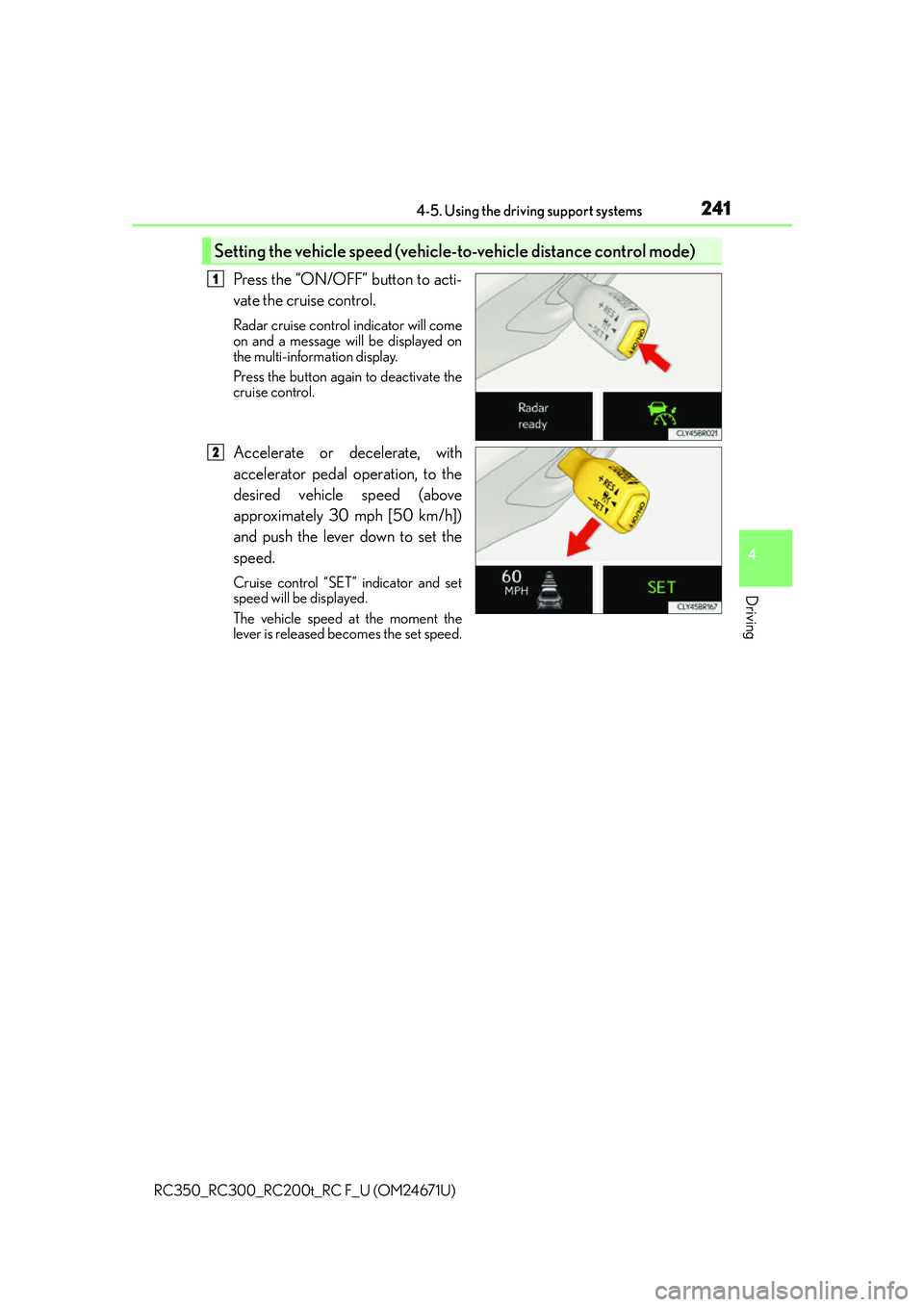

Setting the vehicle speed (vehicle-to-vehicle distance control mode)
1
2

2434-5. Using the driving support systems
4
Driving
RC350_RC300_RC200t_RC F_U (OM24671U)
Pressing the button changes the vehi-
cle-to-vehicle distance as follows:Long
Medium
Short
The vehicle-to-vehicle distance is set
automatically to long mode when the
engine switch is turned to IGNITION
ON mode.
If a vehicle is running ahead of you, the preceding vehicle mark will also be displayed.
Select a distance from the table below. Note that the distances shown corre-
spond to a vehicle speed of 50 mph (8 0 km/h). Vehicle-to-vehicle distance
increases/decreases in accordance with vehicle speed.
Changing the vehicle-to-vehicle distance (vehicle-to-vehicle distance
control mode)
Preceding
vehicle mark
1
2
3
Vehicle-to-vehicle distance settings (vehicle-to-vehicle distance con-
trol mode)
Distance optionsVehicle-to-vehicle distance
LongApproximately 160 ft. (50 m)
MediumApproximately 130 ft. (40 m)
ShortApproximately 100 ft. (30 m)

2444-5. Using the driving support systems
RC350_RC300_RC200t_RC F_U (OM24671U)
Pulling the lever toward you cancels
the speed control.
The speed setting is also canceled when
the brake pedal is depressed.
Pushing the lever up resumes the
speed control and returns vehicle
speed to the set speed.
Resuming is available when the vehicle
speed is more than approximately 25
mph (40 km/h).
When your vehicle is too close to a
vehicle ahead, and sufficient automatic
deceleration via the cruise control is
not possible, the display will flash and
the buzzer will sound to alert the driver.
An example of this would be if another
driver cuts in front of you while you are
following a vehicle. Depress the brake
pedal to ensure an appropriate vehicle-
to-vehicle distance.
■Warnings may not occur when
In the following instances, there is a po ssibility that the warnings will not occur:
●When the speed of the preceding vehicle matches or exceeds your vehicle
speed
●When the preceding vehicle is traveling at an extremely slow speed
●Immediately after the cruise control speed was set
●When depressing the accelerator pedal
Canceling and resuming the speed control
1
2
Approach warning (vehicle-to-vehicle distance control mode)

2464-5. Using the driving support systems
RC350_RC300_RC200t_RC F_U (OM24671U)
■Automatic cancelation of vehicle- to-vehicle distance control mode
Vehicle-to-vehicle distance control driving is automatically canceled in the following situ-
ations:
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●VSC is activated.
●TRAC is activated for a period of time.
●When the VSC or TRAC system is turned off by pressing the VSC OFF switch.
●The sensor cannot detect correctly because it is covered in some way.
●The windshield wipers are operating at high speed (when the wipers are in AUTO
mode or the high speed wiper operation).
●When snow mode is set.
●Pre-collision braking is activated.
If vehicle-to-vehicle distance control mode is automatically canceled for any other rea-
son, there may be a malfunction in the system. Contact your Lexus dealer.
■Automatic cancelation of constant speed control mode
Constant speed control mode is automatica lly canceled in the following situations:
●Actual vehicle speed is more than approximately 10 mph (16 km/h) below the set vehi-
cle speed.
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●VSC is activated.
●TRAC is activated for a period of time.
●When the VSC or TRAC system is turned off by pressing the VSC OFF switch.
●Pre-collision braking is activated.
■Radar sensor and grille cover
Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle dis-
tance control mode operates properly. (Some obstructions, such as snow, ice and plastic
objects, cannot be detected by the obstruction sensor.)
Dynamic radar cruise control is cancel ed if an obstruction is detected.
■Operation guide display
When the dynamic radar cruise control switch is operated, a guidance display is shown
on the meters for a few seconds as to how to operate the dynamic radar cruise control
switch or distance switch. ( P. 110, 122)
■Warning messages and buzzers for dynamic radar cruise control
Warning messages and buzzers are used to indicate a system malfunction or to inform
the driver of the need fo r caution while driving. (P. 555)
Grille cover
Radar sensor
1
2

2534-5. Using the driving support systems
4
Driving
RC350_RC300_RC200t_RC F_U (OM24671U)
While driving on a road that has lane markers, this system recognizes the lane
markers using a camera as a sensor to alert the driver when the vehicle deviates
from its lane.
If the system judges that the vehicle has deviated from its lane, it alerts the driver
using a buzzer and indications on the multi-information display.
Camera sensor
LDA (Lane Departure Alert)

: If equipped
Summary of function

2554-5. Using the driving support systems
4
Driving
RC350_RC300_RC200t_RC F_U (OM24671U)
When the inside of both lane lines turn
white:
Indicates that both right and left lane
markers are recognized.
If the vehicle deviates from the lane, the
lane line on the side the vehicle has devi-
ated from will flash in yellow. (P. 551)
When the inside of either lane line turns
white:
Indicates that the lane marker on the
white-marked side is recognized.
If the vehicle deviates from the side of a
lane with recognized lane markers, the
lane line will flash in yellow. ( P. 551)
When the inside of both lane lines are
black:
Indicates that no lane markers are rec-
ognized or the LDA system is tempo-
rarily canceled.
Indication on the multi-information display

2594-5. Using the driving support systems
4
Driving
RC350_RC300_RC200t_RC F_U (OM24671U)

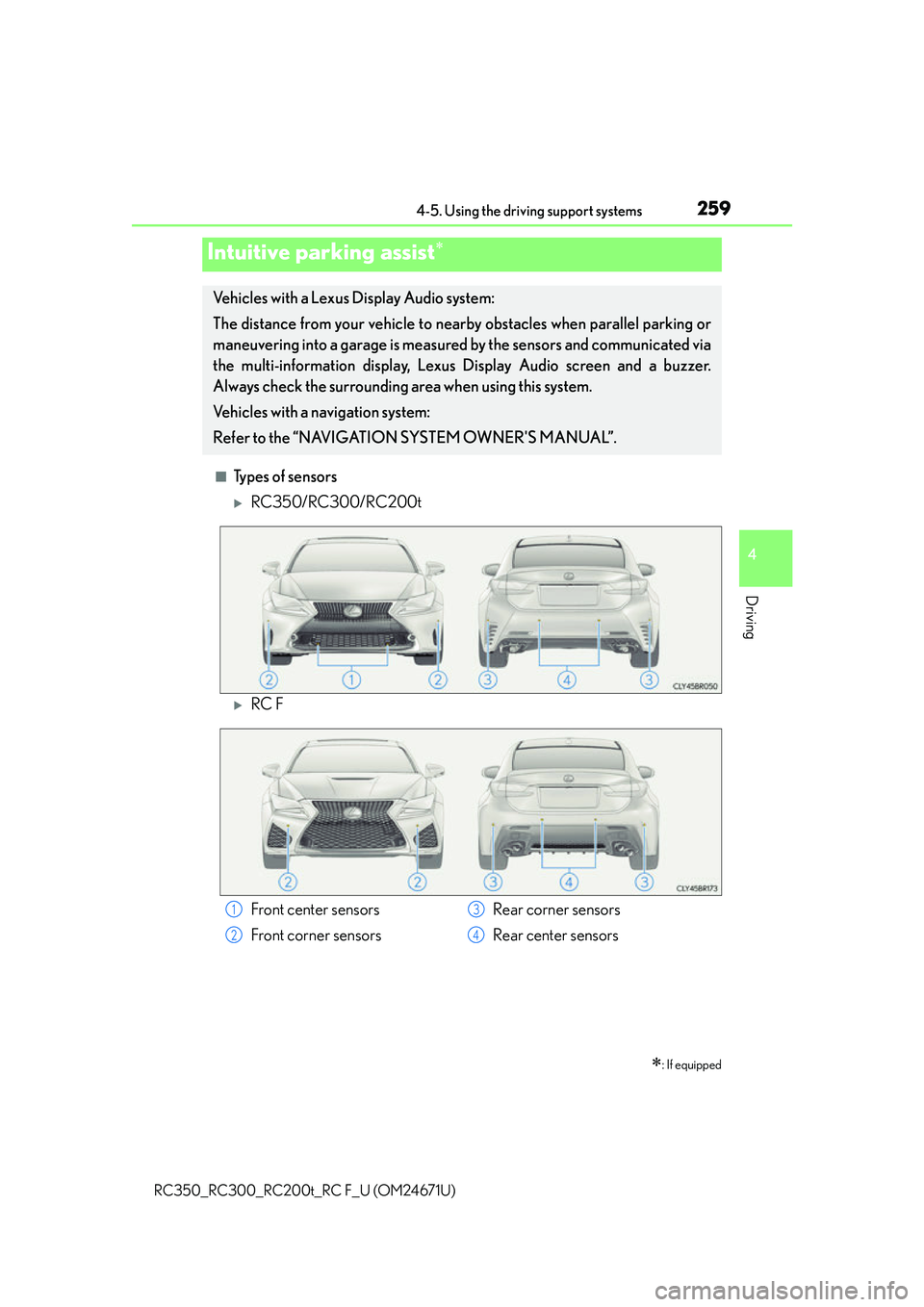

■Types of sensors
RC350/RC300/RC200t
RC F
Intuitive parking assist
: If equipped
Vehicles with a Lexus Display Audio system:
The distance from your vehicle to nearby obstacles when parallel parking or
maneuvering into a garage is measure d by the sensors and communicated via
the multi-information display, Lexus Display Audio screen and a buzzer.
Always check the surrounding area when using this system.
Vehicles with a navigation system:
Refer to the “NAVIGATION SYSTEM OWNER'S MANUAL”.
Front center sensors
Front corner sensors Rear corner sensors
Rear center sensors1
2
3
4

2614-5. Using the driving support systems
4
Driving
RC350_RC300_RC200t_RC F_U (OM24671U)
When the sensors detect an obstacle, a graphic is shown on the multi-informa-
tion display and Lexus Display Audio scr een depending on the position and dis-
tance to the obstacle.
■Multi-information display
■Lexus Display Audio screen
When the Lexus parking assist
monitor system is not displayed
A graphic is automatically displayed
when an obstacle is detected. The
screen can be set so that the graphic
is not displayed. ( P. 2 6 5 )
: Select to mute the buzzer
sounds.
When the Lexus parking assist
monitor system is displayed
(insert display)
A simplified image is displayed on
the upper right corner of the Lexus
Display Audio screen when an
obstacle is detected.
Display
RC350/RC300/RC200tRC F
Front corner sensor detection
Front center sensor detection Rear corner sensor detection
Rear center sensor detection
1
2
3
4
1
2

2624-5. Using the driving support systems
RC350_RC300_RC200t_RC F_U (OM24671U)
■Multi-information display and Lexus Display Audio screen
Sensors that detect an obstacle will illuminate continuously or blink.
RC350/RC300/RC200t
*1: Multi-information display
*2: Lexus Display Audio screen
Sensor detection display, obstacle distance
Display
Insert display
(Lexus Display Audio screen only)Approximate distance to obstacle
Corner sensor/
front center sensorRear center sensor
(continuous)(blinking slowly)
Front center sensor
only:
3.3 ft. (100 cm) to 1.6 ft.
(50 cm)
4.9 ft. (150 cm) to 2.0
ft. (60 cm)
(continuous)(blinking)
1.6 ft. (50 cm) to 1.3 ft.
(40 cm)2.0 ft. (60 cm) to 1.5 ft.
(45 cm)
(continuous)(blinking rapidly)
1.3 ft. (40 cm) to 1.0 ft.
(30 cm)1.5 ft. (45 cm) to 1.1 ft.
(35 cm)
(blinking*1 or
continuous
*2)
(continuous)
Less than 1.0 ft. (30 cm)Less than 1.1 ft. (35 cm)
