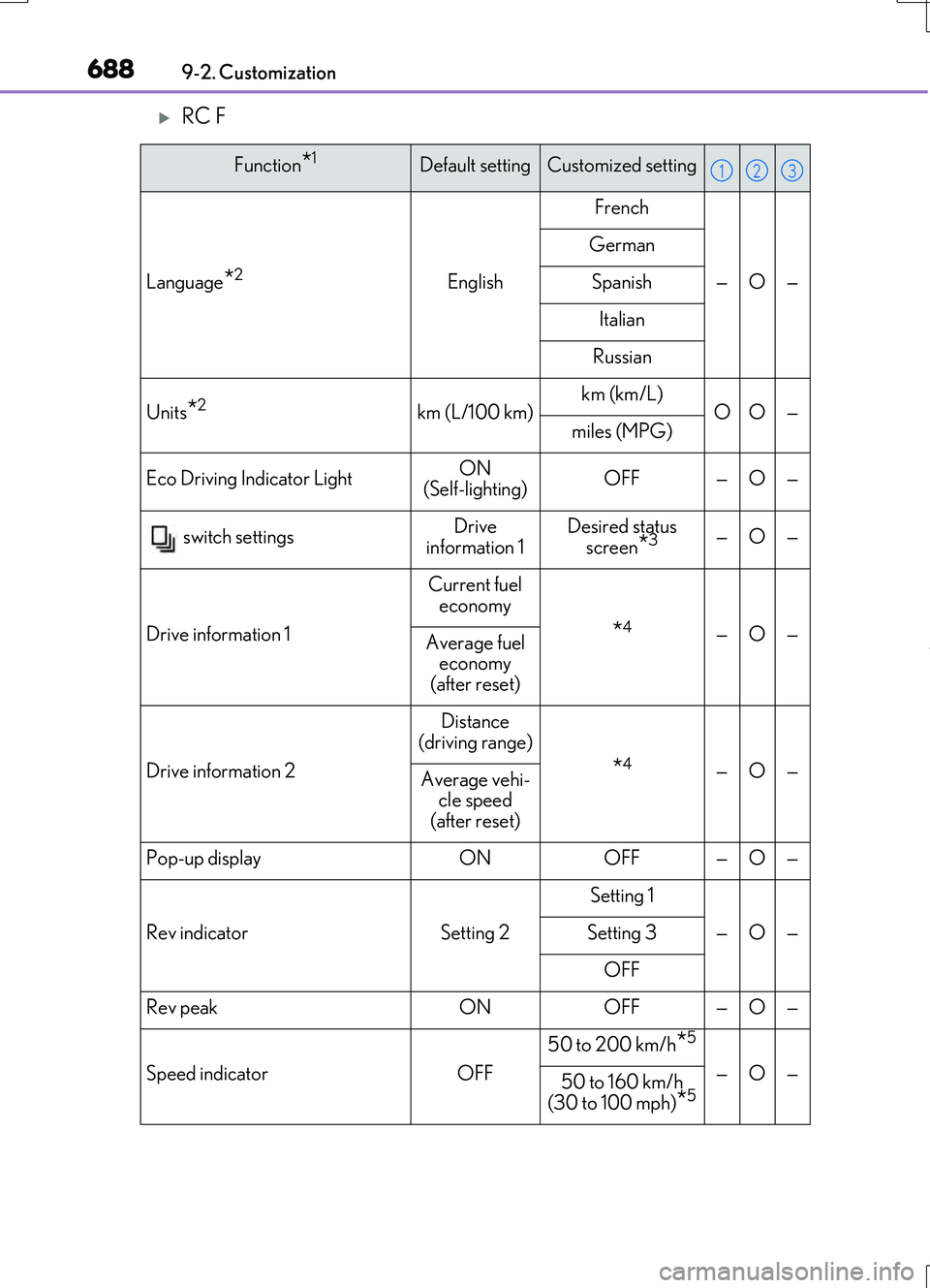

6889-2. Customization
RC200t_RC F_EE(OM24728E)
RC F
Function*1Default settingCustomized setting
Language*2English
French
—O—
German
Spanish
Italian
Russian
Units*2km (L/100 km)km (km/L)OO—miles (MPG)
Eco Driving Indicator LightON
(Self-lighting)OFF—O—
switch settingsDrive
information 1Desired status screen*3—O—
Drive information 1
Current fuel
economy
*4—O—Average fuel economy
(after reset)
Drive information 2
Distance
(driving range)
*4—O—Average vehi- cle speed
(after reset)
Pop-up displayONOFF—O—
Rev indicatorSetting 2
Setting 1
—O—Setting 3
OFF
Rev peakONOFF—O—
Speed indicatorOFF
50 to 200 km/h*5
—O—50 to 160 km/h
(30 to 100 mph)
*5
123

689
9

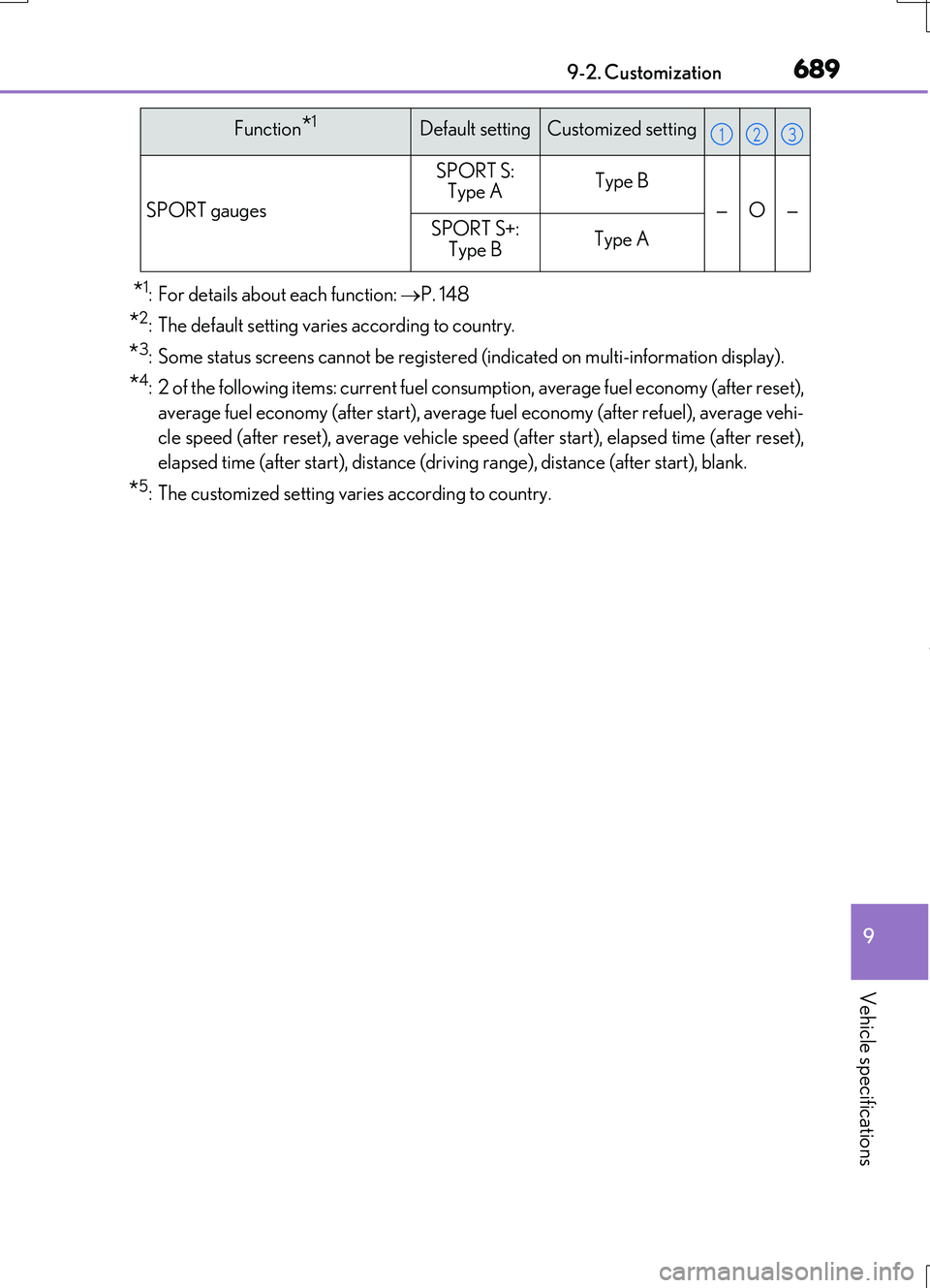

9-2. Customization
Vehicle specifications
RC200t_RC F_EE(OM24728E)
*1: For details about each function: P. 148
*2: The default setting varies according to country.
*3: Some status screens cannot be registered (indicated on multi-information display).
*4: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel), average vehi-
cle speed (after reset), average vehicle speed (after start), elapsed time (after reset),
elapsed time (after start), distance (driving range), distance (after start), blank.
*5: The customized setting varies according to country.
SPORT gauges
SPORT S: Type AType B
—O—SPORT S+:Type BType A
Function*1Default settingCustomized setting123

6949-2. Customization
RC200t_RC F_EE(OM24728E)
■Lexus parking assist-sensor*1 ( P. 320)
*1: If equipped
*2: When Lexus parking assist-sensor is operating.
■Active rear wing* (P. 379)
*:RC F
■Automatic air conditioning system (P. 478)
■Seat heaters (P. 491)
FunctionDefault settingCustomized setting
Detection distance of the front center sensor*1FarNearO—O
Detection distance of the rearcenter sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting*2All sensors
displayedDisplay offO—O
123
FunctionDefault settingCustomized setting
Operation of the active rear wingOffOn—OO
123
FunctionDefault settingCustomized setting
Switching between outside airand recirculated air mode linked
to “AUTO” switch operation
OnOffO—O
A/C auto switch operationOnOffO—O
Exhaust gas sensor sensitivityStandard-3 to 3O—O
123
FunctionDefault settingCustomized setting
Seat heater timer controlOffOnO—O
123

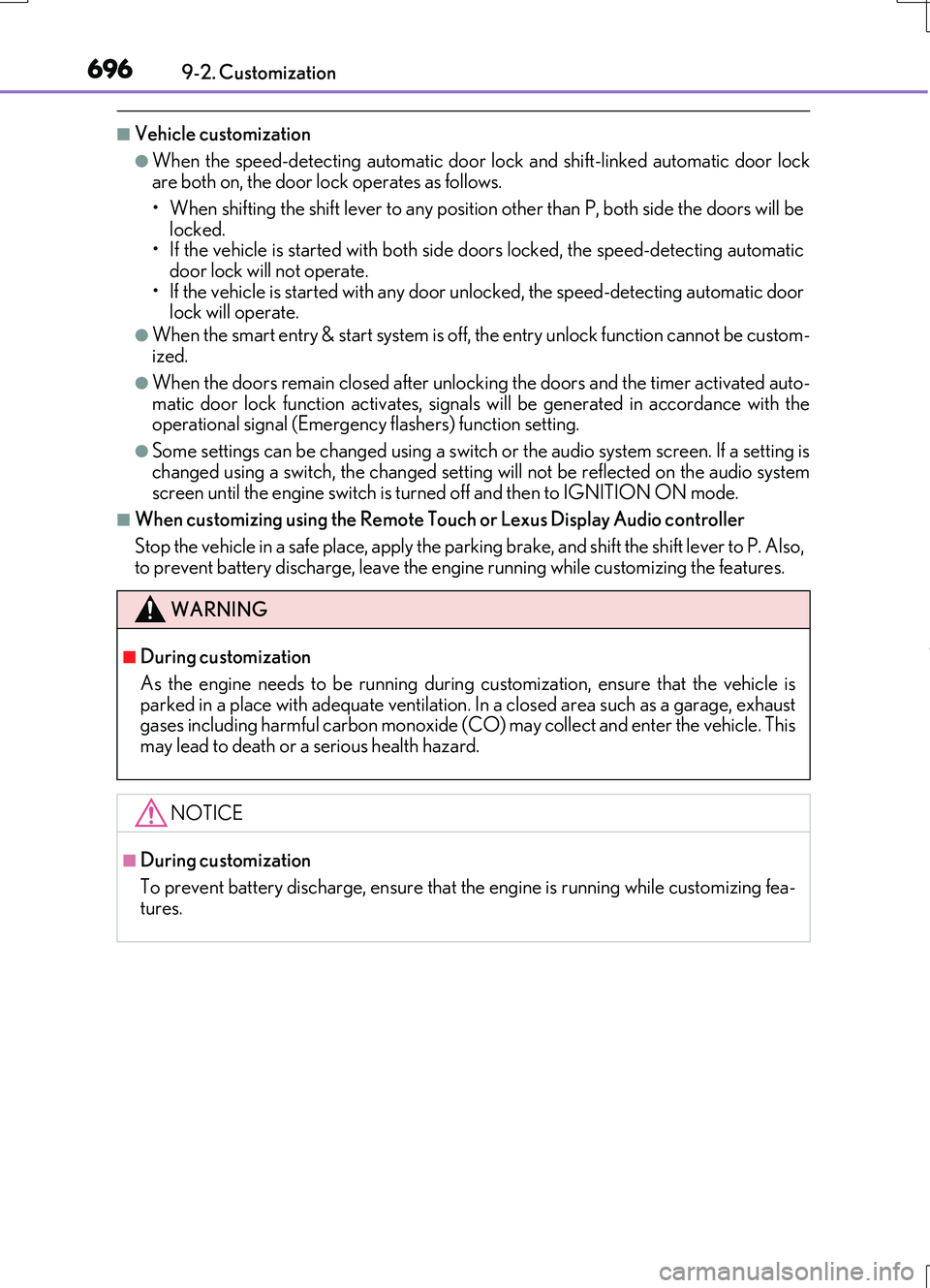

6969-2. Customization
RC200t_RC F_EE(OM24728E)
■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic door lock are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, both side the doors will be
locked. • If the vehicle is started with both side doors locked, the speed-detecting automaticdoor lock will not operate.
• If the vehicle is started with any door unlocked, the speed-detecting automatic door lock will operate.
●When the smart entry & start system is off, the entry unlock function cannot be custom-ized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the operational signal (Emergency flashers) function setting.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the changed setting will not be reflected on the audio system screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also, to prevent battery discharge, leave the engine running while customizing the features.
WARNING
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. Thismay lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

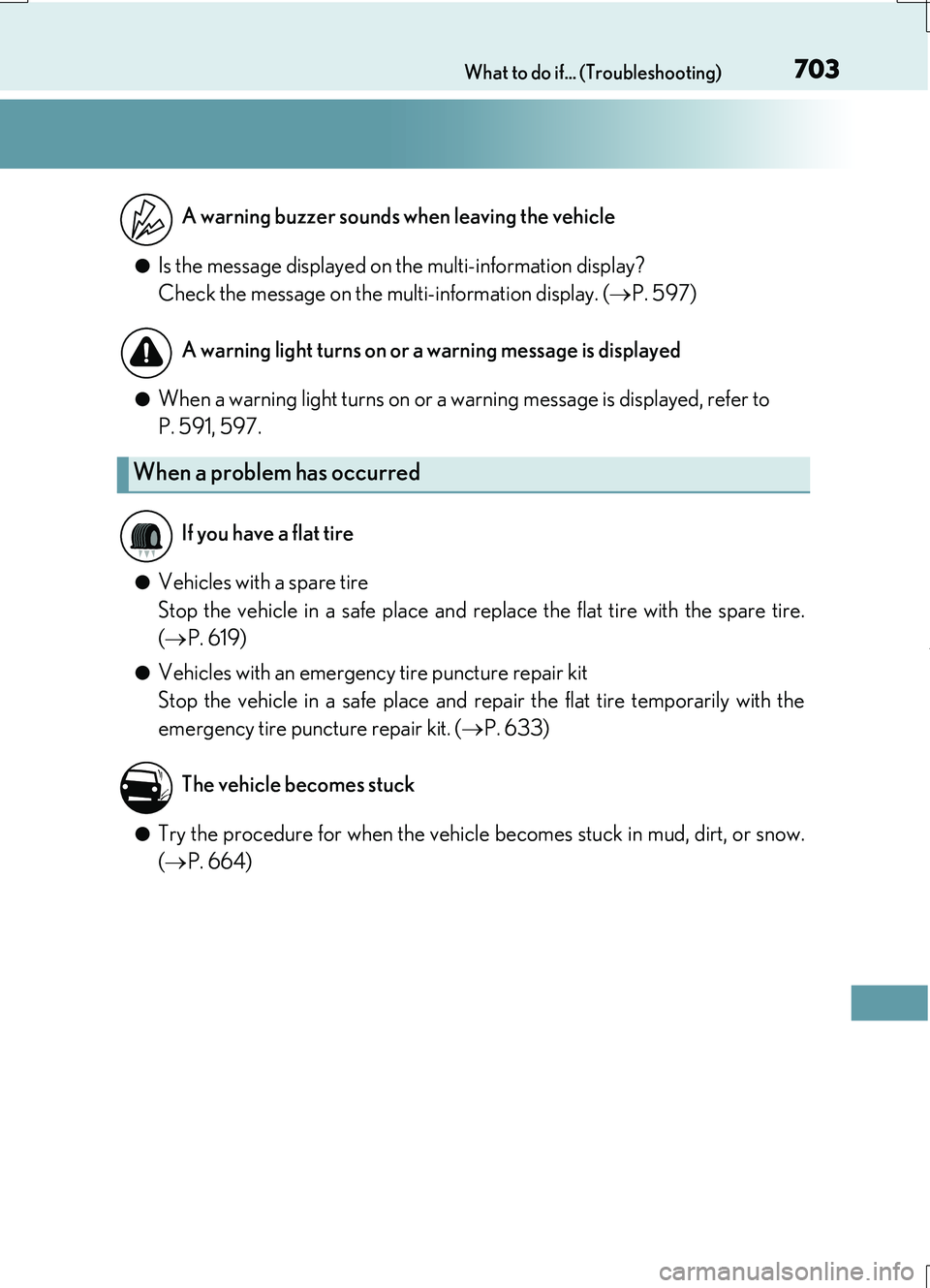

703What to do if... (Troubleshooting)
RC200t_RC F_EE(OM24728E)
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. ( P. 597)
●When a warning light turns on or a warning message is displayed, refer to
P. 591, 597.
●Vehicles with a spare tire
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 619)
●Vehicles with an emergency tire puncture repair kit
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. ( P. 633)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
( P. 664)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

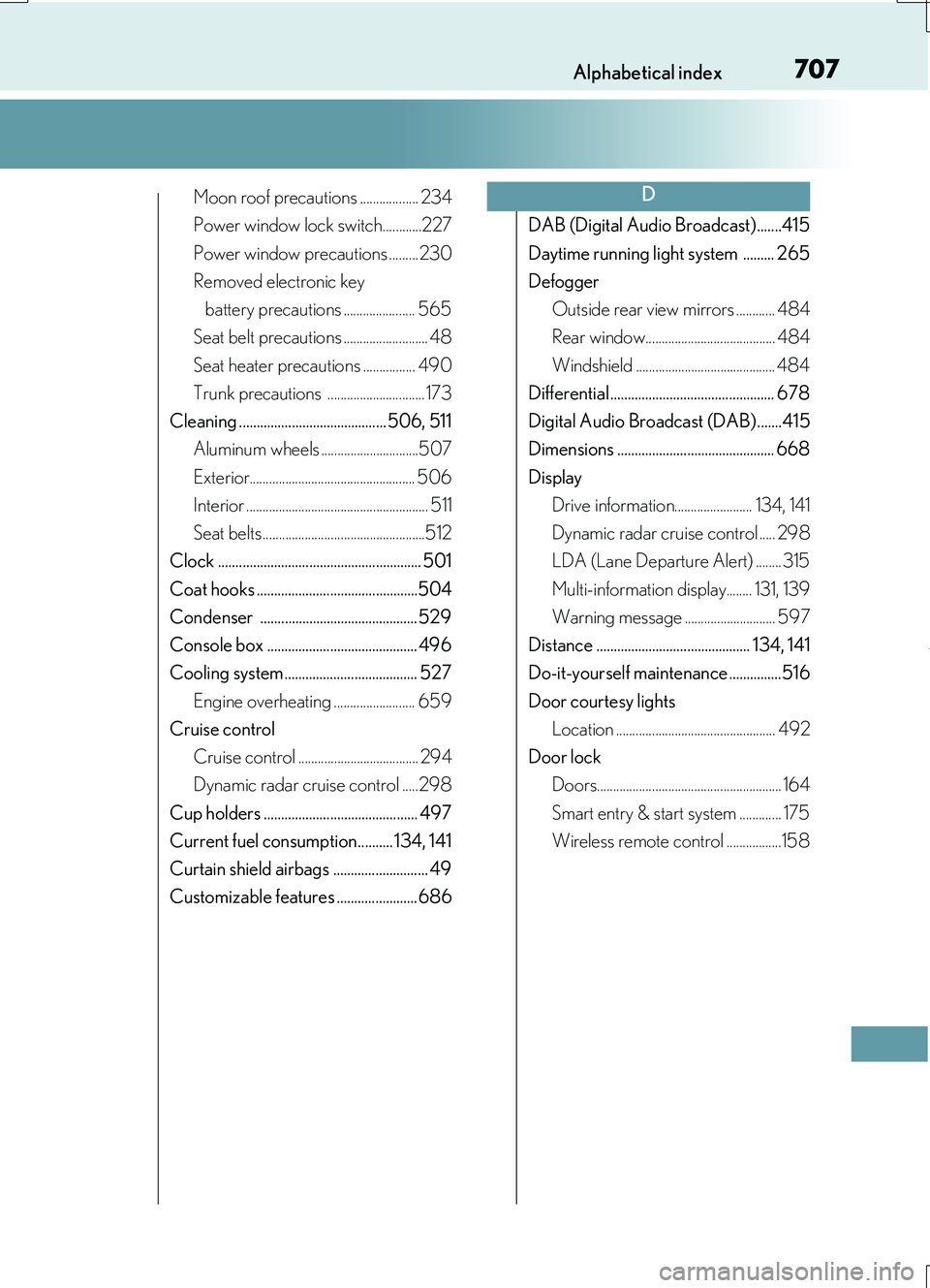

707Alphabetical index
RC200t_RC F_EE(OM24728E)
Moon roof precautions .................. 234
Power window lock switch............227
Power window precautions .........230
Removed electronic key
battery precautions ...................... 565
Seat belt precautions .......................... 48
Seat heater precautions ................ 490
Trunk precautions .............................. 173
Cleaning .......................................... 506, 511
Aluminum wheels ..............................507
Exterior................................................... 506
Interior ........................................................ 511
Seat belts..................................................512
Clock .......................................................... 501
Coat hooks ..............................................504
Condenser ............................................. 529
Console box ........................................... 496
Cooling system ...................................... 527
Engine overheating ......................... 659
Cruise control
Cruise control ..................................... 294
Dynamic radar cruise control .....298
Cup holders ............................................ 497
Current fuel consumption.......... 134, 141
Curtain shield airbags ........................... 49
Customizable features .......................686
DAB (Digital Audio Broadcast) .......415
Daytime running light system ......... 265
Defogger
Outside rear view mirrors ............ 484
Rear window........................................ 484
Windshield ........................................... 484
Differential............................................... 678
Digital Audio Broadcast (DAB) .......415
Dimensions ............................................. 668
Display
Drive information........................ 134, 141
Dynamic radar cruise control ..... 298
LDA (Lane Departure Alert) ........ 315
Multi-information display........ 131, 139
Warning message ............................ 597
Distance ............................................ 134, 141
Do-it-yourself maintenance ...............516
Door courtesy lights
Location ................................................. 492
Door lock
Doors......................................................... 164
Smart entry & start system ............. 175
Wireless remote control .................158
D

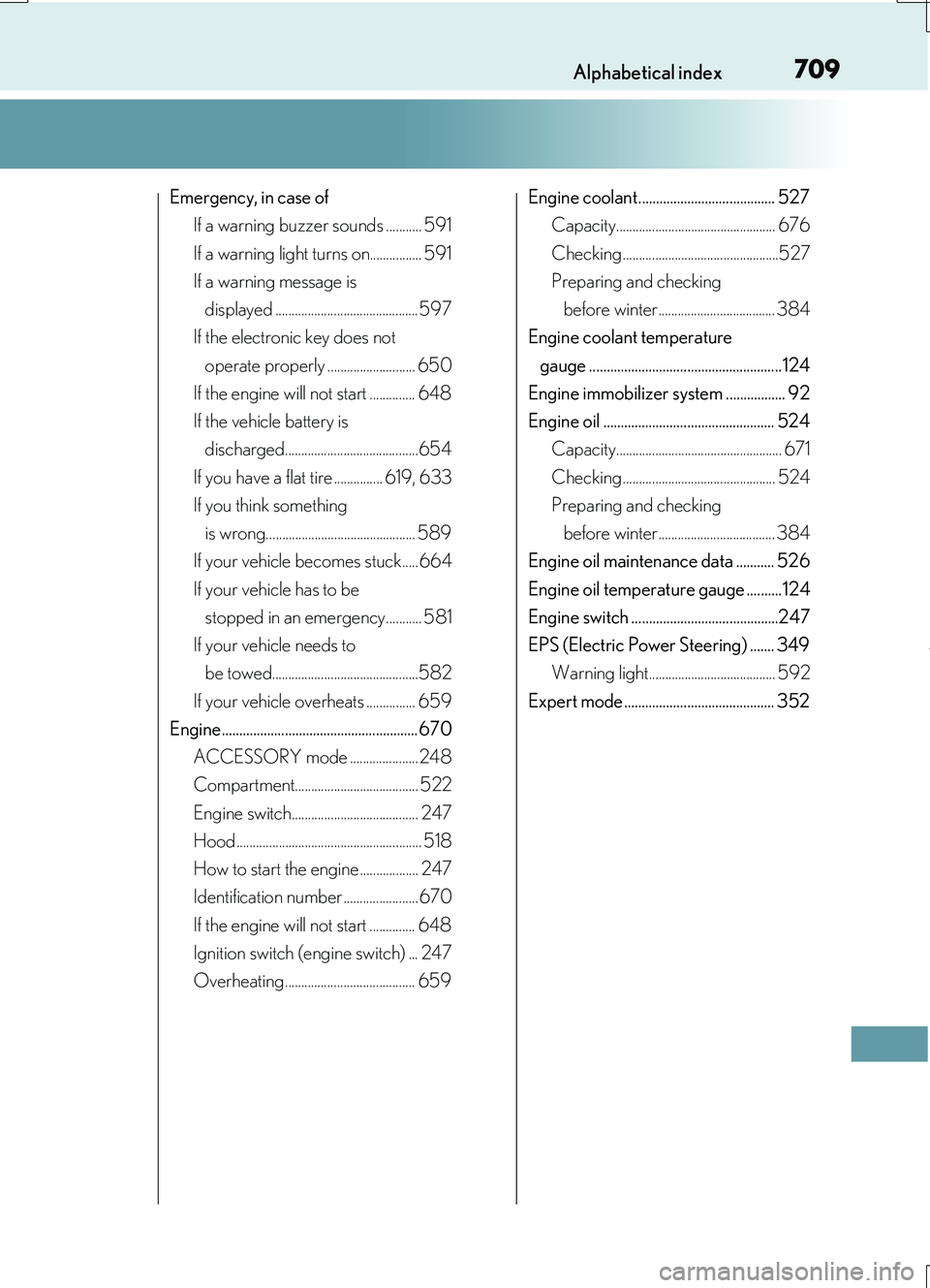

709Alphabetical index
RC200t_RC F_EE(OM24728E)
Emergency, in case of
If a warning buzzer sounds ........... 591
If a warning light turns on................ 591
If a warning message is
displayed ............................................ 597
If the electronic key does not
operate properly ........................... 650
If the engine will not start .............. 648
If the vehicle battery is
discharged.........................................654
If you have a flat tire ............... 619, 633
If you think something
is wrong.............................................. 589
If your vehicle becomes stuck.....664
If your vehicle has to be
stopped in an emergency........... 581
If your vehicle needs to
be towed.............................................582
If your vehicle overheats ............... 659
Engine........................................................ 670
ACCESSORY mode ..................... 248
Compartment...................................... 522
Engine switch....................................... 247
Hood ......................................................... 518
How to start the engine .................. 247
Identification number .......................670
If the engine will not start .............. 648
Ignition switch (engine switch) ... 247
Overheating ........................................ 659
Engine coolant....................................... 527
Capacity................................................. 676
Checking ................................................527
Preparing and checking
before winter.................................... 384
Engine coolant temperature
gauge ....................................................... 124
Engine immobilizer system ................. 92
Engine oil ................................................. 524
Capacity................................................... 671
Checking ............................................... 524
Preparing and checking
before winter.................................... 384
Engine oil maintenance data ........... 526
Engine oil temperature gauge ..........124
Engine switch ..........................................247
EPS (Electric Power Steering) ....... 349
Warning light....................................... 592
Expert mode ........................................... 352

712Alphabetical index
RC200t_RC F_EE(OM24728E)
Identification
Engine......................................................670
Vehicle ....................................................669
Ignition switch (engine switch) ........ 247
Illuminated entry system .................... 493
Indicators..................................................... 113
Initialization
Maintenance ........................................ 526
Meter............................................... 136, 148
Moon roof ............................................. 232
Multi-information display ...... 136, 148
Power windows.................................. 228
Tire pressure warning
system .................................................. 537
Initiators (tire pressure warning
system) ...................................................555
Inside rear view mirror ....................... 222
Instrument panel light
control ............................................122, 129
Intercooler ............................................... 529
Intercooler coolant .............................. 527
Capacity ................................................. 676
Checking ............................................... 527
Preparing and checking
before winter ....................................384
Interior lights ........................................... 493
Intrusion sensor and tilt sensor ........ 106
ISOFIX rigid anchors............................. 82
Jack
Positioning the jack ............................519
Vehicle-equipped jack.......620, 635
Jack handle ................................. 620, 635
Jam protection function
Front seats............................................... 210
Moon roof ..............................................232
Power window ................................... 228
Keyless entry
Smart entry & start
system......................................... 164, 170
Wireless remote control ...... 164, 170
Keys............................................................. 158
Battery-Saving Function ...................177
Electronic key........................................158
Engine switch ....................................... 247
If the electronic key does not
operate properly ............................650
Key number plate ................................158
Keyless entry............................... 164, 170
Mechanical key .................................... 159
Replacing the battery ...................... 563
Warning buzzer................................... 165
Wireless remote control .................158
Knee airbags ............................................. 49
IJ
K

713Alphabetical index
RC200t_RC F_EE(OM24728E)
Lane Departure Alert (LDA)............ 314
Language
(multi-information display) ............. 148
LDA (Lane Departure Alert)............ 314
Lever
Auxiliary catch lever .......................... 518
Hood lock release lever.................. 518
Shift lever................................................ 253
Tilt and telescopic steering
lock release lever ........................... 220
Turn signal lever .................................260
Wiper lever........................................... 273
Lexus Display Audio controller ...... 392
Lexus Display Audio system ............390
Lexus parking assist monitor ...........330
Lexus parking assist-sensor .............320
License plate lights ............................... 264
Light switch ........................................... 264
Replacing light bulbs........................ 577
Light bulbs
Replacing ............................................... 572
Wattage..................................................682
Lights
Automatic High Beam
system...................................................267
Fog light switch..................................... 271
Follow me home system................ 265
Headlight switch ................................ 264
Illuminated entry system ................ 493
Interior lights ........................................ 493
Interior lights list ................................. 492
Personal lights..................................... 494
Replacing light bulbs ........................572
Trunk light ............................................... 172
Turn signal lever................................. 260
Vanity lights......................................... 500
Wattage ................................................. 682
Lock steering column ......................... 250
Low profile tire ...................................... 539
Luggage security system ..................... 171
L

714Alphabetical index
RC200t_RC F_EE(OM24728E)
Maintenance Do-it-yourself maintenance .......... 516
Maintenance data............................. 668
Maintenance requirements ............514
Maintenance system ............................ 136
Malfunction indicator lamp ............... 591
Master warning light ...........................593
Meter Changing the display................ 121, 128
Indicators .................................................. 113
Instrument panel light
control..........................................122, 129
Meters .............................................. 118, 124
Multi-information display ........ 131, 139
Operating the meter control
switches........................................ 133, 141
Settings........................................... 136, 148
Warning lights .........................................112
Warning message............................. 597
MirrorLink ........................................... 470
Mirrors
Inside rear view mirror.................... 222
Outside rear view mirror
defoggers...........................................484
Outside rear view mirrors............. 224
Vanity mirrors..................................... 500 MMS (Multimedia messaging
service) ....................................................451
Moon roof ................................................. 231 Door lock linked moon roof
operation.............................................232
Jam protection function ..................232
Operation ............................................... 231
MP3 disc.................................................... 417
Multi-information display ........... 131, 139 Audio system-linked................. 131, 139
Drive information........................ 134, 141
Dynamic radar cruise
control ................................................. 298
“F” content............................................... 143
G-force .................................................... 146
Lap timer.................................................. 143
LDA (Lane Departure Alert) ........ 315
Navigation system-linked ...... 131, 139
Settings .......................................... 136, 148
Stop & Start system............................ 291
switch settings ................... 136, 148
Switching the display .............. 133, 140
Torque distribution ............................. 145
Warning message ............................ 597
M
