checking oil LEXUS RC300 2016 Owners Manual

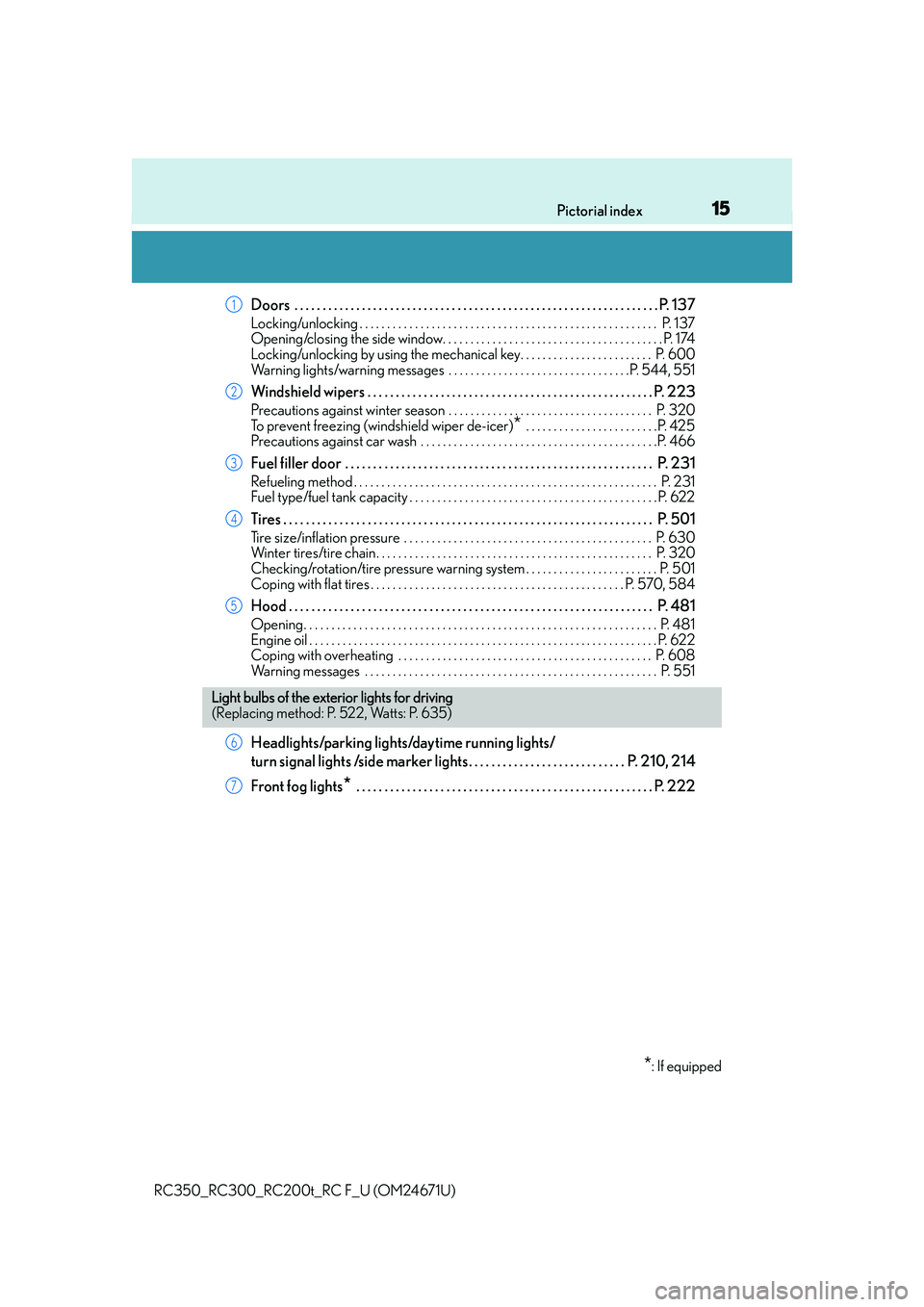

15Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137
Opening/closing the side window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Locking/unlocking by using the mechanical key. . . . . . . . . . . . . . . . . . . . . . . . P. 600
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 544, 551
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
To prevent freezing (windshield wiper de-icer)* . . . . . . . . . . . . . . . . . . . . . . . .P. 425
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 466
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 3 1
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 231
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 622
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 630
Winter tires/tire chain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 3 20
Checking/rotation/tire pressure warning system . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 570, 584
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 622
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 608
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 51
Headlights/parking lights/daytime running lights/
turn signal lights /side marker lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210, 214
Front fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
1
2
3
4
5
Light bulbs of the exterior lights for driving
(Replacing method: P. 522, Watts: P. 635)
*: If equipped
6
7

4887-3. Do-it-yourself maintenance
RC350_RC300_RC200t_RC F_U (OM24671U)

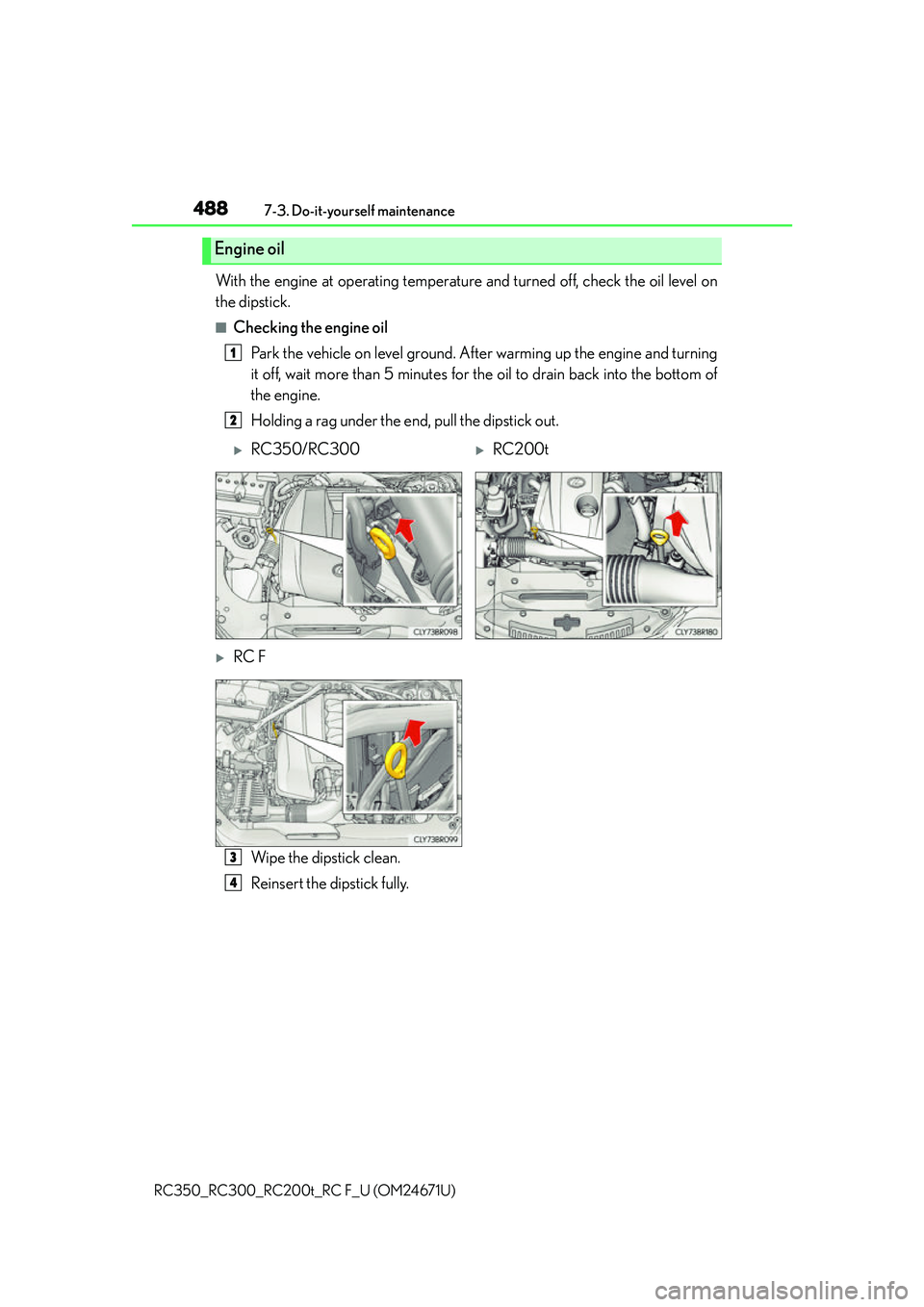

With the engine at operating temperatur e and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
it off, wait more than 5 minutes for the oil to drain back into the bottom of
the engine.
Holding a rag under the end, pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Engine oil
1
2
RC350/RC300RC200t
RC F
3
4

4907-3. Do-it-yourself maintenance
RC350_RC300_RC200t_RC F_U (OM24671U)

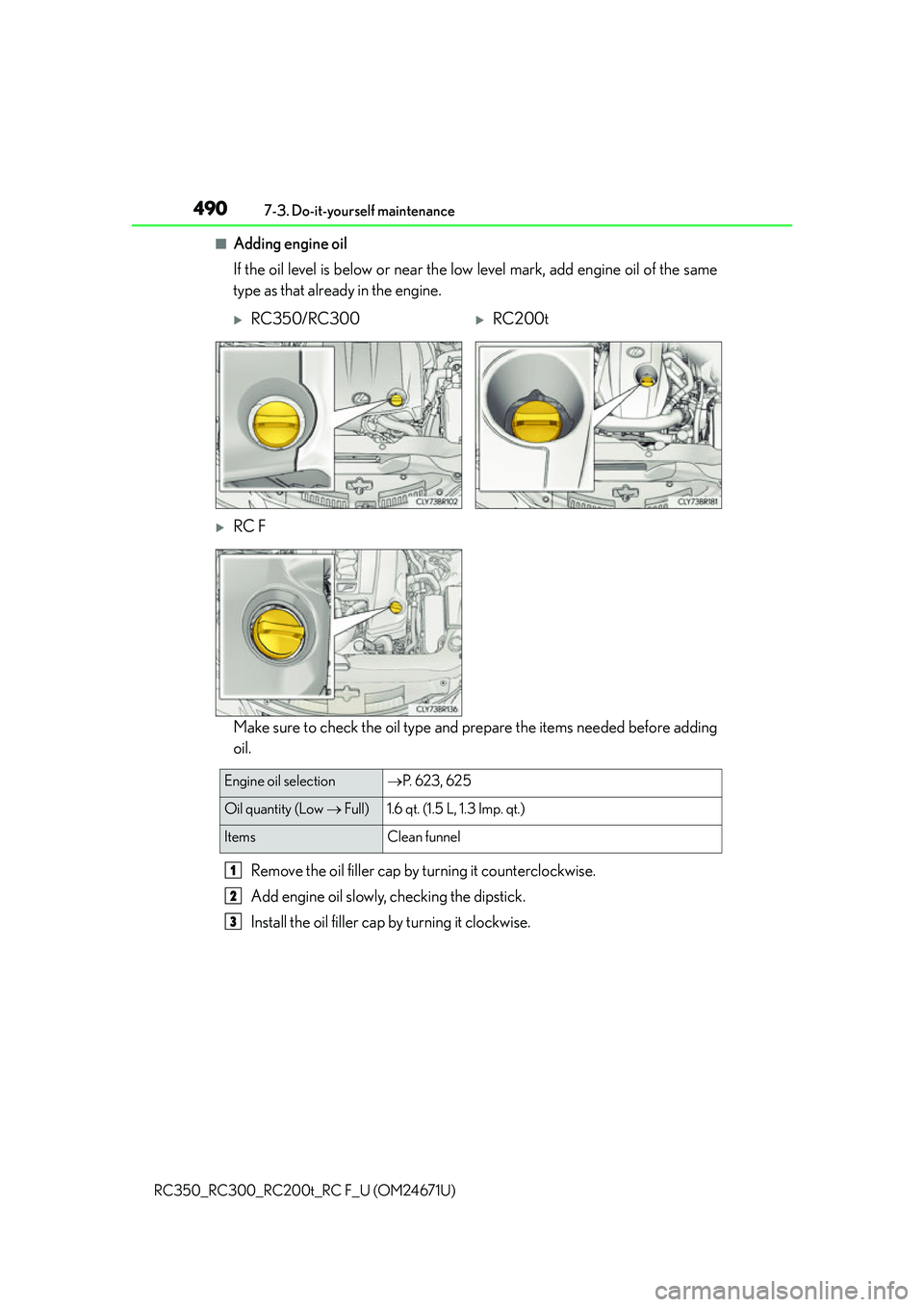

■Adding engine oil
If the oil level is below or near the lo w level mark, add engine oil of the same
type as that already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
RC350/RC300RC200t
RC F
Engine oil selection P. 623, 625
Oil quantity (Low  Full) 1.6 qt. (1.5 L, 1.3 Imp. qt.)
Items Clean funnel
1
2
3

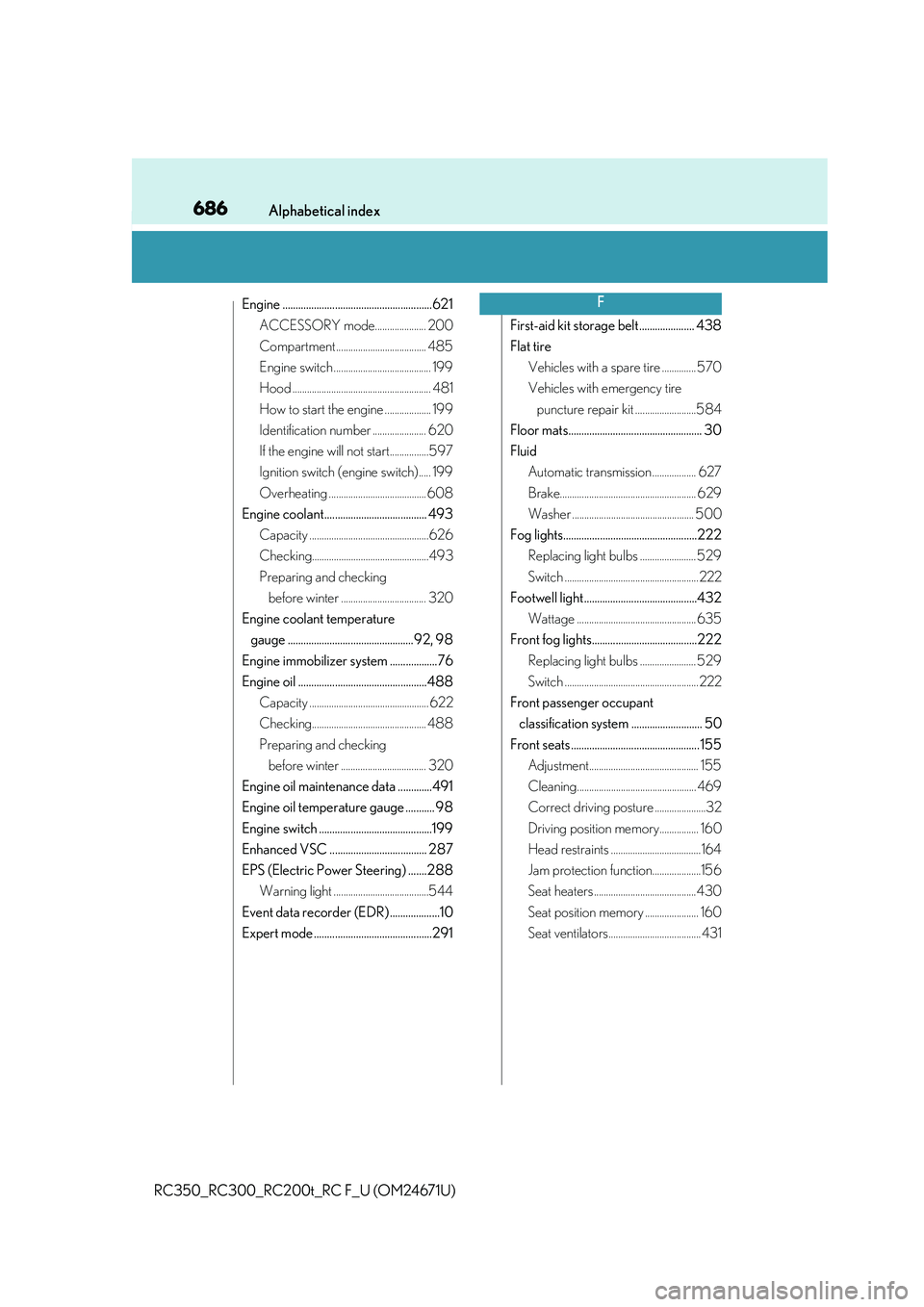

686Alphabetical index
RC350_RC300_RC200t_RC F_U (OM24671U)
Engine .........................................................621ACCESSORY mode..................... 200
Compartment ..................................... 485
Engine switch ........................................ 199
Hood ......................................................... 481
How to start the engine ................... 199
Identification number ...................... 620
If the engine will not start................597
Ignition switch (engine switch)..... 199
Overheating ........................................ 608
Engine coolant....................................... 493 Capacity .................................................626
Checking................................................493
Preparing and checking before winter ................................... 320
Engine coolant temperature gauge ................................................92, 98
Engine immobilizer system ..................76
Engine oil .................................................488 Capacity ................................................. 622
Checking............................................... 488
Preparing and checking before winter ................................... 320
Engine oil maintenance data .............491
Engine oil temperature gauge ........... 98
Engine switch ...........................................199
Enhanced VSC ..................................... 287
EPS (Electric Power Steering) .......288 Warning light .......................................544
Event data recorder (EDR) ...................10
Expert mode .............................................291 First-aid kit storage belt..................... 438
Flat tire
Vehicles with a spare tire .............. 570
Vehicles with emergency tire puncture repair kit .........................584
Floor mats................................................... 30
Fluid Automatic transmission .................. 627
Brake........................................................ 629
Washer .................................................. 500
Fog lights...................................................222 Replacing light bulbs ....................... 529
Switch .......................................................222
Footwell light ...........................................432 Wattage .................................................635
Front fog lights........................................222 Replacing light bulbs ....................... 529
Switch .......................................................222
Front passenger occupant classification system ........................... 50
Front seats ................................................. 155 Adjustment............................................. 155
Cleaning................................................. 469
Correct driving posture .....................32
Driving position memory................ 160
Head restraints .....................................164
Jam protection function....................156
Seat heaters ..........................................430
Seat position memory ...................... 160
Seat ventilators...................................... 431F
