992. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Speed indicator
When the vehicle reaches the set
speed, the speed unit display will
turn yellow. The indicators will be displayed in
yellow (correspondi ng to a speed set
by a user) or red (fixed at 100 mph
[160 km/h])
* .
This setting can be enabled on the
multi-information display.
* : Always observe the legal speed limi t when driving on public roads.■

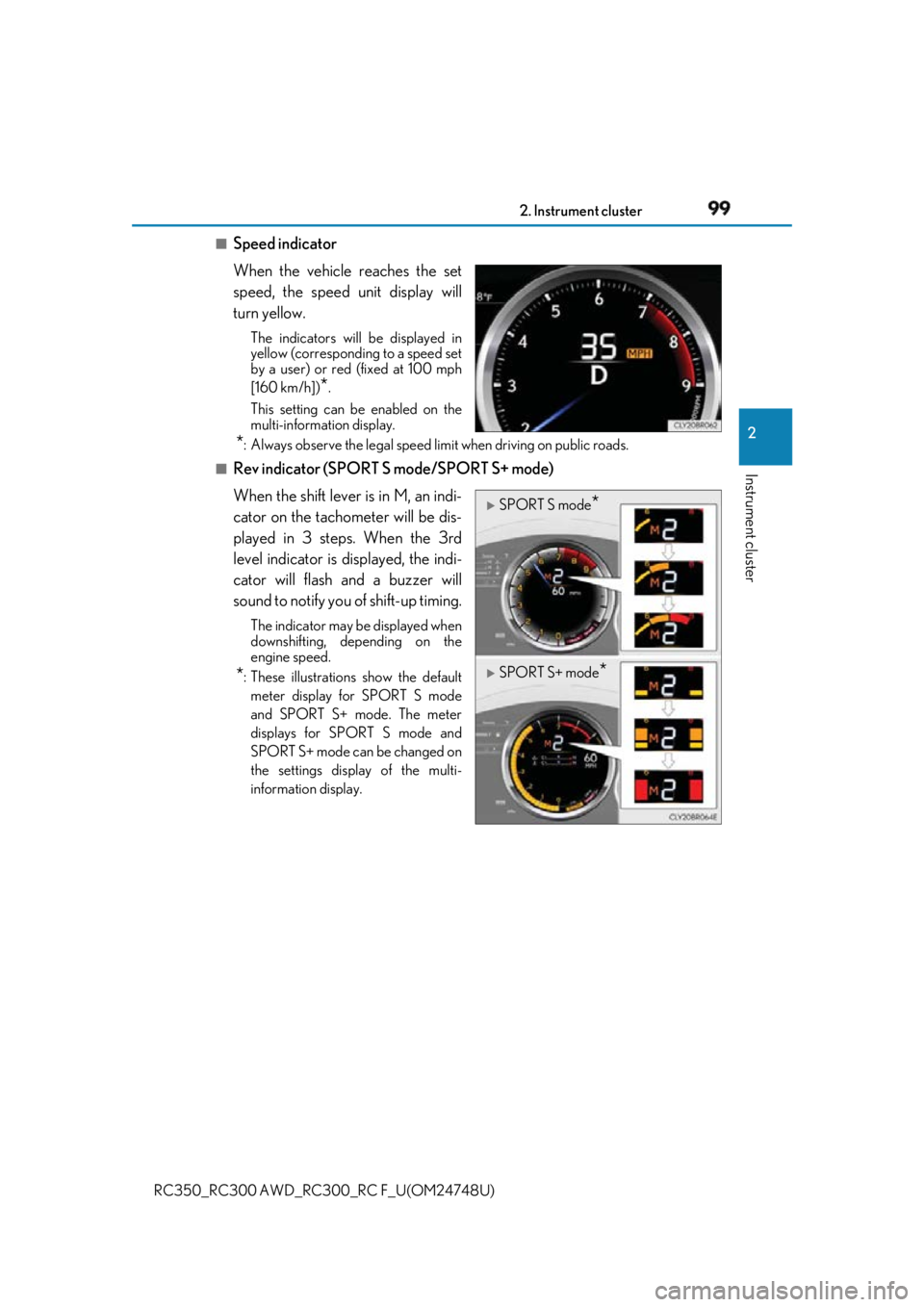

Rev indicator (SPORT S mode/SPORT S+ mode)
When the shift lever is in M, an indi-
cator on the tachometer will be dis-
played in 3 steps. When the 3rd
level indicator is displayed, the indi-
cator will flash and a buzzer will
sound to notify you of shift-up timing. The indicator may be displayed when
downshifting, depending on the
engine speed.
* : These illustration s show the default
meter display for SPORT S mode
and SPORT S+ mode. The meter
displays for SPORT S mode and
SPORT S+ mode can be changed on
the settings disp lay of the multi-
information display. 
SPORT S mode
* 
SPORT S+ mode
*

100 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Rev peak (Normal mode/SPORT S mode)
The engine speed reaches or
exceeds 3600 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 second.
■
Meter display and layout
 P. 301
The brightness of the instrument panel lights can be adjusted.
Darker
BrighterChanging the display
Instrument panel light control 1
2

1012. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
The meters and display illuminate when
The engine switch is in IGNITION ON mode. ■
Welcome illumination of the analog speedometer●
When the driver’s door is opened, th e analog speedometer will illuminate.
Then, when the driver’s door is closed, the analog spee dometer will illuminate and go
off (pulsate) 3 times. ●
In the following situations, the analog sp eedometer will not pulsate even though the
driver’s door is opened and closed:
• Within 60 seconds after the an alog meter pulsation completes
• Within 60 seconds of turning the engine switch off ■
Variable red zone
■
Eco driving meter ●
The number of blue segments displayed on the eco driving meter decreases/increases
depending on the vehicle acceleration. Use th is meter as a guideline when you wish to
drive in an eco-friendly manner that reduces fuel consumption.
However, on a downward grade where the ve hicle can accelerate without the acceler-
ator pedal being depressed, the eco driv ing meter may not display the eco-driving
state correctly. ●
When the shift lever is moved to P, N or R, the segments will turn gray and the eco driv-
ing meter will not operate.To help protect the engine, the engine speed is
controlled by starting the red zone of the
tachometer at different engine speeds ranging
from 3700 rpm to 7300 rpm depending on the
engine coolant temperature.
Before driving under extremely high load condi-
tions, make sure to su fficiently warm up the
engine.

102 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the surroundings are bright (dayti me, etc.), turning on the tail
lights will not change the inst rument panel brightness. At th is time, any adjustments made
to the instrument panel brightness levels will be applied to both settings at once. ■
Dimming the analog speedometer lighting
The analog speedometer lighting will be dimm ed when the ambient light is bright, such
as during the daytime, and SPORT S or SPORT S+ mode is selected.■
Outside temperature display ●
In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.) ●
When “  ” or “E” is displayed, the sy stem may be malfunctioning.
Take your vehicle to your Lexus dealer. ■
Pop-up display ●
In some situations, such as when a switch operation is performed, a pop-up display will
be temporarily displayed on the multi-information display.●
Some pop-up displays can be set on/off. (  P. 129)■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.■
Customization
The meter display can be customized on the multi-information display. (  P. 129)
NOTICE ■
To prevent damage to the engine and its components●
Do not let the indicator of the tachometer enter the red zone, as it represents the
engine speed range which exceeds the maximum safe engine speed. ●
In the following situations, th e engine may be overheating. In this case, immediately
stop the vehicle in a safe place, and check the engine after it has cooled completely.
(  P. 526)
• The engine coolant temperature gauge indicator ( ) is in the red zone and flash-
ing.
• The engine oil temperature gauge indicator ( ) is in the red zone and flashing.

104 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Odometer/trip meter display area
(  P. 115)Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change (if equipped)
Meter control switches (  P. 106)
Odometer/trip meter and trip meter reset button (  P. 107)
◆ F SPORT models 
Main meter in center position 
Main meter moved to the right 4
5
6

1052. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Clock (  P. 91)
Outside temperature (  P. 91)
Indicator/shift position display area Displays the following items:
•Indicators (  P. 84)
• Shift position display (  P. 213)
Content display area Main meter in center position:
Displays various drive information on th e main meter. Additionally, warning or
advice pop-up displays will be displayed in some situations.
• Drive information (  P. 108)
• Warning message (  P. 460)
Main meter moved to the right:
A variety of information can be displayed by selecting a menu icon. Additionally,
warning or advice pop-up displays w ill be displayed in some situations.
• Menu icon content (  P. 107)
• Warning message (  P. 460)
Odometer/trip meter display area
(  P. 115)Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change (if equipped)
Menu icons (  P. 107)
Meter control switches (  P. 106)
Odometer/trip meter and trip meter reset button (  P. 107)1
2
3
4
5
6
7
8

108 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)F SPORT models: Some drive information items can only be displayed when the
main meter is in the center position or when it is moved to the right.■
Drive information 1/Drive information 2/Drive information 3
Displays drive informatio n such as the following.F SPORT models (when the main meter is in the center position): Each item is dis-
played separately.●
Drive information 1
• Current fuel consumption
• Average fuel economy (after reset) ●
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset) ●
Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be changed on . (  P. 111)Drive information ( )
Item Content
Current fuel consumption Displays in stantaneous current fuel consumption
Average fuel
economy After reset Displays average fuel consumption since display
reset
* 1, 2
After start Displays average fuel consumption since engine
start
* 2
After refuel Displays average fuel consumption since refuel
* 2, 3
Average
vehicle
speed After reset Displays average vehicle speed since display
reset
* 1
After start Displays average vehicle speed since engine start
Elapsed time After reset Displays elapsed time since display reset
* 1
After start Displays elapsed time since engine start
Distance Driving range Displays driving rang e with remaining fuel
* 3, 4
After start Displays drive distance since vehicle start
Other Blank No item

1092. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)* 1
:Resetting:  P. 106
* 2
: Use the displayed fuel consumption as a reference.
* 3
: When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.
* 4
: This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.■
Eco Driving Indicator
 P. 116■
Boost gauge/engine oil temperature ga uge/engine oil pressure gauge (if
equipped)
* 1
Boost gauge
Displays the boost pressure. The
display will change color if the
specified pressure is exceeded.
Engine oil temperature gauge
Displays the engine oil tempera-
ture. The display will flash if the
engine oil temperature exceeds
284 °F (140 °C).
Engine oil pressure gauge
Displays the engine oil pressure. A buzzer will sound an d warning message
will be displayed if the engine oil pressure becomes low. (  P. 460)This display is intended for use as a guideline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle.
* 1
: For F SPORT models, this item is not ava ilable when the main meter is in the center
position. 1
2
3

1132. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Vehicle settings
■
Meter settings Item Settings Details
Scheduled maintenance
Maintenance data reset Select to reset the message indicating
maintenance is re quired, after the
required maintenance is performed.
(  P. 385)
Oil maintenance
Engine oil maintenance data reset Select to reset the engine oil mainte-
nance information (message indicat-
ing maintenance is required and
distance until the next oil change)
after engine oil maintenance is per-
formed. (  P. 403)
Item Settings Details
Language Select to change the language dis-
played.
Units Select to change the units of measure
displayed.
(Eco Driving
Indicator Light) On
Select to enable/dis able the Eco Driv-
ing Indicator Light. (  P. 109)
Off
Switch settings (except F SPORT mod-
els) Select to display how to change the
top screen.
Drive information 1 Select to select up to 2 items that will
be displayed on ea ch Drive informa-
tion screen (Drive information 1
screen, Drive information 2 screen,
and Drive inform ation 3 screen)
respectively.
(Selectable items:  P. 108)Drive information 2
Drive information 3

114 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Pop-up display Intersection guid-
ance (if equipped)
Select to enable/disable the pop-up
display.Incoming calls
Audio Feedback
(F SPORT)
Volume Feedback
(F SPORT)
Brightness adjust-
ment
Color (except F
SPORT models) 2 available colors Select to set the color of the cursor on
the multi-information display.
Needle (F SPORT
models) 3 available colors Select to set the tachometer needle
color.
Rev indicator (F
SPORT models) On
Select to enable/disable the Rev indi-
cator. (  P. 93)
Off
Rev setting Select to set the desired engine speed
at which the Rev indicator will begin
to be displayed.
Rev peak (F SPORT
models) On
Select to enable/disable the Rev peak.
(  P. 93)
Off
Default setting Select to reset the meter display set-
tings to the default setting.Item Settings Details
