headlight bulb LEXUS RC300 2022 Owners Manual

RC350_RC300_U
1
2
3
4
5
6
7
8
9
Pictorial indexSearch by illustration
For safety
and securityMake sure to read through them
(Main topics: Child seat, theft deterrent system)
Vehicle status
information and
indicatorsReading driving-related information
(Main topics: Meters, multi-information display)
Before drivingOpening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats)
DrivingOperations and advice which are necessary for driving
(Main topics: Starting engine, refueling)
Interior featuresUsage of the interior features
(Main topics: Air conditioner, storage features)
Maintenance
and careCaring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
When trouble
arisesWhat to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle
specificationsVehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
For ownersReporting safety defects for U.S. owners, and seat belt,
SRS airbag and headlight aim instructions for Canadian
owners
IndexSearch by symptom
Search alphabetically

4TABLE OF CONTENTS
RC350/RC300 Owner's Manual
Air conditioning filter..................273
Electronic key battery ................ 275
Checking and replacing fuses ........................................................... 276
Headlight aim................................. 278
Light bulbs ....................................... 279
7-1. Essential information Emergency flashers..................... 284
If your vehicle has to be stopped in an emergency ............................. 284
If the vehicle is submerged or water on the road is rising .................. 285
7-2. Steps to take in an emergency If your vehicle needs to be towed........................................................... 287
If you think something is wrong ............................................................ 291
Fuel pump shut off system ........ 292
If a warning light turns on or a warn- ing buzzer sounds ..................... 293
If a warning message is displayed ............................................................ 301
If you have a flat tire..................... 305
If the engine wi ll not start ........... 312
If you lose your keys ..................... 314
If the fuel filler door cannot be opened............................................ 314
If the electronic key does not oper- ate properly .................................. 315
If the vehicle battery is discharged ............................................................ 317
If your vehicle overheats ........... 320
If the vehicle becomes stuck ... 3248-1. Specifications
Maintenance data (fuel, oil level, etc.) ................................................. 326
Fuel information............................ 337
Tire information ............................ 339
8-2. Customization Customizable features .............. 349
8-3. Items to initialize Items to initialize ........................... 358
9-1. For owners Reporting safety defects for U.S. owners ........................................... 360
Reporting safety defects for Cana- dian owners ................................. 360
Seat belt instructions for Canadian owners (in French) .................... 361
SRS airbag instructions for Cana- dian owners (in French) ......... 362
Headlight aim instructions for Canadian owners (in French)
.......................................................... 368
What to do if... (Troubleshooting) .......................................................... 370
Certifications ................................. 373
Alphabetical Index ...................... 384
7When trouble arises
8Vehicle specifications
9For owners
Index

12Pictorial index
RC350/RC300 Owner's Manual
Windshield wipers .................................................................................................. P.145
Precautions for winter season .....................................................................................P.203
To prevent freezing (windshield wiper de-icer)
*................................................... P.217
Precautions against car wash ........................................................................................P.241
Fuel filler door ..........................................................................................................P.153
Refueling method .............................................................................................................. P .153
Fuel type/fuel tank capacity .........................................................................................P.328
Tires.......................................................................................................................... ..P.263
Tire size/inflation pressure ............................ ............................................................... P.332
Winter tires/tire chain ....................................................................................................P.20 3
Checking/rotation/tire pressure warning system.............................................. P.263
Coping with flat tires........................................................................................................P .305
Hood ......................................................................................................................... P. 253
Opening ........................................................................................................................ ....... P.253
Engine oil ..................................................................................................................... .........P.328
Coping with overheating ...............................................................................................P.320
Warning messages ........................................................................................................... P.30 1
Headlights .................................................................................................................P.14 0
Parking lights/daytime running lights................ ...............................................P.140
Turn signal lights ...................................................................................................... P.134
Cornering lights ......................................................................................................P.140
Side marker lights ...................................................................................................P.140
Tail lights .................................................................................................................... P.140
Stop lights
Back up light
Shifting the shift lever to R .............................................................................................. P.13 0
License plate lights .................................................................................................P.140
*:If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P.279, Watts: P.336)
D
E
F
G
H
I
J
K
L
M
N
O

239
RC350/RC300 Owner's Manual
6
6
Maintenance and care
Maintenance and care
.6-1. Maintenance and careCleaning and protecting the vehi-cle exterior ................................ 240
Cleaning and protecting the vehi- cle interior ................................. 243
6-2. Maintenance Maintenance requirements .. 246
General maintenance ............. 247
Emission inspection and mainte- nance (I/M) programs ......... 250
6-3. Do-it-yourself maintenance Do-it-yourself service precautions......................................................... 251
Hood............................................... 253
Positioning a floor jack............ 253
Engine compartment............... 255
Tires ................................................ 263
Tire inflation pressure............... 271
Wheels........................................... 272
Air conditioning filter...............273
Electronic key battery ............. 275
Checking and replacing fuses ........................................................ 276
Headlight aim.............................. 278
Light bulbs .................................... 279

2786-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
fuse has been replaced, a bulb may need
replacement.
●If the replaced fuse blows again, have the
vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting
the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine
Lexus products designed for this vehicle.
Because certain bulbs are connected to cir-
cuits designed to prevent overload,
non-genuine parts or parts not designed for
this vehicle may be unusable.
Adjustment bolt A
Adjustment bolt B
 Make sure the vehicle has a full tank
of gasoline and the area around the
headlight is not deformed.
 Park the vehicle on level ground.
 Make sure the tire inflation pressure
is at the specified level.
 Have someone sit in the driver’s
seat.
 Bounce the vehicle several times.
1 Using a Phillips-head screwdriver,
turn bolt A in either direction.
Remember the turning direction and the
WARNING
■To prevent system breakdowns and
vehicle fire
Observe the following precautions.
Failure to do so may cause damage to
the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage
rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or
equivalent.
Never replace a fuse with a wire, even
as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by your Lexus
dealer as soon as possible.
Headlight aim
Vertical movement adjusting
bolts
Before checking the headlight
aim
Adjusting the headlight aim
A
B

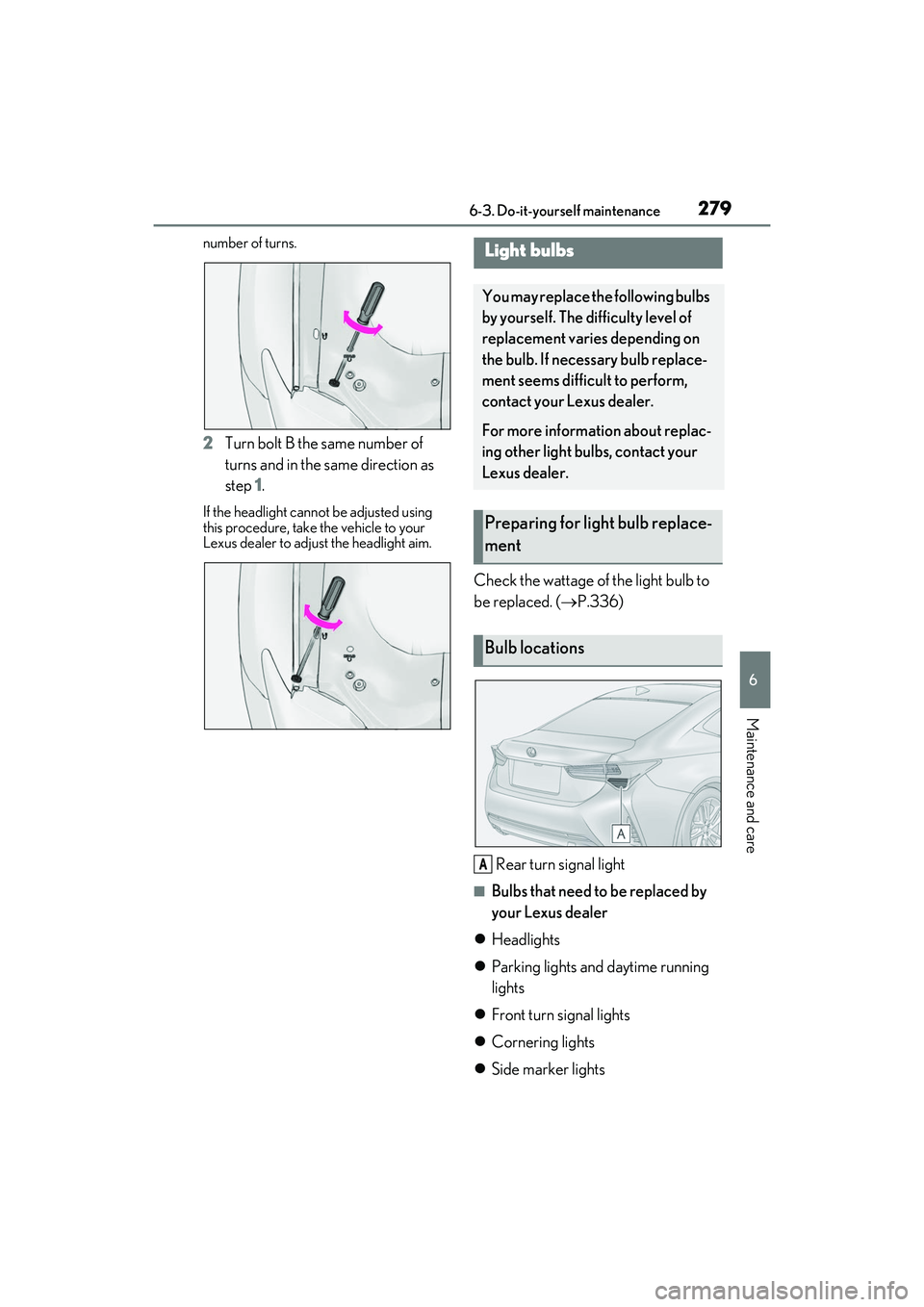

2796-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
6
Maintenance and care
number of turns.
2Turn bolt B the same number of
turns and in the same direction as
step 1.
If the headlight cannot be adjusted using
this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.
Check the wattage of the light bulb to
be replaced. ( P.336)
Rear turn signal light
■Bulbs that need to be replaced by
your Lexus dealer
 Headlights
 Parking lights and daytime running
lights
 Front turn signal lights
 Cornering lights
 Side marker lights
Light bulbs
You may replace the following bulbs
by yourself. The difficulty level of
replacement varies depending on
the bulb. If necessary bulb replace-
ment seems difficult to perform,
contact your Lexus dealer.
For more information about replac-
ing other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replace-
ment
Bulb locations
A

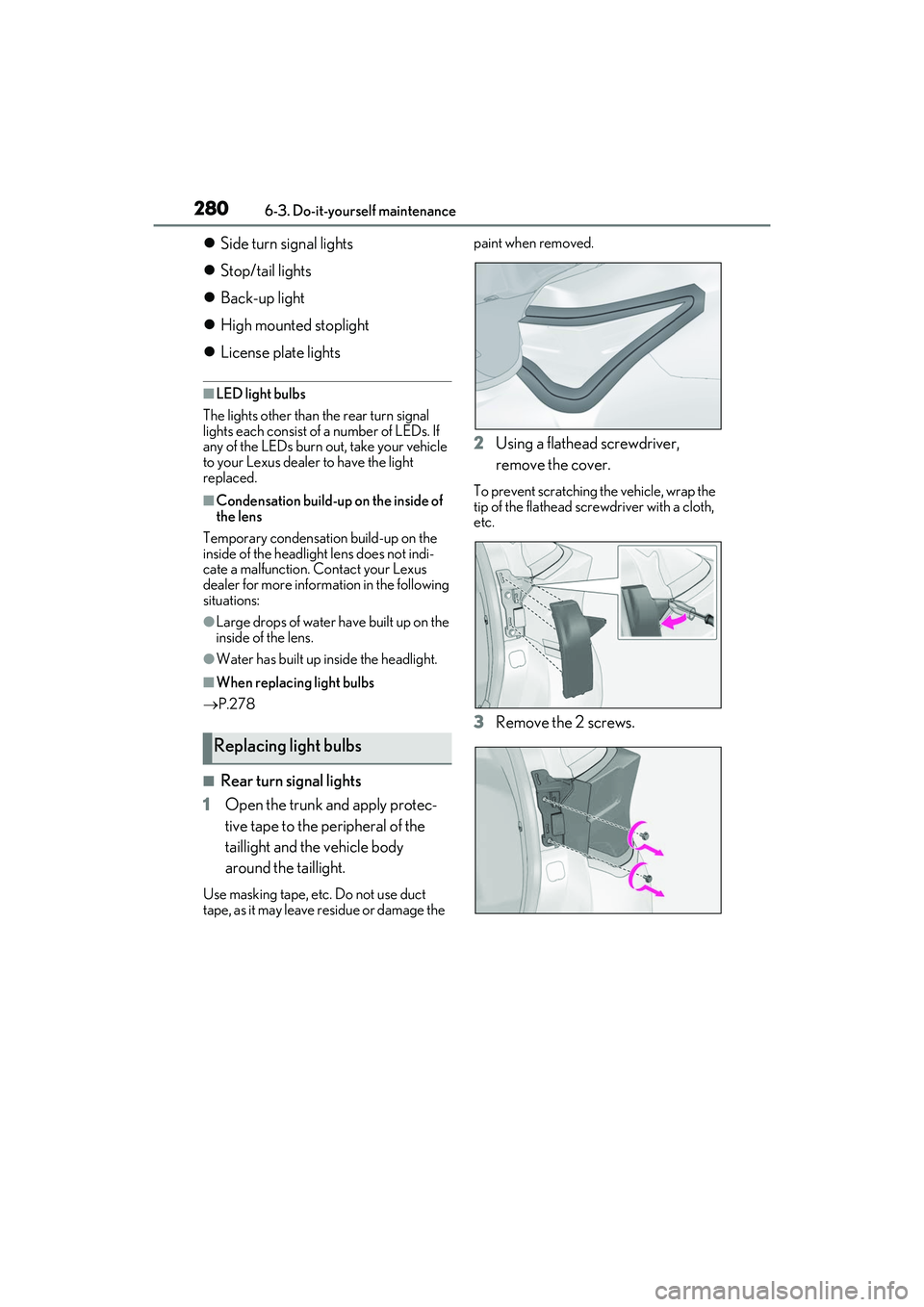

2806-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
Side turn signal lights
 Stop/tail lights
 Back-up light
 High mounted stoplight
 License plate lights
■LED light bulbs
The lights other than the rear turn signal
lights each consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle
to your Lexus dealer to have the light
replaced.
■Condensation build-up on the inside of
the lens
Temporary condensation build-up on the
inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus
dealer for more information in the following
situations:
●Large drops of water ha ve built up on the
inside of the lens.
●Water has built up in side the headlight.
■When replacing light bulbs
P.278
■Rear turn signal lights
1 Open the trunk and apply protec-
tive tape to the peripheral of the
taillight and the vehicle body
around the taillight.
Use masking tape, etc. Do not use duct
tape, as it may leave residue or damage the paint when removed.
2
Using a flathead screwdriver,
remove the cover.
To prevent scratching the vehicle, wrap the
tip of the flathead scre wdriver with a cloth,
etc.
3 Remove the 2 screws.
Replacing light bulbs

384Alphabetical Index
RC350/RC300 Owner's Manual
Alphabetical Index
A
A/CAir conditioning filter ............................... 273
Automatic air conditioning system ..... 213
Micro dust and pollen filter..................... 217
ABS (Anti-lock Brake System)............... 198 Warning light ............................................... 295
Active Sound Control (ASC) ..................139
Adaptive Variable Suspension System 199
Air conditioning filter ................................. 273
Air conditioning system Air conditioning filter ............................... 273
Automatic air conditioning system ..... 213
Micro dust and pollen filter..................... 217
Airbags Airbag operating conditions................... 30
Airbag precautions for your child .........32
Correct driving posture .............................23
Curtain shield airbag operating condi-tions .................................................................. 30
Curtain shield airbag precautions ........32
Front passenger occupa nt classification
system ............................................................. 36
General airbag precautions ....................32
Locations of airbags.................................... 28
Modification and disposal of airbags . 35
Side airbag operating conditions ......... 30
Side airbag precautions .............................32
Side and curtain shield airbags operating conditions ...................................................... 30
Side and curtain shield airbags precau- tions ...................................................................32
SRS airbags ..................................................... 28
SRS warning light ...................................... 294
Alarm ....................................................................57 Warning buzzer ......................................... 293
Anchor brackets .......................................41, 49
Antennas (smart access system with push-button start)........................................ 93
Anti-lock Brake System (ABS)............... 198 Warning light ............................................... 295 Approach warning........................................ 179
ASC (Active Sound Control) ..................139
Assist grips ..................................................... 228
Audio system-linked display .......................76
Automatic air conditioning system ........213
Automatic headlight leveling system ..... 141
Automatic High Beam ................................ 142
Automatic light control system............... 140
Automatic transmission ..............................129
M mode ............................................................132
Paddle shift switches ......................... 131, 132
Snow mode...................................................... 131
Average fuel economy..................................73
Average vehicle speed .................................73
B
Back-up light Replacing light bulbs............................... 280
Wattage ..........................................................336
Battery Battery checking ..........................................261
If the battery is discharged ......................317
Preparing and checking before winter..........................................................................203
Warning light ............................................... 294
Blind Spot Monitor (BSM)........................ 189
Boost gauge.......................................................74
Brake Brake hold .......................................................137
Fluid................................................................... 332
Parking brake ............................................... 135
Warning light ...............................................293
Brake assist ..................................................... 198
Break-in tips...................................................... 117
Brightness control Instrument panel light control................. 70
BSM (Blind Spot Monitor)........................ 189
C
Card key ............................................................ 82

388Alphabetical Index
RC350/RC300 Owner's Manual
Gauges ............................................................... 66
Gear Position....................................................75
G-force................................................................74
Glove box ....................................................... 225
Glove box light ............................................. 226
H
Head restraints .............................................. 103
Headlight aim ................................................ 278
HeadlightsAutomatic High Beam system.............. 142
Light switch .................................................... 140
Replacing light bulbs................................280
Wattage.......................................................... 336
Heated steering wheel ................................ 221
Heaters Automatic air conditioning system ..... 213
Heated steering wheel.............................. 221
Outside rear view mirrors ...................... 217
Seat heaters .................................................... 221
High mounted stoplight Replacing light bulbs................................280
Hill-start assist control .................................199
Hood Open ............................................................... 253
Hooks Cargo hooks.................................................227
Coat hooks ................................................... 228
Retaining hooks (floor mat)......................22
Horn ....................................................................107
I
I/M test ............................................................ 250
Identification Engine ............................................................. 327
Vehicle ............................................................ 326
Ignition switch (engine switch).................125 Auto power off function ...........................128
Changing the engine switch modes.. 127
If your vehicle has to be stopped in an
emergency ................................................ 284 Illuminated entry system ........................... 224
Indicators ........................................................... 64
Initialization
Items to initialize ........................................ 358
Maintenance.................................... 246, 258
Power windows ............................................. 110
Tire pressure warning system ............. 267
Inside rear view mirror ................................107
Instrument panel light control ................... 70
Intercooler...................................................... 260
Intercooler coolant Capacity ........................................................ 330
Checking ...................................................... 258
Interior lights.................................................. 223 Front interior light ...................................... 223
Rear interior light........................................ 223
Intuitive parking assist Warning message ...................................... 185
J
JackPositioning a floor jack ............................253
Vehicle-equipped jack .......................... 305
Jack handle .................................................... 305
Jam protection function Moon roof ........................................................ 113
Power windows ............................................. 110
K
Keyless entrySmart access system with push-button start ................................................................... 93
Wireless remote control ...........................84
Keys Battery-saving function.............................. 94
Electronic key ................................................. 82
Engine switch ................................................ 125
If the electronic key does not operate properly ........................................................ 315
If you lose your keys ...................................314
Key number plate ......................................... 82

389Alphabetical Index
RC350/RC300 Owner's Manual
Keyless entry .......................................... 86, 93
Mechanical key.............................................. 82
Replacing the battery............................... 275
Warning buzzer ............................................ 93
Wireless remote control........................... 84
Knee airbags .................................................... 28
L
Lane Departure Alert with steering control (LDA) Operation........................................................ 167
Warning messages .................................... 172
Language (multi-information display) ....76
LDA (Lane Departure Alert with steering control) Operation........................................................ 167
Warning messages .................................... 172
LDA (Lane Departure Alert with steering control) switch .............................................169
LDH (Lexus Dynamic Handling system) ............................................................................199
Lever Auxiliary catch lever ................................. 253
Hood lock release lever......................... 253
Shift lever.......................................................... 129
Turn signal lever ...........................................134
Wiper lever.....................................................145
Lexus Dynamic Handling system (LDH) ............................................................................199
Lexus Enform Safety Connect.................. 52
Lexus Safety System + Automatic High Beam .............................. 142
LDA (Lane Departure Alert with steering control) .......................................................... 167
PCS (Pre-Collision System)................. 160
License plate lights Light switch .................................................... 140
Replacing light bulbs................................280
Light Wattage.......................................................... 336
Light bulbs Replacing ....................................................... 279 Lights
Automatic High Beam system ..............142
Front interior lights .................................... 223
Headlight switch.......................................... 140
Interior lights ................................................. 223
Interior lights list .......................................... 223
Personal lights ............................................. 224
Rear interior lights ..................................... 223
Replacing light bulbs............................... 280
Trunk light ...........................................................91
Turn signal lever ...........................................134
Vanity lights .................................................. 229
Wattage ..........................................................336
Lock steering column ..................................125
M
Maintenance Do-it-yourself maintenance .................. 251
General maintenance ............................. 247
Maintenance date...................................... 326
Maintenance requirements .................. 246
Malfunction indicator lamp ..................... 294
Master warning light .................................. 298
Menu icons.........................................................72
Meter Changing the main meter location...... 69
Clock................................................................... 66
Indicators........................................................... 64
Instrument panel light control................. 70
Meters................................................................. 66
Multi-information display ............................ 71
Settings............................................................... 76
Units..................................................................... 75
Warning lights .............................................293
Warning messages.................................... 301
Micro dust and pollen filter ....................... 217
Mirrors Inside rear view mirror ............................. 107
Outside rear view mirror defoggers . 217
Outside rear view mirrors...................... 108
Vanity mirrors .............................................. 229
