washer fluid LEXUS RC300 2022 Owners Manual

14Pictorial index
RC350/RC300 Owner's Manual
Parking brake switch .............................................................................................P.135
Applying/releasing ........................................................................................................... P.135
Precautions for winter season ..................................................................................... P.204
Warning buzzer/message............................................................................................. P.301
Headlight switch .....................................................................................................P.140
Turn signal lever ...................................................................................................... P.134
Headlights/parking lights/tail lights/license plate lights/daytime running lights ............................................................................................................................... .................... P.140
Windshield wiper and washer switch ................................................................ P.145
Usage.......................................................................................................................... ............ P.145
Adding washer fluid ......................................................................................................... P.2 62
Warning messages ........................................................................................................... P.30 1
Headlight cleaners
*1......................................................................................................... P.145
Emergency flasher switch .................................................................................. P.284
Trunk opener switch................................................................................................ P.90
Hood lock release lever ...................................................................................... P.253
Tilt and telescopic steering control switch
*1................................................... P.106
Adjustment ..................................................................................................................... ...... P.106
Driving position memory
*1............................................................................................. P.100
Tilt and telescopic stee ring lock release lever
*1............................................ P.106
Adjustment ..................................................................................................................... ...... P.106
Air conditioning system ........................................................................................P.213
Usage.......................................................................................................................... .............P.213
Rear window defogger..................................................................................................... P.217
Audio system
*2
Trunk opener main switch ......................................................................................P.92
*1: If equipped
*2: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.
E
F
G
H
I
J
K
L
M
N
O

1514-3. Operating the lights and wipers
RC350/RC300 Owner's Manual
4
Driving
once. After this, the headlight cleaners will
operate every 5th time the lever is pulled.
■The windshield wiper and washer can be
operated when
The engine switch is in IGNITION ON
mode.
■Dripping prevention wiper sweep
After performing a washing and wiping
operation several times, the wipers operate
one more time after a short delay to prevent
dripping.
However, this final wiper operation will not
be performed while driving.
■Effects of vehicle speed on wiper opera-
tion (vehicles with rain-sensing wind-
shield wipers)
Vehicle speed affects the following even
when the wipers are not in AUTO mode.
●Intermittent wiper interval
●Wiper operation when the washer is
being used (delay until drip prevention
wiper sweep occurs)
With low speed windshield wiper opera-
tion selected, wiper operation will be
switched from low speed to intermittent
wiper operation only when the vehicle is
stationary.
■Raindrop sensor (vehicles with
rain-sensing windshield wipers)
●The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
●If the wiper is turned to AUTO mode
while the engine switch is in IGNITION ON mode, the wipers will operate once
to show that AUTO mode is activated.
●If the temperature of
the raindrop sensor
is 185°F (85°C) or higher, or -22°F
(-30°C) or lower, automatic operation
may not occur. In this case, operate the
wipers in any mode other than AUTO
mode.
■When the windshield wipers are in tem-
porary operation (vehicles with
rain-sensing wind shield wipers)
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not
blocked if there is wash er fluid in the wind-
shield washer fluid reservoir.
WARNING
■Caution regarding the use of wind-
shield wipers in AUTO mode
The windshield wipers may operate
unexpectedly if the se nsor is touched or
the windshield is subj ect to vibration in
AUTO mode. Take care that your fingers
or anything else do not become caught
in the windshield wipers.
■Caution regarding the use of washer
fluid
When it is cold, do not use the washer
fluid until the windshield becomes warm.
The fluid may freeze on the windshield
and cause low visibility. This may lead to
an accident, resulting in death or serious
injury.
NOTICE
■When there is no washer fluid spray
from the nozzle
Damage to the washer fluid pump may
be caused if the lever is pulled toward
you and held continually.

2034-6. Driving tips
RC350/RC300 Owner's Manual
4
Driving
4-6.Driving tips
Use fluids that are appropriate to
the prevailing outside temperatures.
•Engine oil
• Engine coolant
•Washer fluid
Have a service technician inspect
the condition of the battery.
 Have the vehicle fitted with four
snow tires or purchase a set of tire
chains for the rear tires.
*
Ensure that all tires are the specified size
and brand, and that chains match the size
of the tires.
*: Tire chains cannot be mounted on vehi-
cles with front and rear tires of differing
sizes and vehicles with LDH and 19-inch
tires.
Perform the following according to the
driving conditions:
 Do not try to forcibly open a window
or move a wiper that is frozen. Pour
Winter driving tips
Carry out the necessary prepara-
tions and inspections before driving
the vehicle in winter. Always drive
the vehicle in a manner appropriate
to the prevailing weather condi-
tions.
Preparation for winter
WARNING
■Driving with snow tires
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in a loss of
vehicle control and cause death or seri-
ous injury.
●Use tires of the specified size.
●Maintain the recommended level of air
pressure.
●Do not drive in excess of 75 mph (120
km/h), regardless of the type of snow
tires being used.
●Use snow tires on all, not just some
wheels.
■Driving with tire chains
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in the vehicle
being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed
limit specified for the tire chains being
used, or 30 mph (50 km/h), which-
ever is lower.
●Avoid driving on bumpy road surfaces
or over potholes.
●Avoid sudden acceleration, abrupt
steering, sudden braking and shifting
operations that cause sudden engine
braking.
●Slow down sufficiently before entering
a curve to ensure that vehicle control is
maintained.
●Do not use LDA (Lane Departure
Alert with steering control) system.
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow
tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attach-
ment of snow tires affects the operation
of the tire pressure warning valves and
transmitters.
Before driving the vehicle

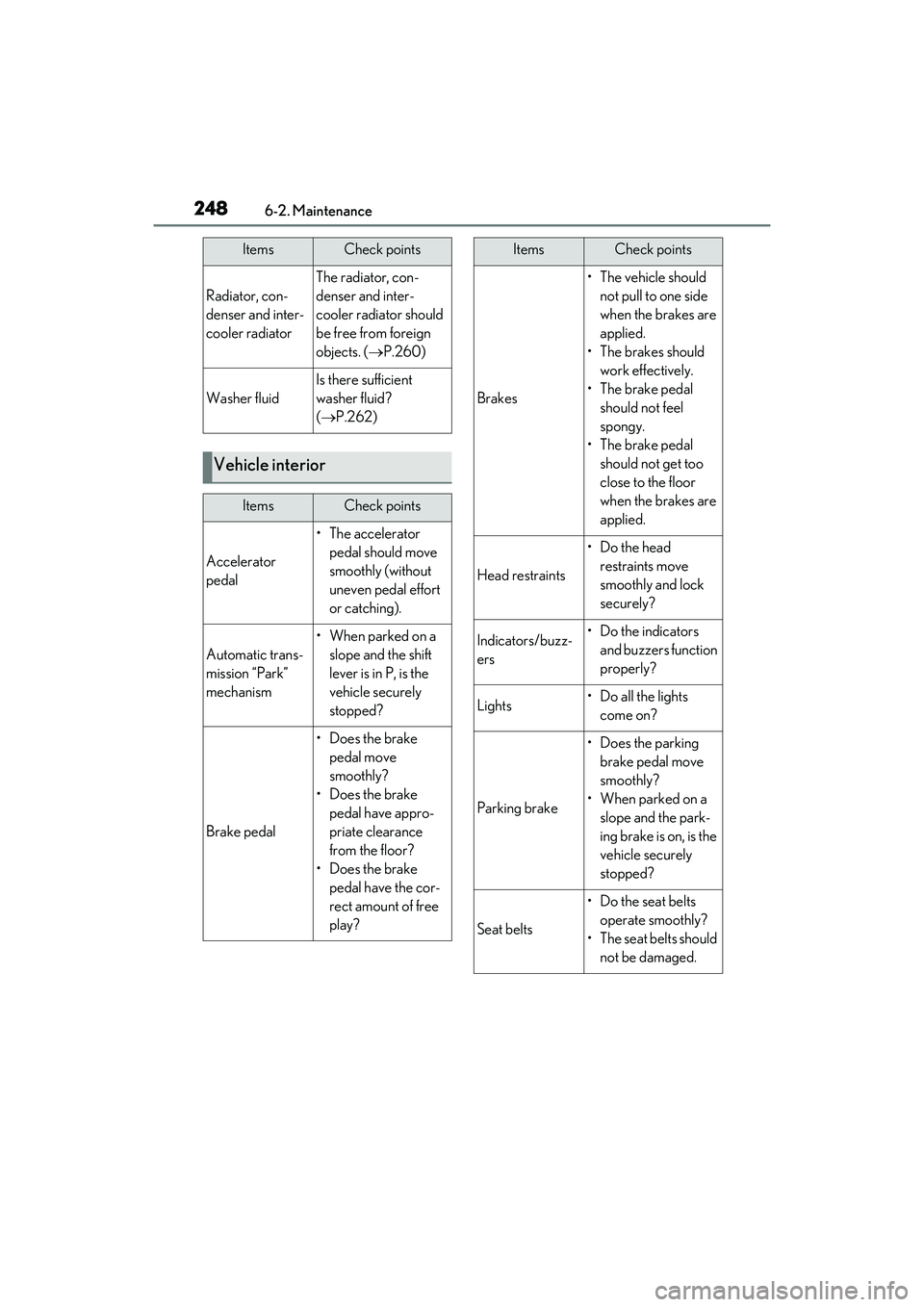

2486-2. Maintenance
RC350/RC300 Owner's Manual
Radiator, con-
denser and inter-
cooler radiator
The radiator, con-
denser and inter-
cooler radiator should
be free from foreign
objects. (P.260)
Washer fluid
Is there sufficient
washer fluid?
(P.262)
Vehicle interior
ItemsCheck points
Accelerator
pedal
• The accelerator
pedal should move
smoothly (without
uneven pedal effort
or catching).
Automatic trans-
mission “Park”
mechanism
•When parked on a slope and the shift
lever is in P, is the
vehicle securely
stopped?
Brake pedal
• Does the brake pedal move
smoothly?
• Does the brake pedal have appro-
priate clearance
from the floor?
• Does the brake pedal have the cor-
rect amount of free
play?
ItemsCheck points
Brakes
• The vehicle should not pull to one side
when the brakes are
applied.
• The brakes should work effectively.
• The brake pedal should not feel
spongy.
• The brake pedal should not get too
close to the floor
when the brakes are
applied.
Head restraints
•Do the head restraints move
smoothly and lock
securely?
Indicators/buzz-
ers•Do the indicators and buzzers function
properly?
Lights• Do all the lights come on?
Parking brake
•Does the parking brake pedal move
smoothly?
• When parked on a slope and the park-
ing brake is on, is the
vehicle securely
stopped?
Seat belts
• Do the seat belts operate smoothly?
• The seat belts should not be damaged.
ItemsCheck points

2526-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
Light bulbs
(P.279)
•Bulb with same num-
ber and wattage rat-
ing as original
• Phillips-head screw- driver
•Flathead screw- driver
•Wrench
Radiator, con-
denser and inter-
cooler radiator
( P.260)

Tire inflation pres-
sure ( P.271)• Tire pressure gauge
•Compressed air
source
Washer fluid
(P.262)
• Water or washer
fluid containing anti-
freeze (for winter
use)
• Funnel (used only for adding water or
washer fluid)
WARNING
The engine compartment contains many
mechanisms and fluids that may move
suddenly, become hot, or become elec-
trically energized. To avoid death or seri-
ous injury, observe the following
precautions.
■When working on the engine com-
partment
●Keep hands, clothi ng and tools away
from the moving fans and engine drive
belt.
●Be careful not to touch the engine,
radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil
and other fluids may also be hot.
ItemsParts and tools●Do not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.
●Do not smoke, cause sparks or expose
an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
●Be extremely cautious when working
on the battery. It contains poisonous
and corrosive sulfuric acid.
■When working near the electric cool-
ing fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION
ON mode, the electric cooling fans may
automatically start to run if the air condi-
tioning is on and/or the coolant tempera-
ture is high. ( P.260)
■Safety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air.

2556-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
6
Maintenance and care
RC350/RC300 AWDFuse boxes ( P.276)
Battery ( P.261)
Engine oil level dipstick ( P.256)
Engine coolant reservoir ( P.258)
Engine oil filler cap ( P.256)
Brake fluid reservoir ( P.260)
Washer fluid tank ( P.262)
Electric cooling fans
Condenser ( P.260)
Radiator ( P.260)
Engine compartment
Components
A
B
C
D
E
F
G
H
I
J

2566-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
RC300Fuse boxes ( P.276)
Battery ( P.261)
Engine oil level dipstick ( P.256)
Engine oil filler cap ( P.256)
Engine coolant reservoir ( P.258)
Brake fluid reservoir ( P.260)
Washer fluid tank ( P.262)
Electric cooling fans
Condenser ( P.260)
Intercooler radiator ( P.260)
Radiator ( P.260)
Intercooler coolant reservoir ( P.258)
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.
■Checking the engine oil
1 Park the vehicle on level ground.
After warming up the engine and
turning it off, wait more than 5 min-
utes for the oil to drain back into the
bottom of the engine.
A
B
C
D
E
F
G
H
I
J
K
L
Checking and adding the engine
oil

2626-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
If any washer does not work or the
warning message appears on the
multi-information display, the washer
tank may be empty. Add washer fluid.
RC350/RC300 AWD
WARNING
■Chemicals in the battery
Batteries contain poisonous and corro-
sive sulfuric acid and may produce
hydrogen gas which is flammable and
explosive. To reduce the risk of death or
serious injury, take the following precau-
tions while working on or near the bat-
tery:
●Do not cause sparks by touching the
battery terminals with tools.
●Do not smoke or light a match near the
battery.
●Avoid contact with eyes, skin and
clothes.
●Never inhale or swallow electrolyte.
●Wear protective sa fety glasses when
working near the battery.
●Keep children away from the battery.
■Where to safely charge the battery
Always charge the battery in an open
area. Do not charge the battery in a
garage or closed room where there is
insufficient ventilation.
■How to recharge the battery
Only perform a slow charge (5 A or
less). The battery may explode if charged
at a quicker rate.
■Emergency measures regarding
electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at
least 15 minutes and get immediate med-
ical attention. If po ssible, continue to
apply water with a sp onge or cloth while
traveling to the nearest medical facility.
●If electrolyte gets on your skin
Wash the affected area thoroughly. If you
feel pain or burning, get medical atten-
tion immediately.
●If electrolyte gets on your clothes
It can soak through clothing on to your
skin. Immediately take off the clothing
and follow the procedure above if neces-
sary.
●If you accidentally swallow electrolyte
Drink a large quantity of water or milk.
Get emergency medical attention imme-
diately.
NOTICE
■When recharging the battery
Never recharge the battery while the
engine is running. Also, be sure all acces-
sories are turned off.
Adding the washer fluid

2636-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
6
Maintenance and care
RC300Check if the treadwear indicators are
showing on the tires. Also check the
tires for uneven wear, such as excessive
wear on one side of the tread.
Check the spare tire condition and
pressure if not rotated.
New tread
Worn tread
Treadwear indicator
The location of treadwear indicators is
shown by a “TWI” or “ ” mark, etc.,
molded into the side wall of each tire.
Replace the tires if the treadwear indica-
tors are showing on a tire.
WARNING
■When adding washer fluid
Do not add washer fluid when the engine
is hot or running as washer fluid contains
alcohol and may catch fire if spilled on
the engine, etc.
NOTICE
■Do not use any fluid other than
washer fluid
Do not use soapy water or engine anti-
freeze instead of washer fluid.
Doing so may cause streaking on the
vehicle’s painted surfaces, as well as
damaging the pump leading to problems
of the washer fluid not spraying.
■Diluting washer fluid
Dilute washer fluid with water as neces-
sary.
Refer to the freezing temperatures listed
on the label of the washer fluid bottle.
Tires
Replace or rotate tires in accor-
dance with maintenance schedules
and treadwear.
Checking tires
A
B
C

387Alphabetical Index
RC350/RC300 Owner's Manual
If the engine will not start ......................... 312
If your vehicle has to be stopped in an
emergency ................................................ 284
Ignition switch (engine switch) .............125
Overheating................................................. 320
Tachometer ..................................................... 66
Engine coolant Capacity .........................................................330
Checking .......................................................258
Preparing and checking before winter......................................................................... 203
Engine coolant temperature gauge ....... 66
Engine immobilizer system ........................ 56
Engine oil Capacity ......................................................... 328
Checking ....................................................... 256
Preparing and checking before winter......................................................................... 203
Warning light ............................................... 294
Engine oil maintenance data .................. 258
Engine oil pressure gauge ...........................74
Engine oil temperature gauge ...................74
Engine switch ..................................................125 Auto power off function ...........................128
Changing the engine switch modes.. 127
If your vehicle has to be stopped in an
emergency ................................................ 284
EPS (Electric Power Steering) ................199 Warning light ............................................... 295
Event data recorder (EDR) ............................7
F
First-aid kit storage belt .............................227
Flat tire Tire pressure warning system ............. 266
Vehicles with a spare tire ..................... 305
Floor mats ...........................................................22
Fluid Automatic transmission ............................331
Brake.................................................... 260, 332
Washer ........................................................... 262
Footwell light ................................................. 223 Front passenger occupant classification
system .............................................................. 36
Front position lights Wattage ..........................................................336
Front seats Adjustment ....................................................... 97
Cleaning ......................................................... 243
Correct driving posture ............................ 23
Driving position memory ........................ 100
Head restraints............................................. 103
Memory recall function............................ 102
Power easy access system .................... 100
Seat heaters .................................................... 221
Seat position memory .............................. 100
Seat ventilators .............................................. 221
Front side marker light Light switch .................................................... 140
Front turn signal lights Replacing light bulbs............................... 280
Turn signal lever ...........................................134
Wattage ..........................................................336
Fuel Capacity .........................................................328
Fuel gauge........................................................ 66
Fuel pump shut off system..................... 292
Information .................................................... 337
Refueling.......................................................... 153
Type ..................................................................328
Warning light ............................................... 297
Fuel consumption Average fuel economy .............................. 73
Current fuel consumption ........................ 73
Fuel filler door If the fuel filler do or cannot be opened
............................................................................314
Refueling.......................................................... 153
Fuel gauge ......................................................... 66
Fuel pump shut off system........................ 292
Fuses ..................................................................276
G
Garage door opener ................................. 230
