4917-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)

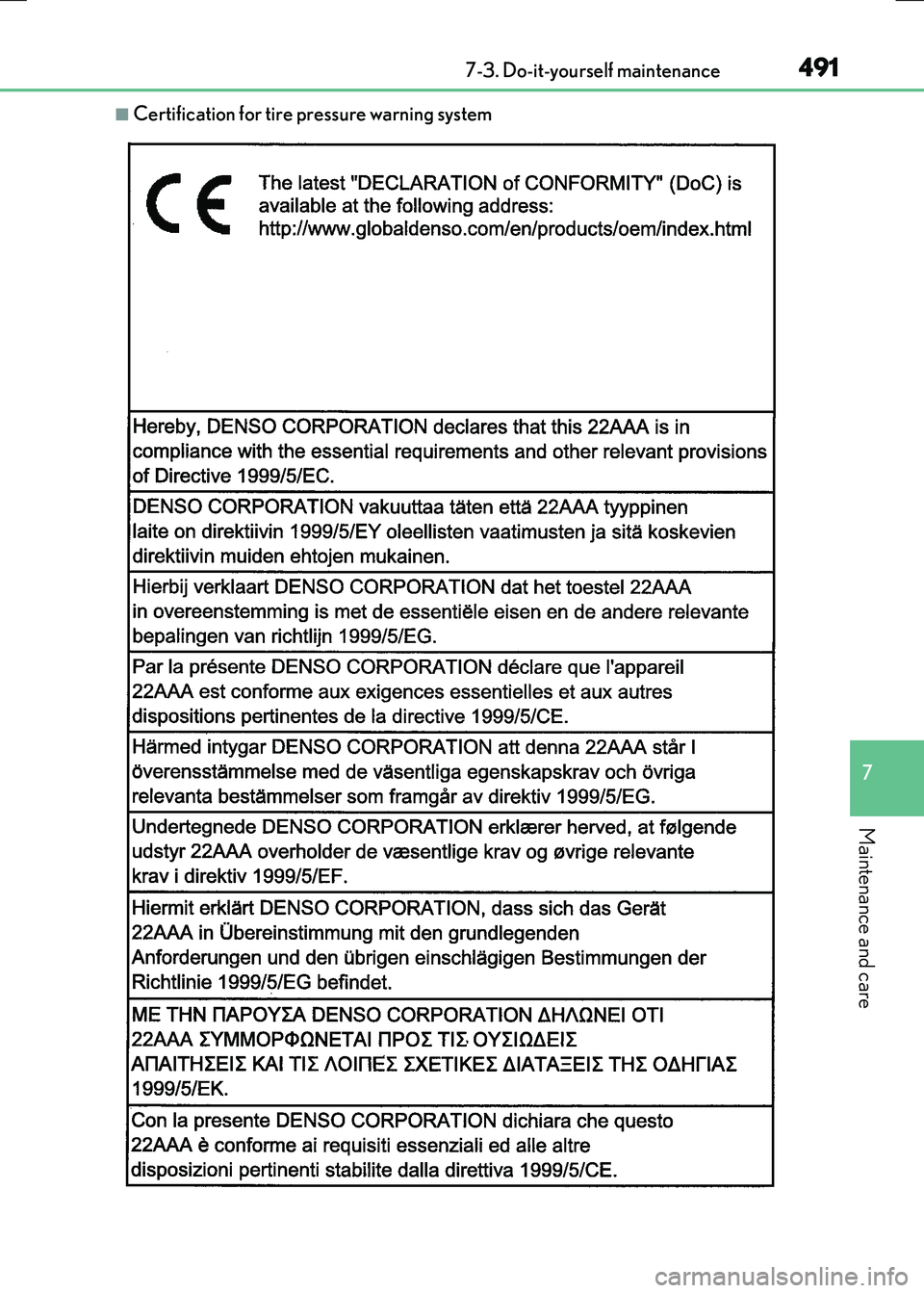

■Certification for tire pressure warning system

4927-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

4937-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)

4947-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

4957-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)

4967-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

4977-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)
WARNING
■When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause damage to parts of the drivetrain as well as dangerous han-
dling characteristics, which may lead to an acc ident resulting in death or serious injury.
●Do not mix tires of different makes, models or tread patterns. Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other th an those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle. Do not use tires if you do not know how they were used previously.
●Do not tow anything if a tire that has been repaired using the emergency tire puncture
repair kit is installed. The load on the tire may cause unexpected damage to the tire.
■When initializing the tire pressure warning system
Do not operate the tire pressure warning re set switch without first adjusting the tire
inflation pressure to the specified level. Ot herwise, the tire pressure warning light may not come on even if the tire inflation pressu re is low, or it may come on when the tire inflation pressure is actually normal.
■Caution regarding interference with electronic devices
●Users of any electrical medical device other than implantable cardiac pacemakers,
cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should consult the manufacturer of the device for information about itsoperation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical devices.
●People with implantable cardiac pacemakers,
cardiac resynchronization therapy-pacemak- ers or implantable cardioverter defibrillatorsshould not come within 450 mm (17.7 in.) of
the tire pressure warning system initiators. The radio waves may affect the operation ofsuch devices.

4987-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)
NOTICE
■Repairing or replacing tires, wheels, tire pressure warning valves, transmitters and tire valve caps
●When removing or fitting the wheels, tires or the tire pressure warning valves and
transmitters, contact any authorized Lexus de aler or repairer, or another duly quali- fied and equipped professional as the tire pressure warning valves and transmitters may be damaged if not handled correctly.
●Make sure to install the tire valve caps. If the tire valve caps are not installed, water could enter the tire pressure warning valv es and the tire pressure warning valves could be bound.
●When replacing tire valve caps, do not use tire valve caps other than those specified.The cap may become stuck.
■To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and trans- mitter may not operate properly. If a liquid sealant is used, contact any authorizedLexus dealer or repairer, or another duly qu alified and equipped professional or other
qualified service shop as soon as possible. After use of liquid sealant, make sure to replace the tire pressure warning valve and transmitter when repairing or replacing the tire. ( P. 486)
■Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes. These conditions may cause losses in tire inflation pressure, reducing the cushioning
ability of the tires. In addition, driving on rough roads may cause damage to the tires themselves, as well as the vehicle’s wheels and body.
■Low profile tires
Low profile tires may cause greater damage than usual to the tire wheel when sustain- ing impact from the road surface. Therefore, pay attention to the following:
●Be sure to use proper tire inflation pressu re. If tires are under-inflated, they may be
damaged more severely.
●Avoid potholes, uneven pavement, curbs an d other road hazards. Failure to do so may lead to severe tire and wheel damage.
■If tire inflation pressure of ea ch tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

4997-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the hybrid system.

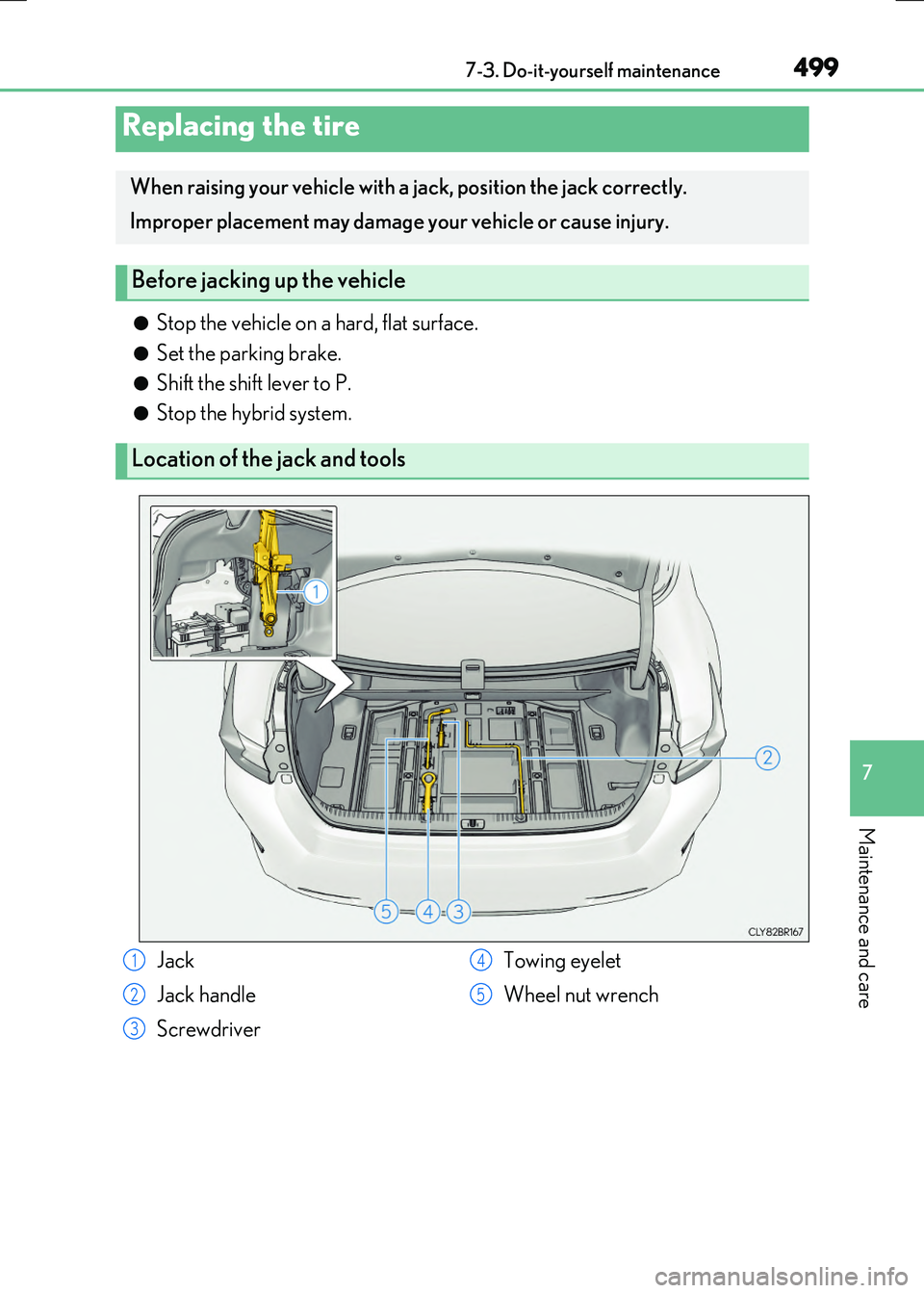

Replacing the tire
When raising your vehicle with a jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
Before jacking up the vehicle
Location of the jack and tools
Jack
Jack handle
Screwdriver
Towing eyelet
Wheel nut wrench
1
2
3
4
5

5007-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)
Jack
Remove the 12-volt battery cover. ( P. 481)
Take out the jack.
For tightening
For loosening
If the jack is too tightly installed to be removed by hand, insert a tool, suchas the screwdriver included with the
vehicle, into the hole of the jack (por- tion “A”) and loosen the jack.
Tools
Secure the luggage mat using the hook. ( P. 453)
WARNING
■Using the tire jack
Observe the following precautions. Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose ot her than replacing tires or installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a tire. Do not use it on other vehicles, and do no t use other tire jacks for replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is supported by
the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If there
are people nearby, warn them vocally before lowering.
Taking out the jack and tools
1
2
1
2
