LEXUS RC350 2015 Owners Manual

4617-1. Maintenance and care
7
Maintenance and care
RC350/RCF_U (OM24636U)
NOTICE
■Application of coatings to the vehicle body (vehicles with CFRP parts)
Do not apply any kind of coating to the vehicle body as doing so may damage the paint
or reduce its durability.
■To prevent paint deterioration and corrosion on the body and components (aluminum
wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint surface
• After driving in an area contaminated wi th soot, oily smoke, mine dust, iron pow-
der or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gaso line are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remo ve any dirt and store in a place with low
humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the su rfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side wiper arm
upward first, and repeat for the passenger side. When returning the wipers to their
original position, do so from the passenger side first.
■When using an automatic car wash (vehicle s with rain-sensing windshield wipers)
Set the wipers to the interm ittent windshield wipers. (P. 220)
If AUTO mode is selected, the wipers may operate and the wiper blades may be dam-
aged.

4627-1. Maintenance and care
RC350/RCF_U (OM24636U)
NOTICE
■When using a high pressure car wash
●When washing the vehicle, do not spray the camera or its surrounding area directly
with a high pressure washer. Shock applie d from high pressure water may cause the
device to not operate normally.
●Do not bring the nozzle tip close to joining parts, boots (rubber or plastic covers), or
connectors of the following as they may be damaged if they come into contact with
high pressure water.
■Hood vent (RC F)
•Drivetrain
• Steering •Suspension
•Brakes
●RC F: Do not point the nozzle of a high pres-
sure washer at the areas shown in the illustra-
tion, as high pressure water may damage the
oil coolers.
When washing the vehicle, do not allow a large
amount of water to enter
the hood vent at once,
such as when using a bucket, etc. or point the
nozzle of a high pressure washer at the hood
vent.
Water may get inside the engine compartment
and affect the engine and other components.

4637-1. Maintenance and care
7
Maintenance and care
RC350/RCF_U (OM24636U)
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth
dampened with lukewarm water.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with diluted
detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off all remain-
ing traces of detergent.
●Wipe the surface with a dry, soft cloth to remove any remaining moisture.
Allow the leather to dry in a shaded and ventilated area.
●Remove loose dirt using a vacuum cleaner.
●Apply a mild soap solution to the synthe tic leather using a sponge or soft cloth.
●Allow the solution to soak in for a few minutes. Remove the dirt and wipe off
the solution with a clean, damp cloth.
●Brush the surfaces using a soft brush.
Do not brush hard as doing so may cause damage.
●Wipe the surfaces clean with a soft clot h that has been dampened in cold or
lukewarm water and squeezed out.
●Allow the artificial leather (Alcantara®*) to dry in a shaded and ventilated
area.
*: “Alcantara®” is a registered trademark of Alcantara S.p.A.
Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and keep it
in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas
Cleaning the artificial leather (Alcantara®*) areas

4647-1. Maintenance and care
RC350/RCF_U (OM24636U)
■Caring for leather areas
Lexus recommends cleaning the interior of th e vehicle at least twice a year to maintain
the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or brush to
apply the foam. Rub in overlapping circles. Do not use water. Wipe dirty surfaces and let
them dry. Excellent results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the belts
periodically for excessive wear, fraying or cuts.
■When cleaning the carpeted portions of the glove box, console box, etc.
If a strong adhesive tape is used, there is a possibility that the surface of the carpet could
be damaged.
WA R N I N G
■Wa t e r i n t h e v e h i c l e
●Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch fire.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
(  P. 4 1 )
An electrical malfunction may cause the airbags to deploy or not function properly,
resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off the wind-
shield, obstructing the driver’s view and leading to an accident, resulting in death or
serious injury.

4657-1. Maintenance and care
7
Maintenance and care
RC350/RCF_U (OM24636U)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle interior
or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkaline oracidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, su ch as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior part’s
painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park the
vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as they
may stick to the leather su rface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into contact
with electrical components such as the au dio system above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with LDA [Lane Departure
Alert])
Be careful not to touch the camera sensor ( P. 2 4 8 ) .
If the camera is accidentally scratched or hit, LDA may not operate properly or may
cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires or antenna. Use a cloth dampened with luke-
warm water to gently wipe the window cl ean. Wipe the window in strokes running
parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

466
RC350/RCF_U (OM24636U)7-2. Maintenance
General maintenance should be performed
on a daily basis. This can be done by
yourself or by a Lexus dealer.
Scheduled maintenance should be perfor med at specified intervals according to
the maintenance schedule.
For details about maintenance items and sc hedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supplement” or “Scheduled Maintenance”.
You can perform some maintenance procedures by yourself.
Please be aware that do-it-yourself maintenance may affect warranty coverage.
The use of Lexus repair manuals is recommended.
For details about warranty coverage, refer to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Manu al Supplement” or “Warranty Booklet”.
Maintenance requirements
To ensure safe and economical driving, day-to-day care and regular mainte-
nance are essential. It is the owner’s re sponsibility to perform regular checks.
Lexus recommends the following maintenance:
General maintenance
Scheduled maintenance
Do-it-yourself maintenance

4677-2. Maintenance
7
Maintenance and care
RC350/RCF_U (OM24636U)
■Repair and replacement
It is recommended that genuine Lexus parts be used for repairs to ensure performance
of each system. If non-Lexus parts are used in replacement or if a repair shop other than
a Lexus dealer performs repairs, confirm the warranty coverage.
■Resetting the message indicating maintenance is required (U.S.A. only)
After the required maintenance is performed according to the maintenance schedule,
please reset the message.
To reset the data, follow the procedure described below:While the engine is running, switch the multi-information display to the “Settings”
screen. ( P. 9 0 , 9 6 )
Select “Maintenance System” on the “Settings” screen.
Select “Yes” on the “Mai ntenance System” screen.
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists an d are kept up to date with the latest ser-
vice information. They are well informed ab out the operations of all systems on your
vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while your vehicle is
under warranty, your Lexus dealer will promptly take care of it.
A message will be displayed when the reset
procedure has been completed.
1
2
3

4687-2. Maintenance
RC350/RCF_U (OM24636U)
WA R N I N G
■If your vehicle is not properly maintained
Improper maintenance could result in se rious damage to the vehicle and possible
death or serious injury.
■Handling of the battery
●Engine exhaust, some of its constituents , and a wide variety of automobile compo-
nents contain or emit chemicals known to the State of California to cause cancer and
birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by component
wear contain or emit chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm. Avoid exposure and wash any affected area
immediately.
●Battery posts, terminals and related accessories contain lead and lead compounds
which are known to cause brain damage. Wash your hands after handling. ( P. 4 8 7 )

4697-2. Maintenance
7
Maintenance and care
RC350/RCF_U (OM24636U)

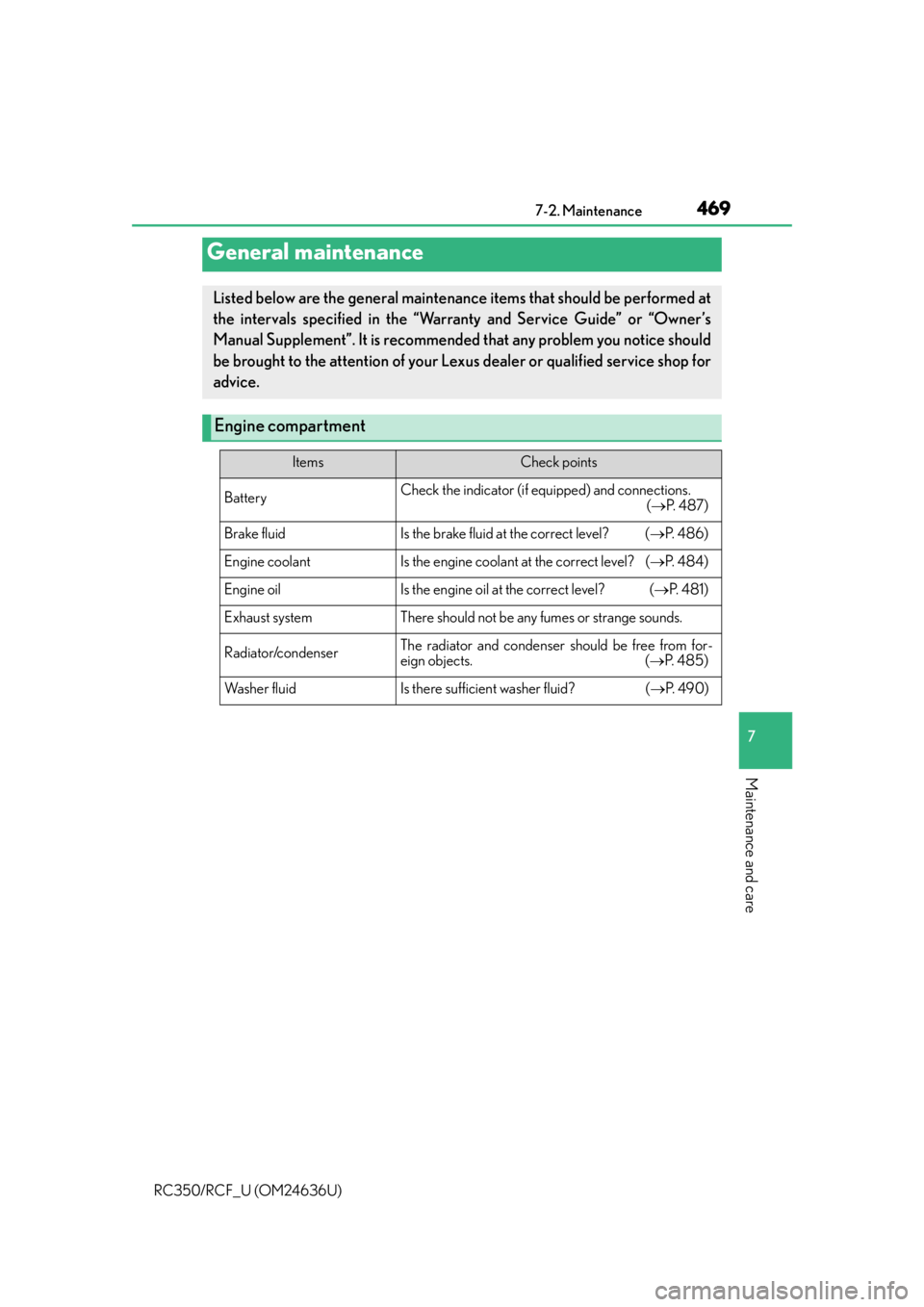

General maintenance
Listed below are the general maintenance items that should be performed at
the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommended that any problem you notice should
be brought to the attention of your Lexu s dealer or qualified service shop for
advice.
Engine compartment
ItemsCheck points
BatteryCheck the indicator (if equipped) and connections. ( P. 4 8 7 )
Brake fluidIs the brake fluid at the correct level? ( P. 4 8 6 )
Engine coolantIs the engine coolant at the correct level? ( P. 484)
Engine oilIs the engine oil at the correct level? ( P. 4 8 1 )
Exhaust systemThere should not be any fumes or strange sounds.
Radiator/condenserThe radiator and condenser should be free from for-
eign objects. ( P. 4 8 5 )
Wa s h e r f l u i dIs there sufficient washer fluid? ( P. 4 9 0 )

4707-2. Maintenance
RC350/RCF_U (OM24636U)

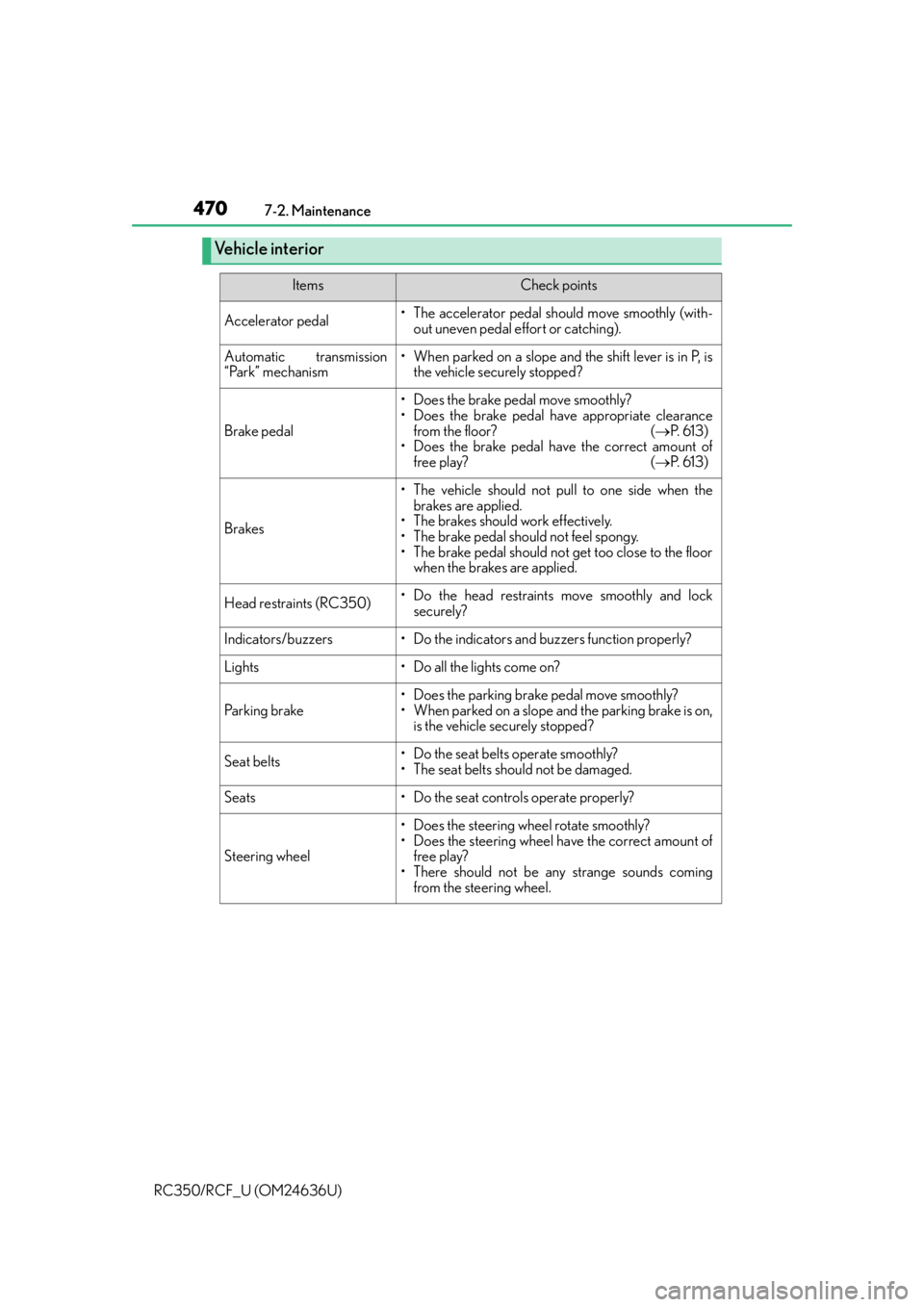

Vehicle interior
ItemsCheck points
Accelerator pedal• The accelerator pedal should move smoothly (with- out uneven pedal effort or catching).
Automatic transmission
“Park” mechanism• When parked on a slope and the shift lever is in P, isthe vehicle securely stopped?
Brake pedal
• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clearance
from the floor? ( P. 6 1 3 )
• Does the brake pedal have the correct amount of
free play? ( P. 6 1 3 )
Brakes
• The vehicle should not pull to one side when the
brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close to the floor when the brakes are applied.
Head restraints (RC350)• Do the head restraints move smoothly and lock
securely?
Indicators/buzzers• Do the indicators and buzzers function properly?
Lights• Do all the lights come on?
Parking brake
• Does the parking brake pedal move smoothly?
• When parked on a slope and the parking brake is on,is the vehicle securely stopped?
Seat belts•Do the seat belt s operate smoothly?
• The seat belts should not be damaged.
Seats• Do the seat controls operate properly?
Steering wheel
• Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct amount of free play?
• There should not be an y strange sounds coming
from the steering wheel.
