LEXUS RC350 2015 Owners Manual
Manufacturer: LEXUS, Model Year: 2015, Model line: RC350, Model: LEXUS RC350 2015Pages: 684, PDF Size: 9.31 MB
Page 551 of 684
5518-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
Indicates that the tire inflation pressure is low
Check the tire inflation pressure, and adjust to the
appropriate level.
Indicates a malfunction in th e tire pressure warning sys-
tem
Stop the vehicle in a safe place and turn the engine
switch off then on again.
If the tire pressure warning indicator flashes for 1
minute then illuminates, there is a malfunction in the
system. Have the vehicle inspected at your Lexus
dealer.
Indicates that the tire position information cannot be rec-
ognized
Drive for a short while an d check if the display
updates.
If the radio wave conditions improve, the display
may return to normal. If th e tire pressure is still not
displayed after driving for several minutes, stop the
vehicle in a safe place, turn the engine switch off
then on again, and start driving.
If the tire pressure is still not displayed even after
repeating this process several times, have the vehi-
cle inspected at your Lexus dealer.
RC F only
Indicates a malfunction in the active rear wing
Have the vehicle inspected by your Lexus dealer.
Indicates that the wash er fluid level is low
Add washer fluid.
Wa r n i n g m e s s a g eDetails/Actions

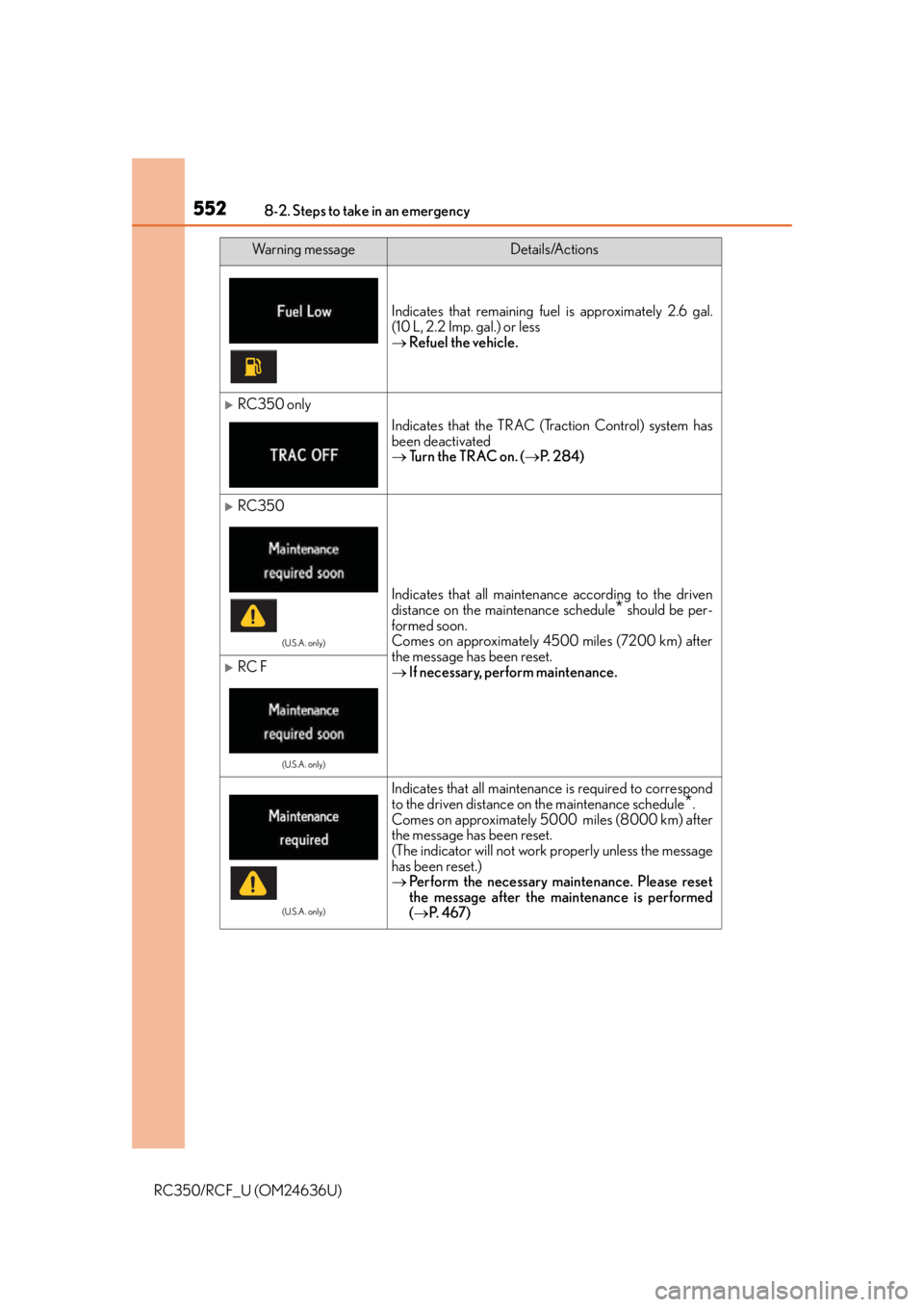

Page 552 of 684
5528-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
Indicates that remaining fuel is approximately 2.6 gal.
(10 L, 2.2 Imp. gal.) or less
Refuel the vehicle.
RC350 only
Indicates that the TRAC (Tra ction Control) system has
been deactivated
Tu r n t h e T R A C o n . ( P. 2 8 4 )
RC350
(U.S.A. only)
Indicates that all maintenance according to the driven
distance on the maintenance schedule
* should be per-
formed soon.
Comes on approximately 4500 miles (7200 km) after
the message has been reset.
If necessary, perform maintenance.
RC F
(U.S.A. only)
(U.S.A. only)
Indicates that all maintenance is required to correspond
to the driven distance on the maintenance schedule
*.
Comes on approximately 5000 miles (8000 km) after
the message has been reset.
(The indicator will not work properly unless the message
has been reset.)
Perform the necessary maintenance. Please reset
the message after the maintenance is performed
( P. 4 6 7 )
Wa r n i n g m e s s a g eDetails/Actions

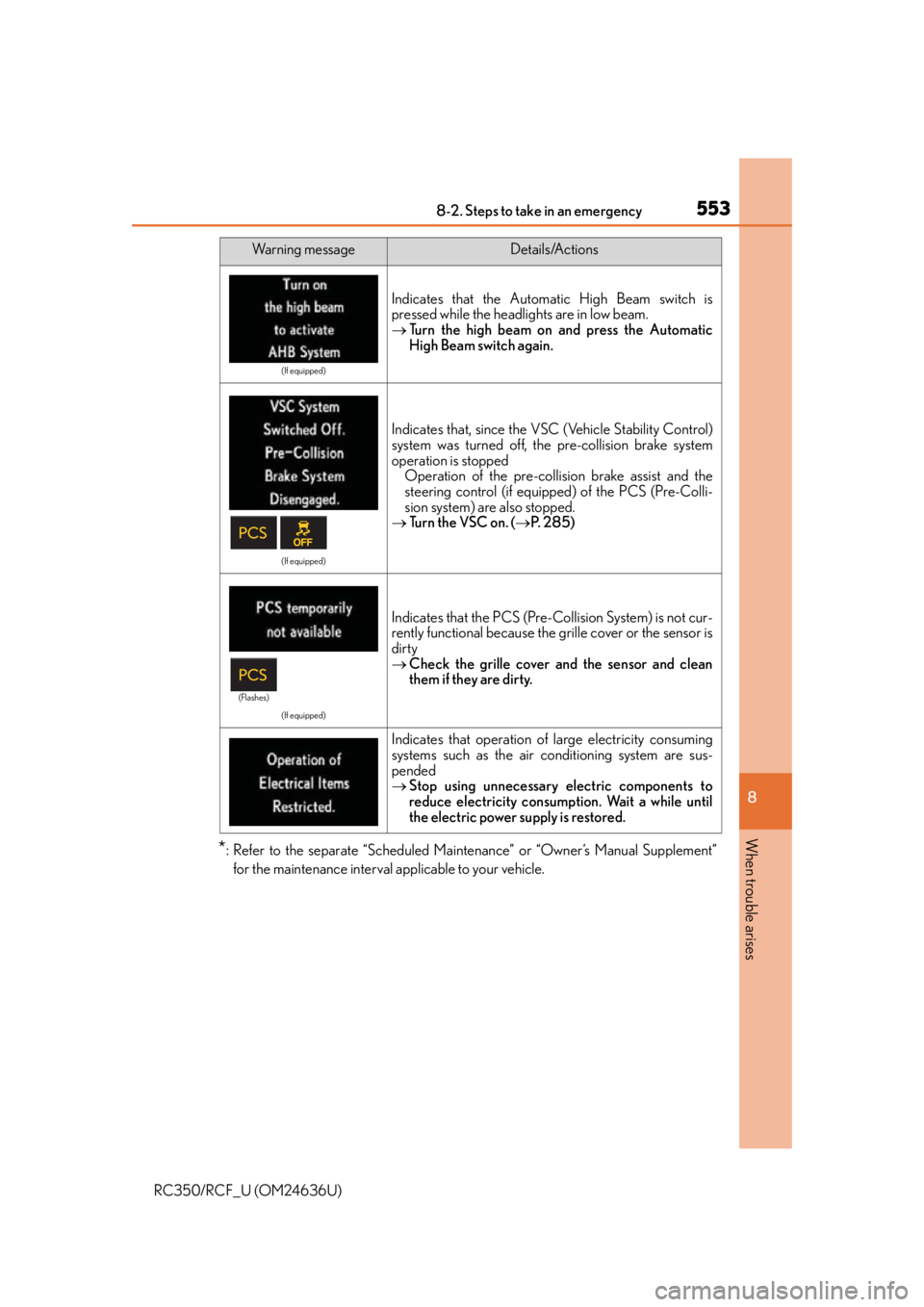

Page 553 of 684
5538-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement”
for the maintenance interval applicable to your vehicle.
(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
Turn the high beam on and press the Automatic
High Beam switch again.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-collision brake system
operation is stopped Operation of the pre-collision brake assist and the
steering control (if equipped) of the PCS (Pre-Colli-
sion system) are also stopped.
Turn the VSC on. ( P. 285)
(If equipped)
Indicates that the PCS (Pre-Collision System) is not cur-
rently functional because the grille cover or the sensor is
dirty
Check the grille cover and the sensor and clean
them if they are dirty.
Indicates that operation of large electricity consuming
systems such as the air conditioning system are sus-
pended
Stop using unnecessary electric components to
reduce electricity consumption. Wait a while until
the electric power supply is restored.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
Page 554 of 684
5548-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
■Wa r n i n g m e s s a g e s
The warning message illustrations used are intended as examples, and may differ from
the image that is actua lly displayed on the multi-information display.
■Warning message in radar cruise mode (if equipped)
In the following situations, the warning messag e may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the vehicle
ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LDA (Lane Departure Alert) lane departure warning function
In the following situations, the warning messag e will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LDA system func-
tions
●When the lane lines cannot be recognized
■Reset the maintenance data (U.S.A. only)
Make sure to reset the oil change system. ( P. 4 6 7 )
■Conditions that the tire pressure warning system may not function properly
P. 4 9 6
■Warning buzzer
P. 5 3 6

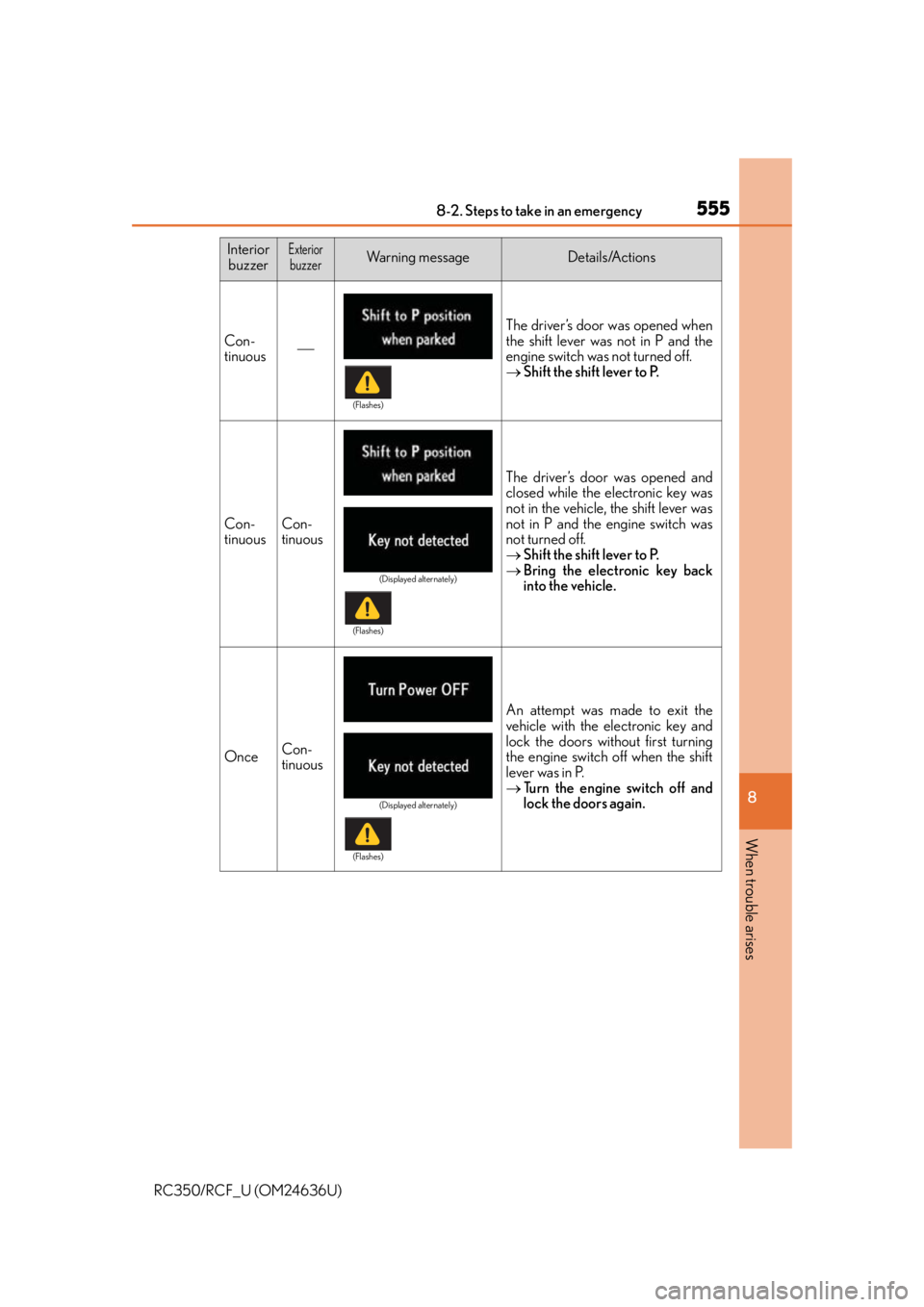

Page 555 of 684
5558-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
InteriorbuzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
Con-
tinuous The driver’s door was opened when
the shift lever was not in P and the
engine switch was not turned off.
Shift the shift lever to P.
Con-
tinuousCon-
tinuous
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
not in P and the engine switch was
not turned off.
Shift the shift lever to P.
Bring the electronic key back
into the vehicle.
OnceCon-
tinuous
An attempt was made to exit the
vehicle with the electronic key and
lock the doors without first turning
the engine switch off when the shift
lever was in P.
Turn the engine switch off and
lock the doors again.
(Flashes)
(Displayed alternately)
(Flashes)
(Displayed alternately)
(Flashes)

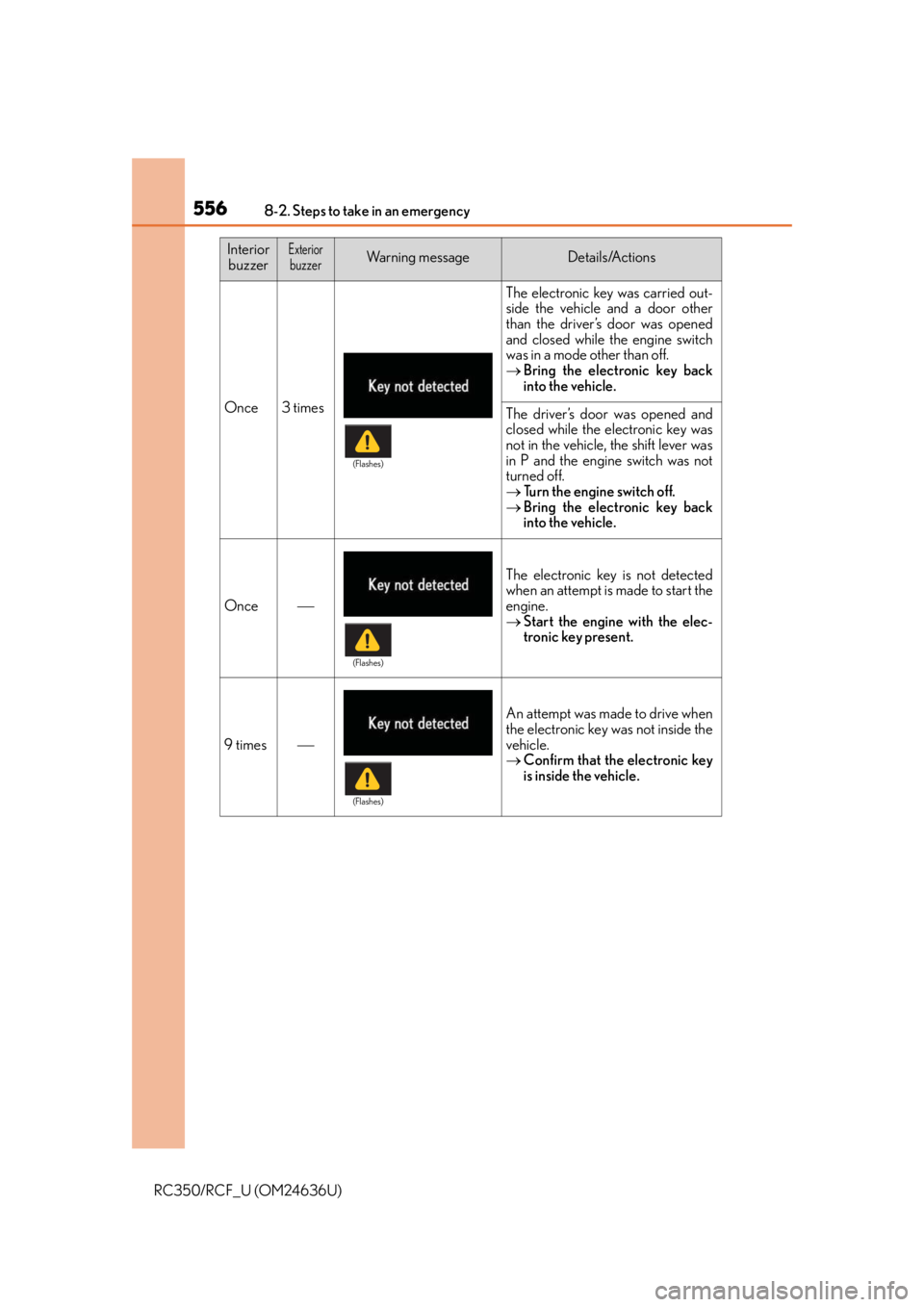

Page 556 of 684
5568-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
Once3 times
The electronic key was carried out-
side the vehicle and a door other
than the driver’s door was opened
and closed while the engine switch
was in a mode other than off.
Bring the electronic key back
into the vehicle.
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
in P and the engine switch was not
turned off.
Turn the engine switch off.
Bring the electronic key back
into the vehicle.
Once The electronic key is not detected
when an attempt is made to start the
engine.
Start the engine with the elec-
tronic key present.
9 times
An attempt was made to drive when
the electronic key was not inside the
vehicle.
Confirm that the electronic key
is inside the vehicle.
Interior
buzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)

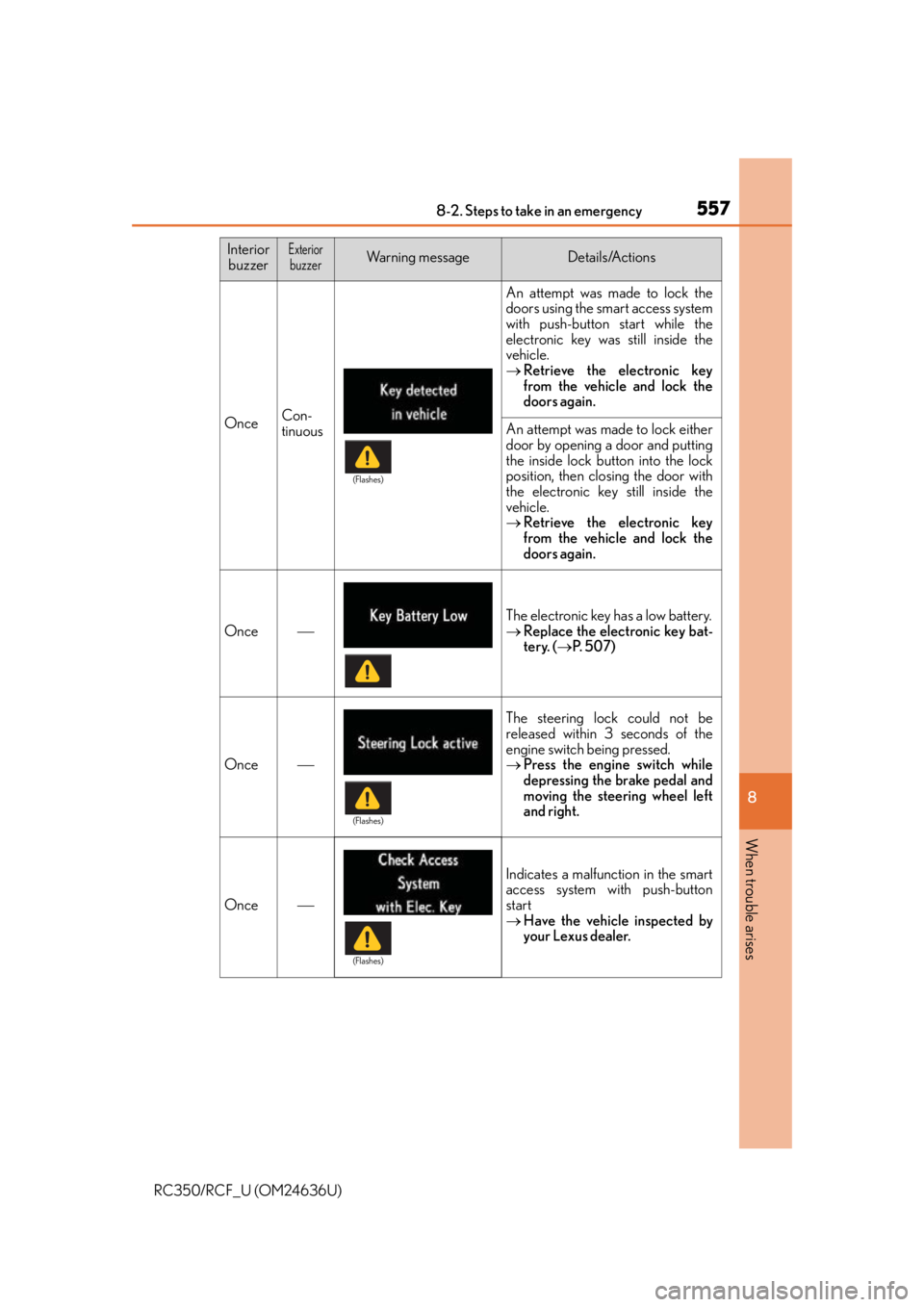

Page 557 of 684
5578-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
OnceCon-
tinuous
An attempt was made to lock the
doors using the smart access system
with push-button start while the
electronic key was still inside the
vehicle.
Retrieve the electronic key
from the vehicle and lock the
doors again.
An attempt was made to lock either
door by opening a door and putting
the inside lock button into the lock
position, then closing the door with
the electronic key still inside the
vehicle.
Retrieve the electronic key
from the vehicle and lock the
doors again.
Once
The electronic key has a low battery.
Replace the electronic key bat-
tery. ( P. 5 0 7 )
Once
The steering lock could not be
released within 3 seconds of the
engine switch being pressed.
Press the engine switch while
depressing the brake pedal and
moving the steering wheel left
and right.
Once
Indicates a malfunction in the smart
access system with push-button
start
Have the vehicle inspected by
your Lexus dealer.
Interior
buzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)

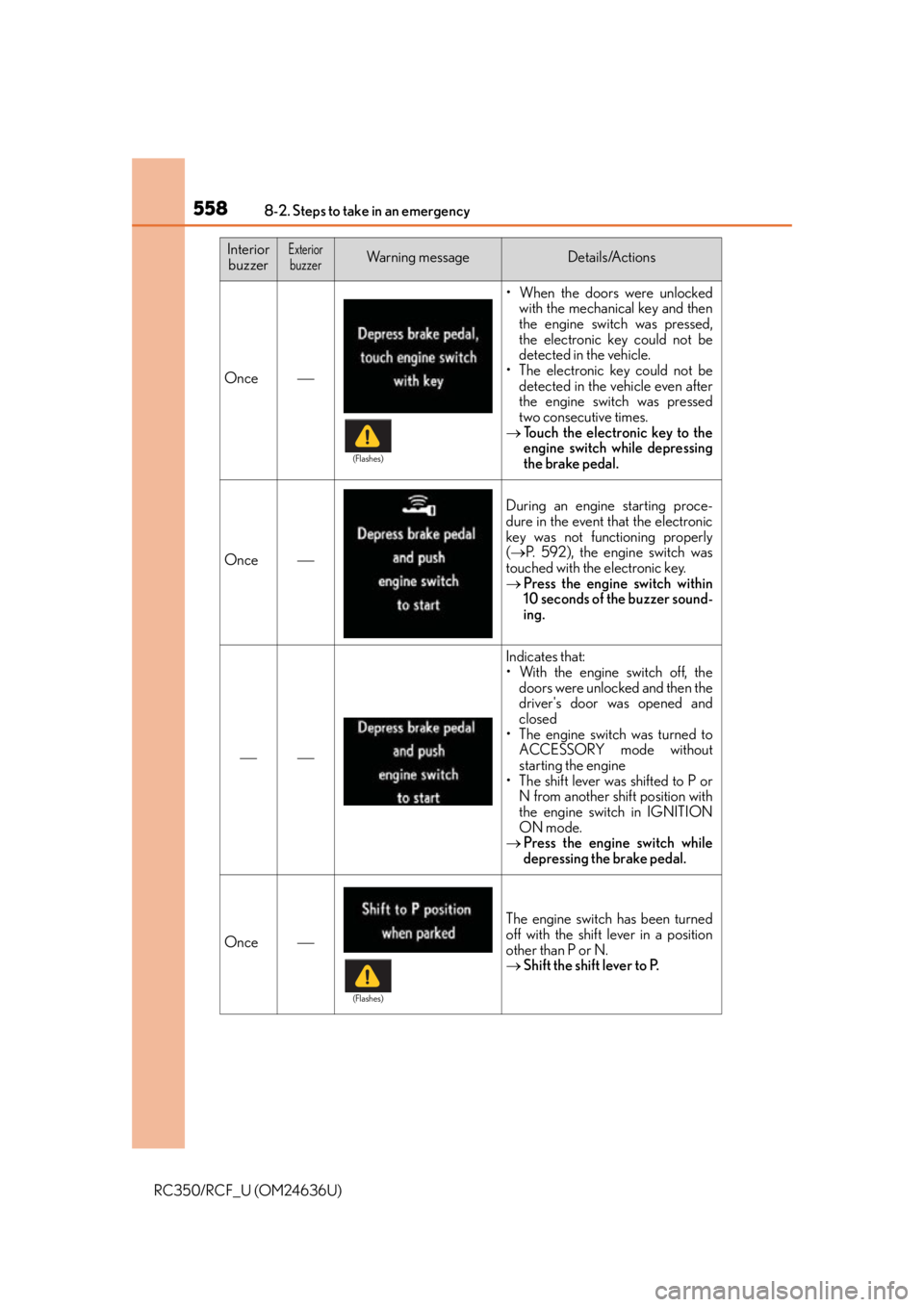

Page 558 of 684
5588-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
Once
• When the doors were unlockedwith the mechanical key and then
the engine switch was pressed,
the electronic key could not be
detected in the vehicle.
• The electronic key could not be detected in the vehicle even after
the engine switch was pressed
two consecutive times.
Touch the electronic key to the
engine switch while depressing
the brake pedal.
Once
During an engine starting proce-
dure in the event that the electronic
key was not functioning properly
( P. 592), the engine switch was
touched with the electronic key.
Press the engine switch within
10 seconds of the buzzer sound-
ing.
Indicates that:
• With the engine switch off, the
doors were unlocked and then the
driver's door was opened and
closed
• The engine switch was turned to ACCESSORY mode without
starting the engine
• The shift lever was shifted to P or N from another shift position with
the engine switch in IGNITION
ON mode.
Press the engine switch while
depressing the brake pedal.
Once
The engine switch has been turned
off with the shift lever in a position
other than P or N.
Shift the shift lever to P.
Interior
buzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

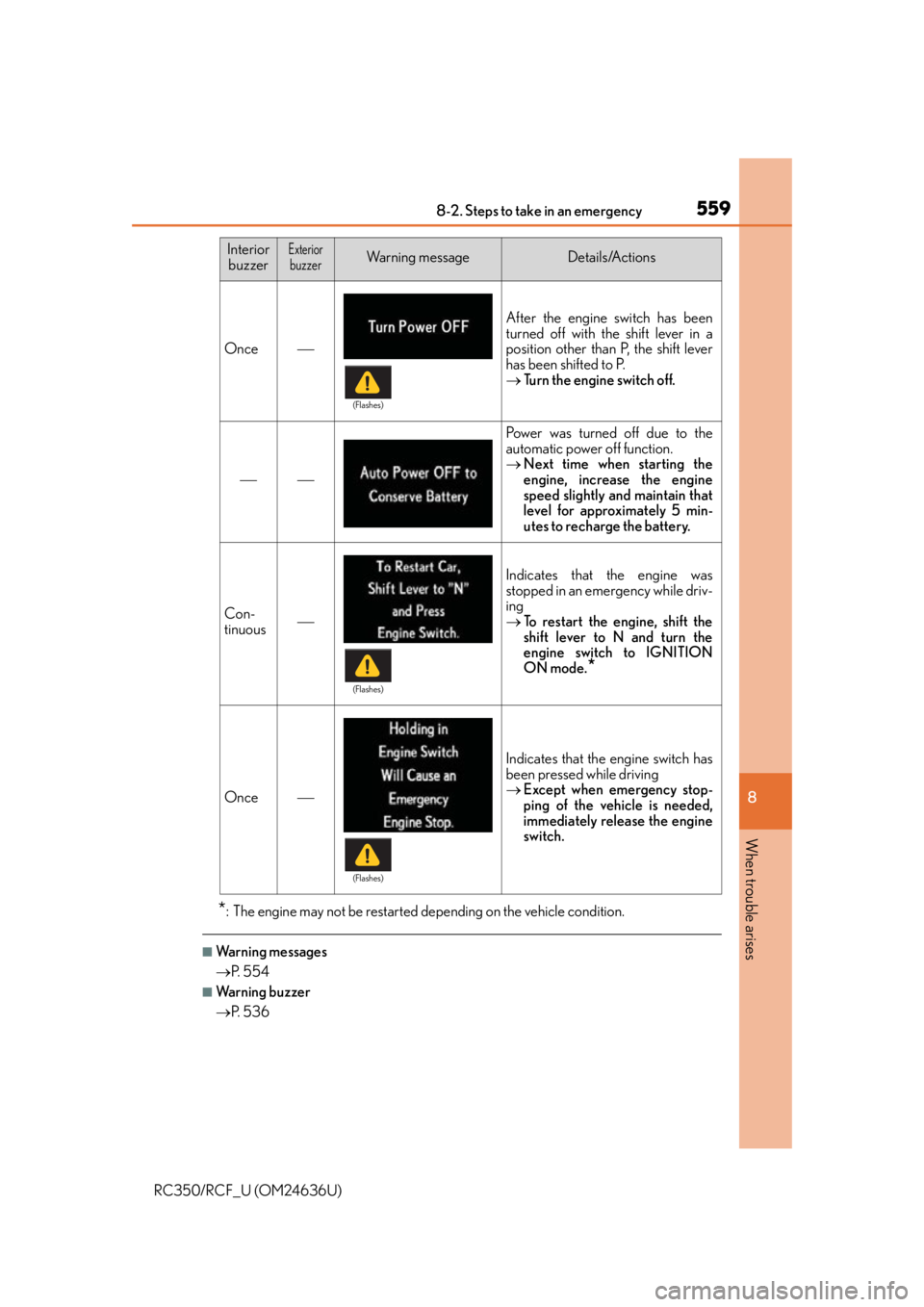

Page 559 of 684
5598-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
*: The engine may not be restarted depending on the vehicle condition.
■Wa r n i n g m e s s a g e s
P. 5 5 4
■Warning buzzer
P. 5 3 6
Once
After the engine switch has been
turned off with the shift lever in a
position other than P, the shift lever
has been shifted to P.
Turn the engine switch off.
Power was turned off due to the
automatic power off function.
Next time when starting the
engine, increase the engine
speed slightly and maintain that
level for approximately 5 min-
utes to recharge the battery.
Con-
tinuous
Indicates that the engine was
stopped in an emer gency while driv-
ing
To restart the engine, shift the
shift lever to N and turn the
engine switch to IGNITION
ON mode.
*
Once
Indicates that the engine switch has
been pressed while driving
Except when emergency stop-
ping of the vehicle is needed,
immediately release the engine
switch.
Interior
buzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)
Page 560 of 684
5608-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (P. 522)
If you have a flat tire (vehicles with a spare tire)
Your vehicle is equipped with a spare ti re. The flat tire can be replaced with
the spare tire.
For details about tires: P. 4 9 1
WA R N I N G
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat ti re can damage the tire and the wheel beyond
repair, which could result in an accident.
Before jacking up the vehicle
